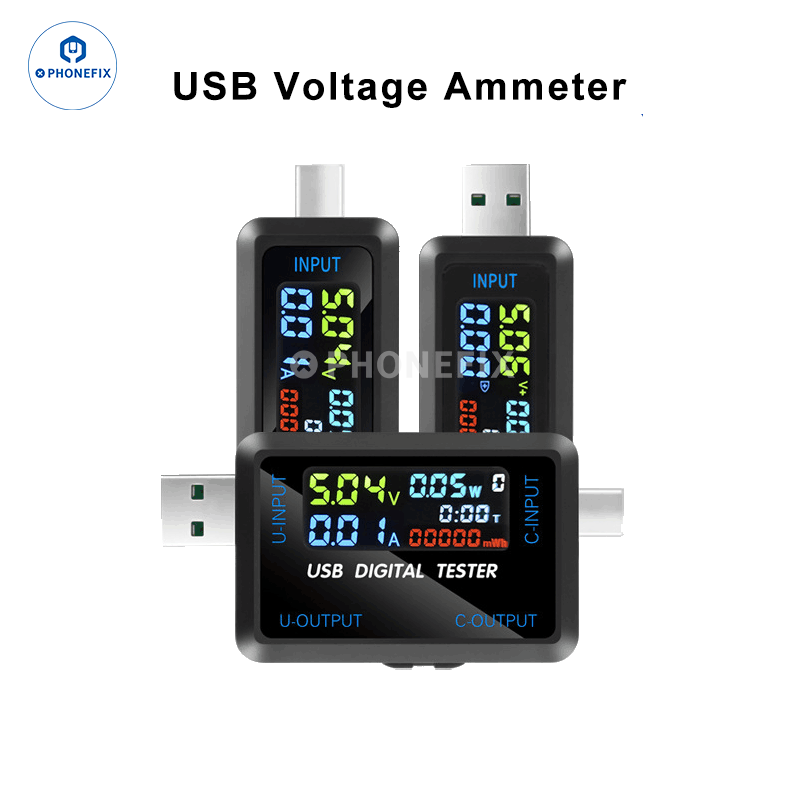

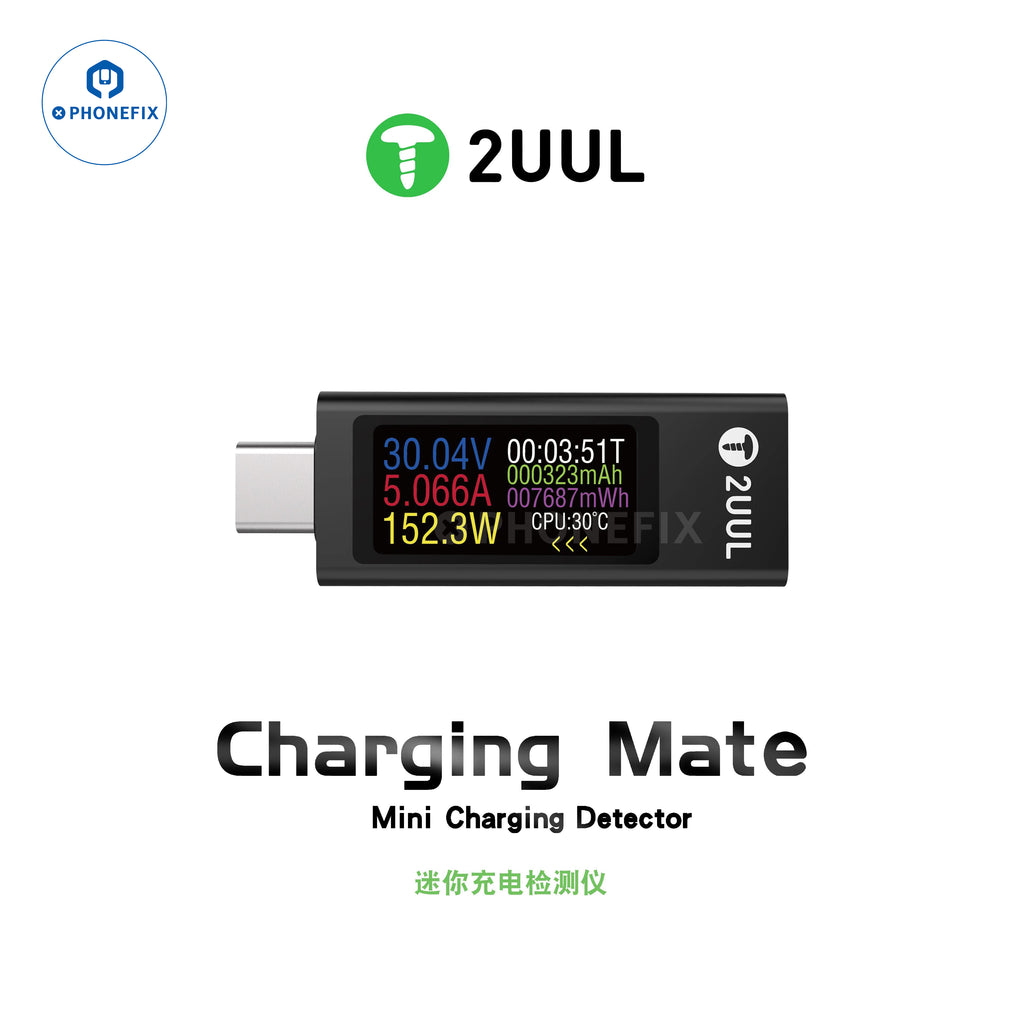

Multifunctional USB Type-C Digital Voltmeter for testing the current, voltage, power, capacity, resistance, time and other parameters of chargers, data cables, laptops, mobile phones and other digital devices. 2UUL PW21 Charging Mate USB-C Mini Charging Detector for iPhone, mobile phone, iPad, laptops, tablets. USB Tester with USB-A or Type-C port, multi-group data recording and battery capacity detection.

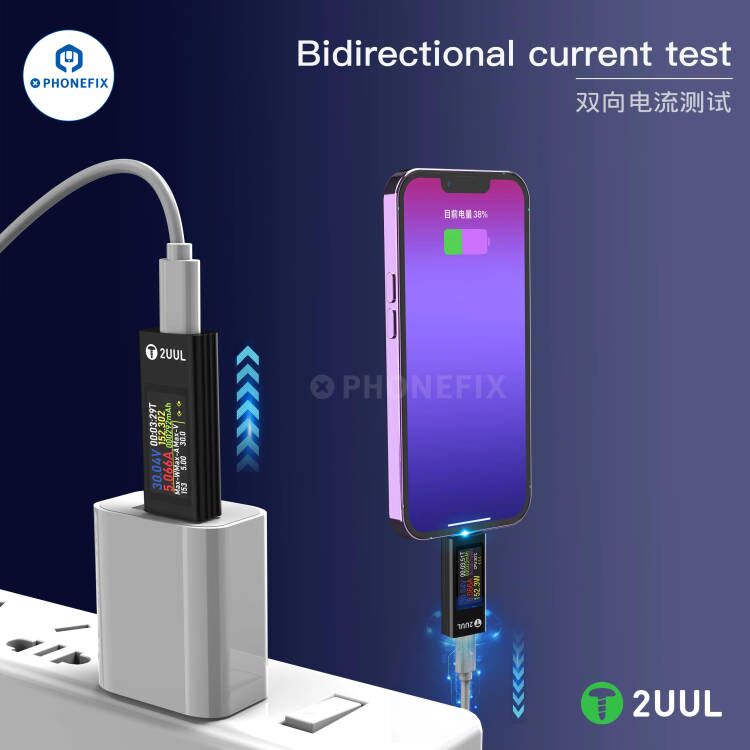

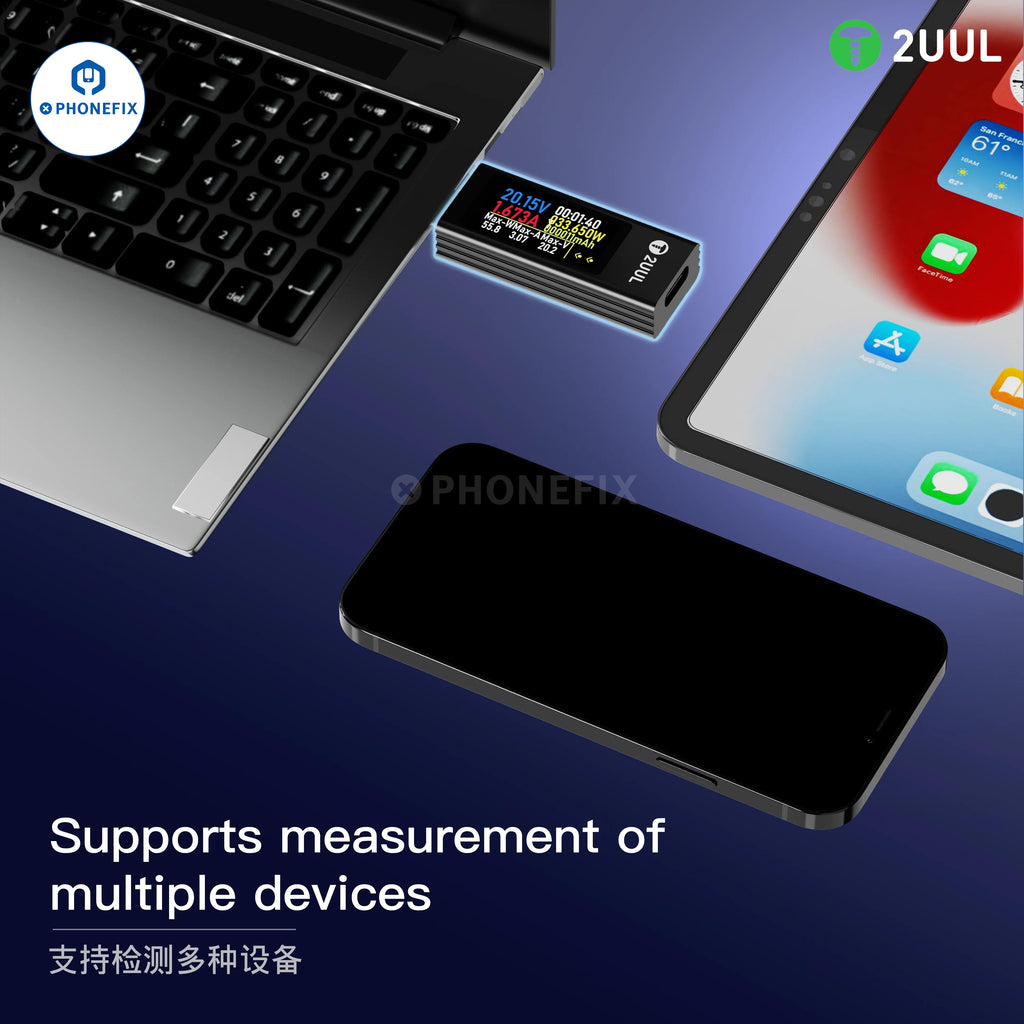

2UUL Charging Mate Type-C Charging Detector supports PD2.0/30, PPS, QC2.0, 3.0FCP, SCP AFC, PE, DASH VOOC, Super VOOC, ect., 30V 12A, bidirectional current test, supports mobile phone charging measurement and power bank capacity recording, supports detection of multiple devices, and it's compatible with various mobile phone models.
2UUL PW21 Charging Detector Features:
Voltage: 4-30V
Current: 0-12A
Timing: 0-99 hours
Power: 0-360w
Capacity: 0-99999mAh
Electric energy: 0-99999WH
Functions:
1. Record the highest power in a single time.
2. Record maximum in a single time.
3. Record the highest voltage in a single time.
4. Record the highest voltage in a single time.
5. Electric energy.
6. CPU temperature.
Option:

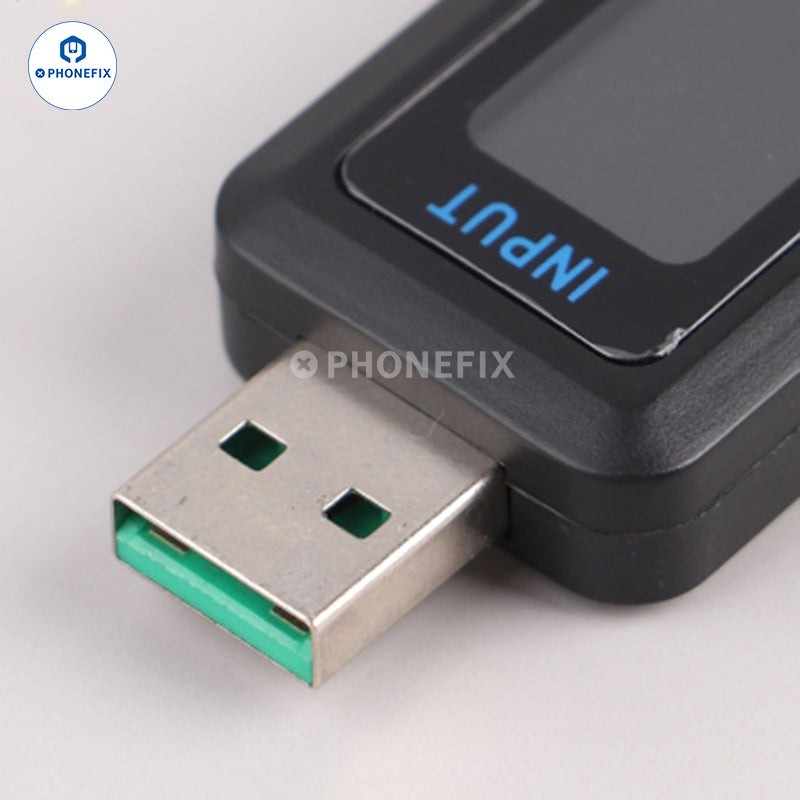

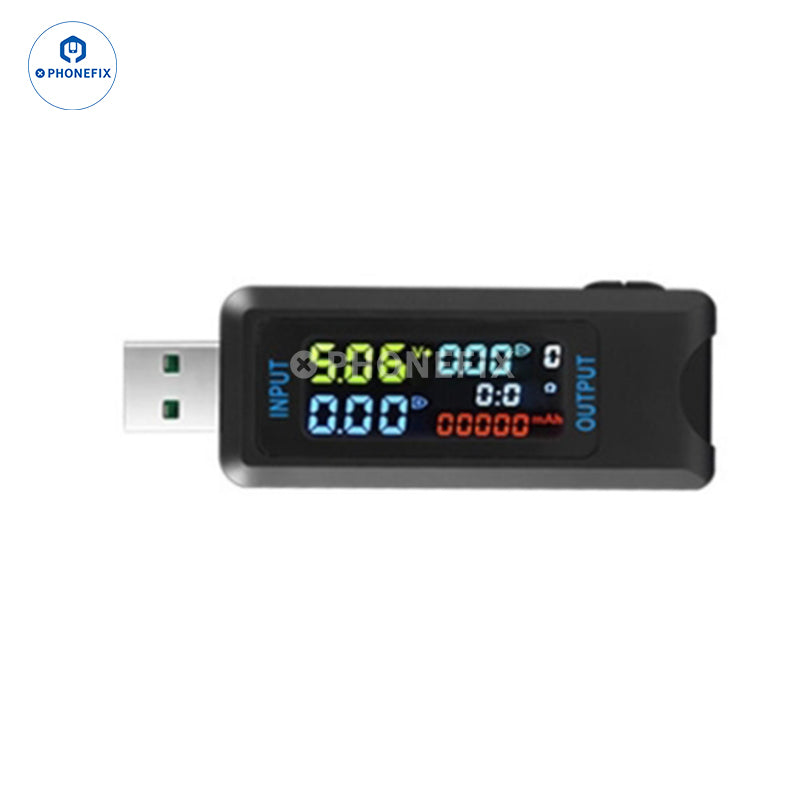

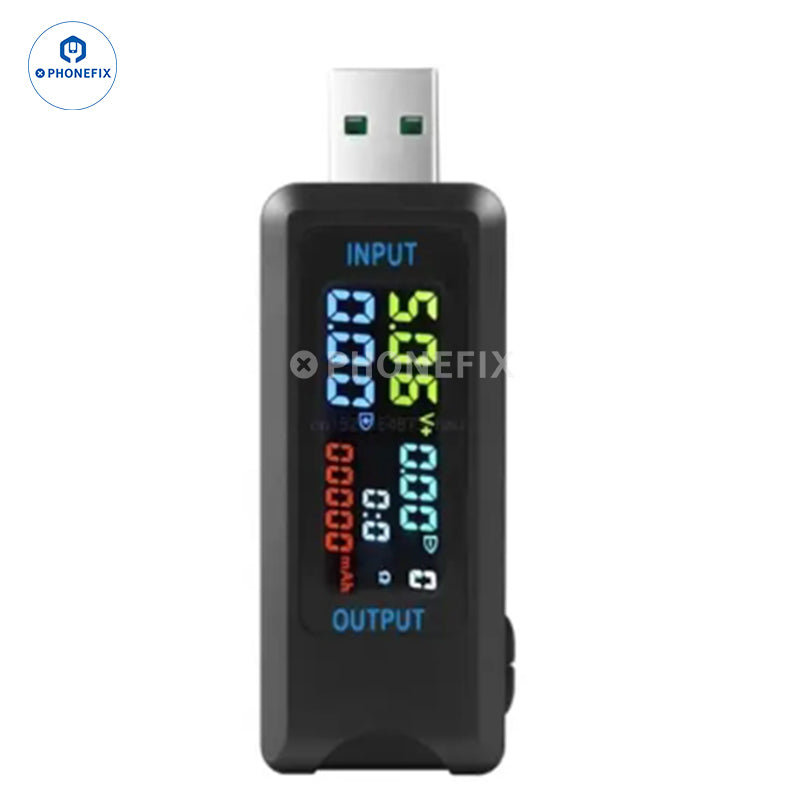

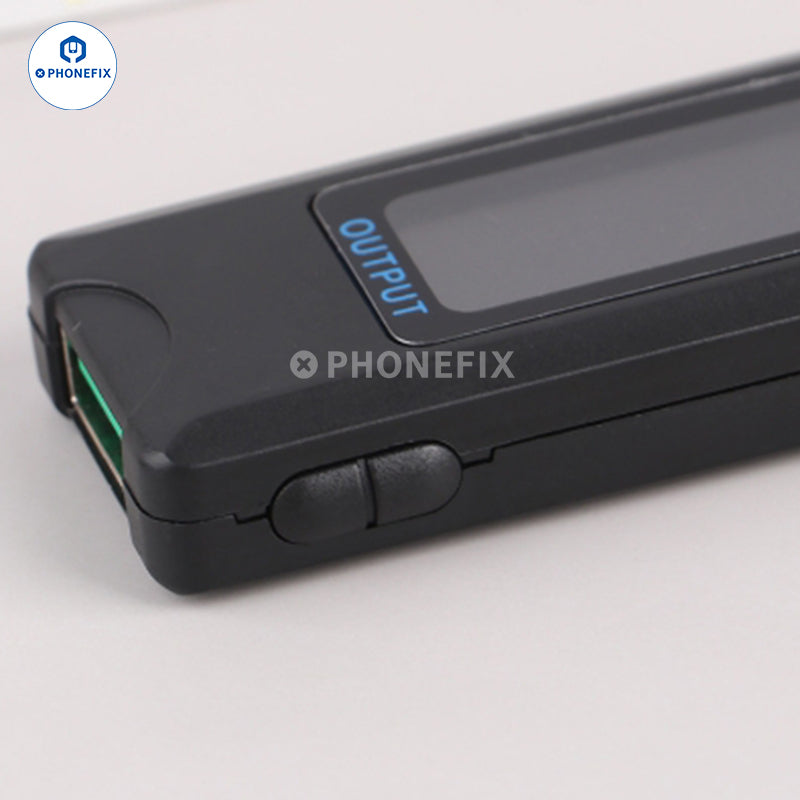

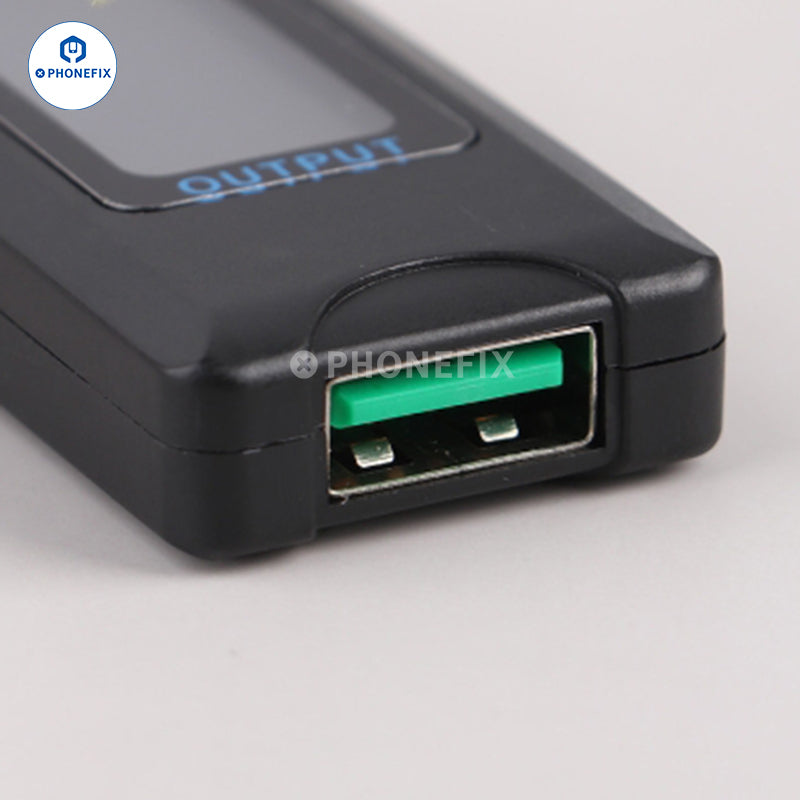

1. 6527-USB port.

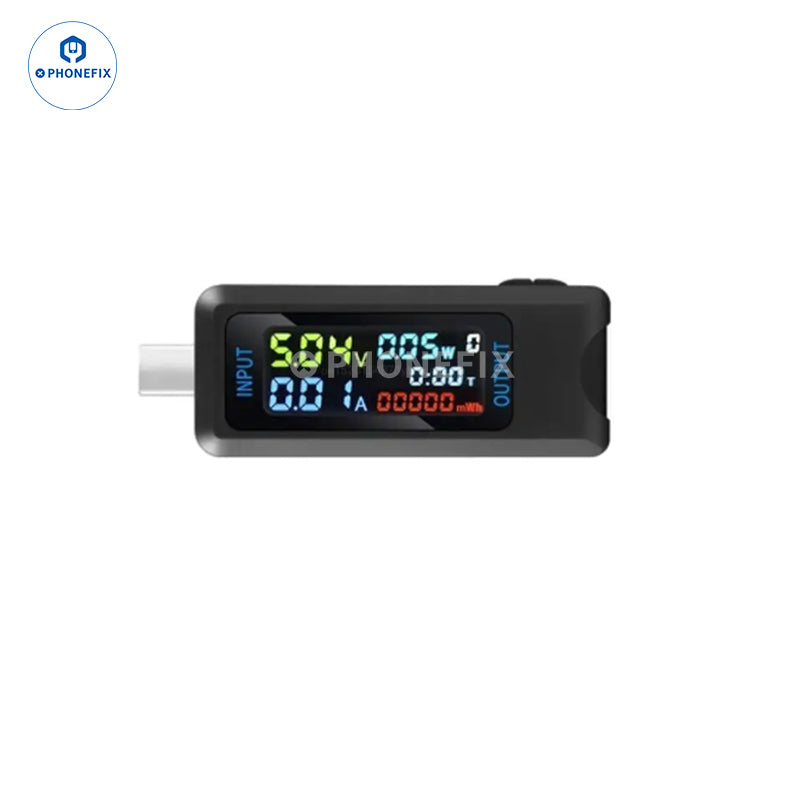

2. 6527-Type-C port.

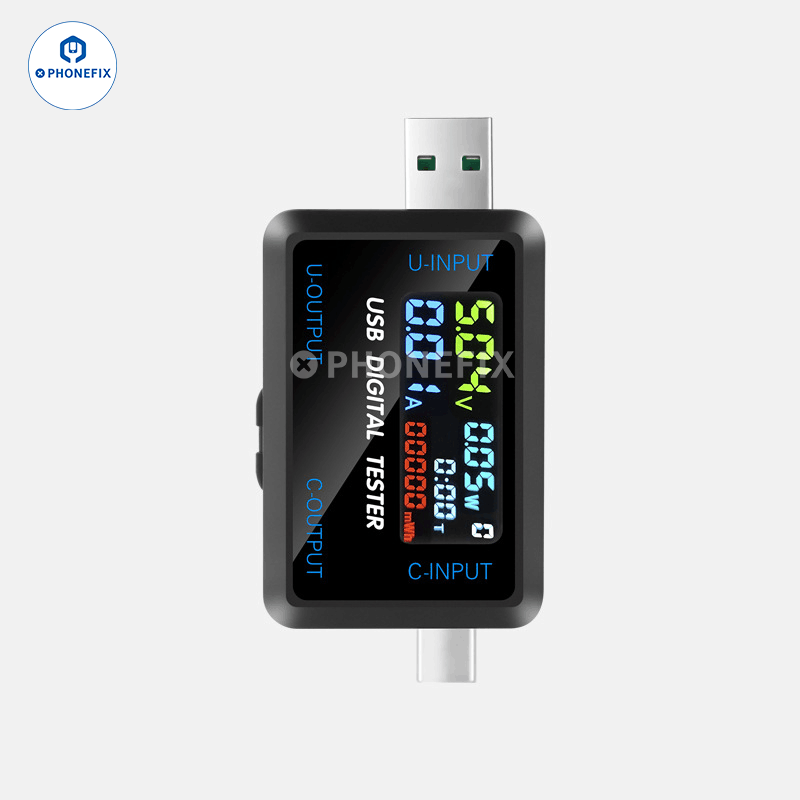

3. 6527-USB+Type-C port.
4. 2UUL Charing Detector
Features:
1. Current, voltage, power, power, capacity, capacity, resistance, timing time, capacity group number, celsius, fahrenheit, quick recognition and many other parameters, a screen display of a variety of parameters.
2. It can record up to 9 groups of battery capacity measurement data, and the battery capacity can be calculated from the measured data to help users understand the battery status of the device.

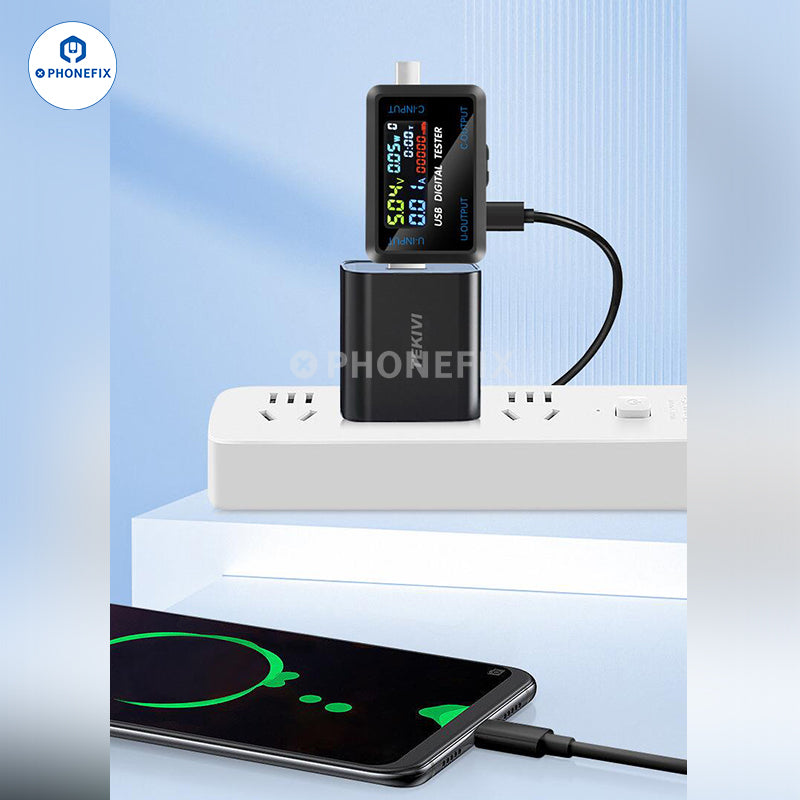

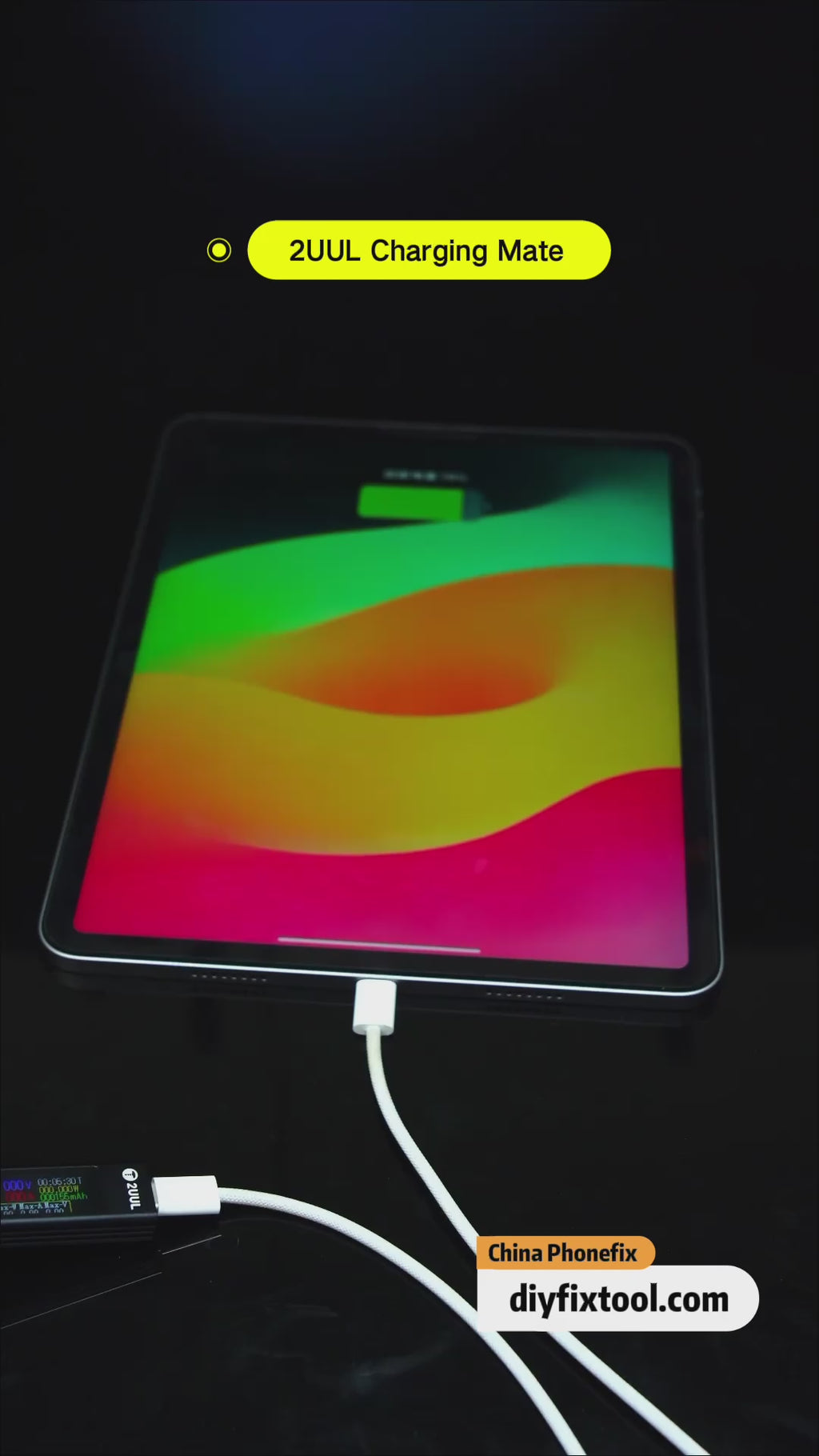

3. It can detect the charging status of the electrical appliances in real time, and monitor the charging voltage and current in real time and other parameters information at a glance.

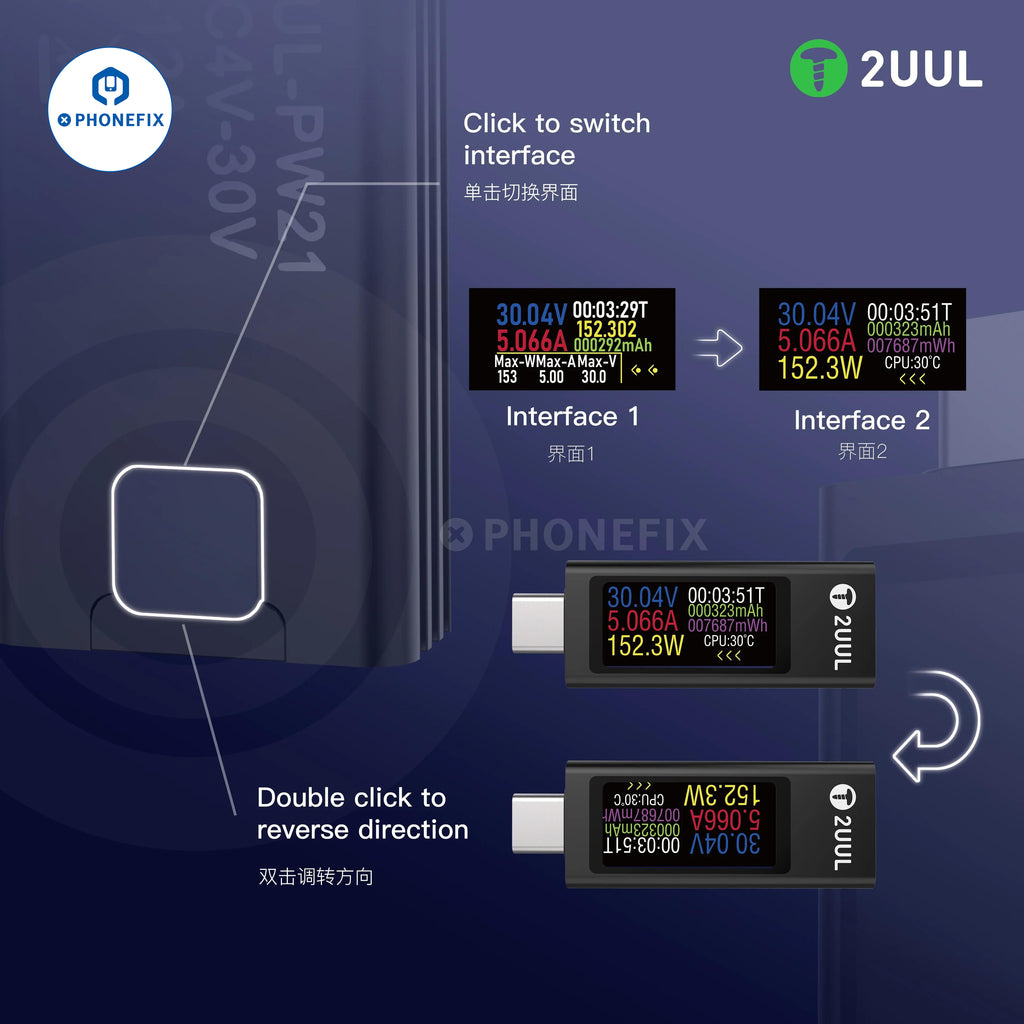

4. Display on/off function through the multifunctional key short press switch interface to the rest screen interface for the off display, but also can be normal to the device charging night charging.
4. Test a variety of USB and Type-C digital devices: easy to test a variety of chargers, data cables, rechargeable batteries, notebooks, cell phones, Type-C digital devices and so on.
5. A variety of fast charging protocols automatically detect, like QC2.0/QC3.0/FPC/SCP/APPLE2.4A/2.1A/1A/0.5A/Android DCP/Samsung AFC,ect. Fast charging recognition detection covers almost all fast charging protocols, can meet the needs of all types of cell phone users.
Product Parameter:
Voltage Measurement Range: DC 4.5 ~ 36 V
Current Measurement Range: 0 - 5 A/ 0 - 8 A
Capacity Totalization Range: 0-99999mAh
Power Accumulation Range: 0-99999mWh
Power Measurement Range: 0-150W
Impedance Measurement Range: 1-999.9 Ω
Temperature Measurement Range: 0-80 ℃
Timing Time: 999 hours and 59 minutes
Input Interface: 5A high current USB interface/ Type-C interface
Output Interface: USB/ Type-C
USB D + Voltage Range: 0 ~ 2.99 V
USB D - Voltage Range: 0 ~ 2.99 V
Refresh Time: >500mS/ times >500mS/ times
Measurement rate: About 0.5 times/ second
Display: IPS true color digital LCD screen
Self-consumption current: < 0.02 A
Operating Temperature: -10 ~ 60 °C
Working Humidity: 10 ~ 80 % RH (no condensation)
Working Air Pressure: 80~106 kPa.
