MaAnt HT-C210 Precision Intelligent Digital Display Soldering Station for PCB SMD BGA Repair. MaAnt HT-C210 Intelligent Precision Soldering Station for Phone PCB Repair.
Features:

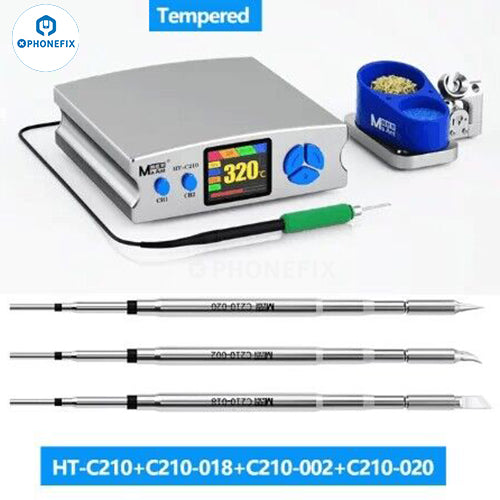

- This product is equipped with a C210-018 soldering head as standard

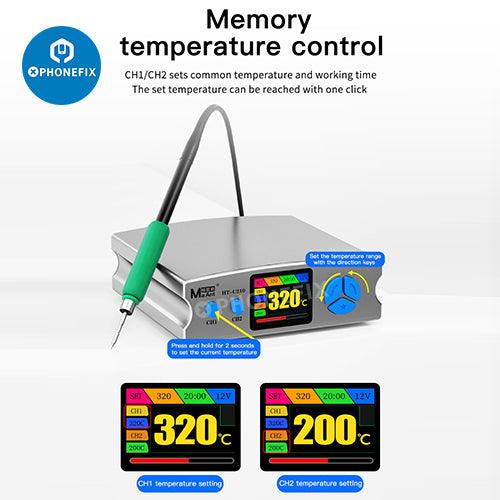

- Memory temperature control, CH1/CH2 sets the common temperature, when working, you can reach the set temperature by simply pressing.

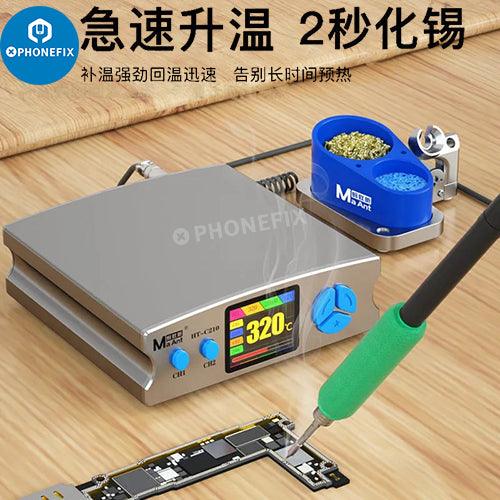

- The temperature rises rapidly, the tin is melted in 2 seconds, the temperature compensation is strong, and the temperature recovery is fast.
- The device adopts 32-bit high-performance chip to precisely control the temperature so that the temperature error is controlled within 2 degrees.
- The dormancy line connects the host and the seat. The handle is removed and put down for automatic induction, the handle is put down for automatic dormancy.
- The handle is automatically heated to the set temperature for intelligent dormancy and operation.

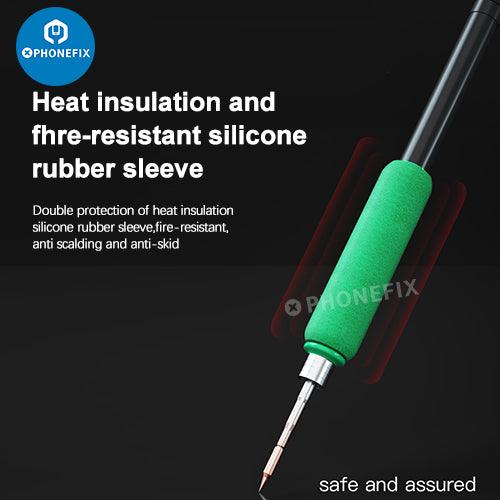

- Thermal insulation silicone sleeve cotton sleeve, double protection, fire resistance, anti-scalding, and anti-skid, safe to use.

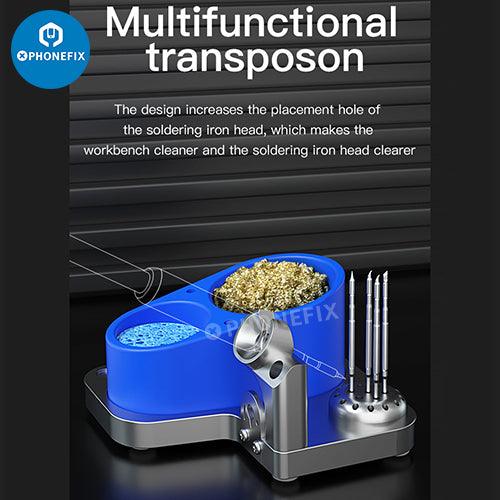

- The multifunctional seat is designed with additional holes for the placement of the soldering iron head to better clean the workbench and replace the soldering iron head.
- The heating core integrated soldering head can be disassembled and replaced in 2 seconds, which is convenient and fast, with seamless design, fast heat conduction, oxidation resistance, and easy to tin

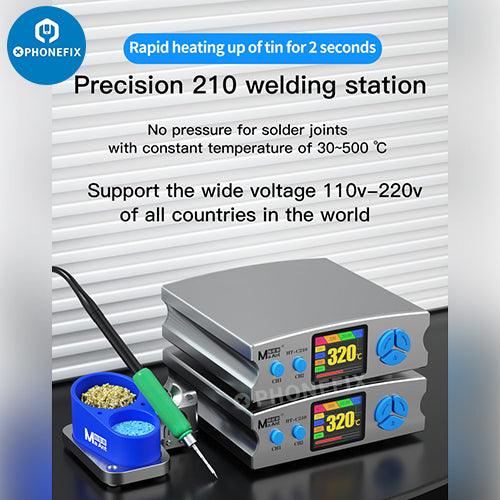

- No pressure for solder joints with a constant temperature of 30~500°C, supporting the wide voltage 110V-220V of all countries in the world

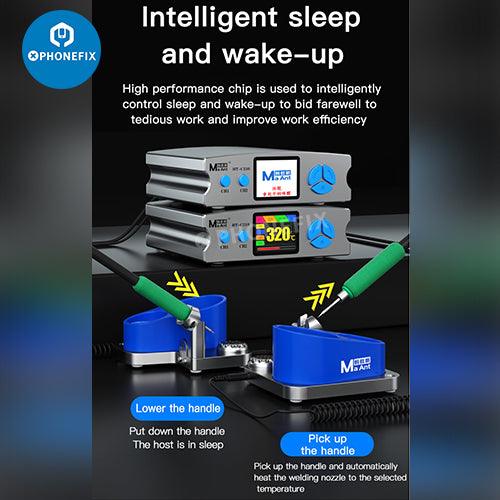

- A high-performance chip is used to intelligently control sleep and wake up to bid farewell to tedious work and improve work efficiency.
Specification:
Host:
Power supply: 120W
Input AC voltage: AC 100V~240V
Input DC voltage: DC 12V
Heating power: 72W
Resistance of soldering iron head to the ground: <2Ω
Solder head-to-ground voltage: <2mV
Temperature control range: 30℃-500℃
Temperature control mode: Key temperature control

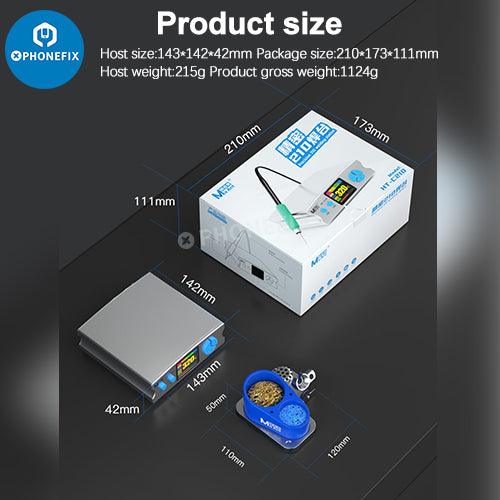

Host size: 143*142*42mm
Package size: 210*173*111mm
Display screen size: 45*38mm
Soldering Iron:
Power consumption: 72W
Standard: C210 soldering
Nozzle: iron blade K
Handle material: Silica gel
Handle line length: About 150cm
Package includes:
1 x MaAnt HT-C210 Host
1 x Soldering Iron Tip(K)
1 x Baseline
1 x Dormant line
1 x Handle
