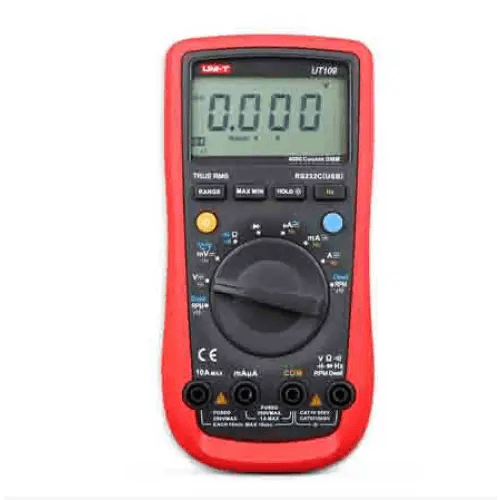

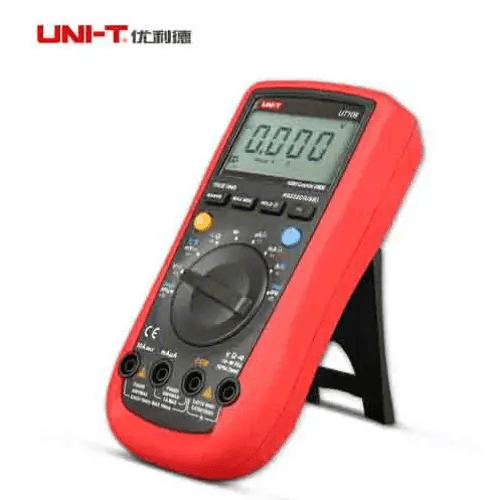

UT100 Series: UT105 /UT106 /UT107 /UT108 /UT109 Multi-Purpose Meters Handheld phone repair Multimeter
Professional Multi-Purpose circuit board repair Multimeters: Handheld Digital Multimeter Capacitance Volt Amp Ohm Temp Tester
Optional Models :
- Option 1: UT105
- Option 2: UT106

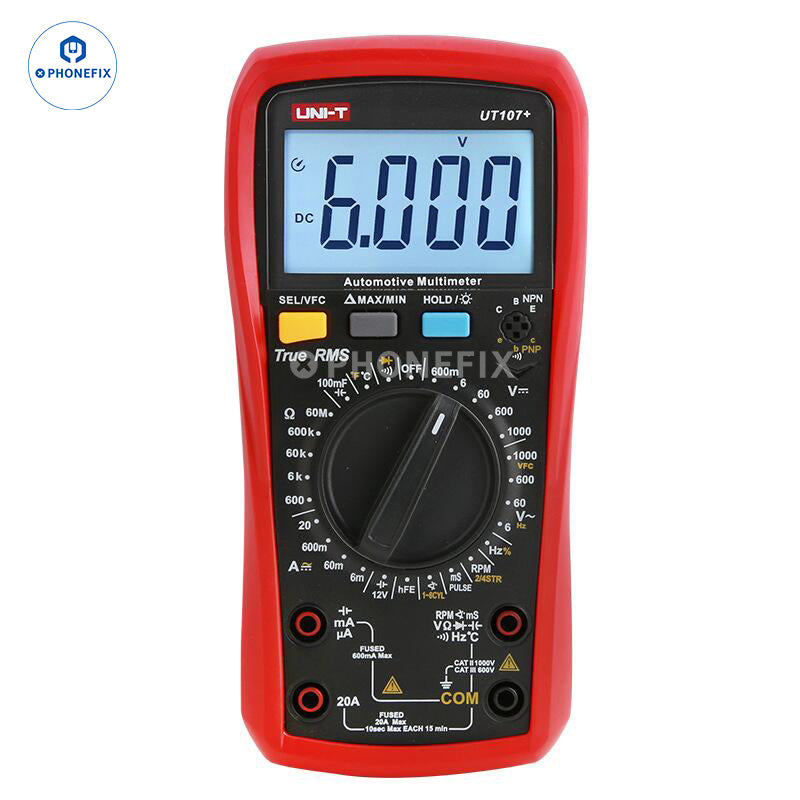

- Option 3: UT107, UT107+
- Option 4: UT108
- Option 5: UT109
Specifications |
Range |
Best Accuracy |
Model |
|
|
DC Voltage (V) |
4V/40V/400V/1000V |
±(0.5%+3) |
AC Voltage (V) |
40mV/400mV/4V/40V/400V/1000V |
±(1%+3) |
DC Current (A) |
400μA/4000μA/40mA/400mA/4A/10A |
±(1%+2) |
AC Current (A) |
400μA/4000μA/40mA/400mA/4A/10A |
±(1.2%+5) |
Resistance (Ω) |
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ |
±(1%+5) |
Capacitance (F) |
10nF/100nF/1000nF/10μF/100μF |
±(3%+5) |
Frequency (Hz) |
10Hz ~ 1MHz |
±(0.1%+4) |
Temperature (°C) |
-40°C ~ 537°C |
±(1%+10) |
Temperature (°F) |
-40°F~998°F |
±(1%+18) |
Features |
|
√ |
Display Count |
|
√ |
Auto Range |
|
√ |
Diode |
|
√ |
Auto Power Off |
|
√ |
Continuity Buzzer |
|
√ |
Low Battery Indication |
|
√ |
Data Hold |
|
√ |
MAX/MIN |
|
√ |
RS-232 |
|
√ |
USB Interface |
|
√ |
LCD Backlight |
|
√ |
Input Protection |
|
√ |
Input Impedance for DCV |
Around 10MΩ |
√ |
Dwell |
4CYL/6CYL/8CYL |
±(3%+5) |
Tach |
4CYL/6CYL/8CYL |
±(3%+5) |
Specifications |
Range |
Best Accuracy |
|
Model |
|
UT108 |
UT109 |
DC Voltage (V) |
4V/40V/400V/1000V |
±(0.5%+3) |
±(0.5%+3) |
AC Voltage (V) |
40mV/400mV/4V/40V/400V/1000V |
±(1%+3) |
±(1%+3) |
DC Current (A) |
400μA/4000μA/40mA/400mA/4A/10A |
±(1%+2) |
±(1%+2) |
AC Current (A) |
400μA/4000μA/40mA/400mA/4A/10A |
±(1.2%+5) |
±(1.2%+5) |
Resistance (Ω) |
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ |
±(1%+5) |
±(1%+5) |
Capacitance (F) |
10nF/100nF/1000nF/10μF/100μF |
±(3%+5) |
±(3%+5) |
Frequency (Hz) |
10Hz ~ 1MHz |
±(0.1%+4) |
±(0.1%+4) |
Temperature (°C) |
-40°C ~ 537°C |
|
±(1%+10) |
Temperature (°F) |
-40°F~998°F |
|
±(1%+18) |
Features
|
|
|
|
Display Count |
|
3999 |
3999 |
Auto Range |
|
√ |
√ |
Diode |
|
√ |
√ |
Auto Power Off |
|
√ |
√ |
Continuity Buzzer |
|
√ |
√ |
Low Battery Indication |
|
√ |
√ |
Data Hold |
|
√ |
√ |
MAX/MIN |
|
√ |
√ |
RS-232 |
|
√ |
√ |
USB Interface |
|
√ |
√ |
LCD Backlight |
|
√ |
√ |
Input Protection |
|
√ |
√ |
Input Impedance for DCV |
Around 10MΩ |
√ |
√ |
Dwell |
4CYL/6CYL/8CYL |
±(3%+5) |
±(3%+5) |
Tach |
4CYL/6CYL/8CYL |
±(3%+5) |
±(3%+5) |
Package list :
- 1 x UNI-T UT109 / UT105 /UT106 /UT107 /UT108 Handheld Automotive Multimeters ( Battery no included )
- 1 x Test Lead
- 1 x Alligator Clip
- 1 x RS-232 Interface Cable
- 1 x Point Contact Temperature Probe
- 1 x Multi-Purpose Socket
