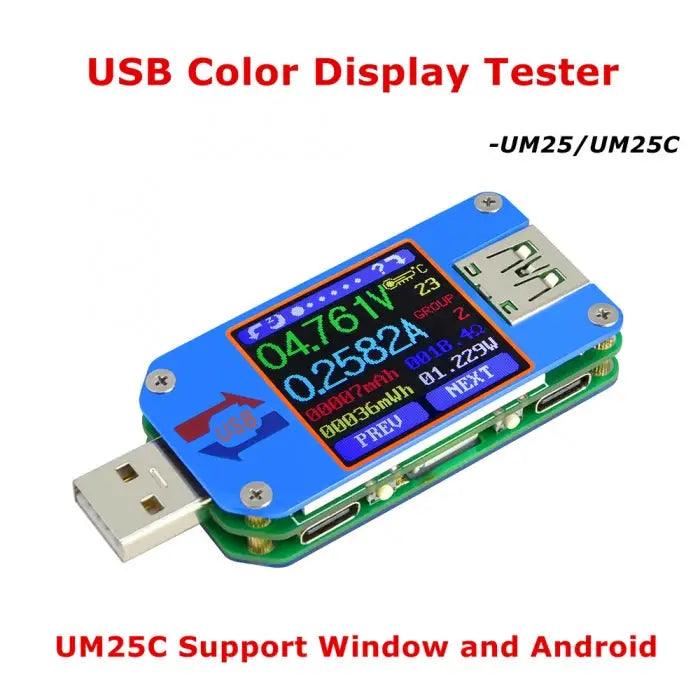

RD UM25C UM25 USB Multimeter is USB 2.0 Type- C Color LCD Display Tester, can measure voltage, current, power, temperature and other values and display on the 1.44" color LCD Screen.
UM25C UM25 USB Type- C Voltmeter ammeter Tester come with battery charge measure cable resistance
Technical Parameter :
- Product Model: UM25/UM25C
- Display screen: 1.44 Inch color LCD display
- Voltage measurement range: 4-24.000V
- Voltage measurement resolution: 0.001
- Current measurement range: 0-5.0000A
- Current measurement resolution: 0.0001A
- Capacity accumulation range: 0 - 99999mAh
- Voltage measurement accuracy: ±(0.5‰+2digits)
- Energy accumulation range: 0-99999mWh
- Current measurement accuracy: ±(1‰ +4 digits)
- Load impedance range: 0.8Ω-9999.9Ω
- Time measurement range: 0-99h59min59s
- Temperature range: -10℃ - 100℃ / 0℉ - 200℉
- Temperature measurement error: ±3℃/±6℉
- Screen brightness setting: 0 - 5 levels
- Auto screen off time: 0 - 9mins
- Voltage graphing range: 0 - 24.00V
- Current graphing range: -5.0000A
- Refresh rate: 2Hz
- Quick charge recognition mode: QC2.0, QC3.0, APPLE 2.4A / 2.1A / 1A / 0.5A, Android DCP, Samsung
Product Size: 71.2mm x 30.5mm x 12.4mm (UM25C); 71.2mm x 30.5mm x 11.3mm (UM25)
Product Weight: 23.74g(UM25C) / 19.26g (UM25) (No packaging); 54.56g (UM25C) / 50.08g (UM25) ( With packaging)

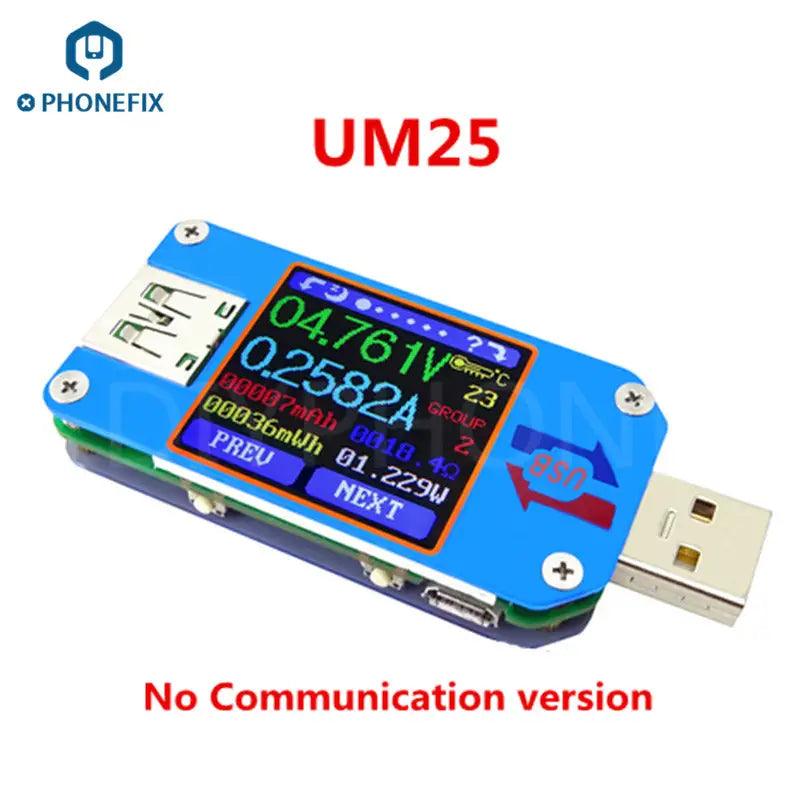

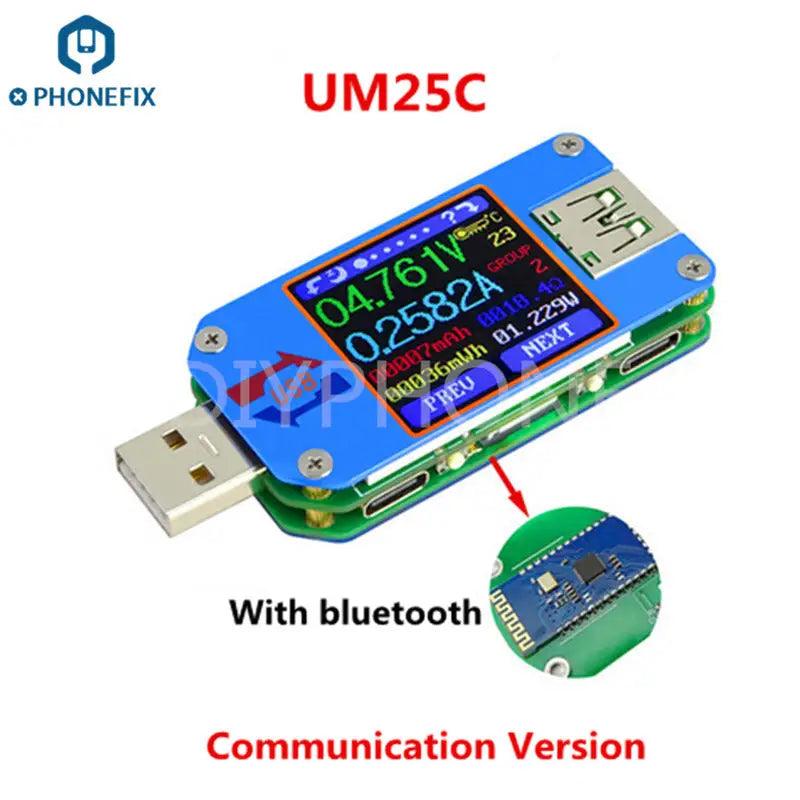

- UM25 is no communication version, UM25C is communication version by Bluetooth connection.
- PC software support PC window (Win 7 and above) and Phone Android (Android 5.0 and above, support 14 kinds language, Chinese, English and Russia.... )
- User manual, PC software installation instruction and PC software and Android APP download link: http://www.mediafire.com/folder/q2b8h079hpywq/UM25
- For Android APP :
- APP only support android 5.0 and above .
- Allow APP to do in the background, not be cleaned.
- Allow APP self-starting.
- Allow APP stay after screen locked, not be cleaned.
- For desktop, when you use the Bluetooth adapter to make Bluetooth connection, Please don’t use the adapter own driver, and use the windows system Bluetooth driver, otherwise the module can’t make SSP series port communication. If you have installed the adapter driver, you can uninstall it and unplug the adapter, then plug in again, the system will install it automatically.
Package List :
- 1 x UM25 Type-C USB Multimeter
