YCX M9 & YCX M960 Intelligent Screen Tester for testing iPhone 6-17 Pro Max displays, Samsung, Huawei, Xiaomi, OPPO, VIVO, Motorola, Transsion, Sharp AQUOS, and iPad. YCX M960/M9 LCD screen tester supports real-time screen recognition, screen True Tone burn-in, refresh rate testing, display touch function testing, automatic program version loading, and 32GB of EMMC storage. It uses various display test cables and supports screen testing on most phone models.
Option:

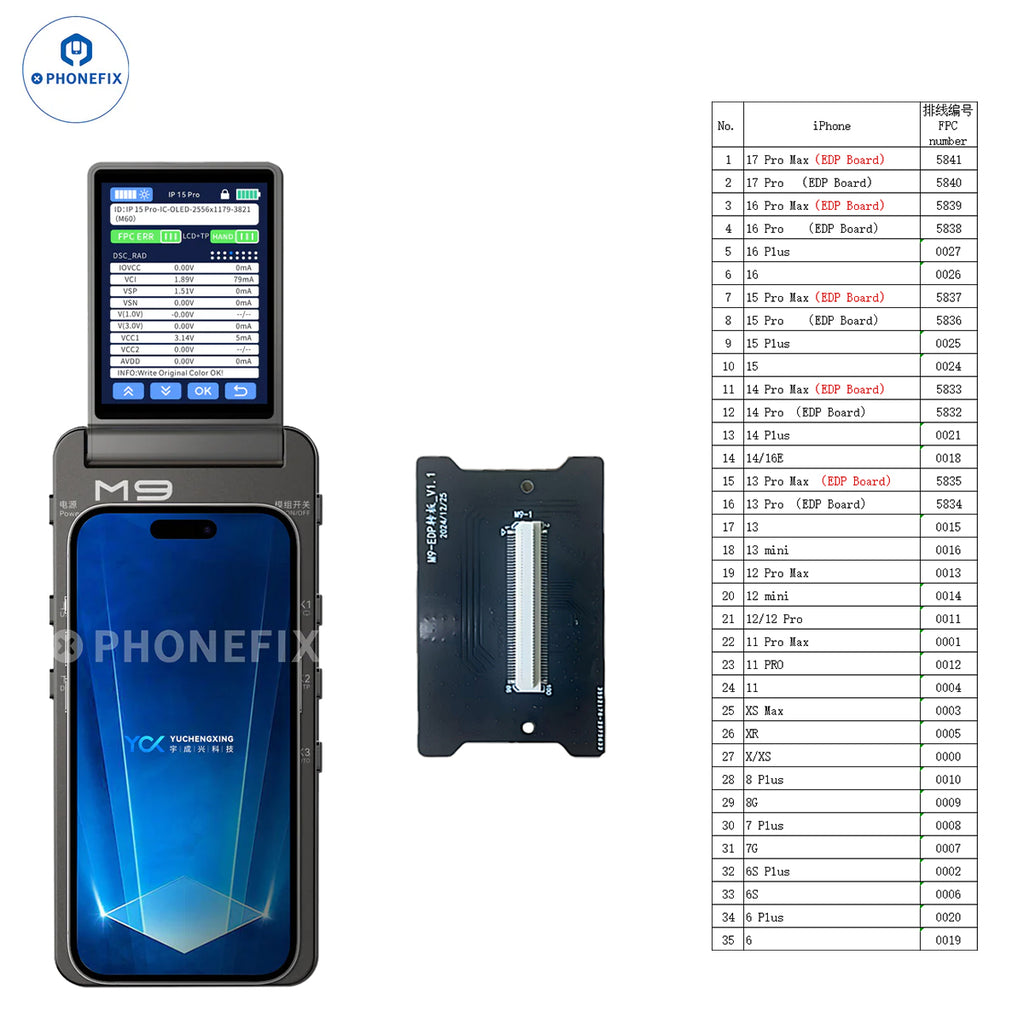

1. YCX M9 screen tester + EDP Board + iPhone 6-17 Pro Max screen test flex (35pcs), not including 17/17Air.
2. YCX M960 screen tester + EDP Board + iPhone 6-17 Pro Max screen test flex (35pcs), not including 17/17Air.
3. YCX M9/M960 screen tester + EDP board standard set. Pls choose 5pcs FPC for free (not including iPhone Pro series).

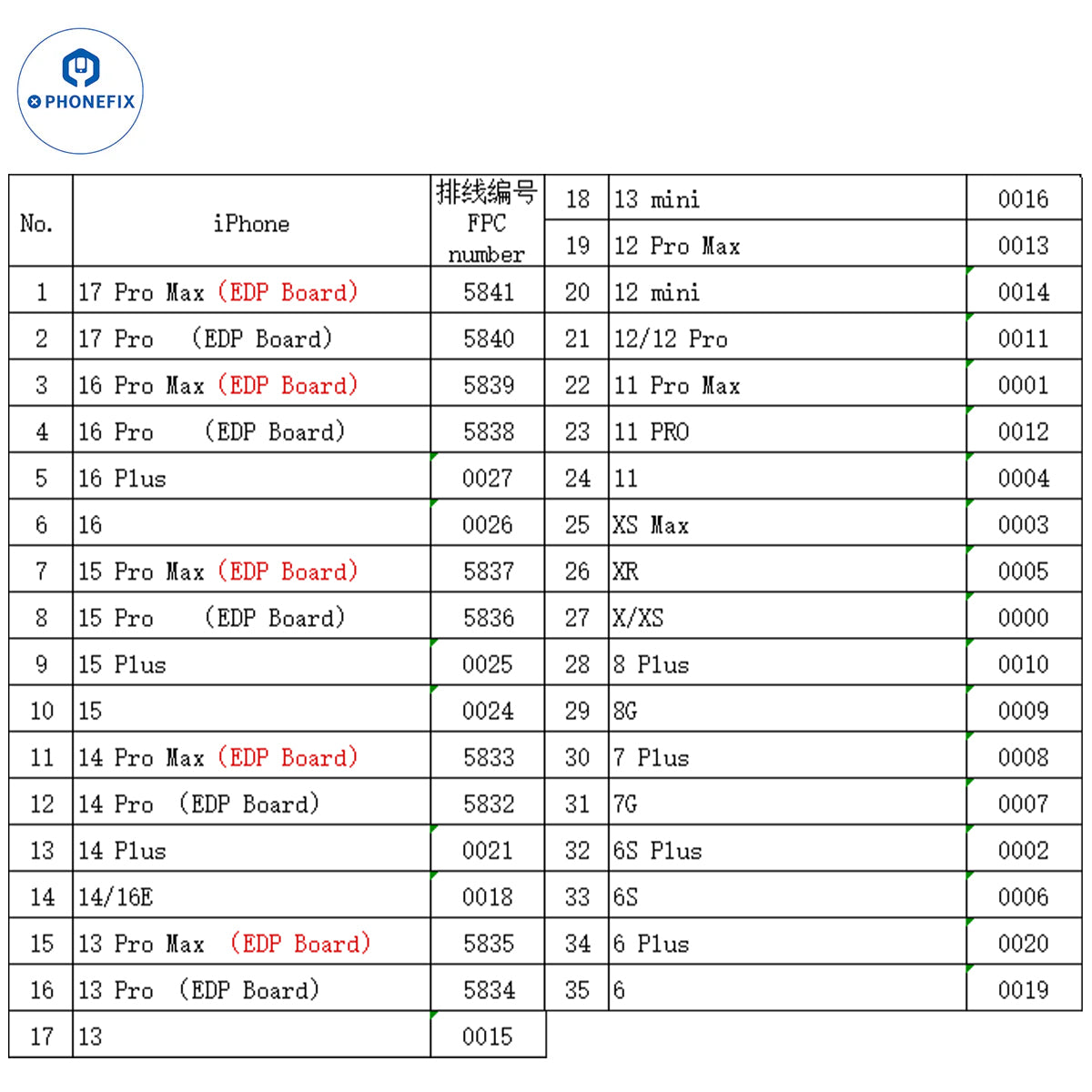

4. iPhone 6-16 Pro Max screen test flex (33pcs).

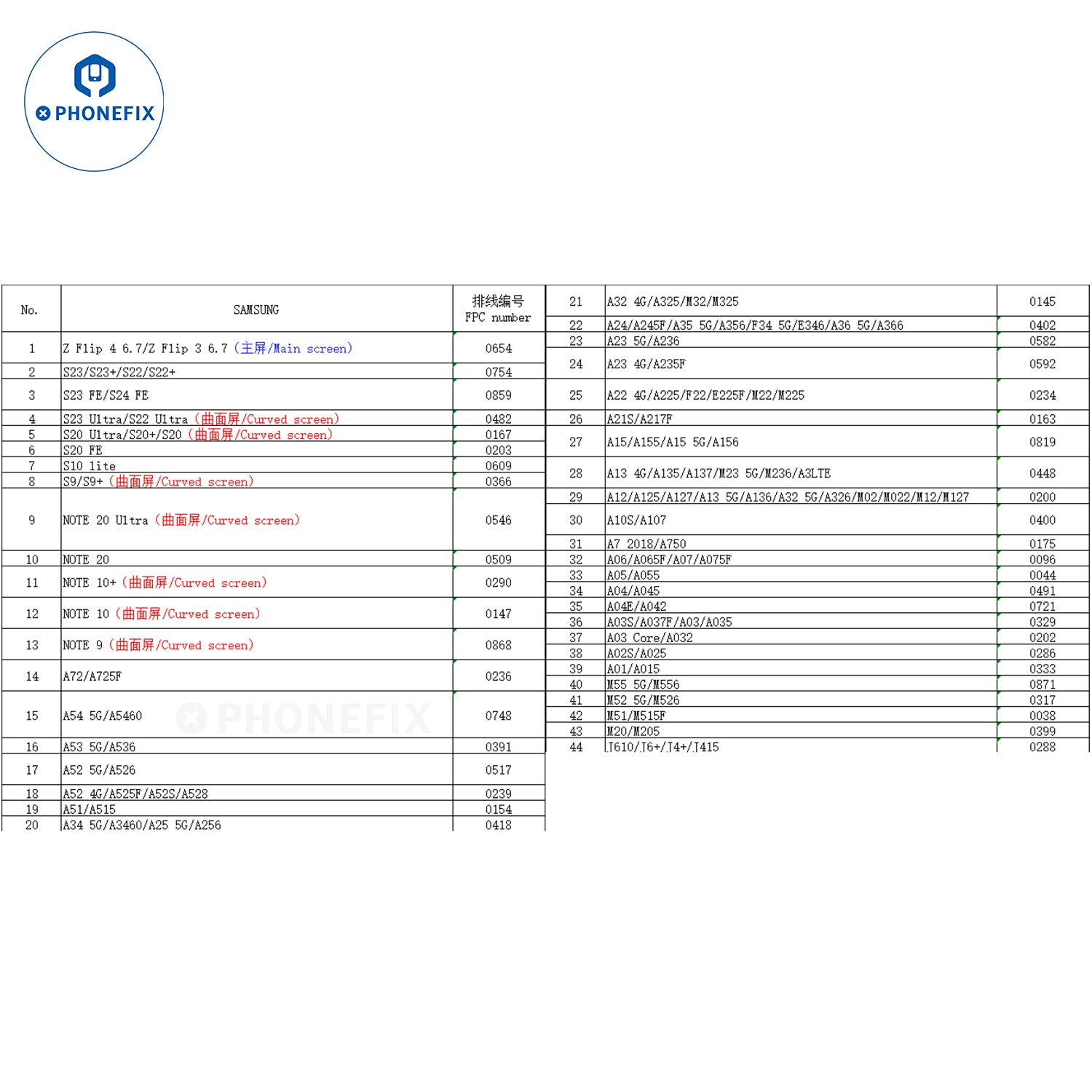

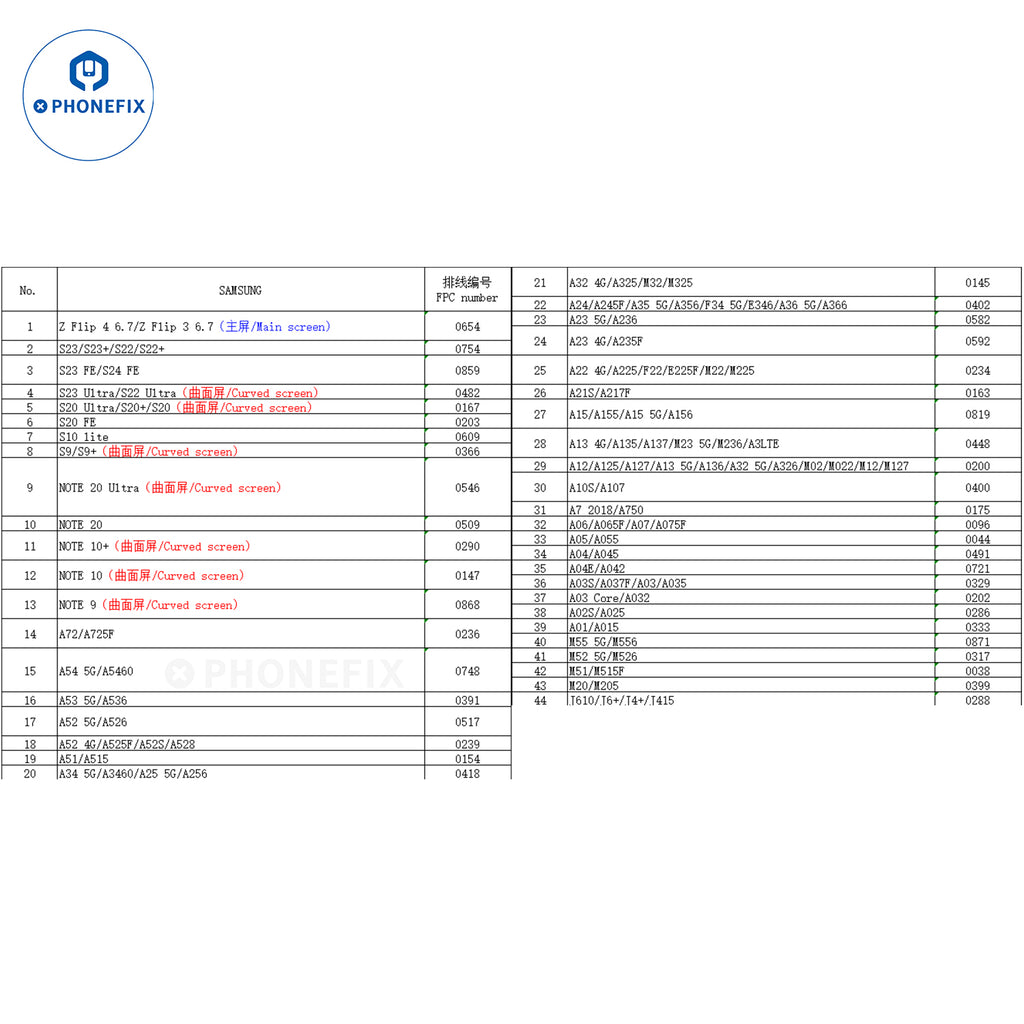

5. Samsung screen test flex (44pcs).

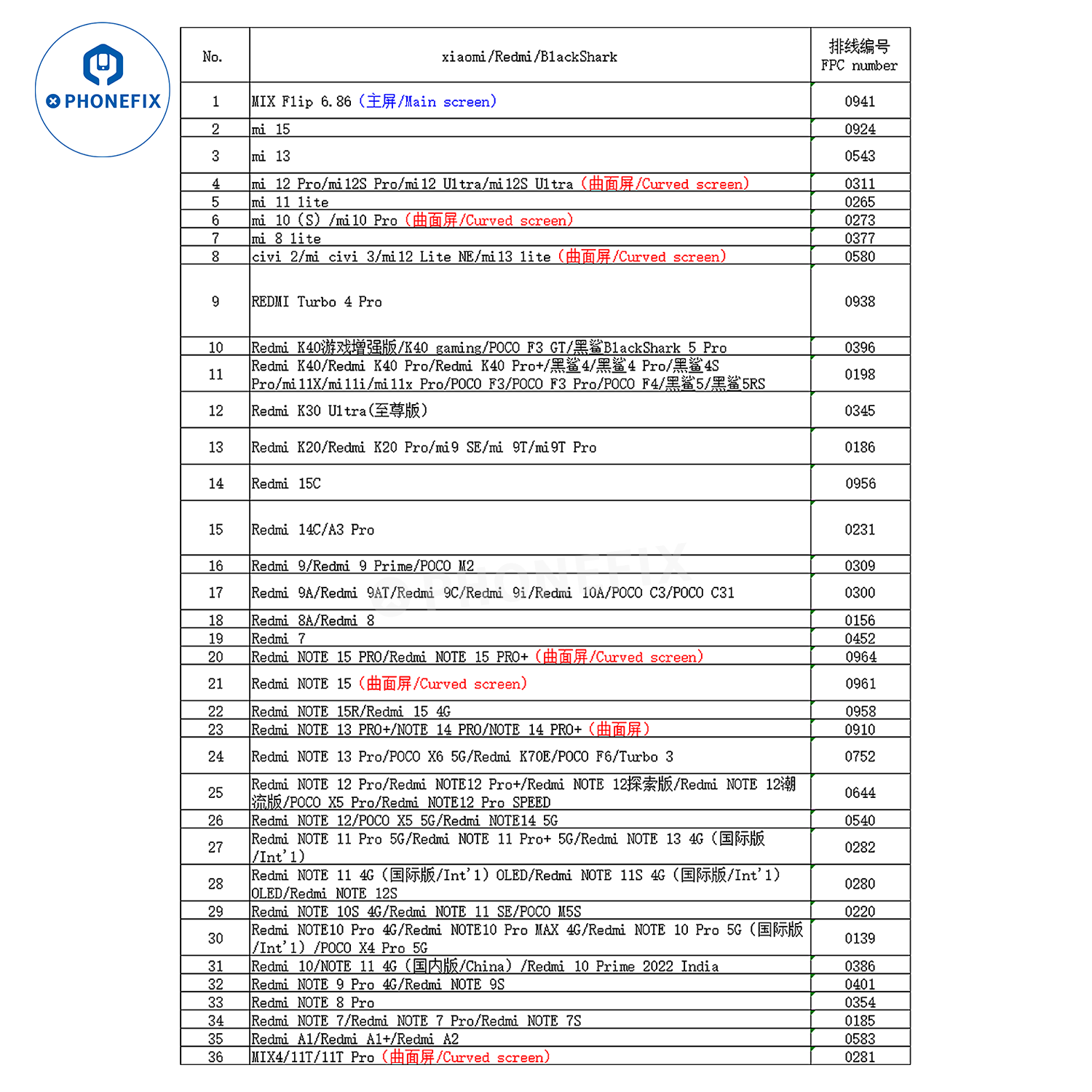

6. Xiaomi/Redmi/BlackShark screen test flex (36pcs).

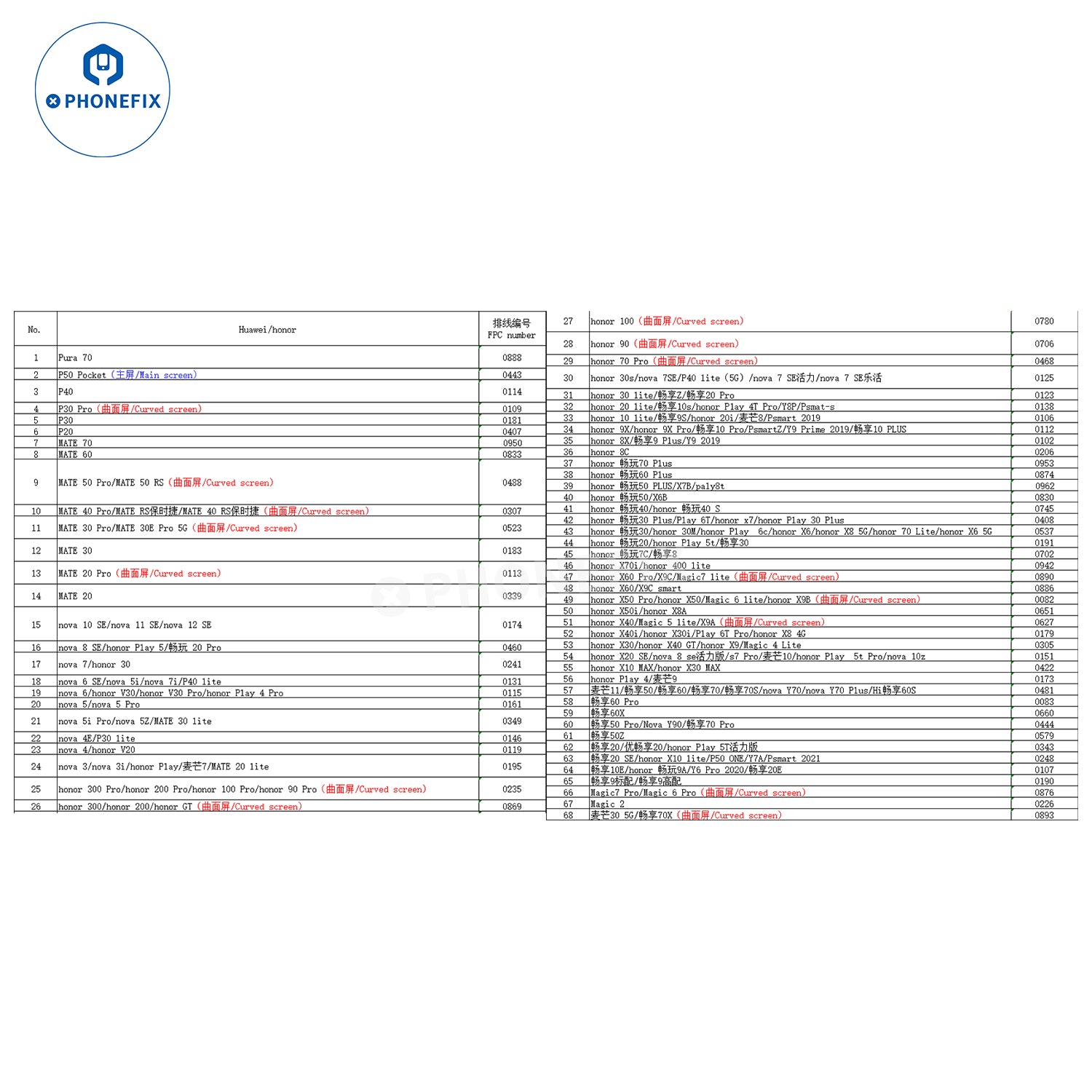

7. Huawei/honor screen test flex (68pcs).

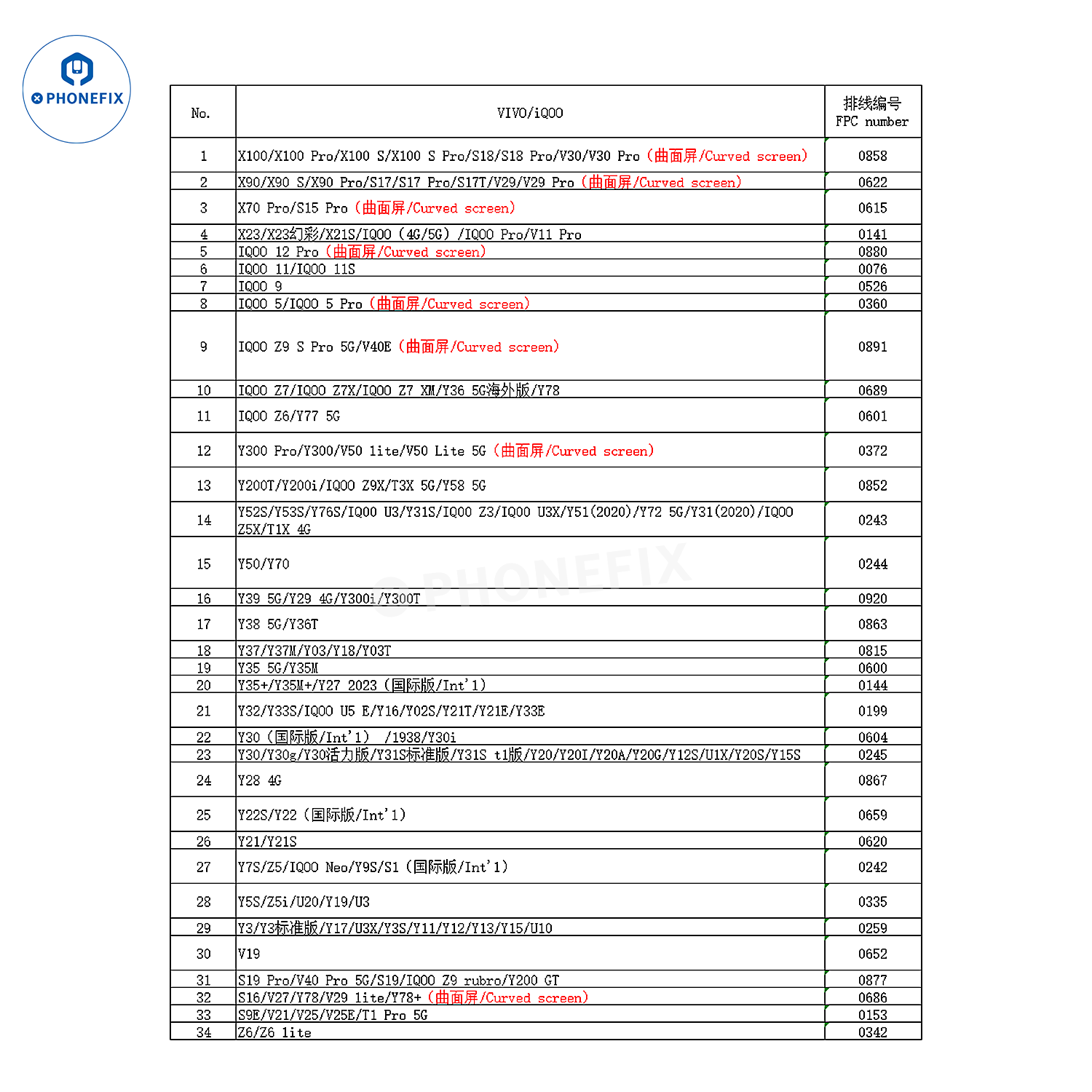

8. VIVO/iQOO screen test flex (34pcs).

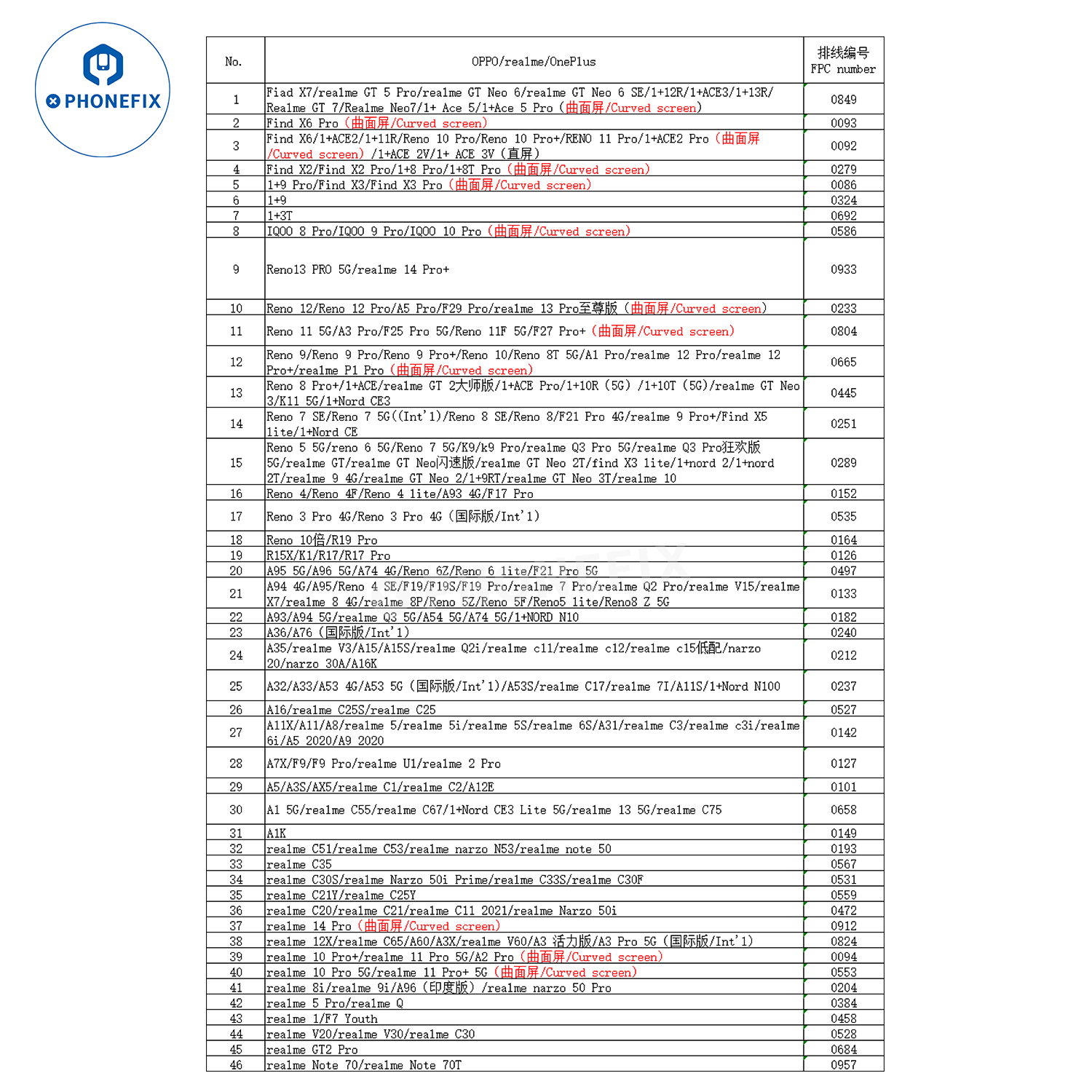

9. OPPO/Realme/OnePlus screen test flex (46pcs).

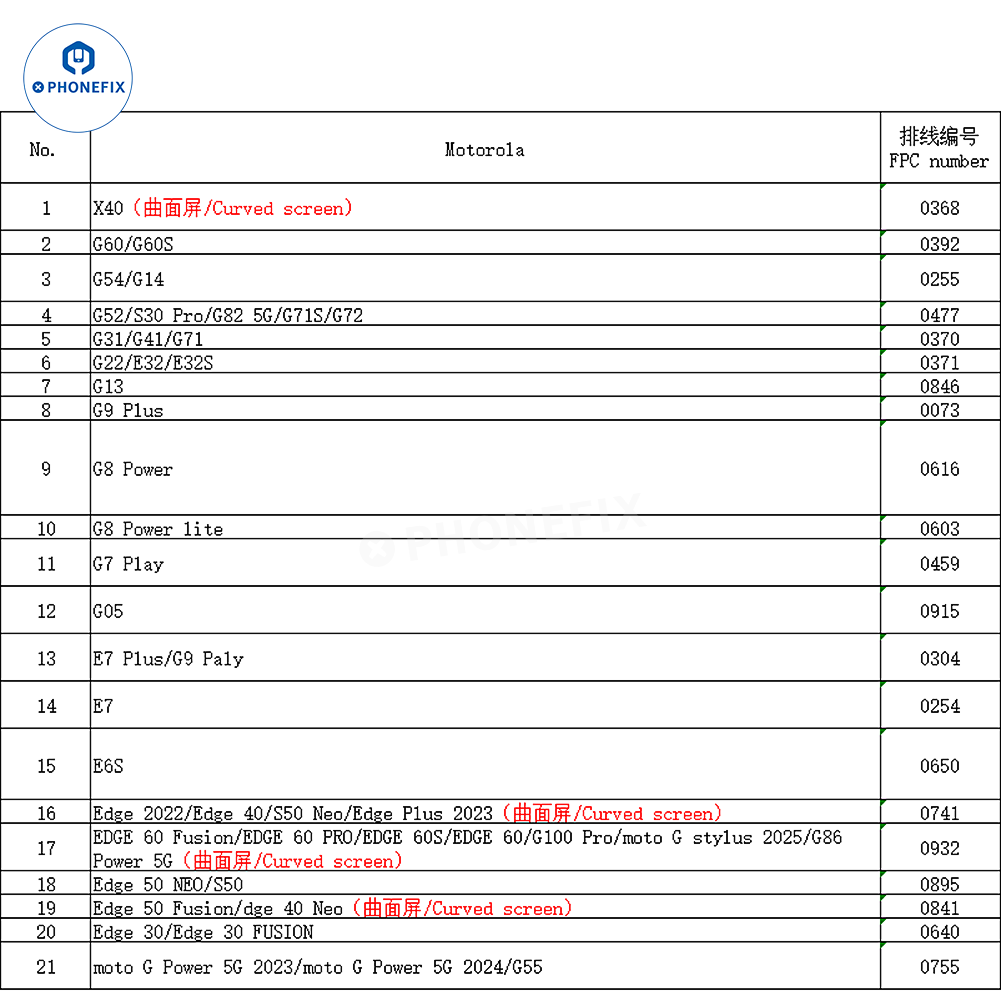

10. Motorola screen test flex (21pcs).

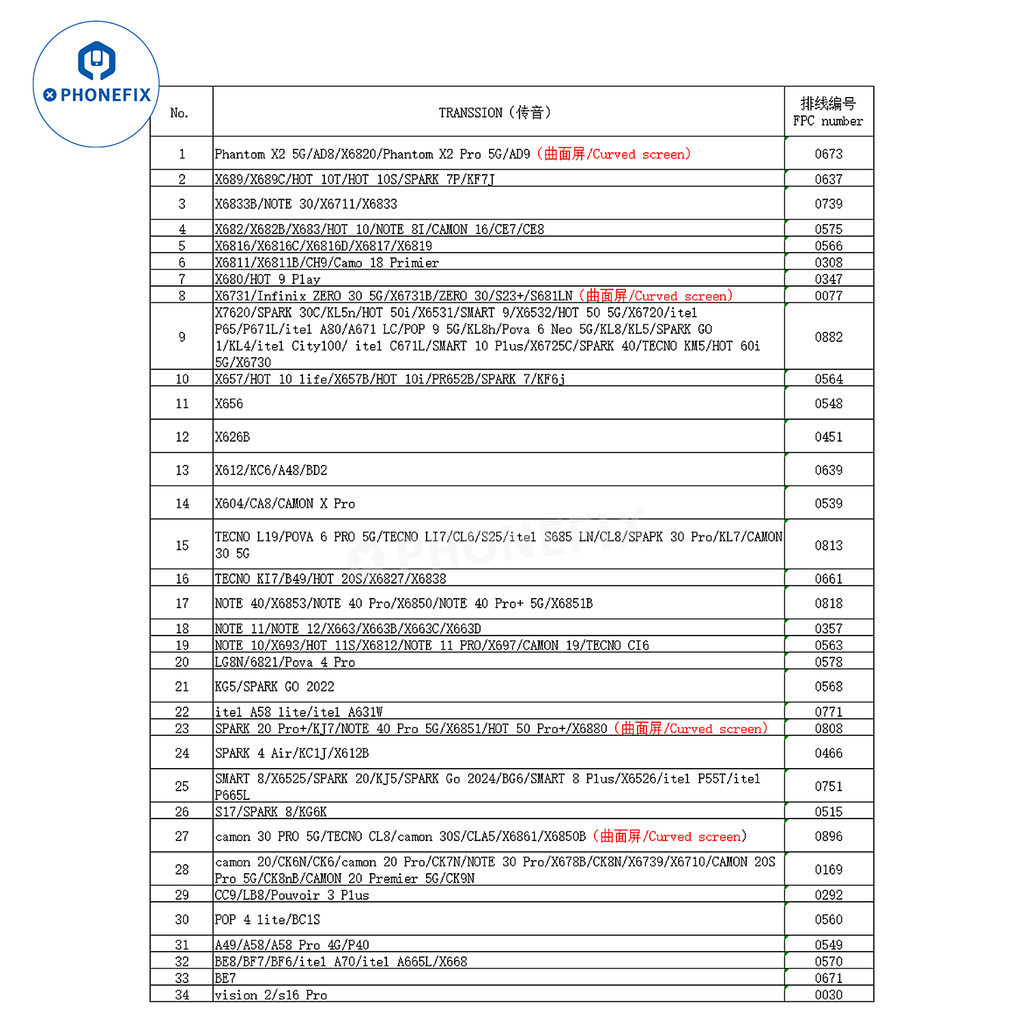

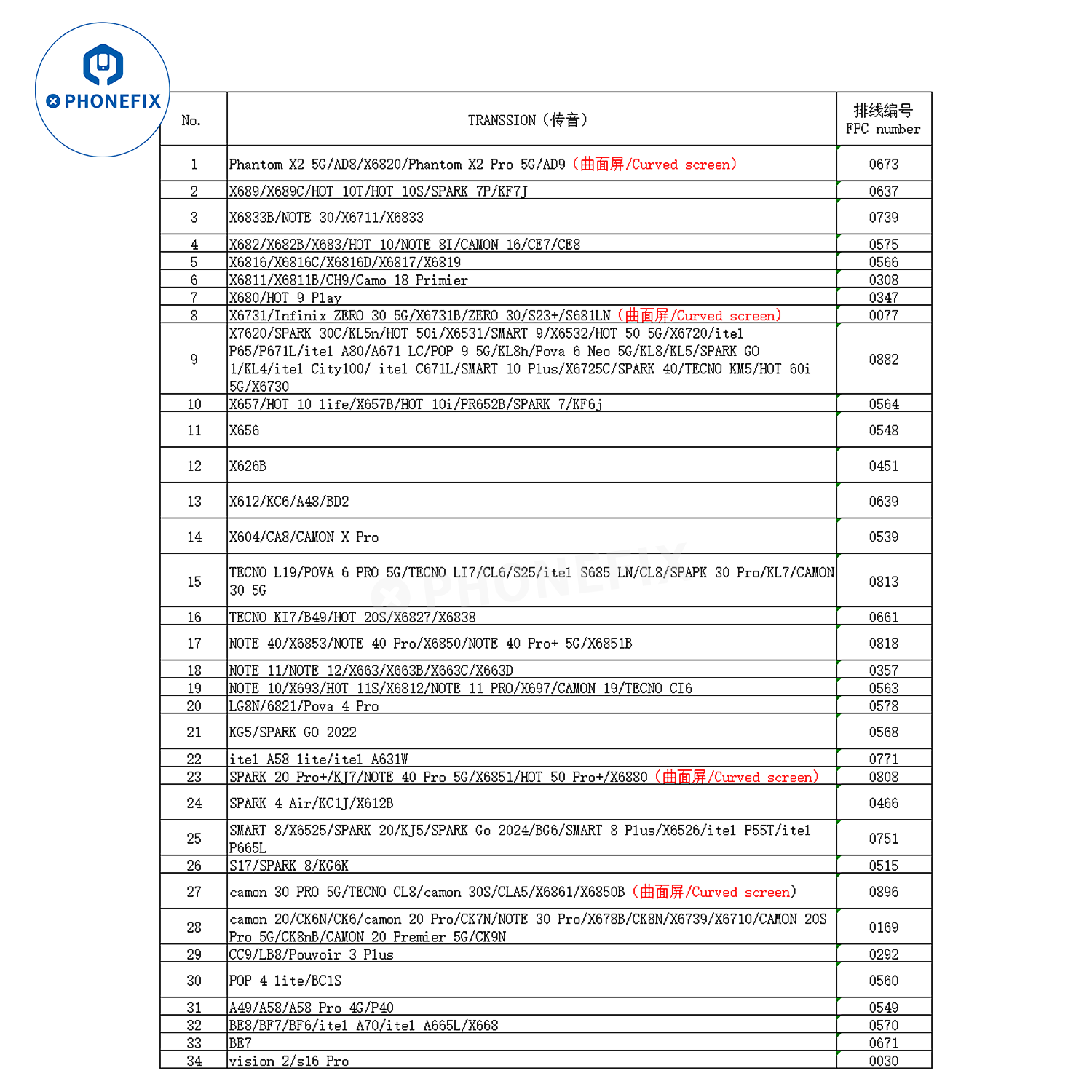

11. TRANSSION screen test flex (34pcs).

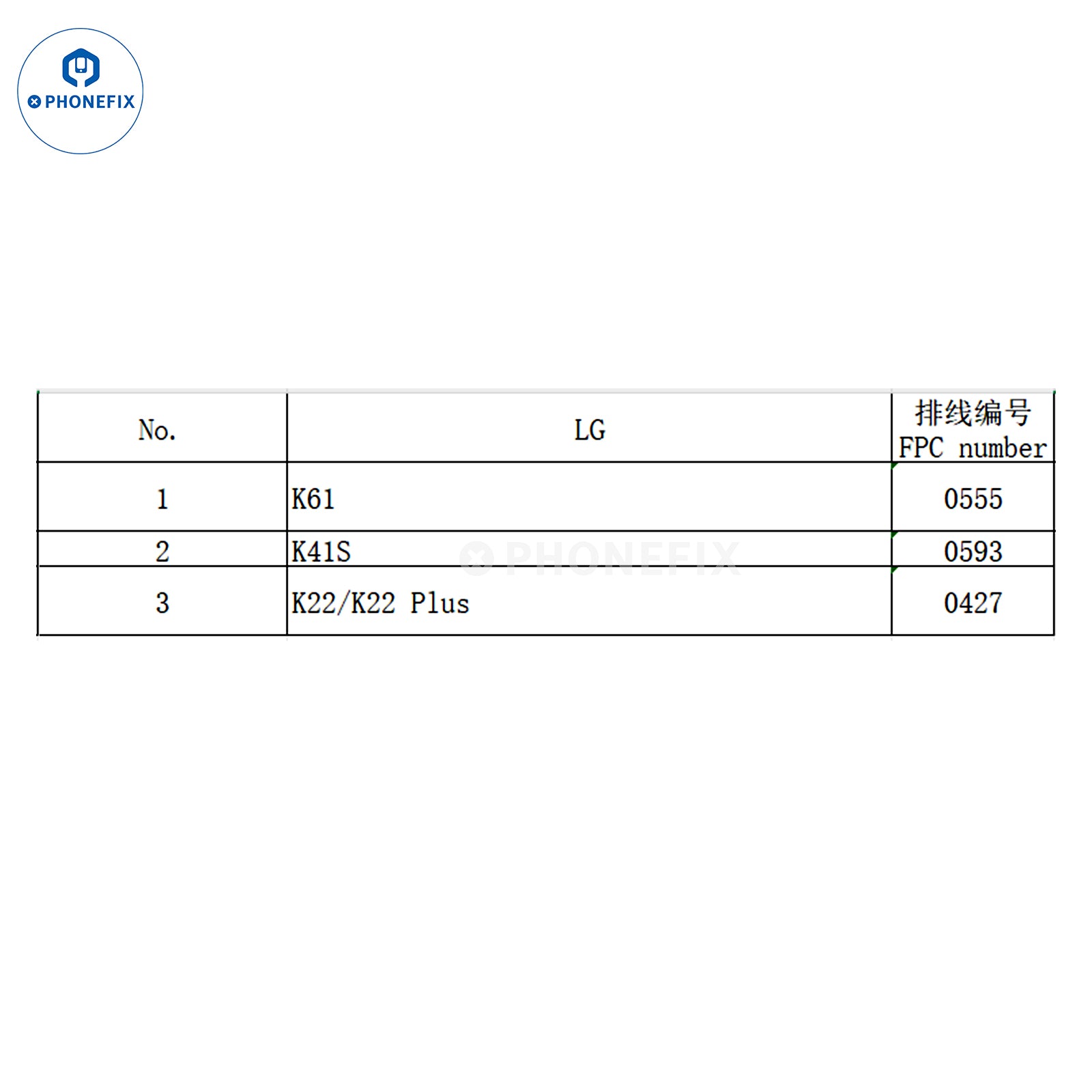

12. LG screen test flex (3pcs).

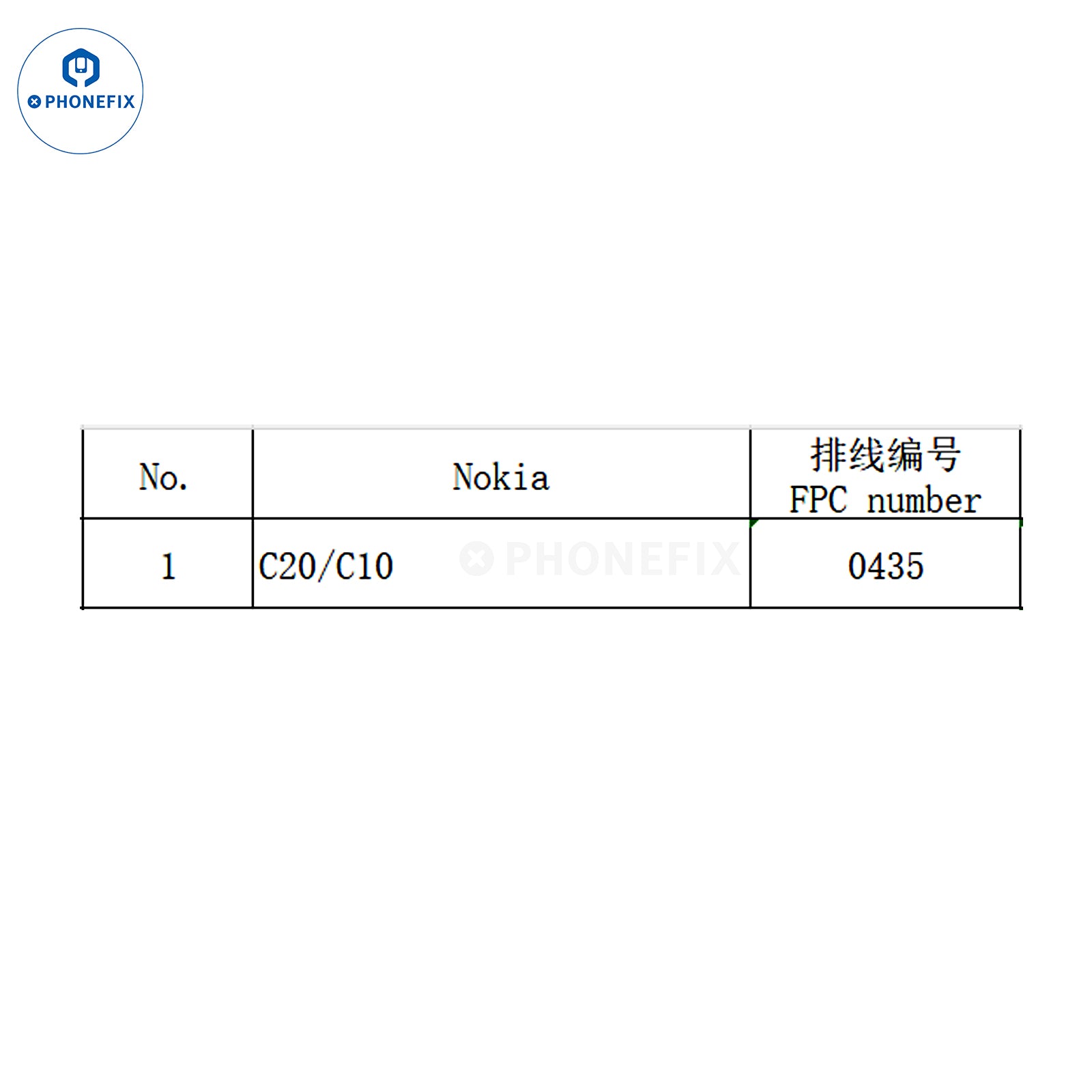

13. Nokia screen test flex (1pcs).

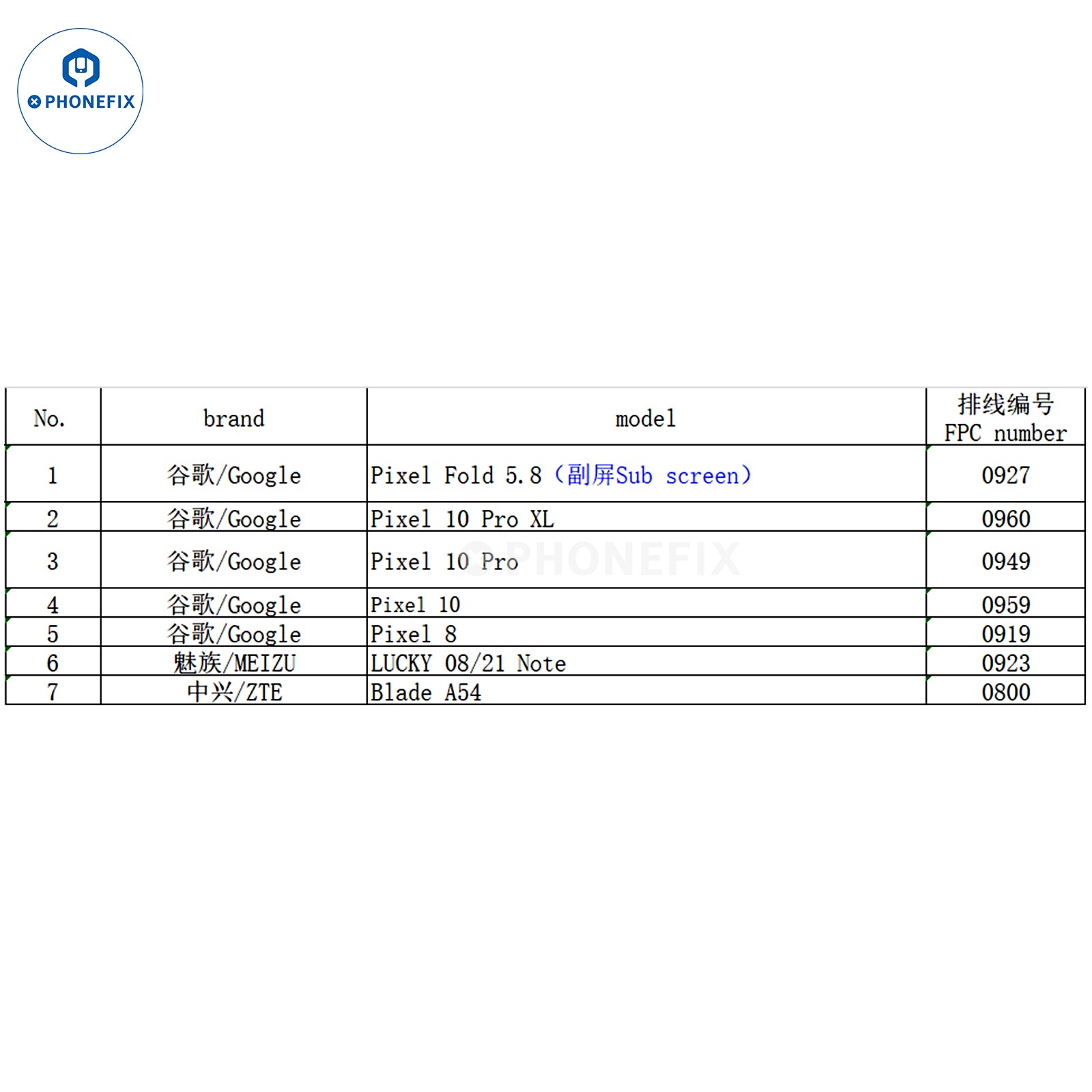

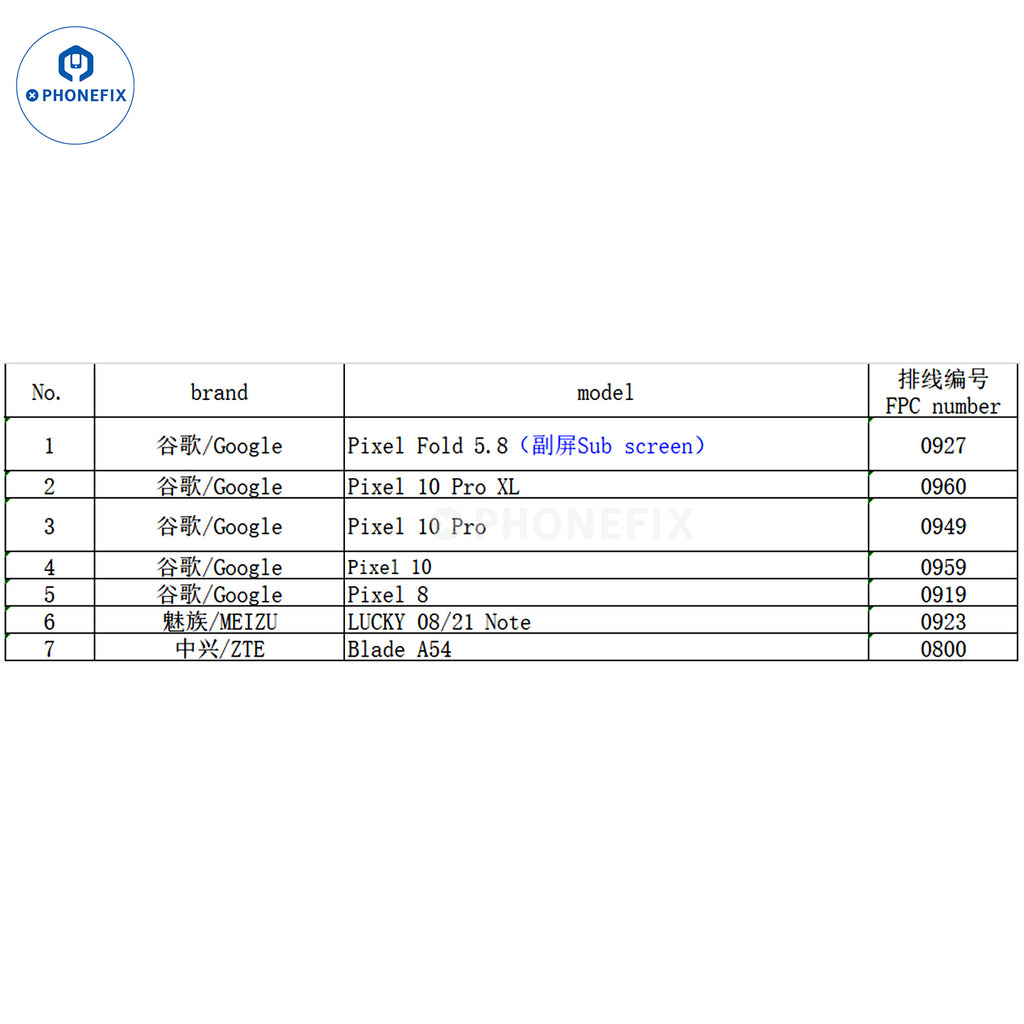

14. Google Pixel/MEIZU/ZTE screen test flex (7pcs).
15. iPhone 17 Pro screen test flex.
16. iPhone 17 Pro Max screen test flex.
17. 1pcs Android phone screen test flex (Please leave the model, choose the model from the pictures).

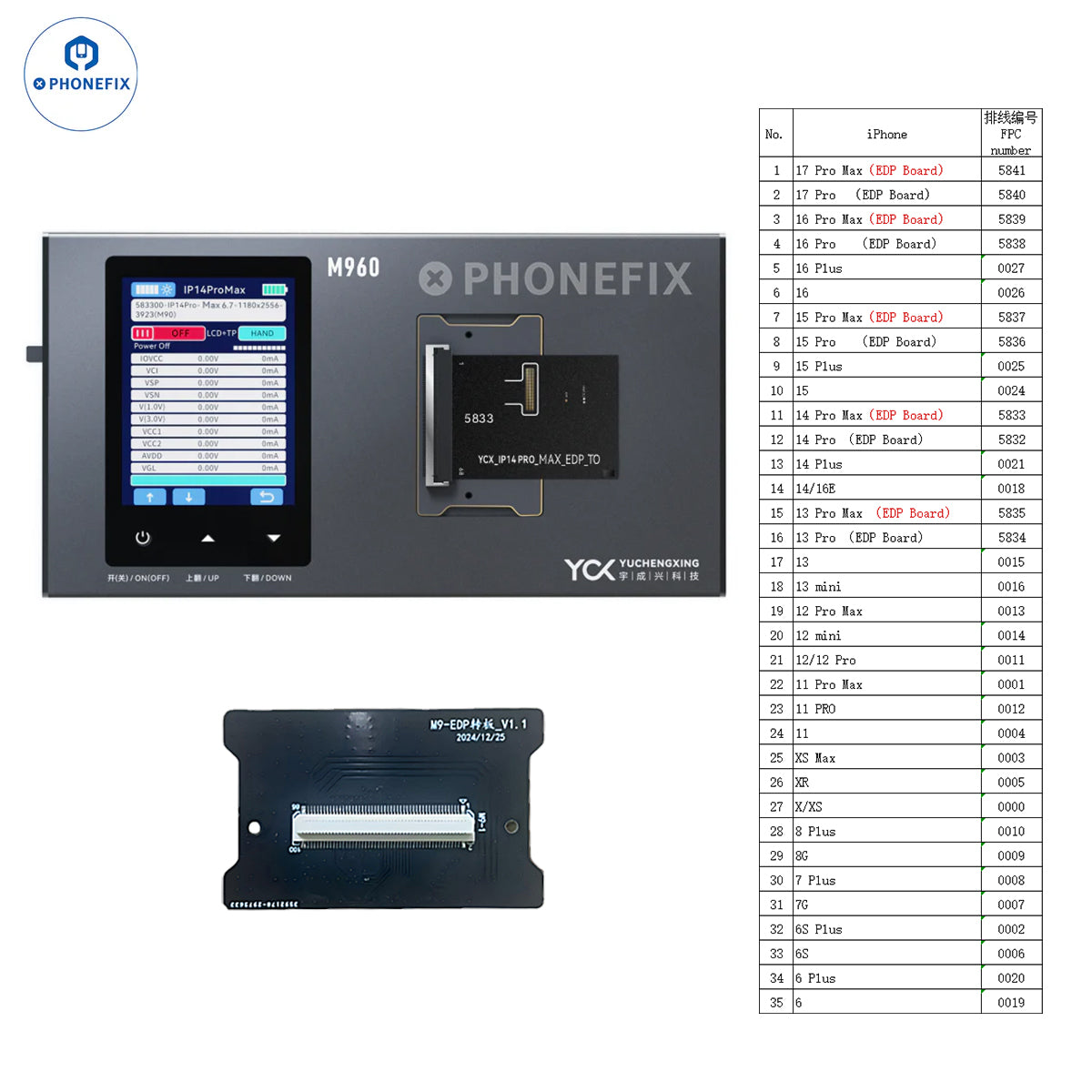

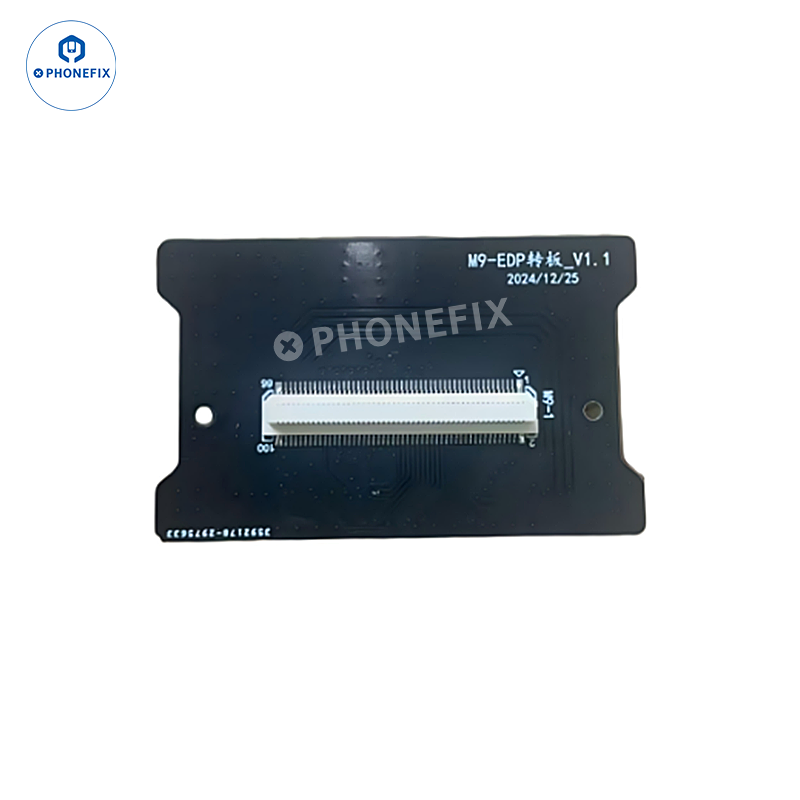

Please note: the iPhone 13 Pro-17 Pro series screen test cable needs to be used with the EDP board.

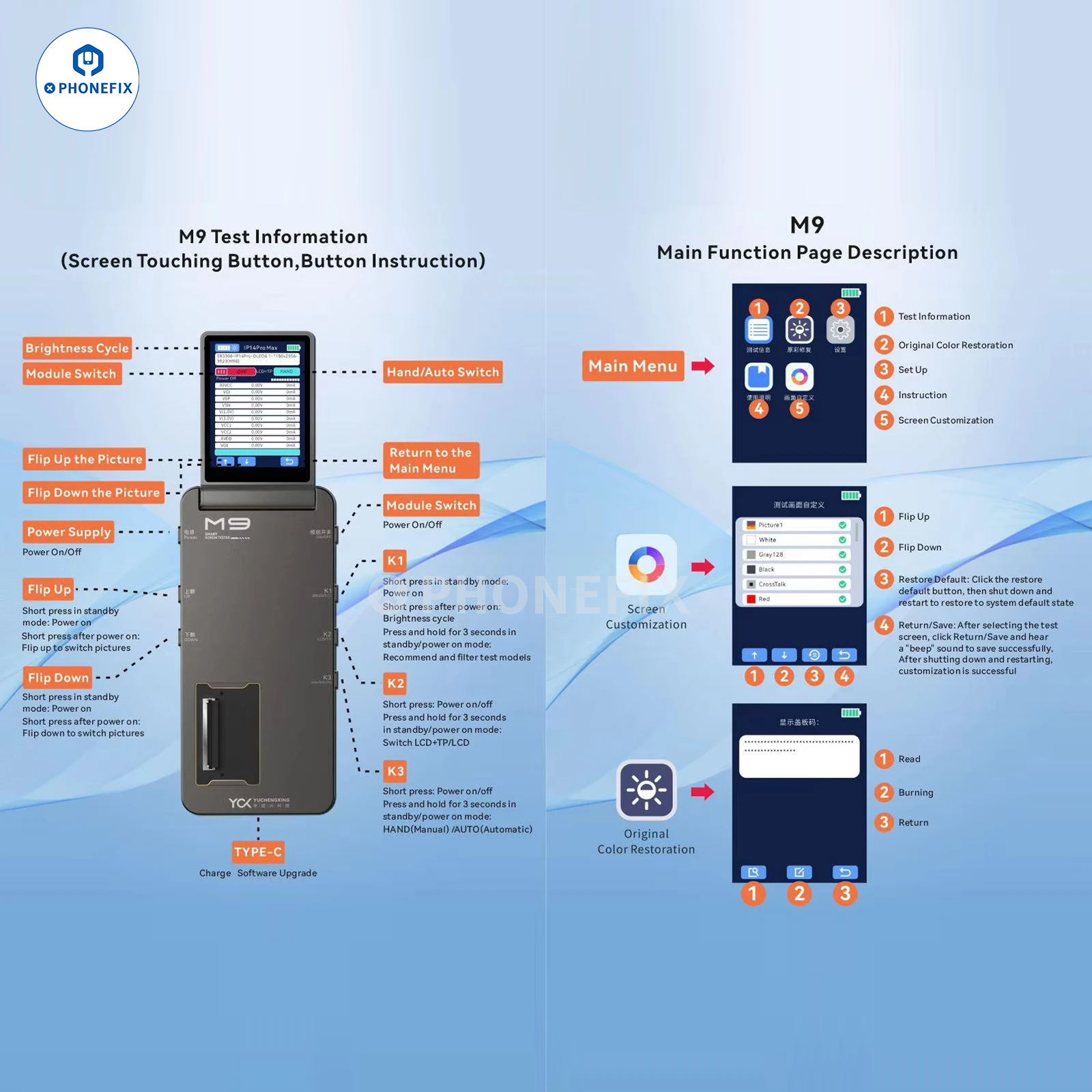

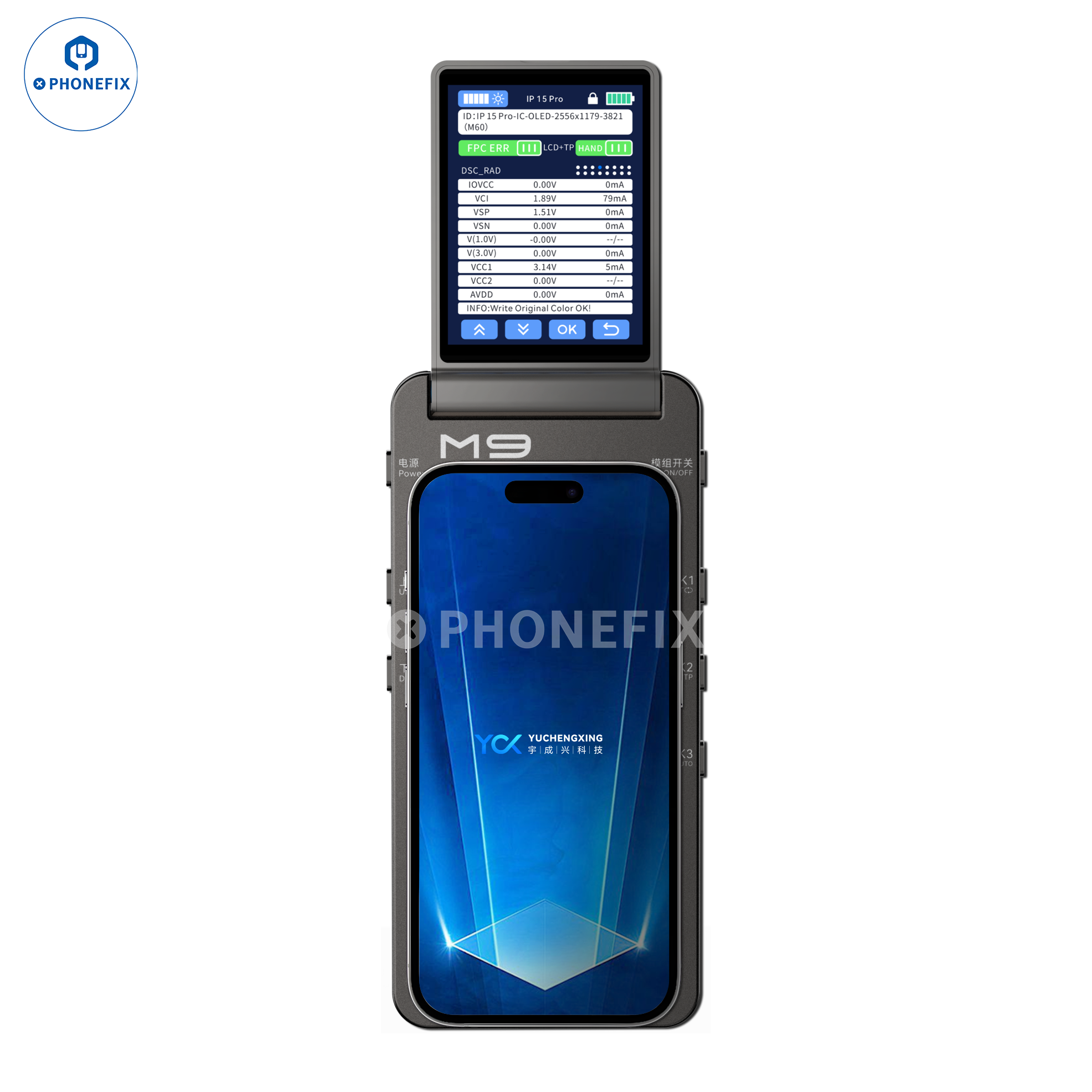

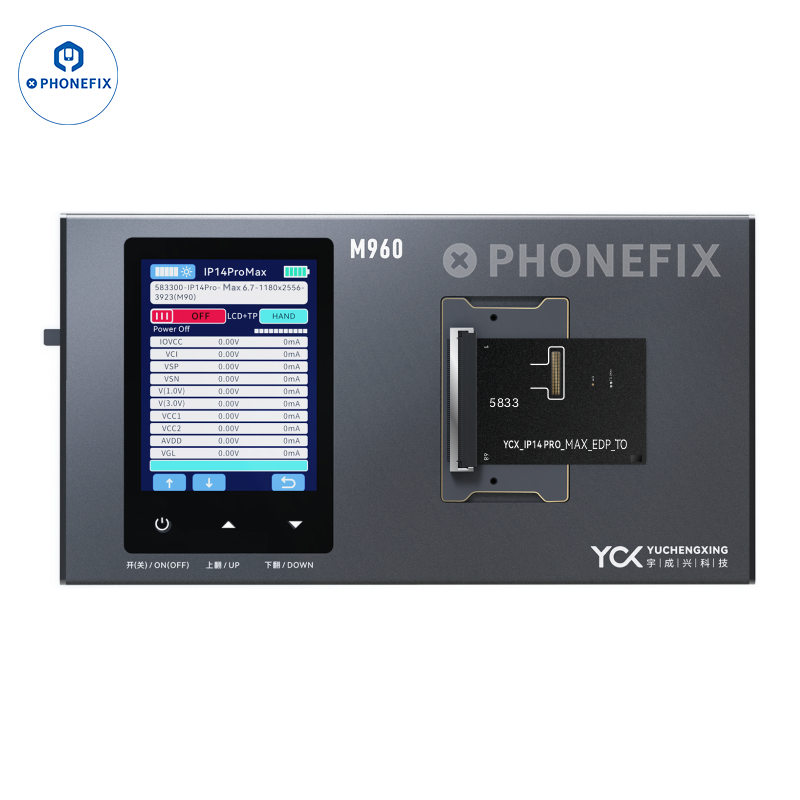

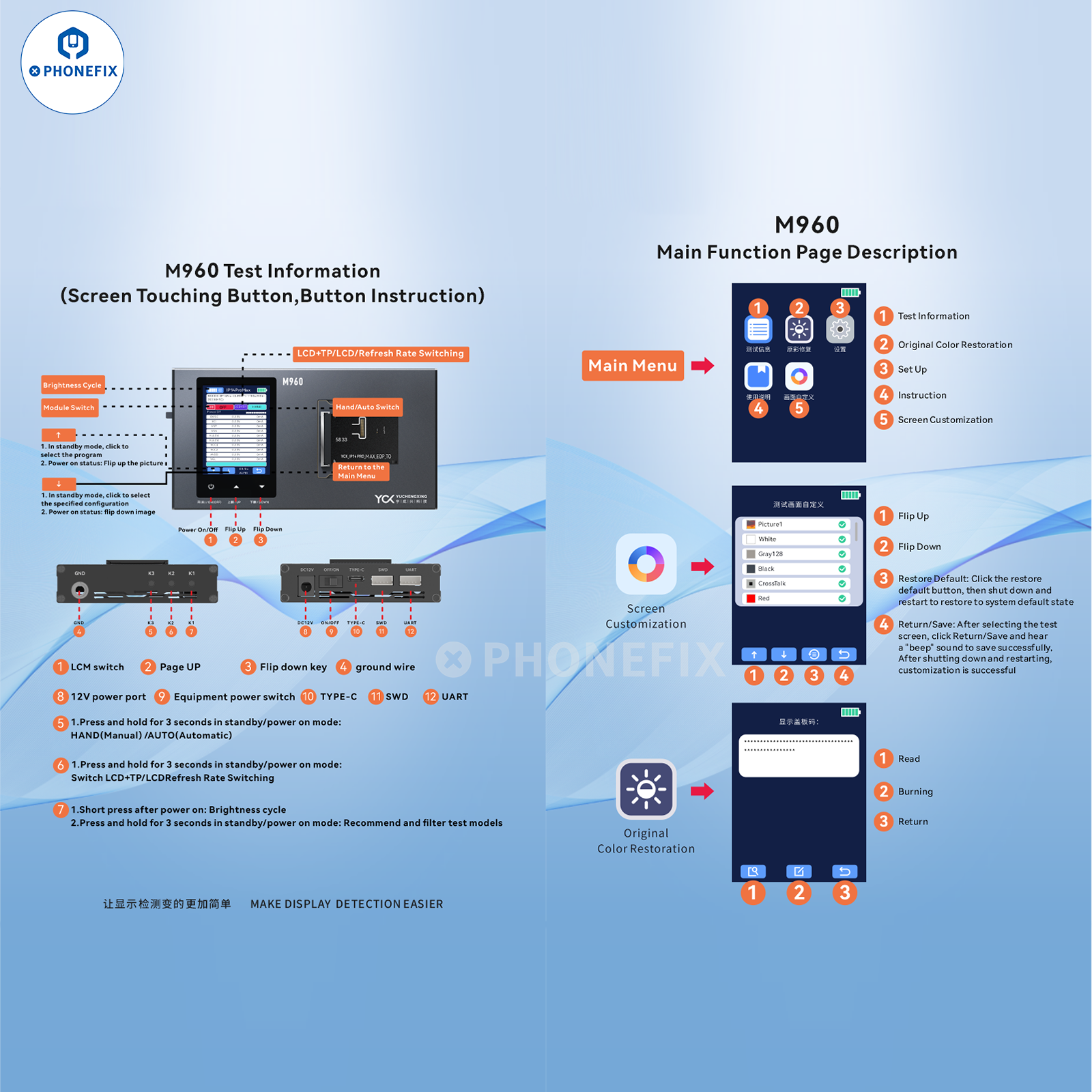

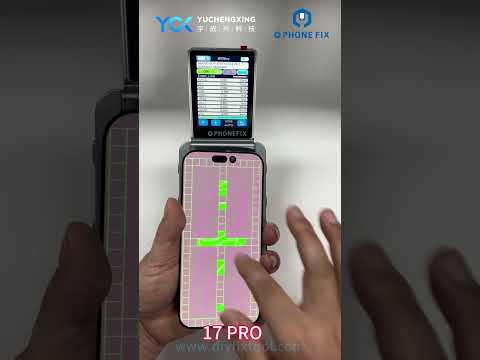

YCX M9 screen tester features a handheld design and user-replaceable batteries, making it ideal for mobile work and repairs. The M960 screen tester uses a 12V power supply, making it more suitable for factory assembly lines or fixed test benches. Both YCX M9/M960 screen testers supports iPhone 6/6S/7/8/X/11/12/13/14/15/16/17 Pro Max.
Features:

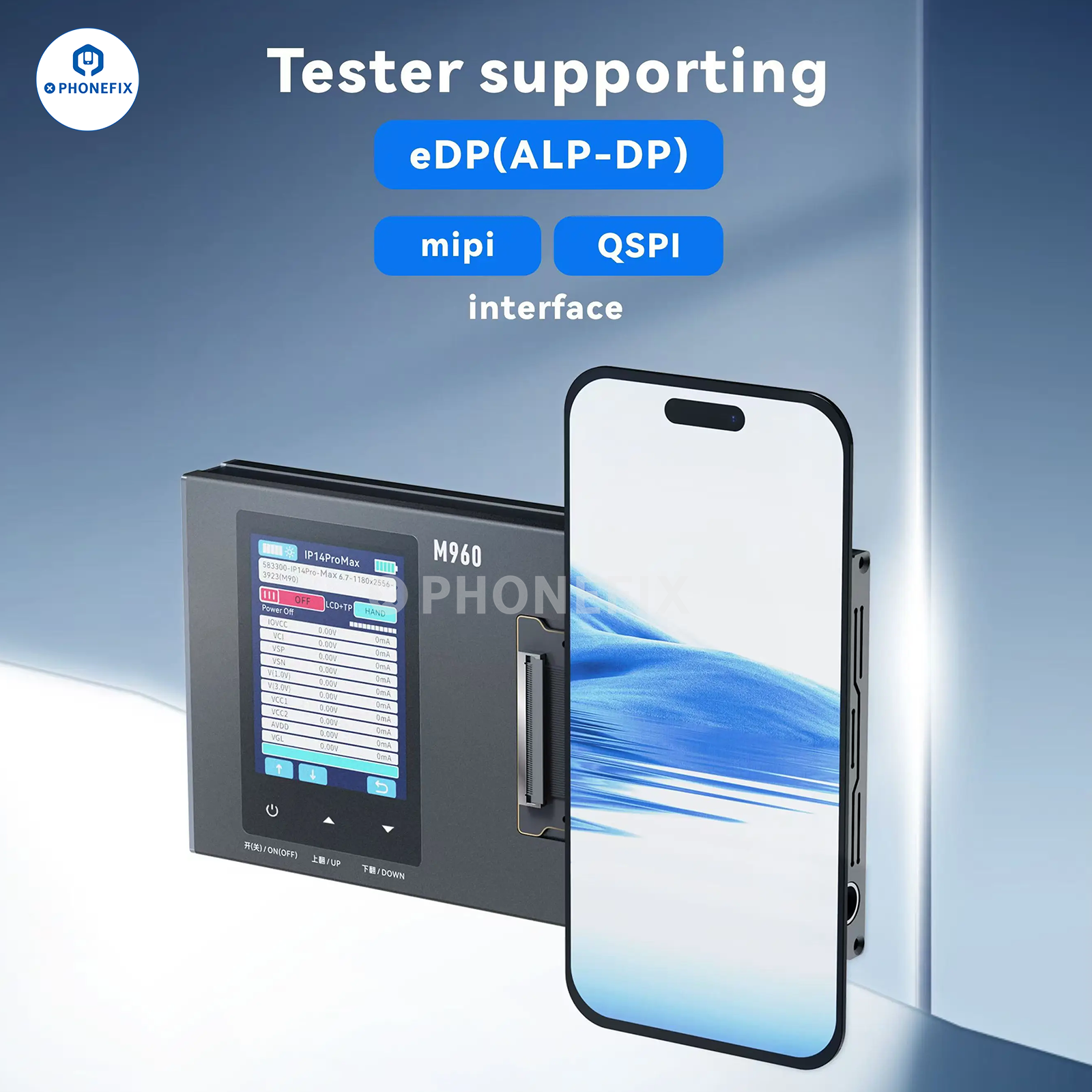

1. Multi-protocol interface support: eDP (ALP-DP) + MIPI + QSPI, fully covering mainstream display protocols;
2. Intelligent cable identification: Universally compatible with all display cables, instantly identifying and automatically loading the corresponding program;

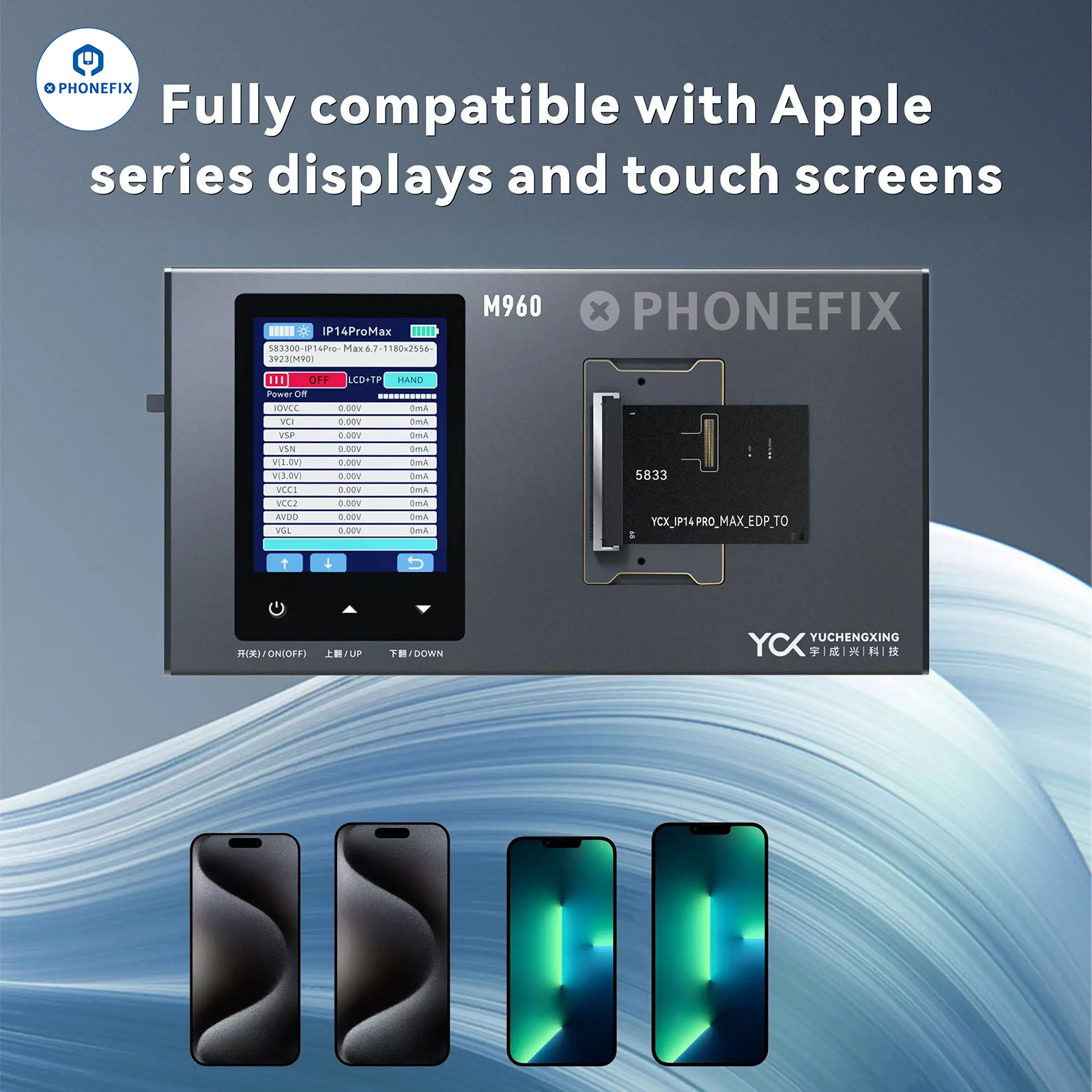

3. Fully compatible with Apple devices: Compatible with Apple series displays and touchscreens;
4. True Tone burn-in function: Supports long-term True Tone display lighting testing;
5. eDP full-speed dot screen: Supports high-efficiency dot screens and dot matrix displays;
6. Screen customization support: Flexible configuration of test parameters;
7. Cyclic brightness adjustment: Simulates screen brightness changes, suitable for lifespan and burn-in testing;
8. Built-in EMMC-32GB storage chip: High-capacity storage, supports program updates and data logging;
9. Refresh rate test function: Verifies screen refresh performance, compatible with high-refresh screens;
10. App assistant upgrade: Quickly upgrade device systems via the mobile assistant;
11. Wide compatibility: Supports thousands of mobile phone and smartwatch display modules on the market.
12. Compatible with a variety of screen types: Tests available on original, modified, compressed, and high-refresh-rate screens.
Please note:
1. M9-exclusive feature: Supports replaceable batteries, making it suitable for mobile work.
2. M960-exclusive feature: 12V power input for high stability, suitable for factory environments.
Please note:
1. Do not disassemble, repair, or modify the YCS M9 M960 Intelligent Screen Tester by yourself.
2. Do not expose this product to rain or moisture.
3. Do not subject this product to mechanical shock.
4. Do not expose this product to heat, fire, or high temperatures. Keep it out of direct sunlight.
