2024 Newly 7-60X Industrial Stereo Microscope - Mechanic E3-B11 Trinocular Stereo Microscope and Mechanic E2-B11 binocular stereo microscope for circuit board welding repair, mobile phone and tablet computer repair, watch repair, jewelry processing and identification, product quality inspection, biological observation, scientific research, etc.
Option:

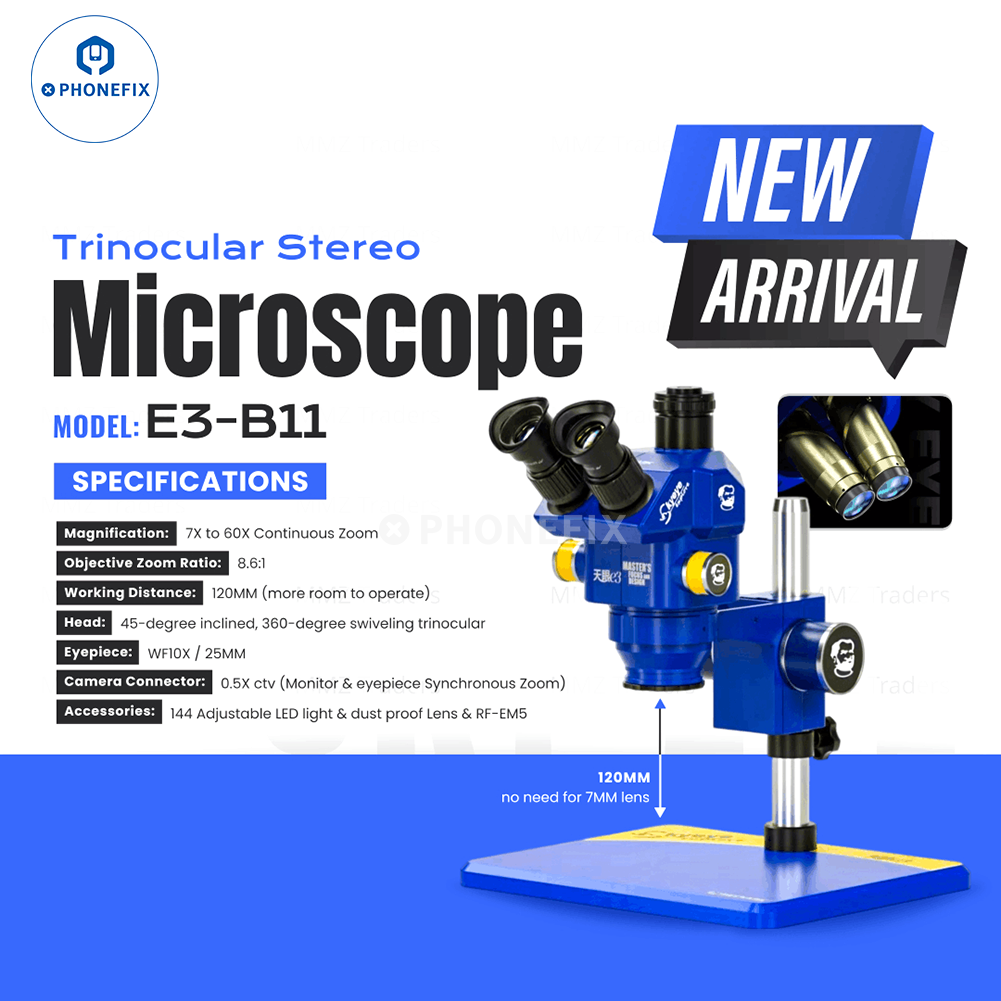

1. Mechanic E3-B11 set: 7X-60X Trinocular Microscope + B11 base.

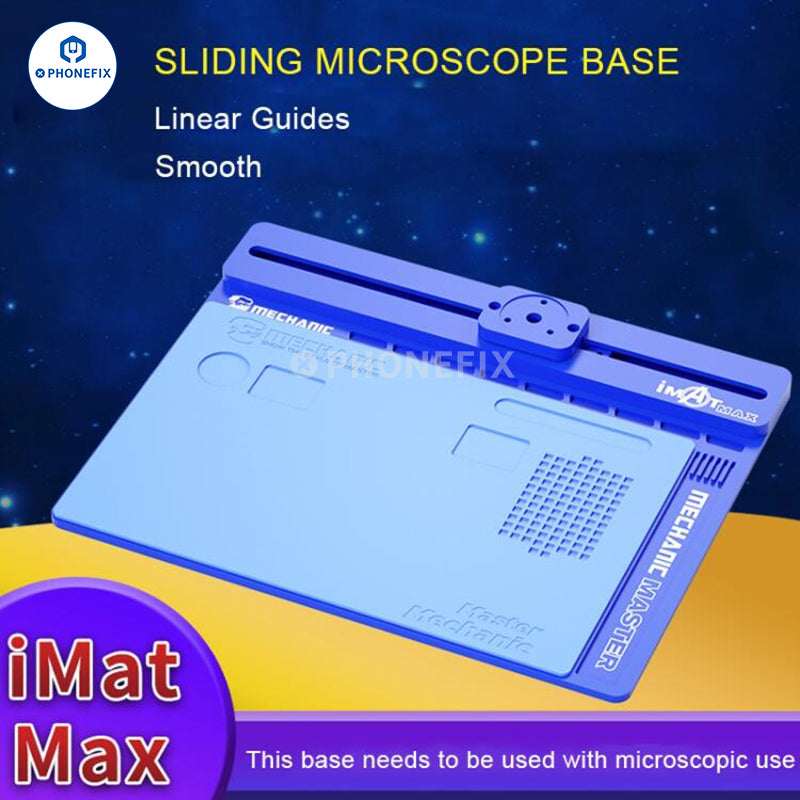

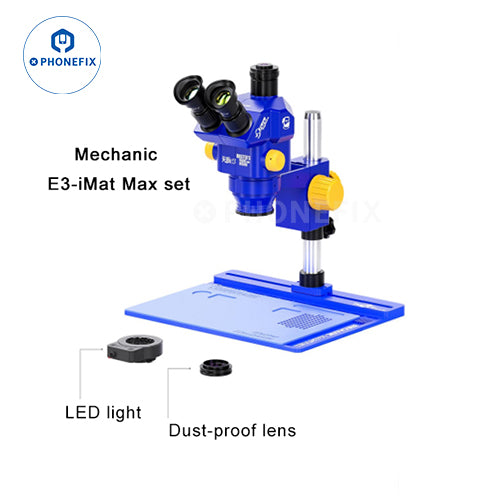

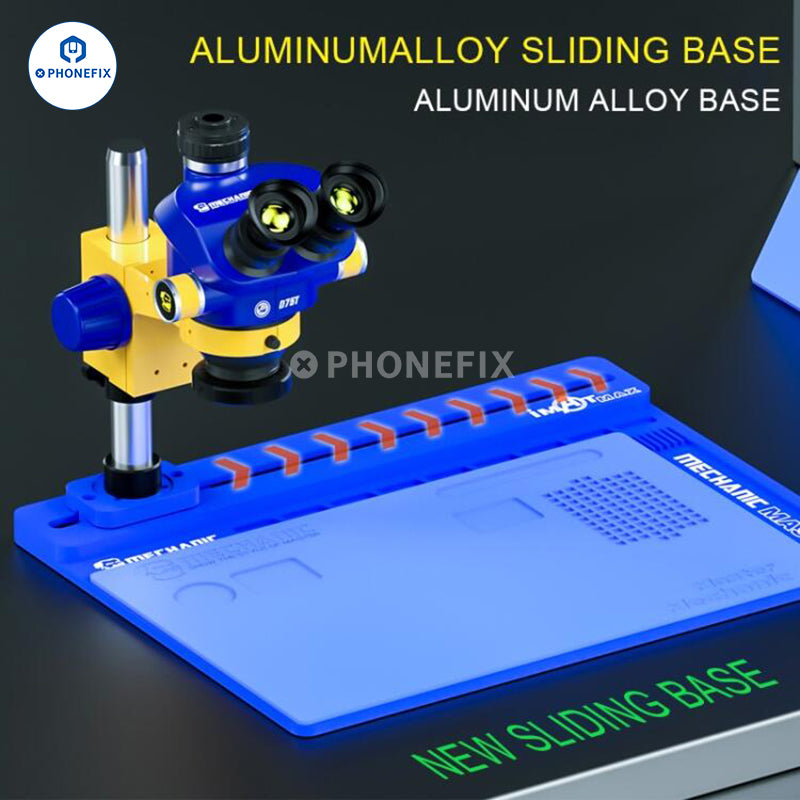

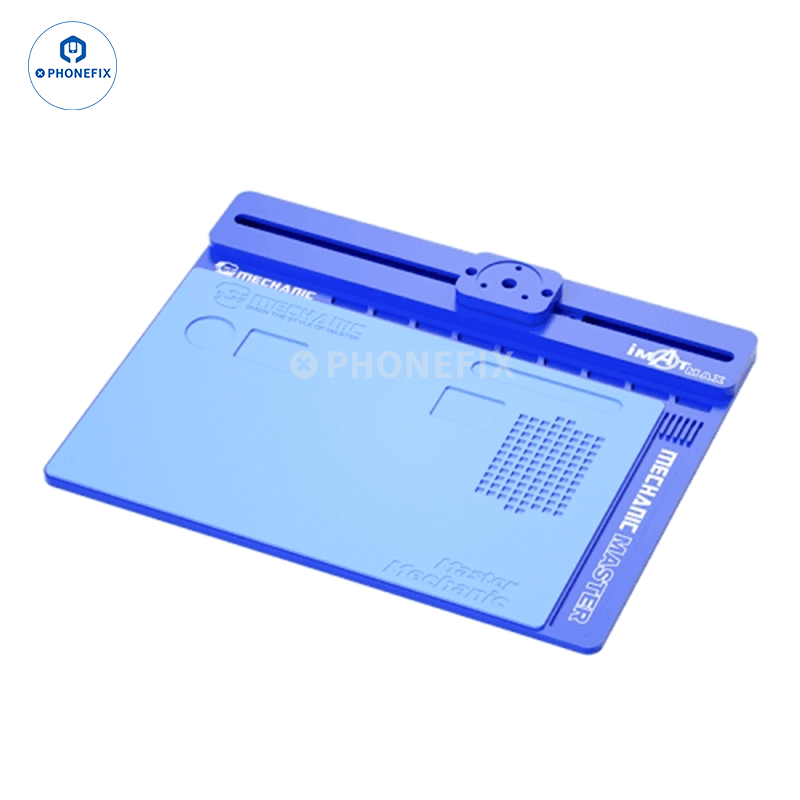

2. Mechanic E3-iMat Max set: 7X-60X Trinocular Microscope + iMat Max sliding base (380*300*40mm).
3. Mechanic E2-B11 set: 7X-60X Binocular Microscope + B11 base.
Mechanic E3-B11 7X-60X Trinocular Microscope Features:
1. 7X-60X continuous zoom, synchronous trinocular microscope, what you can observe are shown at the same time as the camera display.
2. High-definition optical objective lens, focus adjustment arm.
3. 45° decline and 360° rotate microscope head, pupil distance 54-76mm, bilateral visual adjustment ±5.
4. Standard 7x-60x, used with different types of eyepieces and objective lenses can be expanded to 3.5x-300x, continuous zooming.
5. LED lamp height adjustment, adjustable brightness size, spotlight does not leave a shadow, low power safety quality.
6. Standard WF10X25 eyepiece, high angle wide angle eyepiece, provide convenience for observers wearing glasses.
7. Standard with B11 column type large plate, other mats optional.

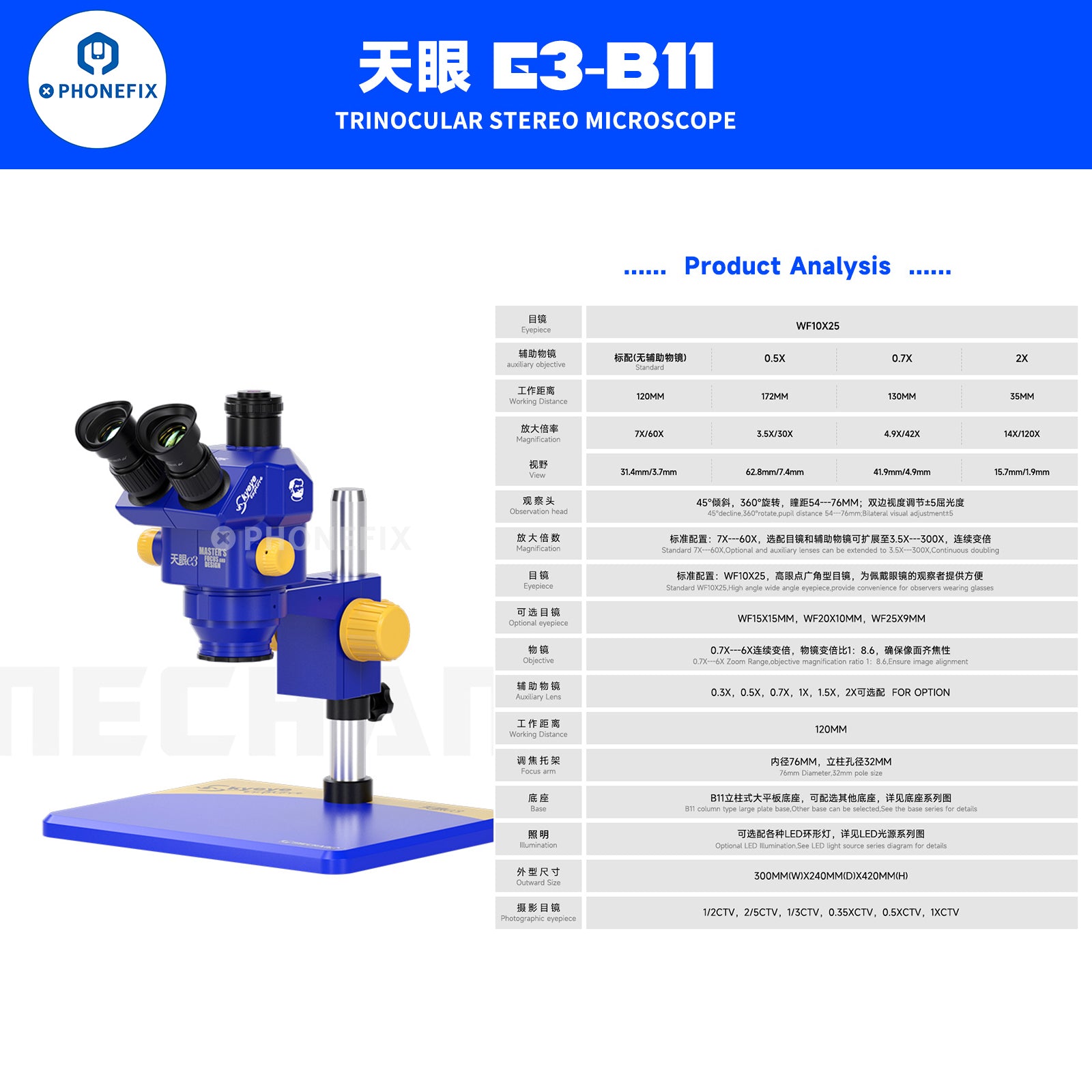

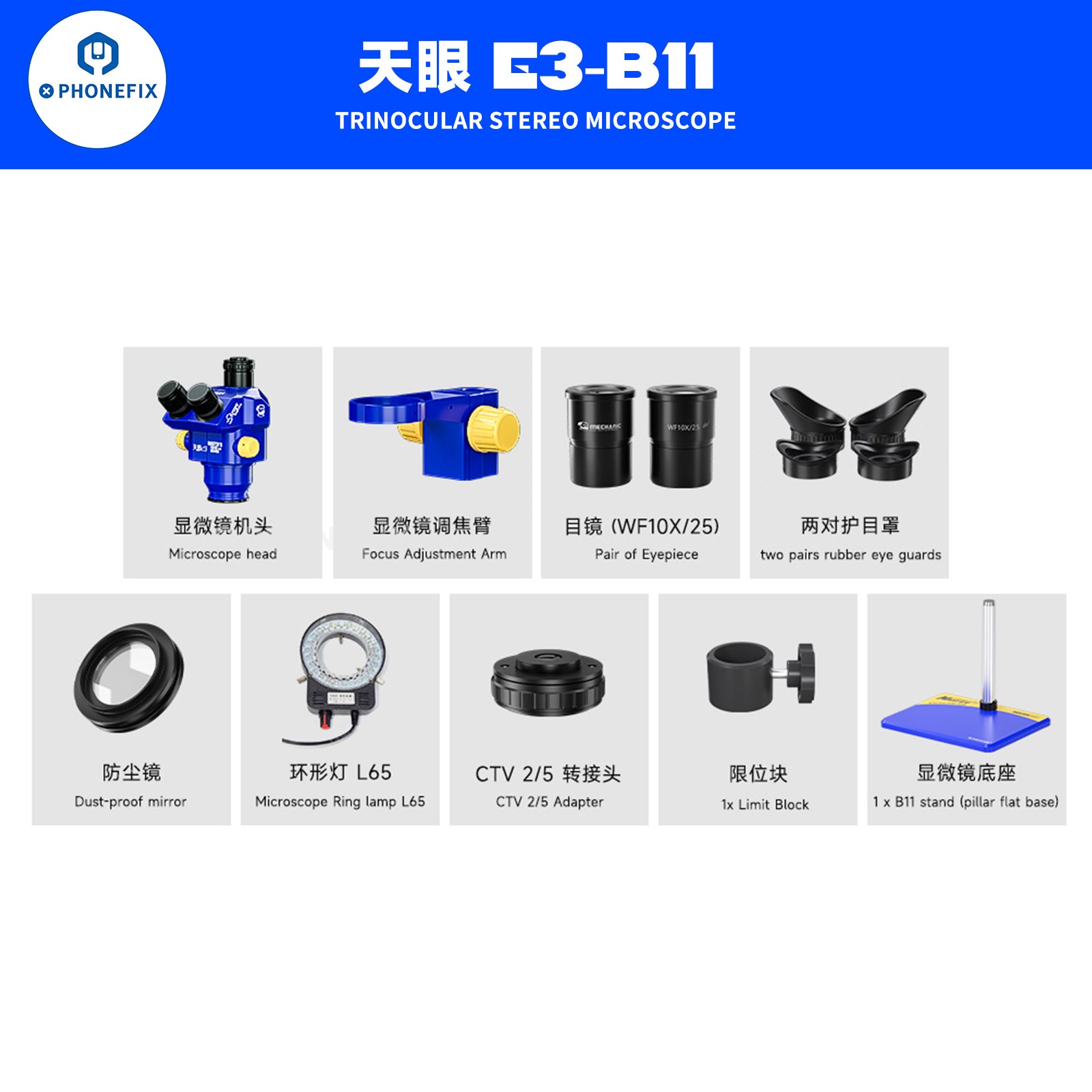

Mechanic E3-B11 Parameters:
Microscope Head: 45-Degree Inclined, 360-Degree rotate, pupil distance 54-76mm, bilateral visual adjustment ±5.
Magnification: 7X to 60X Continuous Zoom.
Standard Eyepiece: WF10X/25, two pairs of rubber eye guards.
Standard lens: dust-proof mirror.
Working Distance: 120MM(standard), with other lenses: 172mm, 130mm, 35mm.
Objective: 0.7x-6x zoom range, objective magnification ratio 1:8.6, ensure image alignment.
Camera Connector(C-mount): CTV 2/5 Adapter (Monitor Eyepiece Synchronous Zoom).
Illumination: L65 LED light.
Focus arm: 76mm diameter, 32mm pole size.
Base: B11 column type large base, other holder base can be selected.
Optional Eyepiece: WF15X/15MM, WF20X/10MM, WF25X/9MM.
Optional Auxiliary lens: 0.3X, 0.5X, 0.7X, 1X, 1.5X, 2X.
Optional C-mount adapter: 1/2CTV, 2/5 CTV, 1/3CTV, 0.35X CTV, 0.5X CTV, 1X CTV.

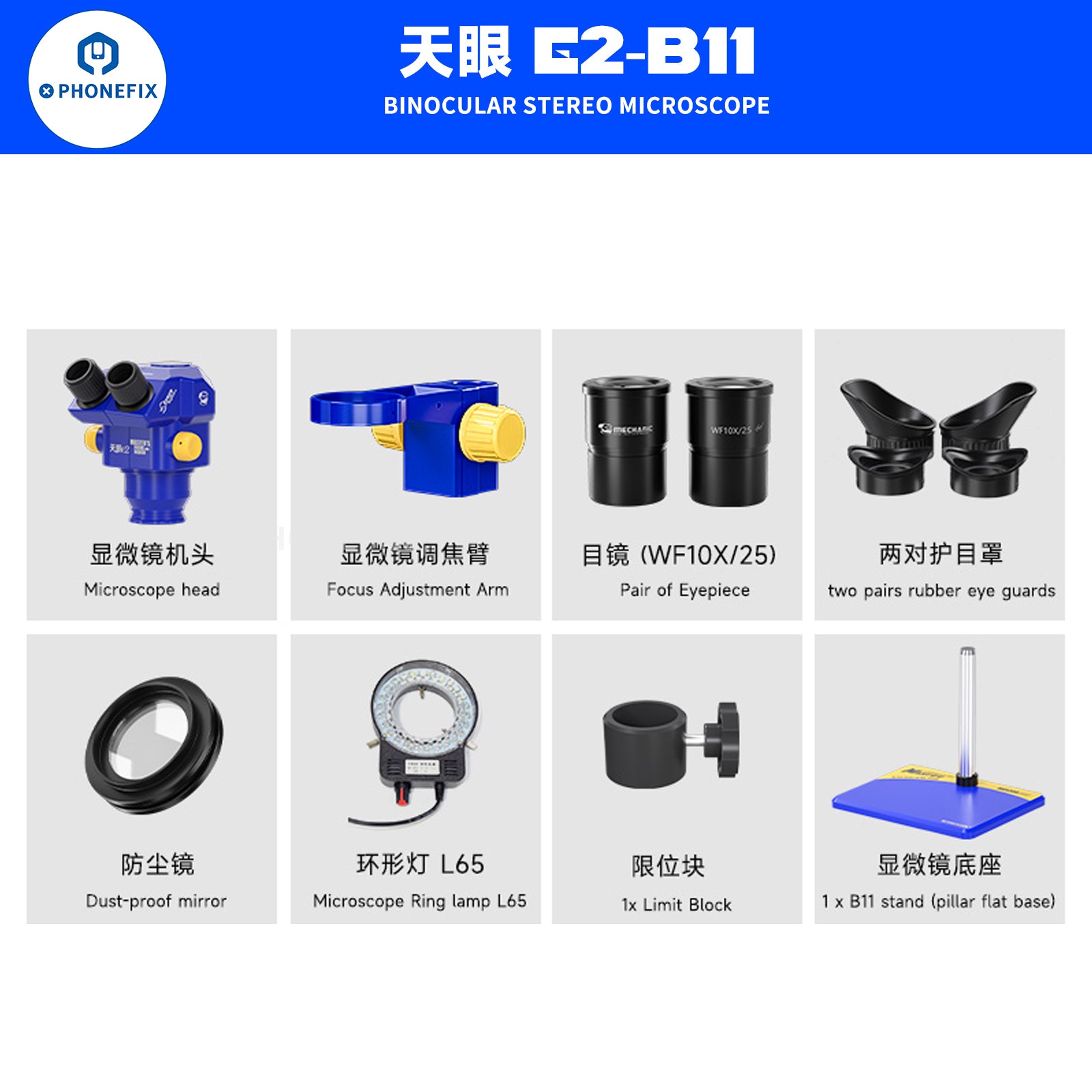

Mechanic E2-B11 7X-60X Binocular Microscope Features:
1. 7X-60X continuous zoom.
2. 45° decline and 360° rotate microscope head, pupil distance 54-76mm, bilateral visual adjustment ±5.
3. Standard 7x-60x, used with different types of eyepieces and objective lenses can be expanded to 3.5x-300x, continuous zooming.
4. High-definition optical objective lens, focus adjustment arm.
5. LED lamp height adjustment, adjustable brightness size, spotlight does not leave a shadow, low power safety quality.
6. Standard WF10X25 eyepiece, high angle wide angle eyepiece, provide convenience for observers wearing glasses.
7. Standard with B11 column type large plate, other mats optional.

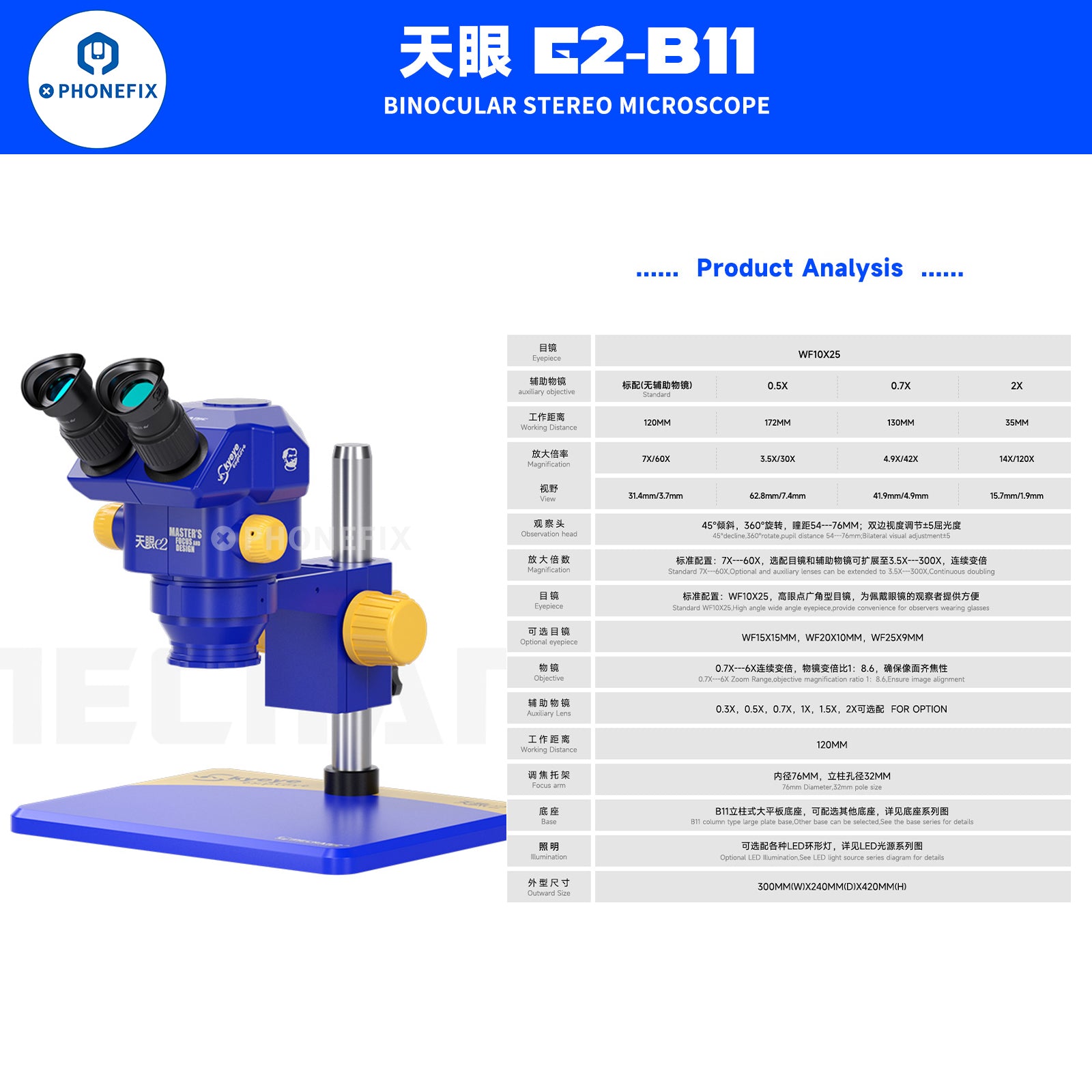

Mechanic E2-B11 Parameters:
Binocular Microscope Head: 45-Degree Inclined, 360-Degree rotate, pupil distance 54-76mm, bilateral visual adjustment ±5.
Magnification: 7X to 60X Continuous Zoom.
Standard Eyepiece: WF10X/25, two pairs of rubber eye guards.
Standard lens: dust-proof mirror.
Working Distance: 120MM(standard), with other lenses: 172mm, 130mm, 35mm.
Objective: 0.7x-6x zoom range, objective magnification ratio 1:8.6, ensure image alignment.
Illumination: L65 LED light.
Focus arm: 76mm diameter, 32mm poly size.
Base: B11 column type large base, other holder base can be selected.
Optional Eyepiece: WF15X/15, WF20X/10, WF25X/9.
Optional Auxiliary lens: 0.3X, 0.5X, 0.7X, 1X, 1.5X, 2X.
