MECHANIC T12 PRO MAX, T-12, T12 Pro, T12 MAX Constant Temperature Soldering Iron Station with LED Digital Display for Mobile Phone PCB BGA Circuit Board Soldering Repair. Mechanic T12 Pro/T12 Pro Max 72W/120W intelligent anti-static digital soldering station with aluminum alloy handle and T12 iron tips. Mechanic T12 50W precision temperature control desktop soldering iron, one-click start. MECHANIC T12 Max 75W Digital Soldering Station Precision Thermostatic Heat Control with with 3-gear storage for Mobile Phone Welding Repair.

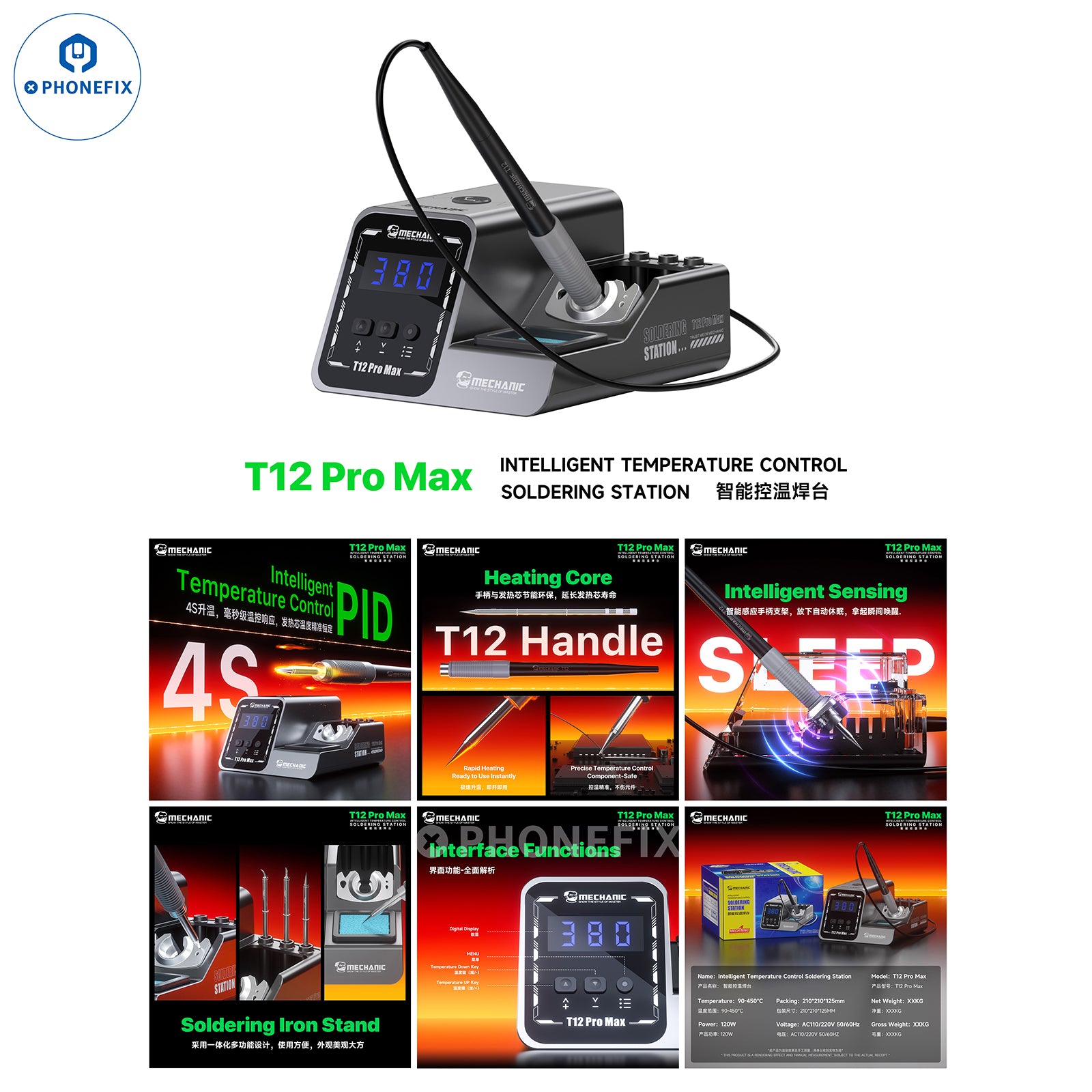

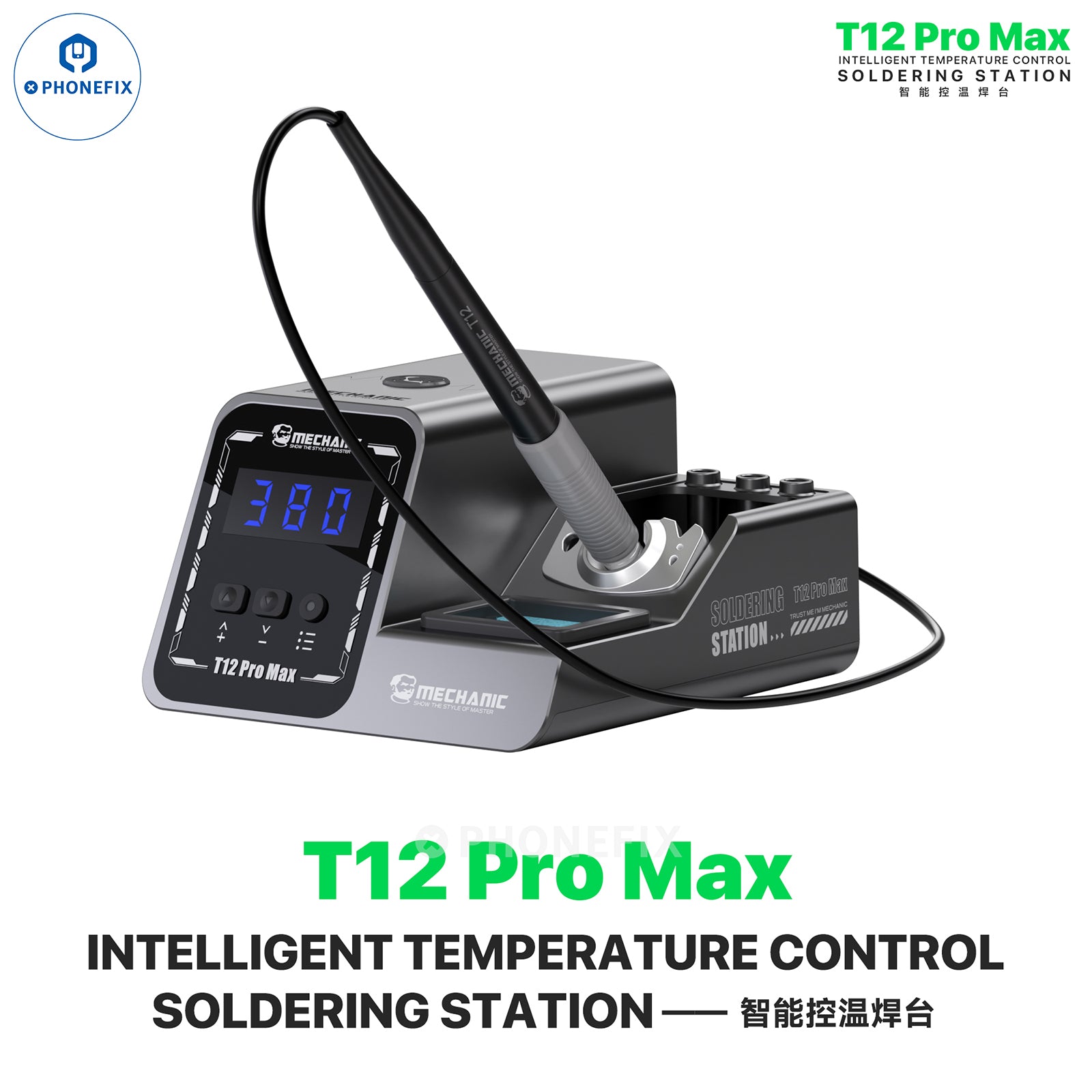

MECHANIC T12 PRO MAX Features:
1. MECHANIC T12 PRO MAX 120W Soldering Station with T12 Handle and supports T12 Soldering Iron Tips for Mobile Phone Repair.
2. Intelligent precise PID temperature control, rapid heating in 4 seconds; Fast temperature control response; precise and constant heating element temperature.
3. 120W High Power: Easily handles both large solder joints and small components.
4. T12 handle and T12 series heating core. Ready to use instantly; does not damage components.
5. Smart Sensor Sleep Mode: Automatically keeps warm when set down, instantly wakes up when picked up.
6. Integrated Handle + Multifunctional Stand: Convenient for Swapping iron tips and Cleaning.
7. Digital display, real-time temperature display.
MECHANIC T12 Max Features:
1. Mechanic T12 MAX intelligent digital constant temperature soldering station, heating constant temperature, more accurate.
2. Three-speed energy storage function: 3-speed fast switching, click fast switching, knob precise temperature control.
3. 5 seconds to heat up, 6 seconds to melt tin, product factory settings, can be operated by yourself to accurately adjust the temperature.
4. T12 series universal: human-computer interaction design, compatible with all T12 series soldering irons, the soldering iron stand will automatically sleep after 1-2 seconds of inactivity.
5. Handle metal sleep seat, replaceable soldering iron tip.
Mechanic T-12 Features:
1. 2.3-inch LED large digital display。
2. Heating up fast, 5-speed memory function.
3. Small aluminum alloy body, compatible with T12 handle and T12 series soldering iron tips.
3. 5 quick gears, tap, and press for quick switching, long press for precise adjustment, press up/down key after power on to calibrate the temperature together.
4. Precise temperature control, one key to start.
5. All-metal integrated sleep seat, after shutting down, press the up and down keys and then turn on the machine to enter the sleep time setting.
6. Built-in fuse, short circuit instantly blows, protects the device from damage, ensures stability and safety.
Mechanic T12 Pro Features:
1. LED digital display.
2. Heat up in 4 seconds, and 5 seconds to melt the tin.
3. 75W, Compatible with T12 handle and T12 series soldering iron tips.
4. Automatic wake-up, precise temperature control from 200-450 Celsius.
5. Small and portable, safe and convenient.
Mechanic T12 Specification:
Model: Mechanic T12 soldering iron station.
Voltage: AC100-240V, 50/60Hz.
Rated Voltage: 50W, Max 75W.
Temperature range: 180℃-450℃.
Handle line length: 1.27m.
Host Size: 85*85*110mm
Net Weight: 721G
Sleeping seat size: 63*70*118mm
T12 Max Specification:
Name: T12 Max Intelligent digital thermostatic soldering station.
Power: 75W
Heating core: Universal T12 series soldering tip
Display: LED digital display
Handle wire length: 1.1M
Lnput Voltage: AC110-240V
Temperature range: 180-450℃
Size: 115*93*43mm
Gross Weight: 1kg
Mechanic T12 Pro Specification:
Model: Mechanic T12 Pro soldering station.
Voltage: AC100-240V, 50/60Hz.
Rated Voltage: 72W.
Temperature: 200℃-450℃
Tin removal of chip: 350℃-400℃ (recommended 350℃,related to the melting point of tin wire)
Pad degumming: 350℃-400℃
Chip disassembly: 350℃-400℃
Net Weight: 788g
Gross Weight: 946g
Product Size: 160* 88*38mm
MECHANIC T12 PRO MAX Specification:
Model: Mechanic T12 PRO MAX Intelligent Temperature Control soldering iron station.
Voltage: AC110/220V, 50/60Hz.
Power: 120W
Temperature range: 140℃-450℃.
Net Weight: 432G
Gross weight: 855G
Host Size: 85*85*110mm
Packing: 210*210*125mm.
Package list:
1 x Soldering Station.
1 x T12 Soldering Iron Handle.
1 x T12 Soldering Iron Tip.
1 x Soldering Iron Holder.
1 x Power Cable.
Optional: 6pcs T12 tips: T12-K, T12-KU, T12-ILS, T12-BL, T12-JL02, T12-BC2.
Note: Setting time is 0-99 minutes, For example "1" is set to 1 minute,
the soldering iron and encoder will automatically shut down and stop heating after 1 minute of non-use.
