Mijing iPhone motherboard layered test fixture for iPhone X-13 Pro MAX. MJ C17 C18 C20 C21 motherboard function test fixture for iPhone X-13 Pro Max motherboard middle layer function testing. Mijing logic board upper lower layer middle frame tester for iPhone X/XS/XS MAX/1/11Pro/11 Pro MAX/12/12 mini/12Pro/12 Pro MAX/13/13 mini/13Pro/13 Pro MAX.
Option:

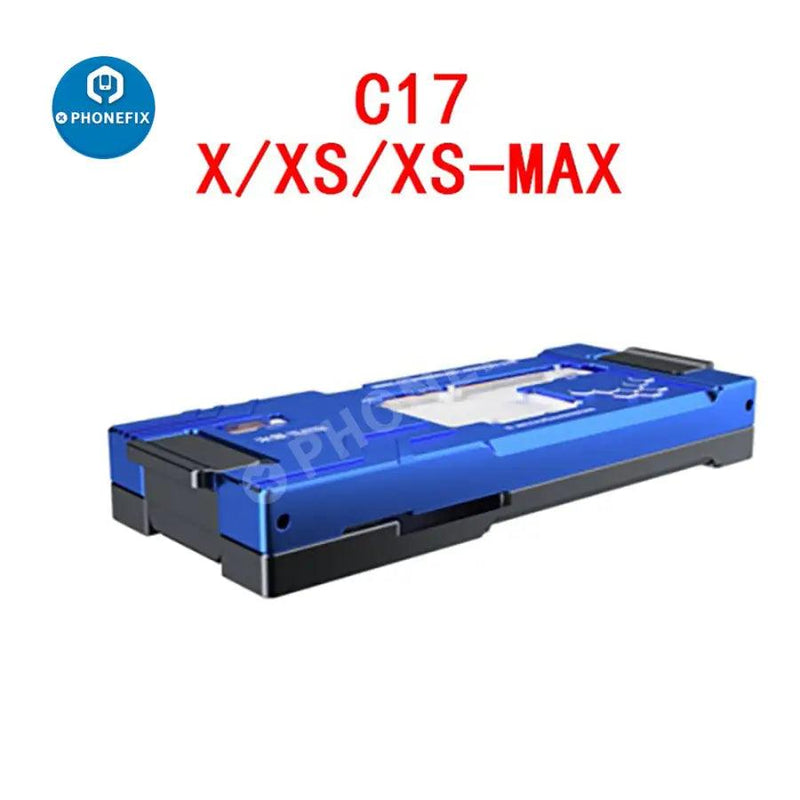

1. Mijing C17 3-in-1 test fixture for iPhone X/XS/XS MAX motherboard function detection.

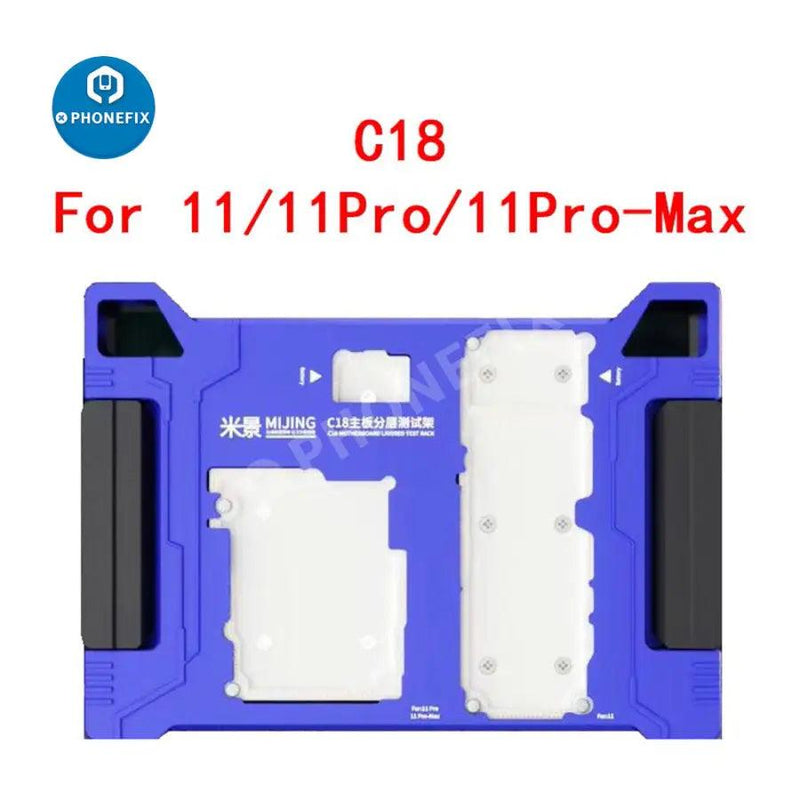

2. Mijing C18 3-in-1 test fixture for iPhone 11/11Pro/11 Pro MAX motherboard function detection.

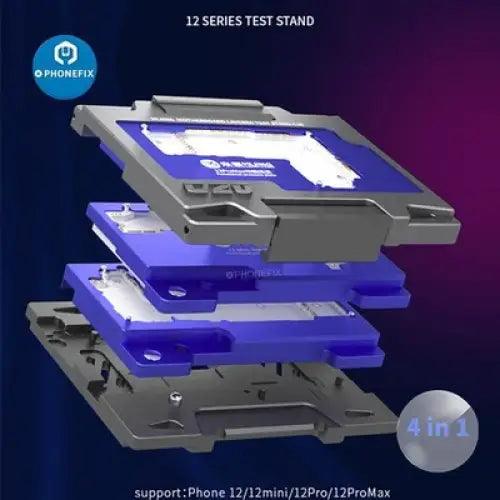

3. Mijing C20 4-in-1 test fixture for iPhone 12/12 mini/12Pro/12 Pro MAX motherboard function detection.

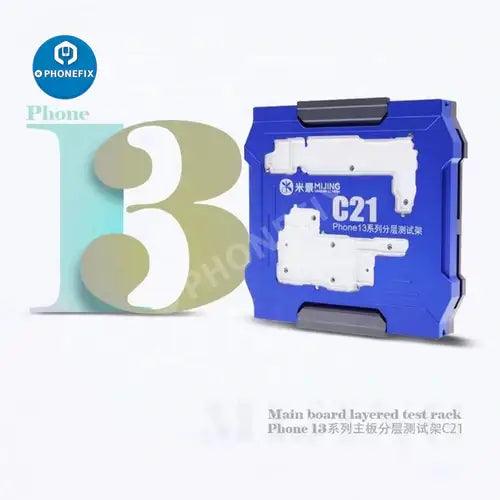

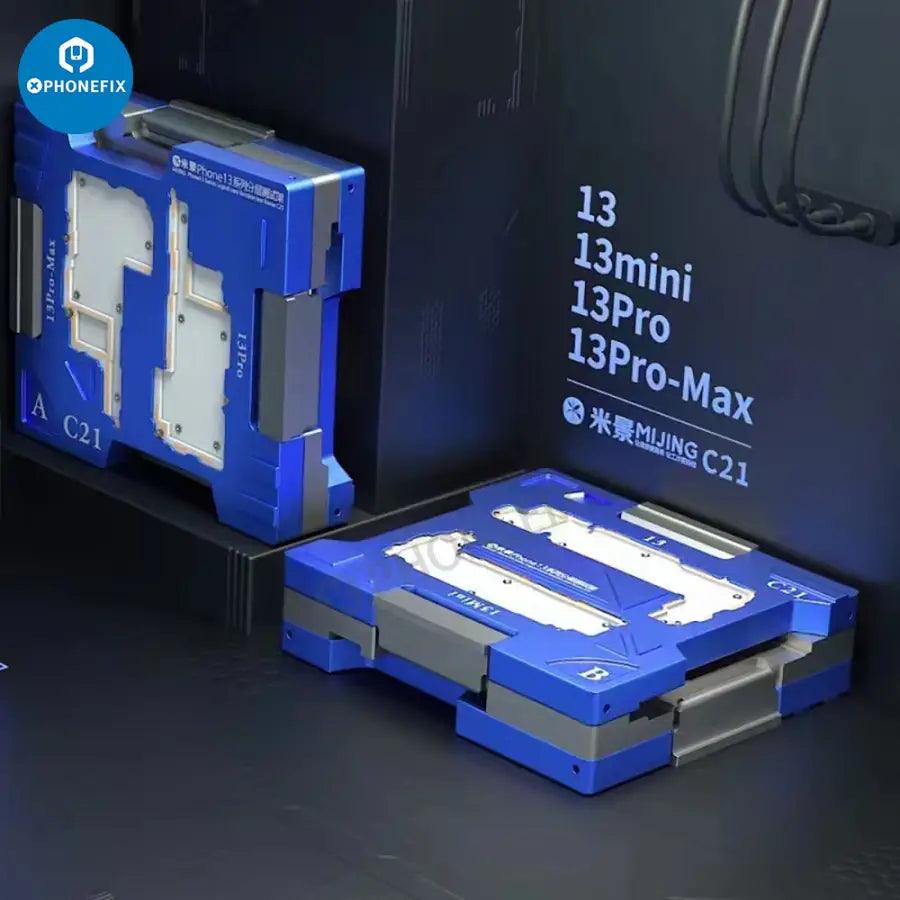

4. Mijing C21 4-in-1 test fixture for iPhone 13/13 mini/13Pro/13 Pro MAX motherboard function detection.
Feature:
1. Easy to use, connect the upper and lower motherboards for testing/repair, avoid problems after installation, increase maintenance speed.
2. Check in advance to avoid duplicate disassembling and breaking the motherboard
Small size, easy to carry.
Operational Process:
1. Decomposition iPhone X-13 Pro Max Middle Layer simply equipped the test fixture.

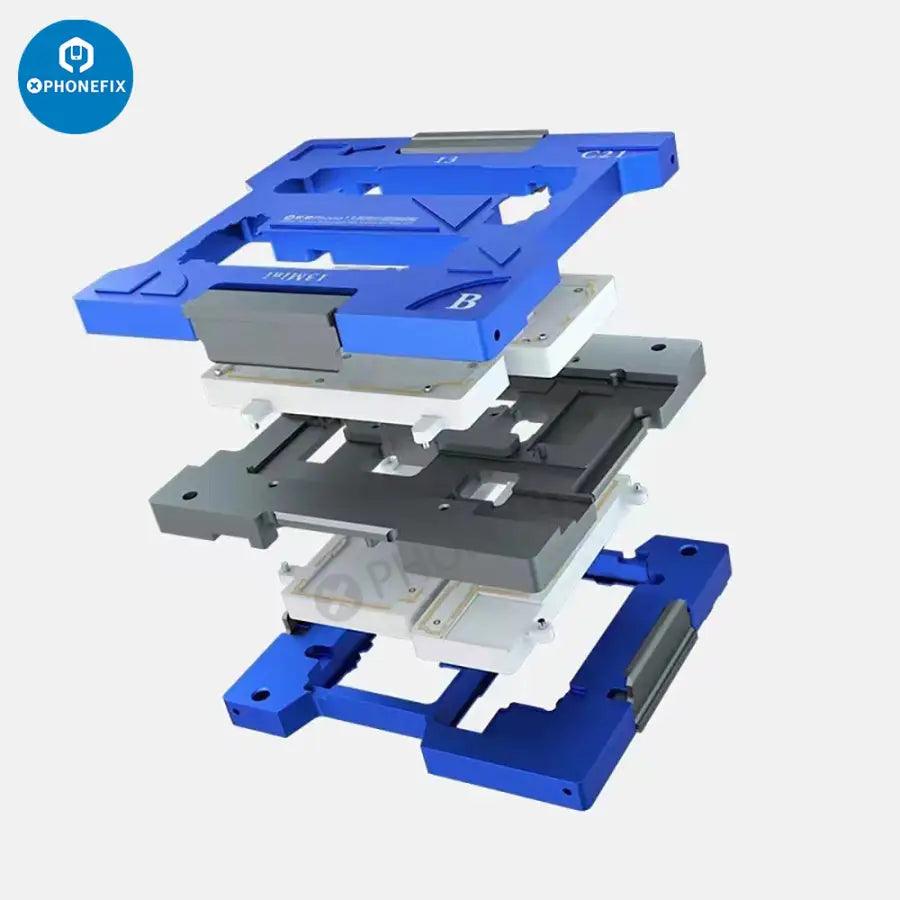

2. Install: Put in the lower main board, put on the pinboard, but the top board in, and then cover the test rack.
3. The first way to connect the screen line, boot, power cord, or battery test ink success or not.
4. The second way is to connect the end plug on the base of the first method to implement the brush function.
