Product features : 100 MHz Digital Oscilloscope with 4 channels and 25 MHz 2 channel integrated source plus 12 Mpt memory and 1 GSa/sec sampling
4 Channels, 100 MHz Bandwidth scope + 25 MHz 2 channel Signal Source (function generator)
UltraVision: Deeper memory(Std.12Mpts,Opt.24Mpts)
UltraVision: Up to 30,000 wfms/s Waveform capture rate
UltraVision: Multi-Level intensity grading display (100V-240V)

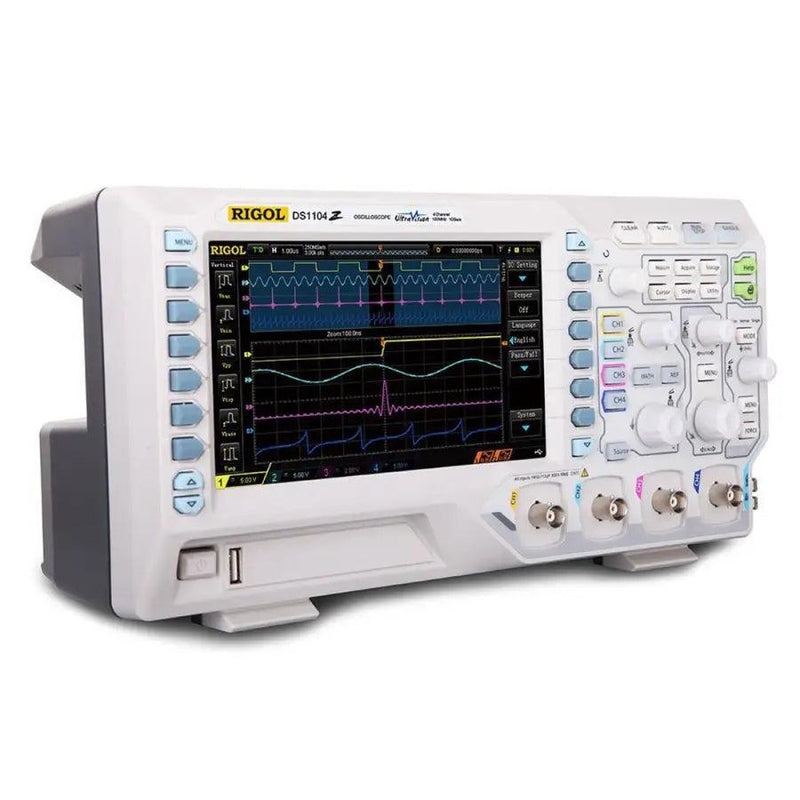

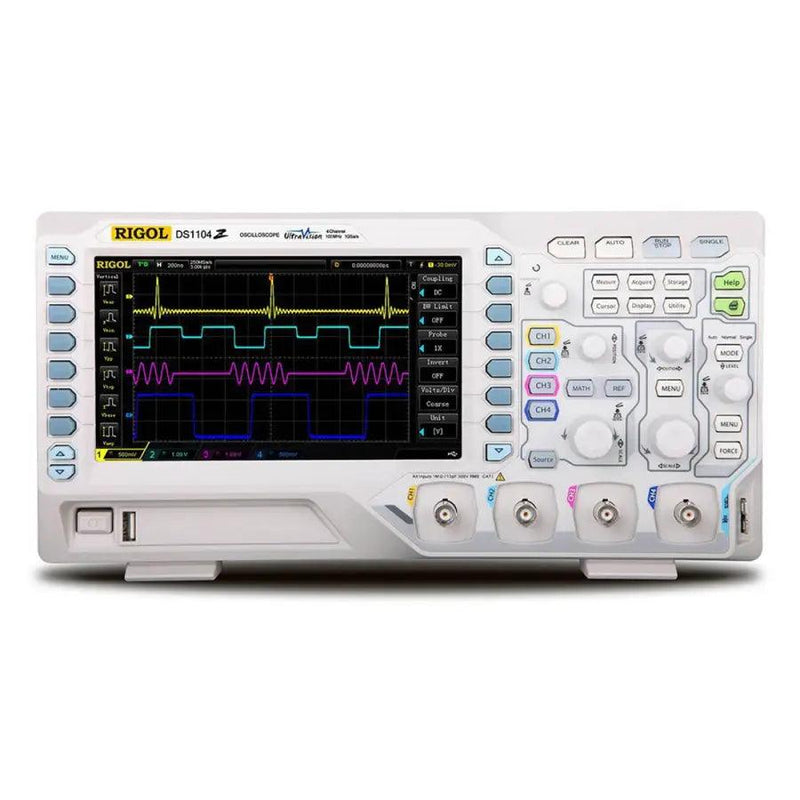

The Rigol DS1104Z Plus is a very high quality 4 channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 100 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The DS1104Z Plus has a refresh rate of up to 30.000 wfms/ enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
General Data : Display:17.8 cm (7") WVGA-Color-LCD
Resolution:800 × 480 Pixel
Interface:
- USB-host for i.e. USB sticks
- USB-Device for a PC connection or USB Pict-Bridge printerinterface
- LAN for network connectivity (LXI compilant)
- GPIB (IEE-488, General Purpose Interface Bus) using the optional USB-GPIB Module
- Trigger- and Calibrationoutput
Size (W × H × D): 31.3 cm × 16.0 cm × 12.2 cm 12.3" × 6.29" × 4,80"
Weight:3.2 kg 7.05 lbs
Supported operation systems:Windows XP (32Bit + 64Bit) Windows Vista (32Bit + 64Bit) Windows 7 (32Bit + 64Bit)
Oscilloscope Functions : Channels:4
Real-time sample rate:1 GSa/s realtime (1 Channel) 500 MSa/s realtime (2 Channels) 250 MSa/s realtime (3/4 Channels)
Bandwidth:100 MHz
Sampling Modus:Normal, average, peak detect
Mathematics:userdefined, FFT (Fast Fourier Transform)
FFT windows:Rectangle, Hanning, Hamming, Blackman
Signal Bus Decoding:RS232/UART (option), I²C (option), SPI (option)
Signal : Input:DC/AC coupling, CAT I 300 Vrms, CAT II 100 Vrms
Real-time sample rate:up to 1 GSa/s realtime
Time base:5 ns/div bis 50 s/div
Memory:max. 12M Mpts. (1 Channel) max. 24M Mpts. (1 Channel) with memory option MEM-DS1000Z max. 6M Mpts. (2 Channels) max. 12M Mpts. (2 Channels) with memory option MEM-DS1000Z max. 3M Mpts. (3/4 Channels) max. 6M Mpts. (3/4 Channels) with memory option MEM-DS1000Z
Vertical : Analog digital converter (A/D):8 Bit
Sensitivity range (V/div):1 mV/div to 10 V/div
Offset range:1 mV/div to 10 V/div
Trigger : Trigger:Channel, Ext
Signal system and line/field frequency (Video triggering mode):PAL, NTSC, SECAM 480P, 576P HDTV standards
Triggerfunctions:Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, FlexRay
Measurement : Cursor measurement:Manual, Track and Auto Measure modes
Auto measurement:Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay1-2 (rise), Delay1-2(fall), Phase1-2 (rise), Phase1-2 (fall)
