Description
TC64 Type-C Color LCD Display USB Voltmeter Ammeter Voltage Current Meter Multi-meter Battery PD Recharge Power Bank USB Tester,TC64 Type-C Color LCD battery PD charge power bank USB Tester, TC64 Type-C USB Tester current only flow from male connector to female connector.
TC66/TC66C Type-C PD trigger USB-C Voltmeter ammeter voltage 2 way current meter multimeter PD charger battery USB Tester
Type-C color display tester Feature: Real-time detection of the charging state, voltage, current, power and other data will be clear at a glance, HD LCD Display, accurate measurement.
TC64 Technical Parameter :
- Product Model: TC64
- Display screen: 0.96 Inch Color LCD display
- Voltage measurement range: 3.70-30.00V
- Voltage measurement resolution: 0.01V
- Current measurement range: 0-4.000A
- Current measurement resolution: 0.001A
- Capacity accumulation range: 0-99999mAh
- Voltage measurement accuracy: ±(0.8％+4digits at 25℃)
- Energy accumulation range: 0-99999mWh 999.99Wh
- Current measurement accuracy: ±(1％+4 digits, at 25℃)
- Load impedance range: 1Ω-9999.9Ω
- Power measurement range: 0-120W
- Temperature range: -0℃~80℃/32℉~176℉
- Temperature measurement error: ±3℃/±6℉
- Working temperature range: 0~45℃/32℉~113℉
- Product size: 50mm x 19mm x 9mm
- Refresh rate: 2Hz
- Product weight: 70g( With packaging 140g)

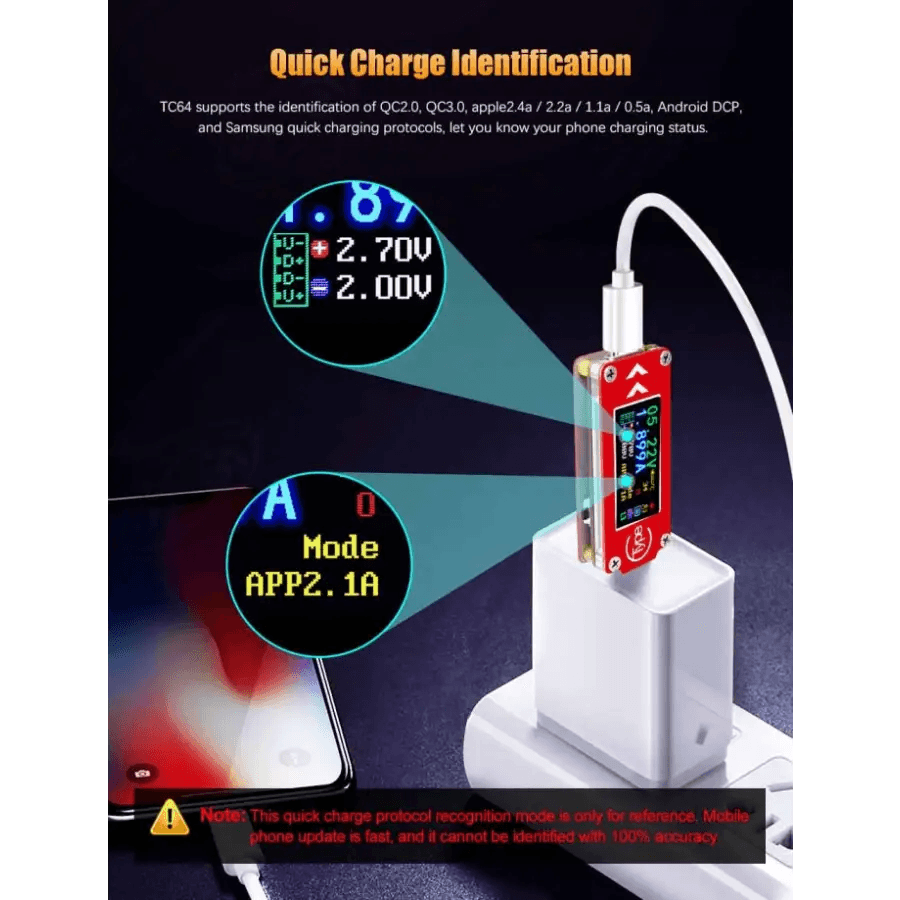

- Quick charge recognition mode: QC2.0, QC3.0, APPLE 2.4A/2.1A/ 1A/0.5A, Android DCP, SAMSUNG
Note :
- TC64 Type-C USB Tester current only flow from male connector to female connector (one-way current), the reverse is still energized but the current is shown to be 0. Pay attention when using.

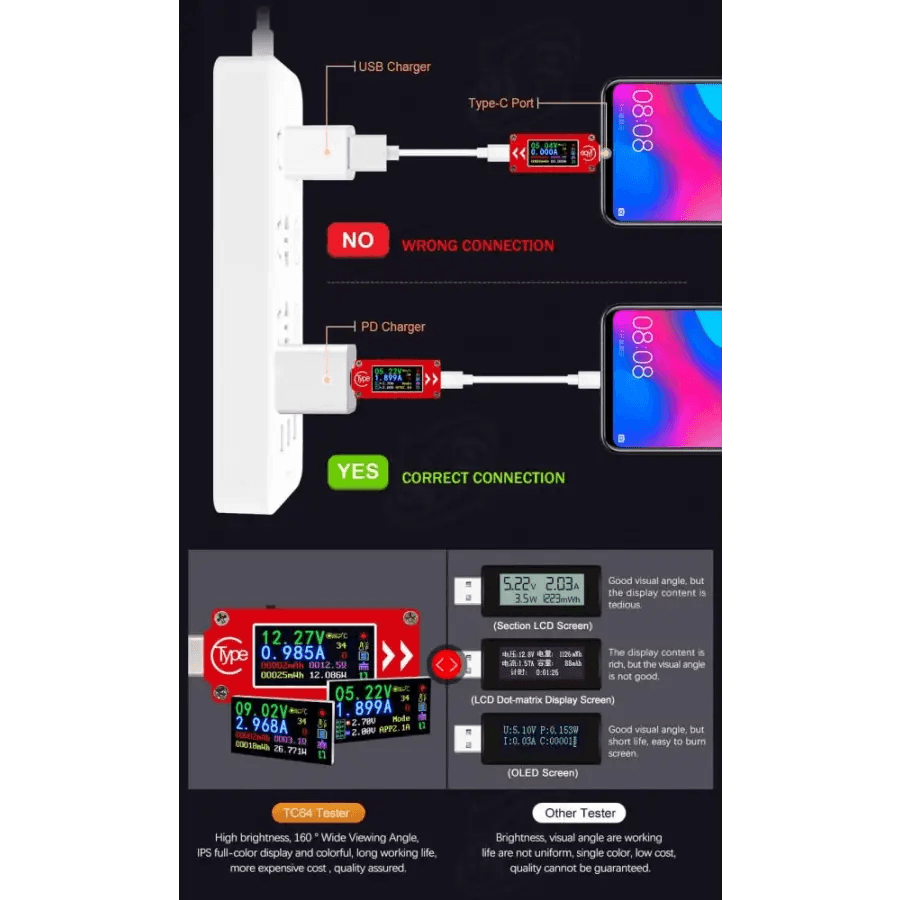

- If you use our TC64 meter to connect phone, you must have PD charger , or have many converter cable。
- Type-C port is full function port , support Type-C fast charge and most all type-c device , but not Type-c identity resistance (no type-c trigger）
- Application: PD charger measurement; PD car charger measurement; Type-C U flash measurement, and etc.
User Manual Website: http://www.mediafire.com/folder/1ne1rbus2zxzc/TC64

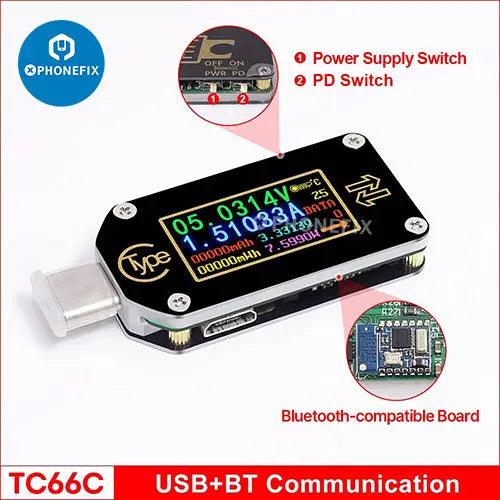

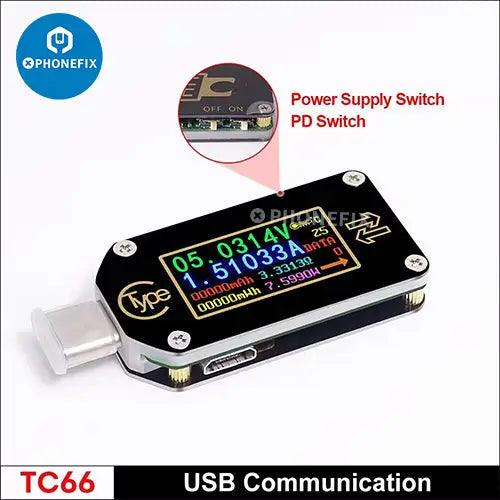

TC66/TC66-C Technical Parameter :
- Model: TC66/TC66-C
- Display screen：0.96Inch color IPS display
- Voltage measurement range:0.0050-30.0000V
- Voltage measurement resolution:0.0001V(0.1mV)
- Current measurement range: 0-5.00000A
- Current measurement resolution: 0.00001A(0.01mA)
- Supply voltage:3.5-24V
- Screen Resolution: 160*80
- Capacity accumulation range: 0-99999mAh
- Voltage measurement accuracy:±(0.05％+20digits at 23℃)
- Energy accumulation range:0-99999mWh 999.99Wh
- Current measurement accuracy: ±(0.1％+30 digits, at 23℃)
- Load impedance range: 1Ω-9999.9Ω
- Power measurement range:0-150W
- Temperature measurement range:0℃~45℃/32℉~113℉
- Refresh rate: 2Hz
- Working temperature range: 0~45℃/32℉~113℉
- Auto screen off time: 0-9mins
- Dimensions：49mmx22mmx8mm
- Product weight: about 8g (withpackage 22g)
- Quickchargerecognition mode：QC2.0、QC3.0、Apple2.4A/2.1A/ 1A/0.5A、Android DCP、Samsung
1,Instruction:
User manual, PC software installation instruction and PC software and Android APP download link:
Main link:http://www.mediafire.com/folder/pqn0ybytqpy7n/TC66
backup link:https://drive.google.com/drive/folders/1JS4mnXdM_VRUYa0ueRQUDR69b1_Lt7iG?usp=sharing
2,APP Download:
IOS APP:search "TC66C" in iPhone APP store
Android APP: search "RuiDeng" in google play

|
