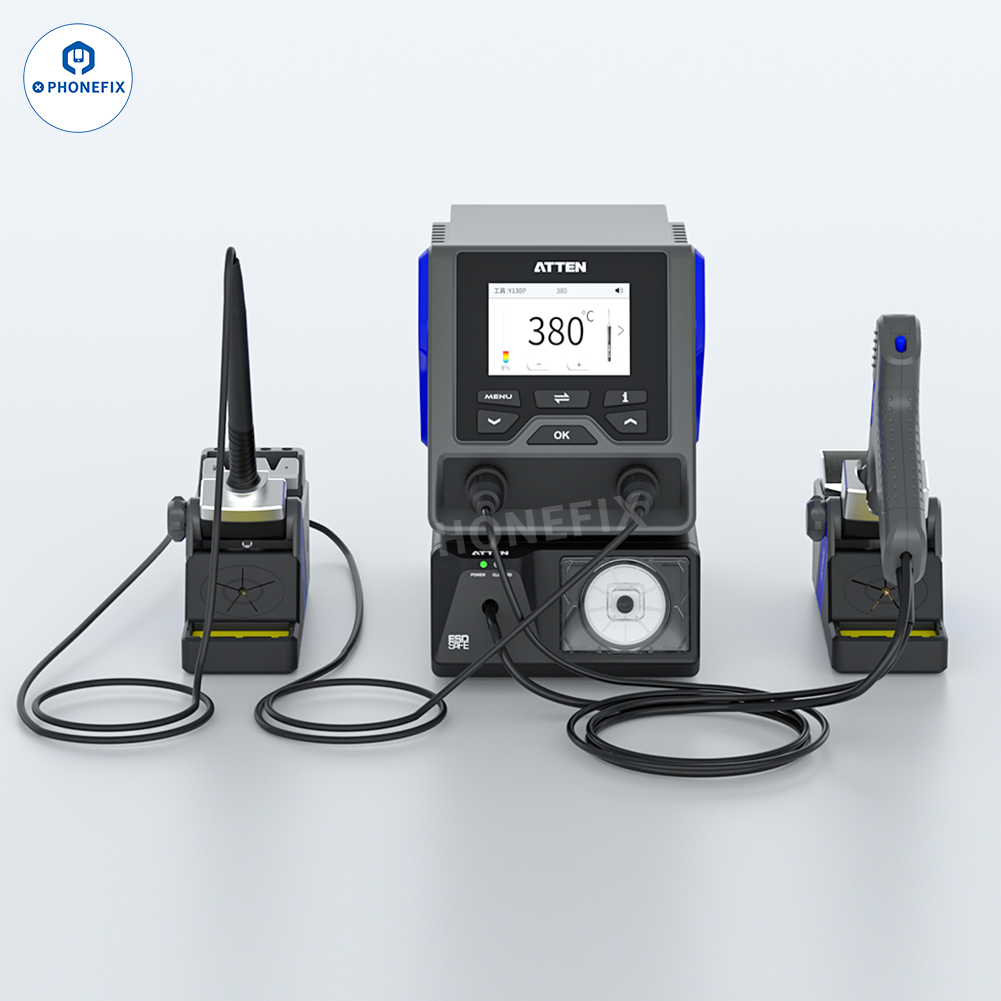

ATTEN GT-6200P GT-5200P dual-channel soldering station and Atten GT-5150P GT-6150P single-channel digital display BGA soldering rework station for precise and efficient soldering in mobile phone electronics repair, BGA PCB CPU SMD chip repair, etc.
Option:
1. Atten GT-5150P single-channel soldering station.
2. Ateen GT-6150P single-channel soldering station.
3. Atten GT-5200P single-channel soldering station.
4. Ateen GT-6200P single-channel soldering station.
Features:
Intelligent Tool Recognition: Automatically detects connected soldering tools for optimized performance.
High-Precision Temperature Control: MCU chip technology ensures rapid and accurate temperature adjustments.
User-Friendly TFT Display: Large, graphical display for clear and intuitive operation.
Versatile Connectivity: Equipped with RS-485 and USB interfaces for software management and data communication.
Enhanced Safety: Low-voltage heating element with power grid isolation ensures user safety during operation.
Efficient Desoldering Capability: Stable suction power with multiple standard nozzles for varied applications.
Space-Saving Design: Compatible with multiple handle types to maximize workspace efficiency.
Multi-Language Interface: Supports English and Chinese for global usability.
Customizable Quick Settings: Three user-defined parameter groups for easy operation.
Sleep Mode and Energy Efficiency: Adjustable sleep delay (1-60 minutes) to prolong equipment life and save energy.

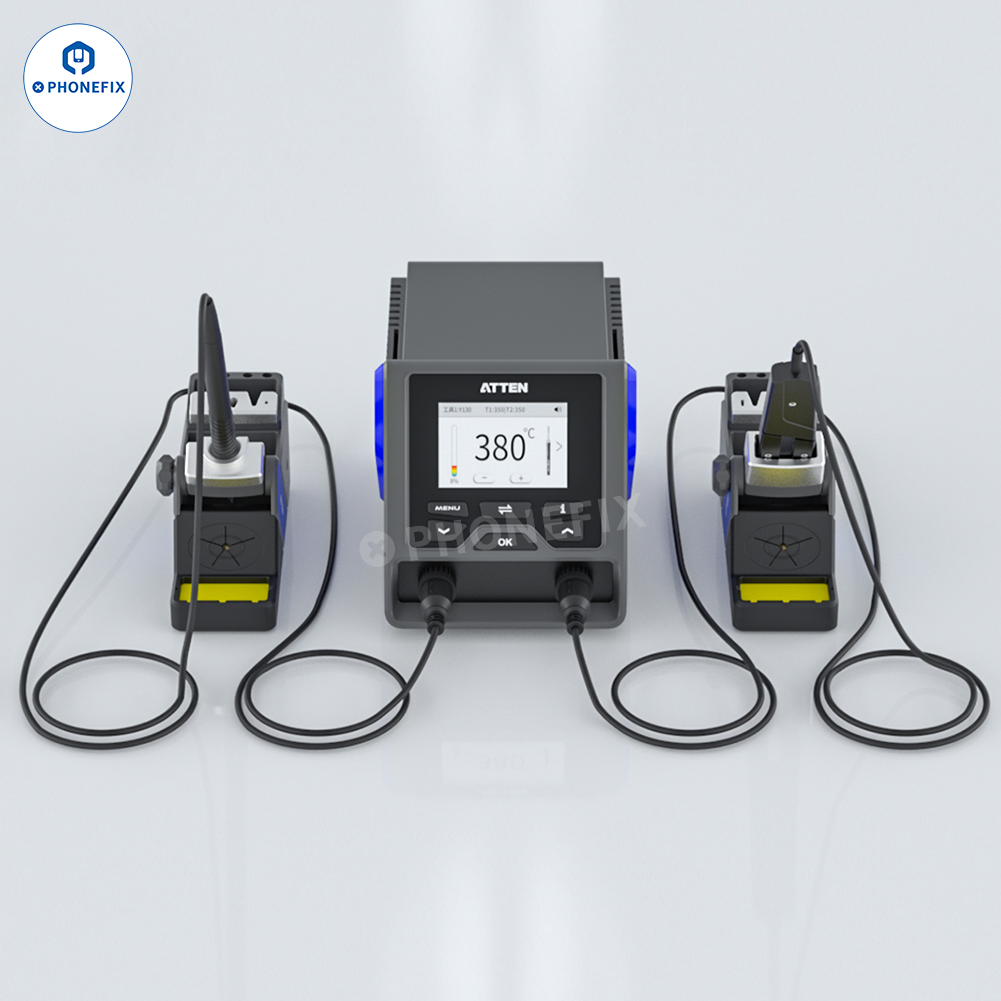

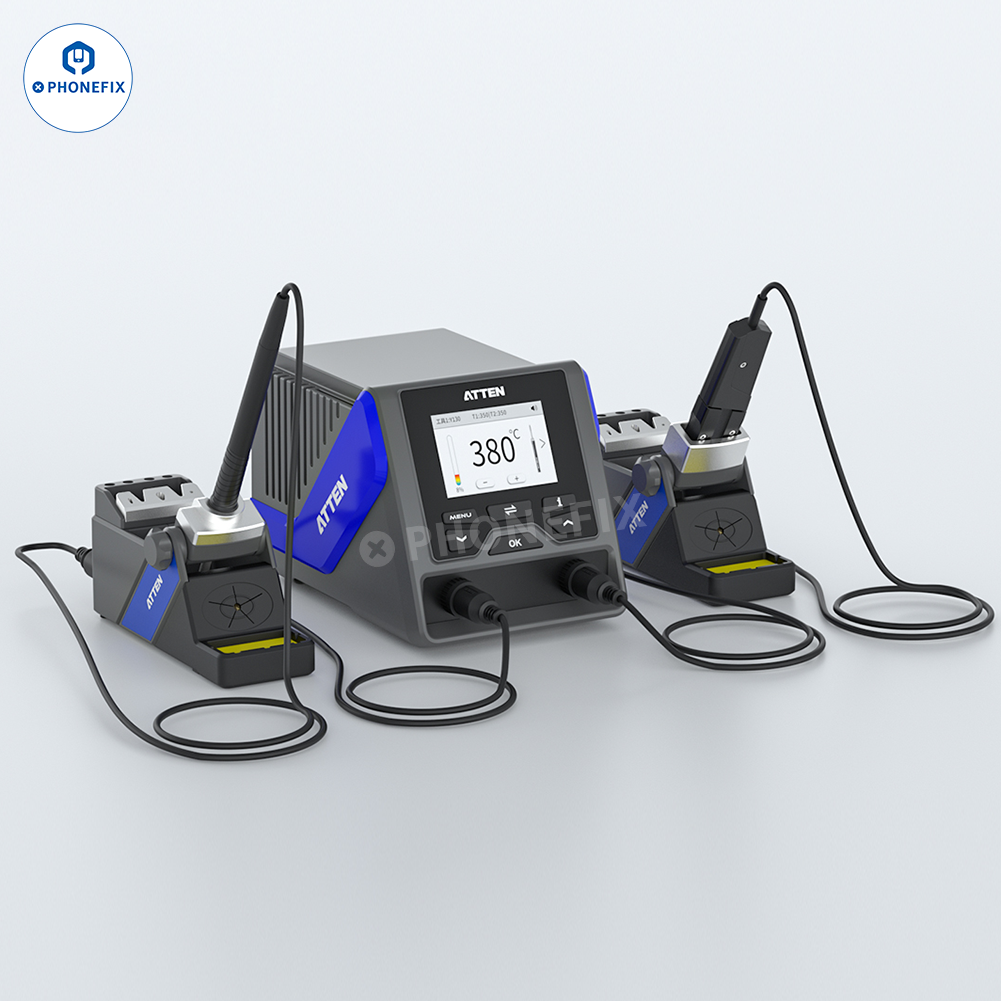

ATTEN GT-6200P Main Features and Specifications:
1. Two output channels can work independently at the same time.
2. All kinds of parameter data and information in the form of graphics display with a large LCD screen.
3. Can automatically recognize the soldering tools and upload the corresponding parameters.
4. Provide 3 sets of shortcut temperatures to simplify operations.
5. Auto-sleep, standby, fault alarm, password, temperature lock functions are available.
5. Parameters can be set and controlled by computer.
Model: GT-6200P soldering station.
Input voltage: AC 220-240V, 50/60Hz (AC 110-120V, 60Hz).
Temperature range: 200W ±10.
Temp. compensation: 80℃-500℃/176℉-932℉
Temp. uit: ±50℃/±90℉.
Temp. adjustment increment: Long press for quick adjustment, short press to adjust in increments of 1 unit.
Temp. lock: Supported.
Quick parameters: Supports customization of 10 sets of quick parameters.
Electrostatic grounding: Supported.
USB firmware upgrade: Supported.
Communication interface: RS485.
Sleep delay: Adjustable from 0 to 60 minutes (can be disabled, default is 15 minutes).
Language: Chinese/English.
Display: TFT color screen.
Operation environment: 0℃-40℃, Humidity <85%RH.
Dimensions: 230(L)x142(W)x145(H)mm.
Weight: about 3.2kg.

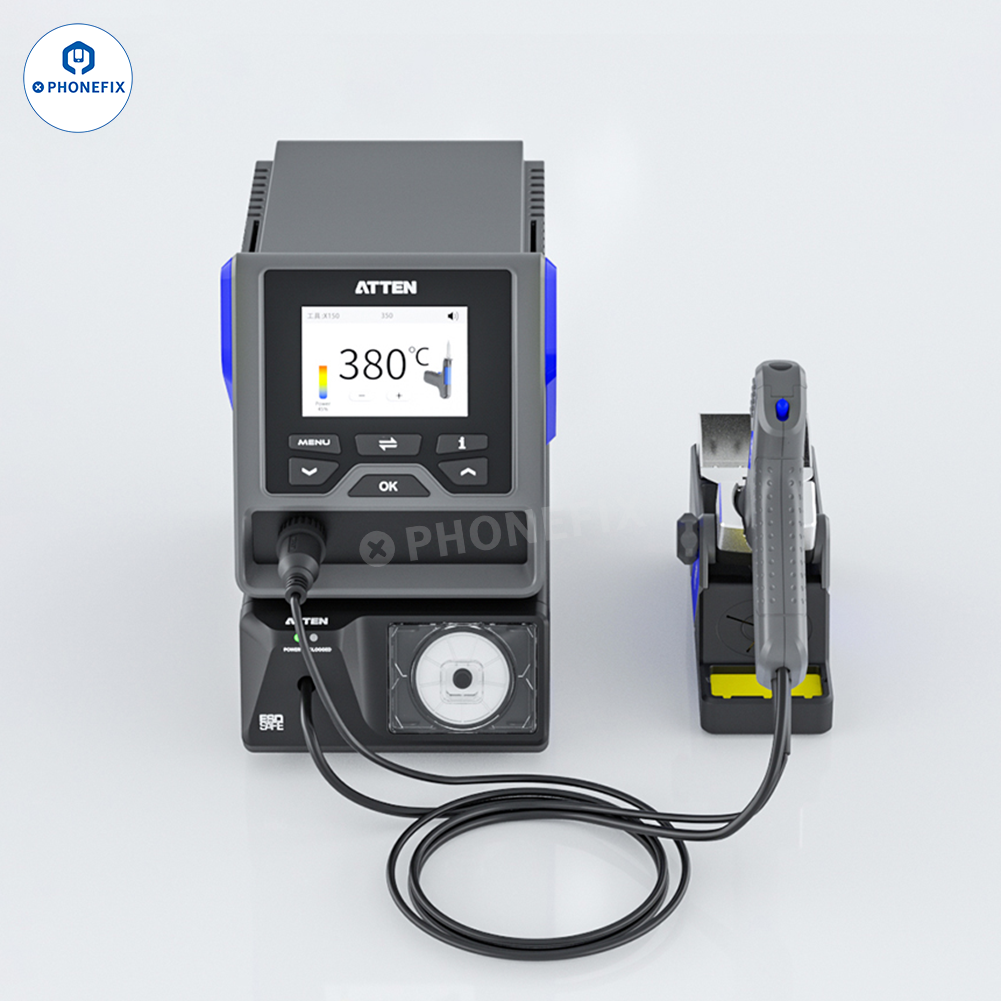

Model: GT-5150P soldering station.
Rated working voltage: 110VAC/230VAC ±10% 50Hz/60Hz optional
Rated Power: 150W
Temperature range: 250-480°C/482-896°F
Temperature stability: ±2°C/+4°F
Vacuum pressure: -600mmHg
Temperature adjustment: Long press to adjust 10 units at a time; Short press to adjust 1 unit at a time
Standby time: 0-120min (default 0)
Dormancy time: 0-120min (default 0)
Shortcut temperature: 3 groups shortcut temperature
Temperature calibration range: ±50°C/±90°F
Password protection setting: Available
Support Ceiling/Lower limit temperature setting
Working conditions: Temperature 0-40°C, relative humidity <80%
Storage conditions: Temperature -20-80°C, relative humidity <80%
Dimensions: 31.525.212.7cm
Net weight: 4KG

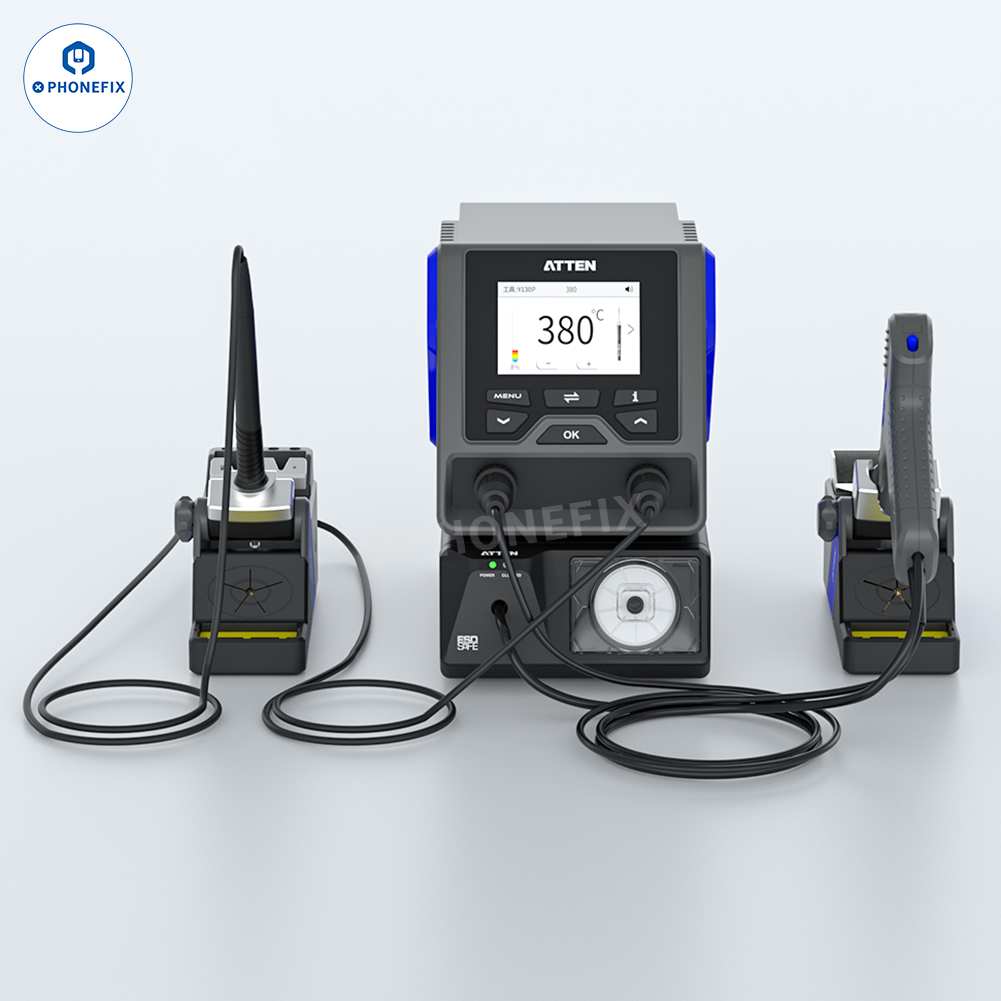

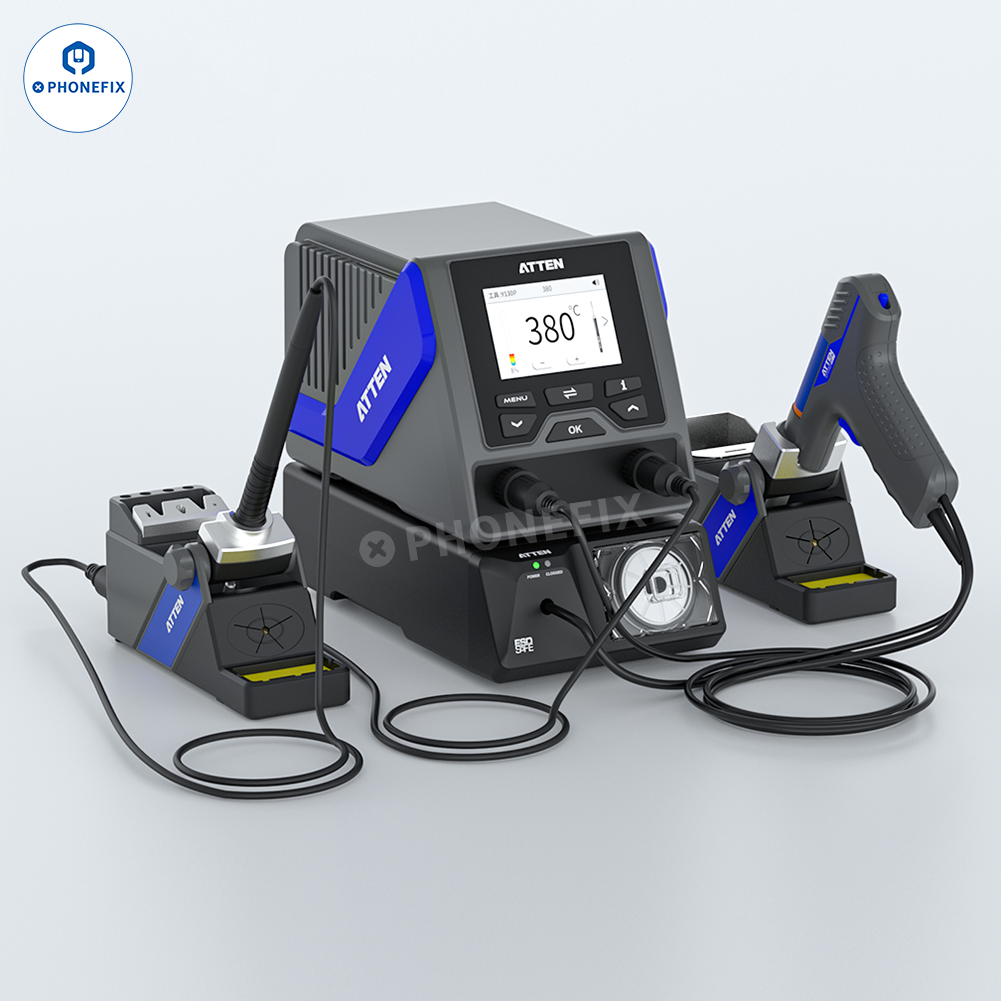

Model: GT-5200P soldering station.
Rated working voltage: AC 220-240V50/60Hz(AC 110-120V60Hz)
Power: 200W ±10
Temperature range: 80°C500°C/176°F932°F
Temperature compensation: ±50°C/+90°F
Temperature unit: ℃/F, Default is ℃
Temperature Adjustment Increment: Long press for quick adjustment, short press to adjust in increments of 1 unit
Quick parameters: Supports customization of 10 sets of quick parameters
Temperature Lock: Supported
Electrostatic Grounding: Supported
USB Firmware Upgrade: Supported
Communication Interface: RS485
Sleep Delay: Adjustable from 0 to 60 minutes (can be disabled, default is 15 minutes)
Language: Chinese/English
Display: TFT color screen
Operating Environment: 0°C~40°C, Humidity <85%RH
Dimensions: 230(L)x142(W)x145(H)mm
Weight (Main Unit): ≈3.2 kg

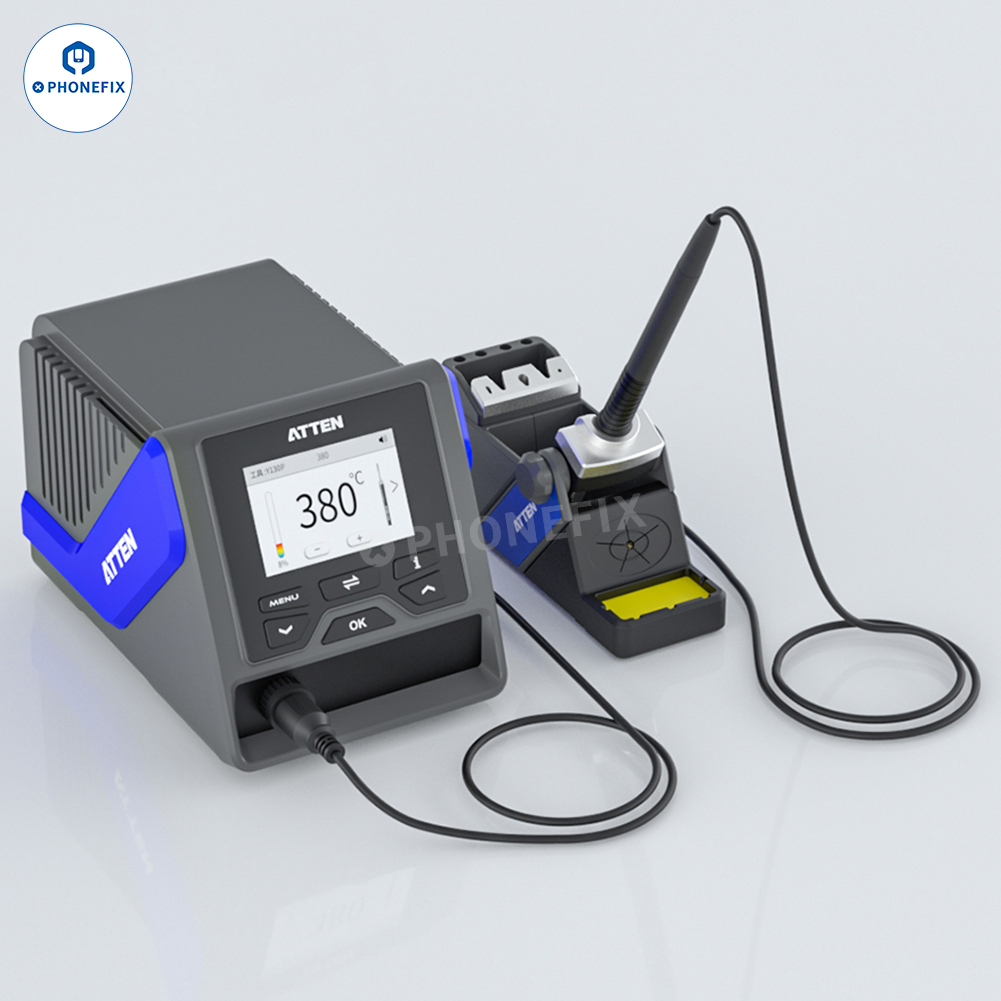

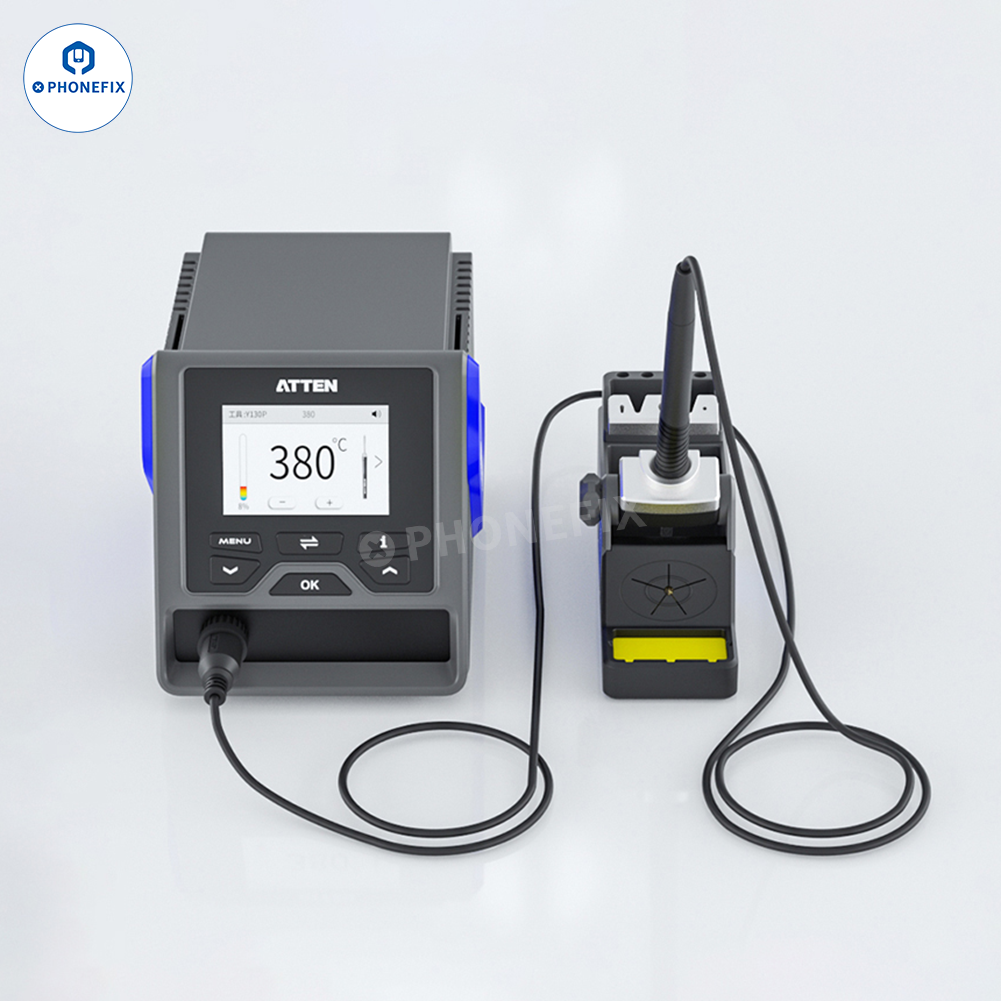

Model: GT-6150P soldering station.
Input Voltage: AC 220-240V50/60Hz(AC 110-120V60Hz)
Rated Power: 150W ±10
Temperature range: 80℃500℃/176°F932°F
Temperature Compensation: ±50℃/±90°F
Temperature adjustment: Long press for quick adjustment, short press to adjust in increments of 1 unit
Quick Parameters: Supports customization of 10 sets of quick parameters
Temperature Lock: Supported
Electrostatic Grounding: Supported
USB Firmware Upgrade: Supported
Communication Interface: RS485
Sleep Delay: Adjustable from 0 to 60 minutes (can be disabled, default is 15 minutes)
Language: Supports Chinese and English interfaces
Display: TFT color screen
Operating Environment: 0℃~40℃, Humidity <85%RH
Dimensions: 0℃~40℃, Humidity <85%RH
Weight (Main Unit): ≈3.2 kg
Temperature Unit: ±50℃/±90℉
