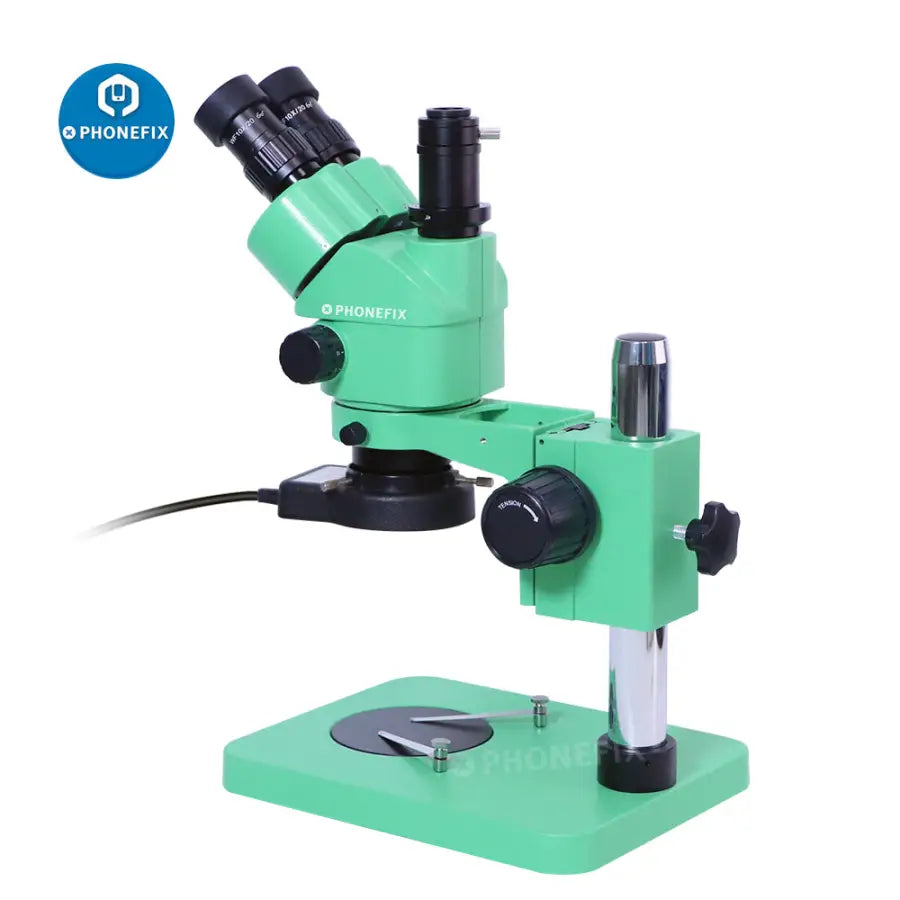

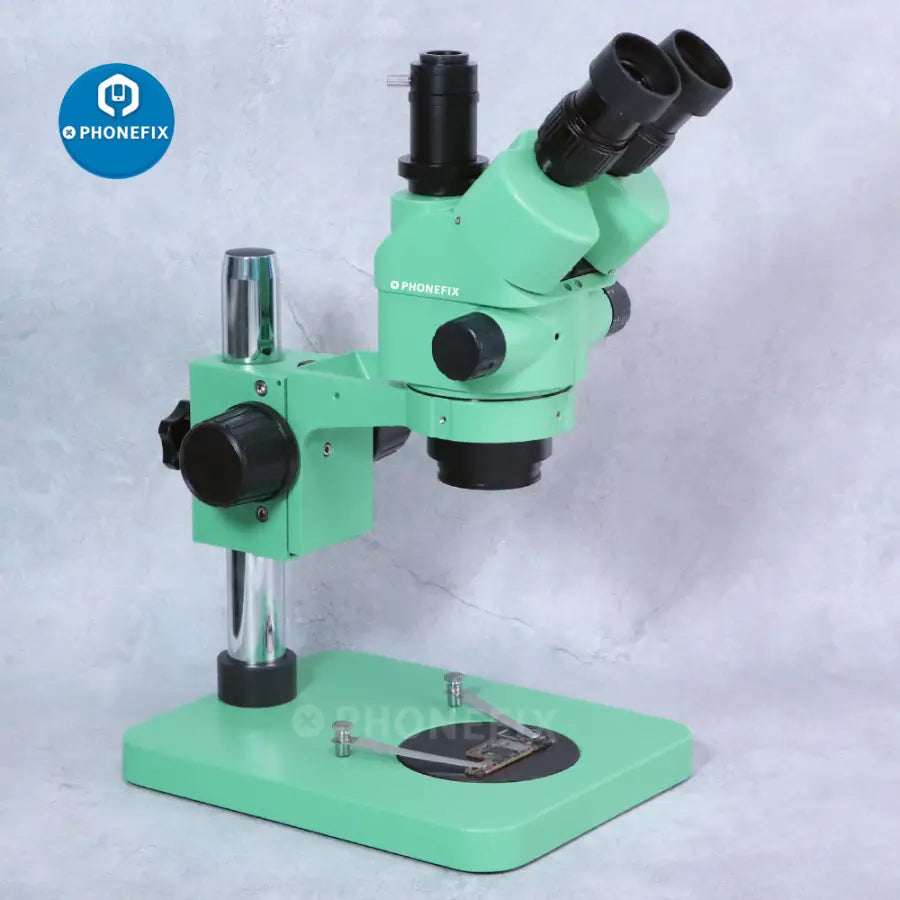

3.5X-180X Green Trinocular Stereo Zoom Microscope For Phone PCB Repair

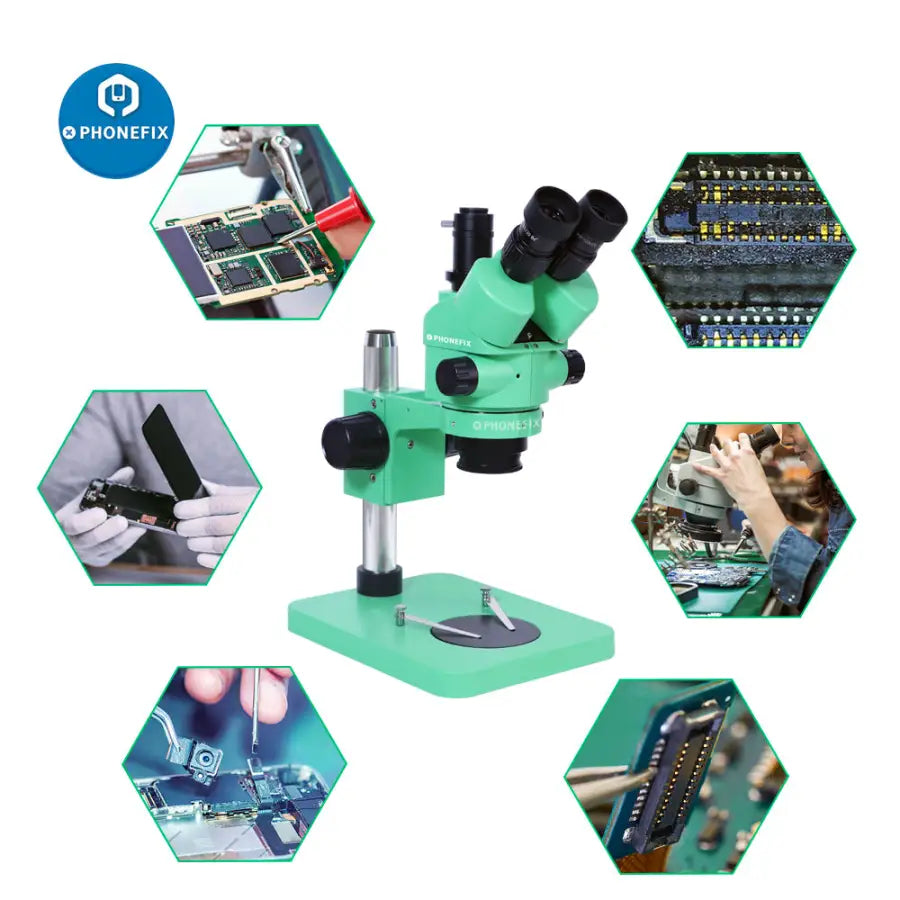

3.5X-180X MS745-G1 Green Trinocular Stereo Zoom Microscope For Phone PCB Soldering Repair,3.5X-180X Continuous Zoom Simul Focal Green Trinocular Stereo Microscope for Phone Soldering Microscope,Adjustable 3.5X-180X Trinocular Stereo Microscope + 0.5x 2.0x Auxiliary Lens +WF10X WF20X Eyepiece. Start Your Own PCB soldering Repair Business.

Black Friday Promotion!

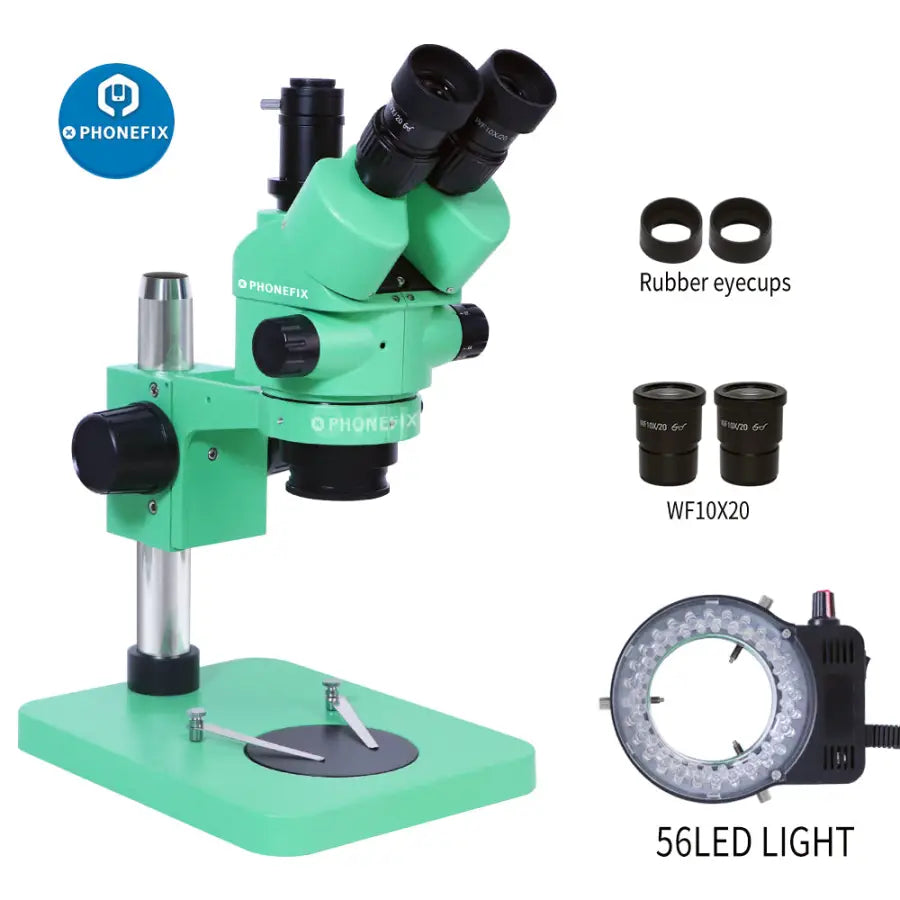

Package 1 include:(MS745-G1 Standard )

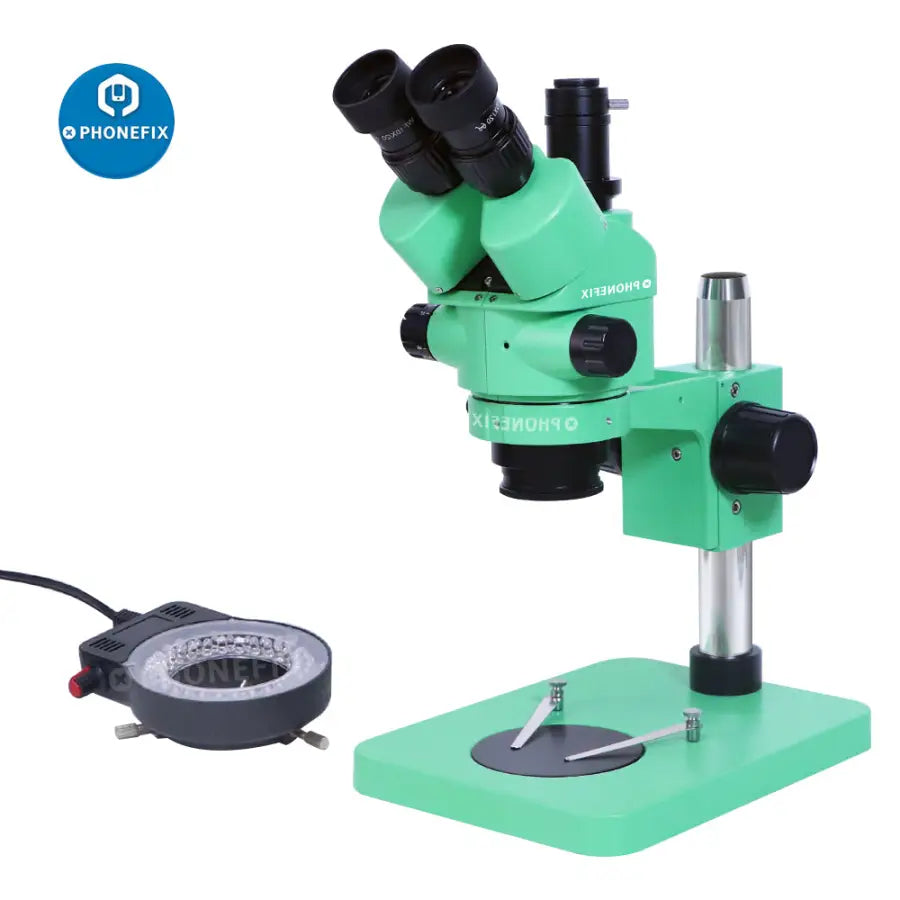

1X 7-45X Green Trinocular Stereo Microscope
1 x A pair Rubber eyecups
1 x A pair WF10X20 Microscope Eyepiece
1X 56-LED Ring Light

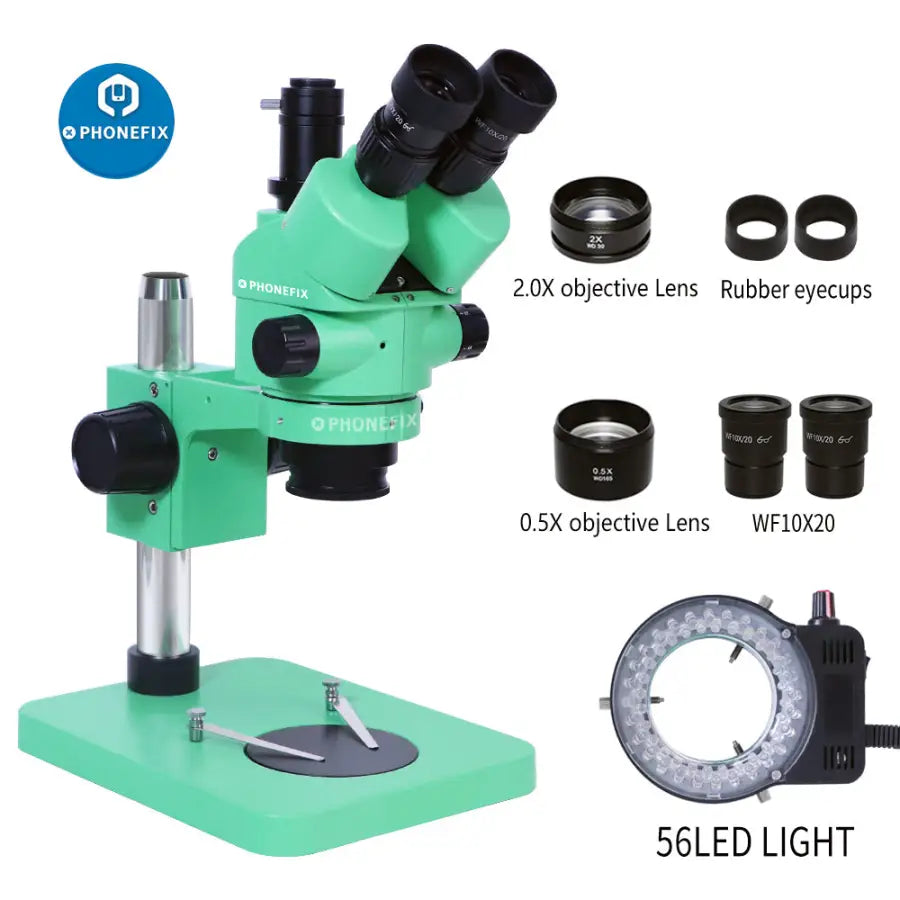

Package 2 include:(Upgrade A style)
1X 3.5X-90X Green Trinocular Stereo Microscope
1X 2.0X Objective lens
1X 0.5X Objective lens
1 x A pair WF10X20 Microscope Eyepiece
1 x A pair Rubber eyecups
1X 56-LED Ring Light

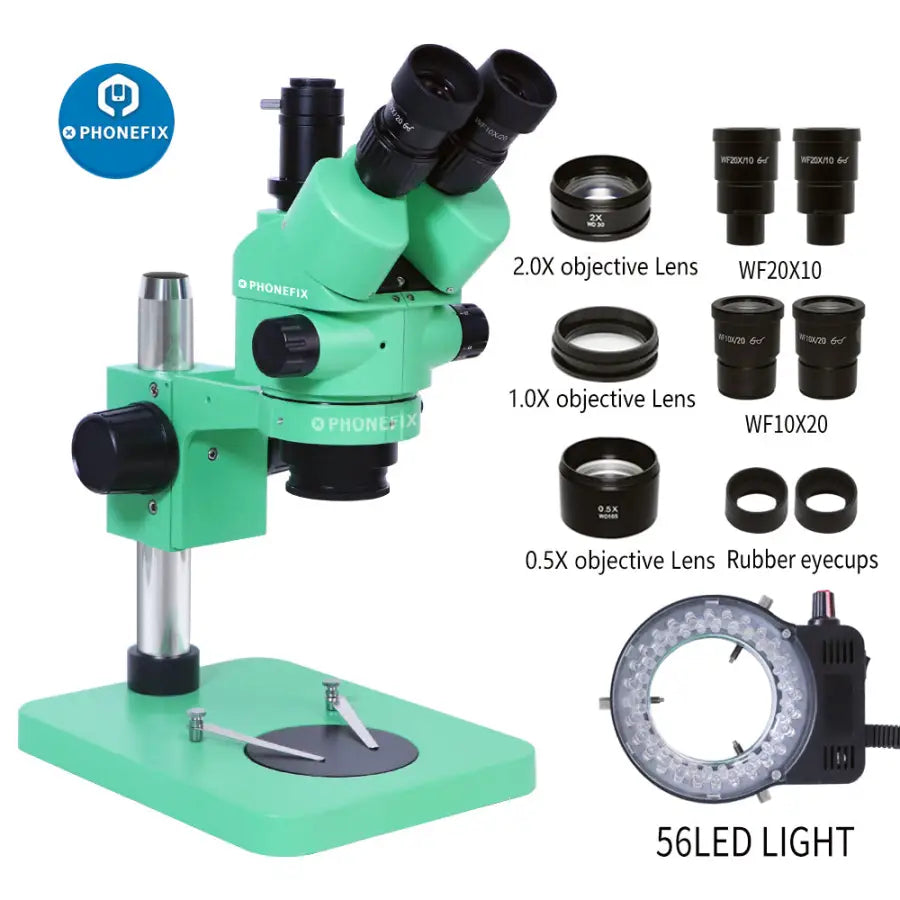

Package 3 include:(Full Set B style)
1X 3.5X-180X Green Trinocular Stereo Microscope
1X 2.0X Objective lens
1X 1.0X Objective lens
1X 0.5X Objective lens
1 x A pair WF10X20 Microscope Eyepiece
1 x A pair WF20X10 Microscope Eyepiece
1 x A pair Rubber eyecups
1X 56-LED Ring Light

It is synchronous, what you can observe are shown at the same time as the camera display

Features:
3.5X-180X Extremely Large Zoom Magnification Power
Trinocular Design for High Quality Photo, USB PC and CCD Video Imaging
Erect Stereo Sharp Images Over a SUPER Widefield of View
Accurate Alignment Ensuring Fatigue-Free Long Time Viewing
Crystal Clear Original True Color Images

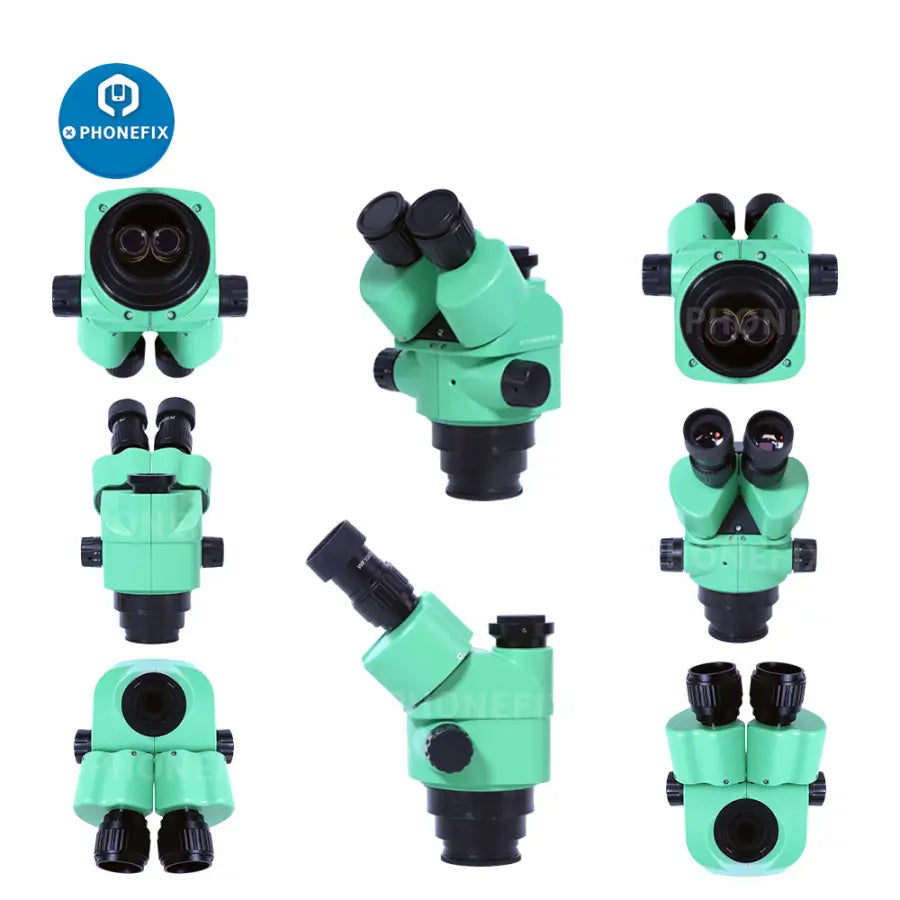

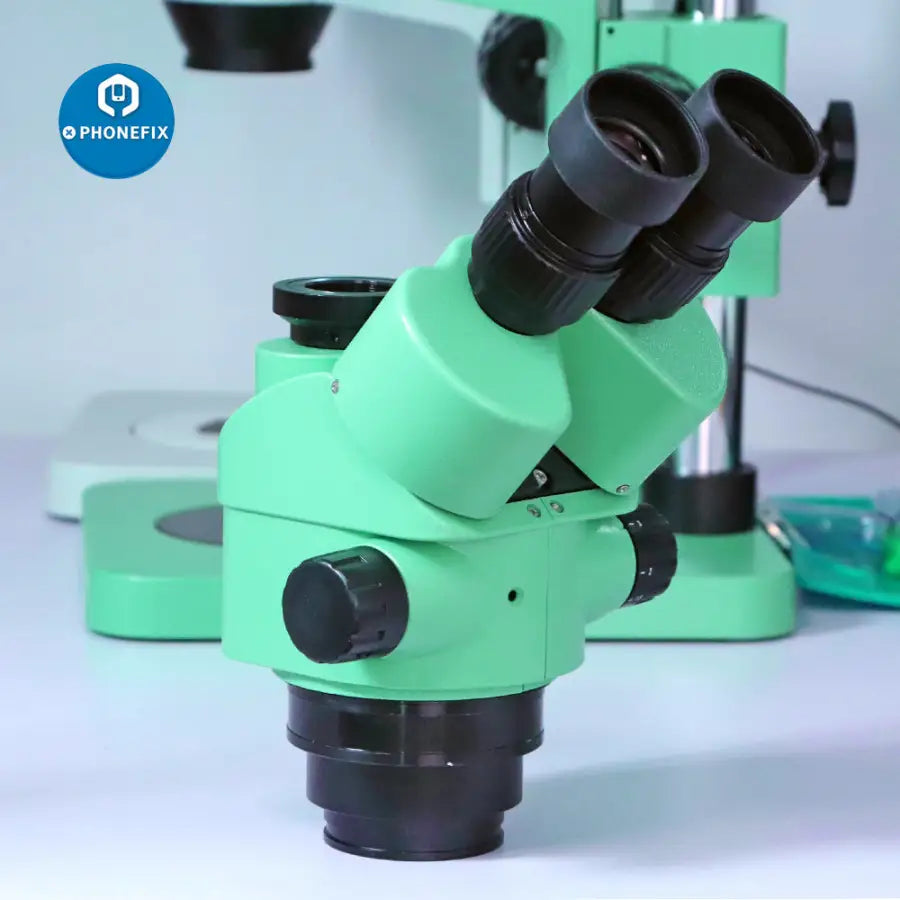

45 Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces
30mm SUPER Widefield Eyepieces (see the difference in the above picture)
Both Ocular-Tubes with Adjustable Diopter
Adjustable Interpupillary Distance
Full Optical Glass Elements
Precise Ground Glass Lenses
Rugged Solid Cast Steel Base
30mm SUPER Widefield Eyepieces Included
165mm working distance auxiliary objective

Specifications:
● View head 45 degree inclined Pupillary adjust distance:55-75mm
● Zoom ratio:1:6.4
● Eyepiece:WF10x/20mm
● Zoom objective:0.7x-4.5x

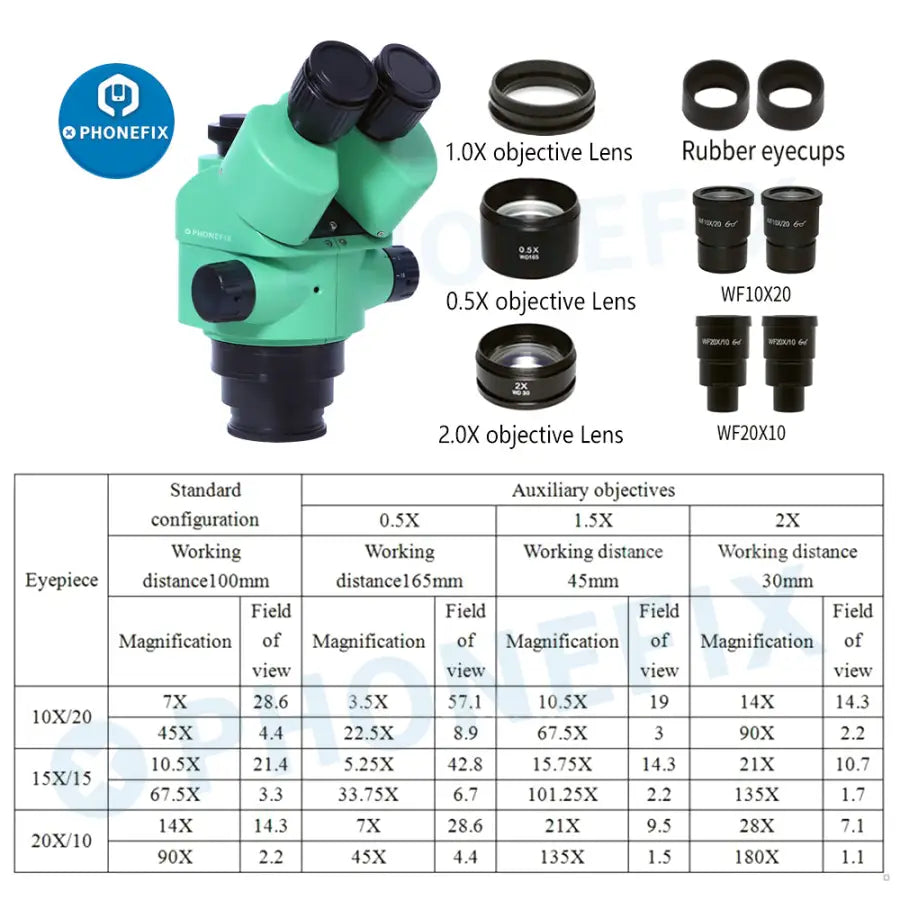

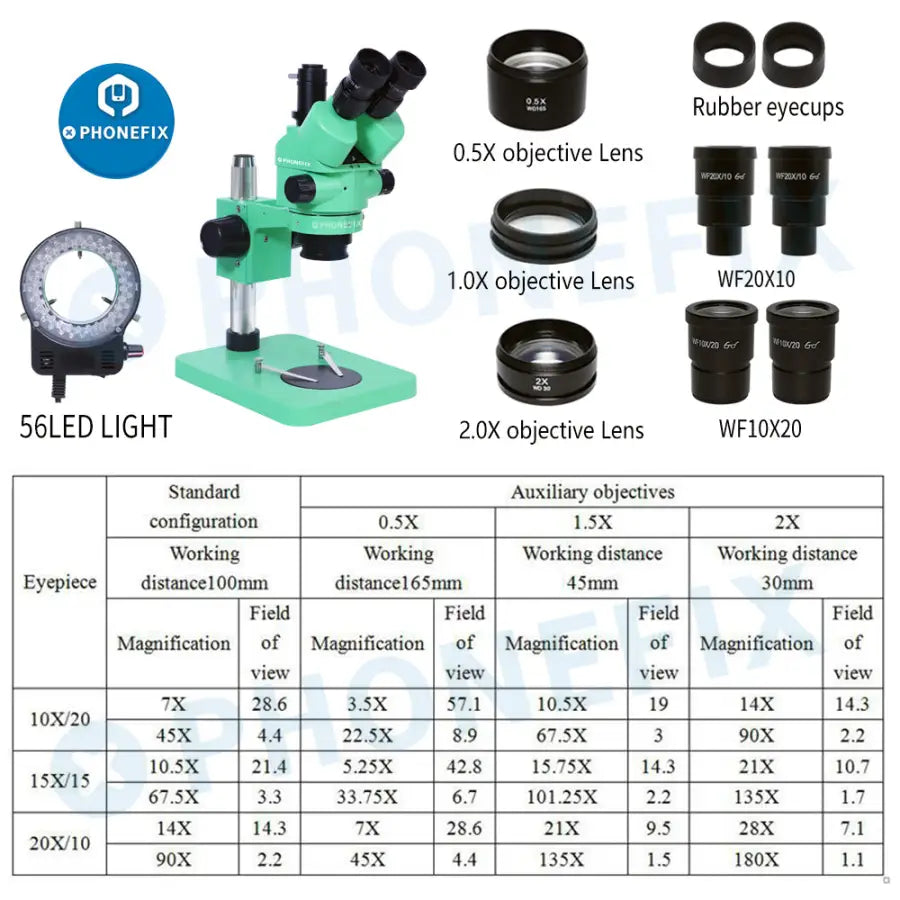

● Magnification:7x-45x, auxiliary objective can make magnification to 3.5x-180x
● working distance:105mm
● Vertical Post: Φ240mm
● Diameter: Φ32mm

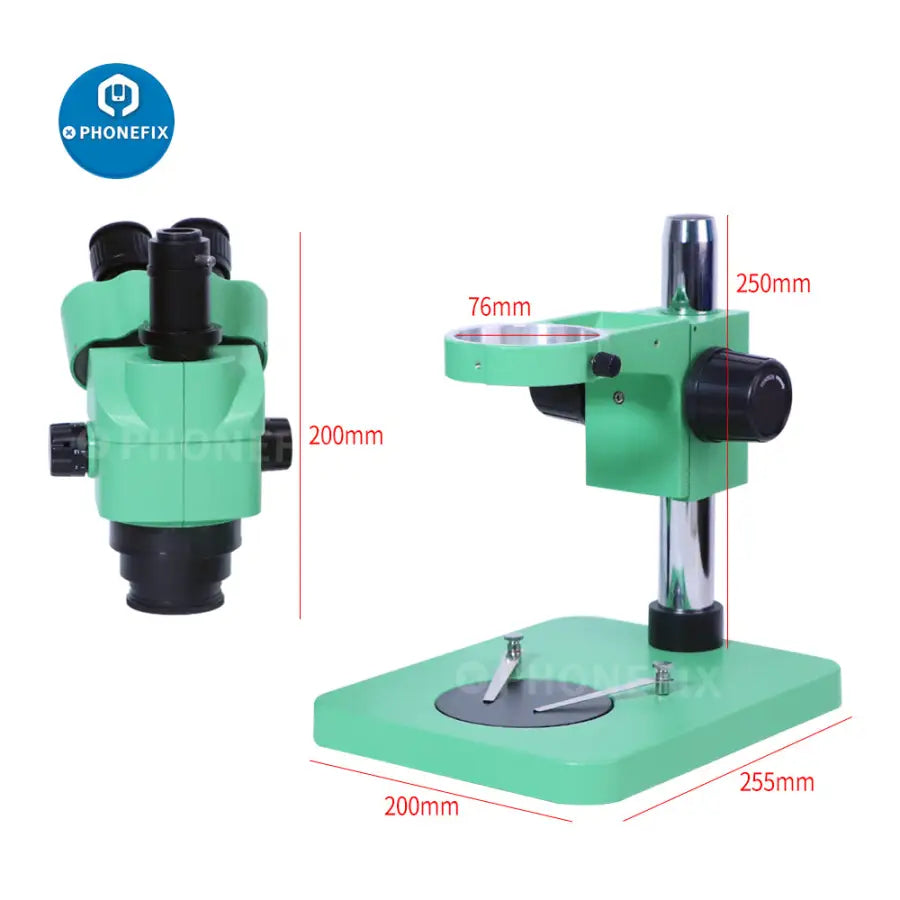

● Base Size: 380x260x20mm
