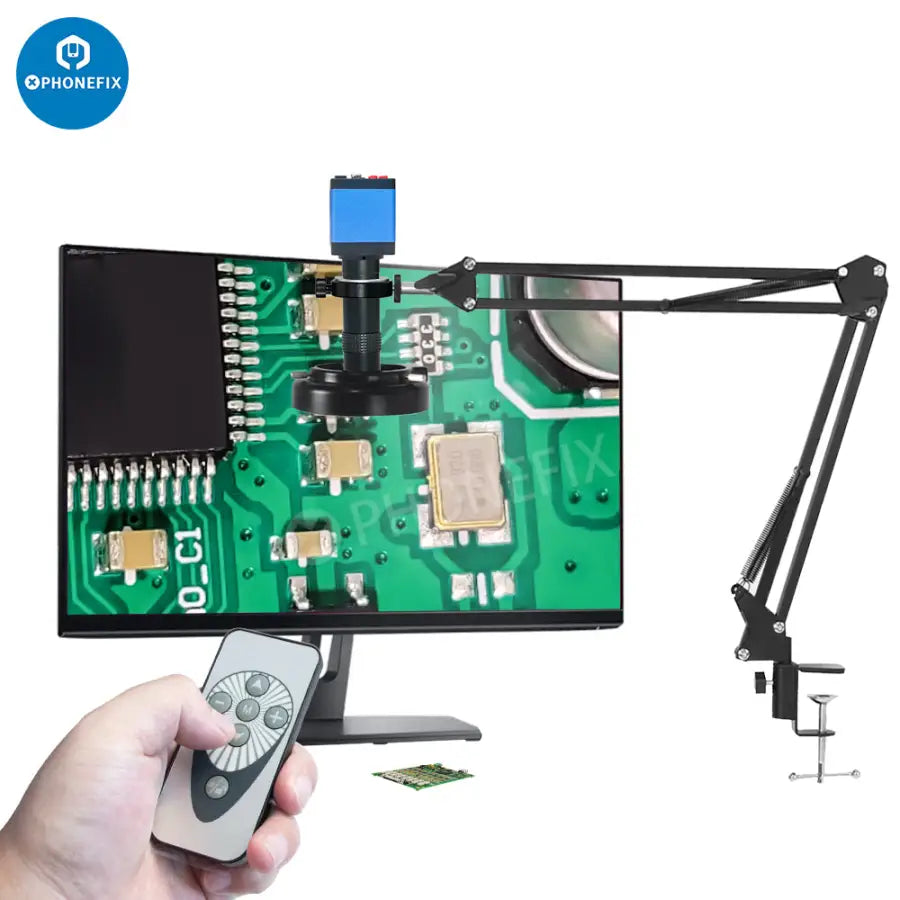

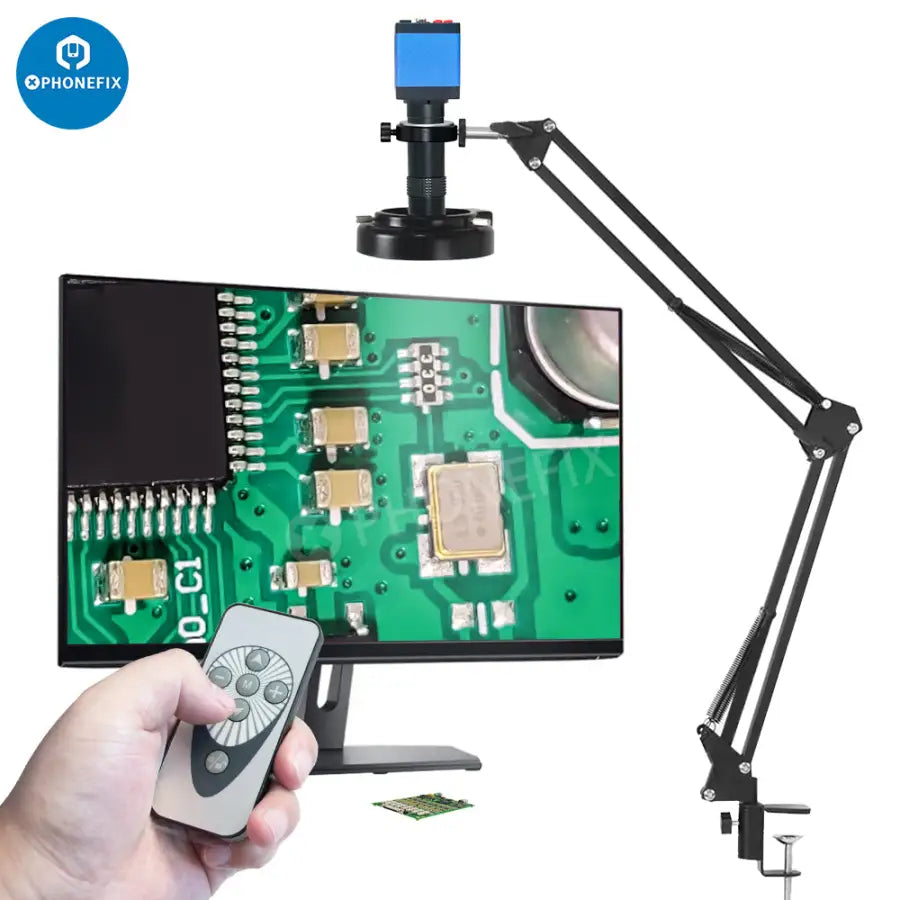

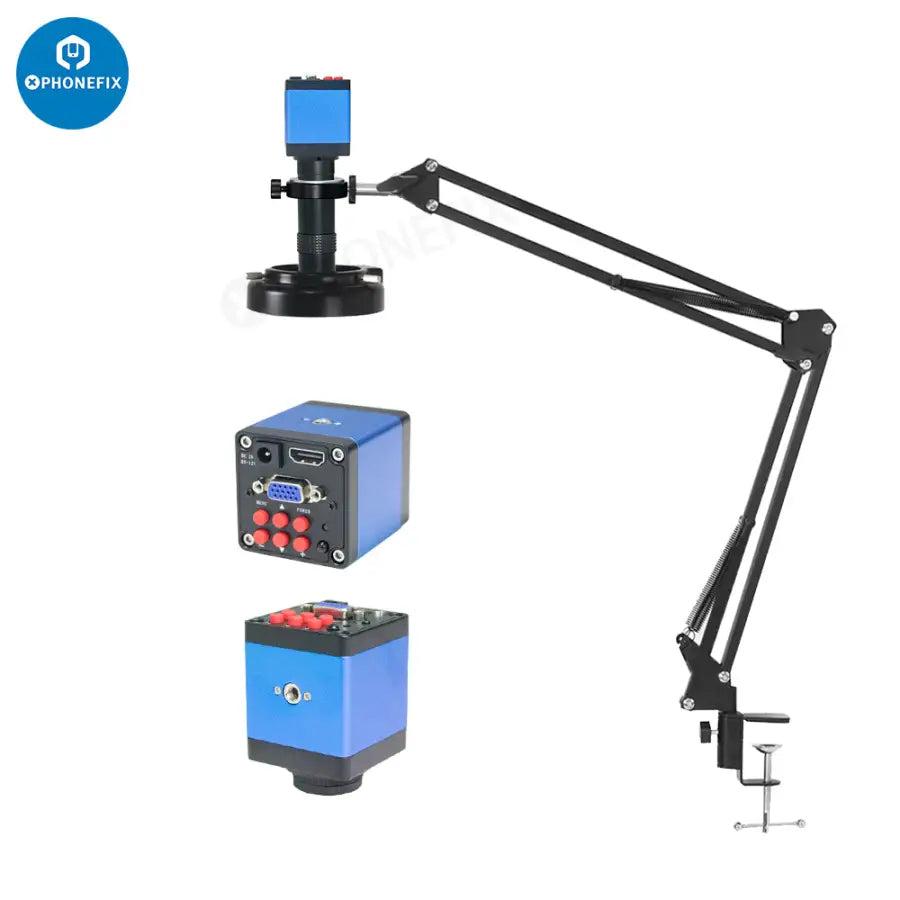

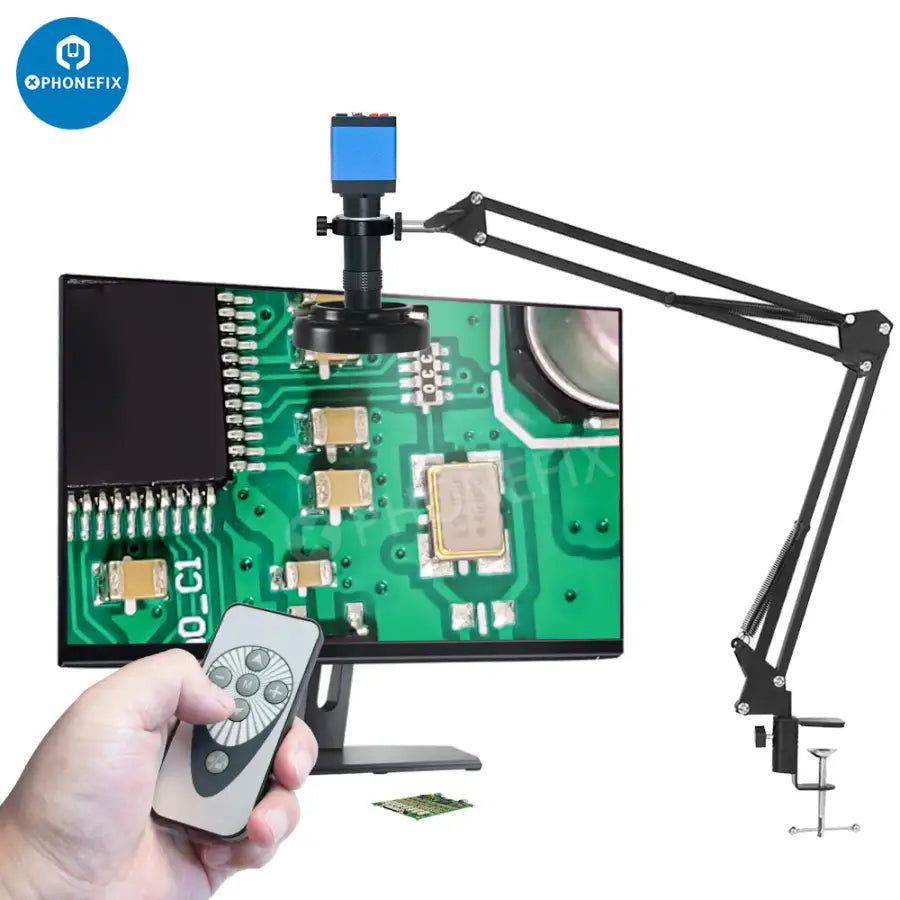

13MP 1080P Video HDMI VGA USB Microscope Camera Set 1-130X Zoom C-Mount Lens 50MM Cantilever Stand 56-LED Ring Light For Phone PCB Repair Industrial 4.0 Soldering Digital Image Acquisition Exhibits.

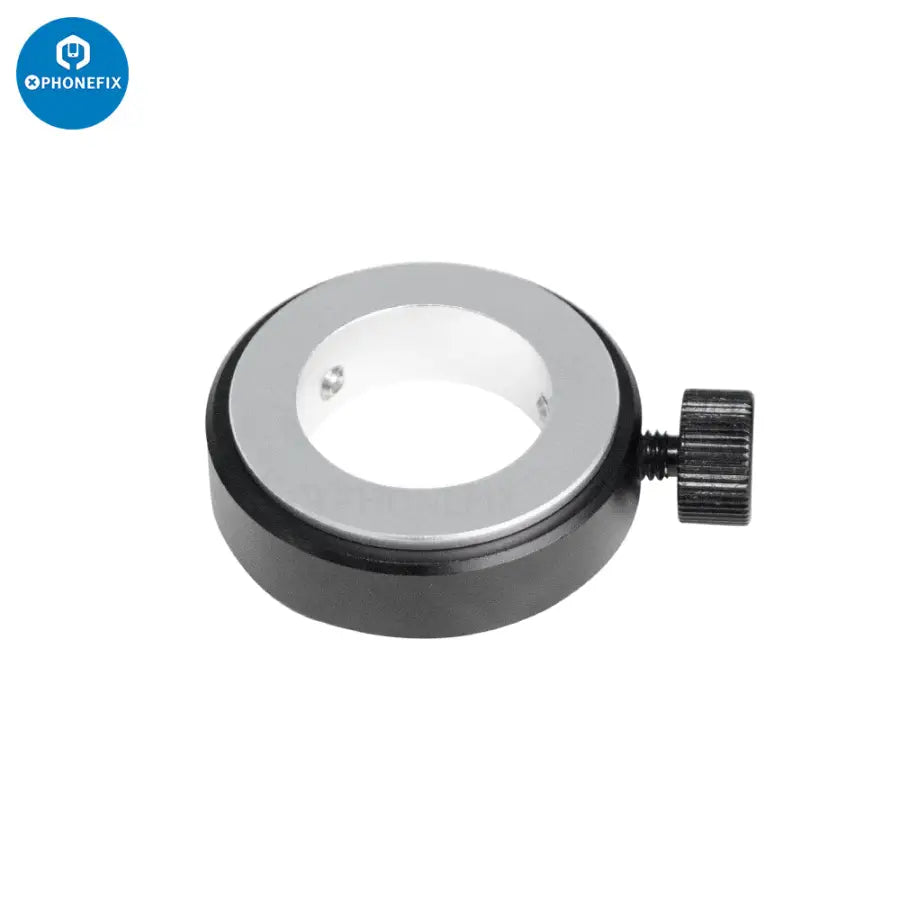

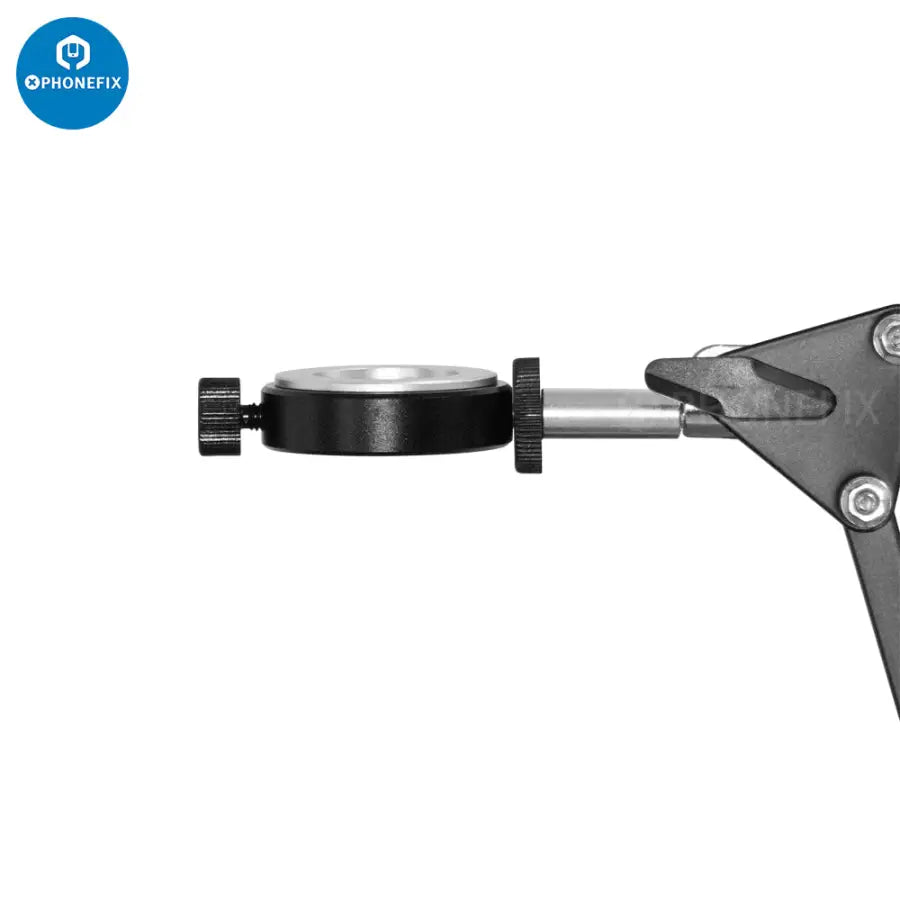

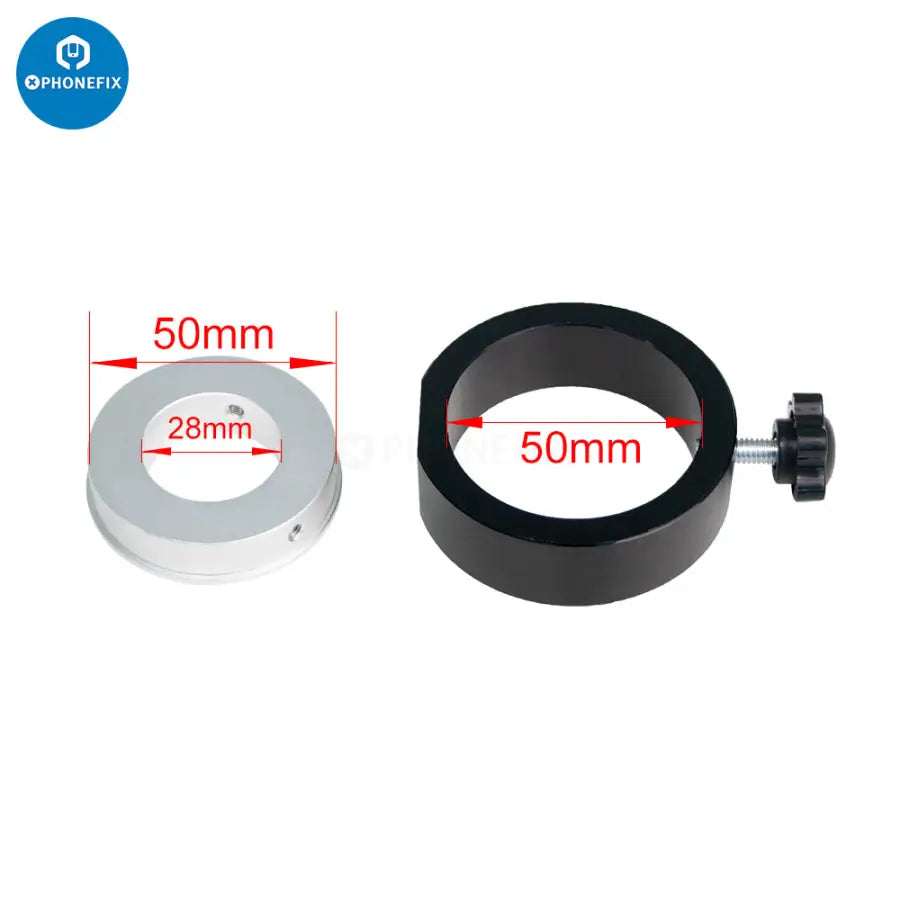

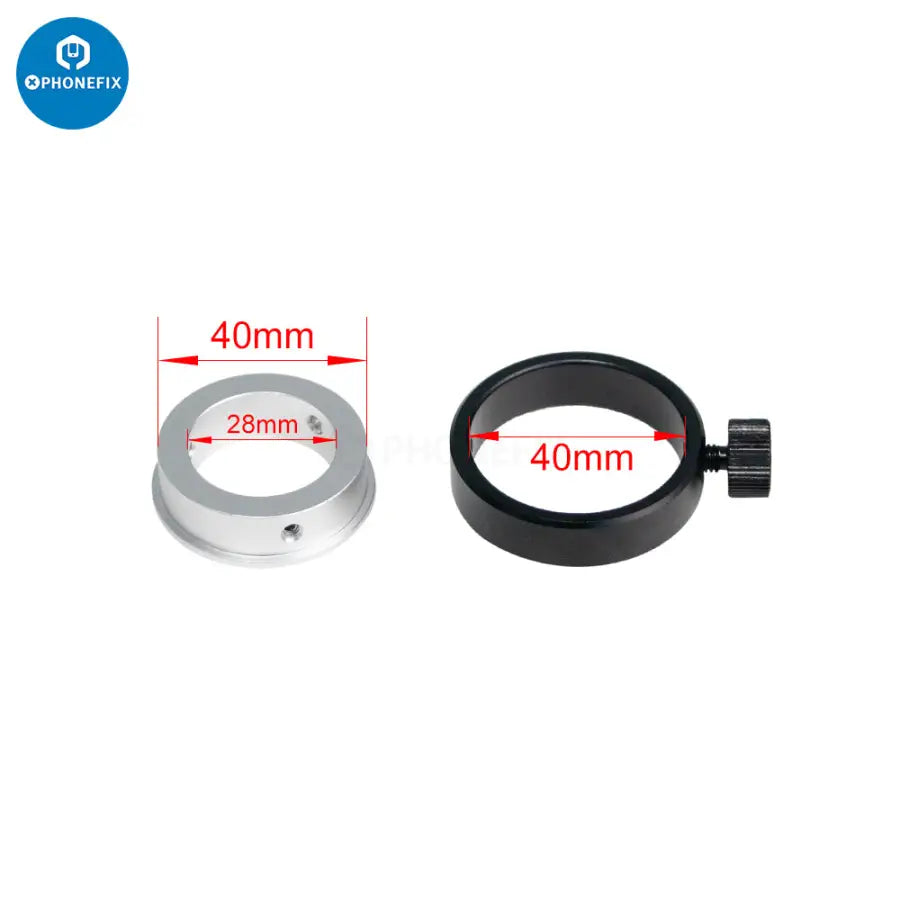

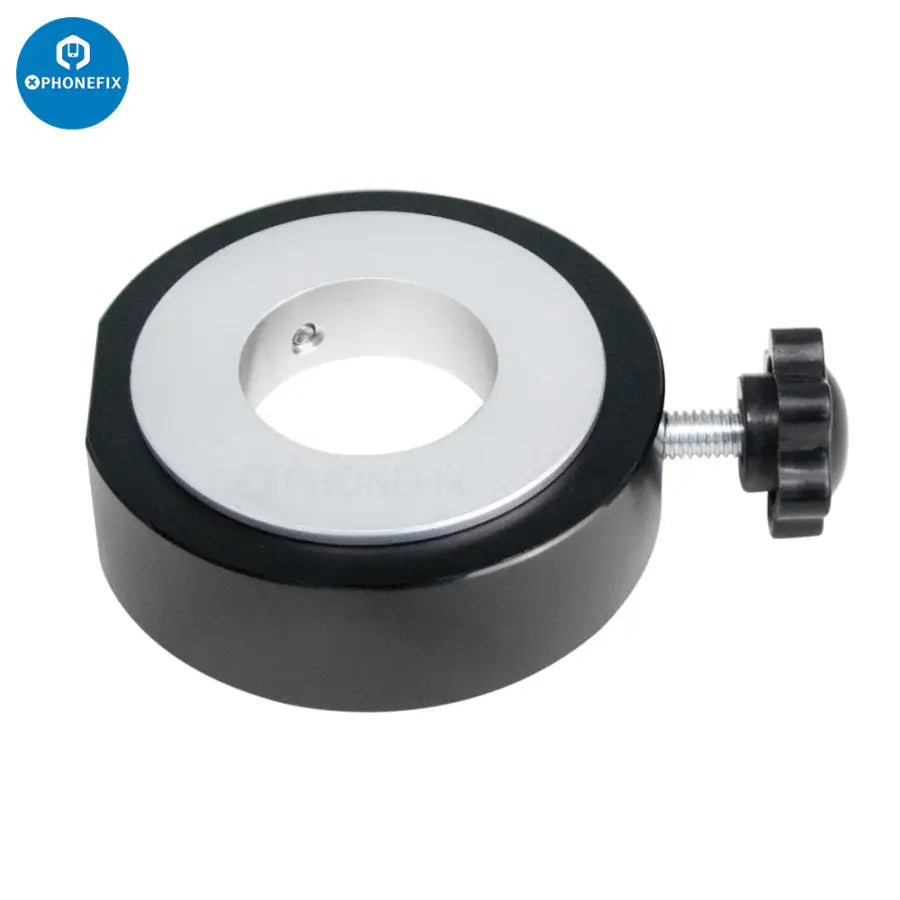

Note: 1-130X lens and cantilever bracket adapter ring are available in 40MM and 50MM inner diameter sizes respectively.

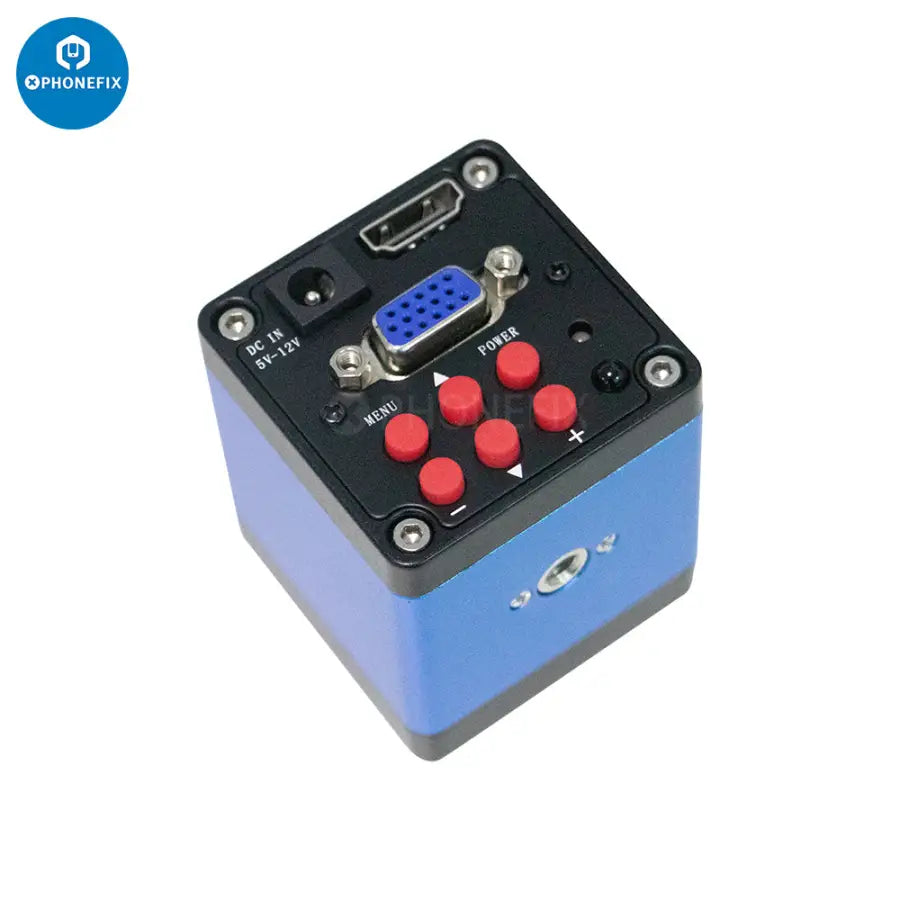

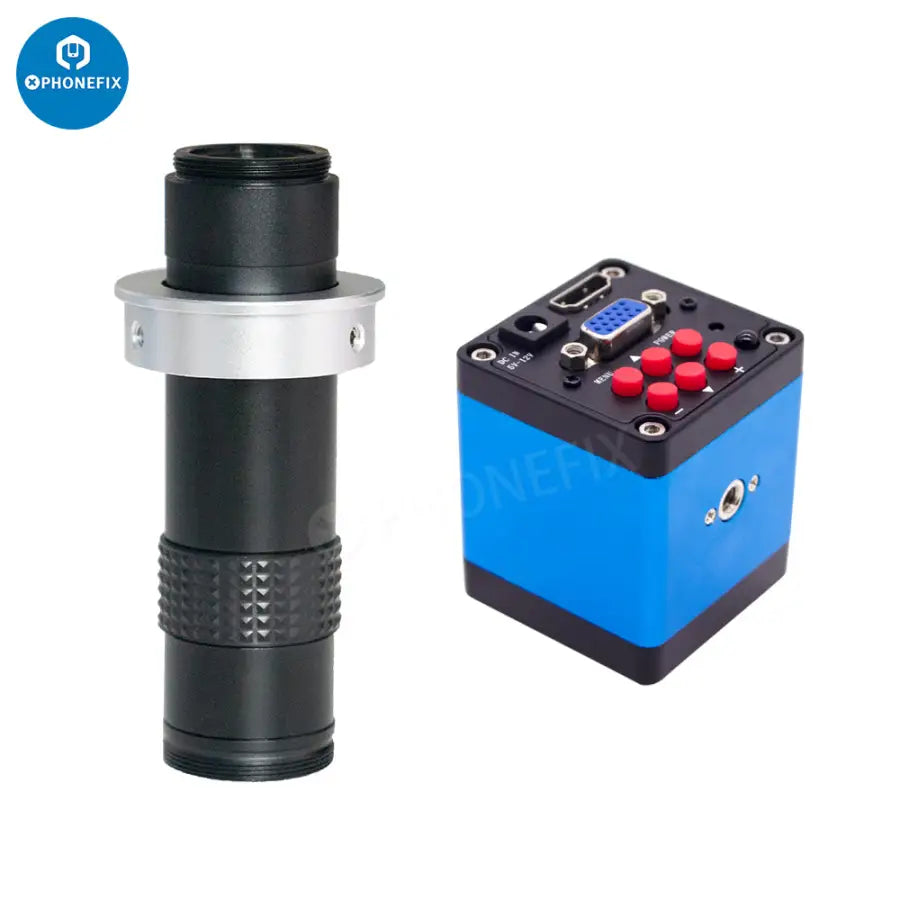

13MP HDMI VGA Camera: Model: Camera with HDMI VGA two output Sensor: 1/3 inch 13MP Image resolution: 1280*720/1024*768 Video resolution: 1280*720/1024*768@ 60F/S Language: English/Chinese Cross-hair: Can adjust color, line size, hide or display, 16 horizontal line, 16 vertical line,any positions Exposure: automatic exposure Eliminate reflections: Support White Balance: one-key white balance, support R/G/B adjustable Mirroring: Support Electron zoom: Support 1-4x Light Frequency: 50Hz/60Hz Color: Color/ black and white switching Monitor: 16:9/4:3/16:10 Brightness: 0-100 Adjustable Contrast: 0-100 Adjustable Saturation: 0-100 Adjustable Definition: Adjustable Lens interface: C mount Remote: infrared remote control Power: DC 12V/1A

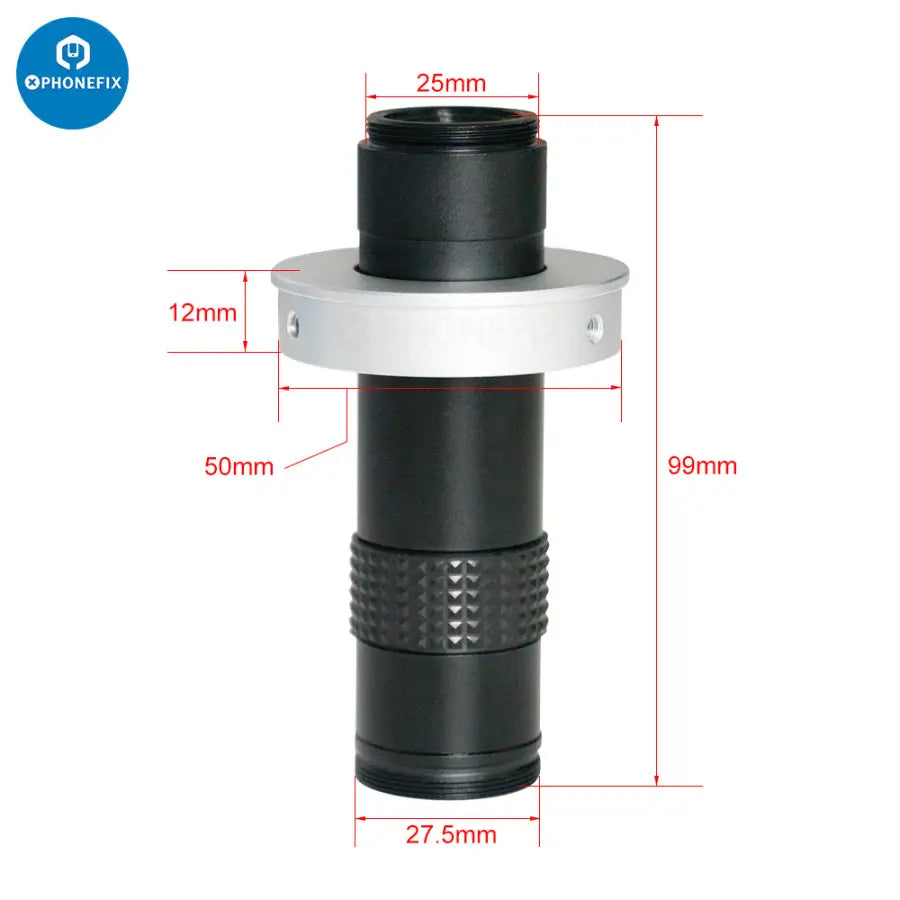

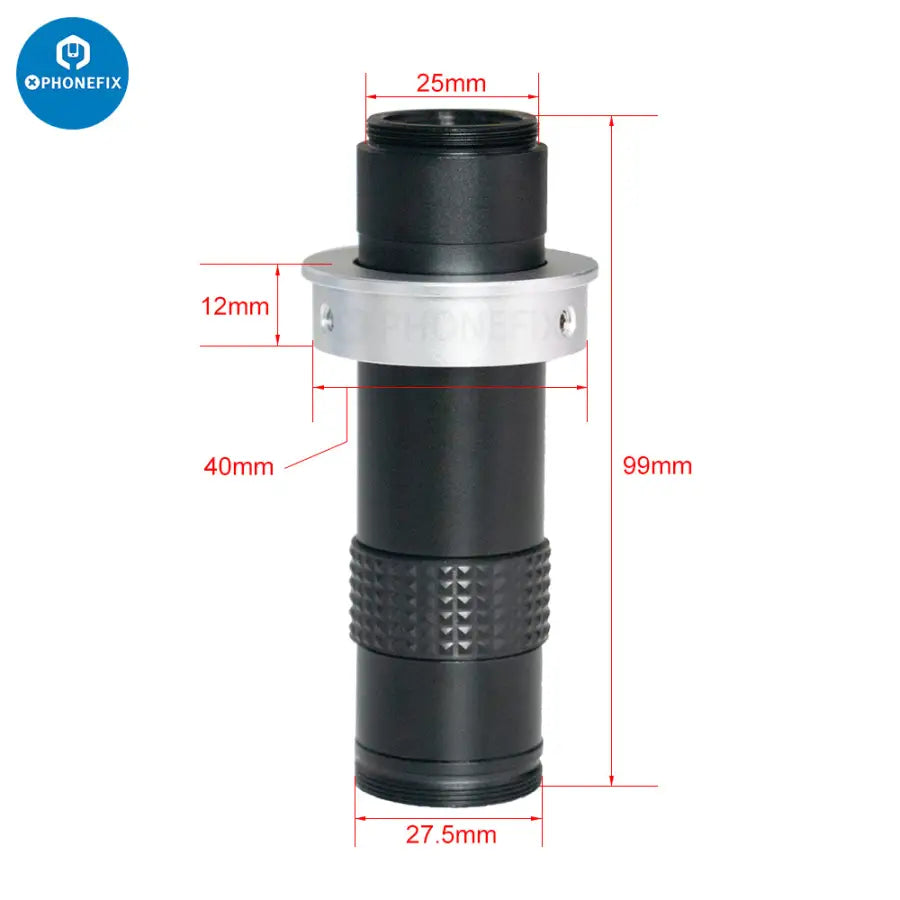

1X-130X C-MOUNT Lens: Working distance: 50mm-1000mm zoom ratios: 1 : 15 Magnification Power by 0.13- 2X (about 1 - 130X on the display) view field of Max multiple: 4.2mm*2.4mm view field of Min multiple: 130mm*70mm Size: 30mm(diameter) * 99mm(length) Weight: 195g

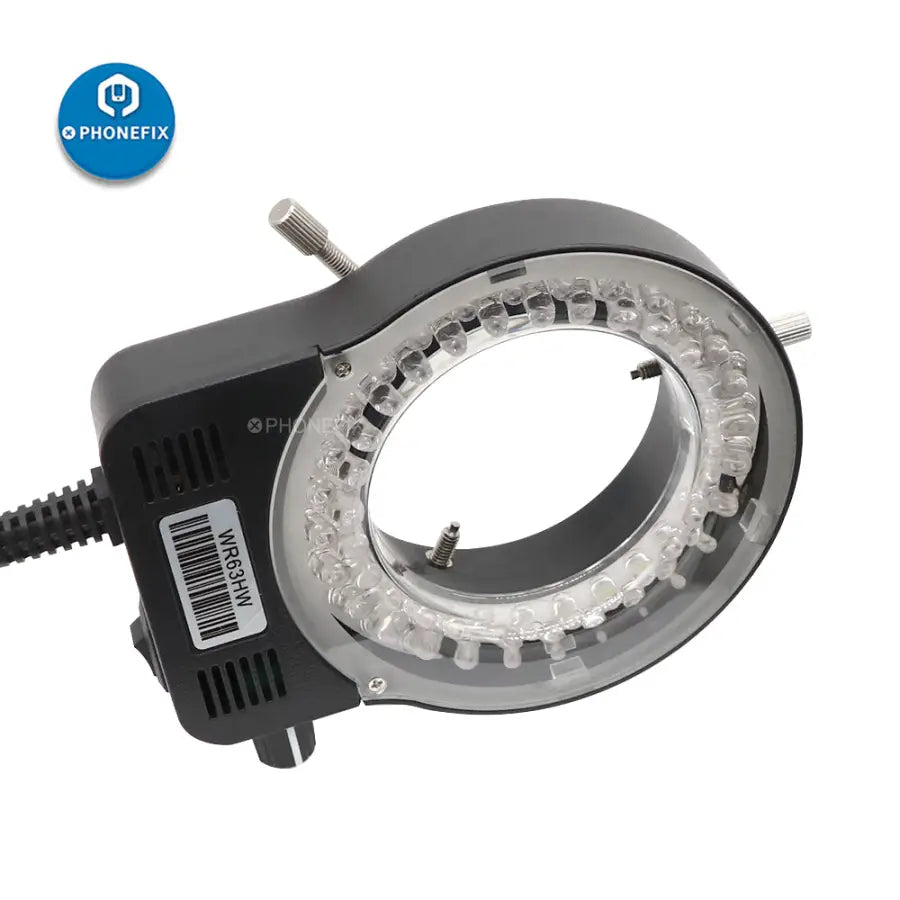

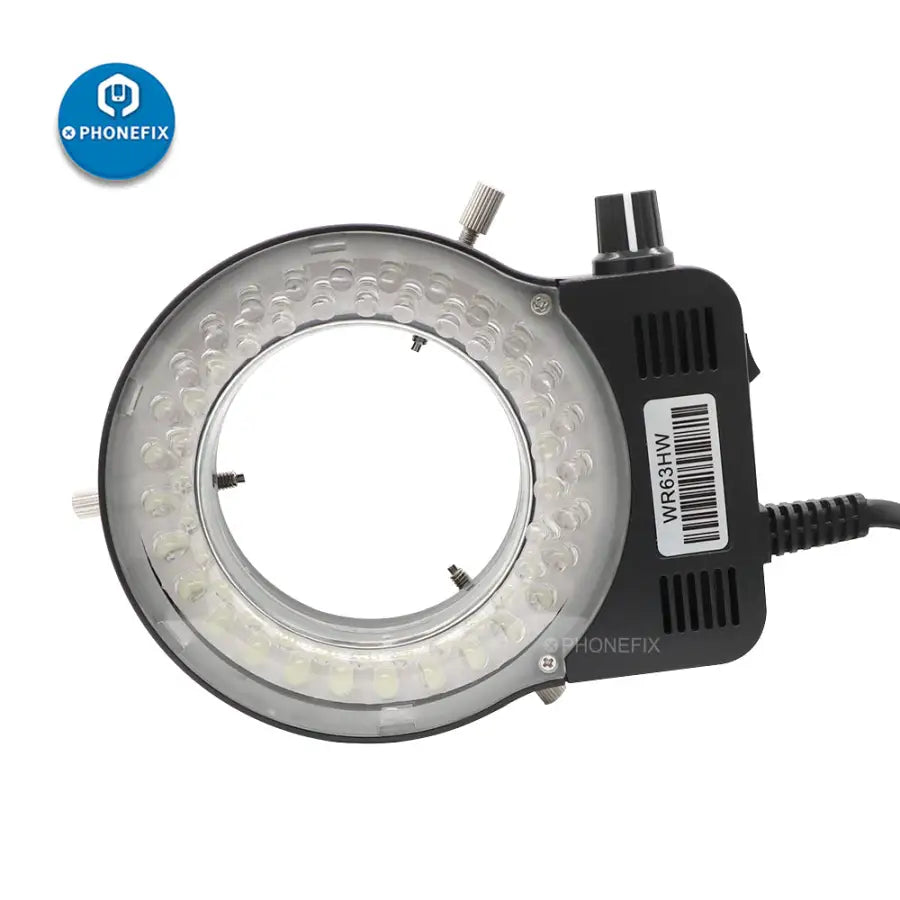

56-LED Ring Light: 56 bright white LED bulbs 100,000 hours of life Intense and focused shadow-free illumination The brightness of 0-100%Adjustable, high brightness Variable intensity control Power input: 90-260V, 50-60HZ Suit for the dia of the lens: 30mm-63mm

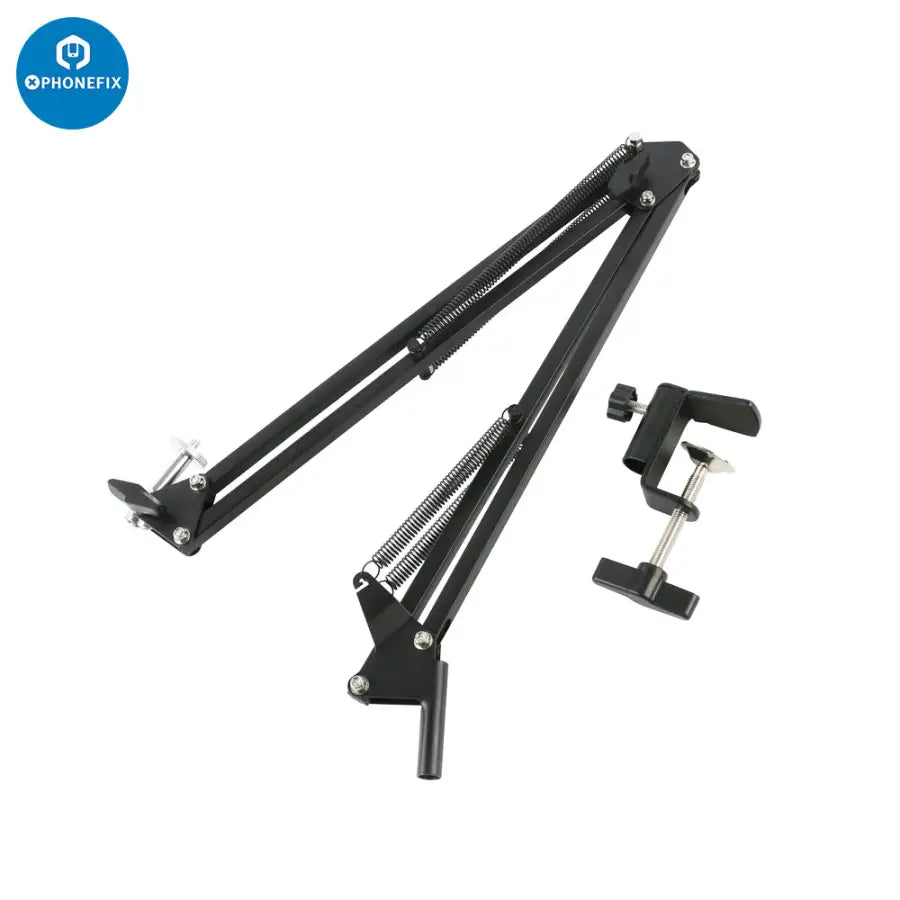

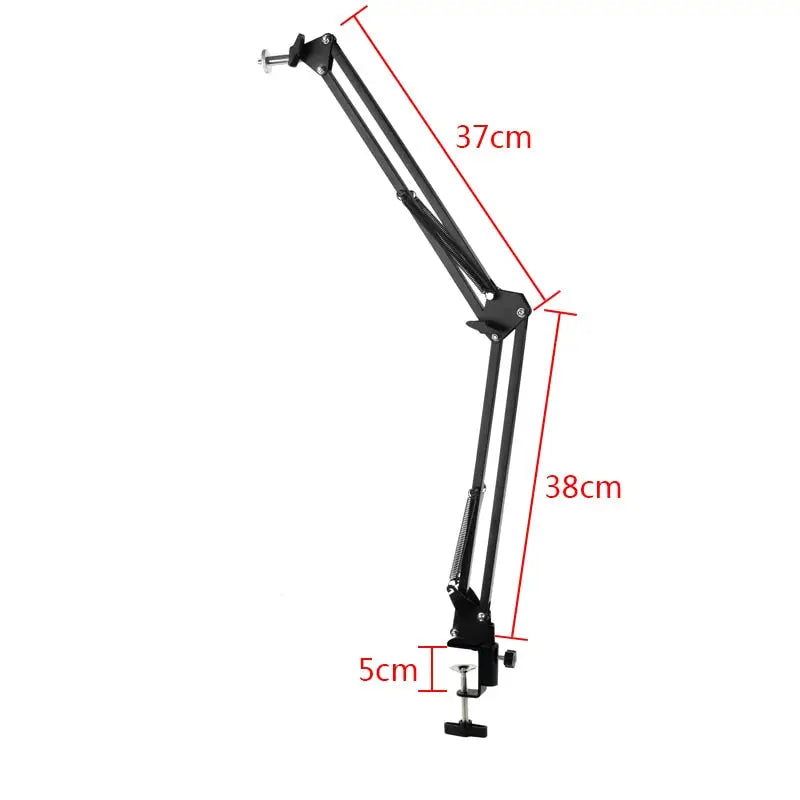

Full Set Package Includes: 1 x 13MP Microscope Camera 1 x Power Adapter 1 x IR remoter 1 x HDMI Lines 1 x 38cm Cantilever Stand 1 x 130X lens 50mm 1 x 56 LED ring light
