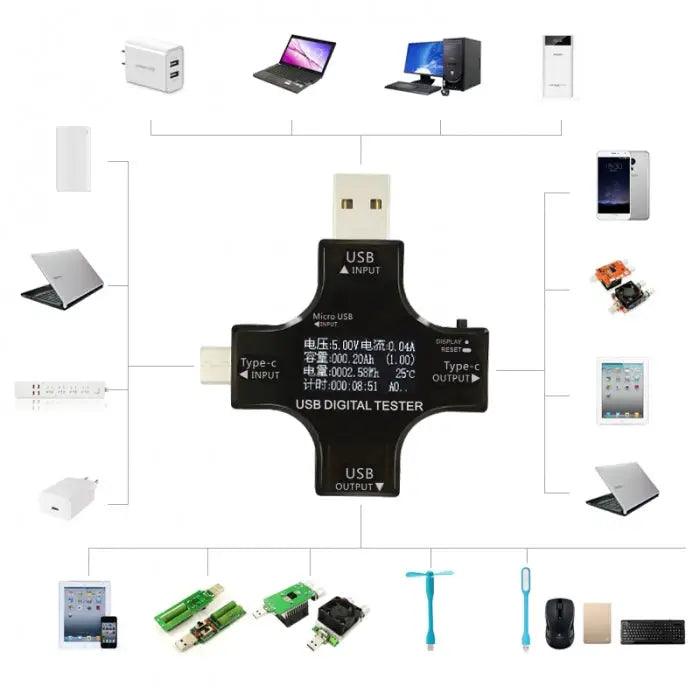

Multi-function Type-C USB voltage charge tester for mobile phone motherboard repair box, multi-interface Type-C output voltage current USB tester, cell phone motherboard repair USB port output voltage current tester detector, phone repair DC digital voltmeter current voltage multimeter detector with power bank charger indicator, USB internal data line before and after the through mode, It has a wider range of use and can use a USB interface.

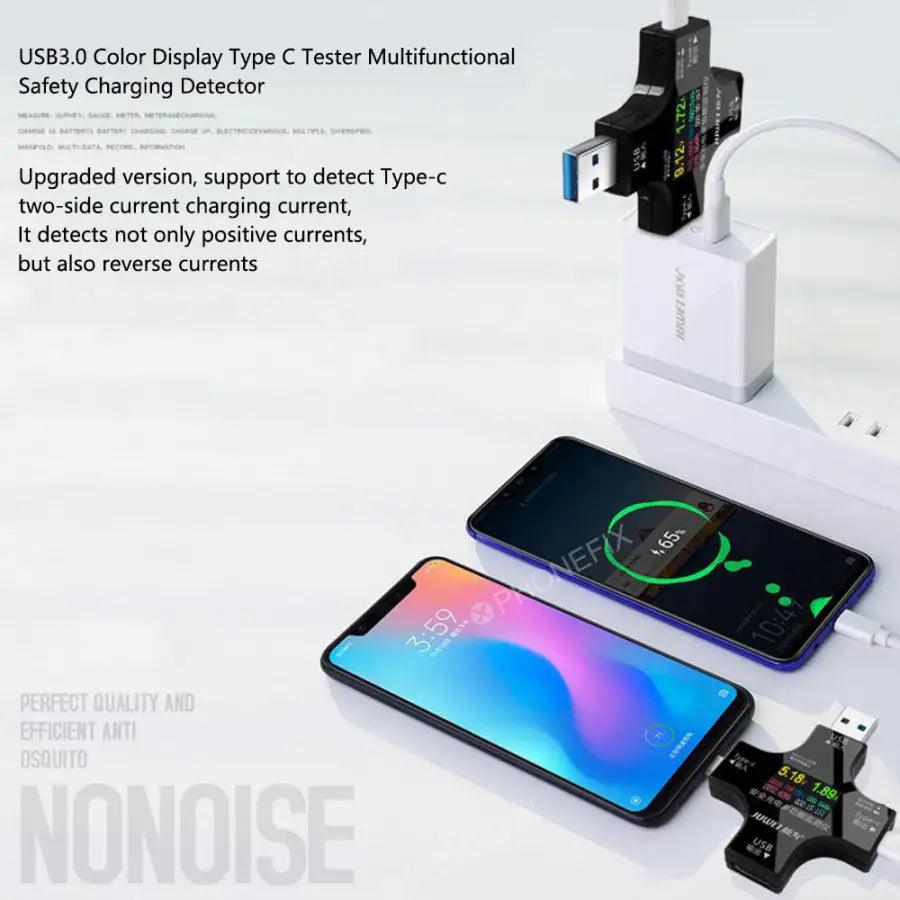

This professional USB tester not only compatible with Type-C PD quick charging protocol power 45W and iPhone 87W smart charger PD power supply such as mobile power, but also compatible with Qualcomm QC2.0 ( 5V/9V/12V/20V ) Qualcomm QC3.0 ( 3.8~12V +/- 0.2 step ), Android BC1.2 (5V), Apple iPhone 5V/2.4A and MTK-PE (5V/7V/9V/12V) Qualcomm quick charge protocol voltage Range of charge-through measurement.
Measurement Ranges ( and resolution accuracy ):
- Voltage: 3.60 - 30.0 V (0.01 V)
- Current: 0.00 - 5.10 A (0.01 A)
- Capacity accumulation: 0 – 99999 mAh (0.001 Ah)
- Power accumulation: 0 – 999999 mWh (0.01 Wh)
- Power calculation: 000.000 - 150.0 W (0.01 W
- Impedance: 1 - 999.9 Wh (0.1 Ω)
- Temperature: 0 - 80 °C (1 °C)
- Timing time: 999H59M59 S (1 S)
- USB D+ voltage: 0 - 2.99 V (0.001 V)
- USB D- voltage: 0 - 2.99 V (0.001 V)
Product Details:

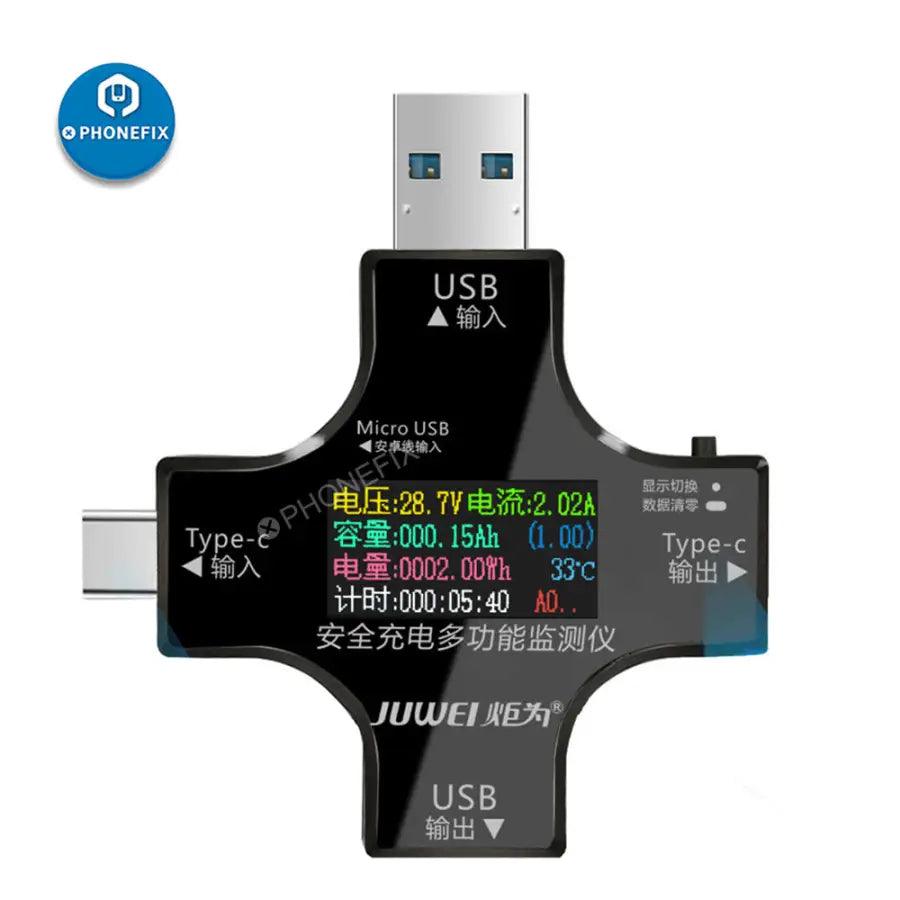

- Input Interface: Type-C / Micro USB / USB
- Output interface: Type-C / USB
- Timed charge reminder settings: 24-hour countdown
- Full charge threshold parameters: < 2 W / 0.5 hours
- Refresh time: > 500mS / time
- Measurement rate: about 0.5 time / S
- Alarm mode: siren sound and display prompt (double warning)
- Display type: micro-power LCD module LCM white font in English display
- Product dimensions: 60 x 60 x 11 mm
- Current consumption: < 0.02 A
- Operating temperature: -10 to +60 °C
- Working humidity: 10 to 80 (no doubt)
- Work oppression: 80 - 106 Kpa
Package List:
- 1pcs x 2 in 1 Type-C USB Tester
