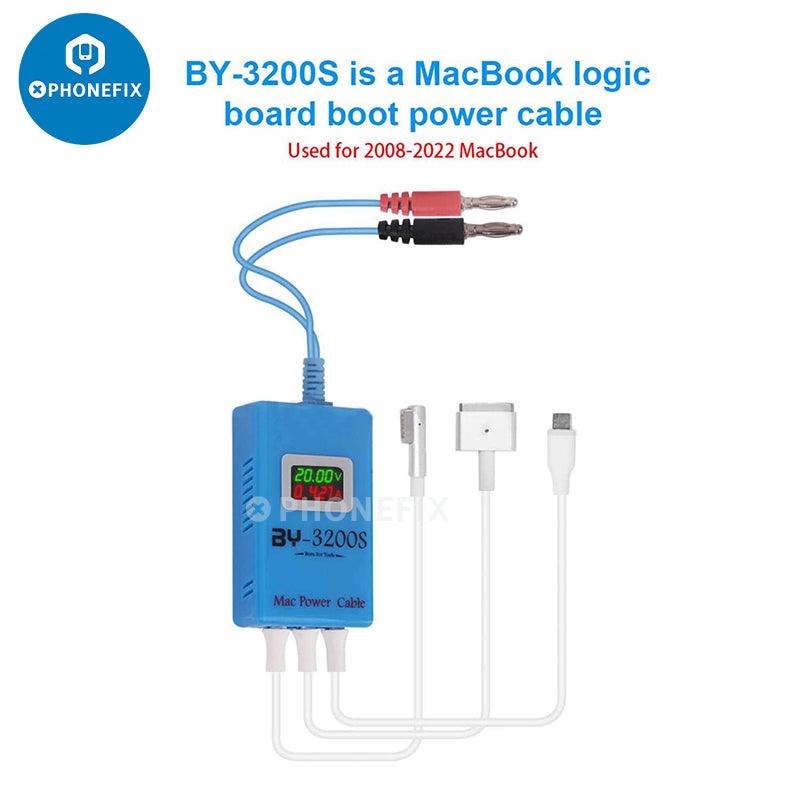

Upgraded BY-3200S Boot Cable MacBook logic board power supply cable 3 in 1 tool kit for 2008-2022 MacBook motherboard repair. BY-3200S adds current display of motherboard working status, Type_C interface, three MacBook output power cables(L-Line, T-line, Type-c), support for the whole series of MacBook motherboards boots into the system without battery, solve the problem that the BATLOW# signal is low without batteries, resulting in no boot, etc.
The BY-3200S MacBook logic board boot power cable has the following features:

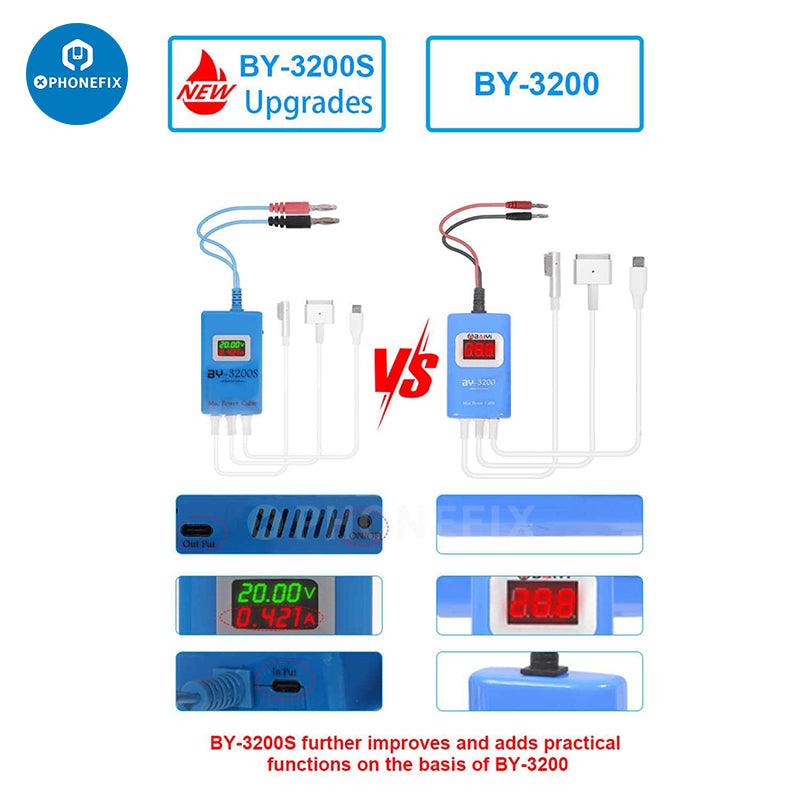

- Improved and practical functions compared to the BY-3200.
- Digital display that shows the current of the motherboard in working state.
- Input port with added Type-C interface for easy input from an 87W-140W Type-C charger, instead of 220V DC power supply.
- Output port with an added Type-C interface for wider application range and convenience.
- LCD ON/OFF switch to control the digital tube display and power input.
- Automatically senses the output port and turns on the digital tube display.
- Supports all series of MacBook logic boards without battery connected, allowing single board boot into the system and solving the problem of not booting when the BATLOW# signal is low without the battery.
Includes three output power cables:
- L-Connector for 2008-2011 MacBooks, including 11", 13.3", 15.4" and 17" Macbook Air and Macbook Pro.
- T-Connector for 2012-2015 MacBooks, including 11", 13.3" and 15.4" Macbook Air and Macbook Pro
- TYPE-C connector for 2015-2022, including 12", 13.3", 15.4" and 16" Macbook Air and Macbook Pro. (And supports fast charging of tablets and mobile phones with TYPE-C interface, check the current through the power meter to determine the fault).
Input DC power input power cable, support 20A current
- The power cord input port of BY-3200S is directly plugged into the DC power supply (the setting voltage of the DC power supply is kept between 20V and 21V).
- When charging the mobile phone or tablet, the output voltage of the DC power supply can also be kept at 20V (BY-3200S will adjust to the corresponding voltage through the CC line inside).
- 3. The output voltage of the DC power supply is set to 20V-21V, which can be used for 2008-2022 MacBook charging and single-board booting.
- Type-C connect input, Support 87W-140W USBC charger input.
Package Includes:
- 1pcs x BY-3200 Boot Cable
