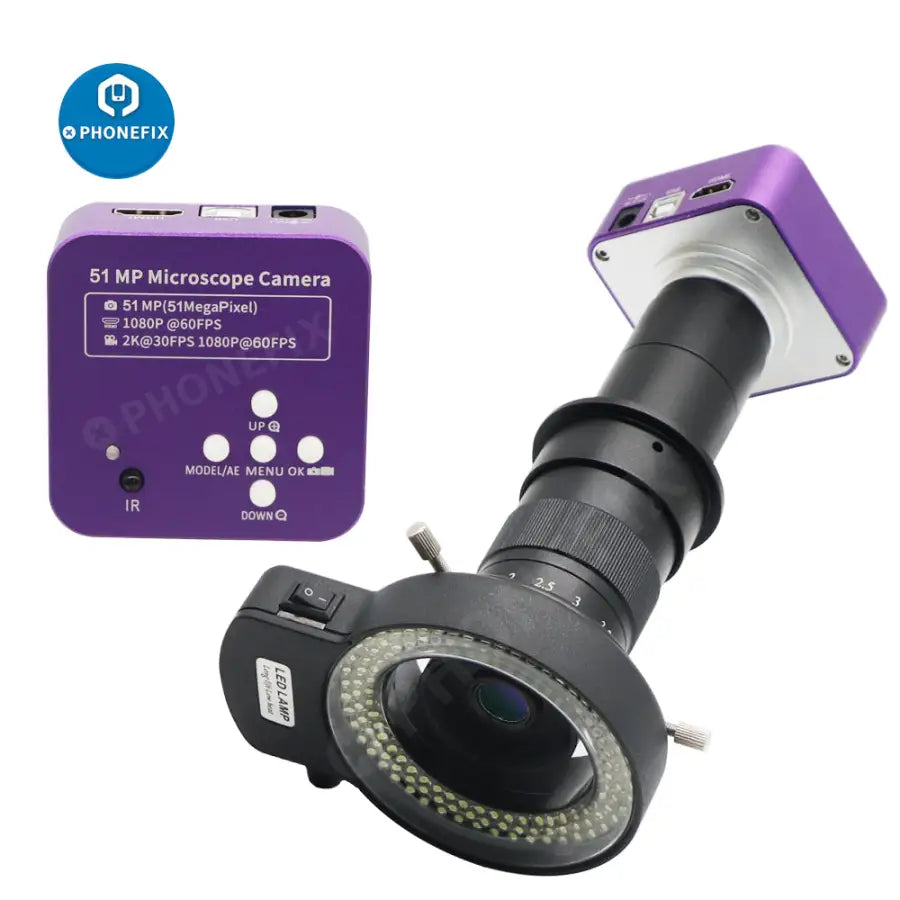

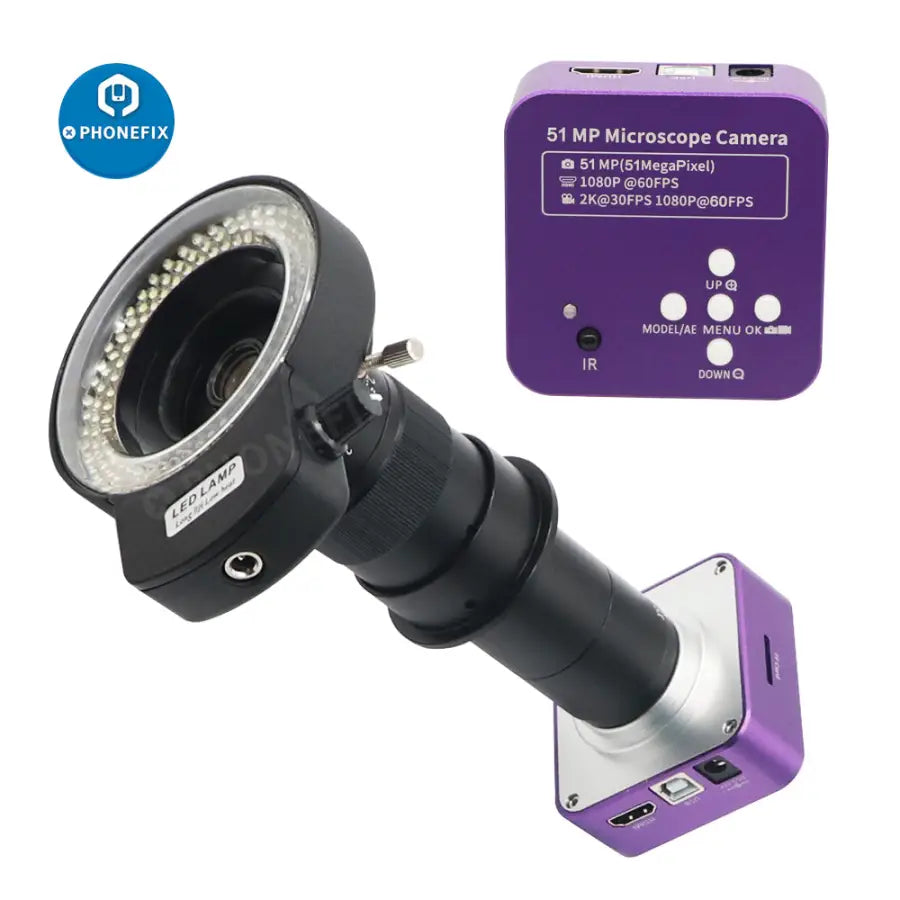

51MP 1080P FHD 2K Digital Microscope Camera 180X C-Mount Lens 144 LED Ring Light HDMI USB Industrial Electronic Microscope Camera for Phone Repair Soldering.
Note: 1. PC Support : Windows XP/7/8/10 system. 2. For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted. 3. When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC. 4. When connect the camera with computer, just plug the USB line is OK ( no need to use the power supply).
Camera Features: Model: Camera with HDMI USB2.0 two output Image format: jpg Image resolution: 51 MegaPixel Video format: MP4(for TF card) Video recorder: 2K@30FPS, 1080P@60FPS HDMI Video resolution: 1920*1080 @ 60FPS USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS White Balance: Auto/Manual Light: Auto/Manual Exposure: Auto/Manual, value adjustable Color: Color Morror: Left/right,Up/Down Freeze: Support OSD: English/Chinese/French/Spanish/Japanese/German Line: different color,5 horizontal line , 5 vertical line,any positions

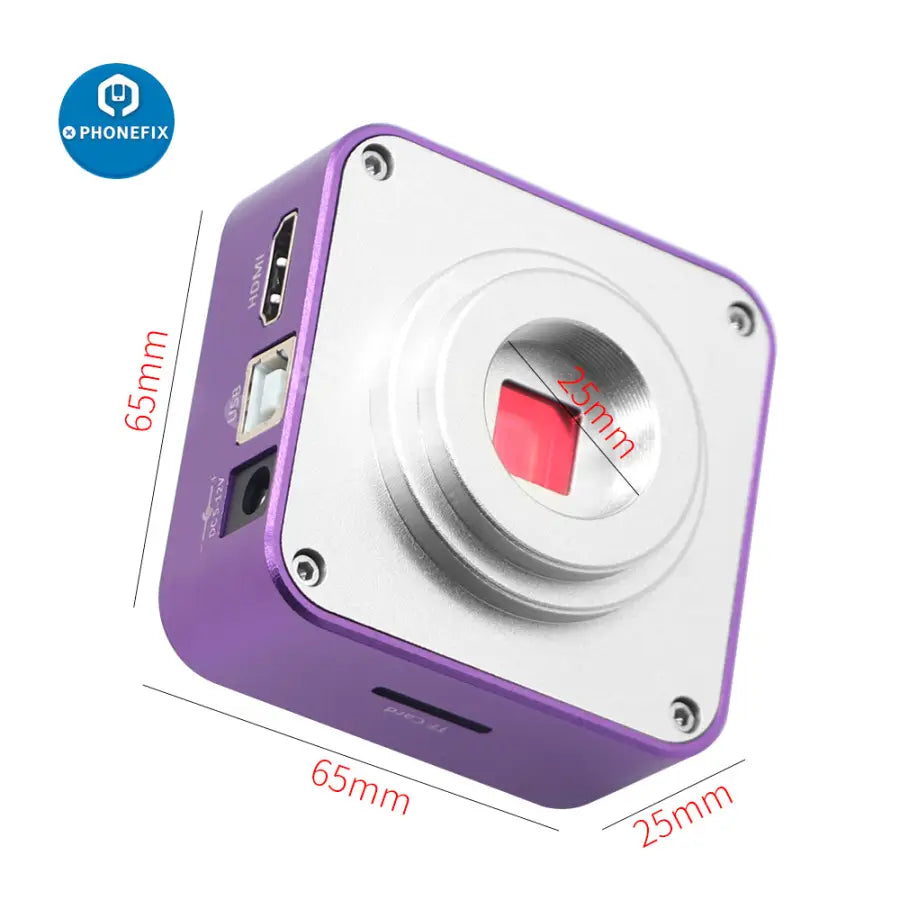

Camera Specification: Image sensor: 51 megapixel CMOS sensor 1/2.33 inch Effective pixel: 51 megapixel Pixel size:1.335μm × 1.335μm Frame rate:60fps Definition:FULL HD Housing:metal Lens:C/CS Video format: MOV Digital Zoom:Support Brightness control:Auto/manual Color:R/G/B adjustable Film and record:Support Cross cursor:Support multi-color, size adjustable Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, moveable Different color,5 horizontal line, 5 vertical line,any positions TF card interface:Max 64G HDMI interface:Standard HDMI output (Type A) USB interface:Standard usb2.0 interface (Type B) Input Voltage: DC 12V

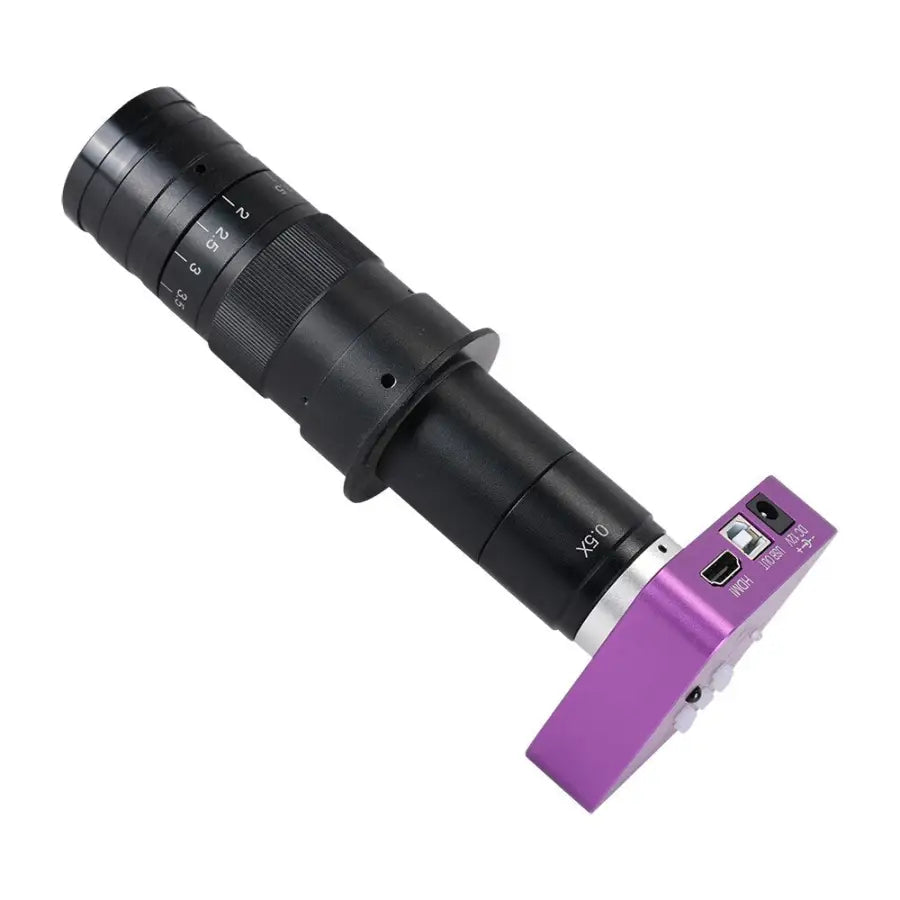

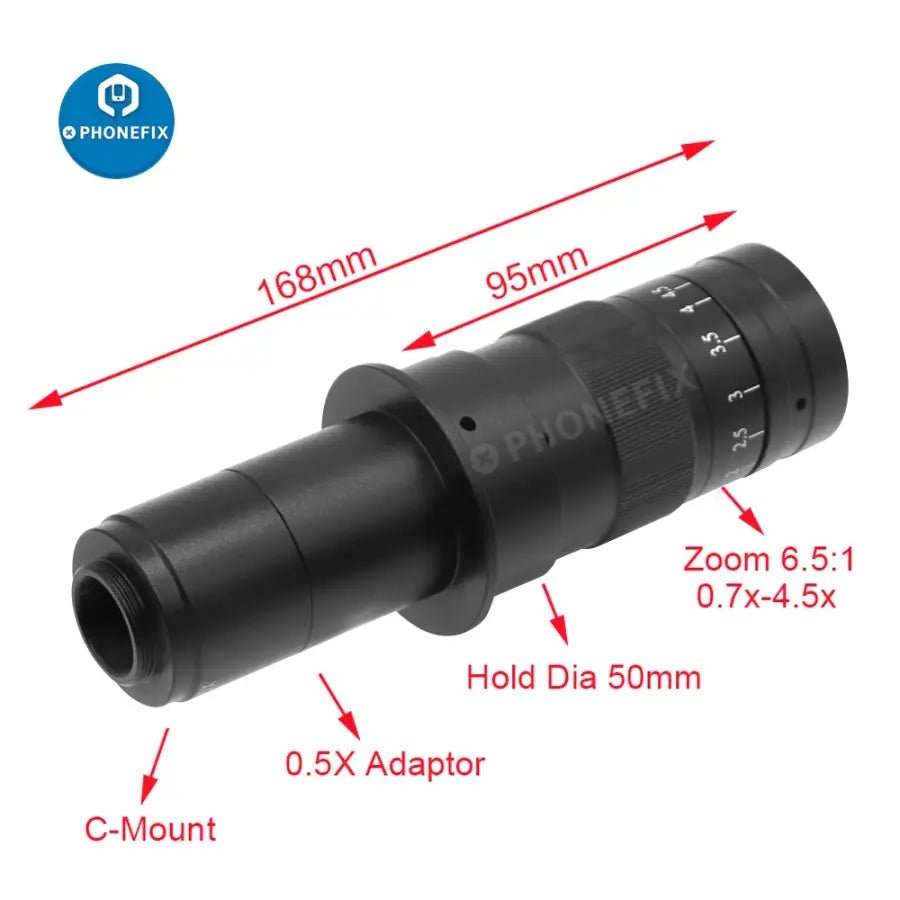

180X C-Mount Objective Lens: Working distance: 95-150mm. zoom c-mount Lens. 0.5X C-mount adapter(180X Cmount). zoom ratios: 6.5:1. Objective Magnification Power by 0.7 - 4.5X (about 10 - 180X on the display). Size: 168mm(L) * 50mm(DIA). Weight: 450g.

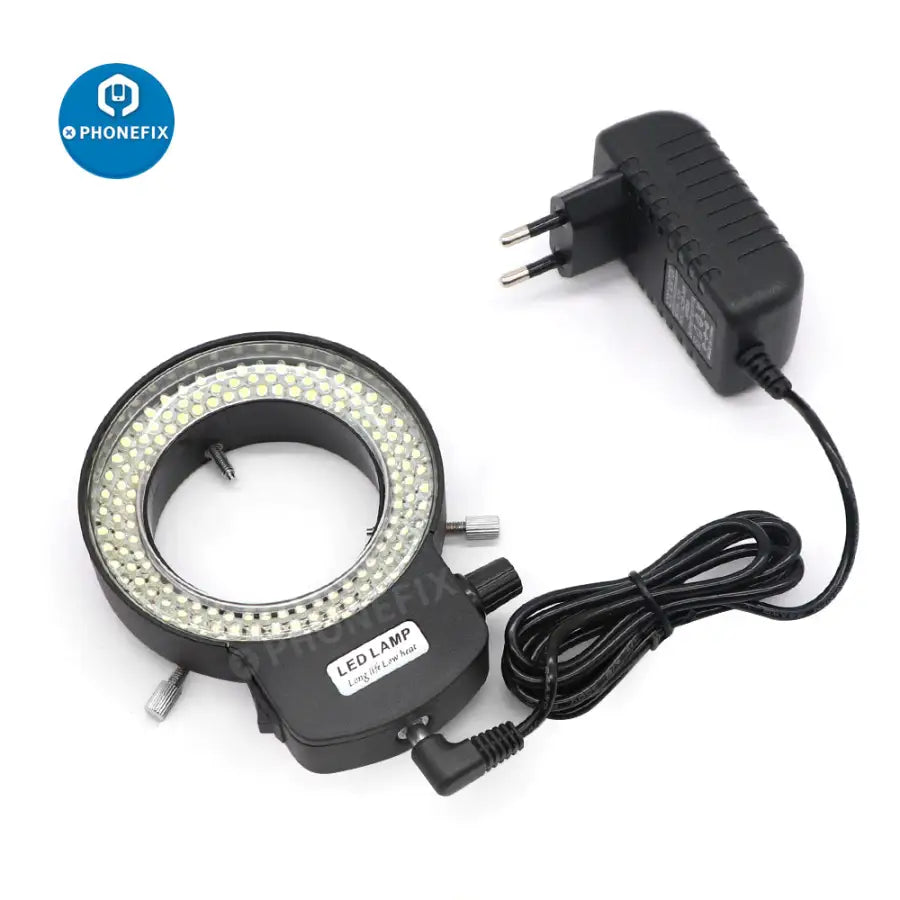

144 LED Ring Light: 144 bright white LED bulbs 100,000 hours of life Intense and focused shadow-free illumination The brightness of 0-100%Adjustable,high brightness Variable intensity control Power input: 100-240V, 50-60HZ Suit for the dia of the lens: 30mm-63mm

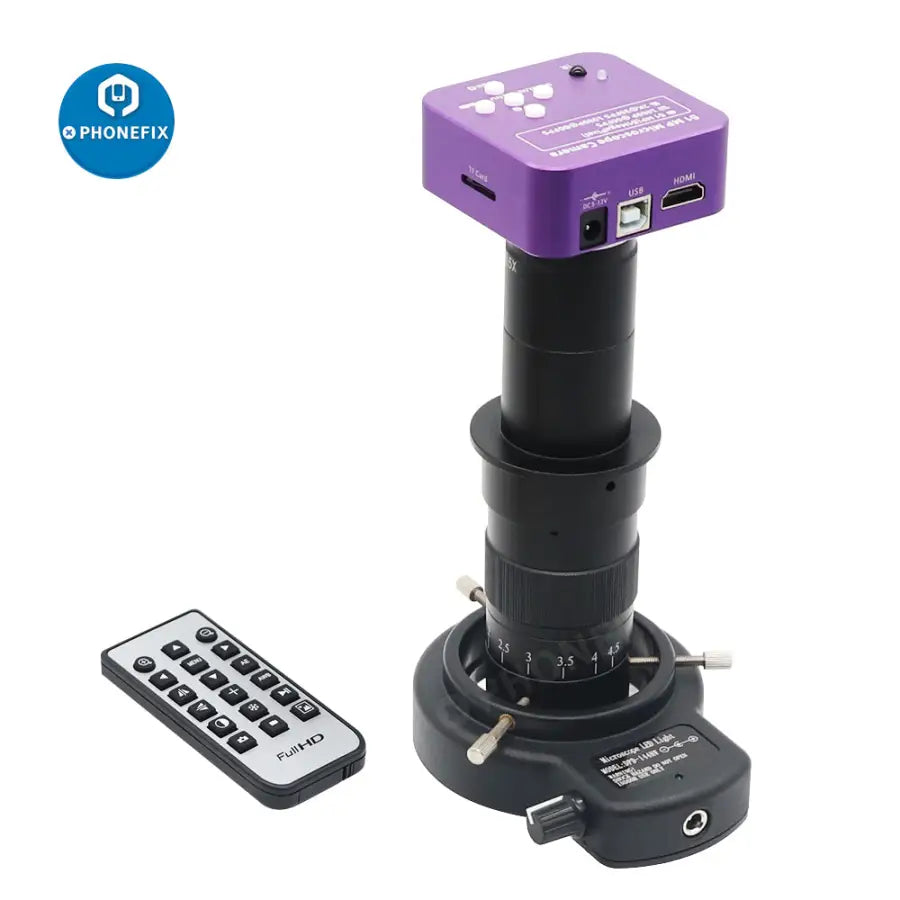

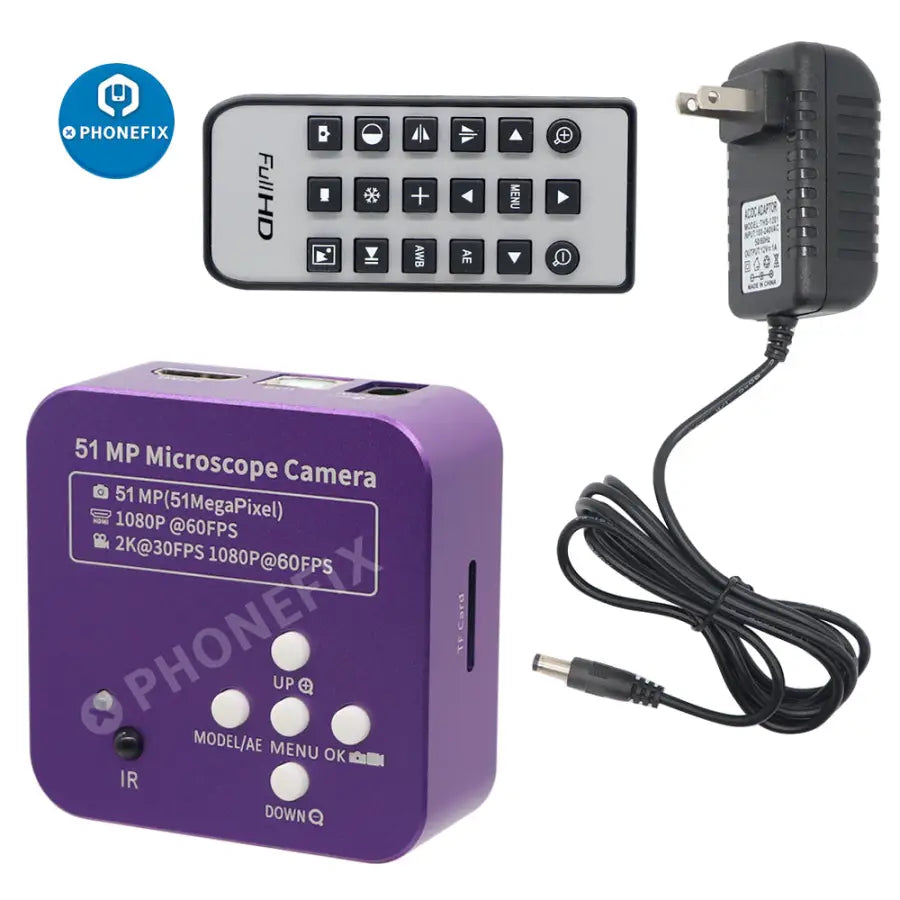

Package including: 1 x 51MP Microscope Camera 1 x Power supply 1 x USB line 1 x Software DISC 1 x Remote Control 1 x 180X C-Mount Objective Lens (Optional) 1 x 144 LED Ring Light (Optional)
