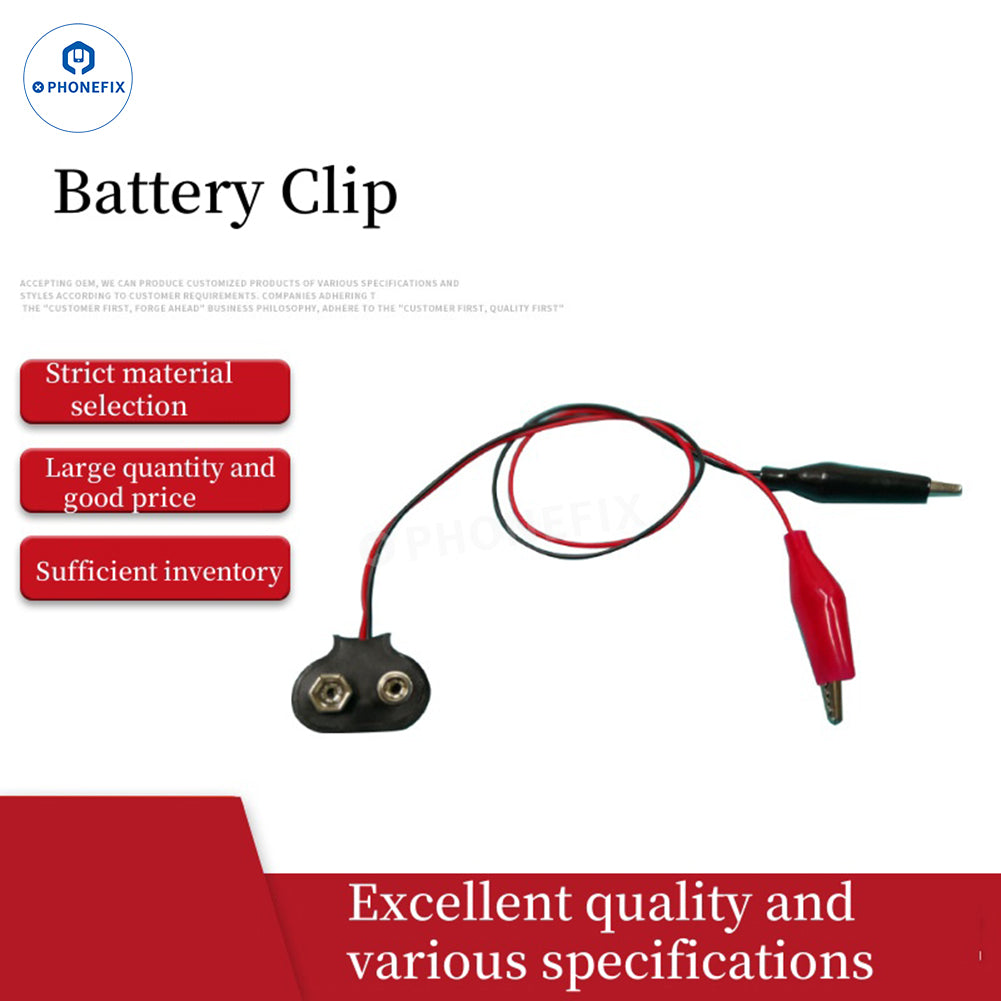

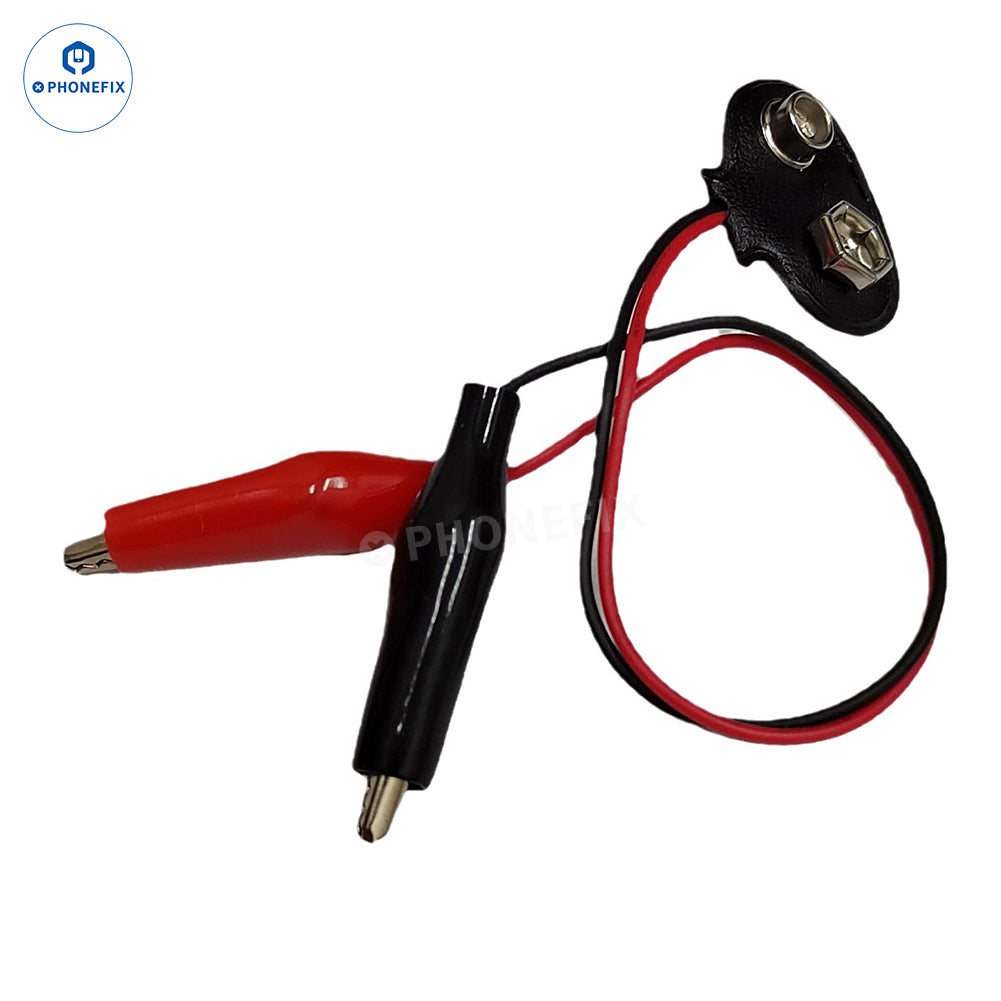

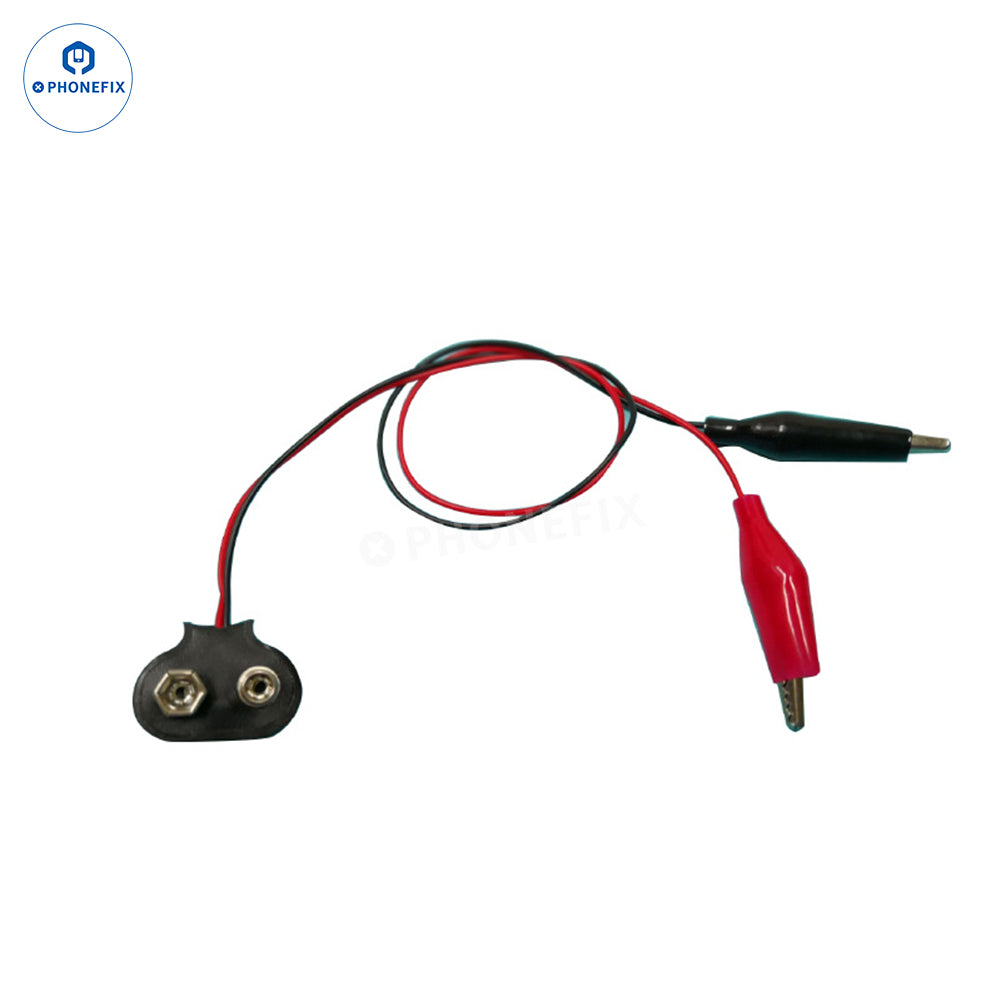

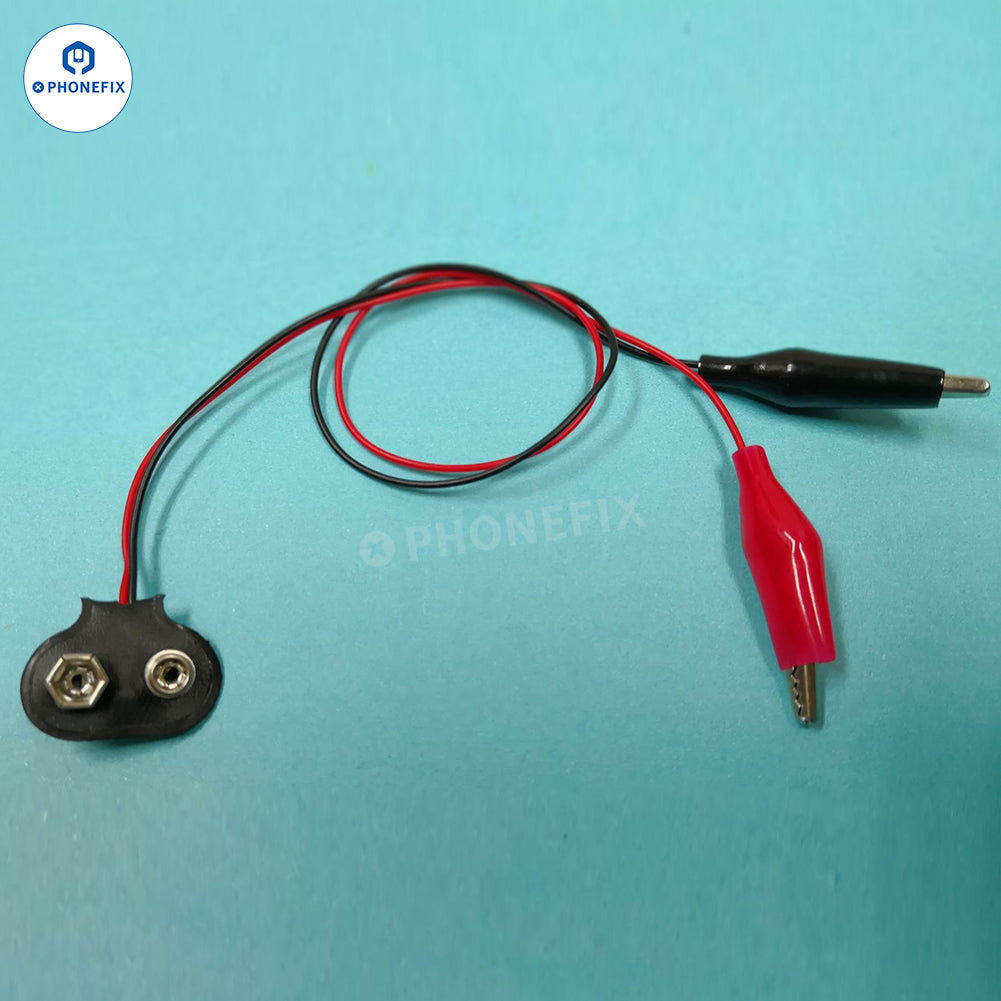

9V battery connector dual alligator clips for iPhone 16/16 Plus battery removal. New electrically activated adhesive used to secure iPhone 16/16 Plus batteries loosens and loses stickiness when current passes through, allowing for quick and safe debonding, improving iPhone 16 battery removal efficiency. 15cm T-Type 9V battery connector positive negative snap lead wire with two alligator clips for removing iPhone 16/16 Plus battery.
Features:
1. In order to comply with EU law and make the iPhone 16/16 plus easier to disassemble, Apple uses a new type of adhesive to fix the battery. When current passes through, it will debond, which greatly improves the repairability and heat dissipation of the iPhone battery.
2. Use alligator clips with 9V battery to loosen the iPhone battery adhesive and then remove the iPhone battery.
3. 9V Battery Clip Connector Black Red Dual Alligator Clips T-Type Flexible Buckle Adapter for iPhone battery removal.
5. It is worth noting that the electrically-induced battery removal process is not available for the iPhone 16 Pro and iPhone 16 Pro Max.

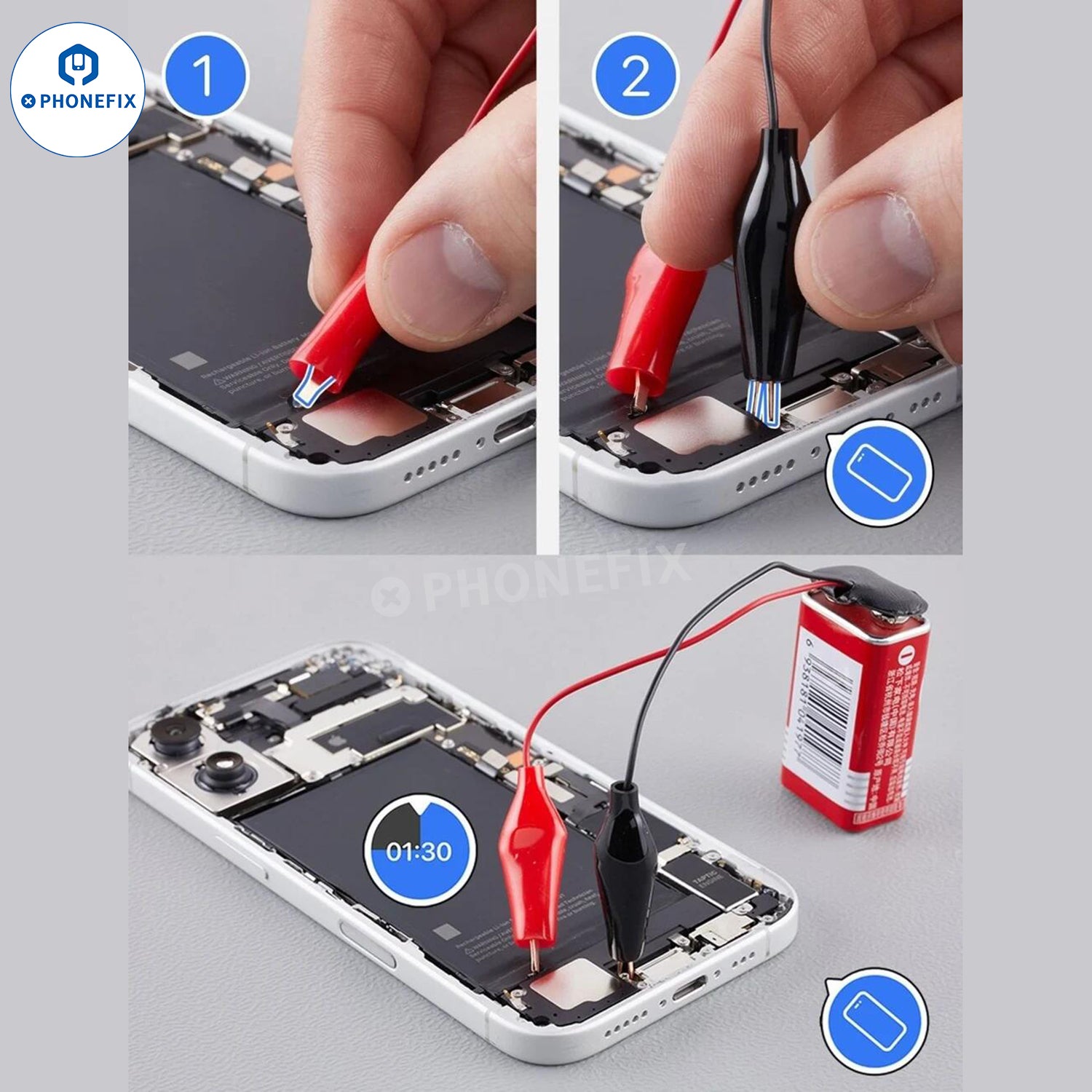

How to use a 9V battery connector alligator clip for iPhone 16/16 Plus battery disassembly?

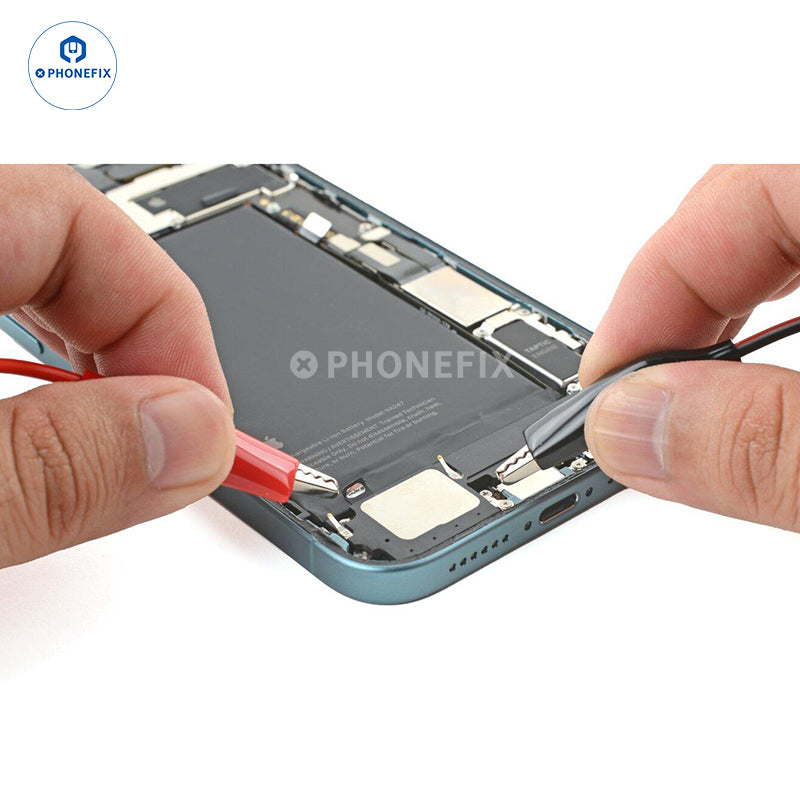

1. Attach the red alligator clip to the silver tab.
2. Attach the black alligator clip to the grounding screw on the bottom right.

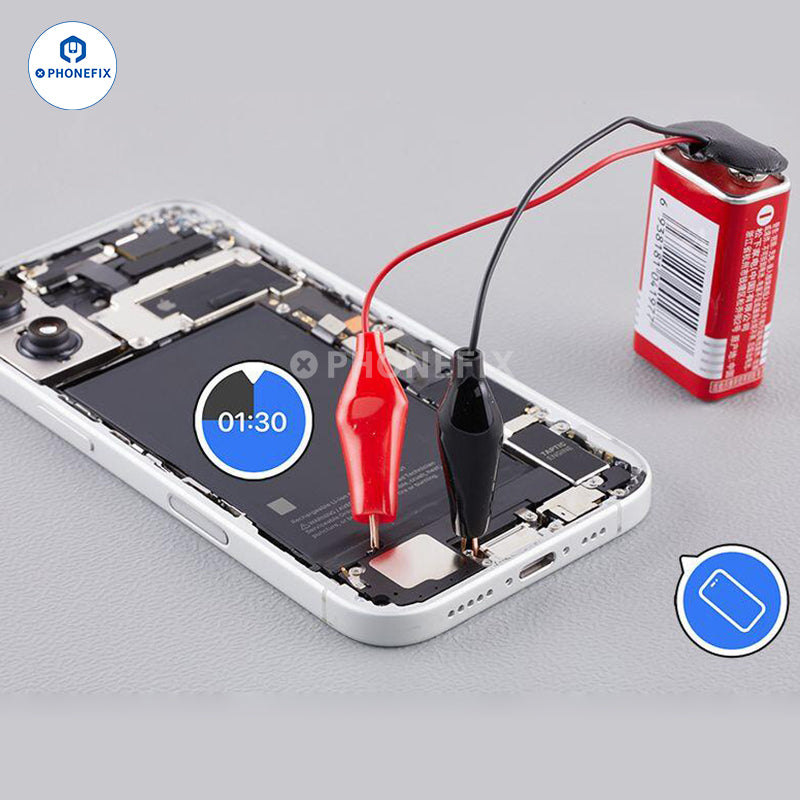

3. Connect the T-clip leads cables to the fully charged 9V battery and wait 90 seconds for the adhesive to loosen.
4. After the iPhone battery adhesive is loosened, please disconnect the alligator clips before continuing to the next step.
5. After confirming that the battery adhesive is loose, grasp the silver tab and remove the battery from the frame. You can also use the suction cup handle to pull the battery out.
Please note:
1. If the battery does not move after using the electrically induced adhesive release technique, reconnect the alligator clips for one minute and try again.
2. A power supply or power bank with an output of 5-20V can be used, and the time required to loosen the adhesive will vary.
Product Parameters:
Model: LFD-9VEYT
Product type: battery buckle, battery holder, 9V wire buckle
Material: brass
Series: 9V battery buckle
Chemical type: plastic
Combination: PVC+wire
Color: black
