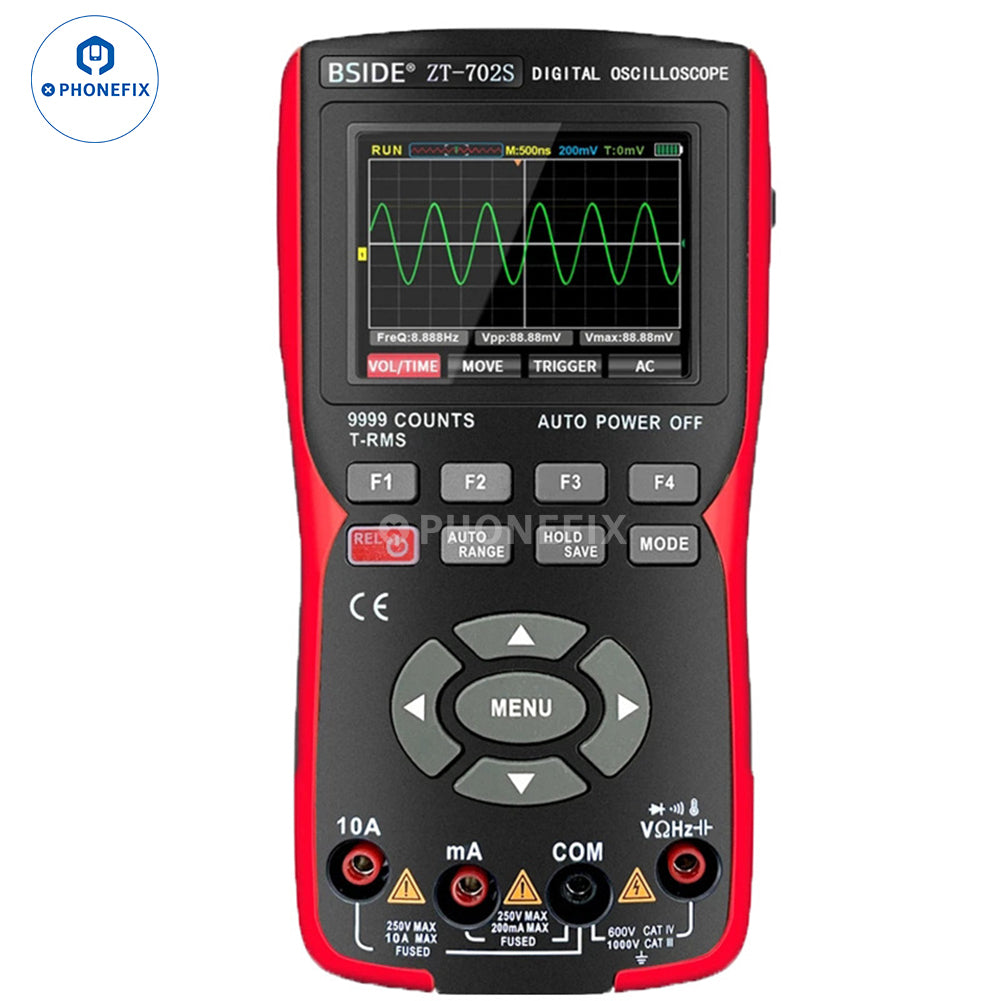

BSIDE ZT-702S Portable Oscilloscope Multimeter has handheld oscilloscope function and digital multimeter runction, 2-in-1 integrated multifunctional handheld test instrument. which can measure multiple parameters of an electric circuit like voltage, current, and resistance.
Description:
1. Handheld oscilloscope can automatically or manually test waveforms, which can automatically recognize and adjust the waveform amplitude and time base, and display matched waveform.
2. The oscilloscope supports manual probe compensation and can be checked for excessive or insufficient compensation through the AUTO key.
3. The measurement waveform can be saved on the computer through Type C cable, and you can easily view the saved waveform.
4. Built in dual fuse for overload protection, intelligently anti burning. Equipped with high performance chip, more accurate for data reading.
Features:
1. One key switch easy to operation, suitable for outdoor maintenance, rapid on-site measurement, automobile maintenance, power detection, etc.

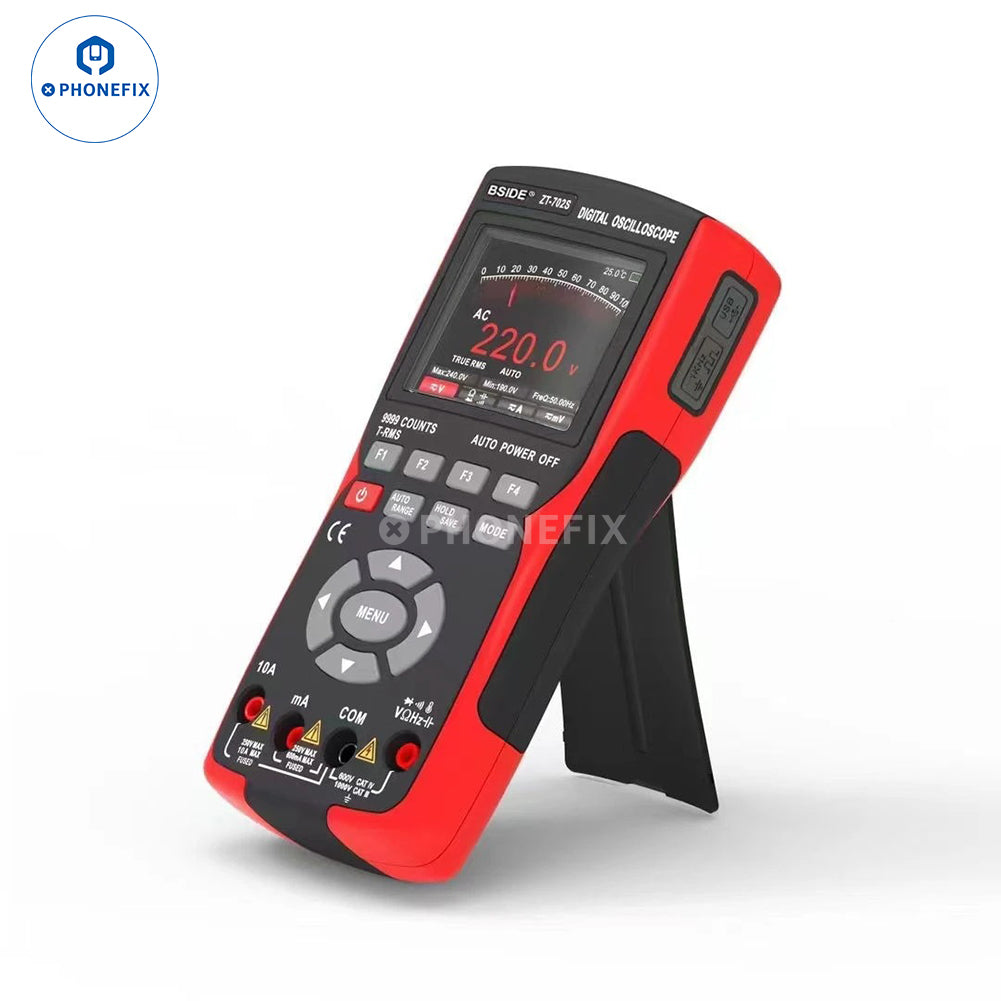

2. 2.8-inch IPS full-view color LCD display with backlight and data hold function for clearly data reading. Small compact size is suitable for single hand operating and portable to carry.
3. The 2 in 1 multimeter has an automatic shutdown function, which can set the shutdown time to save power.
4. Single channel input, 10MHz bandwidth, 48MSa/s real-time sampling rate. Multiple automatic measurement functions; Auto, normal, and single, 3 trigger methods: 150V(DC+AC peak) max.
Product Description:
Item Type: Oscilloscope Multimeter
Material: ABS
Maximum Count: 9999 counts
Anti Burn Dual Fuse: 200mA 250V, 10A 250V
Backlit Brightness Adjustment: 30%, 50%, 80%, 100%
Data Storage: USB connection to computer
Pen Line Length: Approx. 107cm/42.1in
Battery: 3.7V lithium battery x 1 (built in)
Capacity: 2000mAh (single battery capacity)
Automatic Shutdown: Settable shutdown time: 15 minutes, 30 minutes, 60 minutes, 120 minutes, unlimited

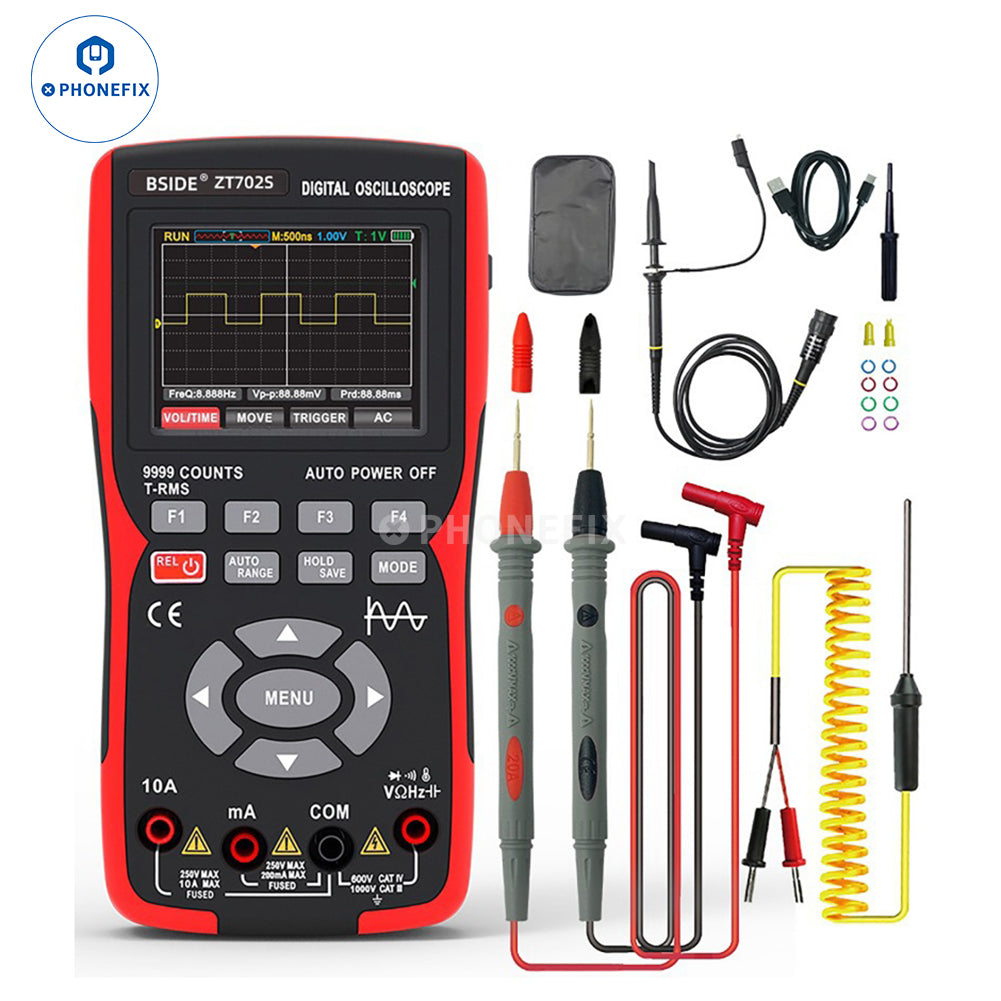

Package List:
1 x Oscilloscope Multimeter
1 x Pair of Test Lead
1 x Temperature Probe
1 x Oscillometric Probe
1 x Type-C Cable
1 x Zipper Bag
1 x Manual (English)
