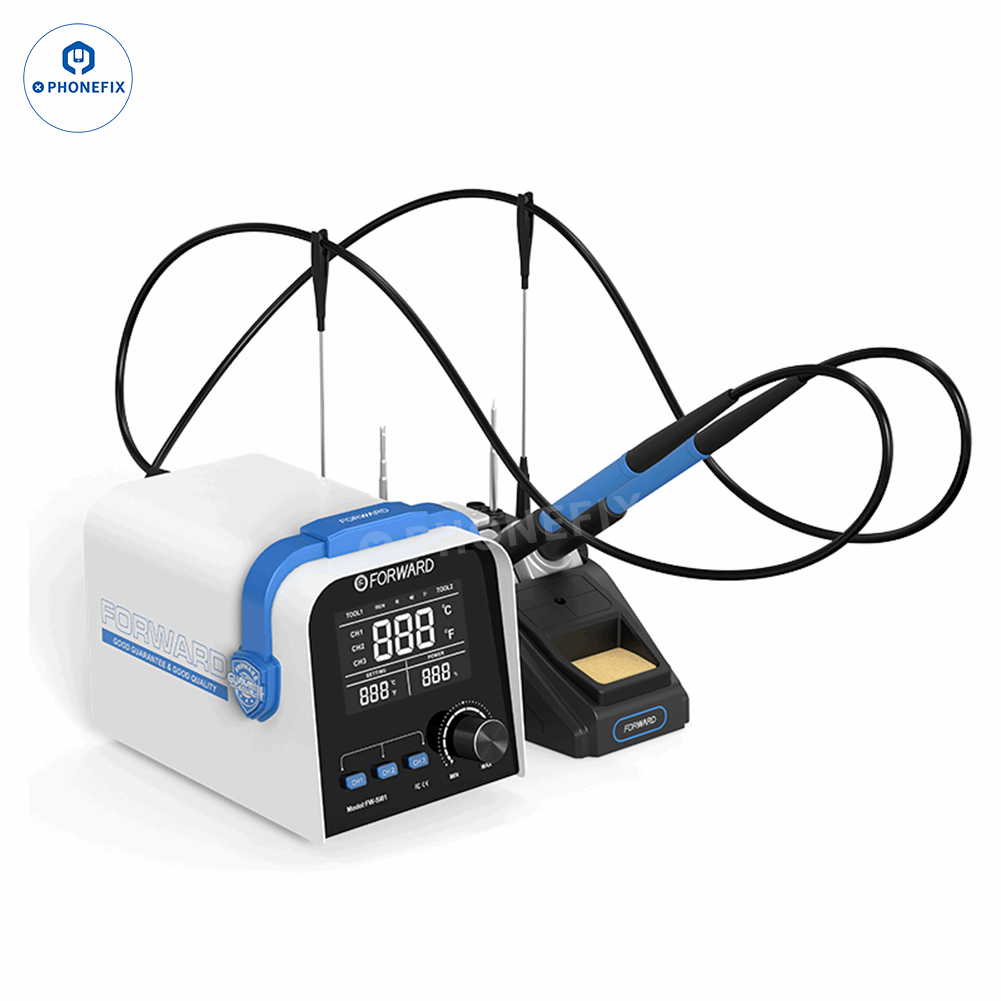

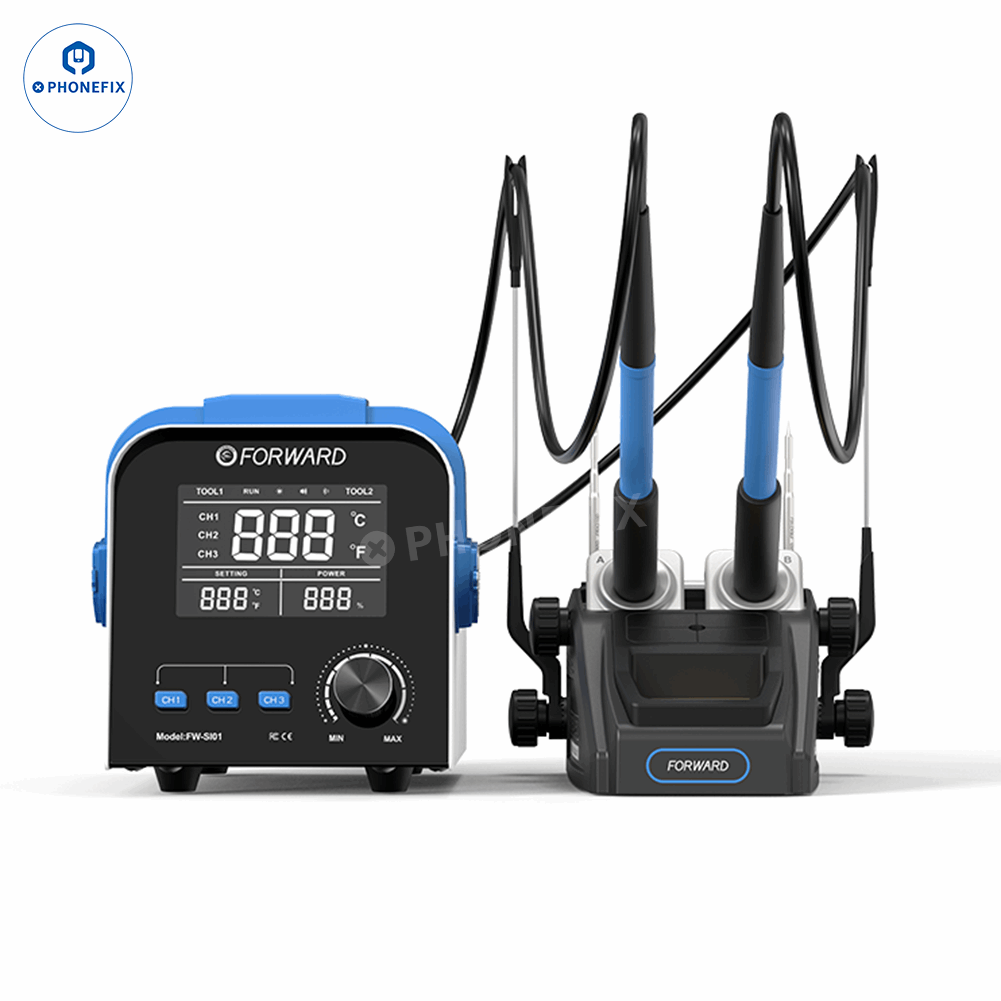

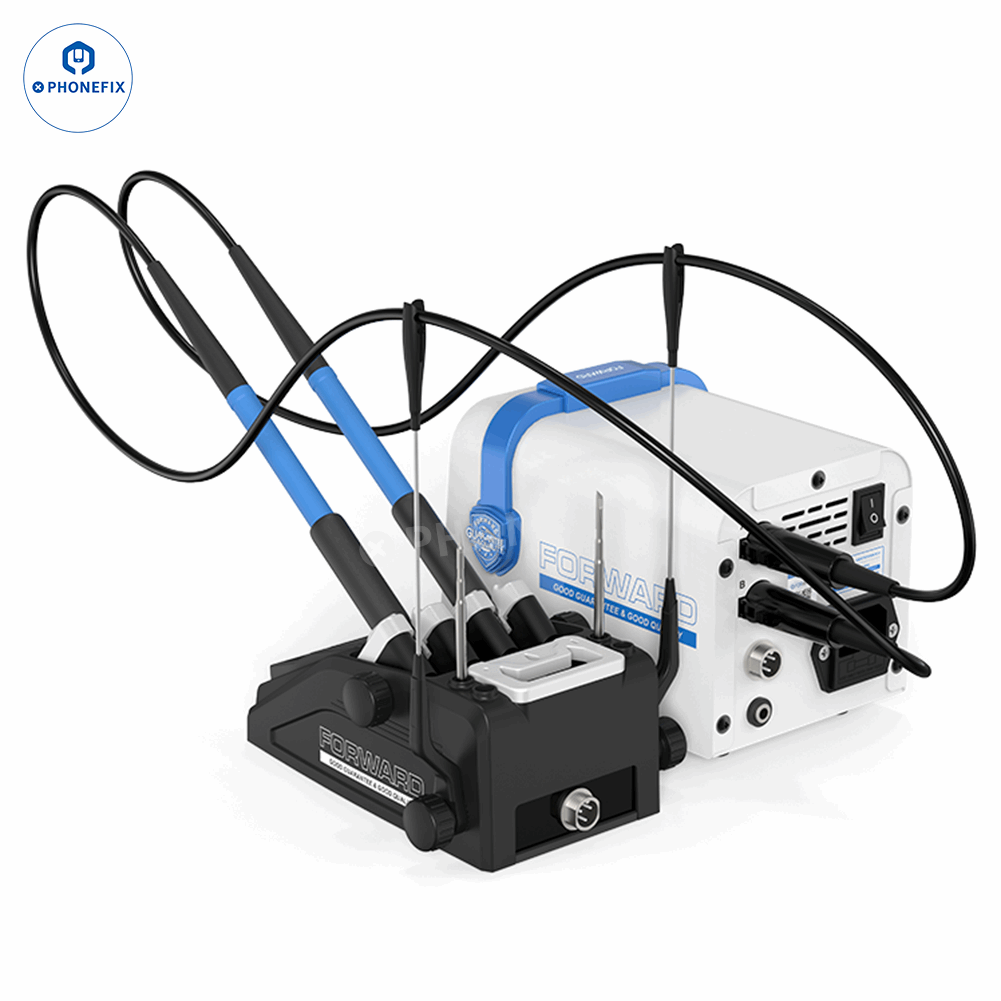

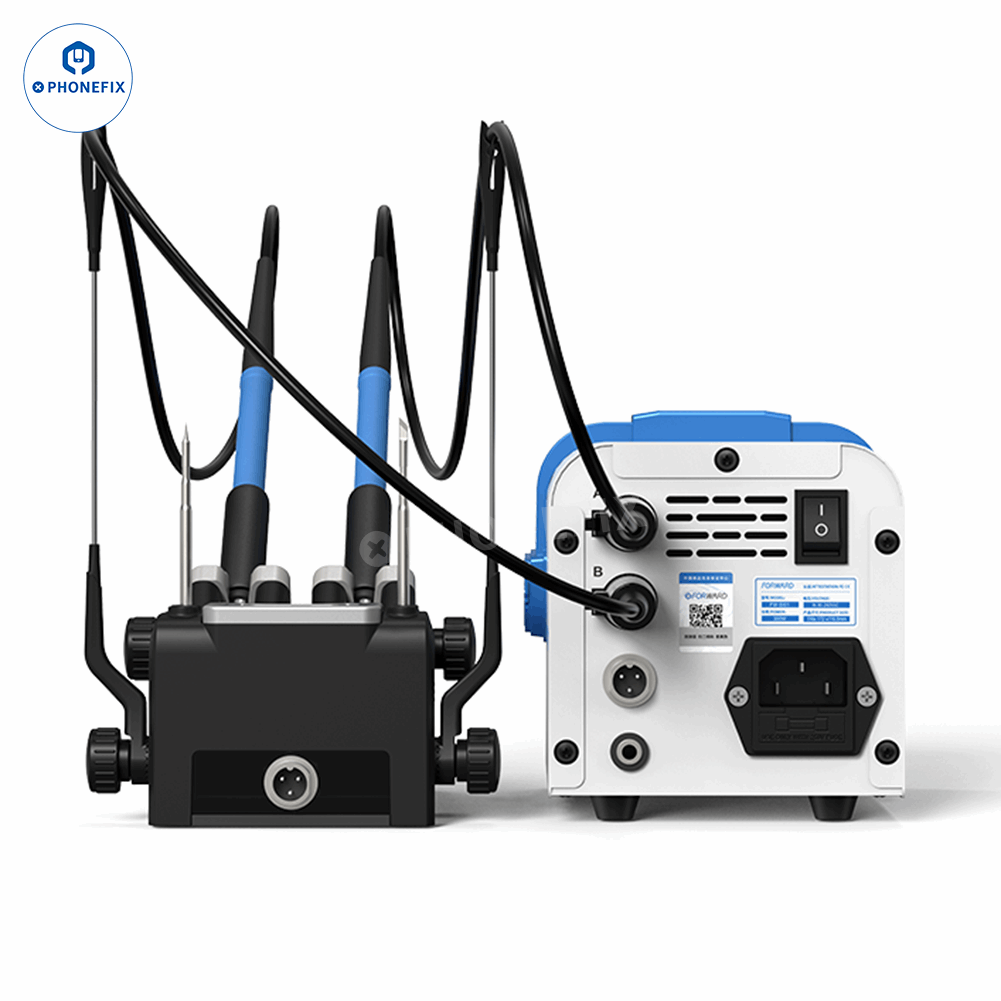

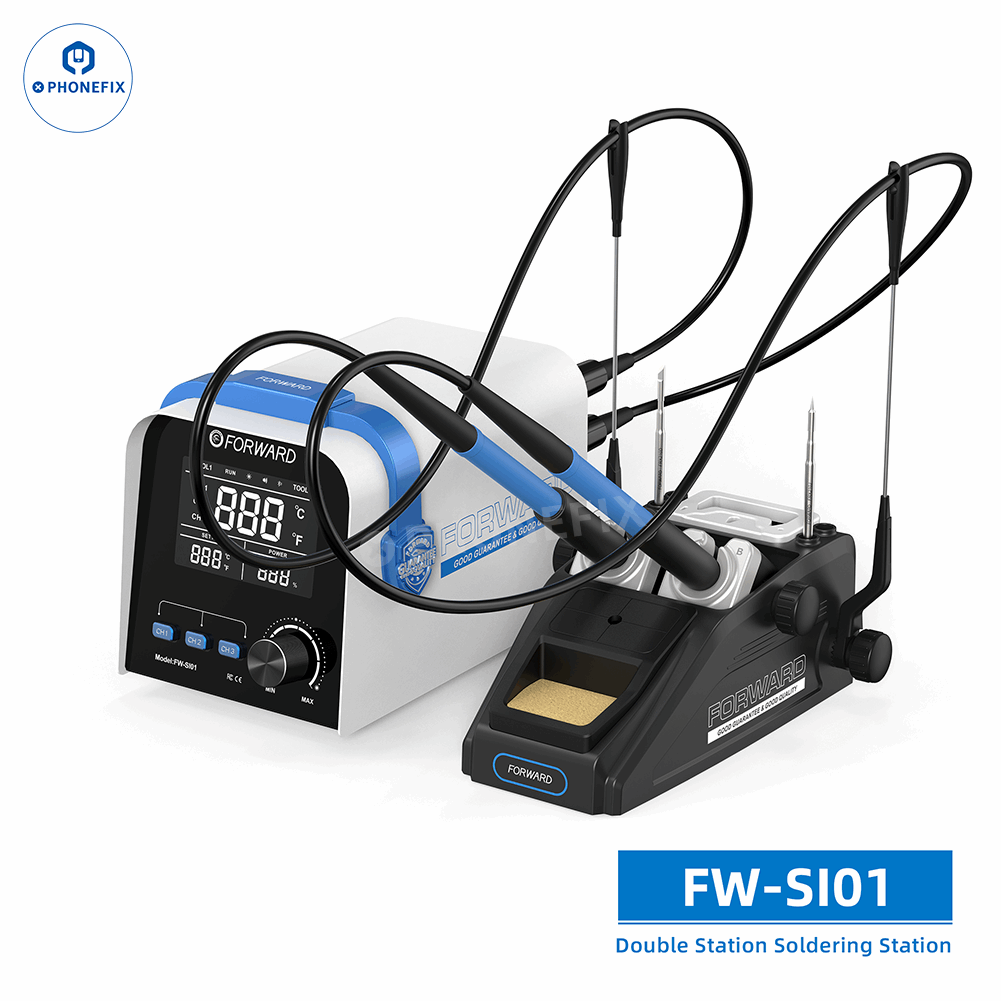

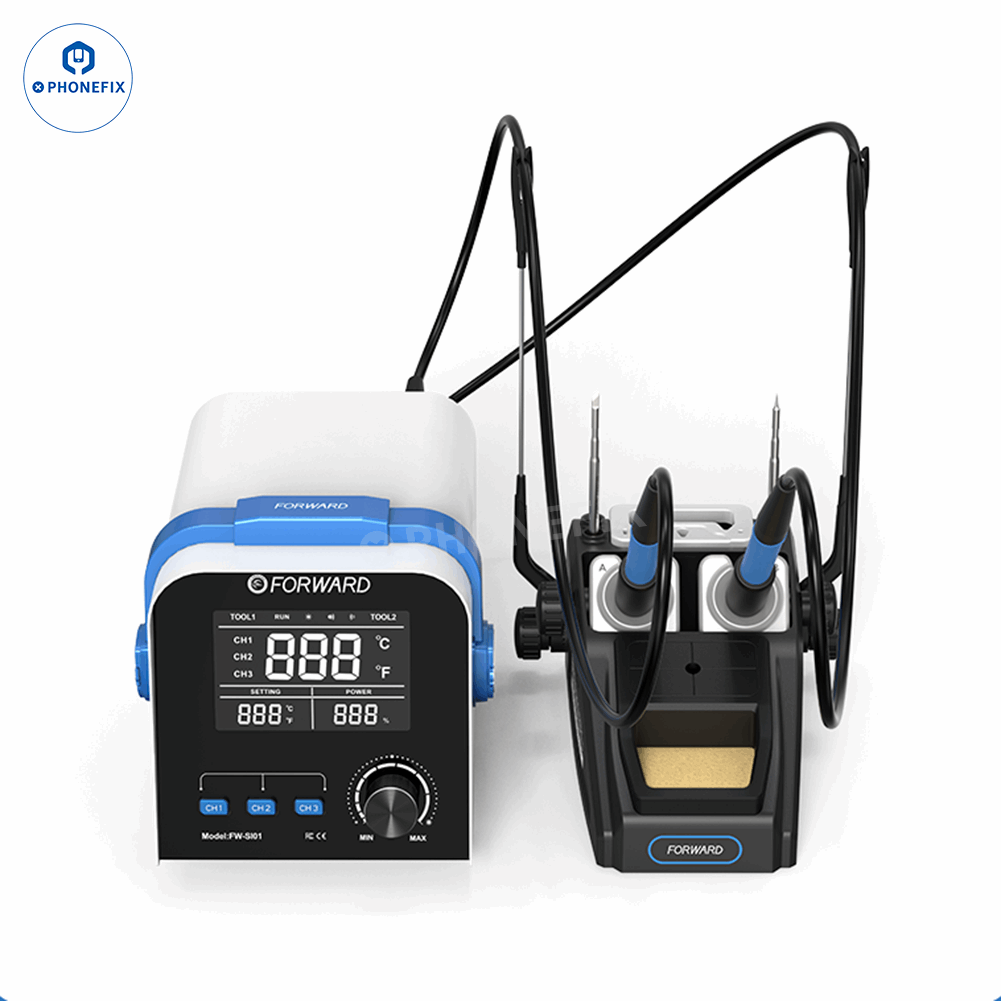

FORWARD FW-SI01 Dual-Handle Soldering Station is compatible with C210 and C245 soldering iron tips, meeting the requirements of home use and mobile phone repair. With a power of 300W, it supports fast heating and provides an efficient soldering experience. Equipped with two soldering iron handles, it is convenient for the operator to handle multiple soldering tasks at the same time.
Option: FW-SI01 - Double Station
Double Workstation design supports both 210 and 245 handles,
FW-SI01 Dual-Station C210 K + C210 I

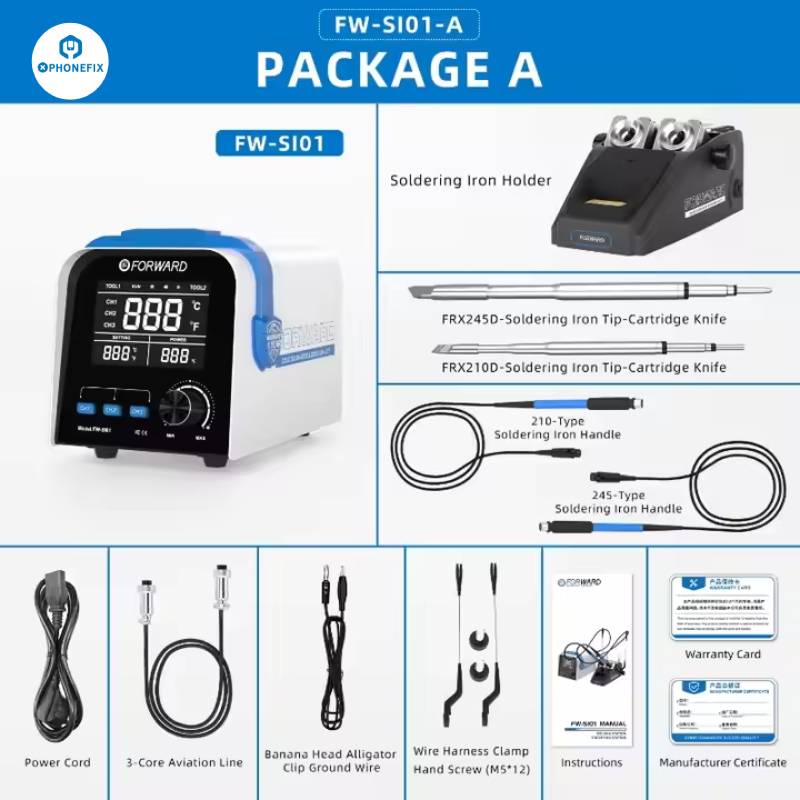

FW-SI01-A Dual-Station C210 K + C245 I

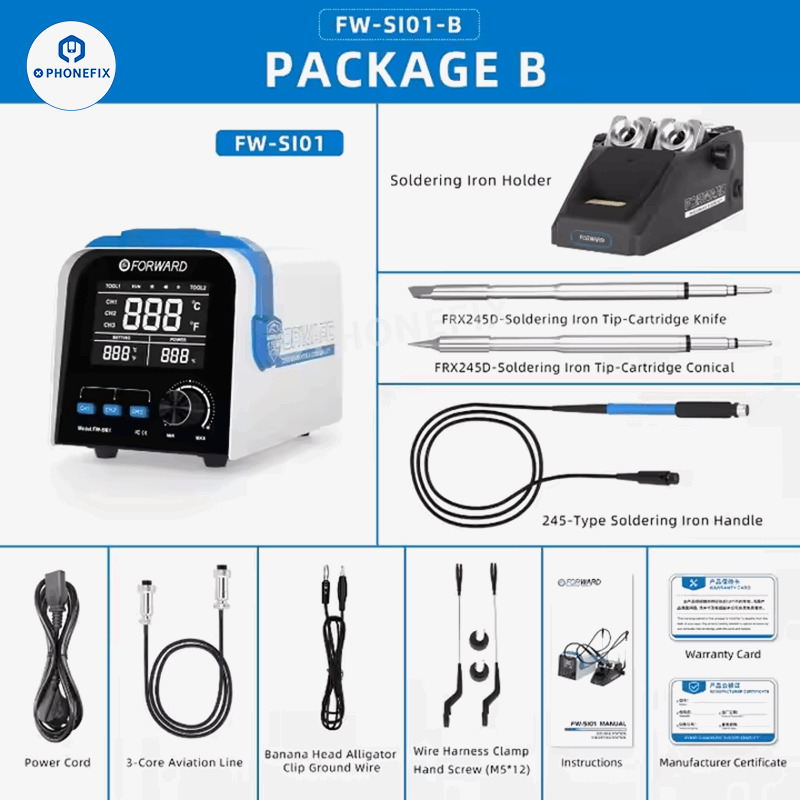

FW-SI01-B Dual-Station C245 K + C245 I
Features:
1. Double Workstation design supports both 210 and 245 handles, enabling efficient switching during maintenance.
2. With High-Precision Temperature Control, stable and accurate temperatures are maintained, preventing component damage.
3. 300W High Power system provides rapid and efficient heating with advanced technology.
4. Three-Channel Storage allows quick switching between three preset temperature settings, improving workflow.
5. Automatic Sleep Mode activates after inactivity, conserving energy and extending device lifespan.
6. High Efficiency, Lightweight & Portable design utilizes an advanced power supply for compactness and energy savings.
7. High-End Imported Heating Core ensures fast, precise heating, with long life and reliability.
8. Fast Heat Dissipation system activates above 45℃ to maintain optimal performance.
9. High-Definition LCD Display offers clear, intuitive temperature readings for easy control.

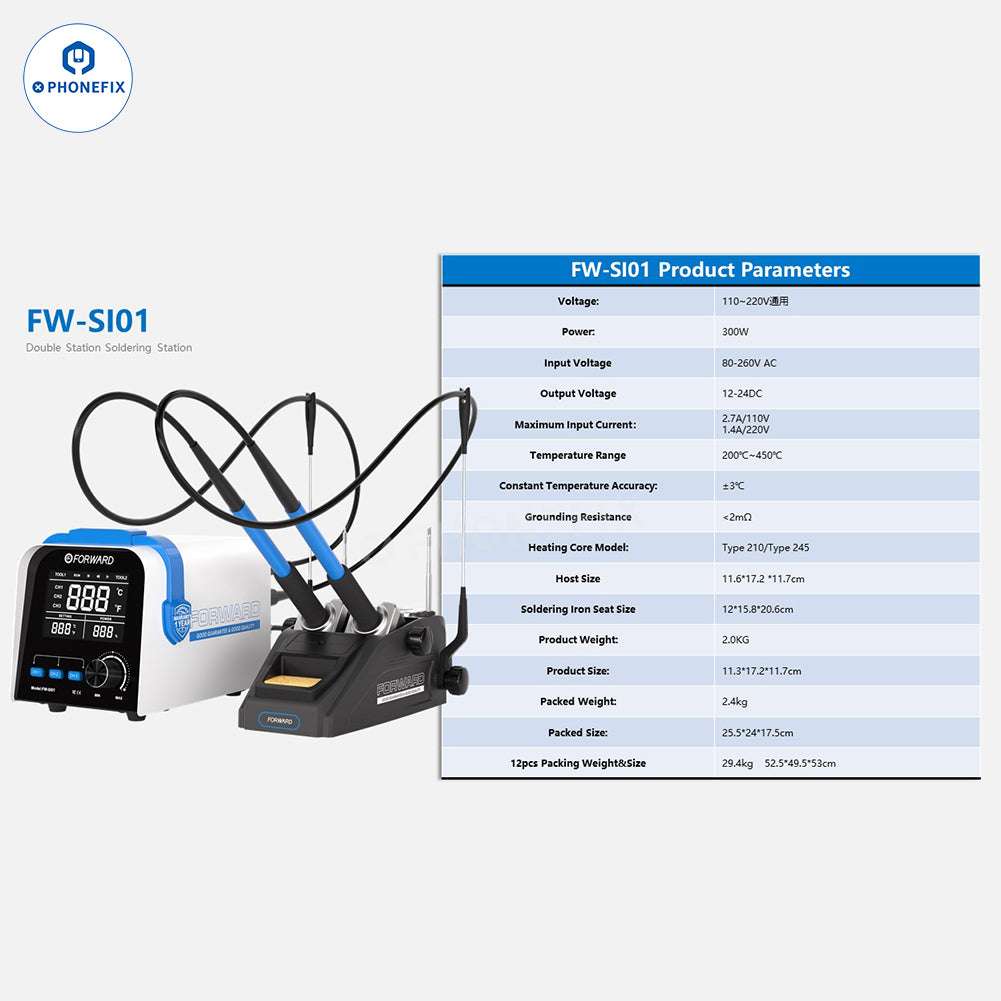

Product Parameters
Voltage: 110-220V universal
Power: 300W
Input Voltage: 80-260V AC
Output Voltage: 12-24DC
Maximum Input Current: 2.7A/110V / 1.4A/220V
Temperature Range: 200℃-450℃
Constant Temperature Accuracy: ±3℃
Grounding Resistance: <2mΩ
Heating Core Model: Type210/Type 245
Host Size: 11.6x17.2 x11.7cm
Soldering lron Seat Size: 12x15.8x20.6cm
Product Weight: 2.0KG
Product Size: 11.3x17.2x11.7cm
Packed weight: 2.4kg
Packed Size: 25.5x24x17.5cm
12pcs Packing Weight & Size: 29.4kg & 52.5x49.5x53cm
