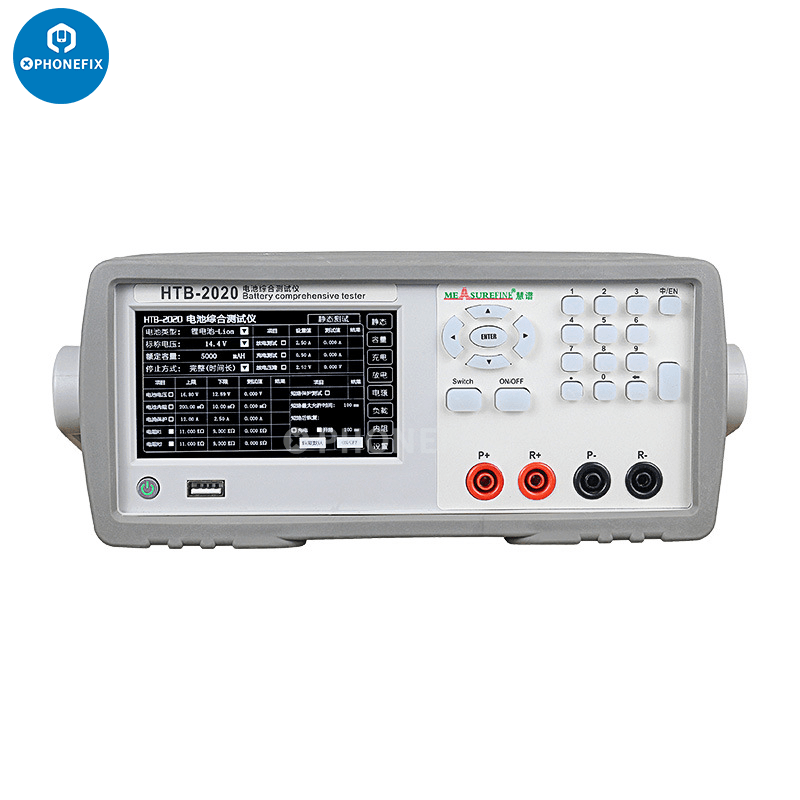

High Precision Lithium Battery Internal Resistance Capacity Tester

HTB2020 Battery Comprehensive Tester Lithium Battery Pack Tester Internal Resistance Voltage Capacity Tool. HTB-2020 High Precision Lithium Battery Internal Resistance/Capacity Tester Electronic Load Ebike Scooter Repair.

HTB-2020 HTB-2060 high precision battery internal resistance tester is designed for new measurement requirements in the battery industry. It is suitable for low resistance batteries, high capacity lithium battery packs and fast product sorting on the production line.

Features:

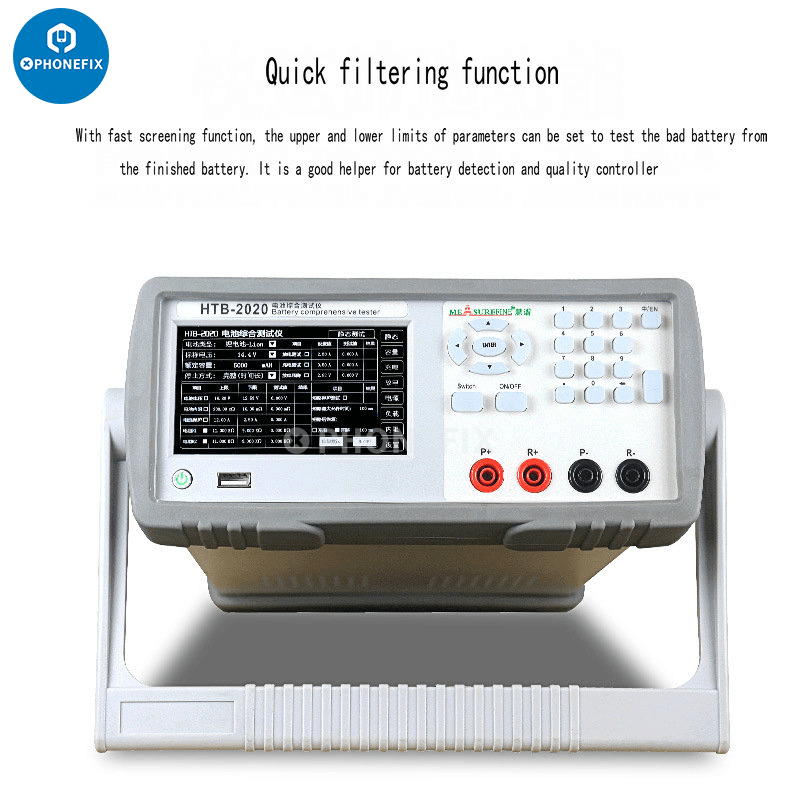

• Quick filtering function: With fast screening function,the upper and lower limits of parameters can be set to test the bad battery from the finished battery. It is a good helper for battery detection and qualitycontroller.

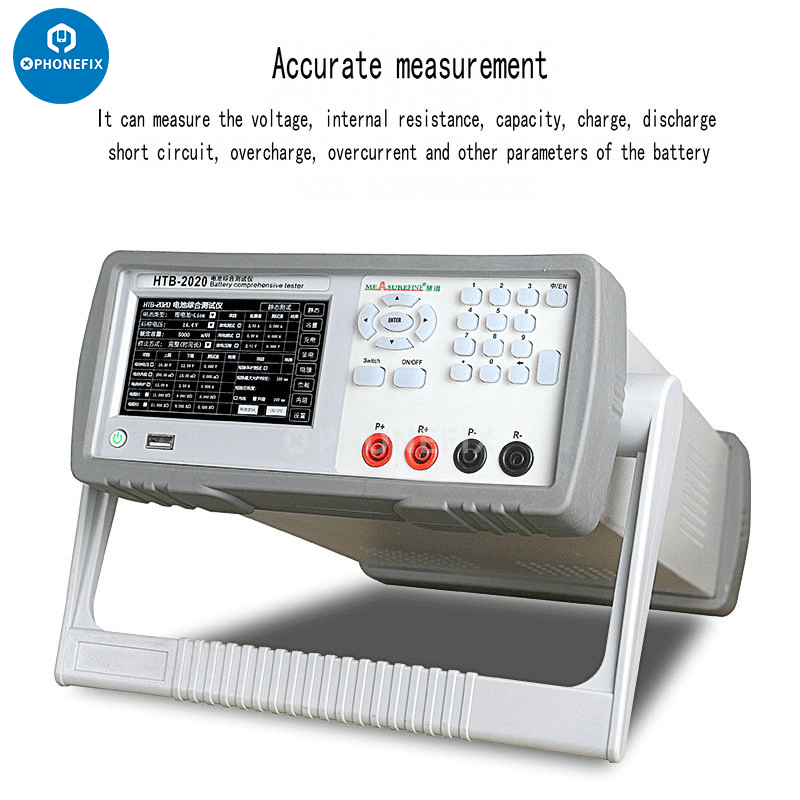

• Accurate measurement:It can measure the voltage, internal resistance capacitychargedischarge short circuit overcharge, overcurrent and other parameters of the battery.
• Battery measuring range: The battery comprehensive tester can test multiple types of batteries and is applicable to the vast market.

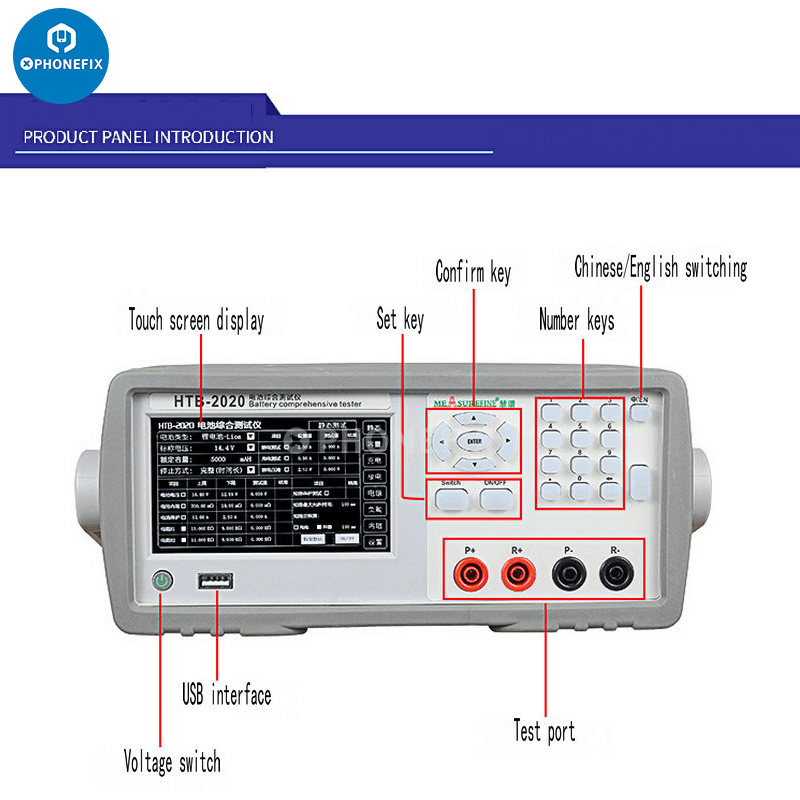

• Touch screen operation: Chinese and English interface operation,various parameters measured by battery,clear and intuitive.
• Application area:Quality assurance, applicable to the vast market.For example production line/School experiment/raboratory/Electronic detection
• lighting etc.

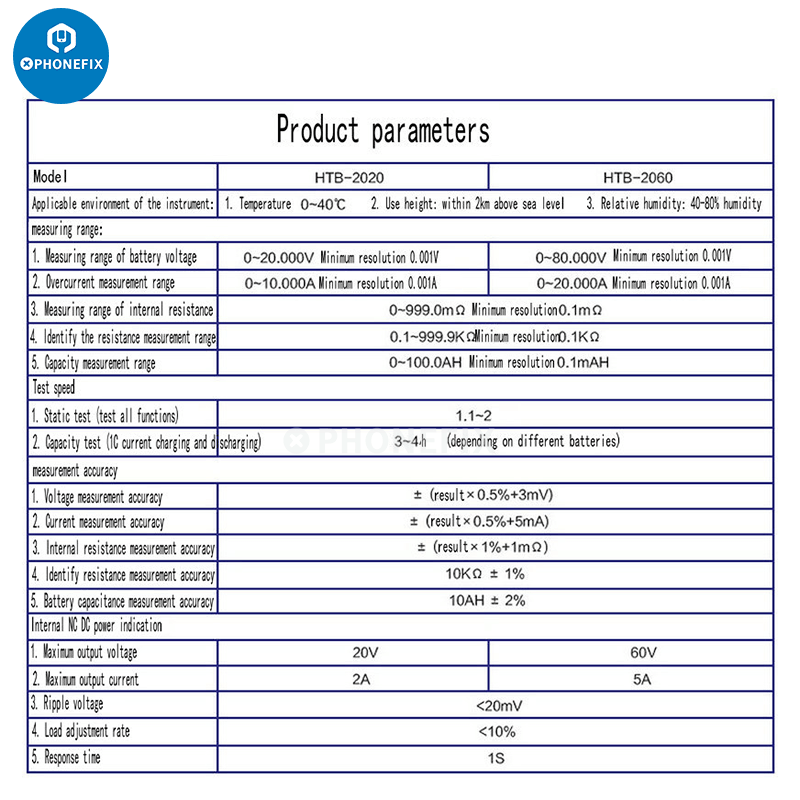

Specification:
Model:HTB-2020, HTB-2060
Type: digital
test scope:0-20v 0-10a; 0-80v, 0-20a
test:Voltage, internal resistance, charge and discharge, capacity.
Current measurement range: 0~10 (A) 0~20 (A)
Current measurement accuracy: ± (result × 0.5%+5mA)（A）
Voltage measuring range: 0-20 (V)
Voltage measurement accuracy: ± (result × 0.5%+3mV)（V）
Measuring range of internal resistance: 0~999.0 (m Ω)
Internal resistance measurement accuracy: ± (result × 1%+1mΩ)（mΩ）
Temperature measurement range: 0-40 (℃)
