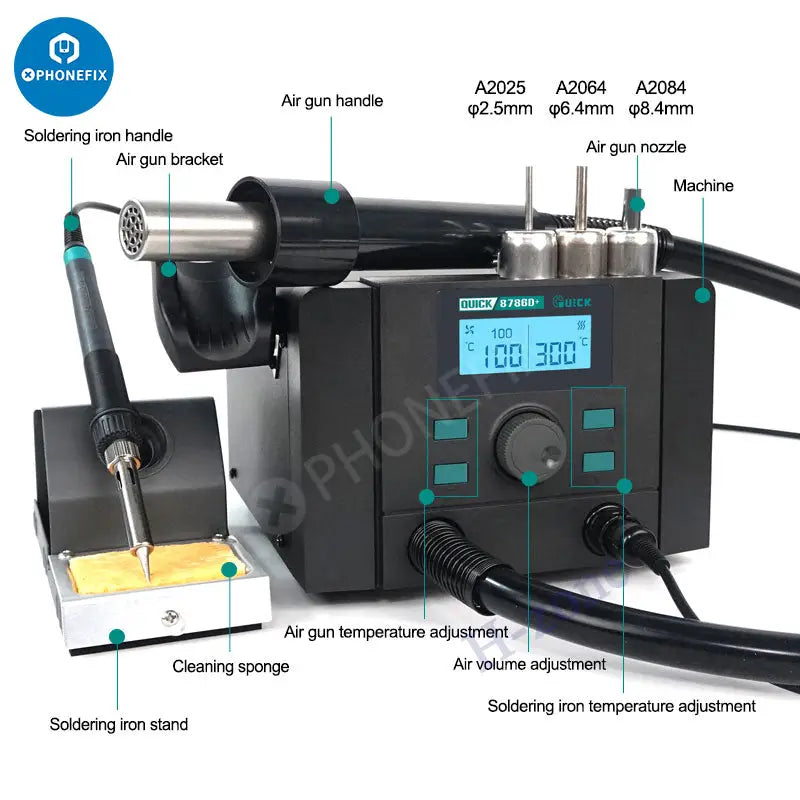

QUICK 8786D+ 2 in1 Hot Air Gun Precision Soldering Station Rework Station 859D+ and TS1100 Air Gun Welding Station 2 in 1 Automatic Sleep LCD Digital Display Smart Welding Tool.

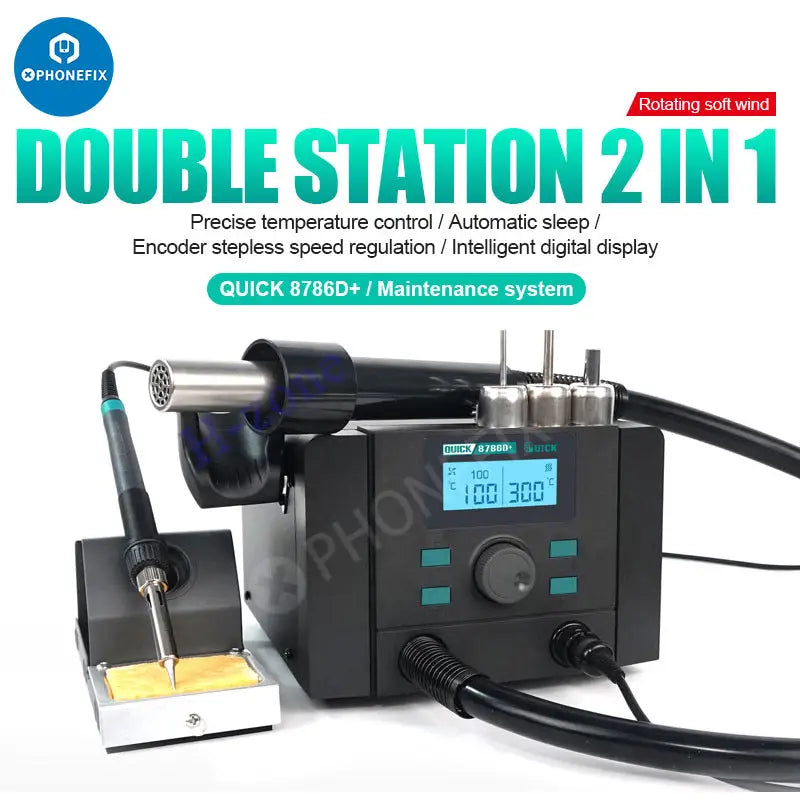

Features: 1. Two-in-one design of 859D+ and TS1100 air gun welding station, one machine for multiple purposes.
2. Double station 2 in 1, precise temperature control/ automatic sleep/ encoder stepless speed regulation/ intelligent digital display, QUICK 8786D+ I maintenance system.

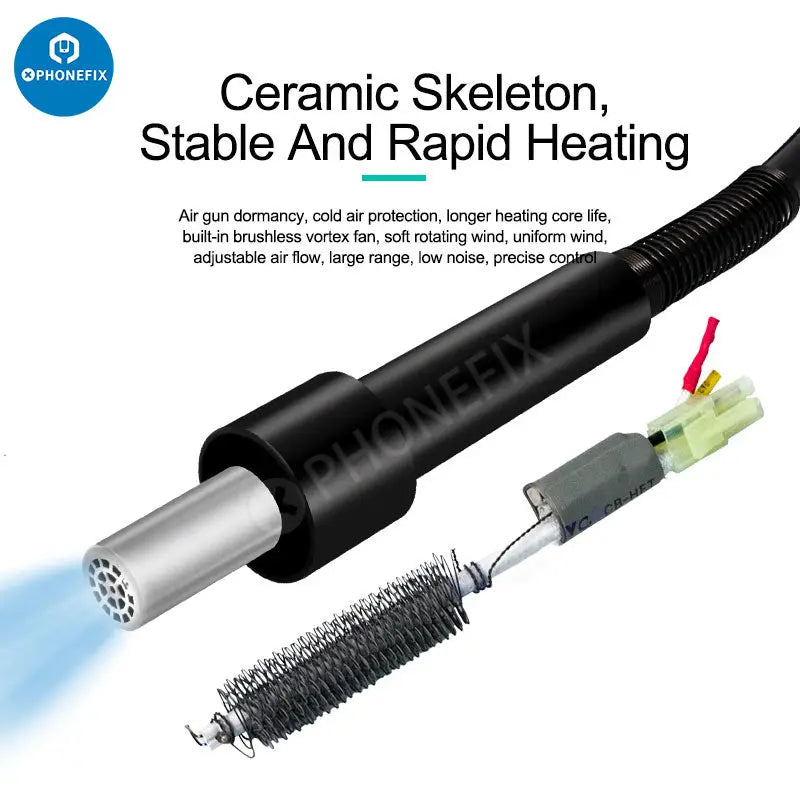

3. The ceramic skeleton heats up quickly and stably. Air gun sleep, cold air protection, longer heating core life, built-in brushless vortex fan, soft rotating wind, uniform wind, adjustable air flow, large range, low noise, and precise control.

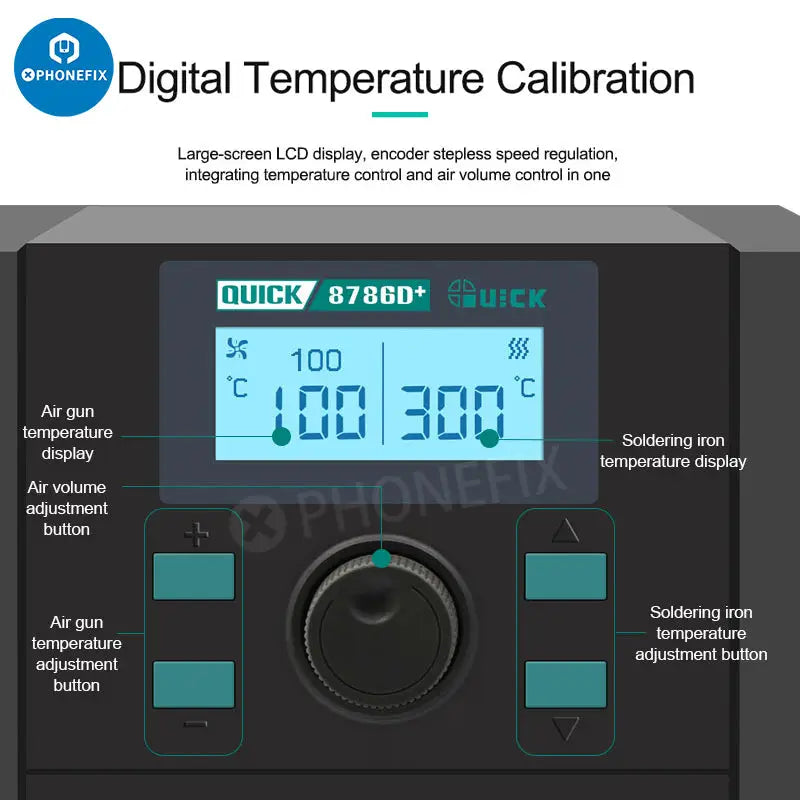

4. The air gun adopts a brushless vortex fan noise reduction design. LCD display, dynamic visual display of air volume/temperature. Automatic cold air design, automatic anti-burn.
5. Digital calibration, three-level data storage function. Intelligent sleep, energy saving and environmental protection.

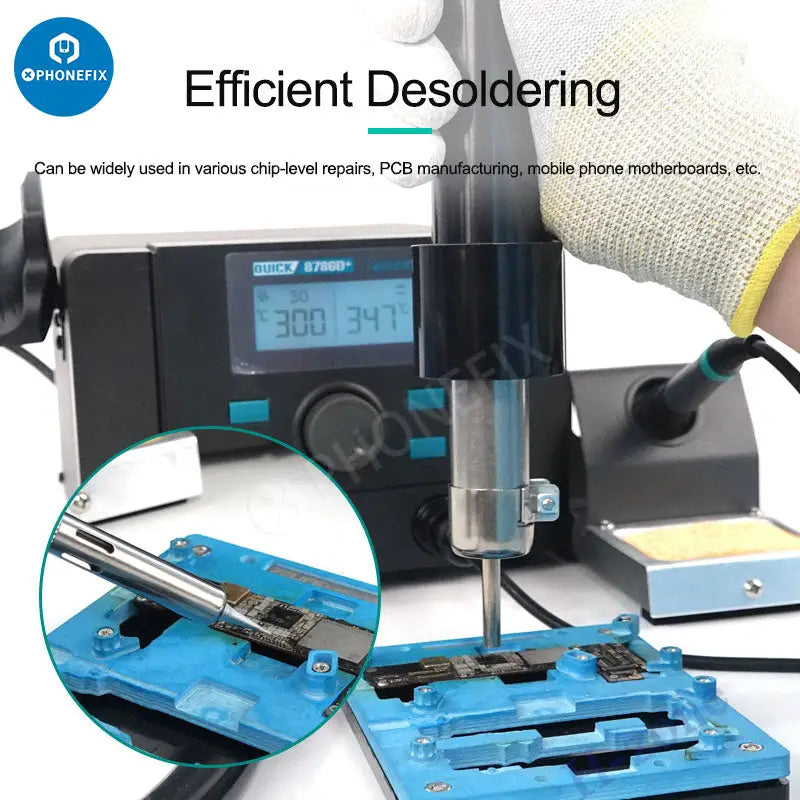

6. Suitable for the desoldering of a variety of packaged components, suitable for maintenance/R&D electronic engineers.

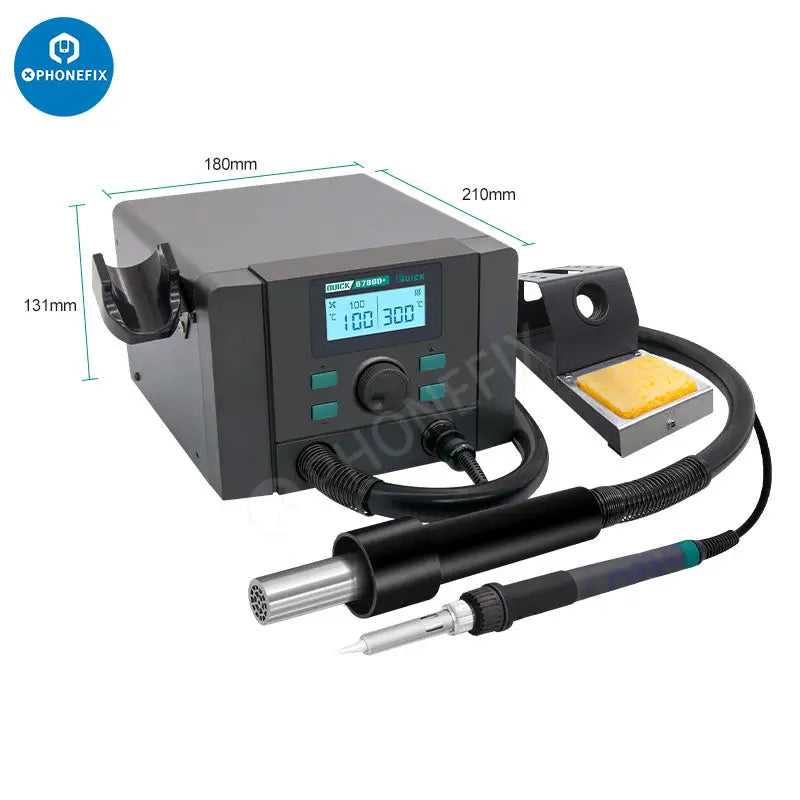

Specification: Brand: Quick Product name: Maintenance system Model: Quick 8786D+ Display Type: LCD Power: 7000W (70W soldering station) Operating voltage: 110V/220V Soldering station temperature: 100℃-480℃ Air gun temperature: 100℃-500℃ Air volume: 40L/min (Max) Temperature stability: ±5℃/(soldering station) ±2℃(still air, no load) Ambient temperature: 0-40℃ Potential of welding tip to the ground: <2mV Resistance of welding tip to the ground: <2Ω Product size: 180*210*131mm Package size: 385*330*225mm Net weight: about 3.3kg Gross weight: about 3.8kg
Package includes: 1 x Main unit 1 x Hot air gun handle 1 x Soldering iron tip 1 x Soldering iron tip handle 1 x Soldering iron tip handle holder 1 x Power cord 1 x Air gun holder 3 x Air nozzle
