RF4 RF-C43 RF-C43B RF-C45 thermal imaging camera used with monitor or microscope camera can quickly detect and diagnose motherboard faults and improve the efficiency of electronic and mobile phone motherboard repair. RF-C45 infrared thermal imager with 256x192 infrared resolution, HDMI real-time output, and adjustable stand. Quickly locate overheating components on PCBs, motherboards, and electronics. RF4 RF-C43 RF-C43B 256x192 resolution thermal imager with 49,000 temperature measurement points, suitable for daily mobile circuit board BGA chip repair.
Option:
1. RF4 RF-C43 thermal camera. Discontinued.
2. RF4 RF-C43B thermal camera.
3. RF4 RF-C45 thermal camera.
RF4 RF-C45 Thermal Camera Features:
1. 256×192 Infrared Resolution. Detects temperature differences and locates abnormal heat sources with clarity and precision.
2. HDMI Real‑Time Output. Plug‑and‑play connection to monitors for live thermal imaging display without requiring a PC.
3. Optical & Thermal View Switching. Seamlessly switch between thermal imaging and optical display modes for comprehensive inspection.
4. One‑Button Pseudo‑Color Switching – Toggle between multiple color palettes to match different detection needs and enhance hotspot visibility.
5. Adjustable Stand Height – Built‑in adjustable stand with anti‑static silicone worktable enables hands‑free operation.
6. Wide Application Range – Suitable for PCB inspection, motherboard repair, electronics troubleshooting, mobile phone repair, and quality control.
RF4 RF-C43B Thermal Camera Features:
1. 256 x 192 resolution, automatic processing output resolution, 49,000 temperature measurement points, industrial-grade accuracy.
2. More professional temperature measurement, automatic tracking of high and low temperature points, more accurate target temperature, and quick location of motherboard fault points.

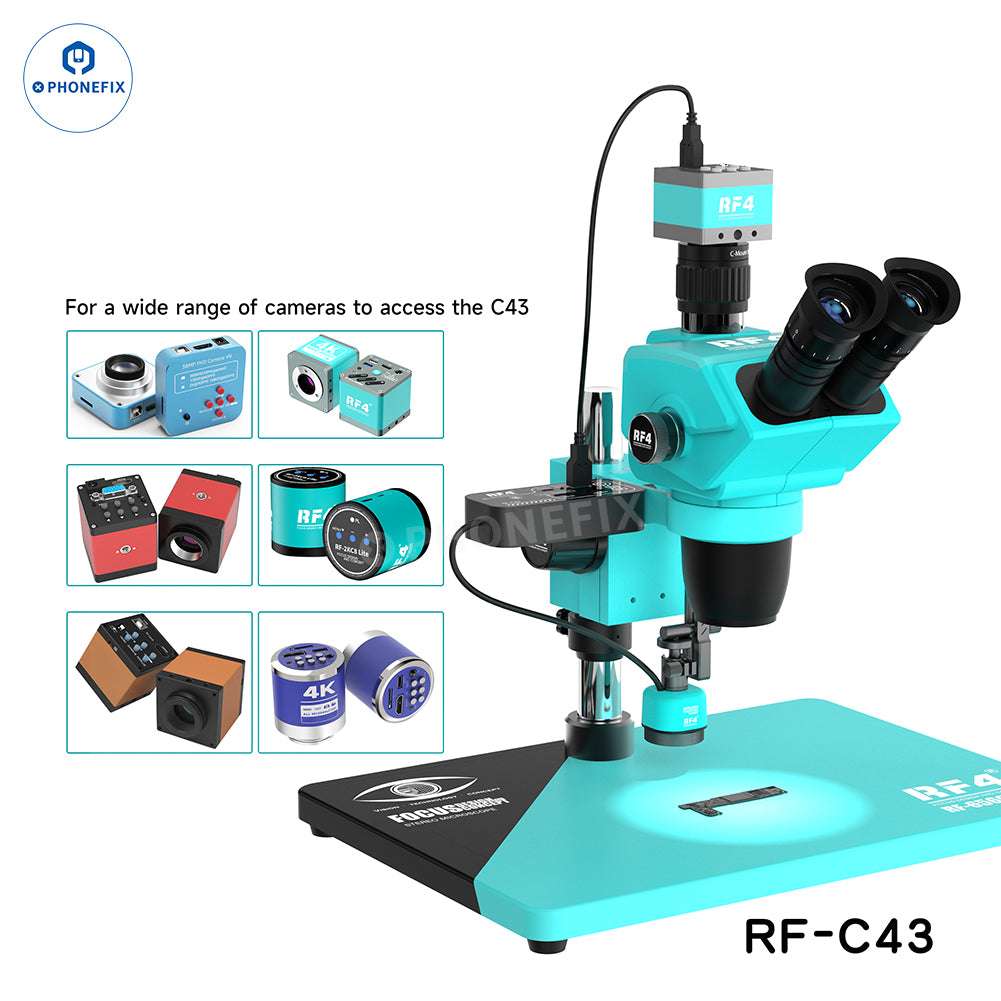

3. Suitable for connecting multiple microscope cameras to RF-C43B.

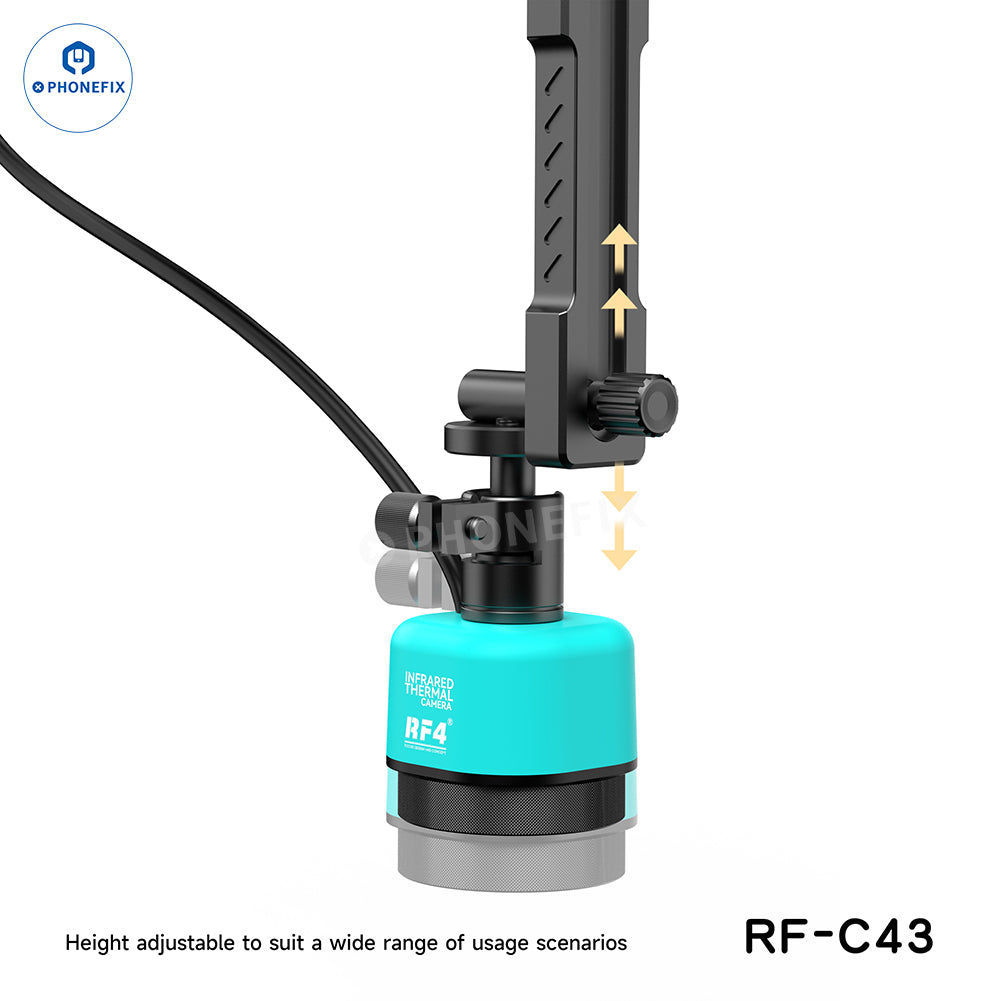

4. Adjustable height to adapt to various usage scenarios.
5. Two connection methods: directly connected to the monitor; can be connected to most of microscope cameras on the market.

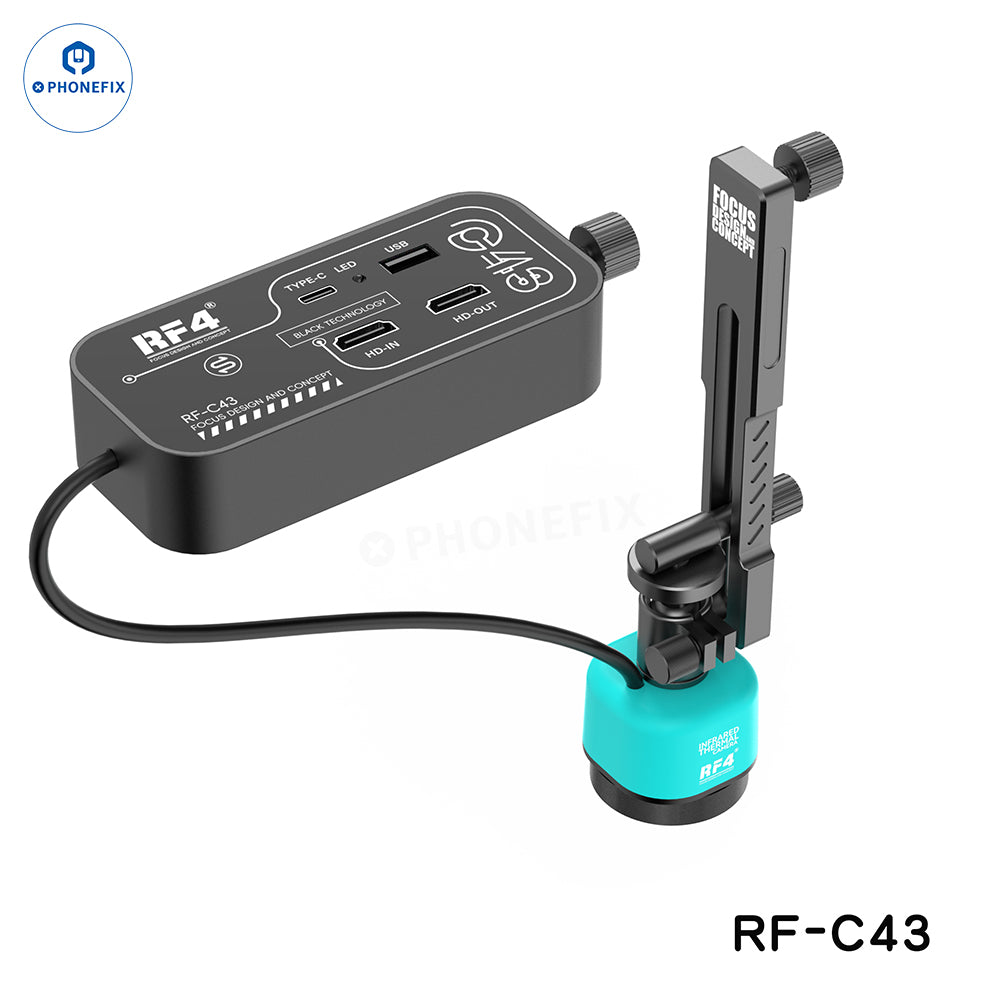

RF4 RF-C43 Thermal Camera Features:
1. New independent thermal imaging, fast touch design, compatible with different brands of cameras, strong versatility.

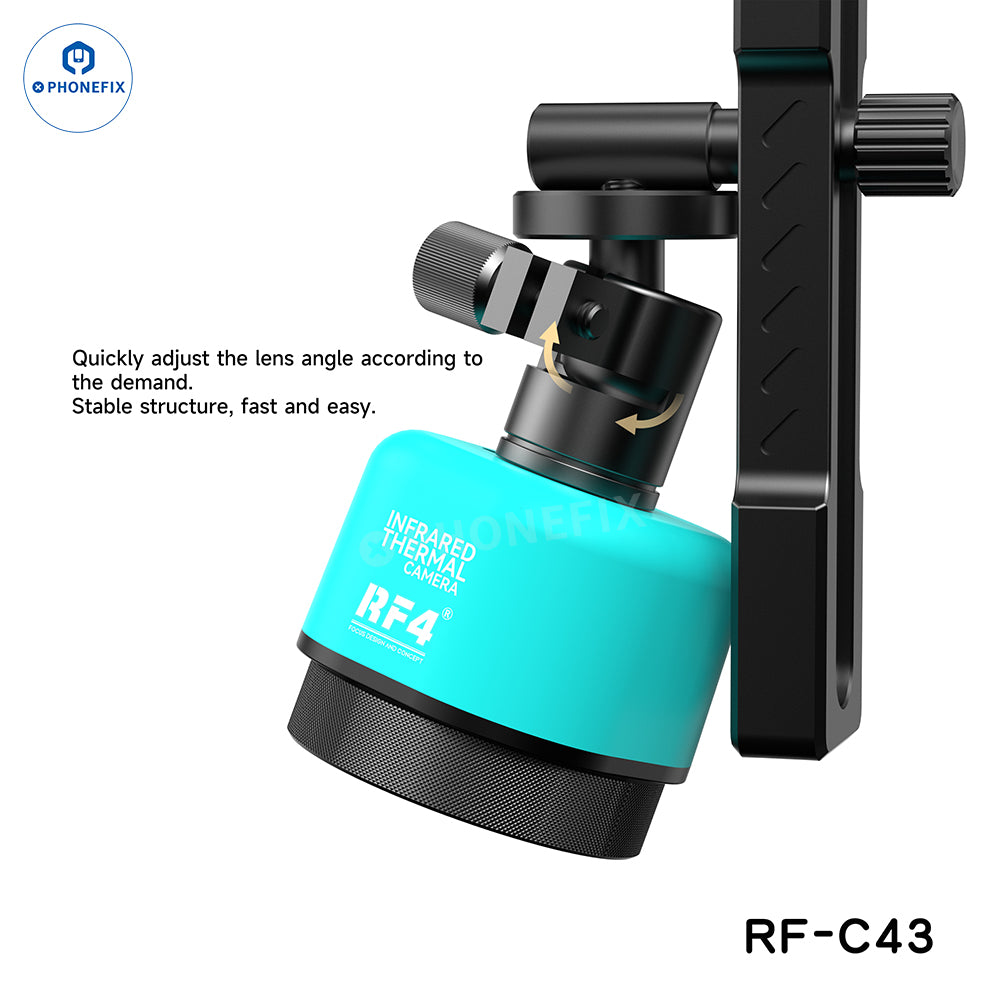

2. Quickly adjust the lens angle according to needs.
3. Stable structure, fast and easy.

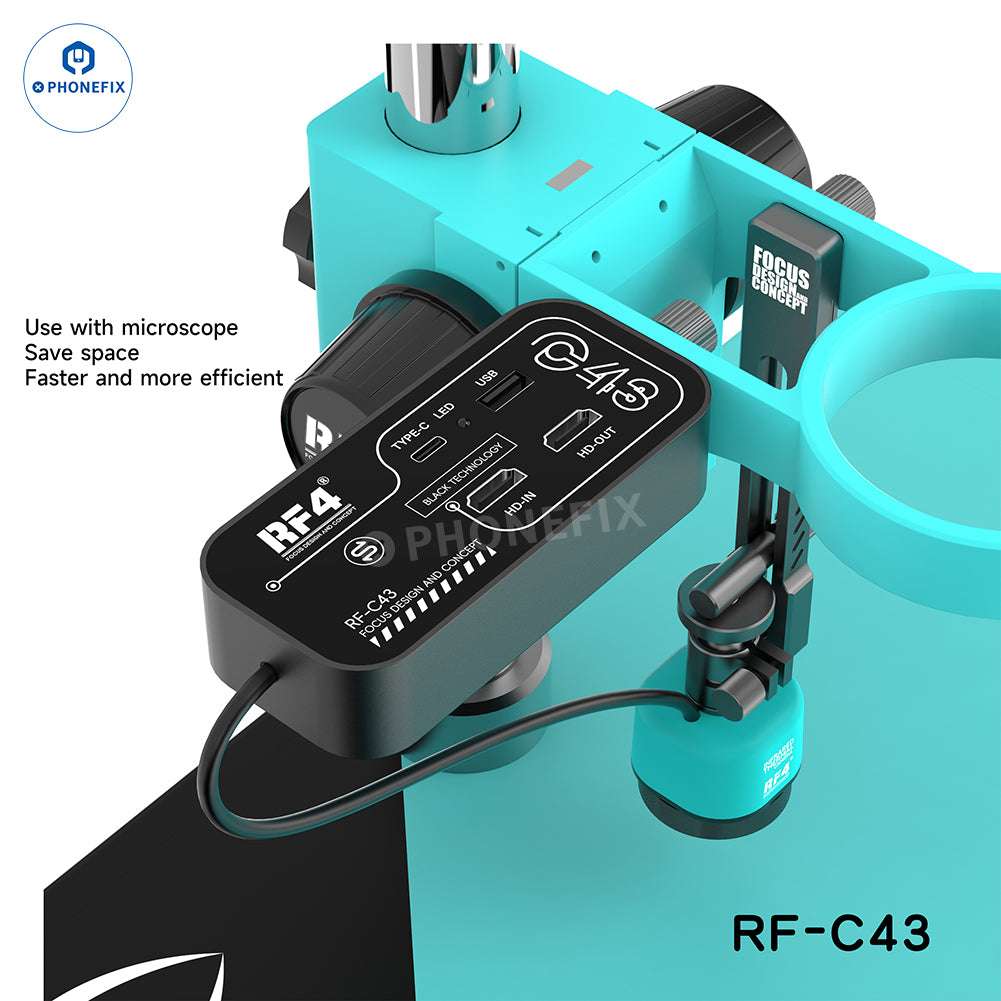

4. Use with a microscope to save space, faster and more efficient.

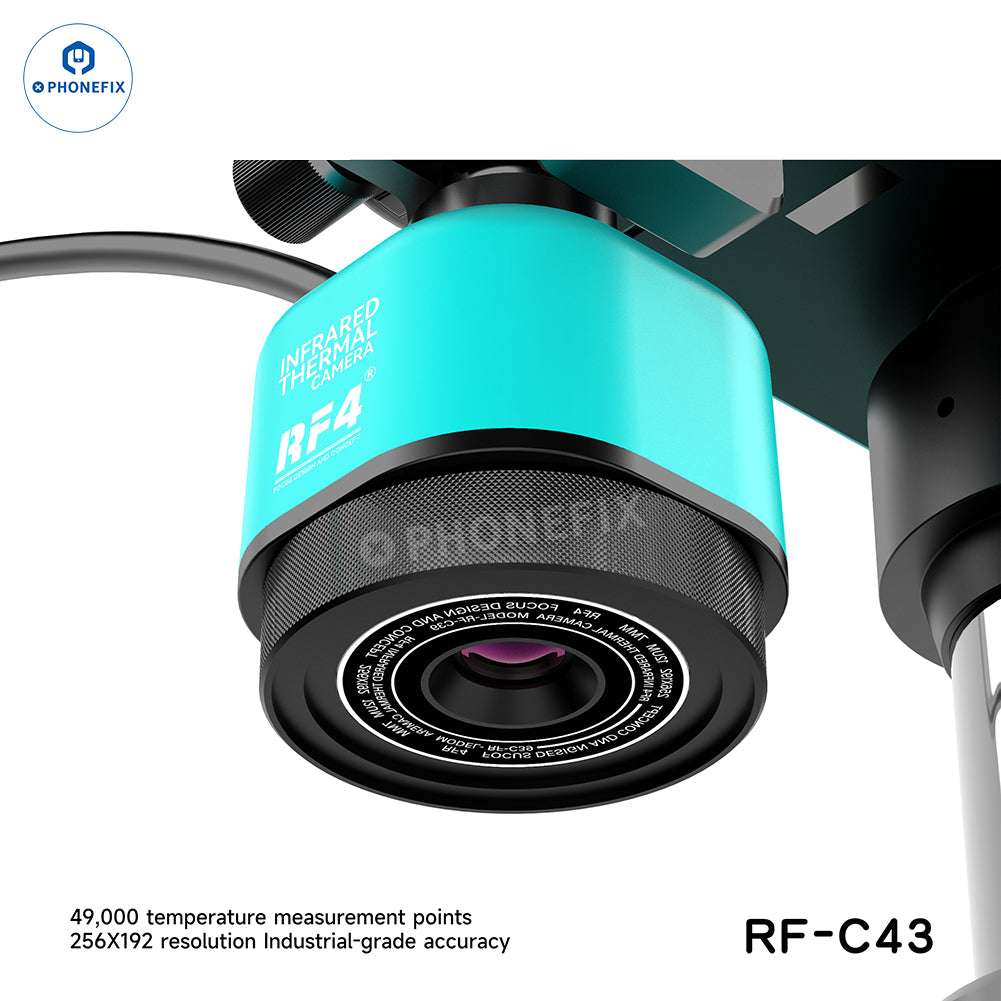

5. 49,000 temperature measurement points, 256X192 resolution industrial-grade accuracy.

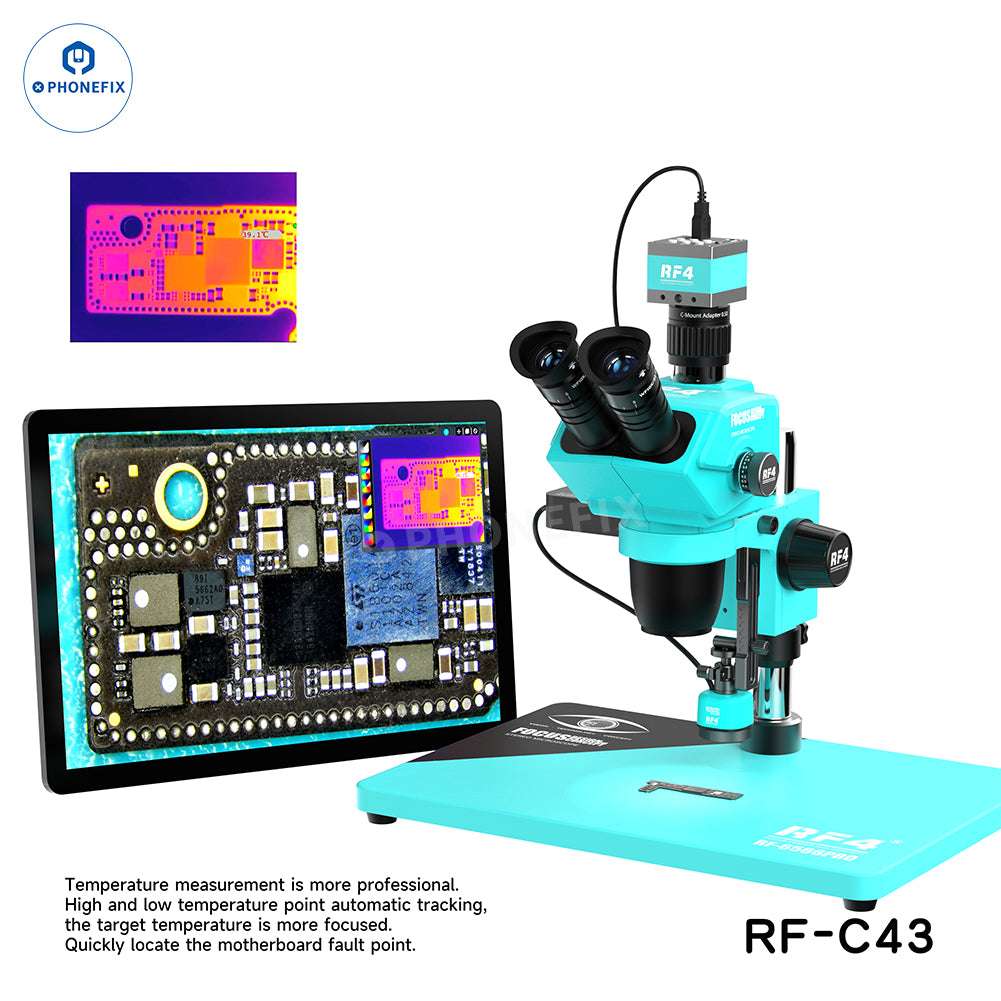

6. Automatic tracking of high and low temperature points, more concentrated target temperature, and quick positioning of motherboard fault points.
7. Provides ultra-high-definition 4K image quality powered by advanced COS sensor technology, ensuring a wide field of view and detailed thermal analysis.
8. Display screen: The camera uses a high-definition large screen to display thermal images clearly.
Two ways to connect:
1. Directly connected to the monitor to use.
2. Can be connected to the market all microscope camera.
