TBK 905 UV Curing Box for Mobile Phone/iPhone/LCD Screen Glass Laminating OCA Curing. TBK 905A 200W drawer type screen UV curing box with 365NM lamps beads for curing multiple mobile phones at the same time.
Option:
1. TBK 905A - It's been discontinued.
2. TBK 905.
The functions of TBK-905A and TBK-905 are the same, but the appearance is slightly different.

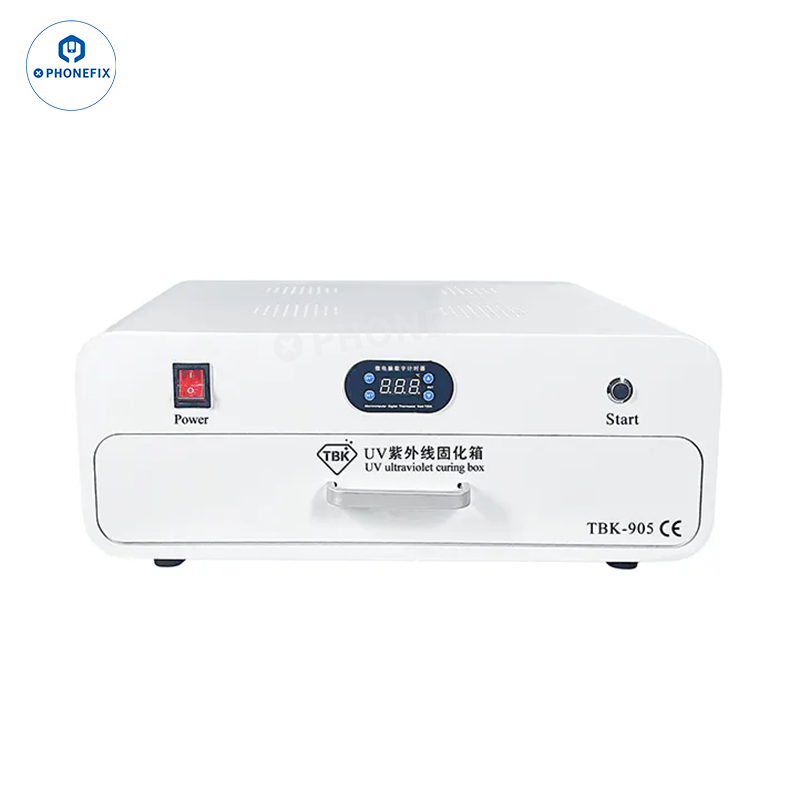

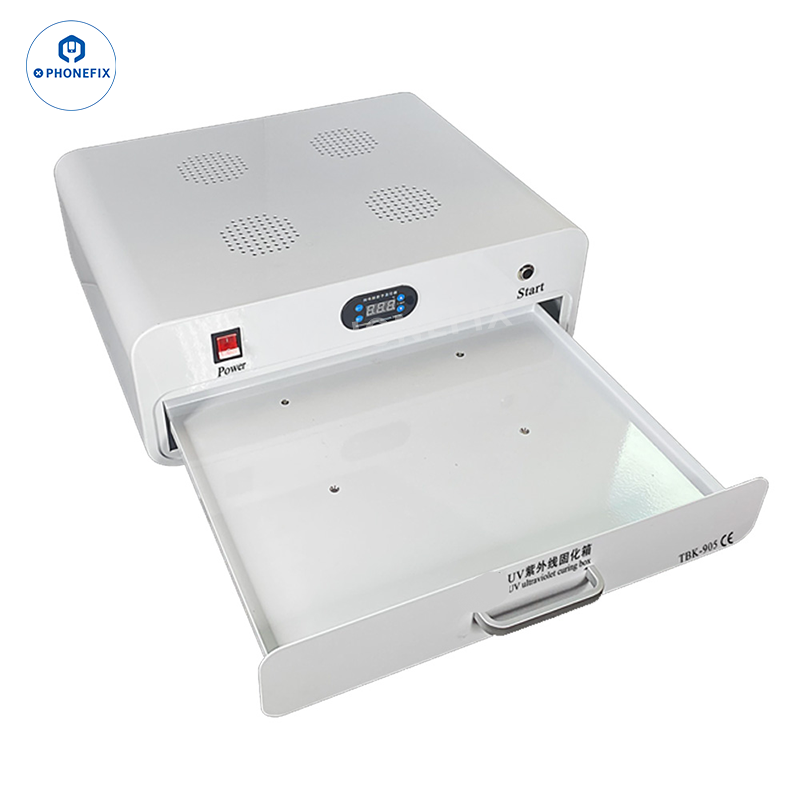

TBK-905 Features:
1. Large UV resin curing light box with strong UV light and fast curing.
2. 80 bulbs, 80 times better curing performance than a single bulb.

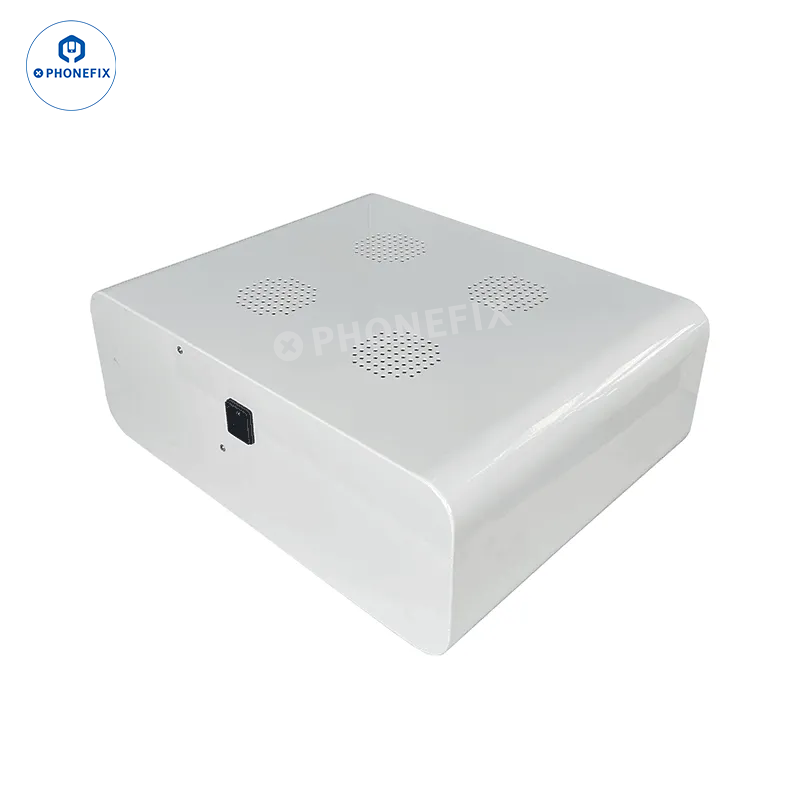

3. Dual top fans and multiple heat dissipation vents for fast cooling and high-temperature resistance.
4. Timer function, high speed, and low friction torque.
5. Supports simultaneous curing of multiple mobile phones.
6. Universally suitable for mobile phone cases, optical discs, UV coatings, touch screens, LCD screens, dry adhesives, water-based adhesives, and LCD stickers.
TBK 905 Specification:
AC inlet: 110V/60Hz or 220V/50Hz
Power handling: 200W
Bulb quantity: 80 pcs
Bulb life: above 2000 hours
Ultraviolet wavelength: 375mm
Product size: 36*45*20 cm

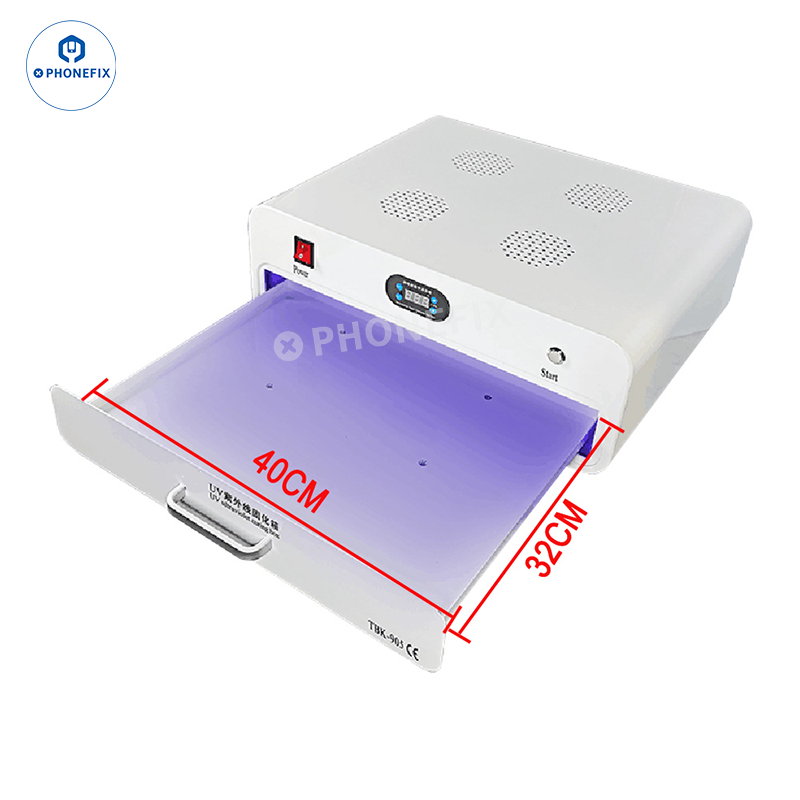

UV illumination area: 40*32 cm
Product net weight: 12.4 kgs
Package gross weight: 13.8 kgs
Packing size: 43*52*25 cm
TBK 905A Features:
1. TBK 905A UV curing box has 200W high power, a double cooling system, one-key start work, and can place multiple mobile phones for curing at the same time.
2. It has 96 built-in 365nm imported light beads, high energy can quickly cure, an excellent curing effect.
3. The product is small and light, multiple heat dissipation, long service life, effectively reduces temperature and maintains the stable operation of the equipment.
4. Large work area, multiple units can work at the same time, no longer need to wait for a long time, and improve work efficiency.
5. Microcomputer accurate digital display, the working time can be adjusted arbitrarily, improving efficiency, and the operation is simple.
Operations:
1. Connect the power cord and power on.
2. Set the working time and press the "SET" key to enter the time adjustment Press Up or Down keys to increase or decrease the time, make sure the setting and press "ENT".
3. Open the curing box, put in the product, close the box, and press the "Start" key to work.
4. When the processing finishes, the machine stops working automatically; open the curing box, and take out the product.
Specification:
Model: TBK-905A.
Power: 200W.
Voltage: 110/220V.
Wavelength: 365nm.
Working size: 230*290mm
Product Size: 377*332* 145mm.
Net weight of the product: 8kg.
