UNI-T UT125C Mini Digital Multimeter Capacitance Resistance Frequency Tester Overload Protection With Buzzer Detection Tool NCV.
Features:
Maximum display value: 4000

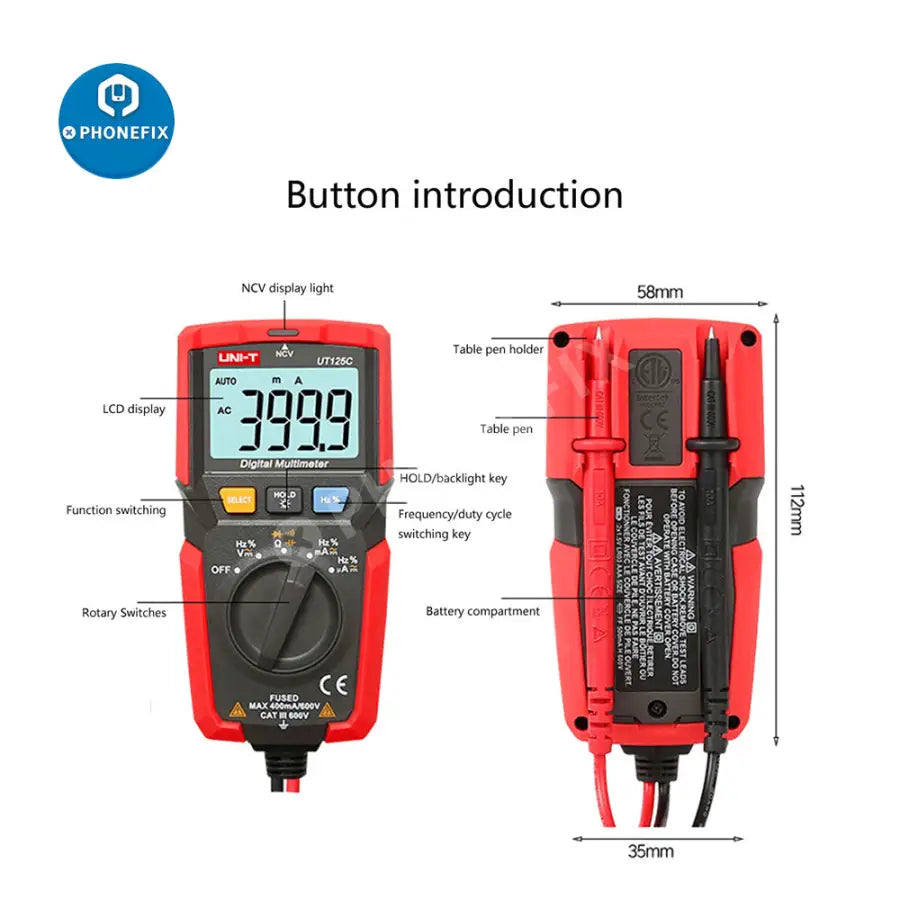

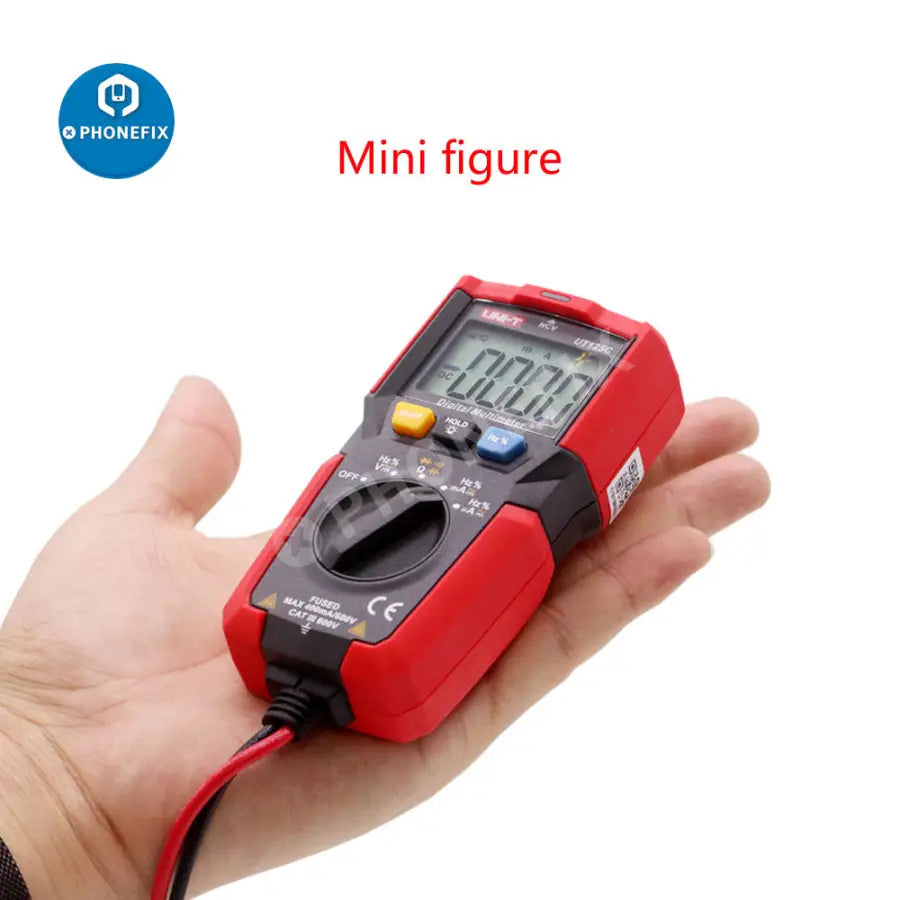

Small size, light weight and easy to operate.
The backlit LCD display shows clearly.

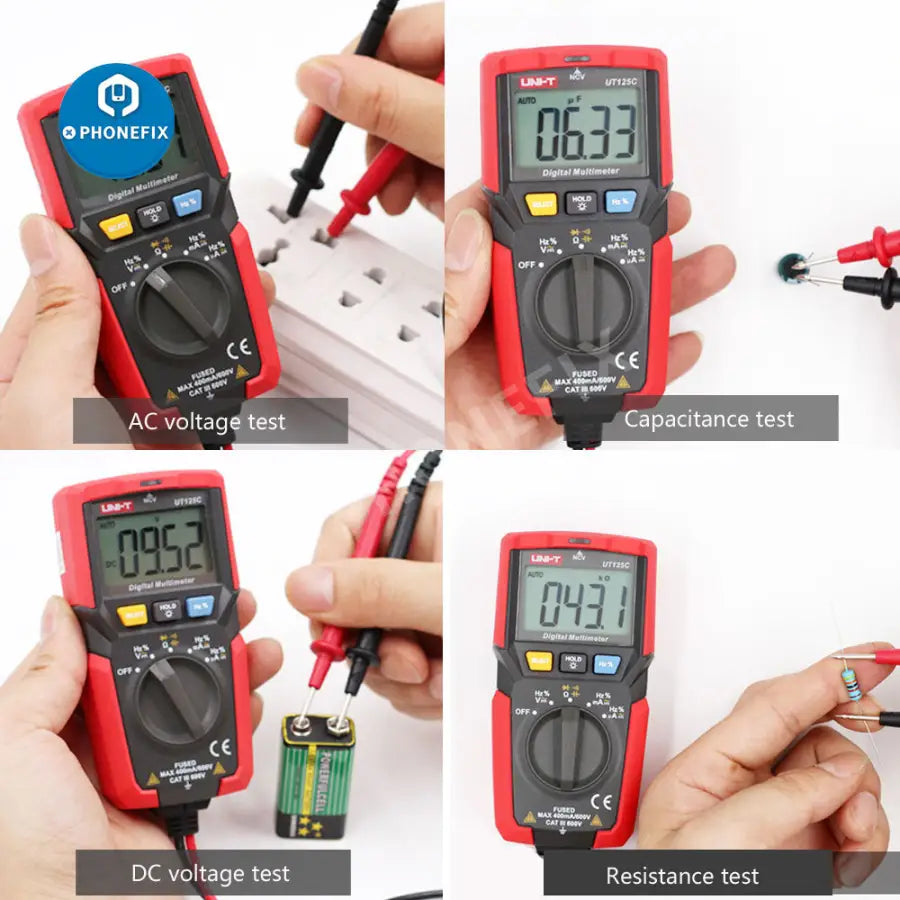

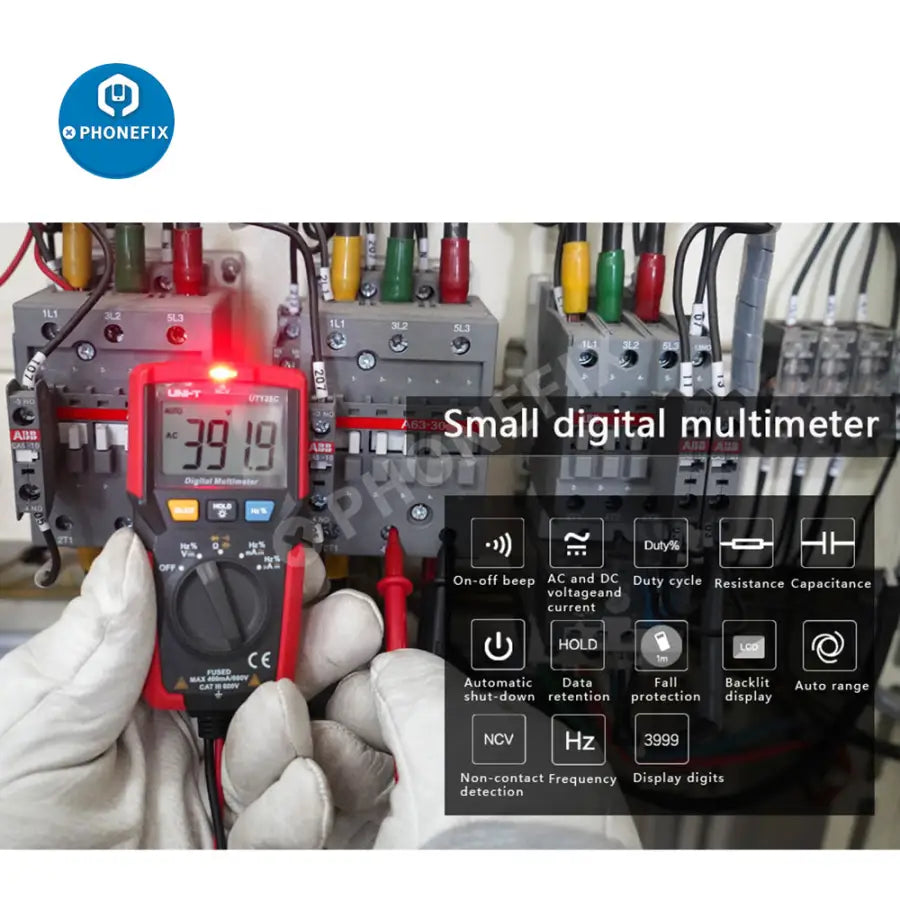

Can measure DC/AC voltage/current, frequency, diode, triode, resistance, capacitance and continuity test

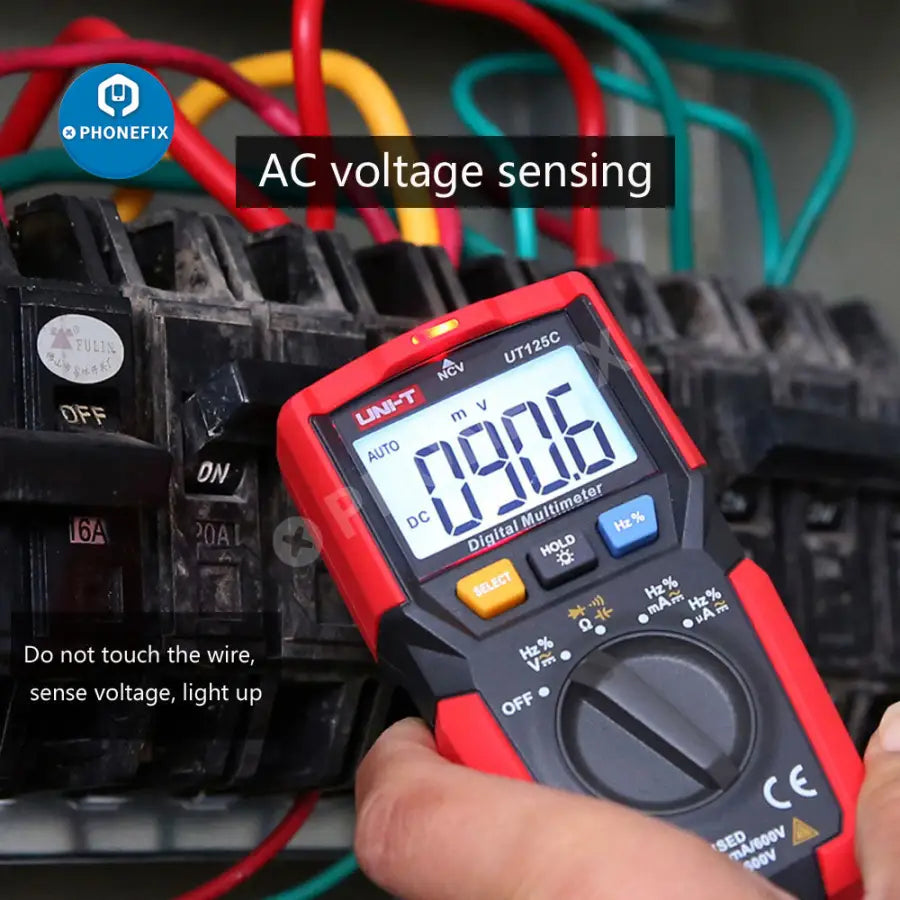

Including NCV test, duty cycle test, data retention and automatic shutdown functions.
Product Specification:
Maximum number of screens: 4000
Working mode: automatic range
Working temperature: 0~50℃
Storage temperature: -10~50℃
Storage humidity: ≤75%RH (0~30℃), ≤50%RH (30~40℃)
Working altitude: 0~2,000m
Drop tester: 2m
Safety level: CAT III 600V
DC voltage range: 400mV / 4V / 40V / 400V / 600V
AC voltage range: 4V / 40V / 400V / 600V
DC/AC current range: 400μA / 4mA / 40mA / 400mA
Resistance range: 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
Capacitance range: 50nF / 500nF / 5uF / 50uF / 100uF

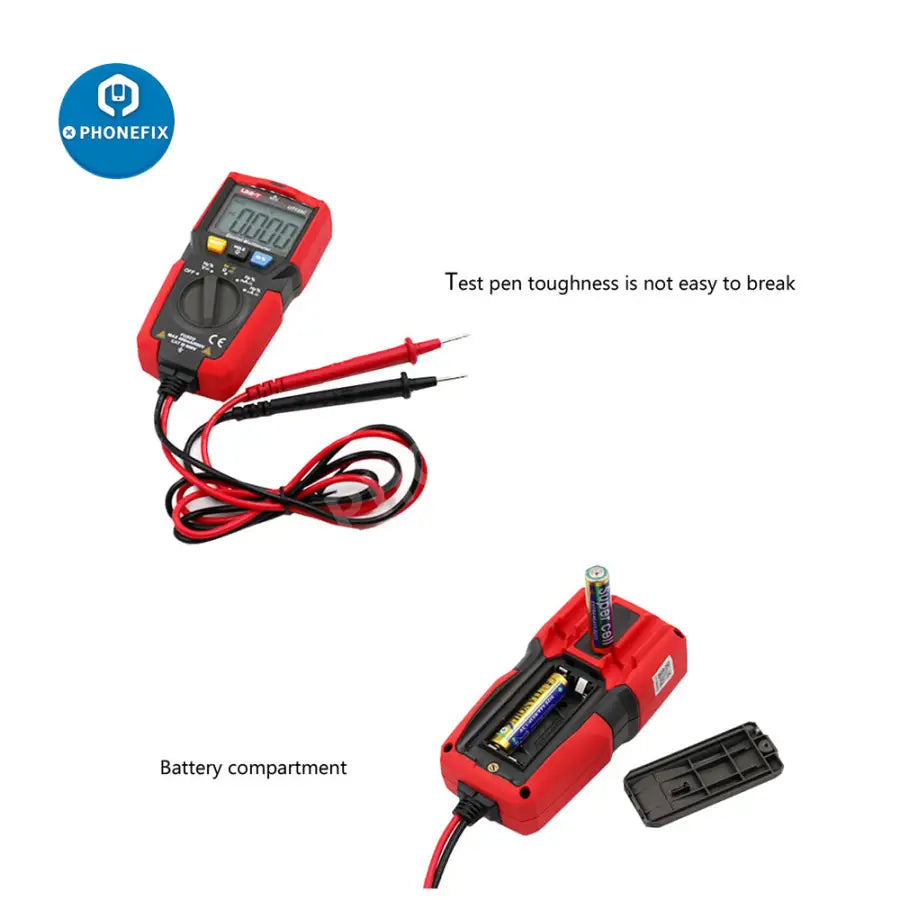

Power supply: 2 * 1.5V AAA batteries (not included)

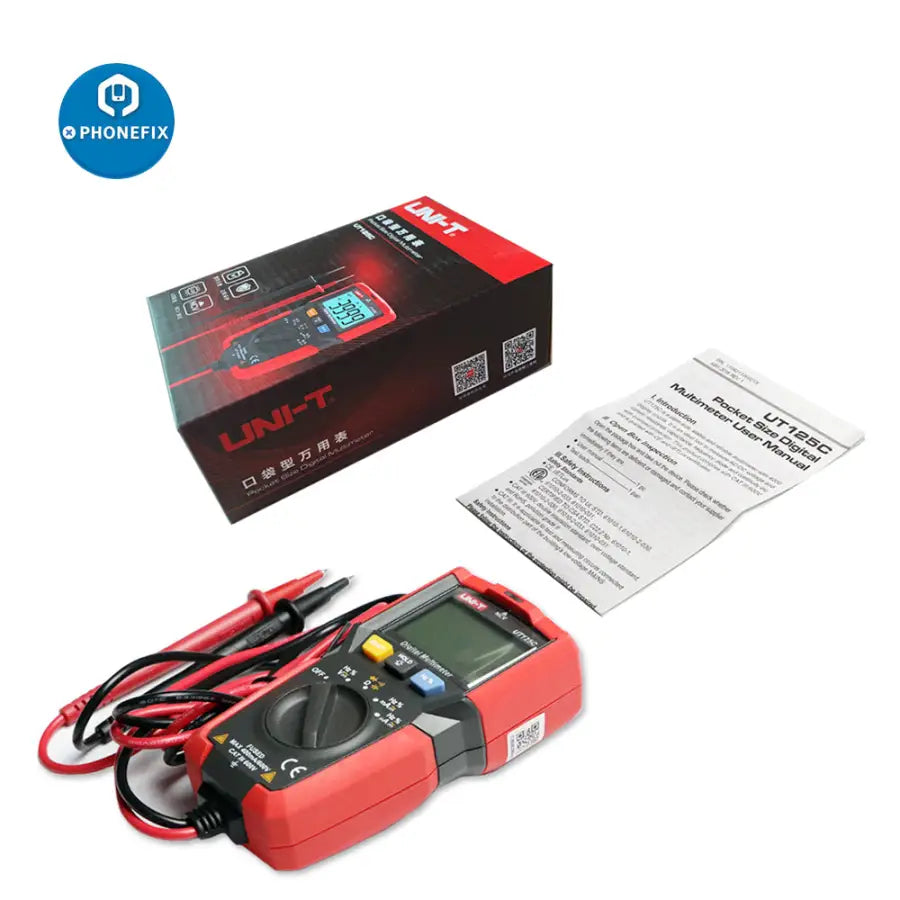

Packing List:
1 *Multimeter (not including battery)
1 pair*test probe
1*cloth bag
