YCS 6575X 6.5X-75X Continuous Zoom Trinocular Stereo Microscope with YCS X80 4K camera for Mobile Phone Repair. Such as cell phone motherboard welding and PCB BGA chip soldering desoldering, etc. 2025 Top mobile phone repair kit YCS 6575X microscope with HDMI 4K camera can be used to fix cell phones, laptops and other electronic devices.
Option:
1. YCS 6575X microscope standard set.
2. YCS X80 4K Camera.
3. YCS 6575X with 4K Camera kit.
4. Mechanic D65T-B11 microscope set. More details, SKU: D65T.
5. RF4 RF6565-PO4-4K microscope kit. More details, SKU: XZ2678.
6. YCS 6575X Microscope head with C-mount lens and holder + Shenlong Swing Arm Bracket + 4K camera + 144 LED Light.
YCS-X80 4K Camera Features:
1. YCS-X80 Type-C HDMI Industrial Microscope 4K Camera for Trinocular Microscope.
2. YCS-X80 4K camera, ultra HD, 1/1.8 CMOS field of view true 4K output clearer.
3. Standard C/CS height adapter ring can be connected to a three-eye microscope, reserve 4 1/4 inch screw holes to accommodate monster hand brackets, etc.
4. HDMI/USB: All support 4K@30FPS/1080P@60FPS.
5. Highly integrated and flexible to use, small stature brings great benefits, highly integrated panel, easy to operate
6. Adopting imported CMOS technology image sensor, Sony 1/1.8-inch 4K, 8 million pixel CMOS sensor.
7. Wide applicability: USB connectors, mobile devices, PC motherboards, etc. can all be used.
YCS 6575X Microscope Features:

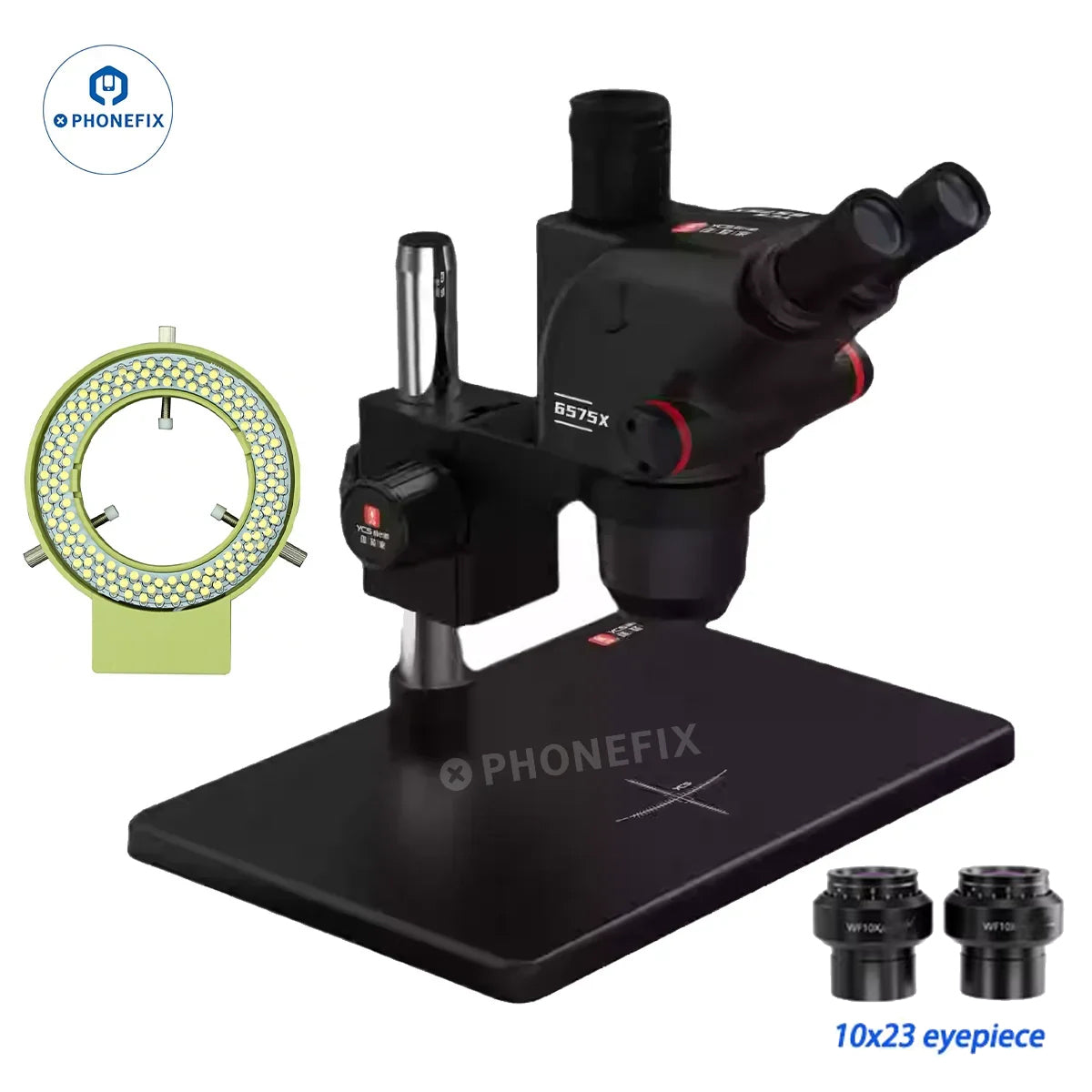

1. YCS-6575X trinocular stereo microscope, 6.5X-75X continuous zoom, 0.65X-7.5X objective lens.
2. 45-degree inclined 360-degree swiveling trinocular.
3. 10X/23 high eye point wide angle eyepiece, high transmittance optical glass, 23MM large lens, clear imaging, less fatigue during observation.
4. The microscope bracket assembly can be adjusted freely, the lens module can be adjusted 360°, and the working position can be freely adjusted.
5. CTV 0.5X lens, monitor and eyepiece synchronous zoom.
6. The large range of loading base, metal base plate, stable and durable, suitable for more working scenes.
7. The dustproof ring lamp, touch adjustable light source, suitable for a variety of scenes, snap-on design, low energy consumption design, long life, no shadow.
8. Multi-scene application, a wide range of applications, can be used for mobile phone repair, biological research, precision instruments, etc.
YCS X80 4K Camera Specification:
HDMI output: 3840*2160@30FPS, 1920*1080@60FPS
Type-C output: 3840*2160, 2560*1440, 1920*1080, 1280*720, 640*480, 424*240, 320*240(MJPG)
Input voltage: DC 5V
Operation mode: Mouse, remote control, keypad, computer software
CMOS sensor: Sony 1/1.8 inch
Pixel: 8 million
Pixel size: 1.45μm*1.45μm
Hardware Interface: Type-C*1, HDMI*1, TF*1
Structure expansion interface: 1/4-inch bracket interface *1
Status light: Power on orange and yellow light
Lens interface: C/CS standard interface
Storage: TF card/computer software
Buttons: Function buttons*6
White Balance: Auto/Manual, support R, G, B adjustable
Exposure: Auto/Manual
Menu Language: Chinese/English/Traditional
Photo/video: automatic and manual naming, customize the save path
Electronic magnification: 5 times electronic magnification
YCS 6575X Specification:
Magnification: Continuous zoom 6.5X to 75X.
Head: 45-degree inclined 360-degree swiveling trinocular.
Eyepiece: WF10X/23MM adjustable.
Objective: 0.65-7.5X.
Zoom Knob: Metal knob.
Camera connector: 0.5X CTV Lens Adapter (Monitor and eyepiece Synchronous zoom).
Light source: 144 LED ring light
Base pad: Large metal base.
Accessories (optional): HDMI 4K camera, objective lens, etc.
