RF4 RF-S110 RF-S210 RF-S310 RF-S510 Intelligent Temperature Control BGA Soldering Station with C210 soldering tips for Mobile Phone/iPad/Tablet/Electronic Motherboard PCB CPU BGA SMD Chip Welding Repair. RF4 RF-S110 300W, RF-S210 72W, RF-S310 75W, RF-S510 40W soldering desoldering station with C210/T12 soldering iron tips and handle, 3 memory storage, fast heating, fast temperature recovery, precise temperature control and intelligent sleep.
Option:
1. RF4 RF-S110 300W: C210 soldering iron tip.
2. RF4 RF-S210 72W: C210 soldering iron tip.
3. RF4 RF-S310 75W: T12 Soldering iron tip.
4. RF4 RF-S510 40W: C210 soldering iron tip.
RF4 RF-S510 Features:

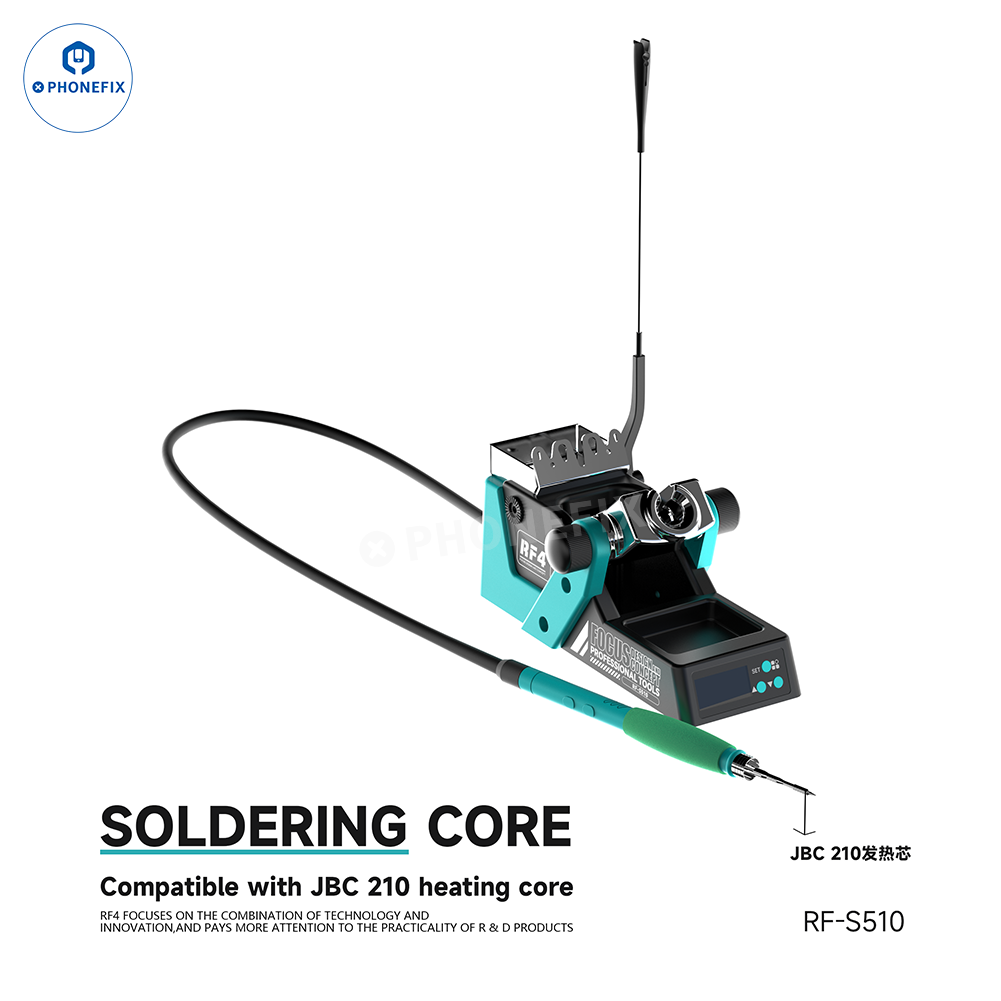

1. RF4 RF-S510 Portable Digital Soldering Iron Station compatible with JBC C210 Heating Core for Mobile Phone welding repair. Comes standard with RF4 C210 pointed tip.

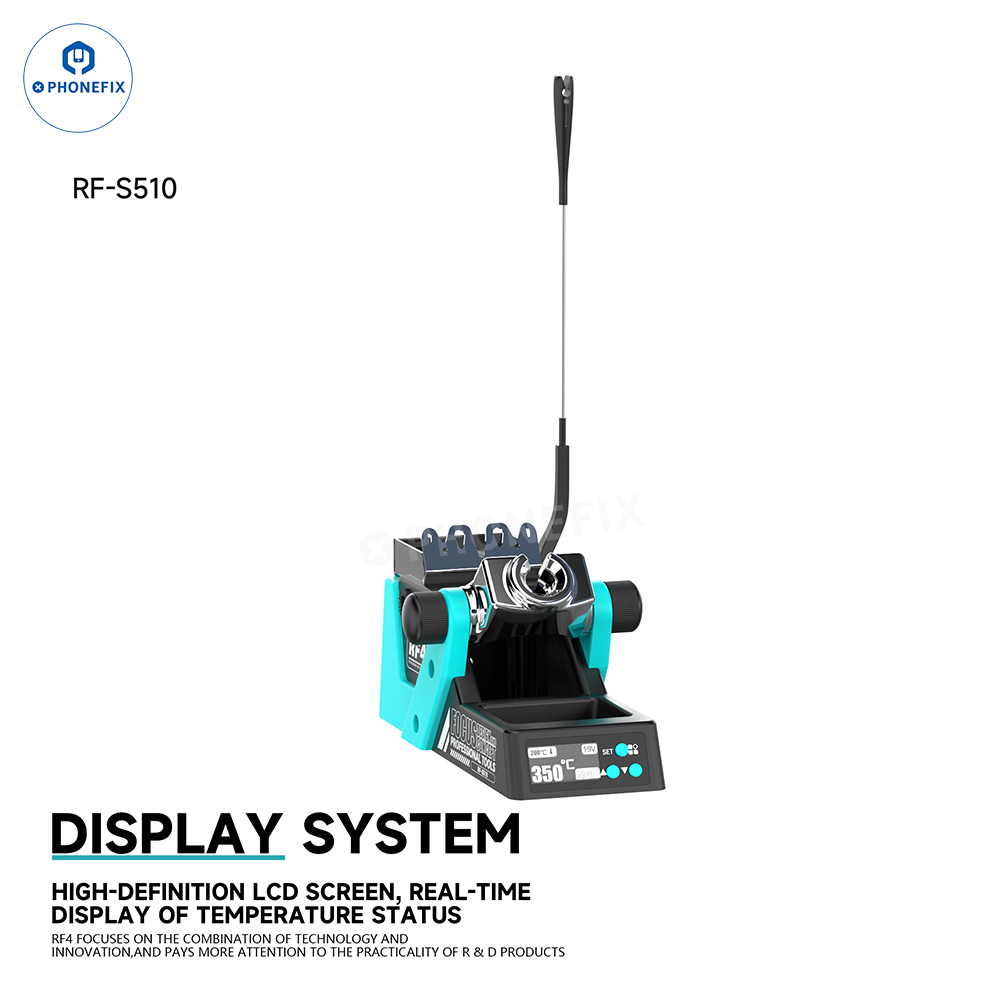

2. HD LCD screen display, real-time display of temperature status
3. Intelligent sleep: The body is integrated with a sleep positioning seat, which can accurately sense and automatically enter the standby energy-saving mode.
4. The body adopts a clean heating core frame, which is simple and neat, easy to store and quickly deployed.
5. Type-C PD fast charging (recommended 65W and above).

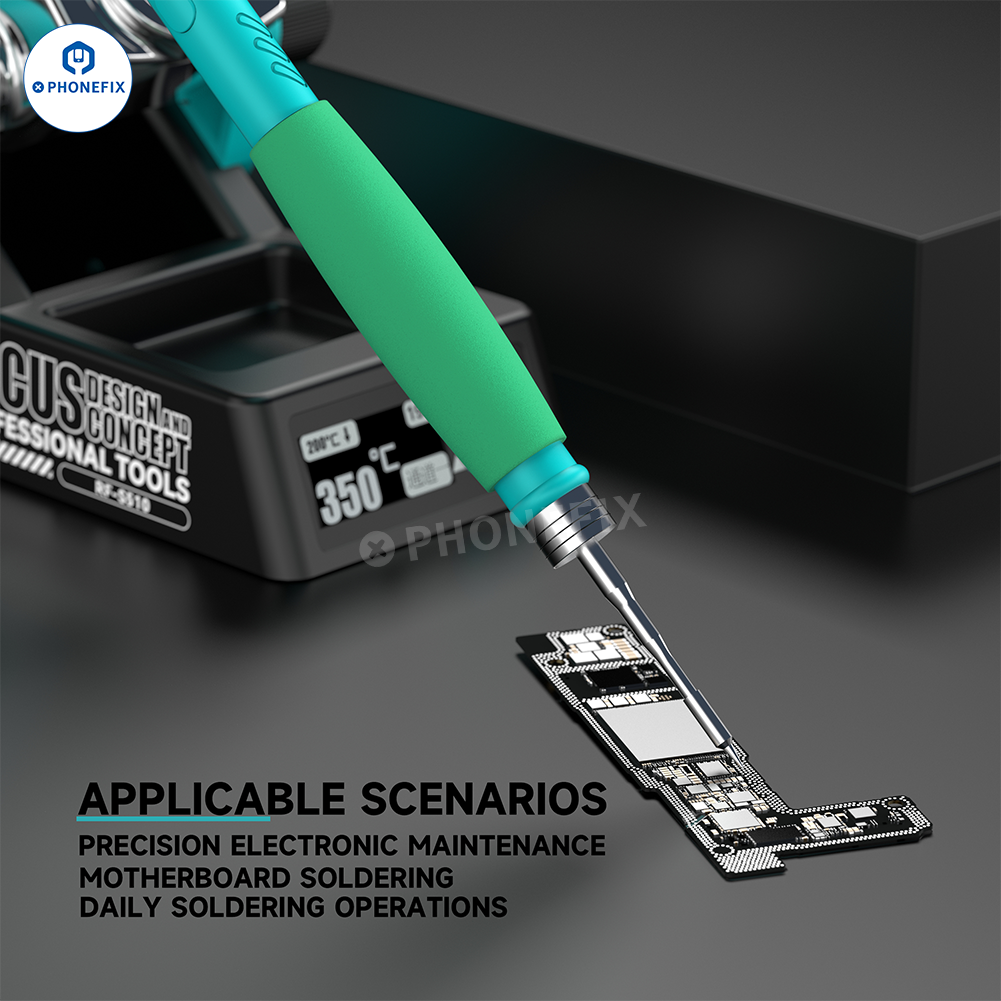

6. Applicable scenarios: precision electronic maintenance, motherboard welding, daily welding operations.
RF4 RF-S110 RF-S210 RF-S310 Features:
1. Temperature memory channel switching: CH1 channel default temperature is 320°C, CH2 channel default temperature is 350°C, CH3 channel default temperature is 380°C.
2. Advanced temperature control system to ensure accurate and stable heating.
3. With fast temperature adjustment function and anti-static performance, it can improve safety and performance.
4. Fast heating: The soldering station has fast heating ability, which can greatly reduce the waiting time before use.
5. Fast temperature recovery, with three-speed memory storage function, it can quickly switch to the required temperature level at different times or scenes to improve work efficiency.
RF-S110 Features:
1. With pedal activation switch, it can heat instantly and is easy to operate. The pedal temperature is enhanced, and the temperature rises with a light step, which is faster for welding panels with fast heat dissipation.
2. RF-S110 is equipped with an independently developed "TCP" temperature control system to ensure accurate and stable temperature settings.

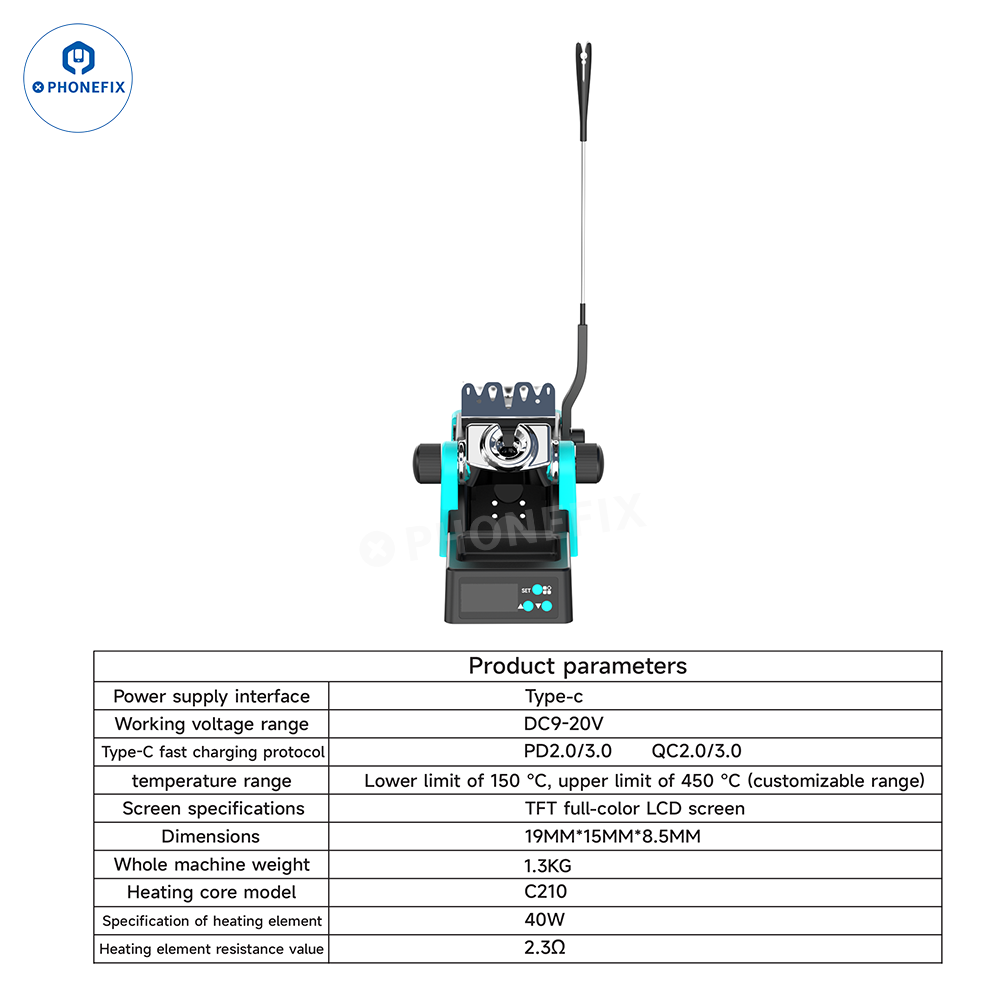

RF4 RF-S510 Specification:
Model: RF4 RF-S510 C210 soldering iron.
Heating core model: C210
Specification of heating element: 40W
Heating element resistance value: 2.3Ω
Power supply interface: Type-C
Type-C fast charging protocol: PD2.0/3.0; QC2.0/3.0
Temperature range: Lower limit of 150℃, upper limit of 450℃
Screen specifications: TFT full-color LCD screen
Working voltage range: DC 9-20V
Dimensions: 19*15*8.5mm
Whole machine weight: 1.3KG
RF-S110 Parameters:
Model: RF-S110.
Voltage: 220VAC (110VAC).
Power: 300W.
Temperature Range: 200°C-450°C.
Tip of Soldering lron: 210 soldering tip.
Constant Temperature Accuracy: ±3°C.
Sleep Function: Inductive standby.
Memory Channel: Three.
Net Weight: 905G.
Host Size: 154*143*123MM.
RF-S210 Parameters:
Model: RF-S210.
Voltage: 220VAC (110VAC).
Power: 72W.
Temperature Range: 100°C-500°C.
Tip of Soldering lron: 210 soldering tip.
Constant Temperature Accuracy: ±5°C.
Sleep Function: Inductive standby.
Memory Channel: Three.
Net Weight: 985G.
Host Size: 144*96*90MM.
RF-S310 Parameters:
Model: RFS310.
Voltage: 220VAC (110VAC).
Power: 75W.
Temperature Range: 150°C-480°C.
Tip of Soldering lron: T12 soldering tip.
Constant Temperature Accuracy: ±5°C.
Sleep Function: Countdown standby.
Memory Channel: Three.
