RF4 RF-S110 RF-S210 RF-S310 RF-S410 RF-S510 Intelligent Temperature Control BGA Soldering Station with C210 soldering tips for Mobile Phone/iPad/Tablet/Electronic Motherboard PCB CPU BGA SMD Chip Welding Repair. RF4 RF-S110 300W, RF-S210 72W, RF-S310 75W, RF4 RF-S410 100W, RF-S510 40W soldering desoldering station with C210/T12 soldering iron tips and handle, 3 memory storage, fast heating, fast temperature recovery, precise temperature control and intelligent sleep.
Option:
1. RF4 RF-S110 300W: C210 soldering iron tip.
2. RF4 RF-S210 72W: C210 soldering iron tip.
3. RF4 RF-S310 75W: T12 Soldering iron tip.
4. RF4 RF-S510 40W: C210 soldering iron tip.
5. RF4 RF-S410 100W: C210 soldering iron tip.

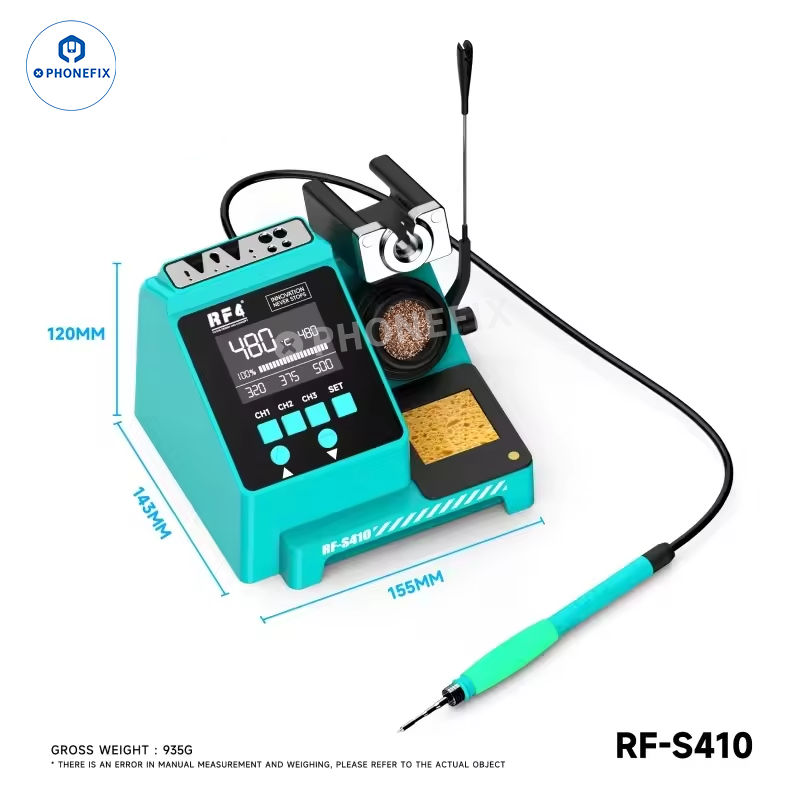

RF4 RF-S410 Features:
1.RF4 RF-S410 Multi-Functional Intelligent Anti-Static Soldering Station with C210 iron tips for mobile phone repair.
2. Metal contact memory chip with three memory channels allows for rapid temperature switching, meeting various soldering needs and eliminating the need for repetitive parameter adjustments.
3. Anti-static and precise temperature control protect delicate components.
4. Handheld temperature adjustment button allows for easy temperature adjustment with a simple press of your fingertip.
5. Instant switching between three memory channels with a single button press: metal contact memory, easy touch control, and temperature memory.
RF4 RF-S510 Features:

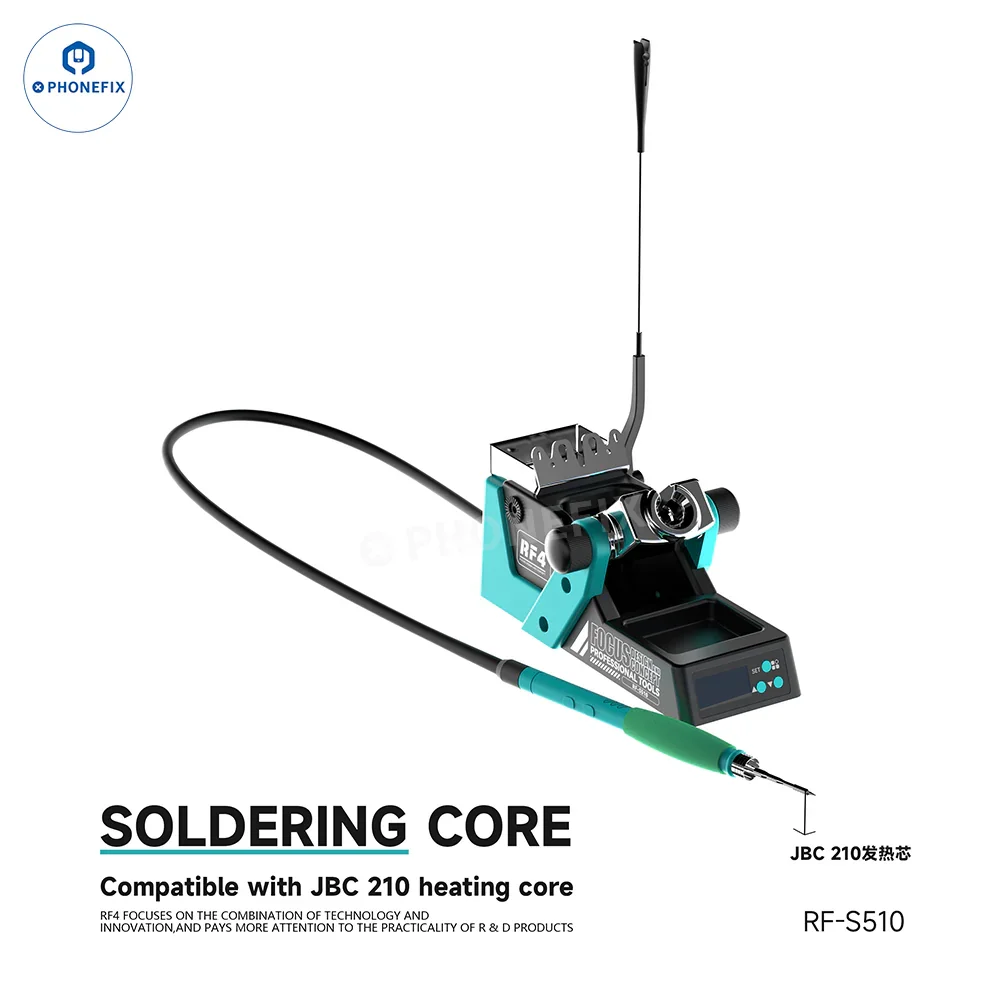

1. RF4 RF-S510 Portable Digital Soldering Iron Station compatible with JBC C210 Heating Core for Mobile Phone welding repair. Comes standard with RF4 C210 pointed tip.

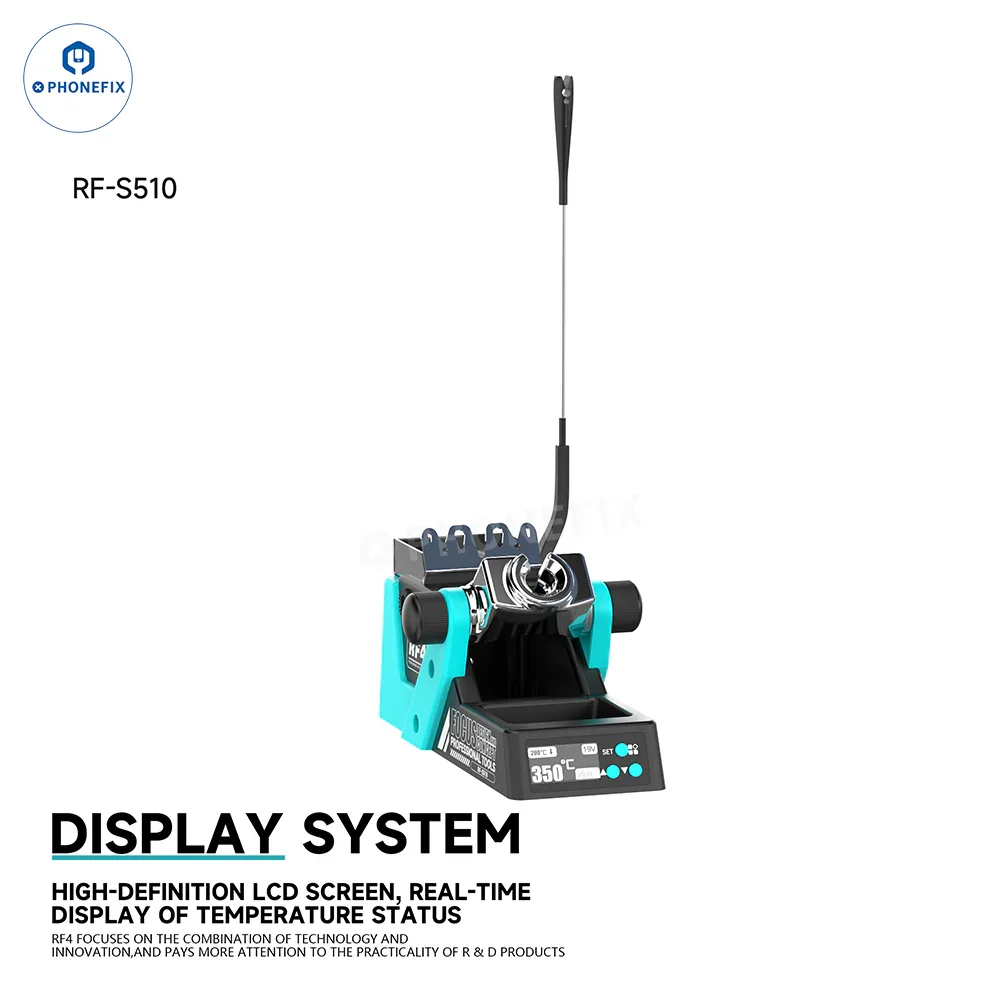

2. HD LCD screen display, real-time display of temperature status
3. Intelligent sleep: The body is integrated with a sleep positioning seat, which can accurately sense and automatically enter the standby energy-saving mode.
4. The body adopts a clean heating core frame, which is simple and neat, easy to store and quickly deployed.
5. Type-C PD fast charging (recommended 65W and above).

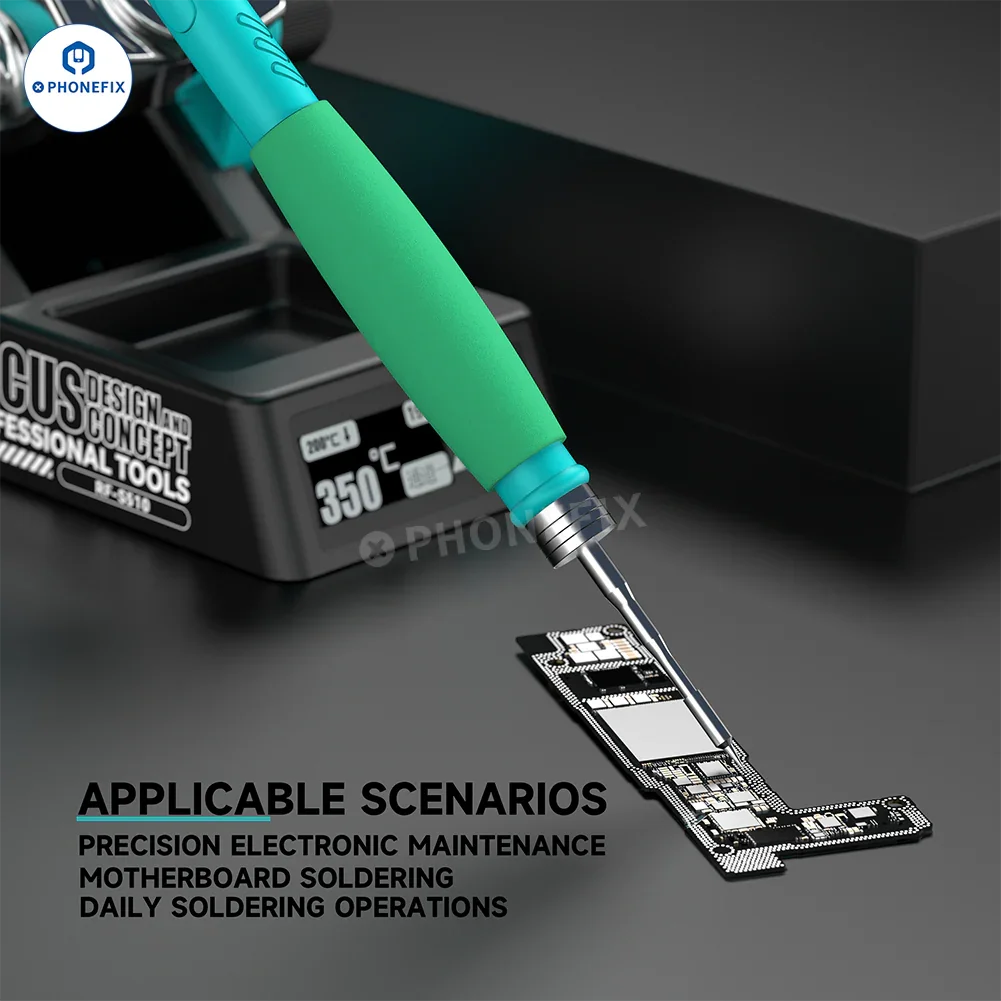

6. Applicable scenarios: precision electronic maintenance, motherboard welding, daily welding operations.

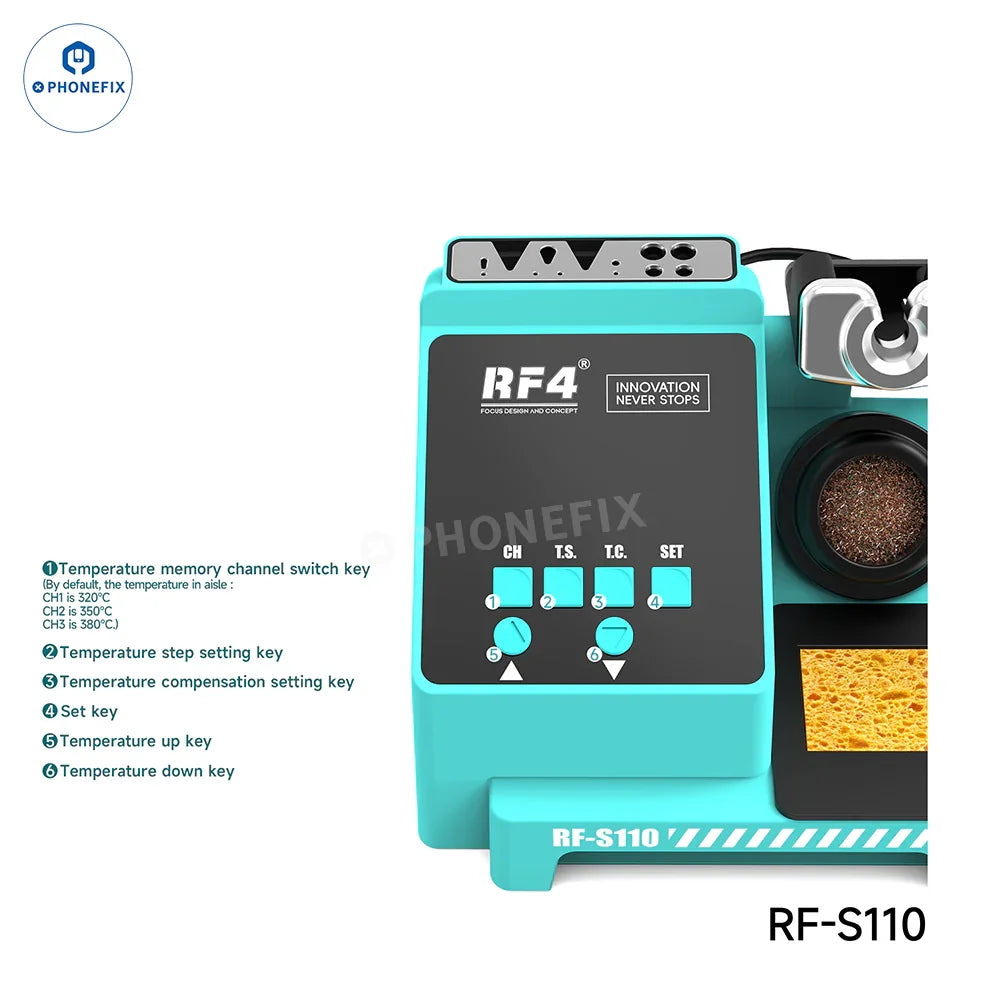

RF4 RF-S110 RF-S210 RF-S310 Features:

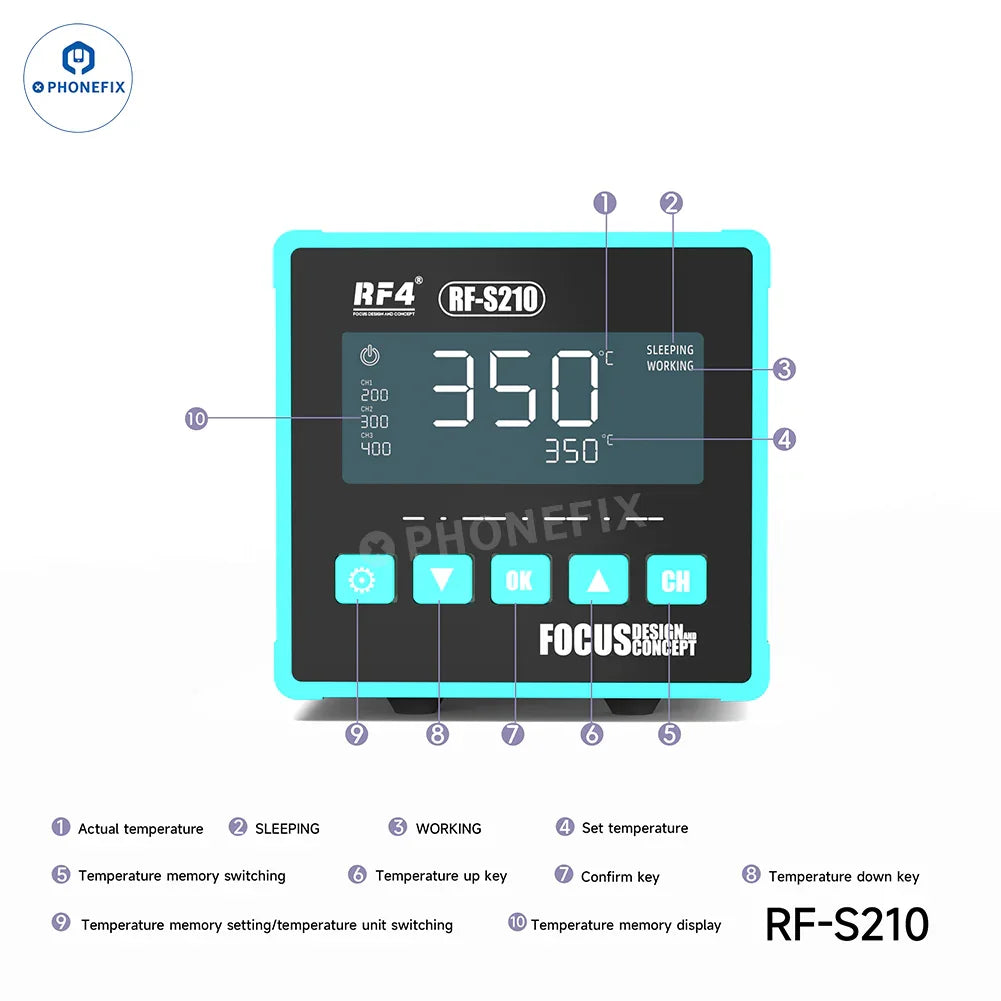

1. Temperature memory channel switching: CH1 channel default temperature is 320°C, CH2 channel default temperature is 350°C, CH3 channel default temperature is 380°C.
2. Advanced temperature control system to ensure accurate and stable heating.
3. With fast temperature adjustment function and anti-static performance, it can improve safety and performance.
4. Fast heating: The soldering station has fast heating ability, which can greatly reduce the waiting time before use.
5. Fast temperature recovery, with three-speed memory storage function, it can quickly switch to the required temperature level at different times or scenes to improve work efficiency.

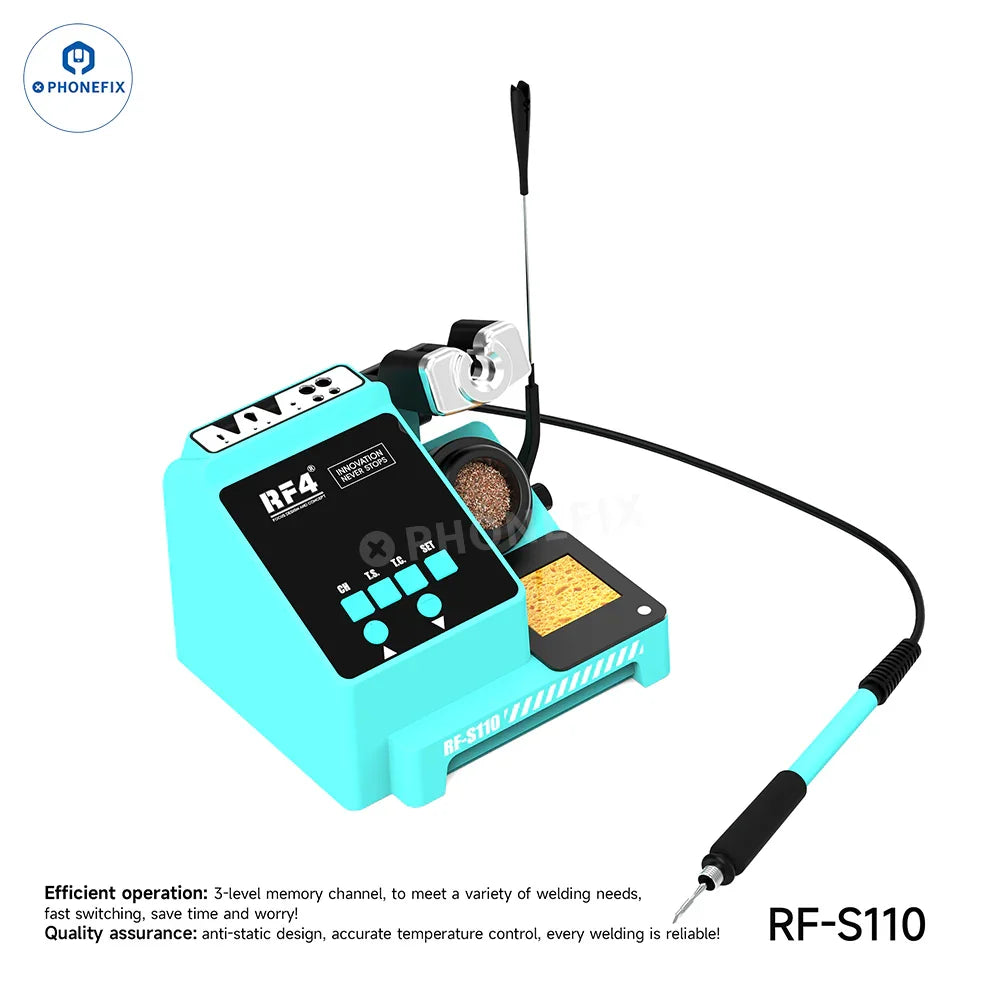

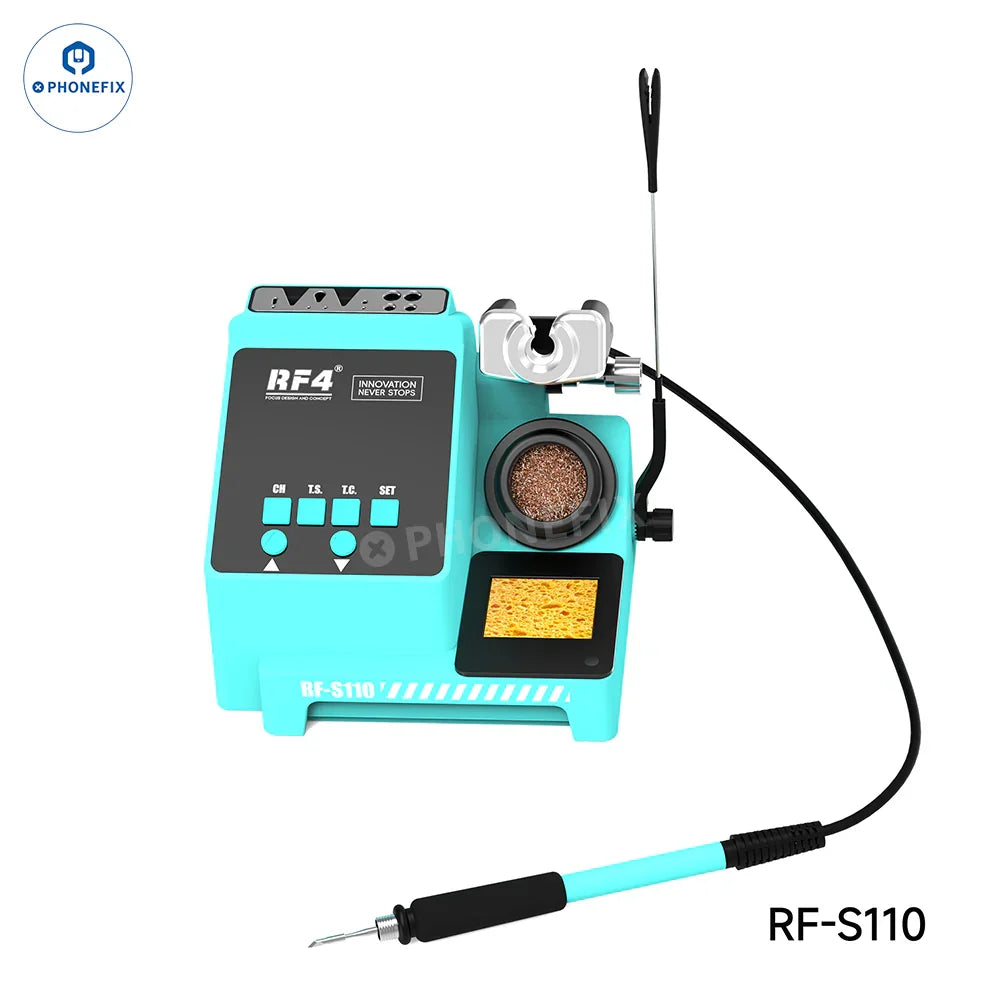

RF-S110 Features:

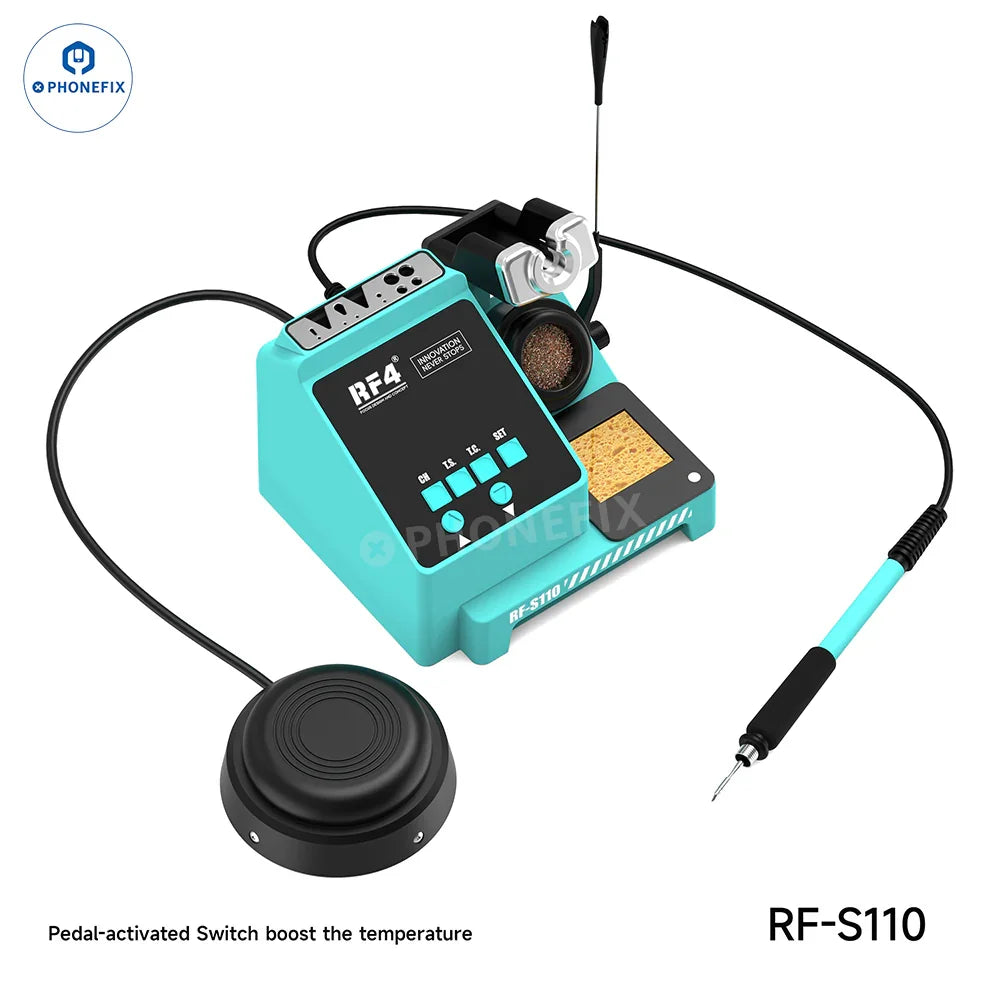

1. With pedal activation switch, it can heat instantly and is easy to operate. The pedal temperature is enhanced, and the temperature rises with a light step, which is faster for welding panels with fast heat dissipation.
2. RF-S110 is equipped with an independently developed "TCP" temperature control system to ensure accurate and stable temperature settings.

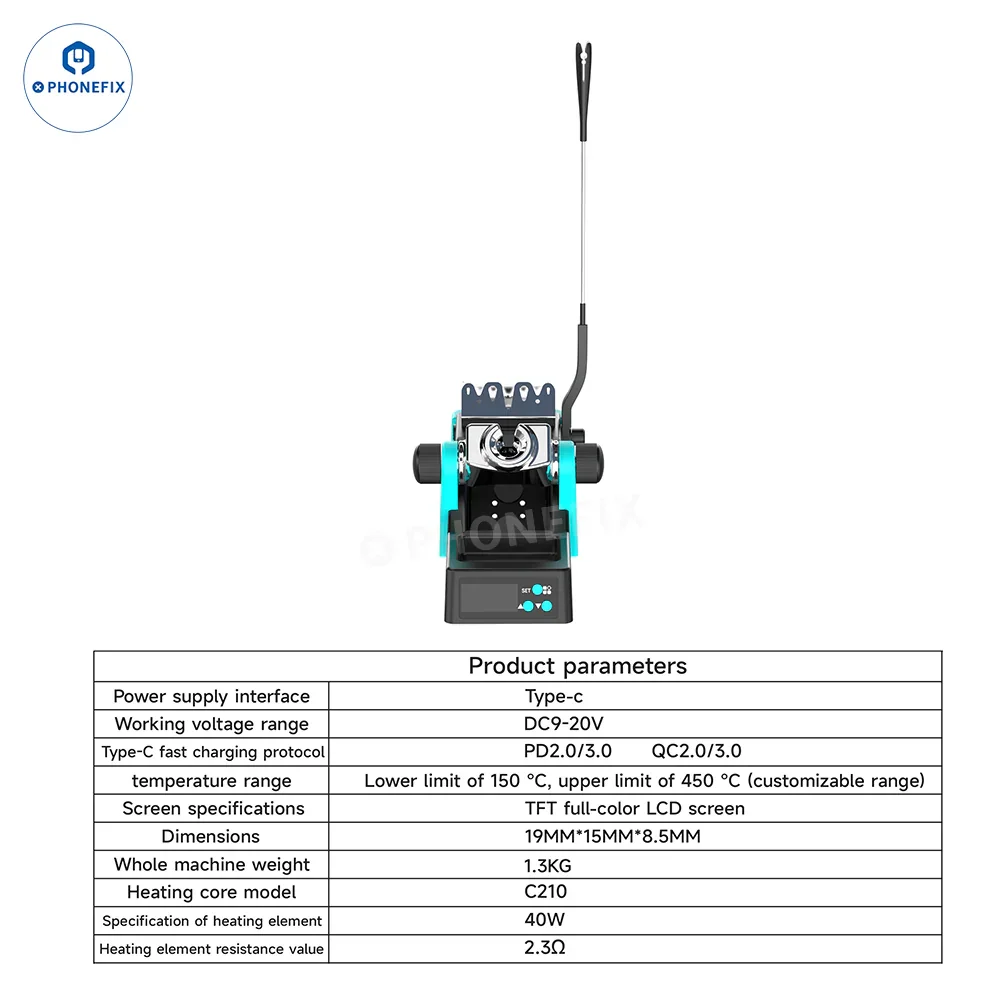

RF4 RF-S510 Specification:
Model: RF4 RF-S510 C210 soldering iron.
Heating core model: C210
Specification of heating element: 40W
Heating element resistance value: 2.3Ω
Power supply interface: Type-C
Type-C fast charging protocol: PD2.0/3.0; QC2.0/3.0
Temperature range: Lower limit of 150℃, upper limit of 450℃
Screen specifications: TFT full-color LCD screen
Working voltage range: DC 9-20V
Dimensions: 19*15*8.5mm
Whole machine weight: 1.3KG

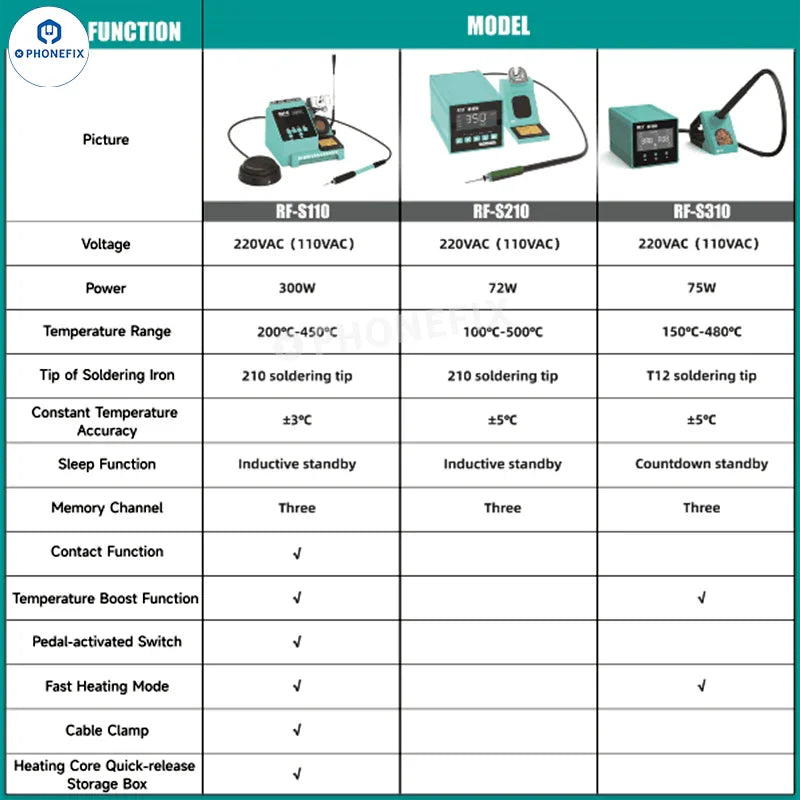

RF-S110 Parameters:
Model: RF-S110.
Voltage: 220VAC (110VAC).
Power: 300W.
Temperature Range: 200°C-450°C.
Tip of Soldering lron: 210 soldering tip.
Constant Temperature Accuracy: ±3°C.
Sleep Function: Inductive standby.
Memory Channel: Three.
Net Weight: 905G.
Host Size: 154*143*123MM.

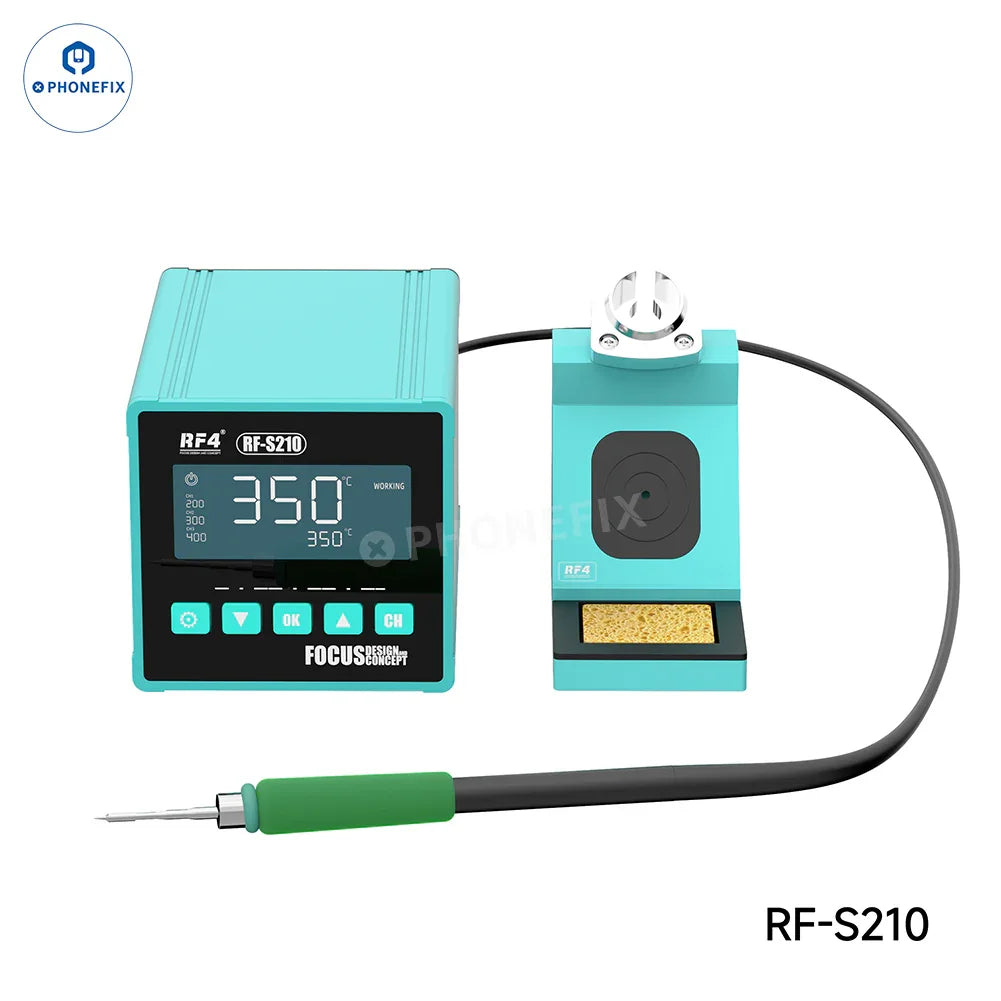

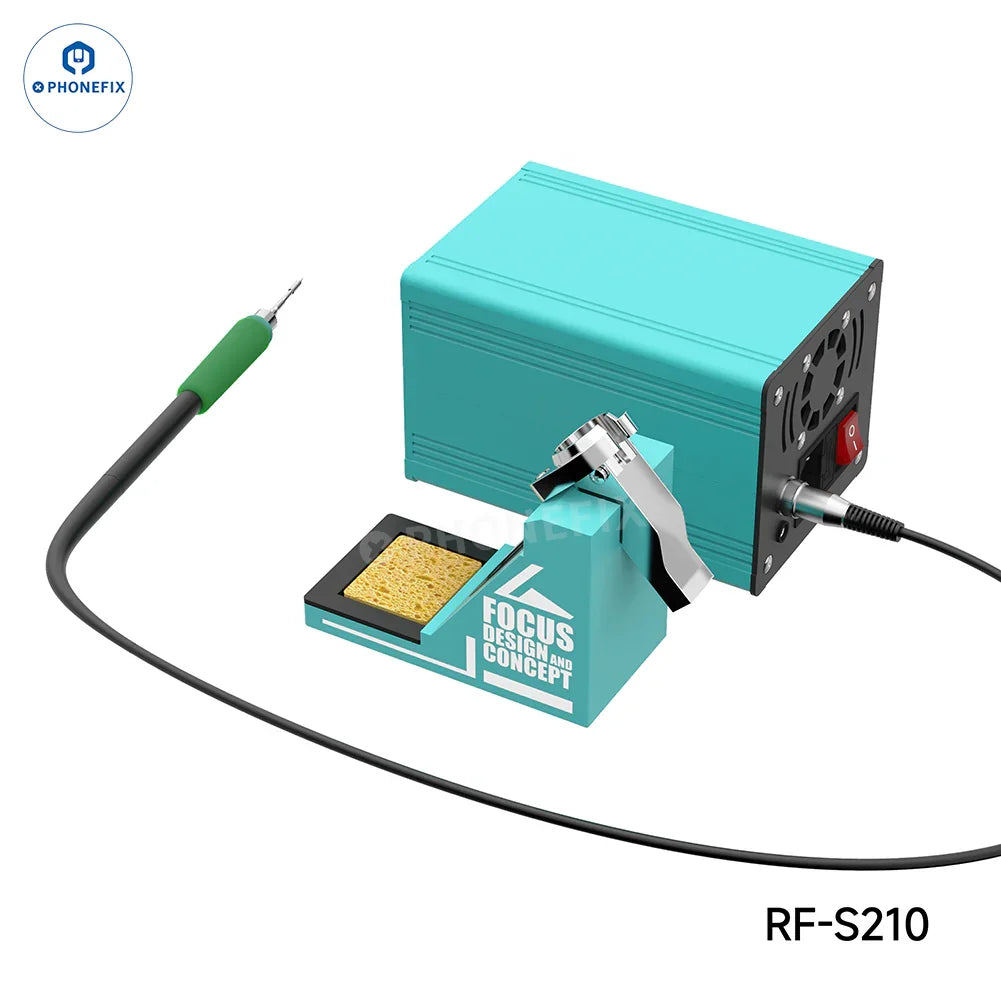

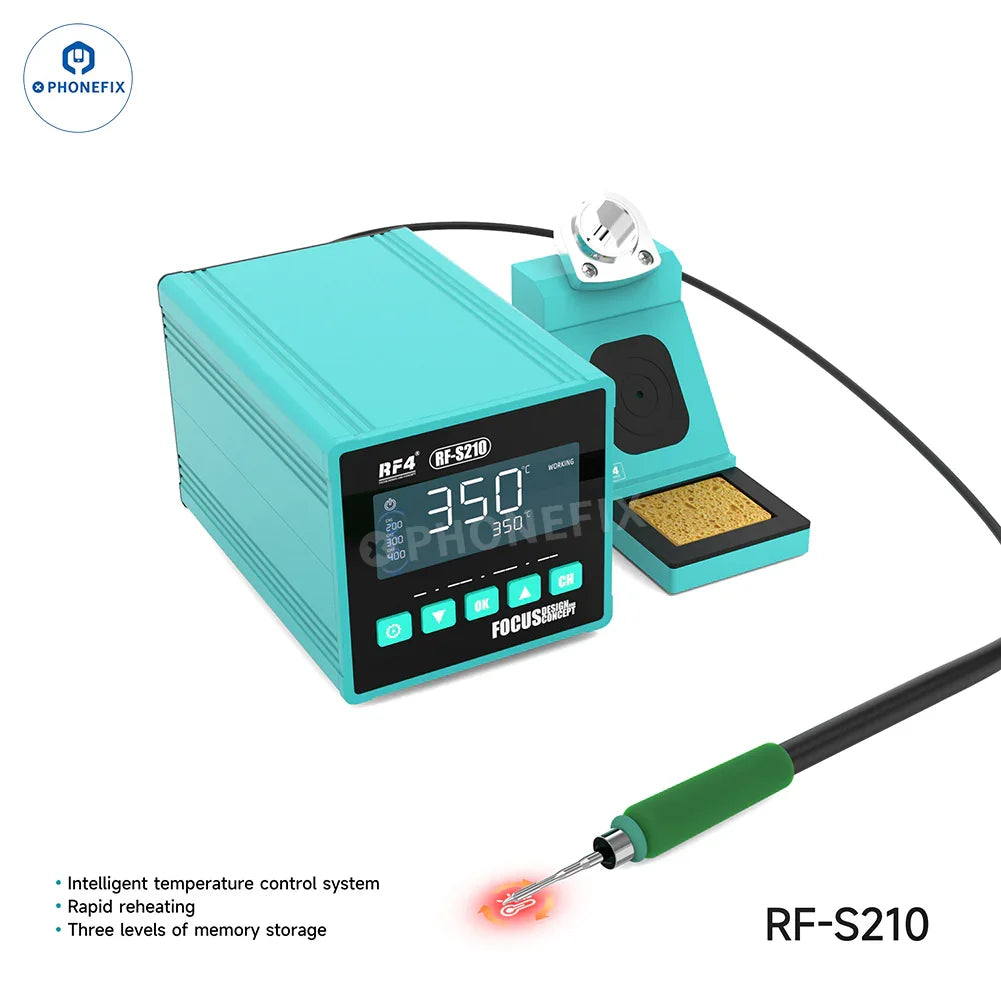

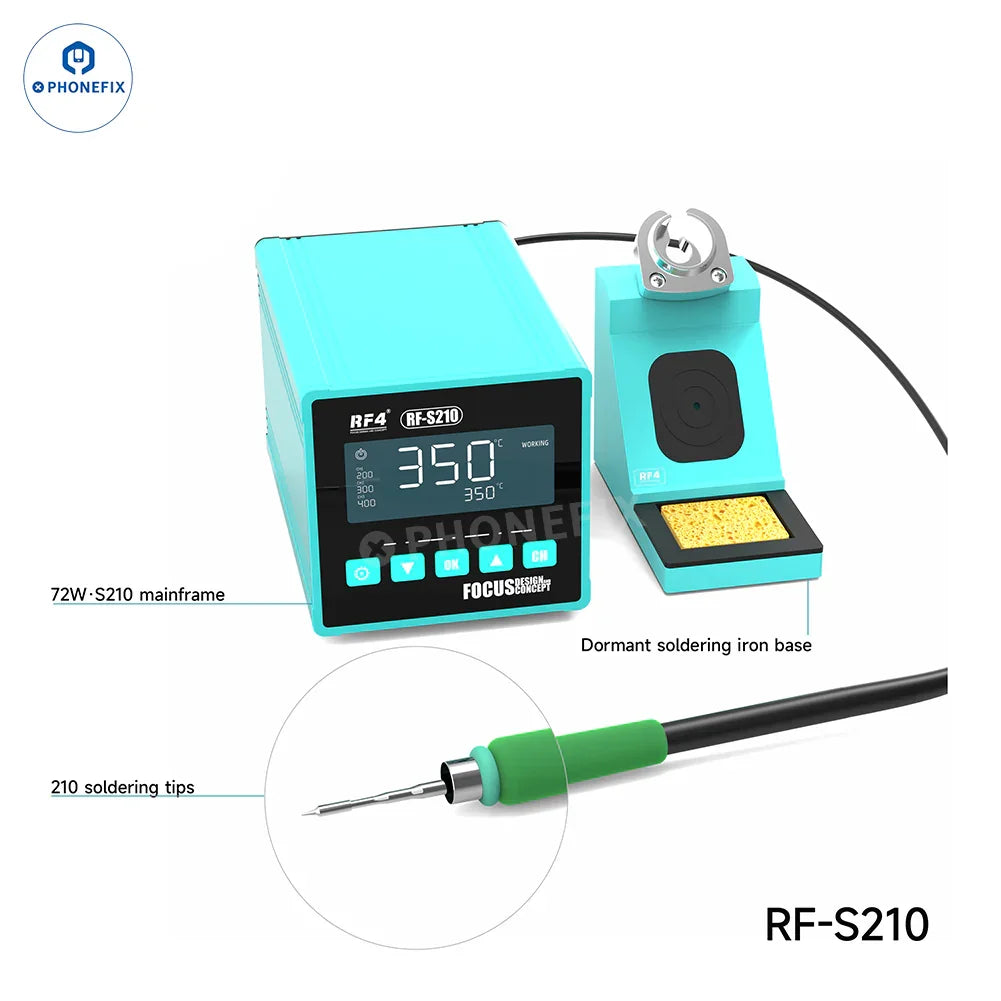

RF-S210 Parameters:
Model: RF-S210.
Voltage: 220VAC (110VAC).
Power: 72W.
Temperature Range: 100°C-500°C.
Tip of Soldering lron: 210 soldering tip.
Constant Temperature Accuracy: ±5°C.
Sleep Function: Inductive standby.
Memory Channel: Three.
Net Weight: 985G.
Host Size: 144*96*90MM.

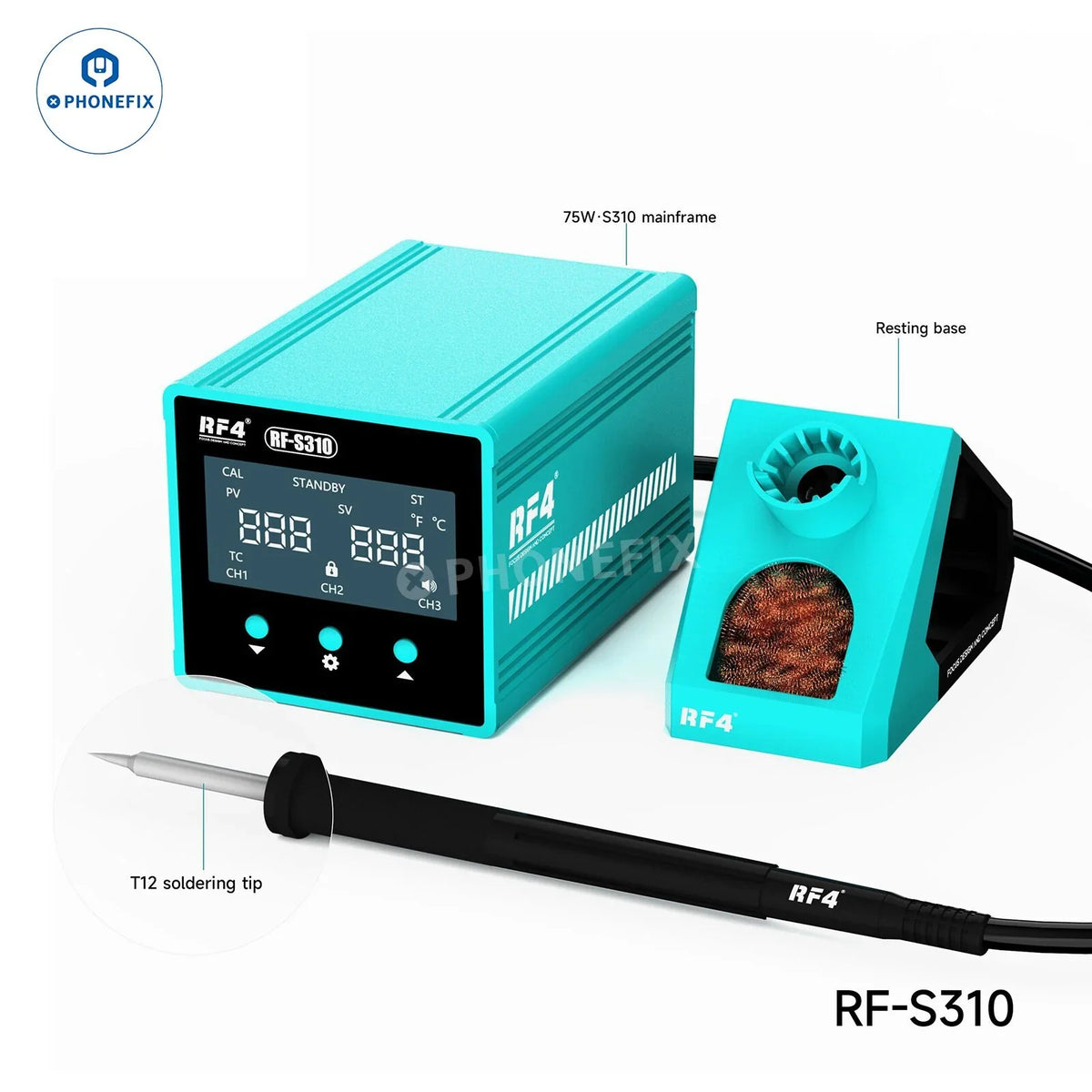

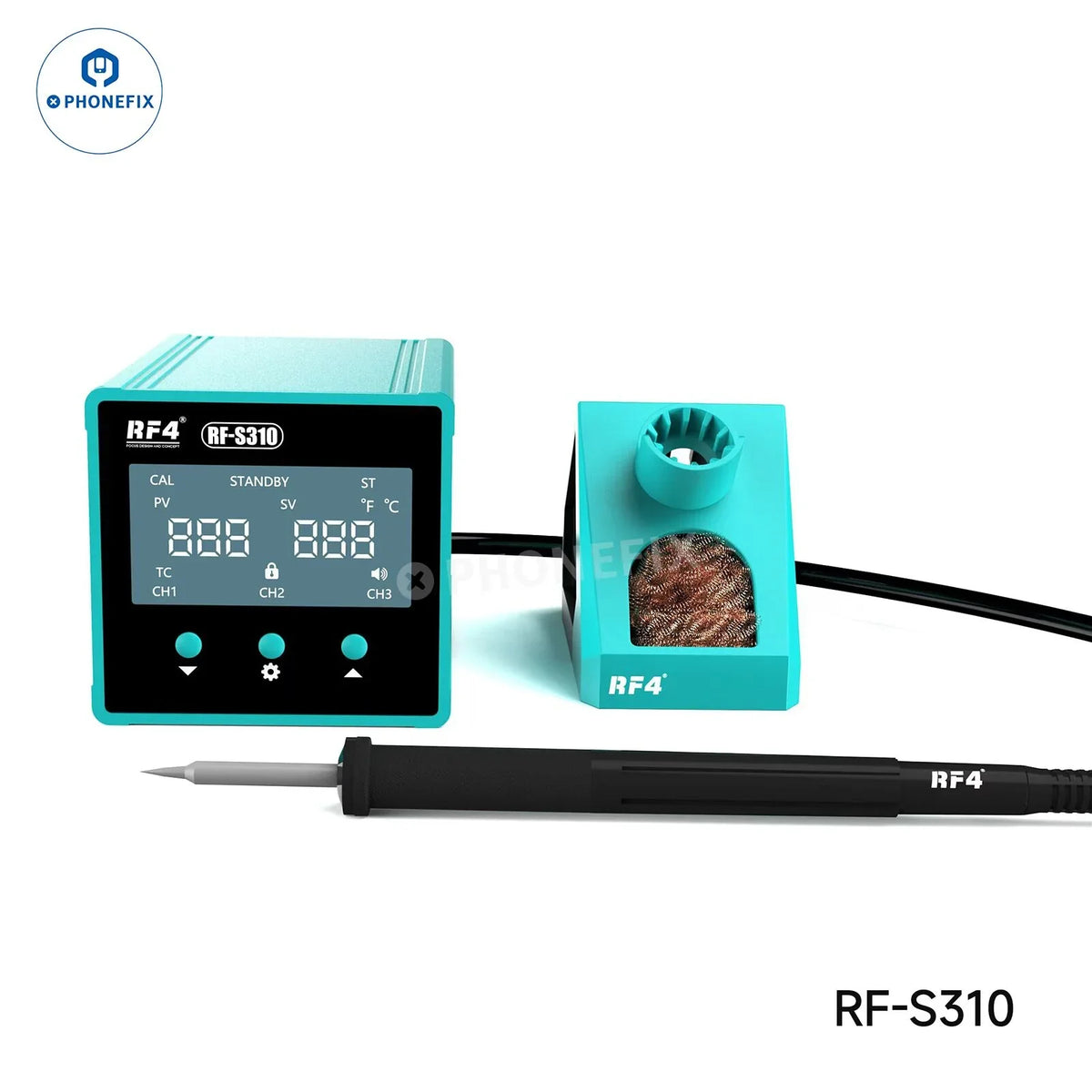

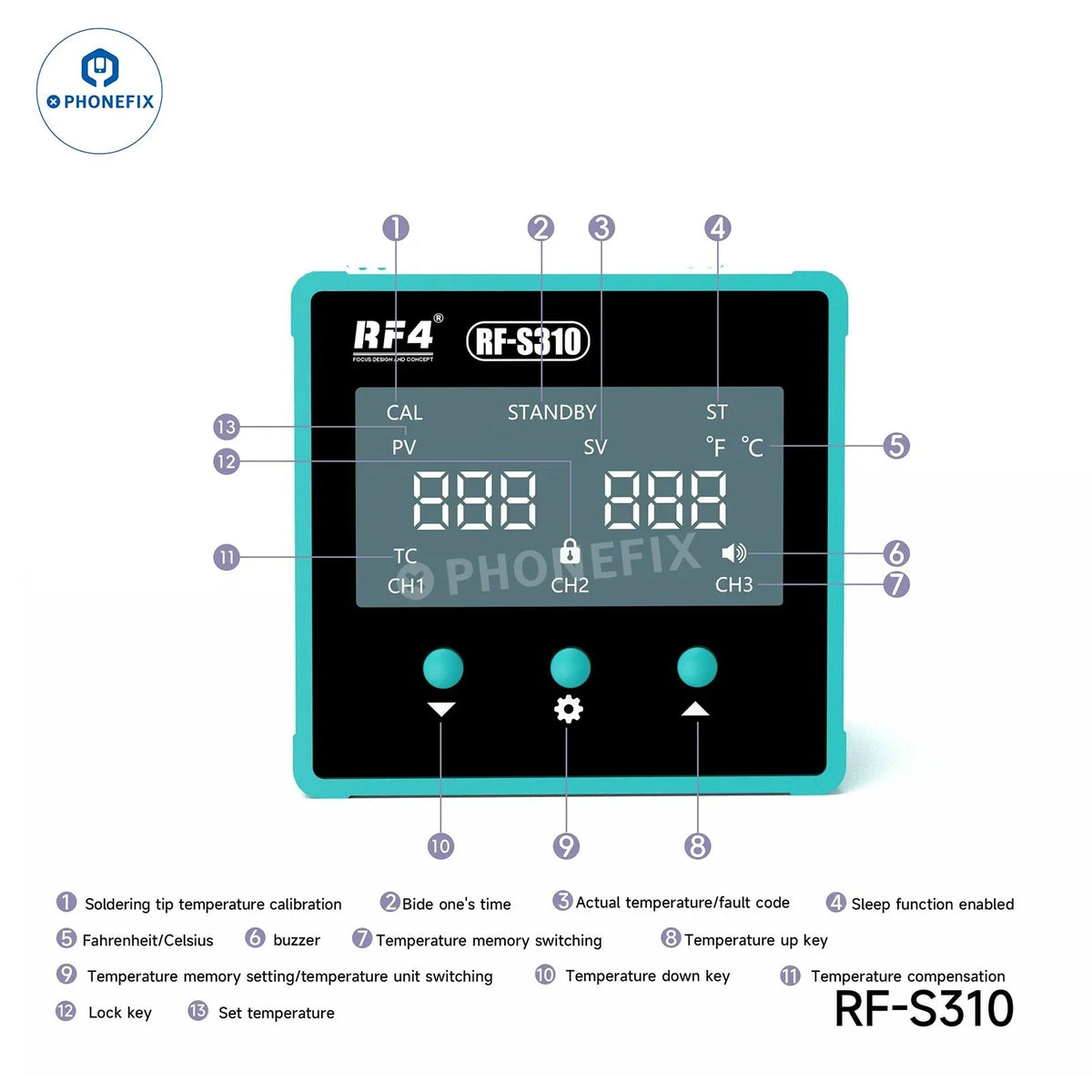

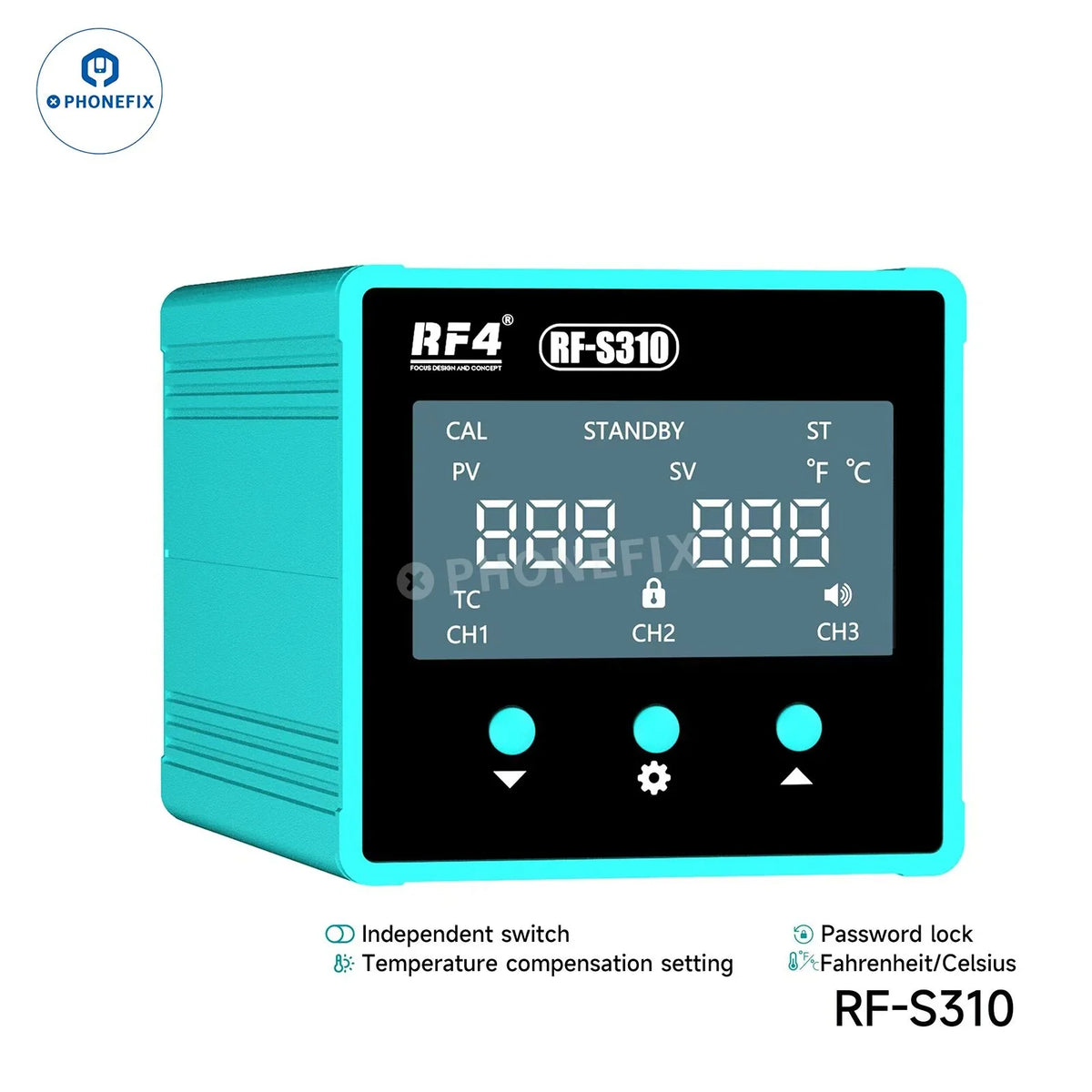

RF-S310 Parameters:
Model: RFS310.
Voltage: 220VAC (110VAC).
Power: 75W.
Temperature Range: 150°C-480°C.
Tip of Soldering lron: T12 soldering tip.
Constant Temperature Accuracy: ±5°C.
Sleep Function: Countdown standby.
Memory Channel: Three.
