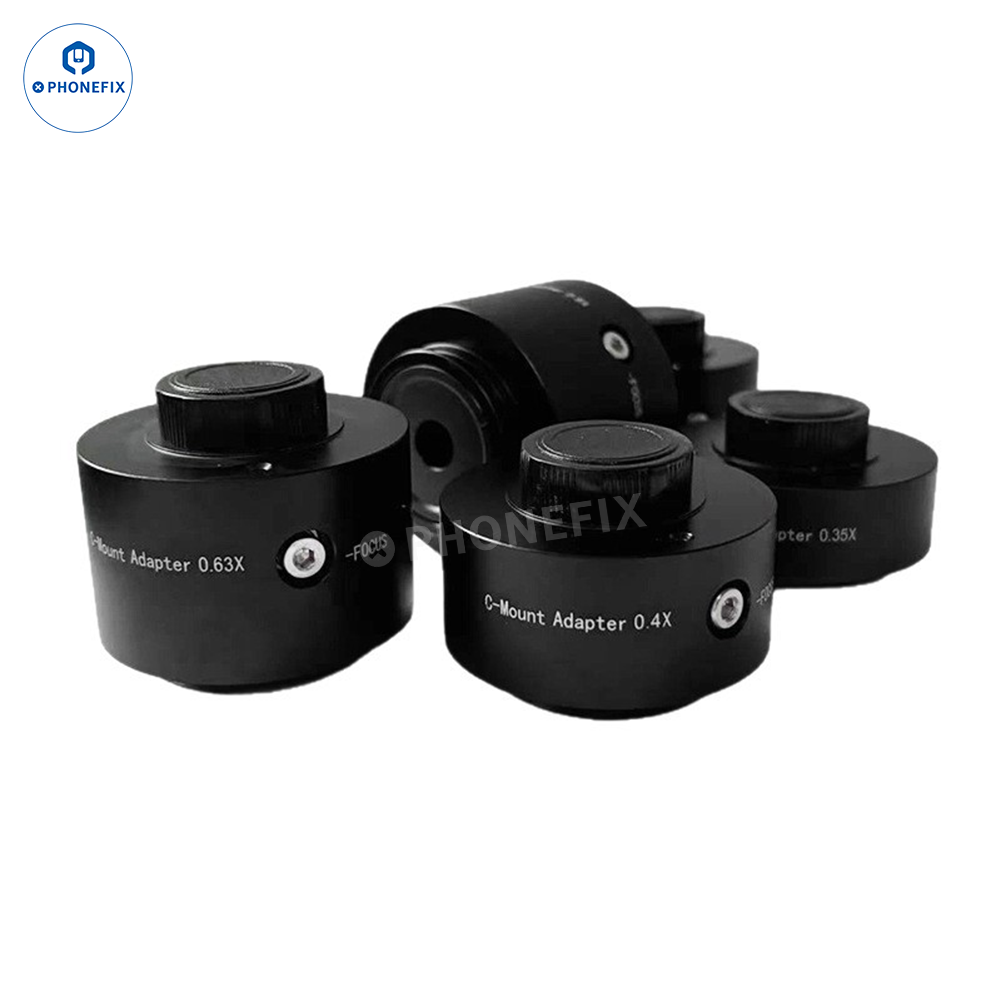

0.35X 0.4X 0.5X 0.8X 0.63X C-mount CCD CMOS Adapter Lens for Olympus Metallurgical Trinocular Microscopes. 38mm/42mm adjustable interface is compatible with most microscopes; the 25mm size is compatible with most cameras. These C-mount Lens enables rapid connection between microscopes and industrial cameras, USB microscope cameras, or digital imaging systems. It supports high-definition image acquisition, real-time display, and video recording, making it suitable for applications such as mobile phone repair, PCB inspection, electronics manufacturing, industrial inspection, and scientific research.
Option:

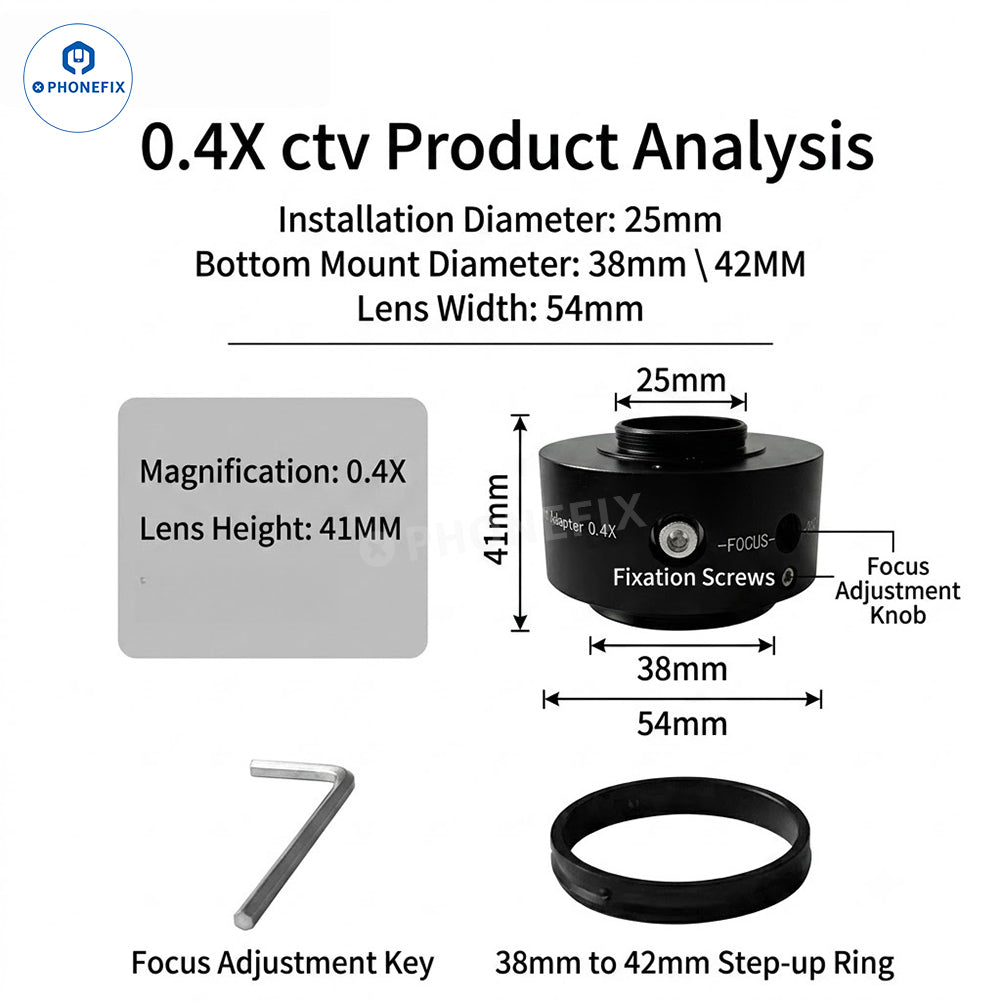

1. 0.4X C-mount lens: 0.4X magnification, 41mm lens height.

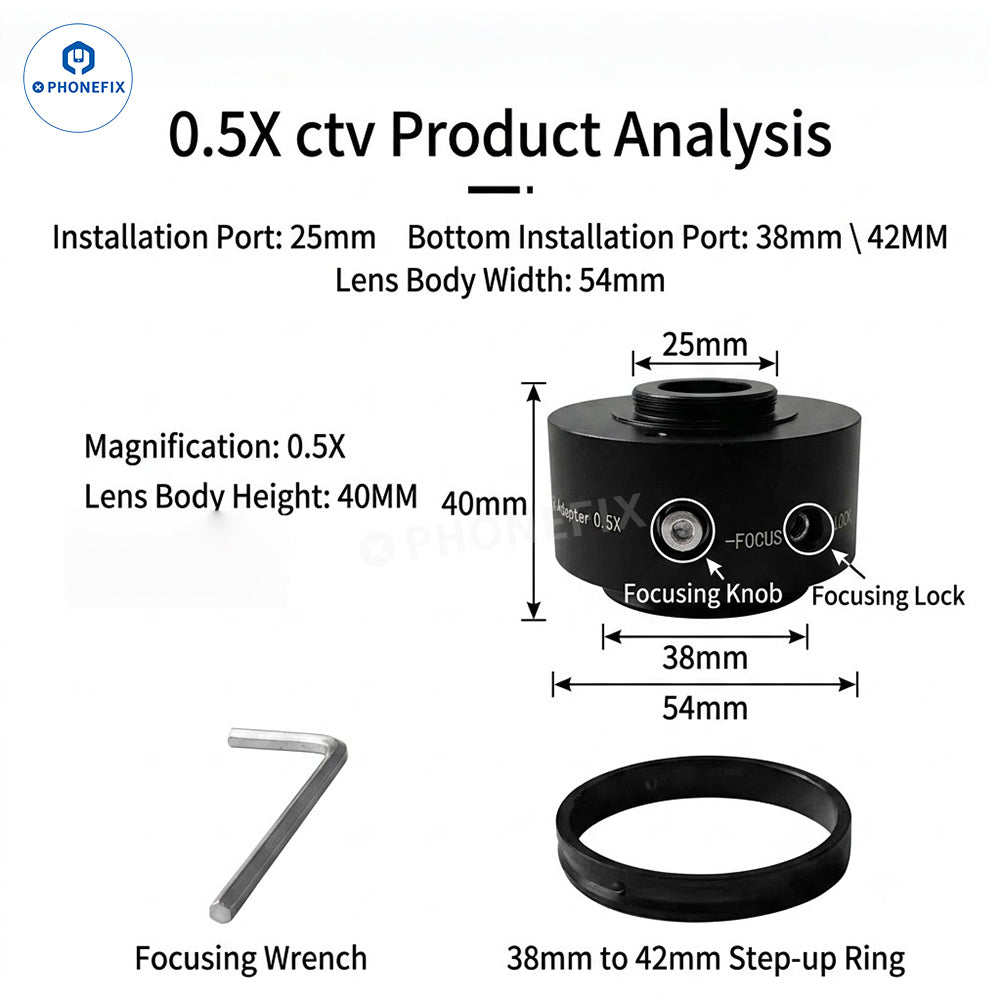

2. 0.5X C-mount lens: 0.5X magnification, 40mm lens height.

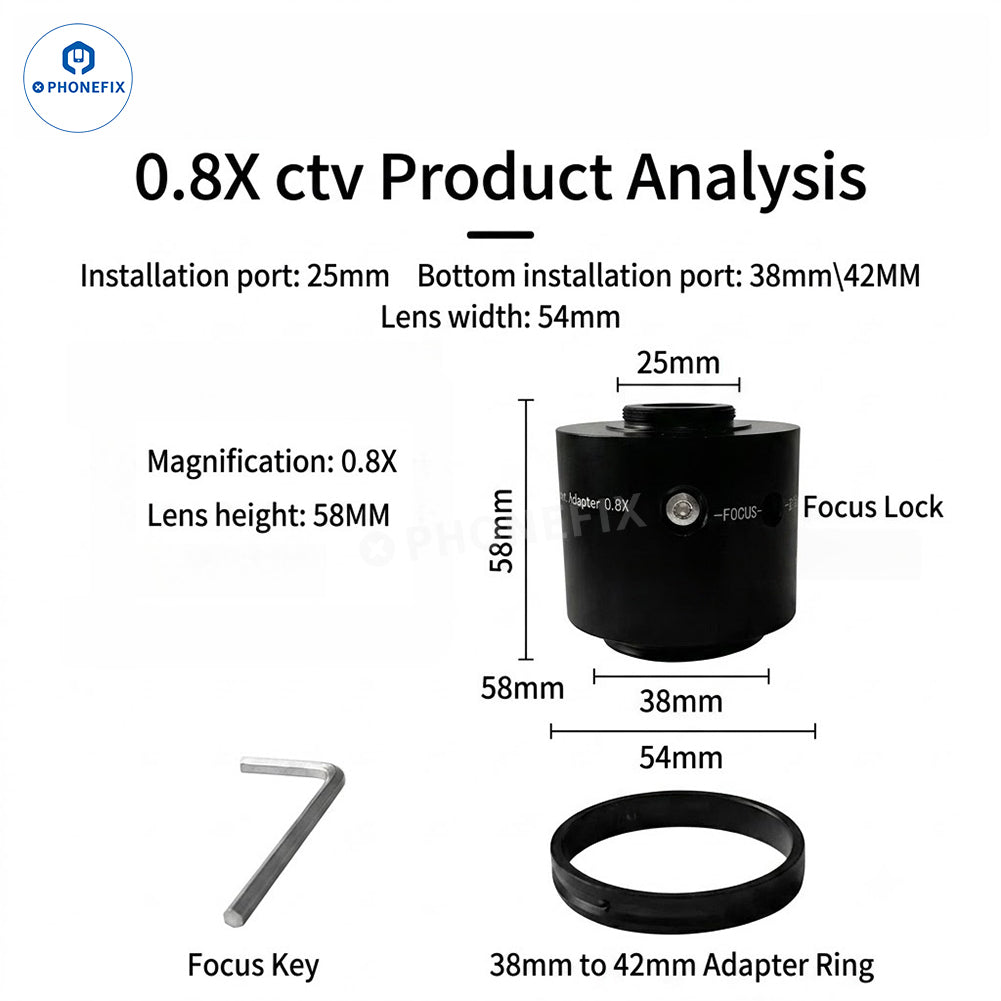

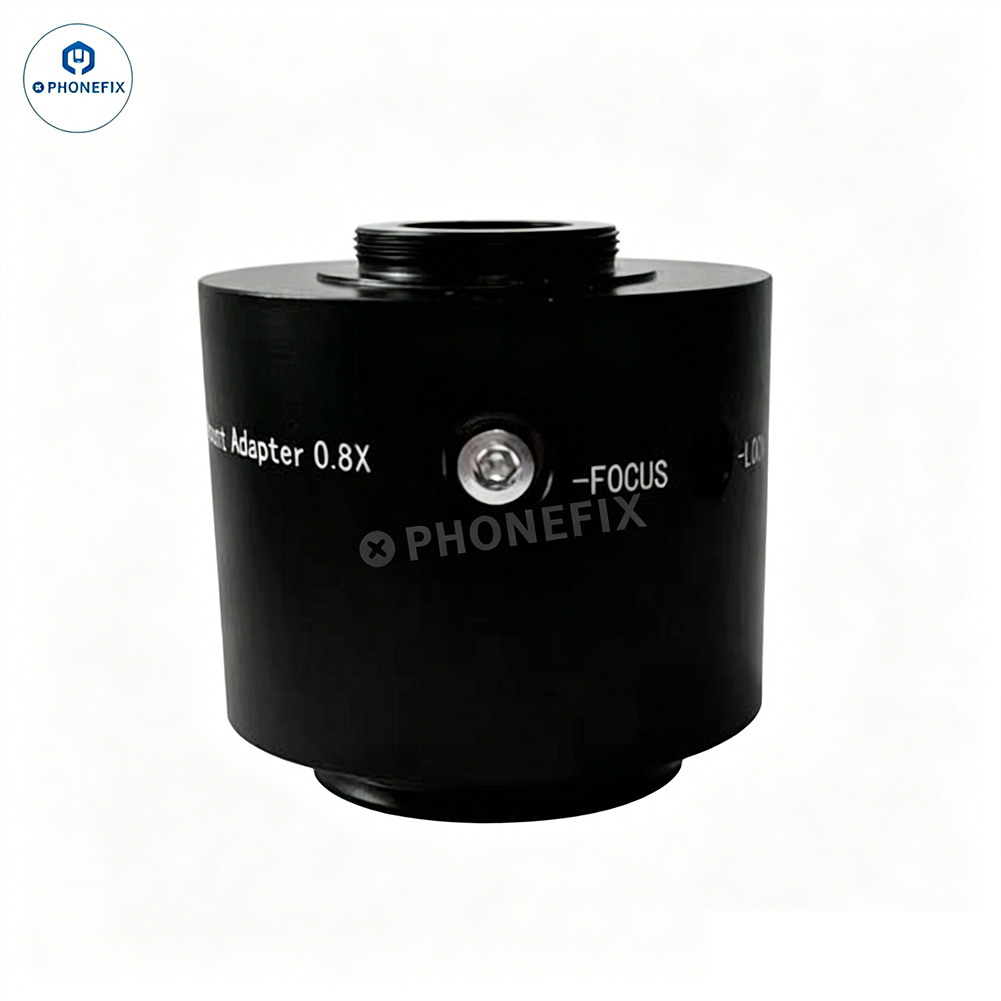

3. 0.8X C-mount lens: 0.8X magnification, 58mm lens height.

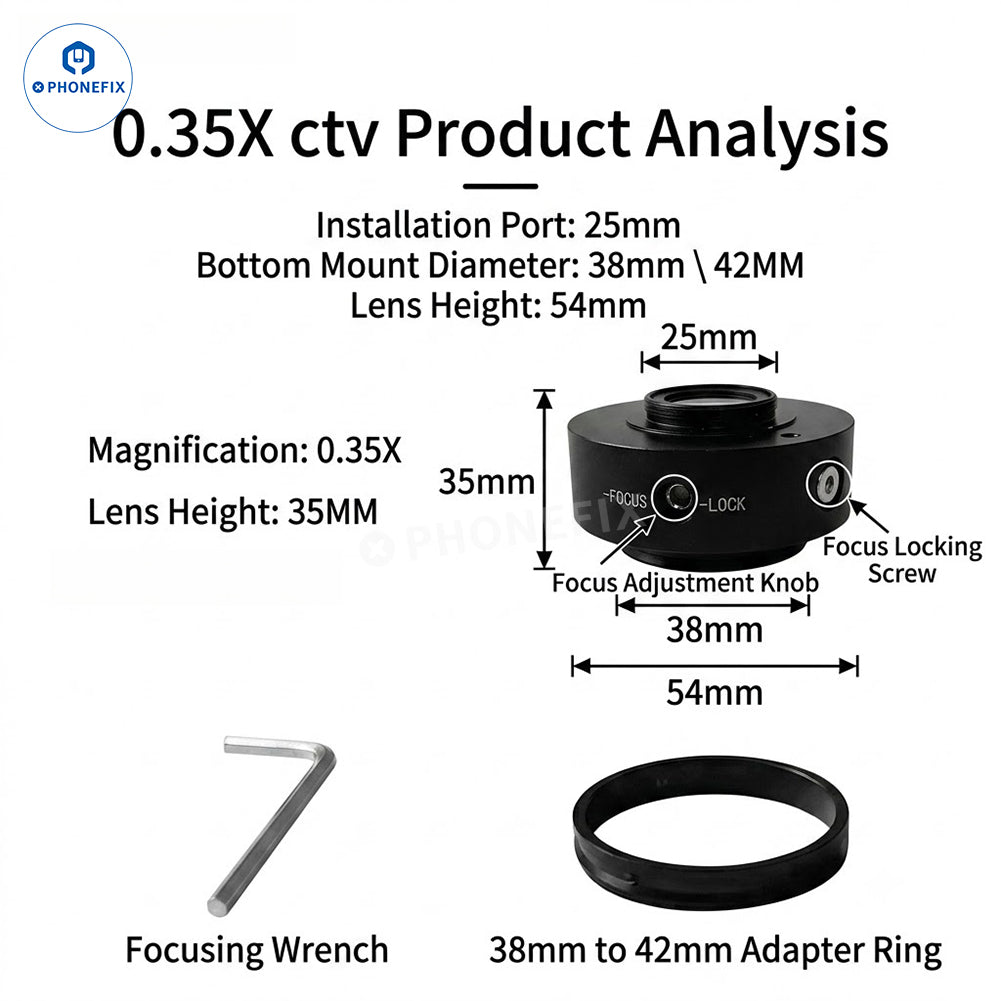

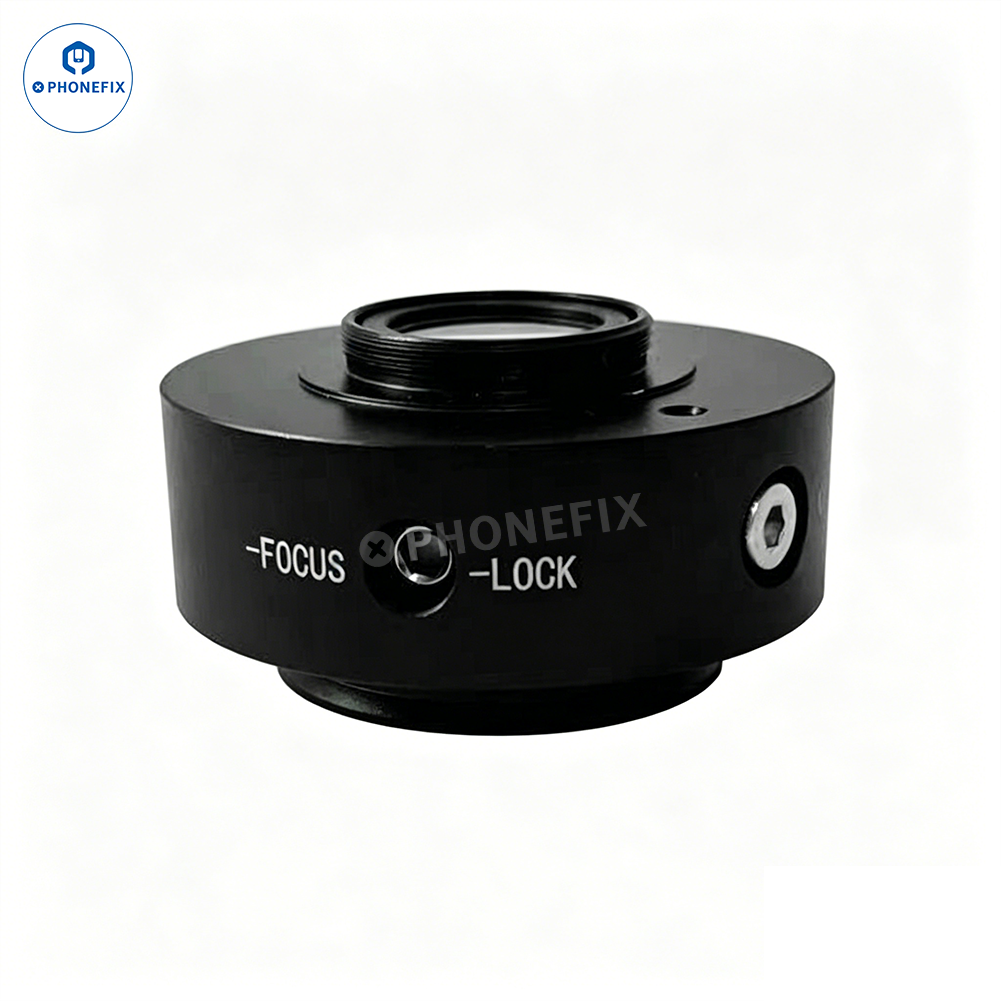

4. 0.35X C-mount lens: 0.35X magnification, 35mm lens height.

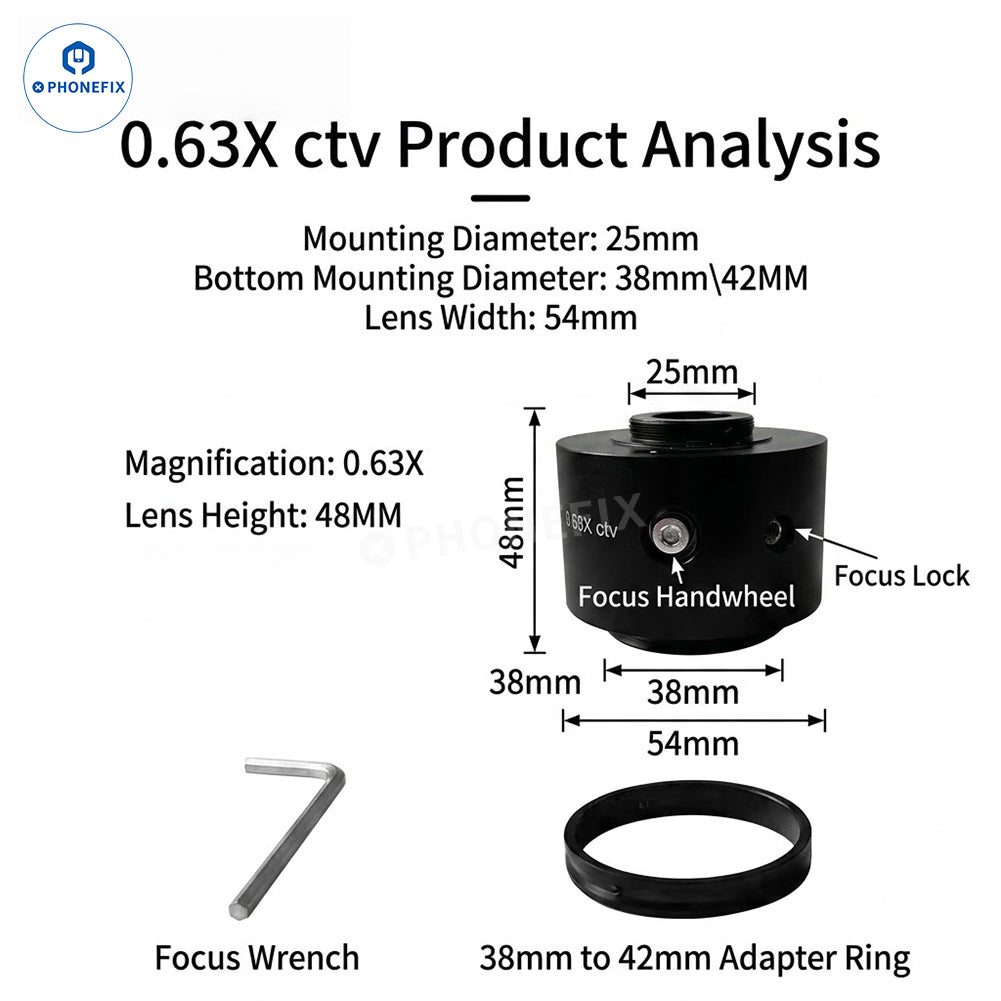

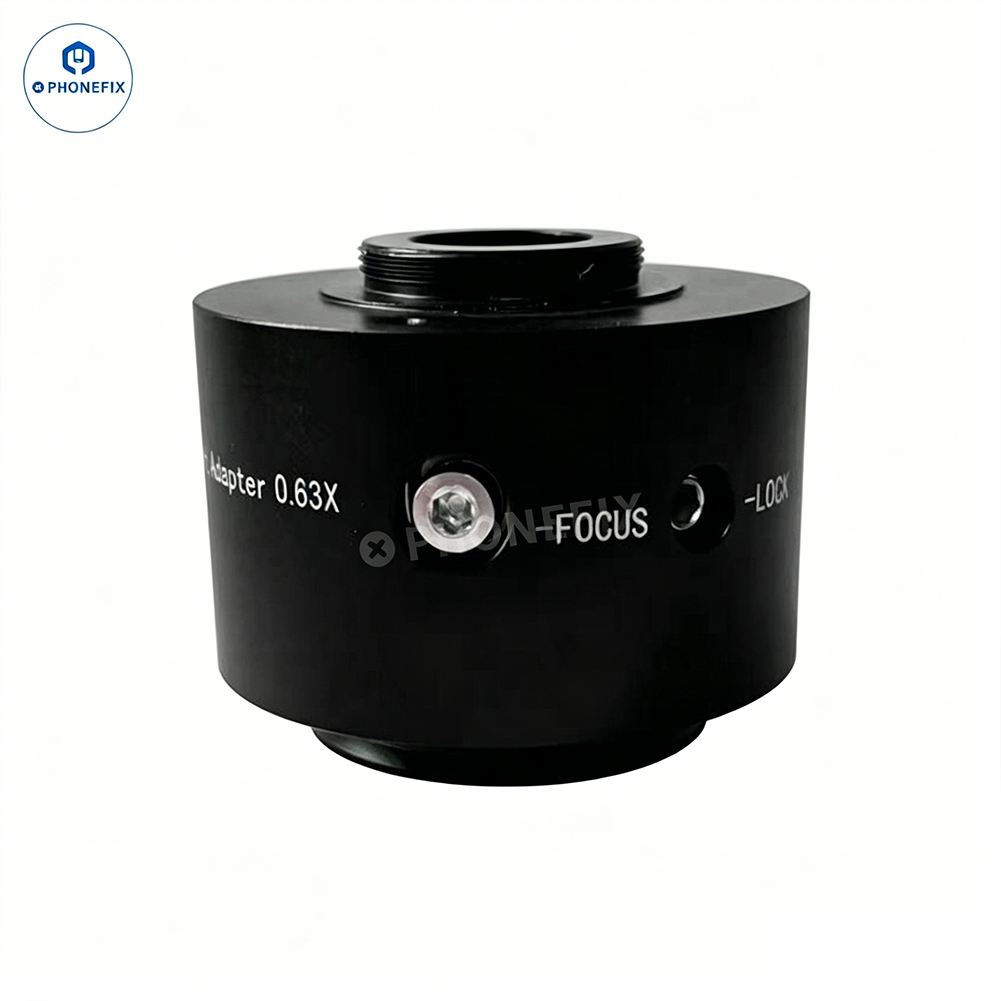

5. 0.63X C-mount lens: 0.63X magnification, 48mm lens height.
Please noted: This C-mount adapter has a 25mm mounting port and a 38mm/42mm (adapter ring) bottom mounting port. It features a zoom handwheel and a zoom lock button.
Features:
1. Designed specifically for stereo, metallurgical, and industrial microscopes to ensure efficient connection with industrial cameras.
2. Uses the universal C-Mount standard interface, ensuring compatibility with most industrial cameras, USB microscope cameras, and digital imaging devices.
3. Offers multiple magnification options (0.35X, 0.4X, 0.5X, 0.63X, 0.8X etc.) for flexible pairing based on sensor size and observation requirements.
4. Equipped with a focusing mechanism and a locking structure to ensure precise focus and stable mounting.
5. Utilizes high-quality optical lenses to ensure image brightness, clarity, and accurate color reproduction.
6. Comes standard with a 38mm-to-42mm adapter ring and an adjustment wrench for quick and easy installation.
7. Compatible with stereo microscopes, continuous zoom microscopes, metallurgical microscopes, and industrial inspection equipment.
| Model |
Magnification |
Height |
Weight |
Best For |
| 0.35X CTV |
0.35X |
35mm |
15g |
Wide field of view, ideal for 1/3" sensor cameras |
| 0.4X CTV |
0.4X |
41mm |
45g |
Balanced view, standard trinocular setup |
| 0.5X CTV |
0.5X |
40mm |
40g |
Standard view, ideal for 1/2" or 1/2.5" sensor cameras |
| 0.63X CTV |
0.63X |
48mm |
50g |
Higher magnification, suitable for 1/1.8" sensors |
| 0.8X CTV |
0.8X |
58mm |
80g |
Maximum details, perfect for larger 1" camera sensors |
Package Contents
C-Mount Adapter × 1
Adjustment Wrench × 1
38mm to 42mm Adapter Ring × 1
