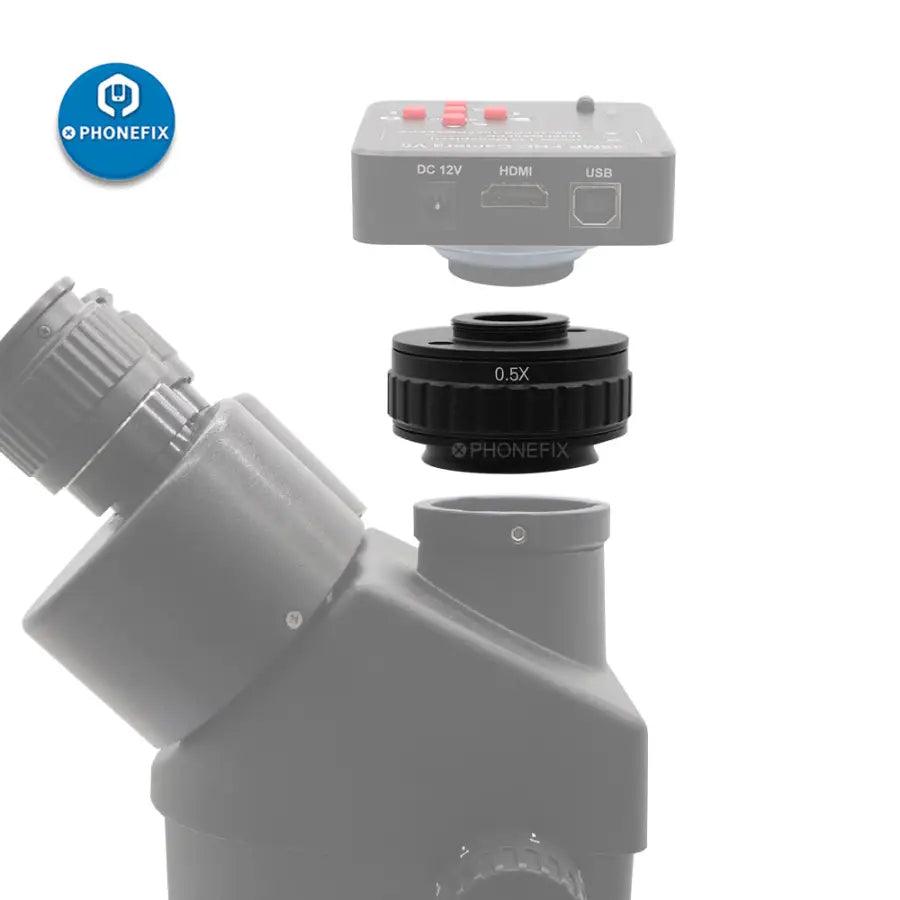

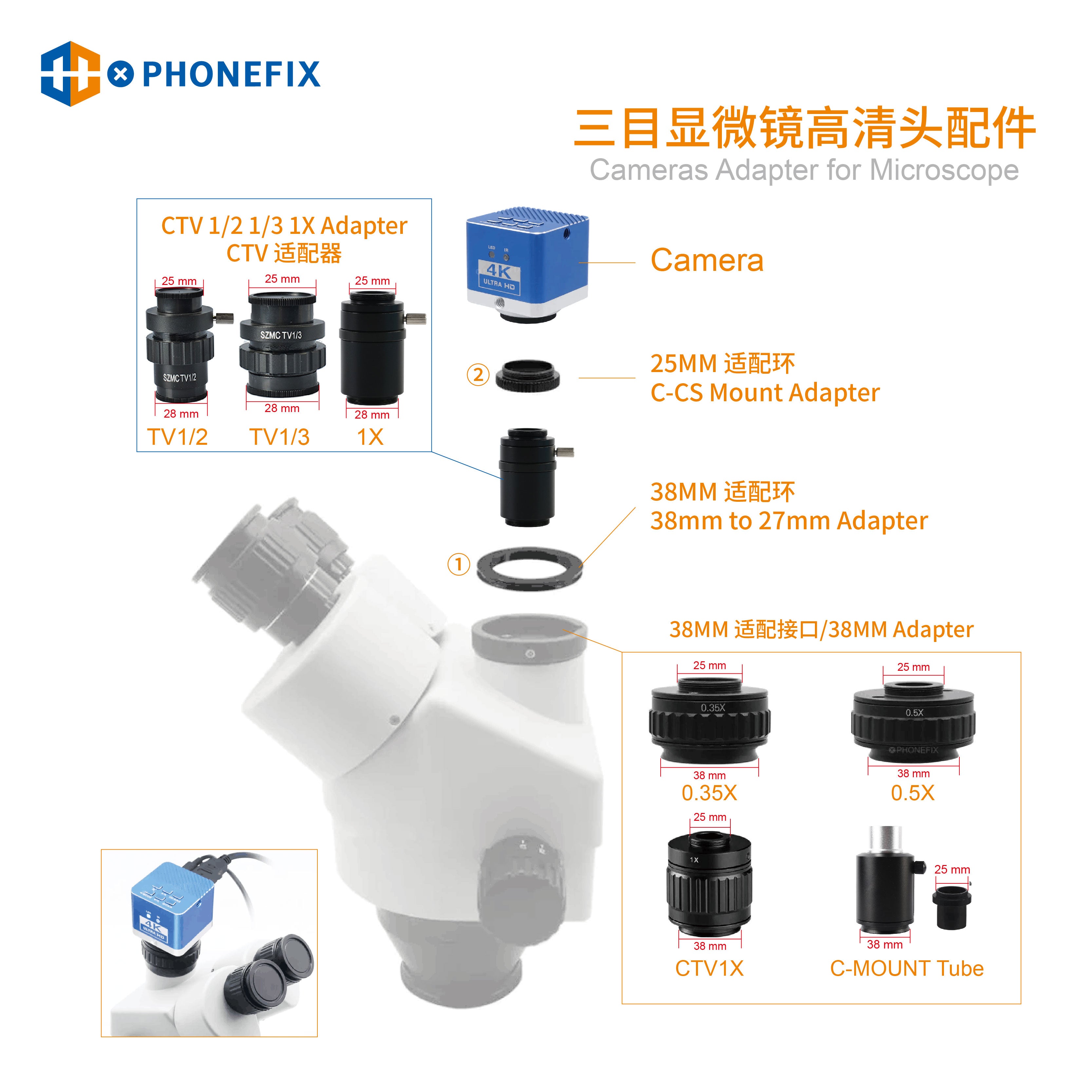

CTV 0.3X 0.35X 0.4X 0.5X 1X CTV Lens 38mm C-mount Adpater for Trinocular Stereo Microscope Camera Port. Used to connect HDMI cameras and trinocular microscopes, adjusting focus, zoom, and working distance. Suitable for repairing mobile phones.
Specification:

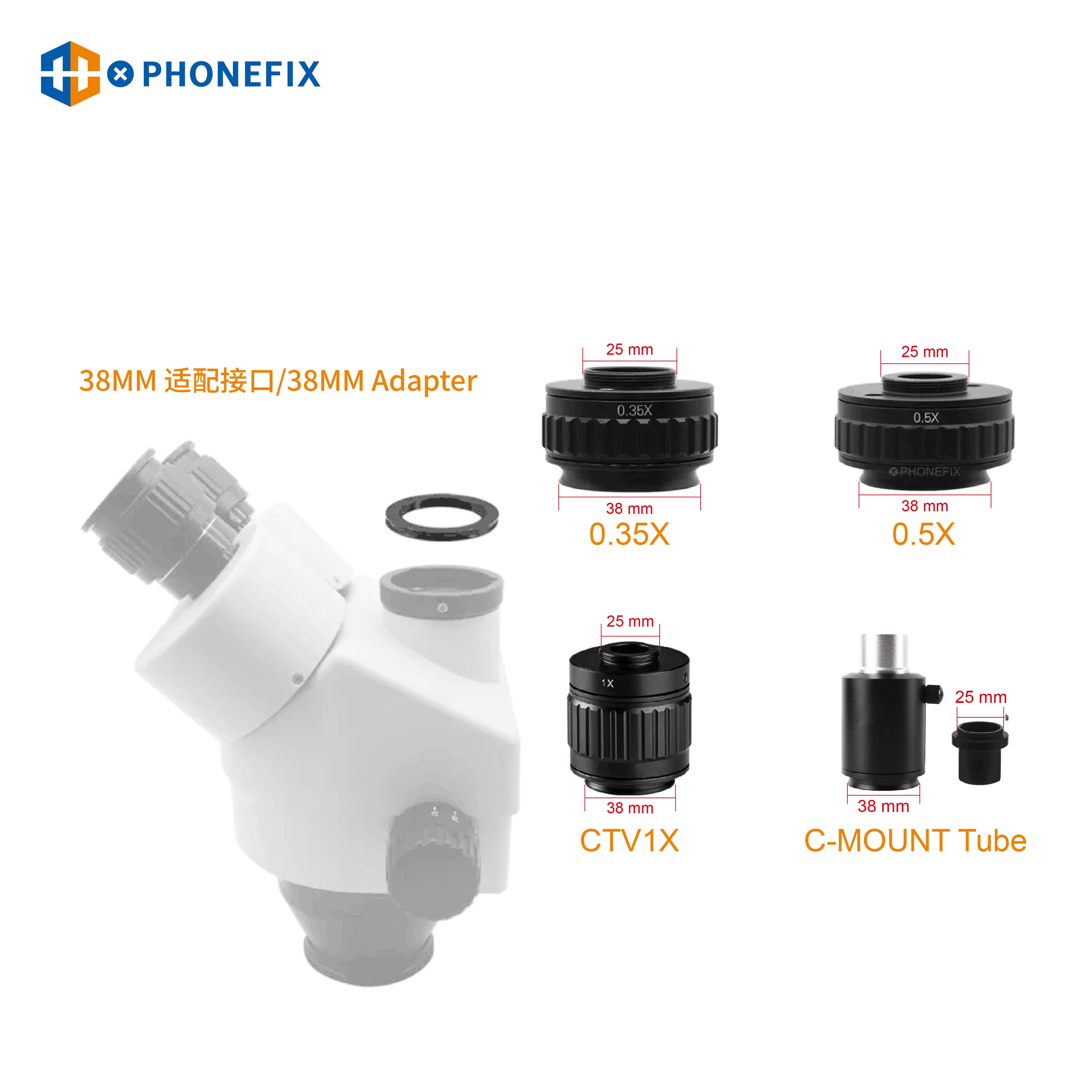

This is C- Mount adapter with M38 port(One end is for C-mount(CS-mount) (25mm), the other end is 38mm for most microscope trinocular port.
This adapter is for c-mount camera assemble
The C mount adapter is design for Camera sensor size: 1/2.5", 1/2.8", 1/3" / 1/2" inch

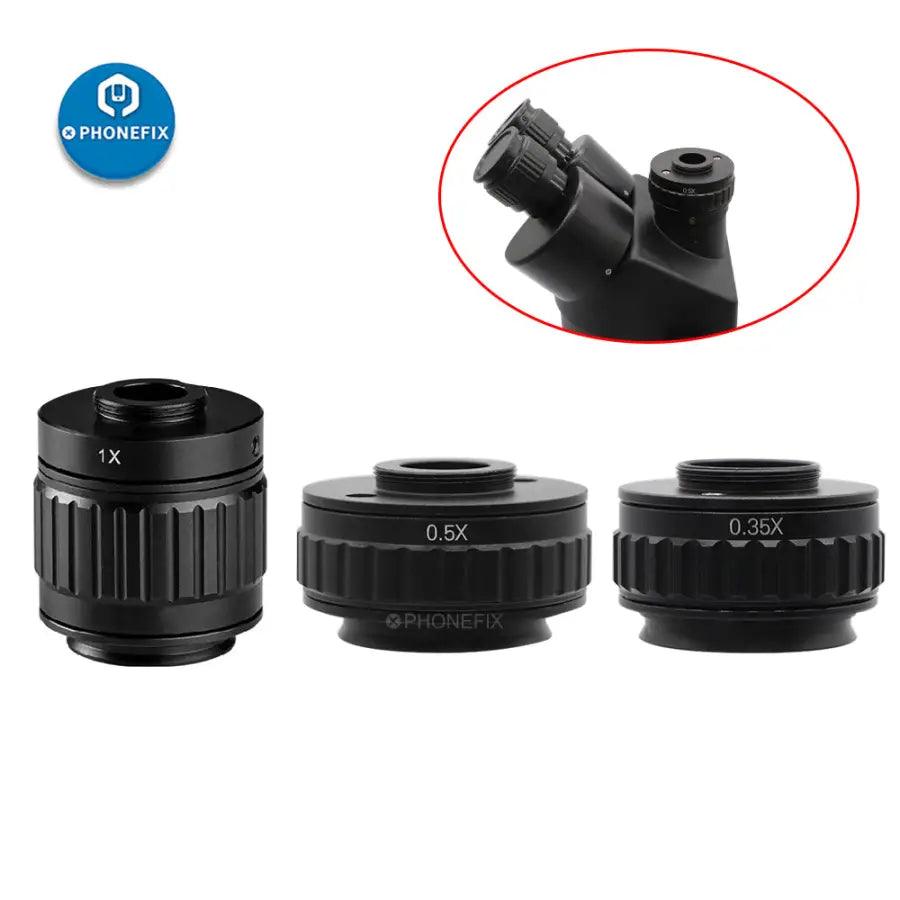

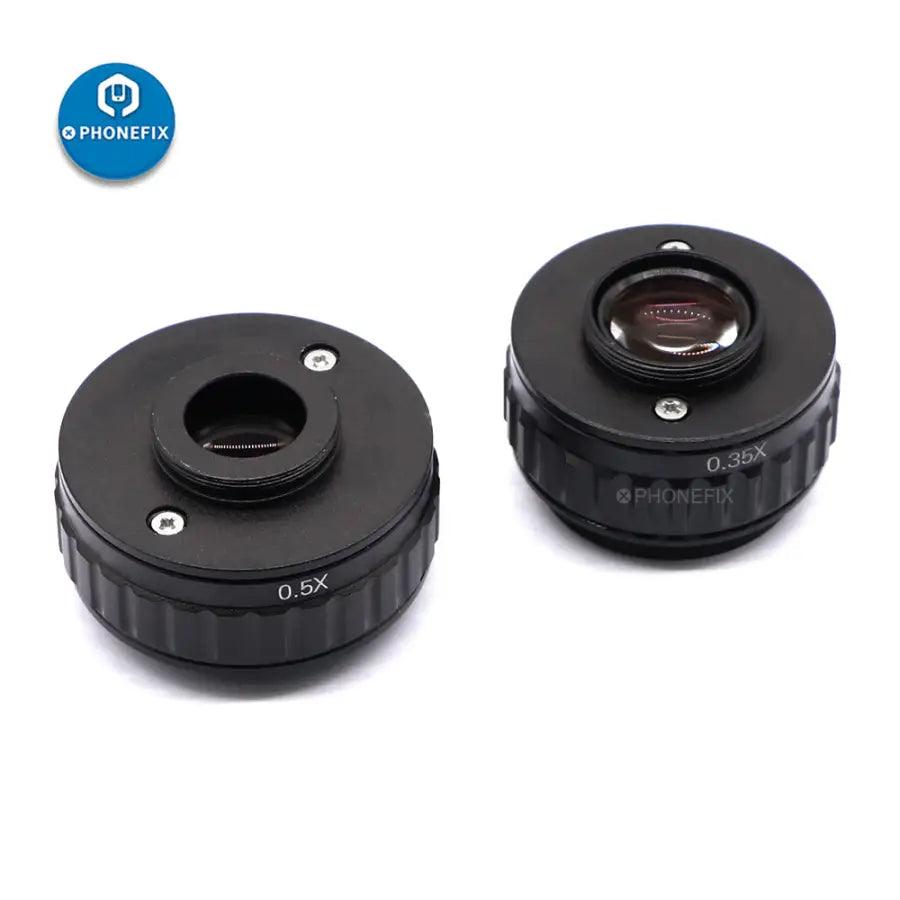

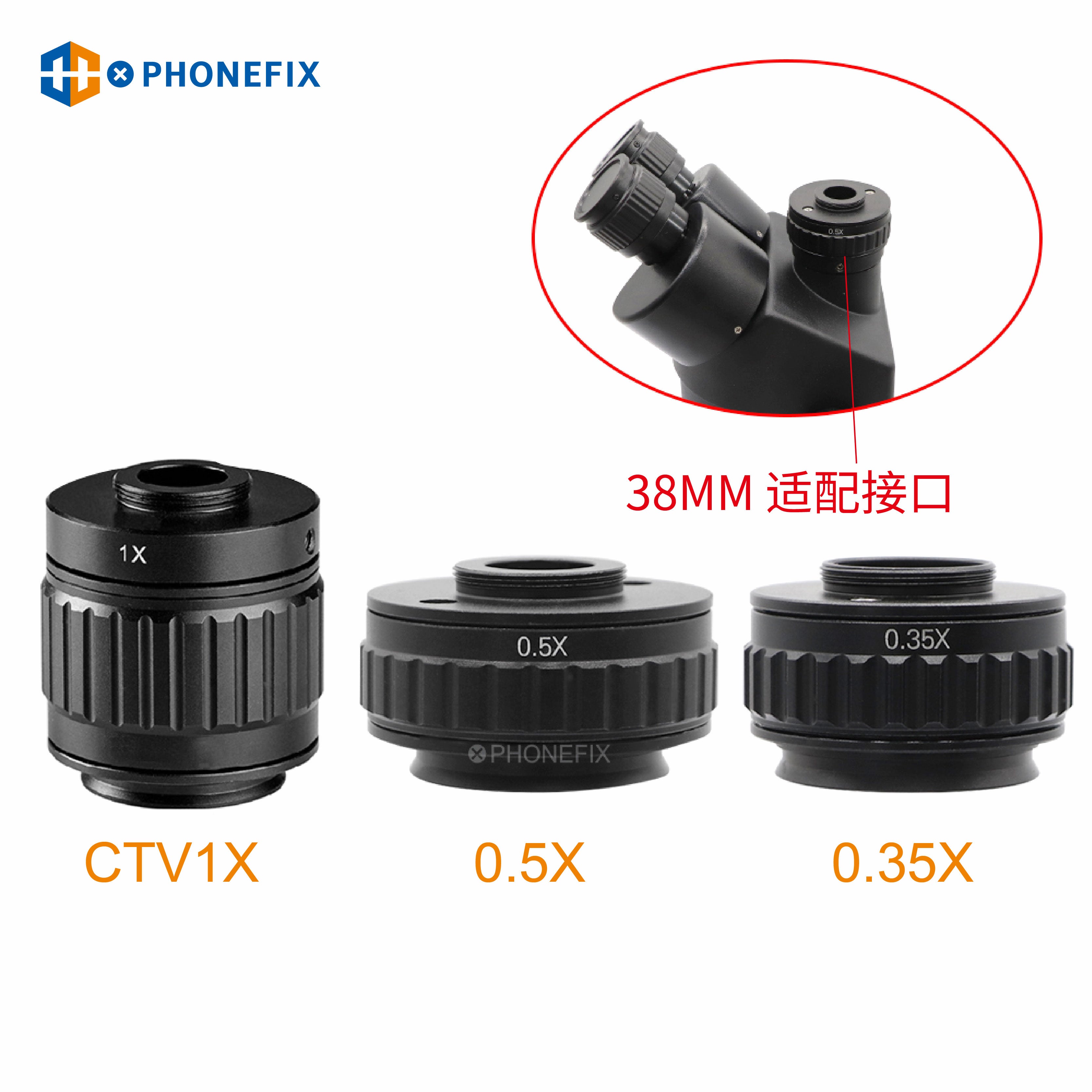

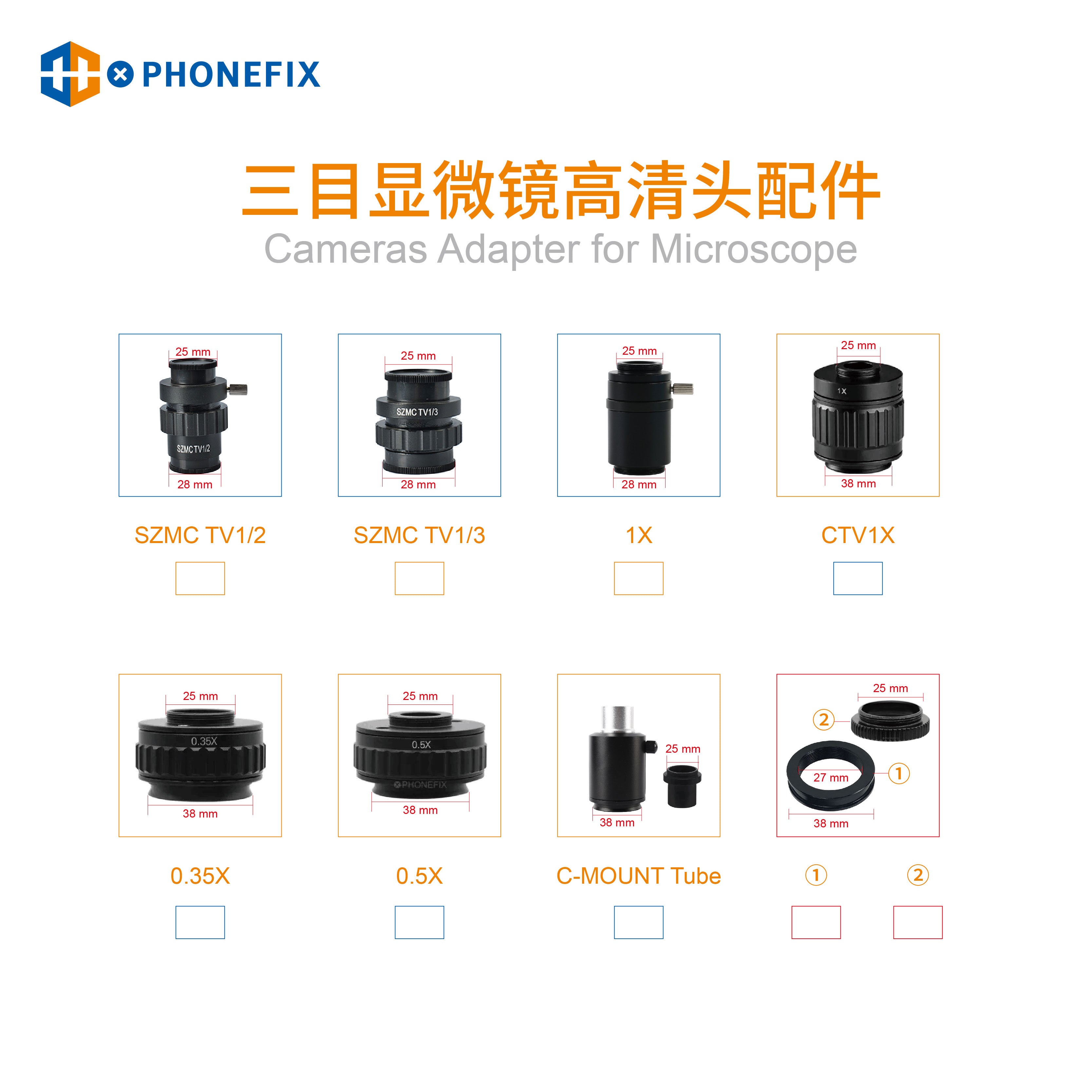

Magnification(optional): 1X , 0.5X , 0.35X, 0.3X, 0.4X.
Option Type:
1X: standard working distance, standard magnificaiton.
0.5X: Large working distance, less magnification
0.35X: Largest wroking distance, least magnification
0.3X CTV C-mount adapter:
Installation Diameter: 25mm
Installation Method: Bottom 38mm Direct-insert
Lens Magnification: 0.3X
Lens Height: 35mm
Lens Width: 50mm

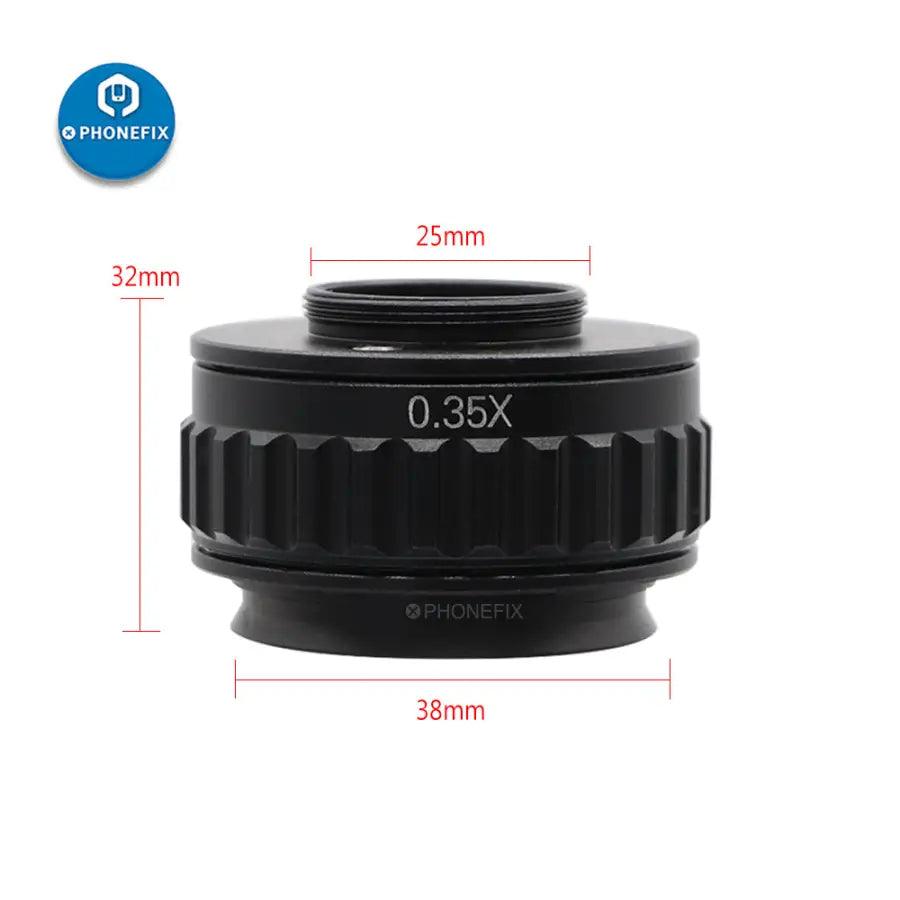

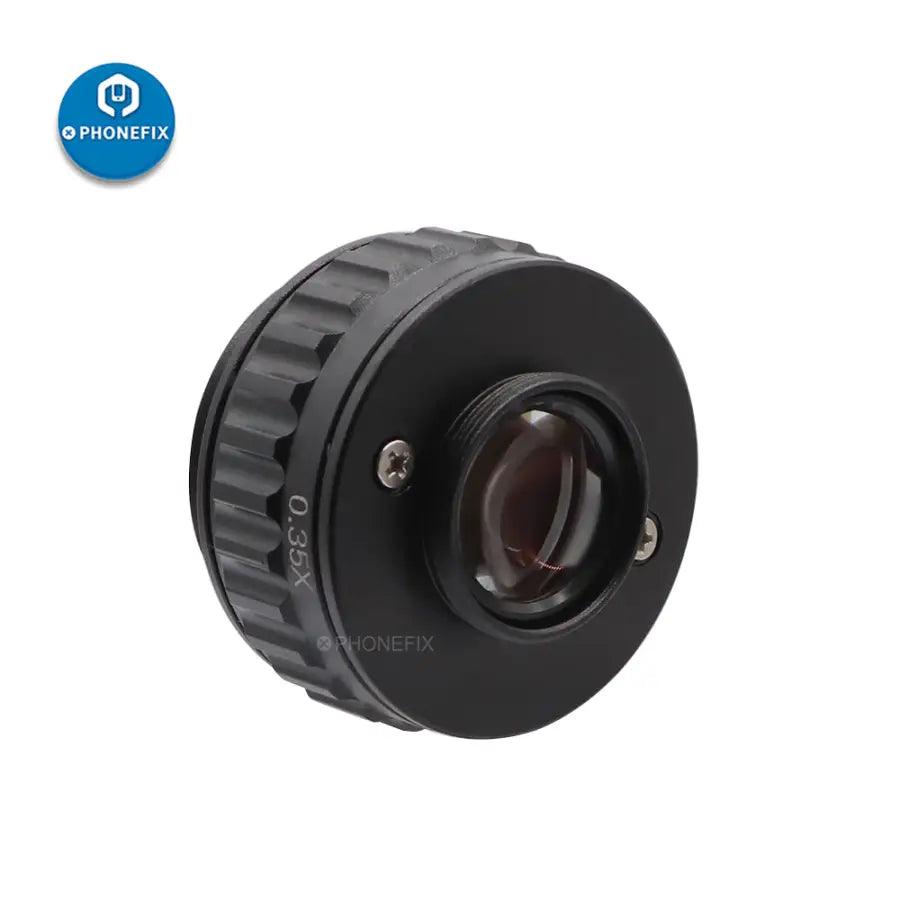

0.35X CTV C-mount adapter:
Installation Diameter: 25mm
Installation Method: Bottom 38mm Direct-insert
Lens Magnification: 0.35X
Lens Height: 32mm
Lens Width: 52mm
0.4X CTV C-mount adapter:
Installation Diameter: 25mm
Installation Method: Bottom 38mm Direct-insert
Lens Magnification: 0.4X
Lens Height: 40mm
Lens Width: 50mm

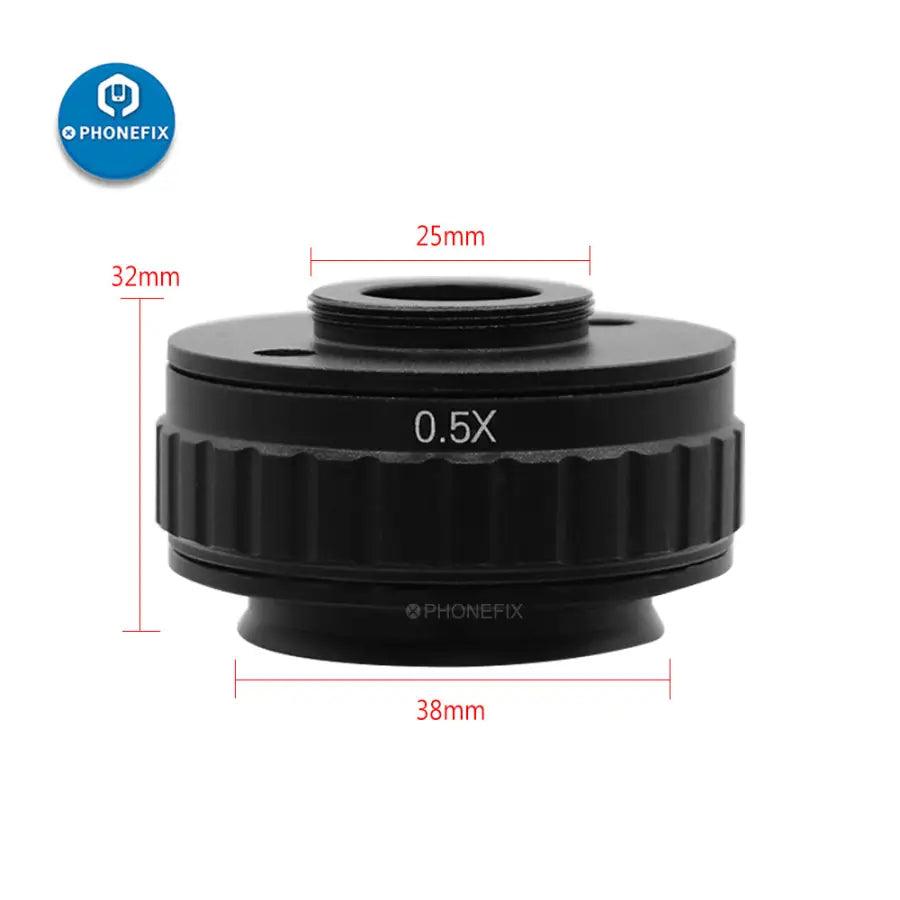

0.5X CTV C-mount adapter:
Mount Diameter: 25mm
Installation Method: Bottom 38mm Direct-insert
Lens Magnification:0.5X
Lens Height: 40mm
Lens Width: 53mm

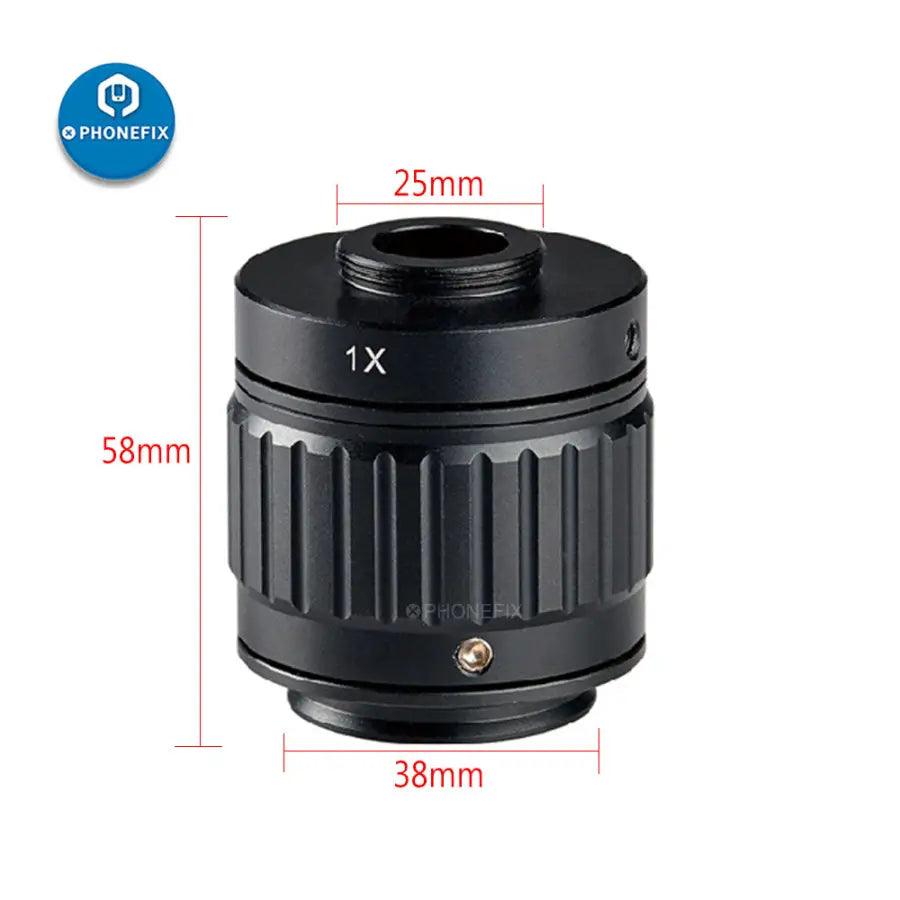

1X CTV C-mount adapter:
Installation Diameter: 25mm
Installation Method: Lower 38mm Direct-Plug
Lens Magnification: 1X
Lens Height: 60mm
Lens Width: 54mm
