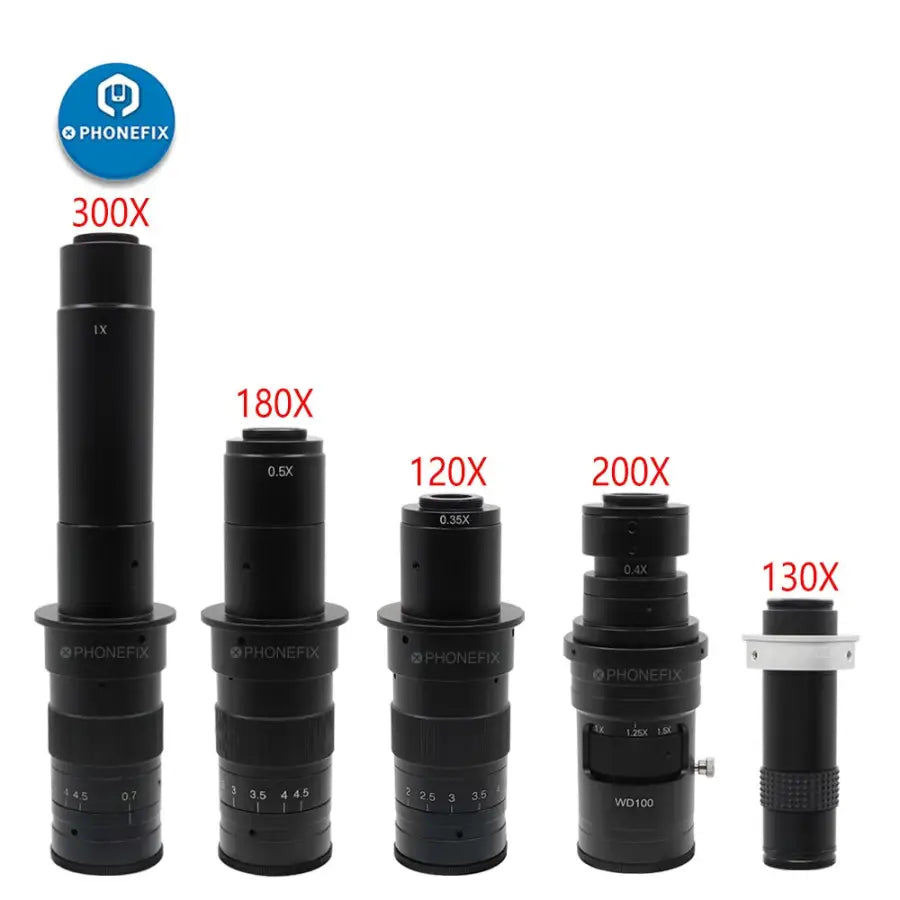

120X 130X 180X 200X 300X adjustable amplification C-Mount Lens adapter for Industry Video Microscope HDMI VGA USB Camera. Continuous Zoom C-MOUNT Lens for High working distance and large observation area, used for Industry Video Microscope Camera.
Zoom C-mount Glass Lens Adapter for Industry Microscope Camera
This adapter fits XDS-0745 120X 180X 300X Zoom C-mount Lens
120X(Use magnification factor of 120X,Increase working view)
180X(Use magnification factor of 180X,Increase working view)
300X(Use magnification factor of 300X,Reduce working view,Increase magnification factor)
130X Continuous Zoom C-mount Lens,Work distance 30mm-570mm.High working distance and large observation area,for phone PCB SMD Soldering
200X FHD 0.7X-5X Zoom C-mount Lens,XDS-0745 180X upgraded version, better definition,Increased working distance to 100mm-175mm, very suitable for phone PCB SMD Soldering

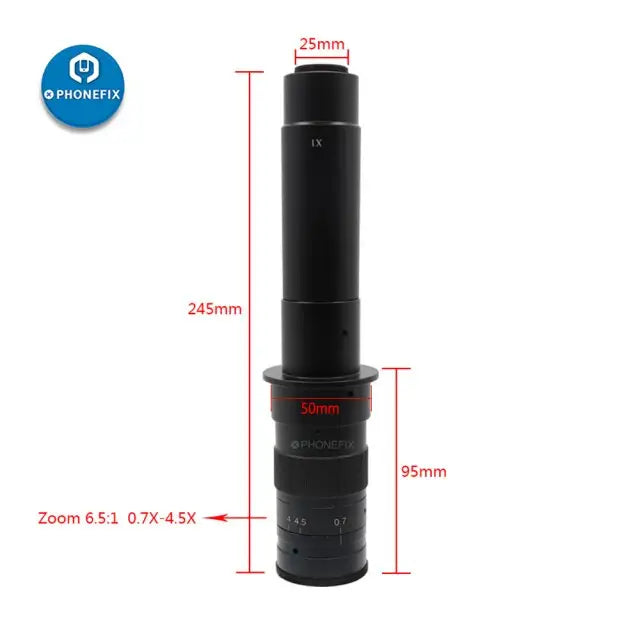

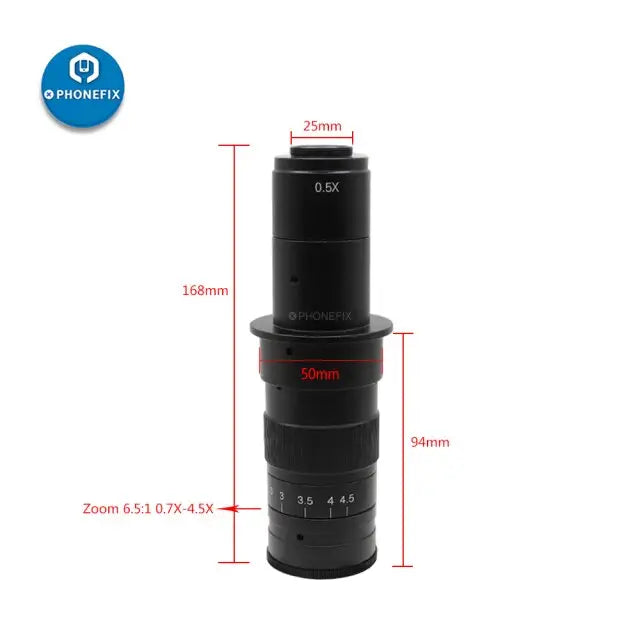

120x 180x 300x Feature:
Working distance: 95mm
zoom c-mount Lens
0.5X/1X/0.35X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 120X 180X or 300X on the display)
Size: 168mm(L) * 50mm(DIA)
130x Feature:
Zoom ratio: 15: 1
Magnification Power by :1X~120X
Material vision: 2.4mm-36mm
Working distance: 55mm-570mm
Lens length: 110mm
Interface size: ¢ 28mm

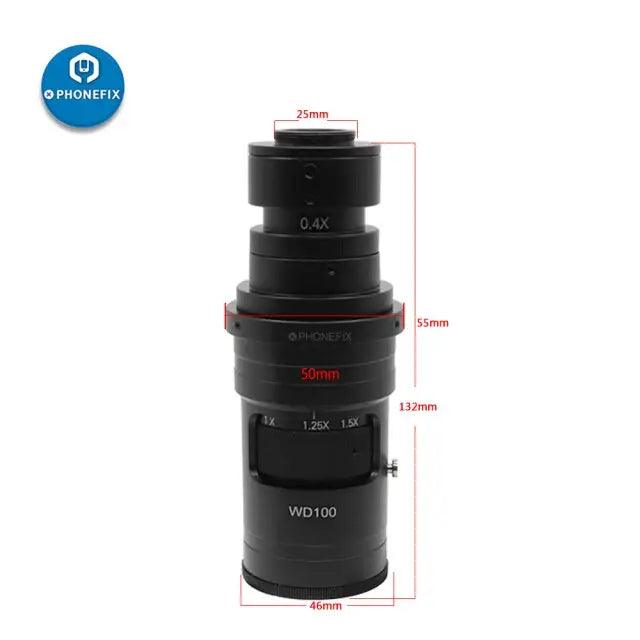

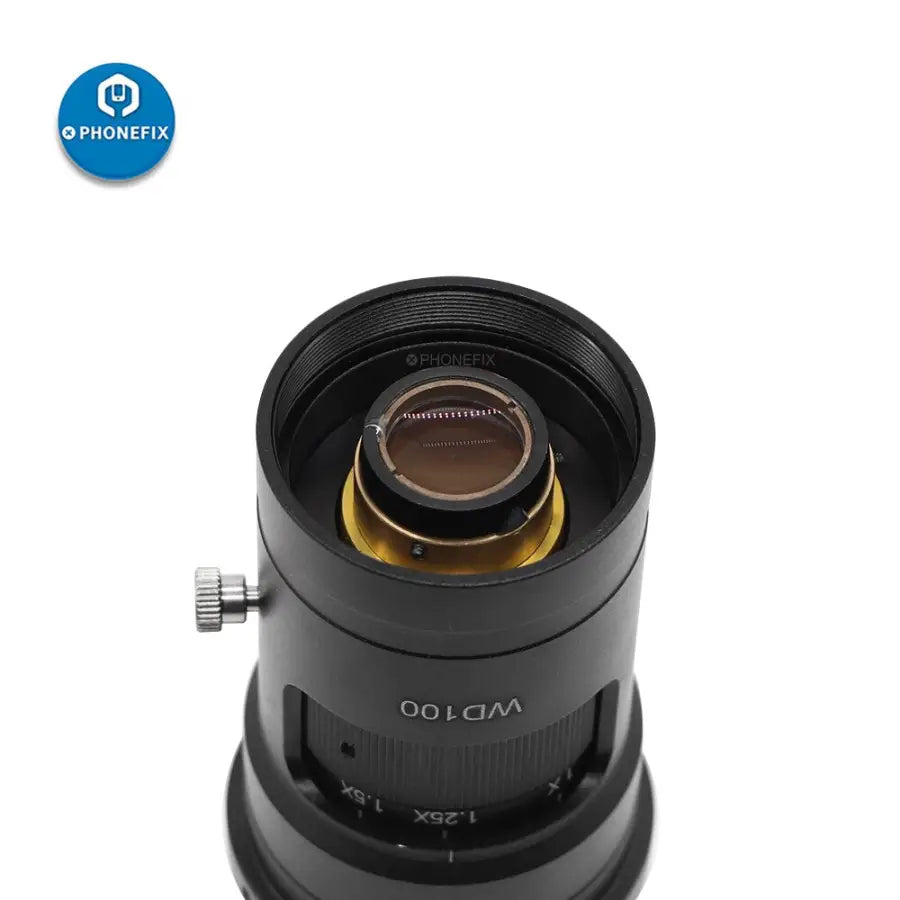

200x Feature:
Working distance:100mm -175mm
Connector:C mount
Zoom:continouasly variable zoom
Objective Magnification:0.7X - 5X(about 10 - 200X on the display)
Eyepiece lens adapter:0.4X
Fixed position:50mm
Locking:0.7X - 5X Locking
Auxiliary Objective Lens:0.35X, 0.5X, 2X (optional)
Size:132mm(L) * 55mm(DIA).
