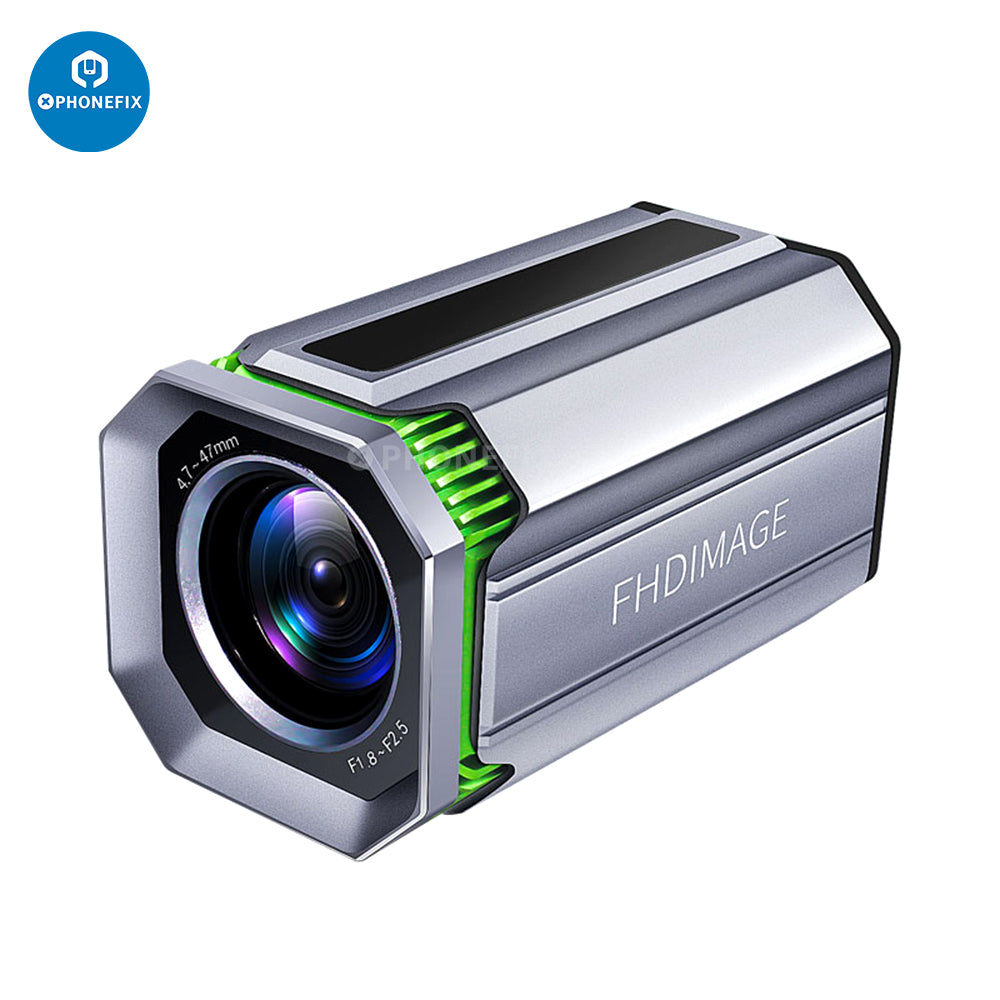

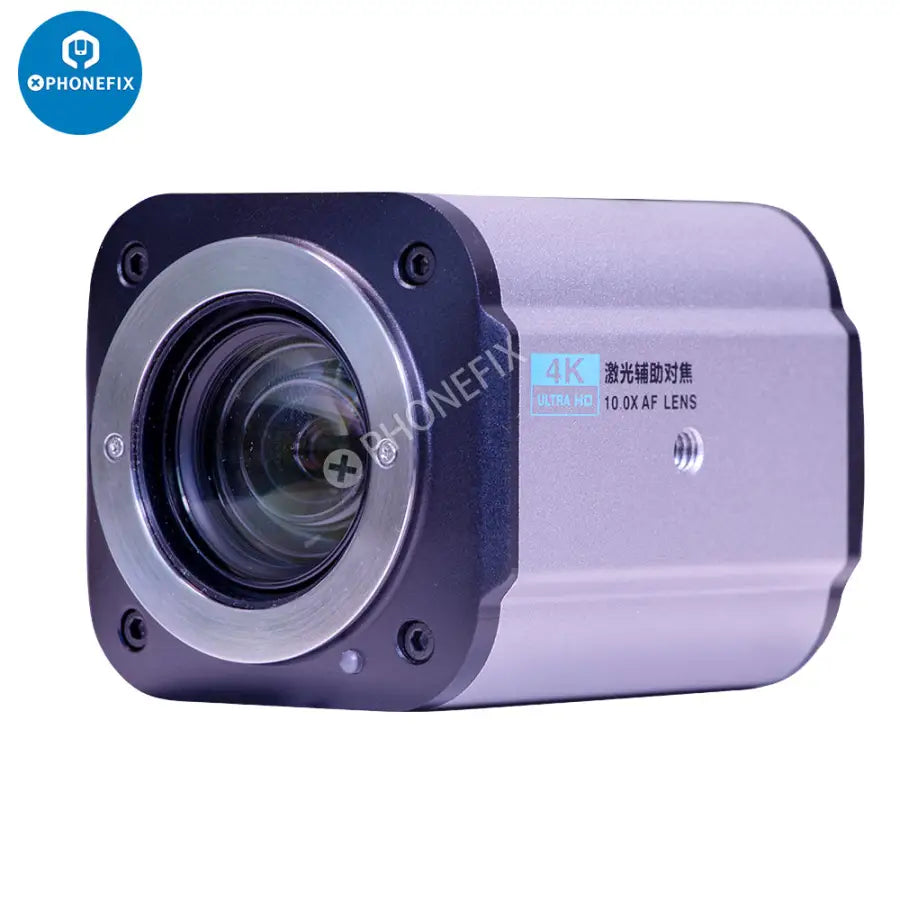

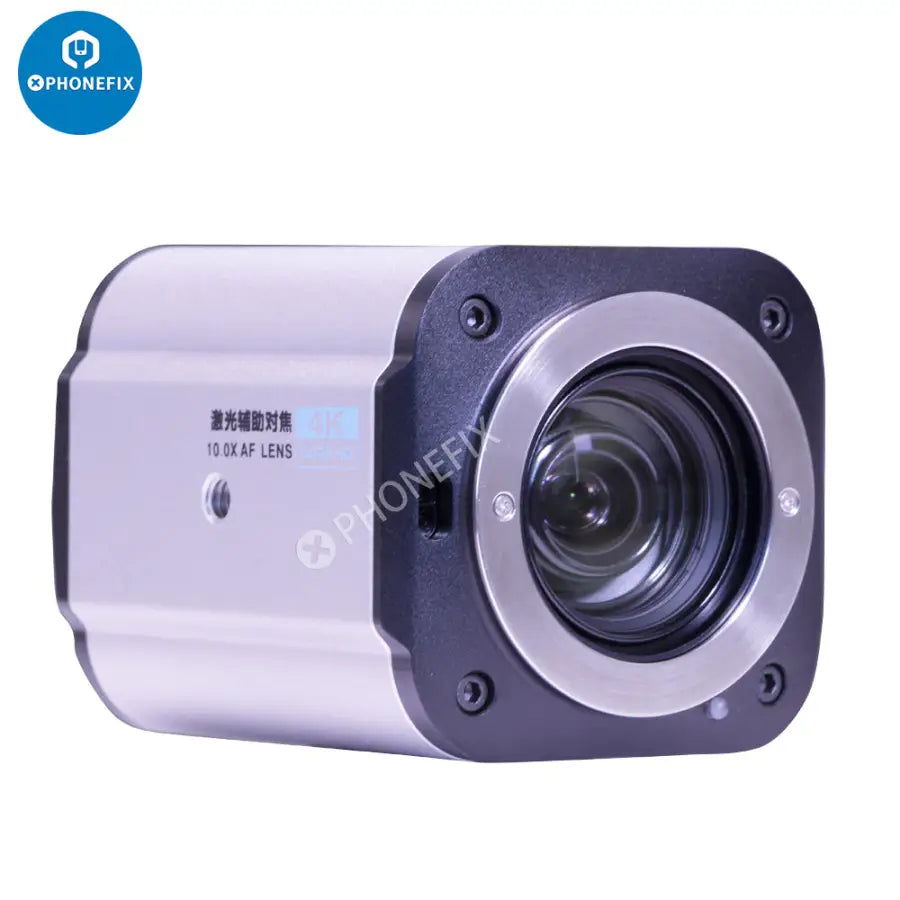

10X Optical Zoom Auto Focus 1080P USB HDMI Dual Output All-in-one Camera Live Broadcast Digital Camera Module Webcam for Youtube Meta Ins Tiktok PC Laptop Notebook Computer Streaming Supported USB 2.0. 10X Auto Focus 1080P Full HD live streaming camera
Features:
Supports 10x optical zoom, 12x digital magnification
Exposure support full auto, shutter priority, aperture priority, manual
White balance support auto white balance(3000K ~ 7500K), auto-tracking white balance (1500K~10,500K), manual white balance, one-touch white balance mode
Focusing mode support auto mode, manual mode, one-touch mode.
Support Chinese and English menu, day and night switch
Other function: -Gamma, mirror, flip, electronic amplification, anti-flicker, wide dynamic
De-noise: 2D&3D noise reduction
Zoom tracking mode: Auto mode, Zoom speed supports 8 kinds of zoom speed, Lens reset
Video output support 1920x1080p@50,60; 920x1080p@25,30;1280x720p@50,60; 1280x720p@25,30
Optical zoom 10x, f= 4.32 mm to 40.9 mm (F 1.76 to F 3.0)
3D De-noise
After the camera's 3D noise reduction function turns on, the image noise will be significantly reduced, and the details of the bright and dark parts of the image will be clearer.
Noise reduction levels are divided into automatic and 1-5 levels.
Image output can be set to horizontal, mirror, rotation display.

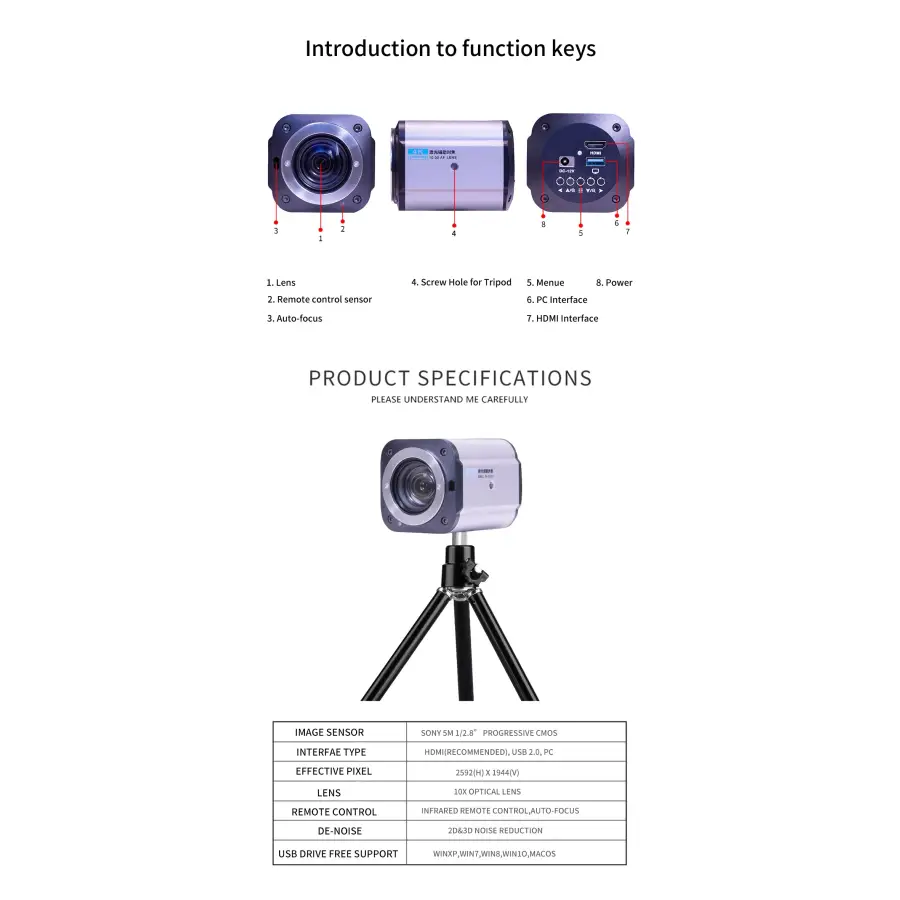

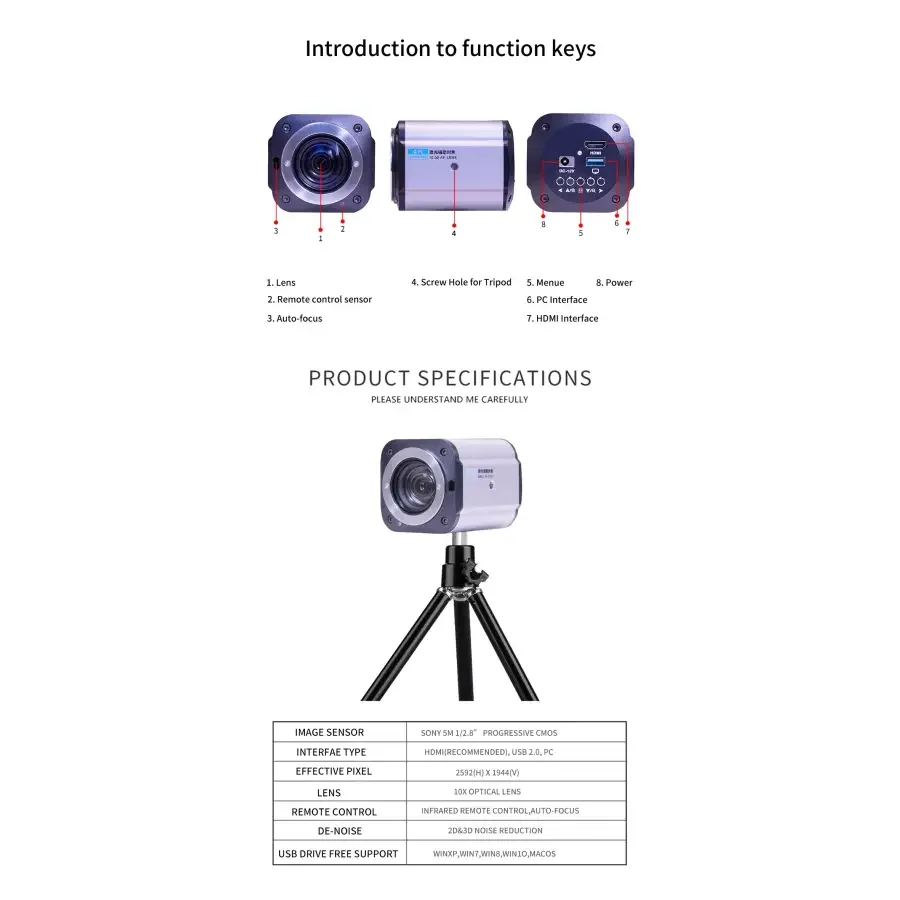

Specification

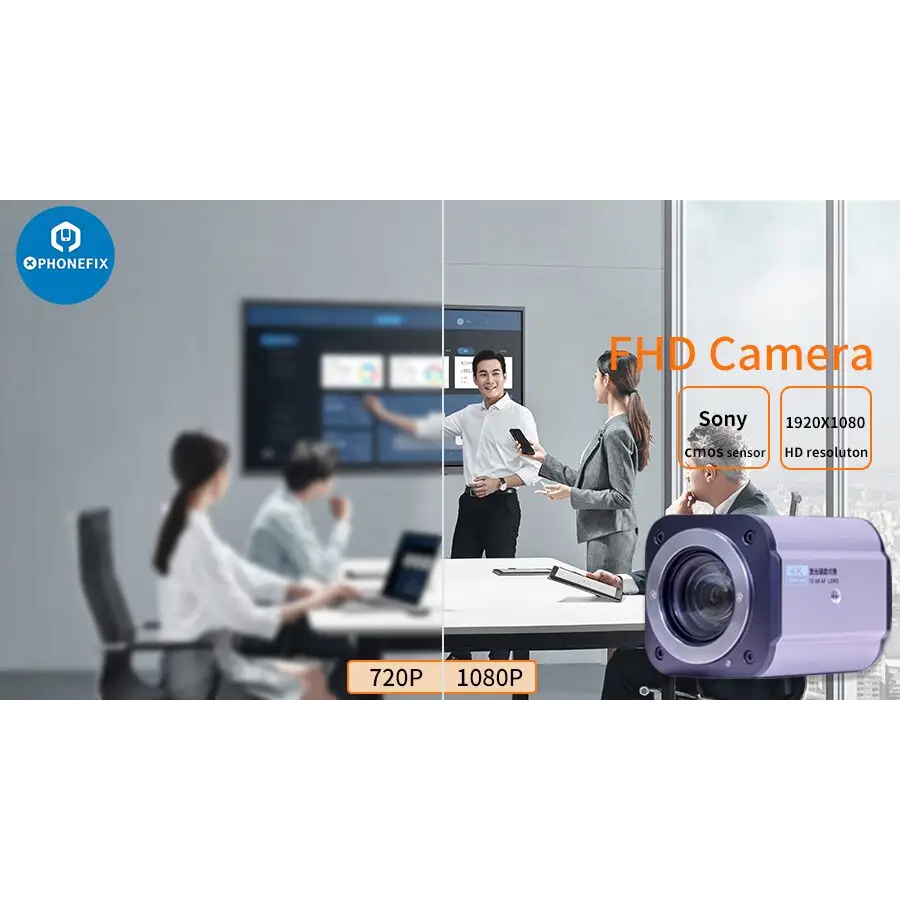

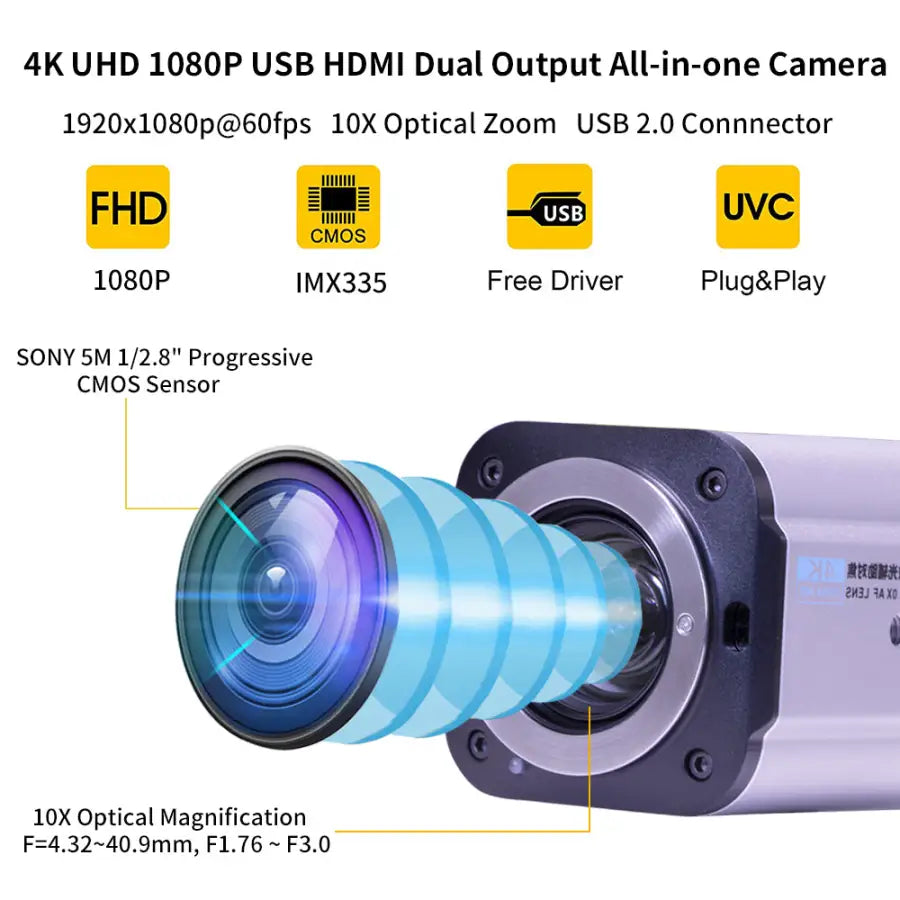

Image sensor: SONY 5M 1/2.8” Progressive CMOS (IMX335LQN-C)
Exposure: Auto/Shutter Priority/Aperture Priority/Brightness/Manual
Auto Iris: Auto/Manual
Electronic shutter: NTSC: 1/30~1/10000, PAL: 1/25~1/10000
White balance: Auto (1,800K ~ 10,000K) / Single Press / Indoor / Outdoor / Manual
UVC protocol: UVC1.0 standard protocols and customizable extensions

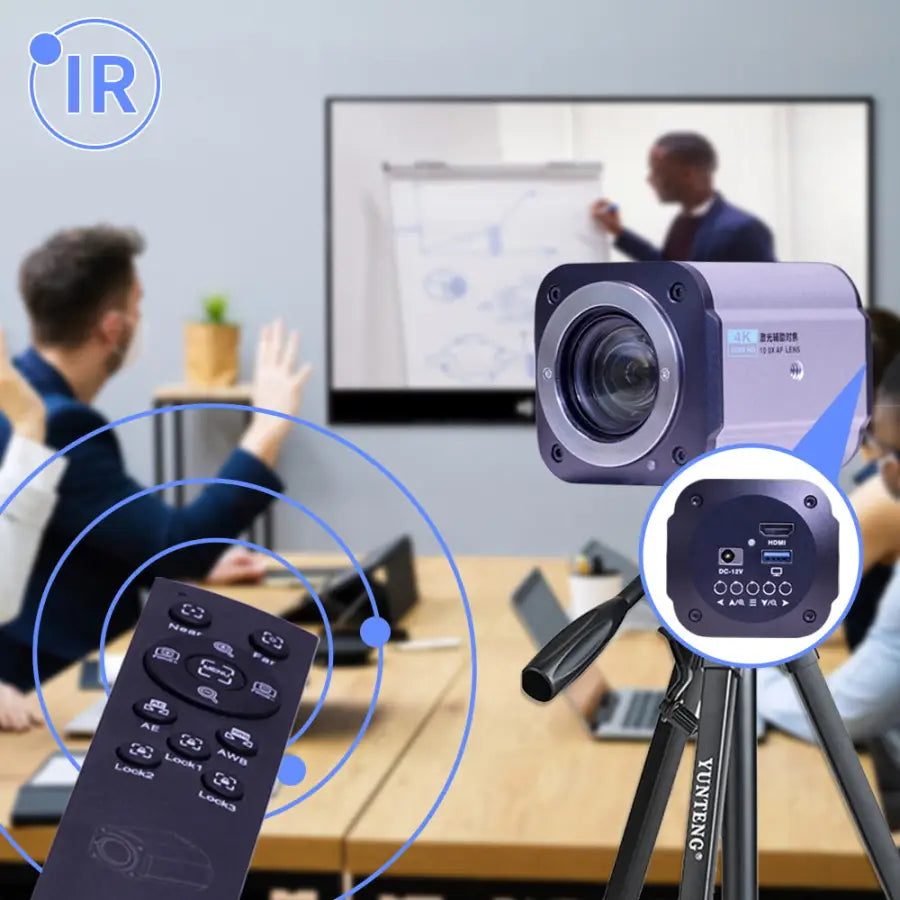

Remote control: Infrared remote control
Operating temperature: -10℃ ~ 50℃

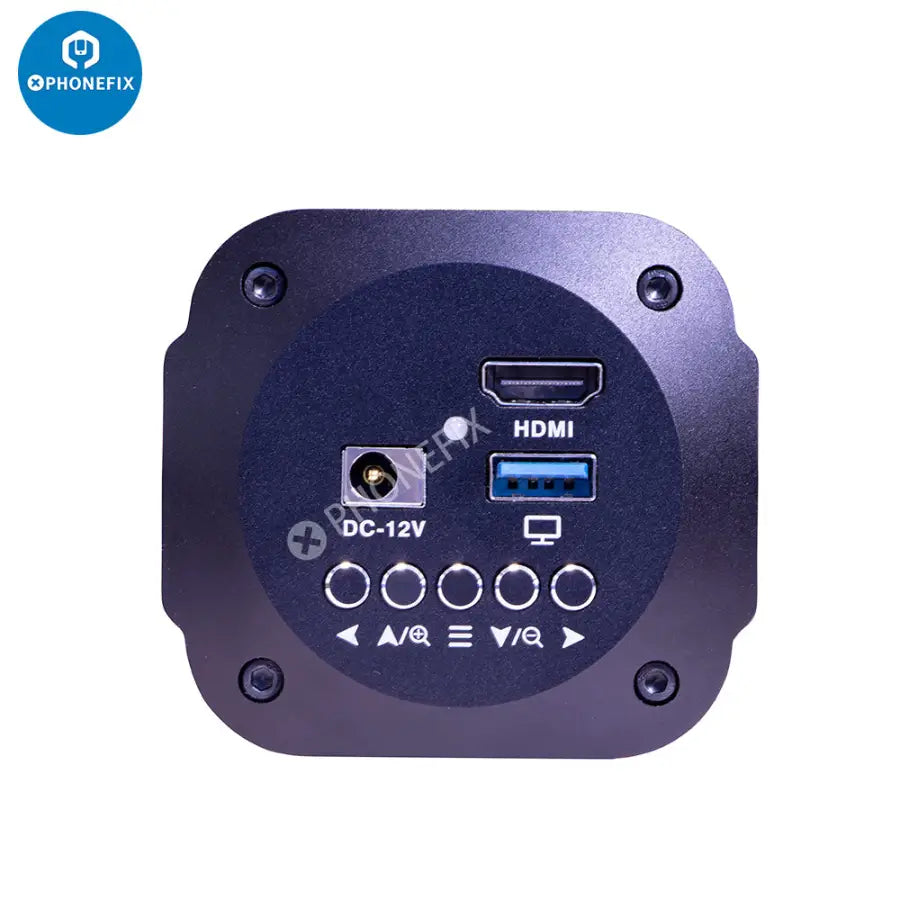

Power: 12V DC, Max 5W
Size: 71.8(D) x 45(W) X 48(H) mm
Sensor size: 2.0um x2.0um
Scan system: 4:3/16:9 progressive scanning
Synchronization System: Inner Synchronization
Effective pixel: 2592(H) x 1944(V)
Minimum Illumination: 1Lux
Horizontal Resolution: 1100TVL
Optic:
Lens: 10X optical magnification, F=4.32~40.9mm, F1.76 ~ F3.0
Zoom range: 10x optical magnification
Zoom speed: Wide~Tel :3.0S Tel~Wide :2.6S
Focus: Near/Far, Auto/Manual/Semi-Auto (One Touch)
Focus Range: 30cm (wide angle), 1.5m (close angle)
Field of view : Horizontal: 67.5 degrees (wide angle), 7.6 degrees (close angle)
Image output

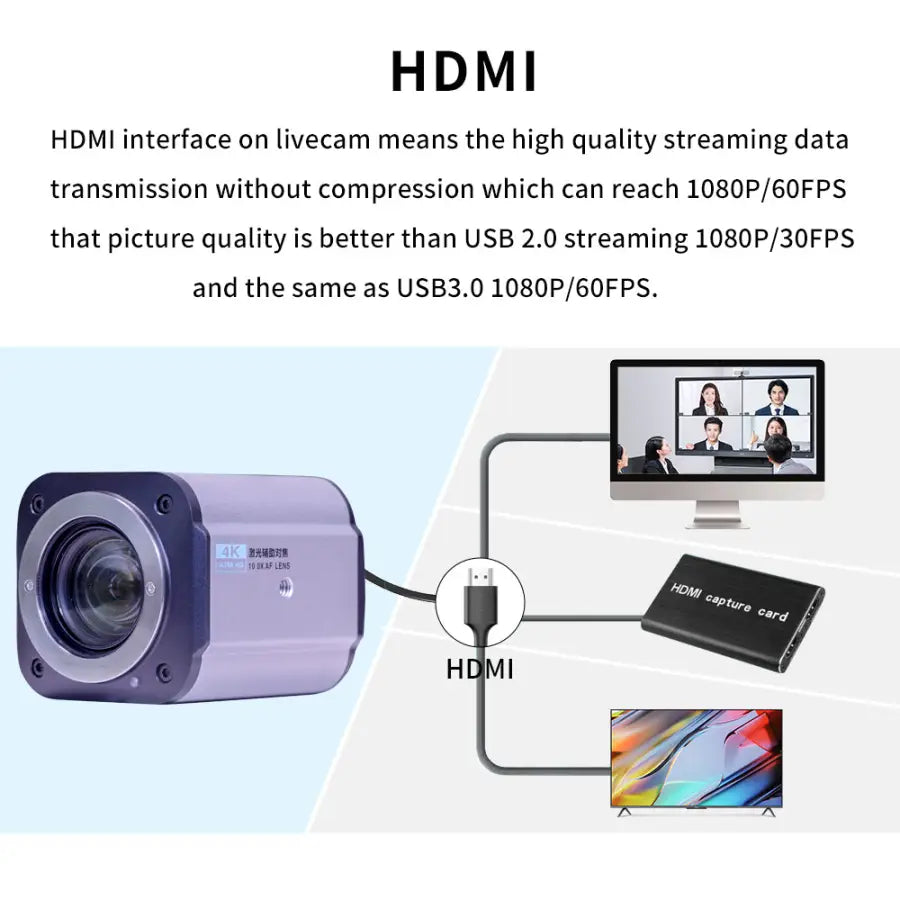

Digital Output (HDMI): 1920x1080p@50,60; 1920x1080p@25,30; 1280x720p@50,60; 1280x720p@25,30

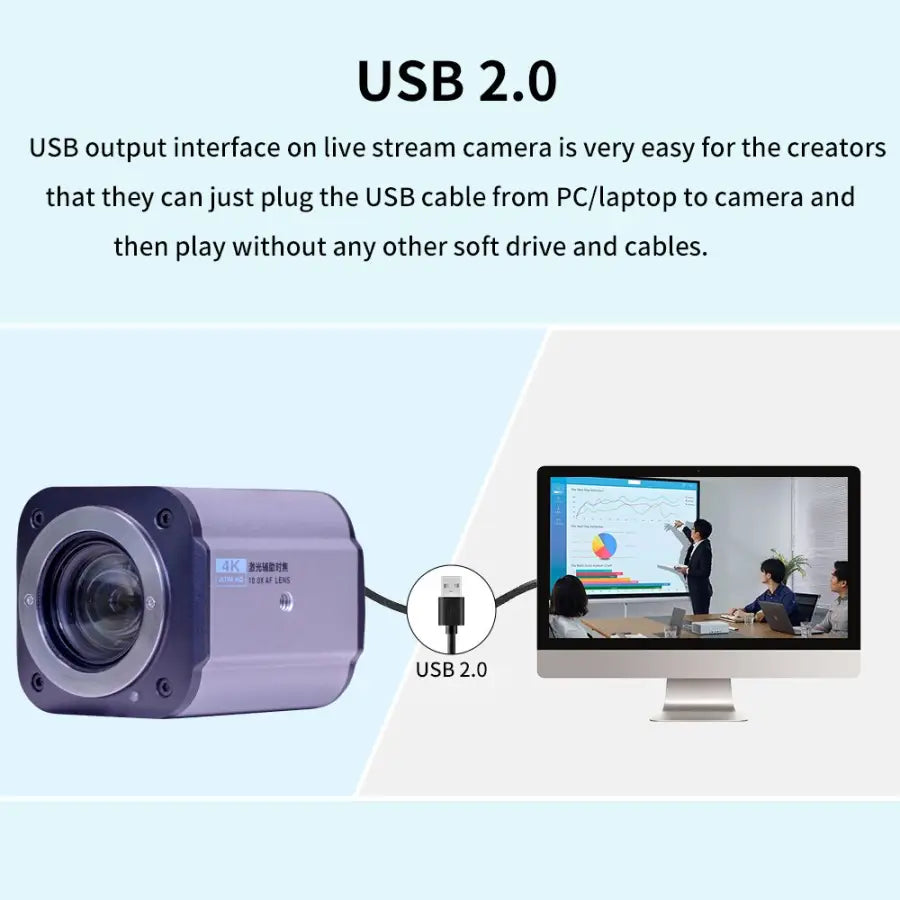

USB 2.0 MJPG, YUY2 format: MJPG: 1920x1080@30: 1280x960@30; 1280x720@30; 1024x768@30; 800x600@30; 640x480@30; 320x240@30.
Vertical screen:1080x1920@30; 720x1280@30
YUY2: 1920x1080@5; 1280x960@10; 1280x720@12; 1024x768@15; 800x600@20; 640x480@30; 320x240@30.

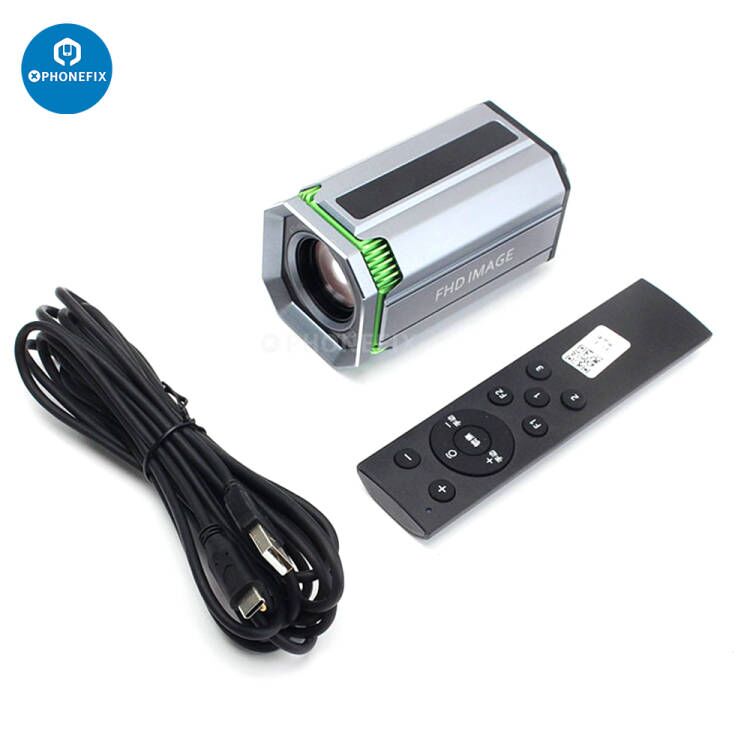

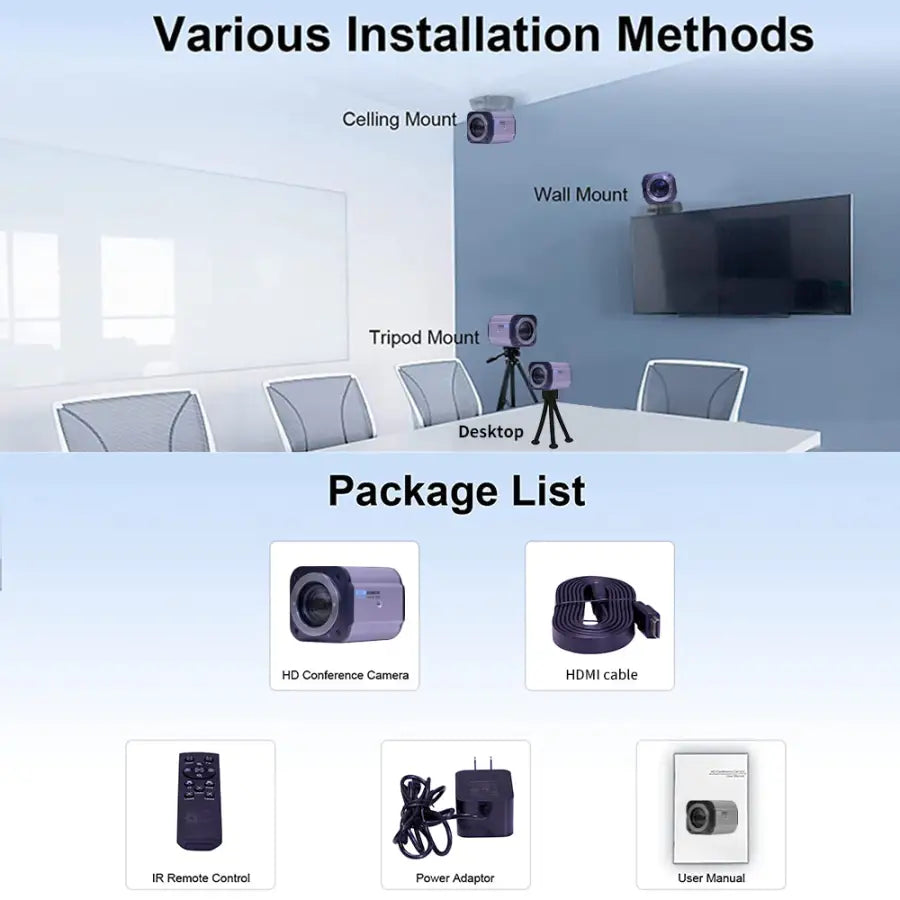

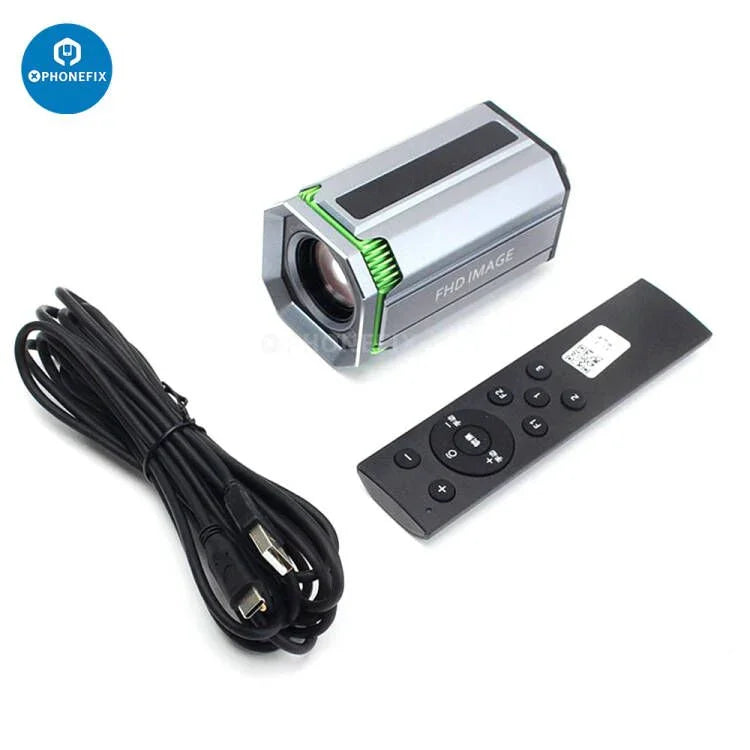

Package Include:
1 x Camera Module

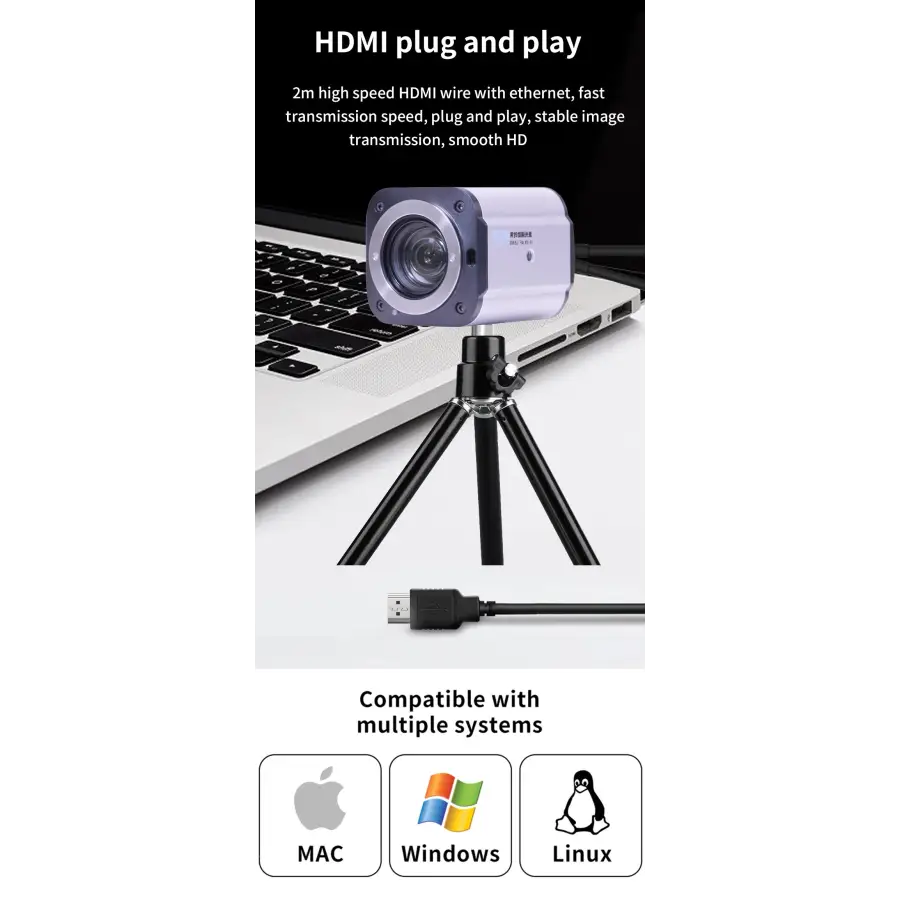

1 x 2M HDMI Cable
1 x Remote Control
1 x Power Supply
1 x User Manual
