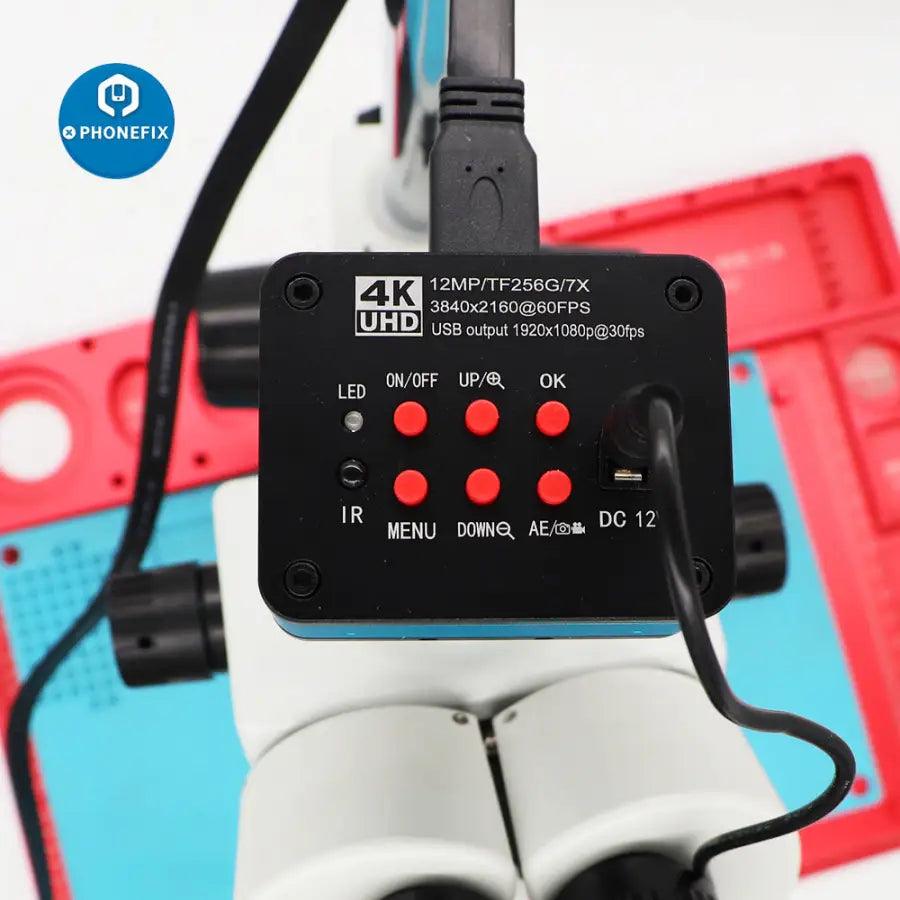

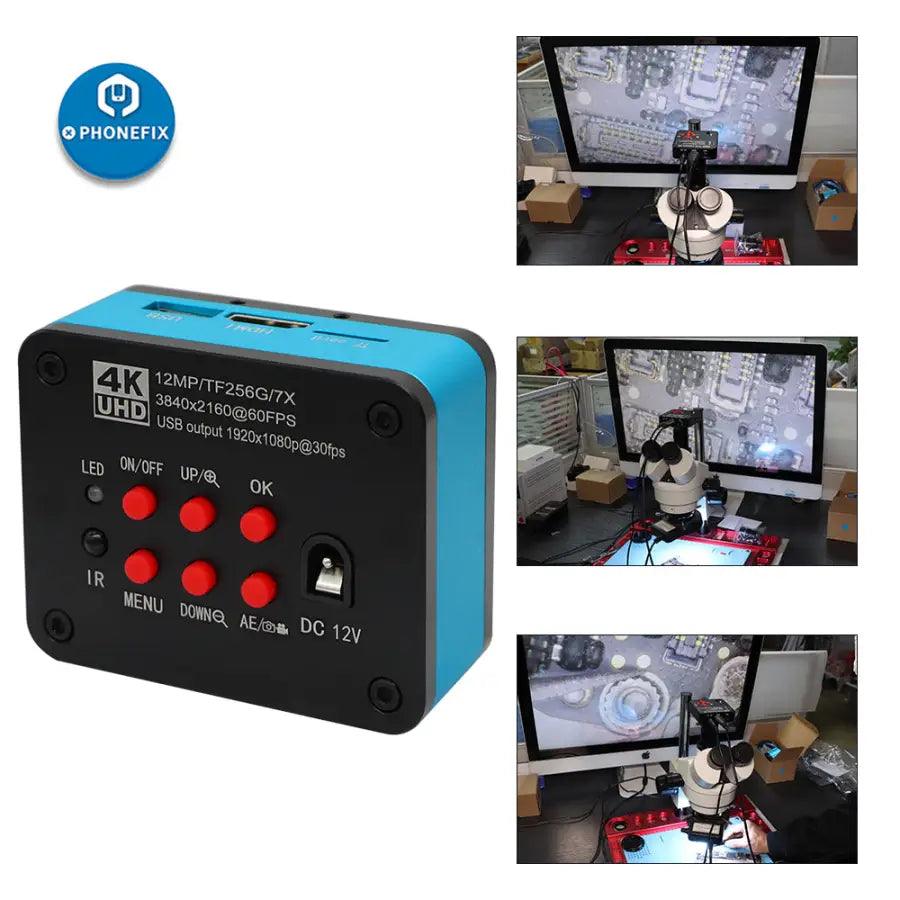

Sony ultra HD 4K 12MP 1080P industrial digital microscope camera for mobile phone motherboard soldering repair tool, 720P 1080P 4K mode microscope camera, the resolution is 3840 x 2160 pixels, can choose, Adopt standard HDMI interface, It can be used as education, scientific research, laboratory, demonstration, maintenance and inspection, Use HDMI splitter to project to a large FHD TV for the best display.

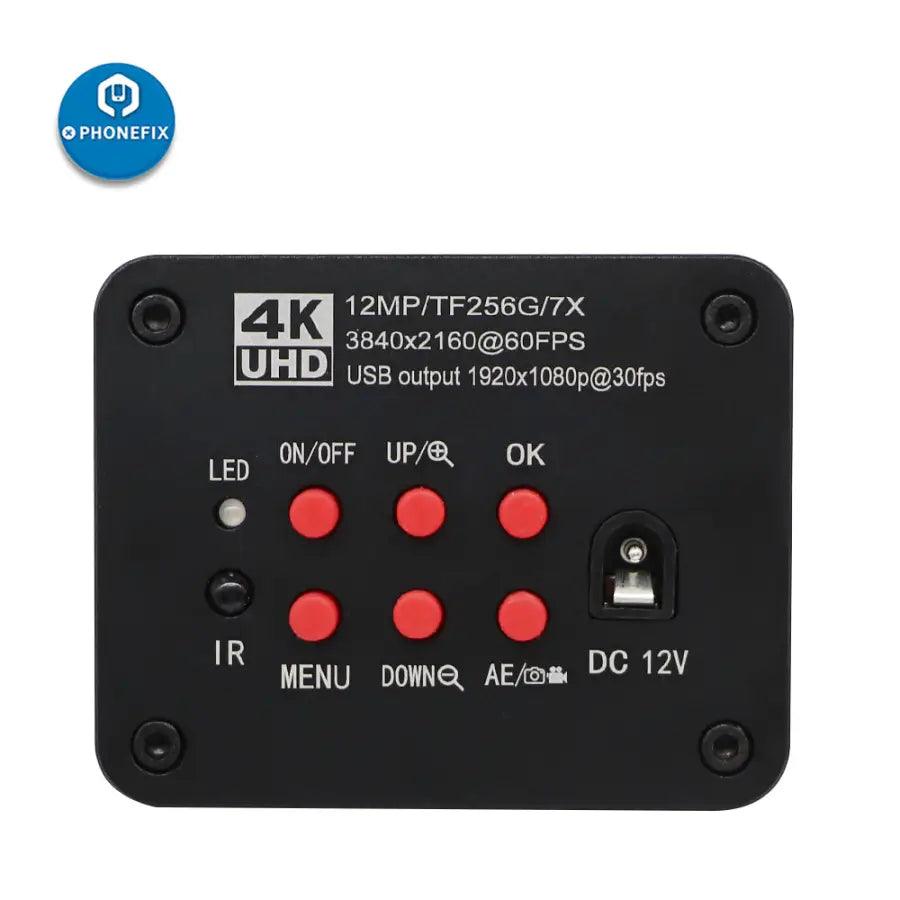

SONY 12MP 1080P 4K CMOS UHD Digital Electronic Industrial C-mount Video Microscope Camera For Mobile Phone Teaching RepairProduct Parameter :
- Effective Pixels: SONY 12MP CMOS 1/2.33 IMX 4K SENSOR
- Resolution: 4K/2K/1080P 1080P (USB)
- Sensor Size: 1/2.33inch
- Pixel Size: 1.55 × 1.55μm
- Image Resolution: 4032 × 3024 (12MP) (16:9)
- Frame rate: 60@FPS (4K)
- Image Format: JPEG
- Wave Length [nm]: 400nm~700nm
- Frame Fate: 3840×2160@60FPS(4K); 1080P 120@FPS; 720P 240@FPS

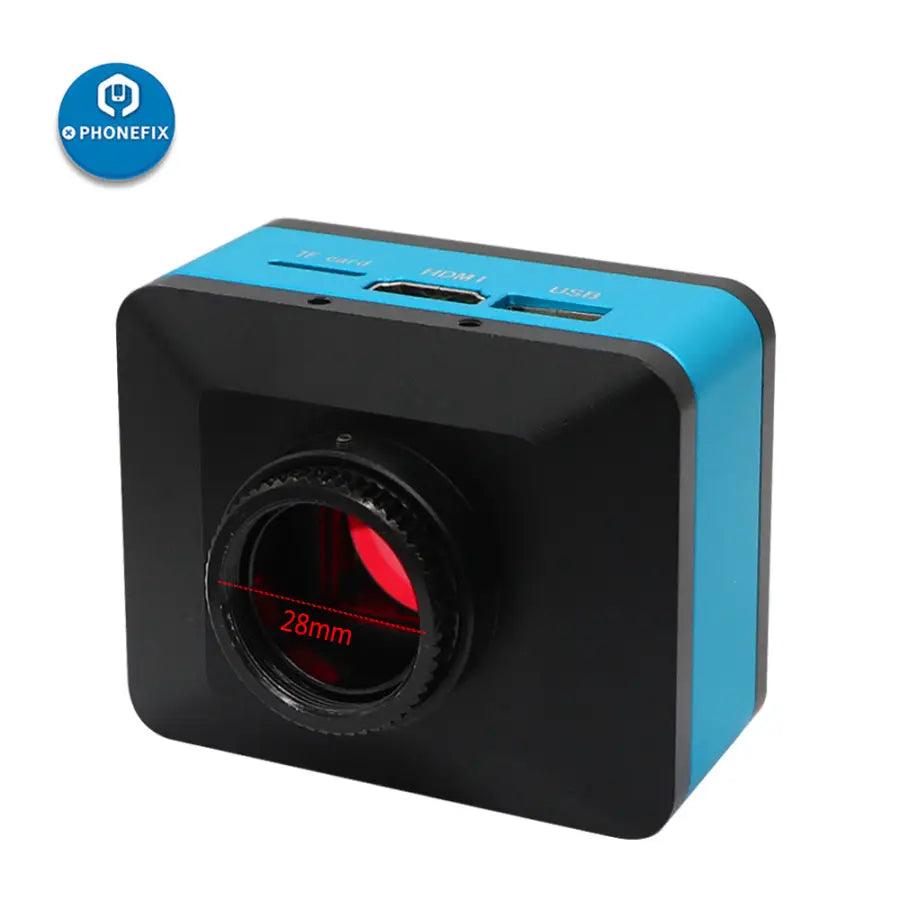

- Lens Type: C / CS
- Timing Photo/Record: Support Timing Photo/Record
- Storage: TF Card, Max 256G
- PC Support: Windows XP/7/8/10, PC Software with Measuring Function
- Image Measurement: Support HAYEAR Measurement
- Language: EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP

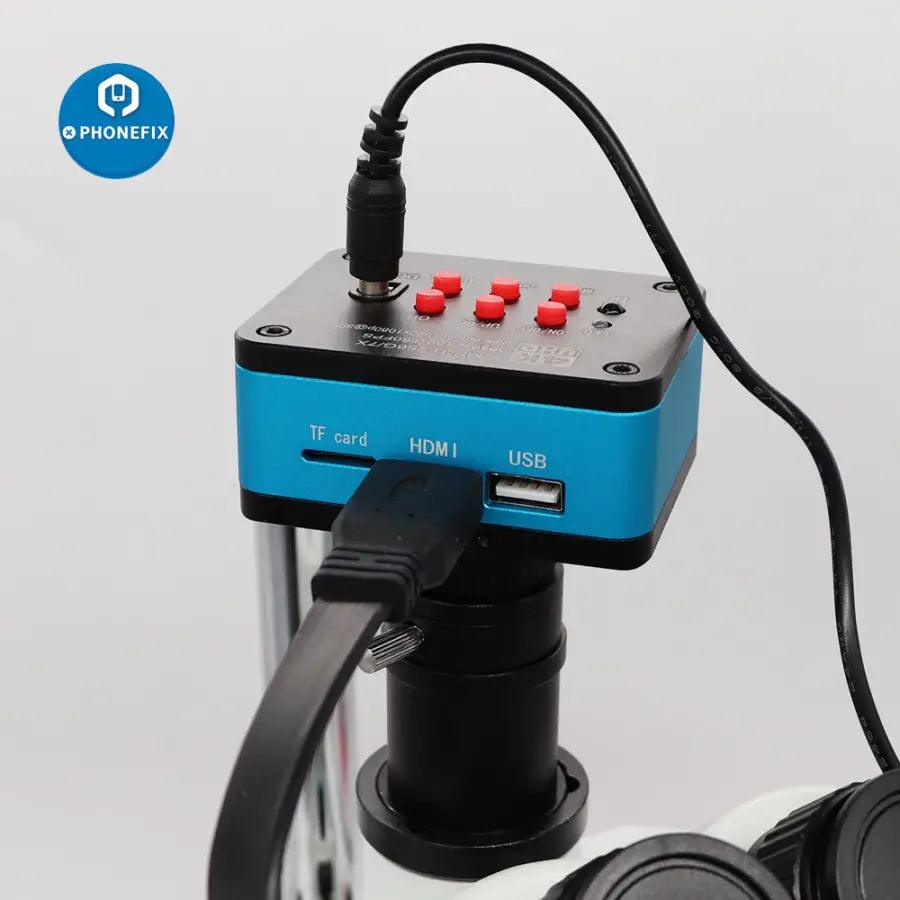

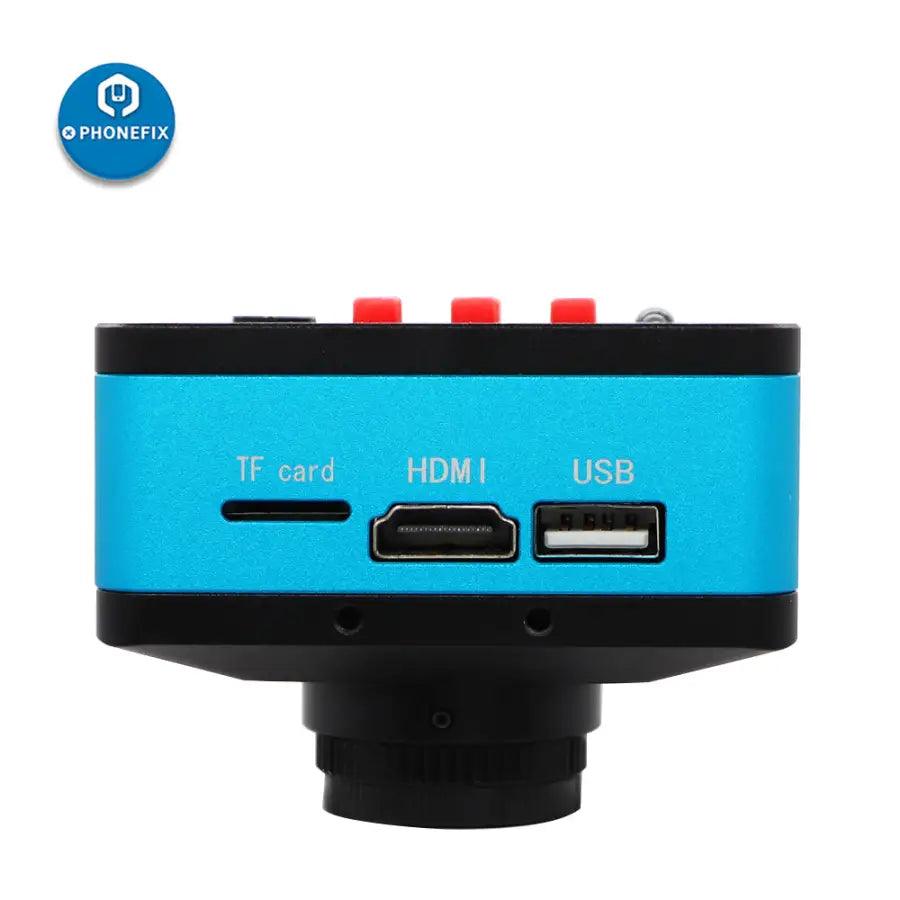

- Output Interface: HDMI/USB Standard USB 2.0 interface (Type B)
- Image Scaling: 7-Fold zoom
- Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable, Different color, 5 horizontal line, 5 vertical line, any positions
- Encode: H.264 /H.265 (High Profile)
- Video format : MP4
- Input Voltage: DC 12V 1A
- Exposure: Auto/Manual, value adjustable

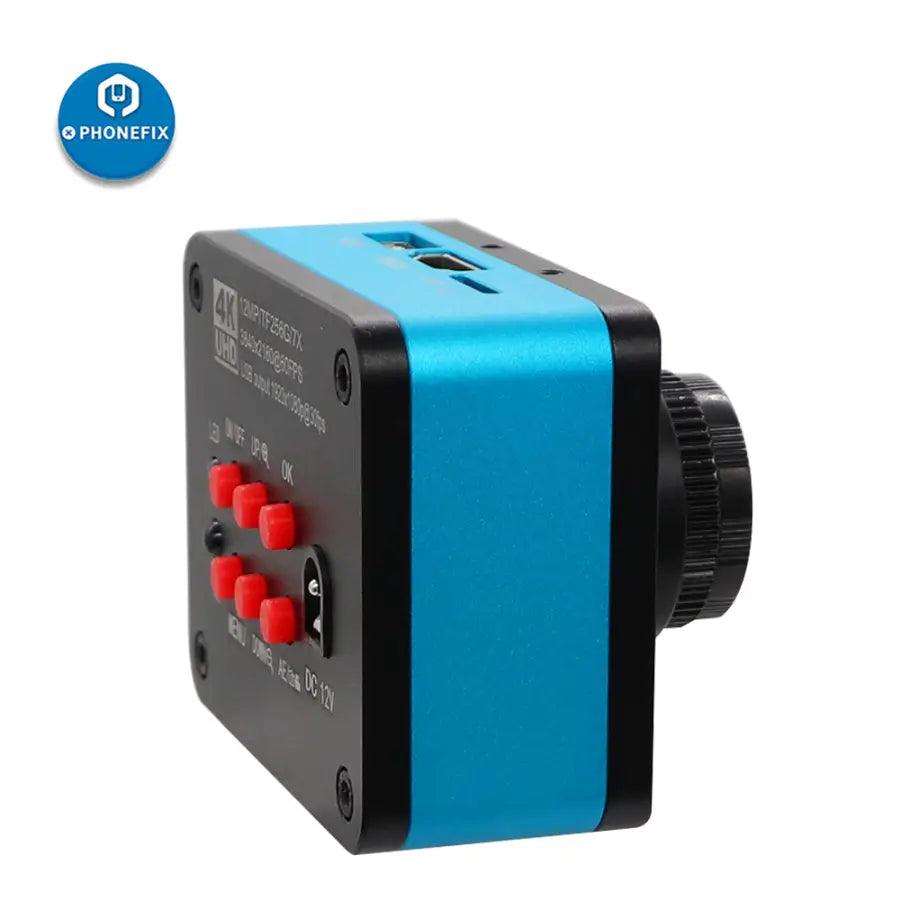

- Size: 75×60×39mm (LxWxH)

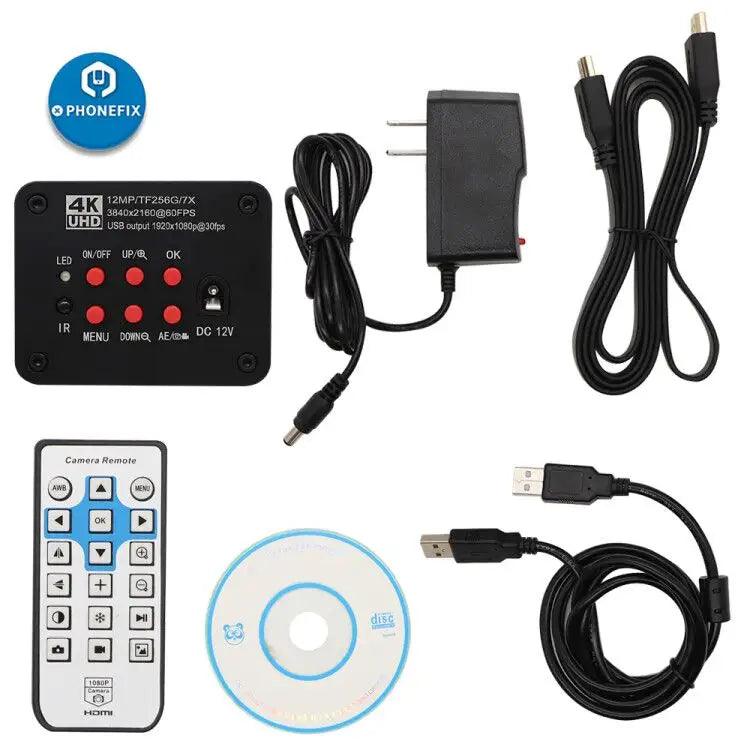

Package includes:
- 1pcs x 12MP 4K Camera
- 1pcs x Power supply
- 1pcs x USB line
- 1pcs x HDMI line
- 1pcs x Software DISC

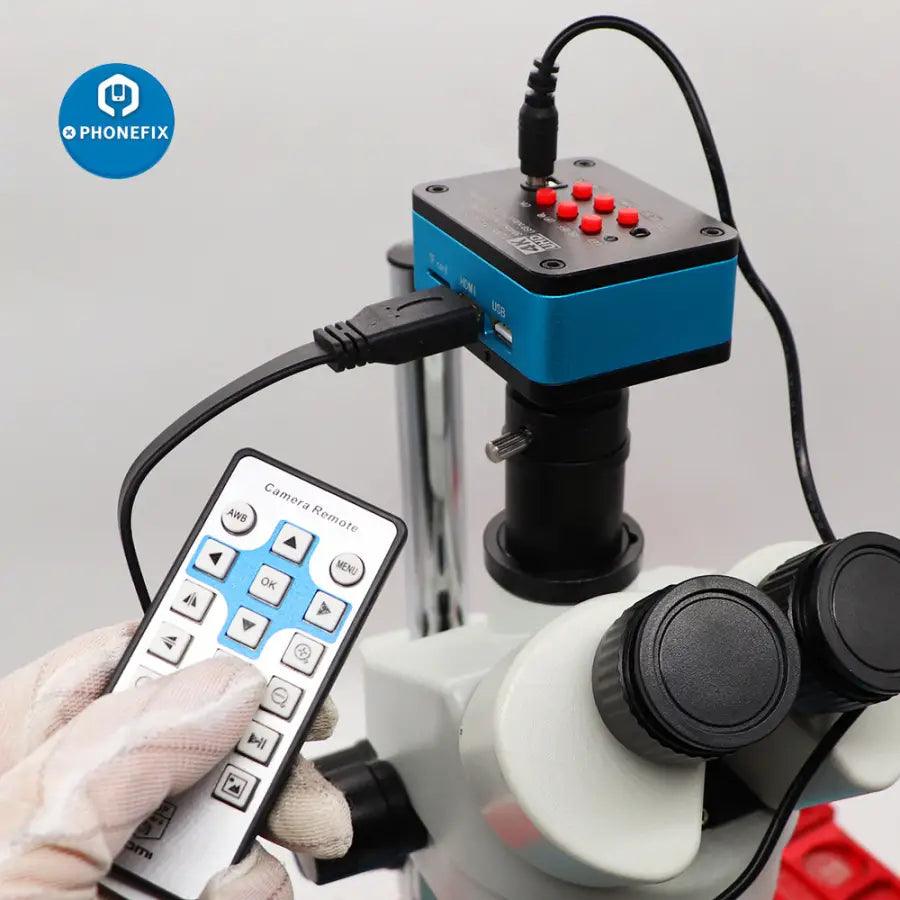

- 1pcs x Remote Control
- 1pcs x Power Adapter (EU/AU Adapter)
