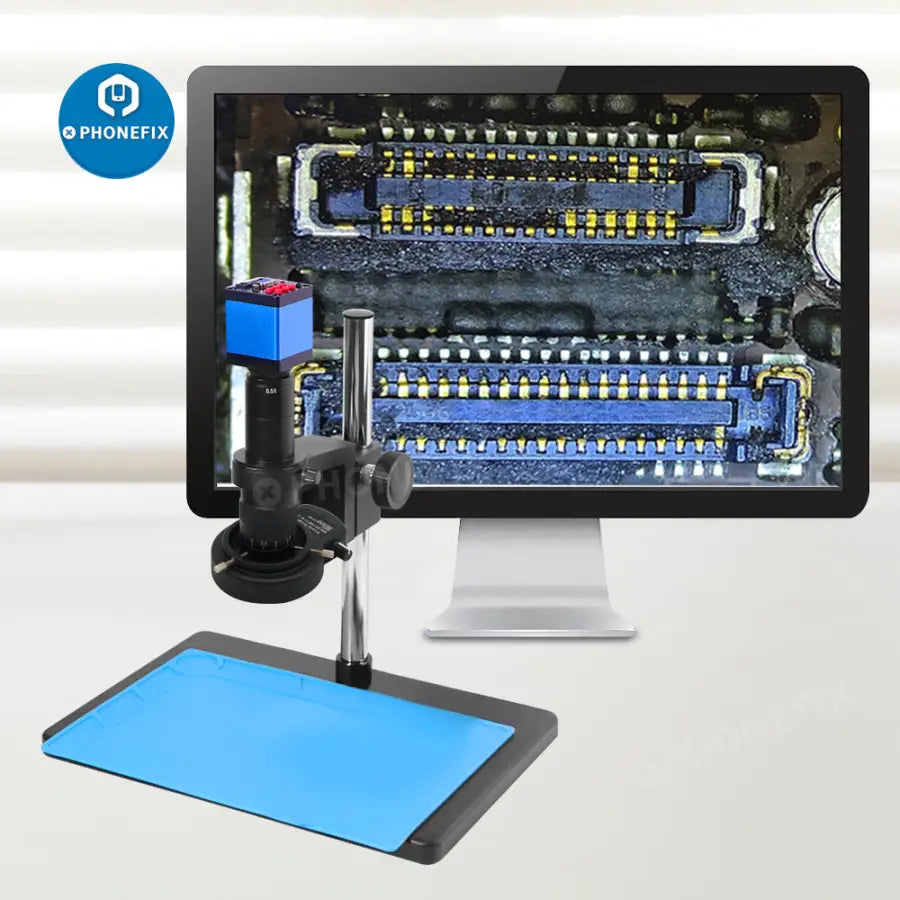

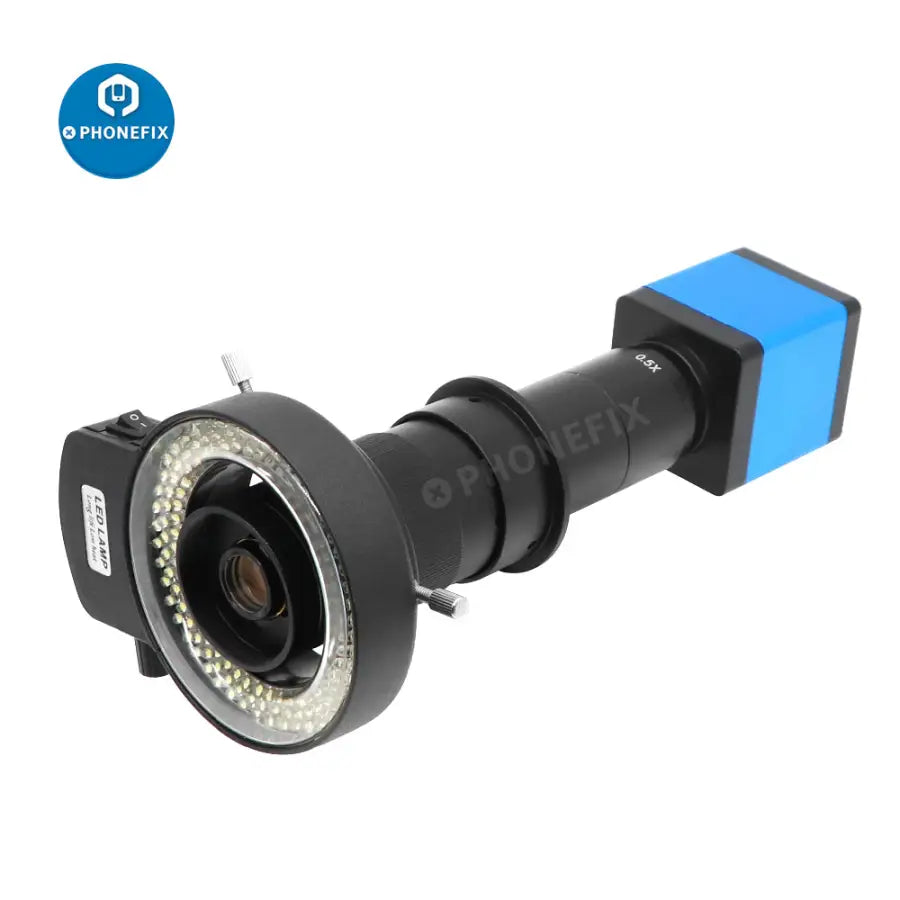

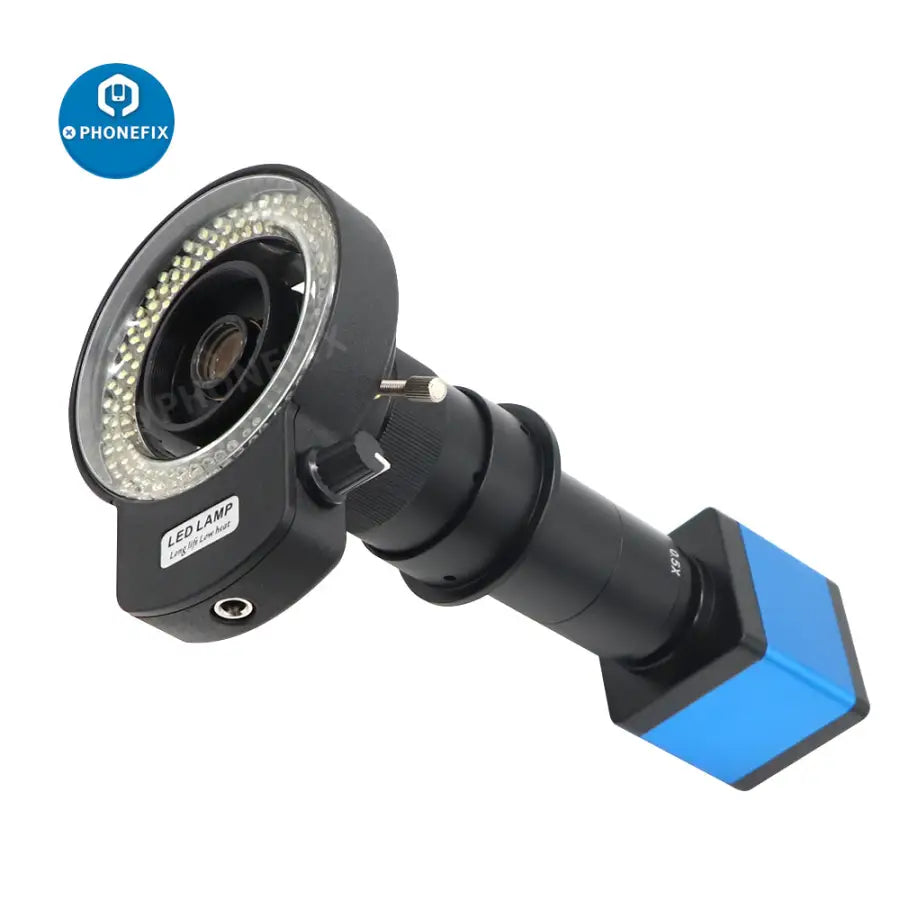

13MP 1080P Microscope Camera 180X C-Mount Lens HDMI USB Industrial Electronic Digital Microscope for Phone Repair PCB Soldering.

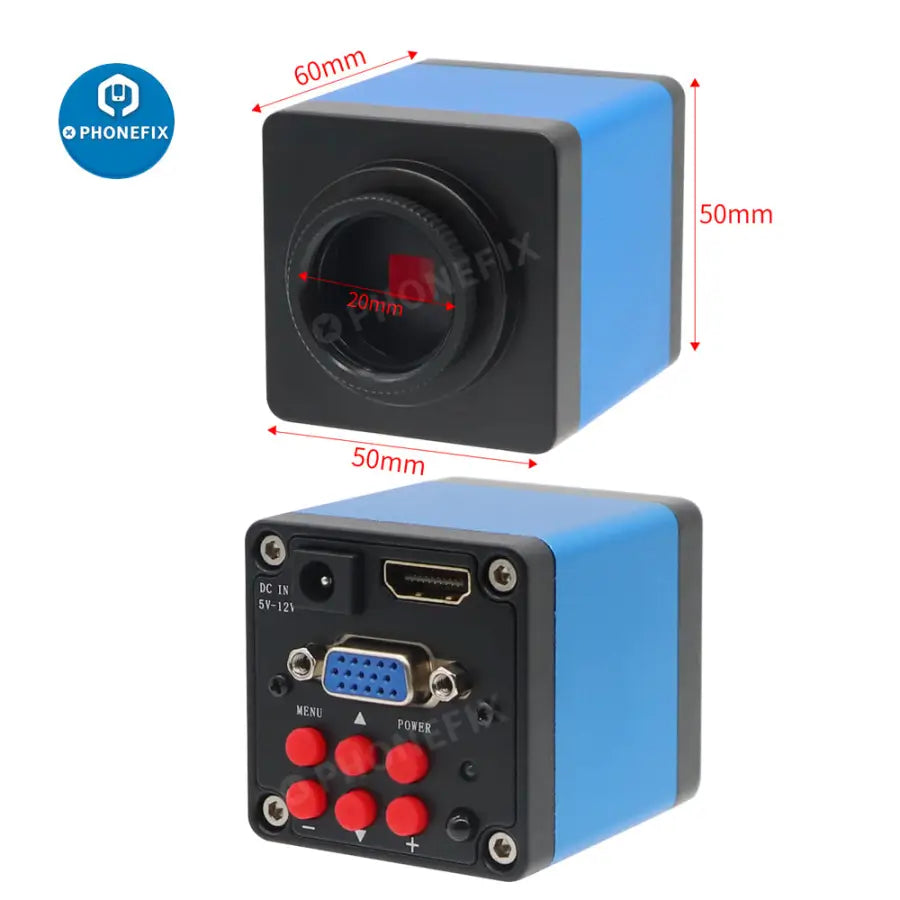

Camera Specification:
Model: Camera with HDMI VGA two output
Sensor: 1/3 inch 13MP
Image resolution: 1280*720/1024*768
Video resolution: 1280*720/1024*768@ 60F/S
Language: English/Chinese
Crosshair: Can adjust color, line size, hide or display, 16 horizontal line , 16 vertical line,any positions
Exposure: automatic exposure
Eliminate reflections: Support
White Balance: one-key white balance, support R/G/B adjustable
Mirroring: Support
Electron zoom: Support 1-4x
Light freqency: 50Hz/60Hz
Color: Color/ black and white switching
Monitor: 16:9/4:3/16:10
Brightness: 0-100 Adjustable
Contrast: 0-100 Adjustable
Saturation: 0-100 Adjustable
Definition: Adjustable
Lens interface: C mount
Remote: infrared remote control
Power: DC 12V/1A

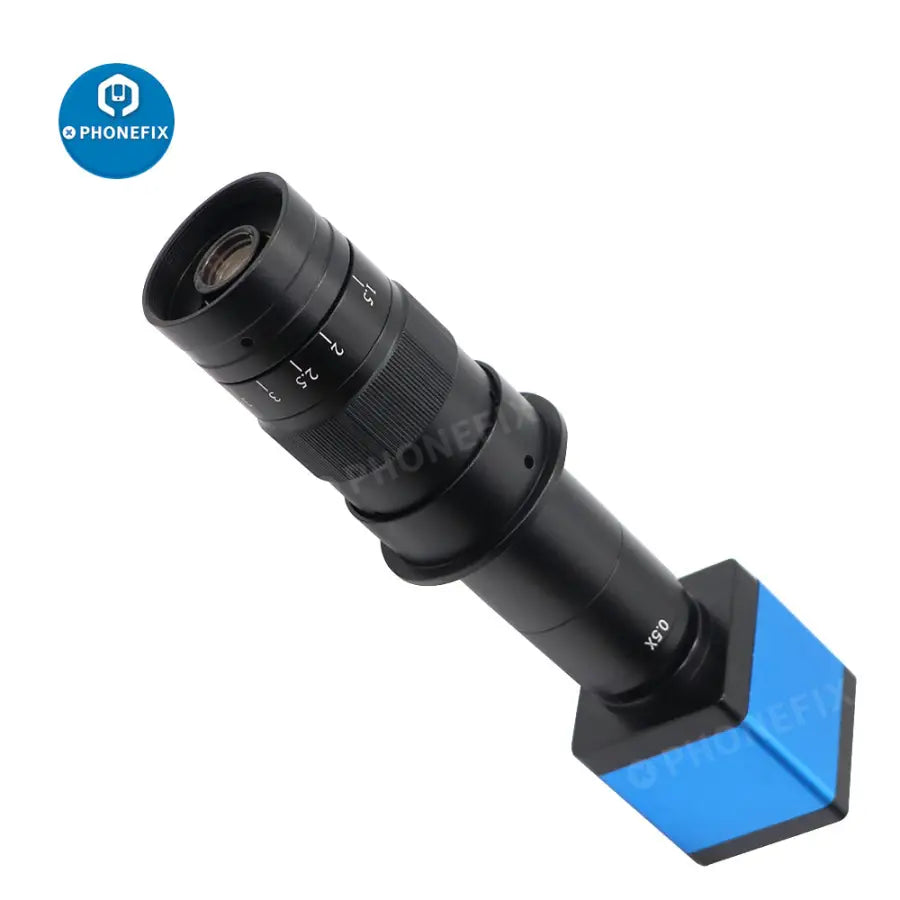

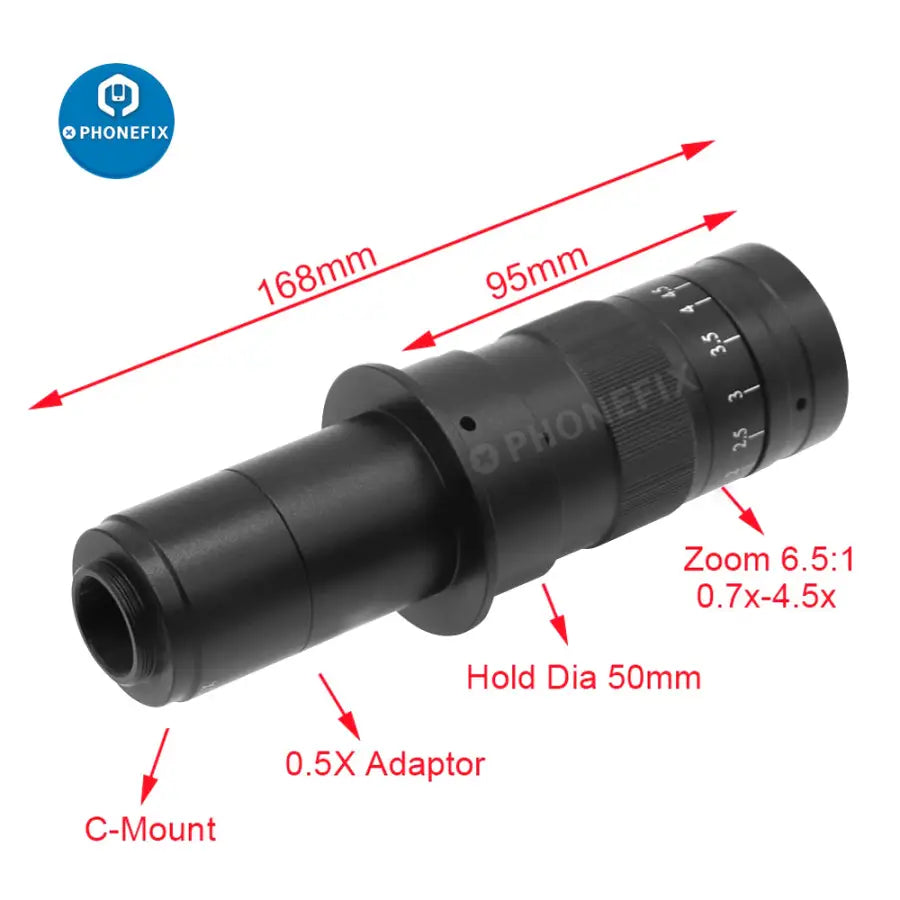

180X C-Mount Objective Lens:
Working distance: 95mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 168mm(L) * 50mm(DIA)
Weight: 450g

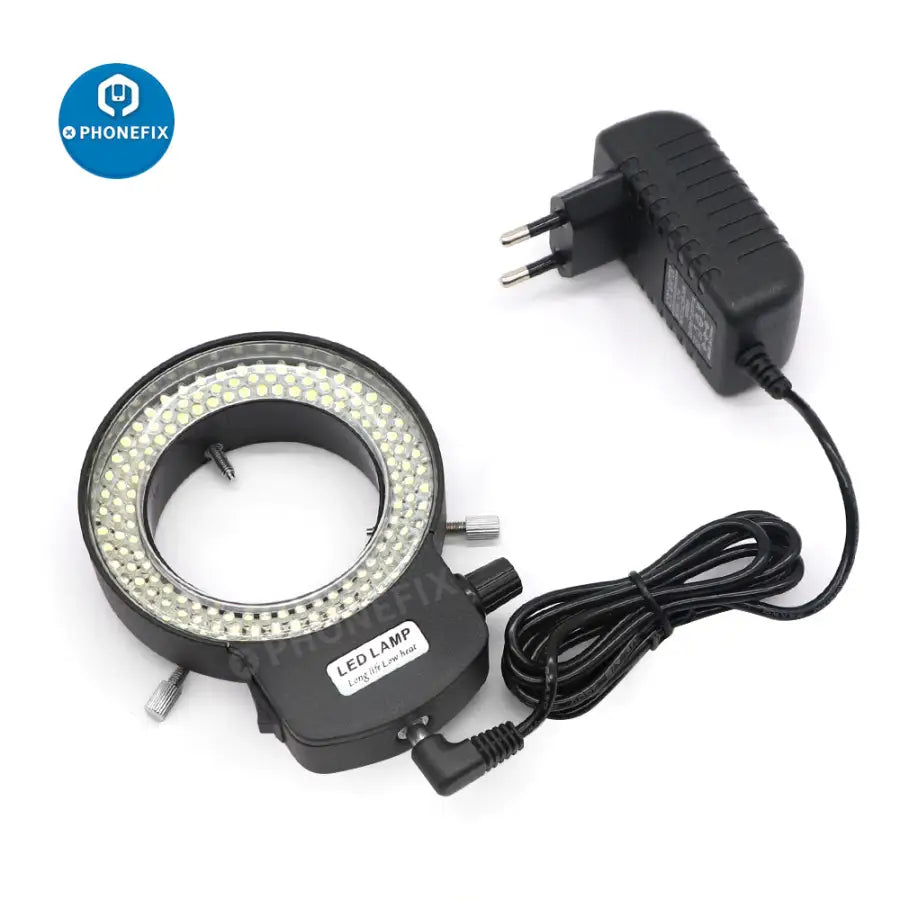

144 LED Ring Light:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Notes:
1:PC Support: Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted.
For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
