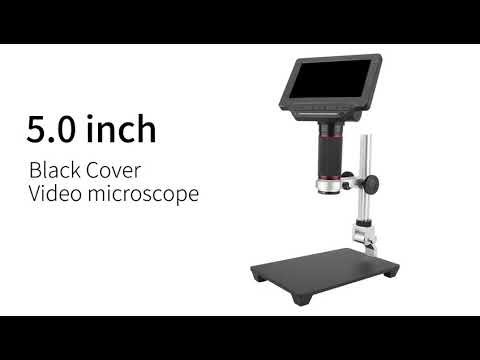

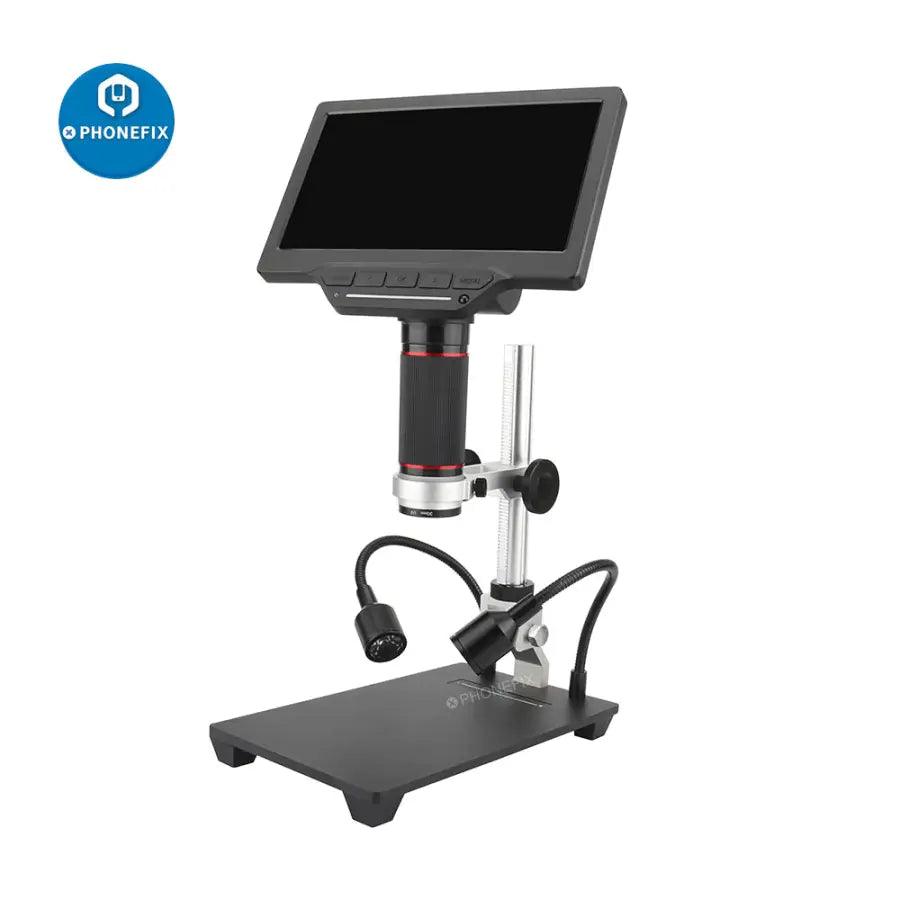

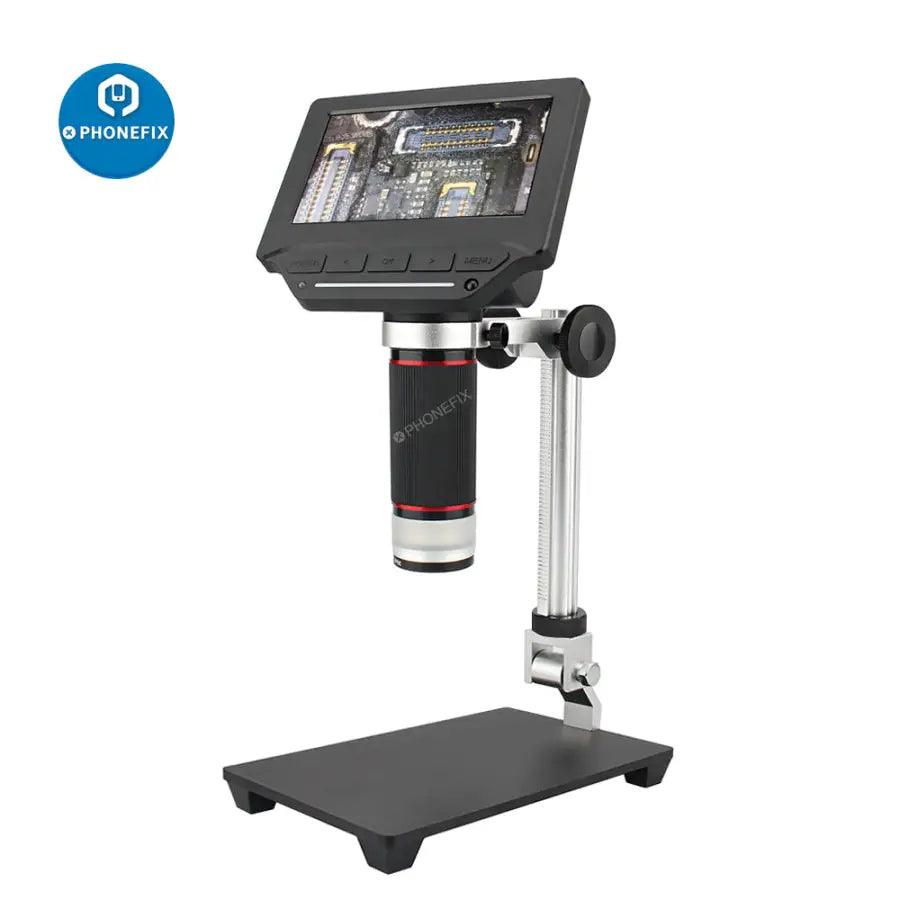

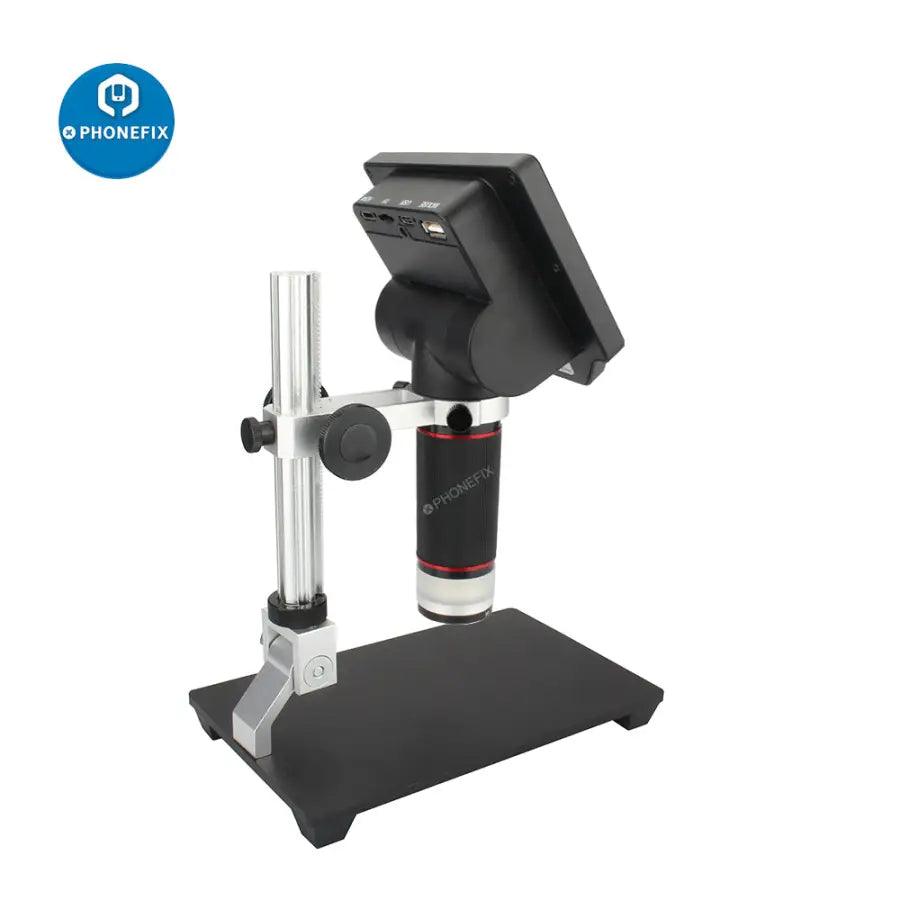

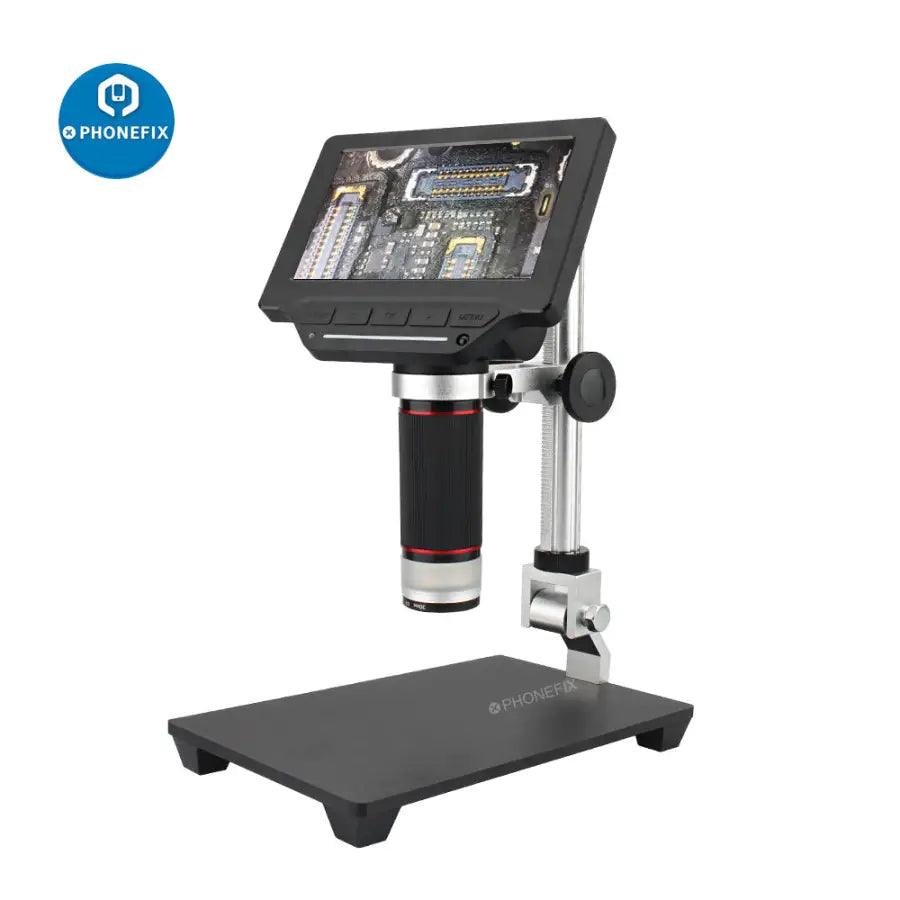

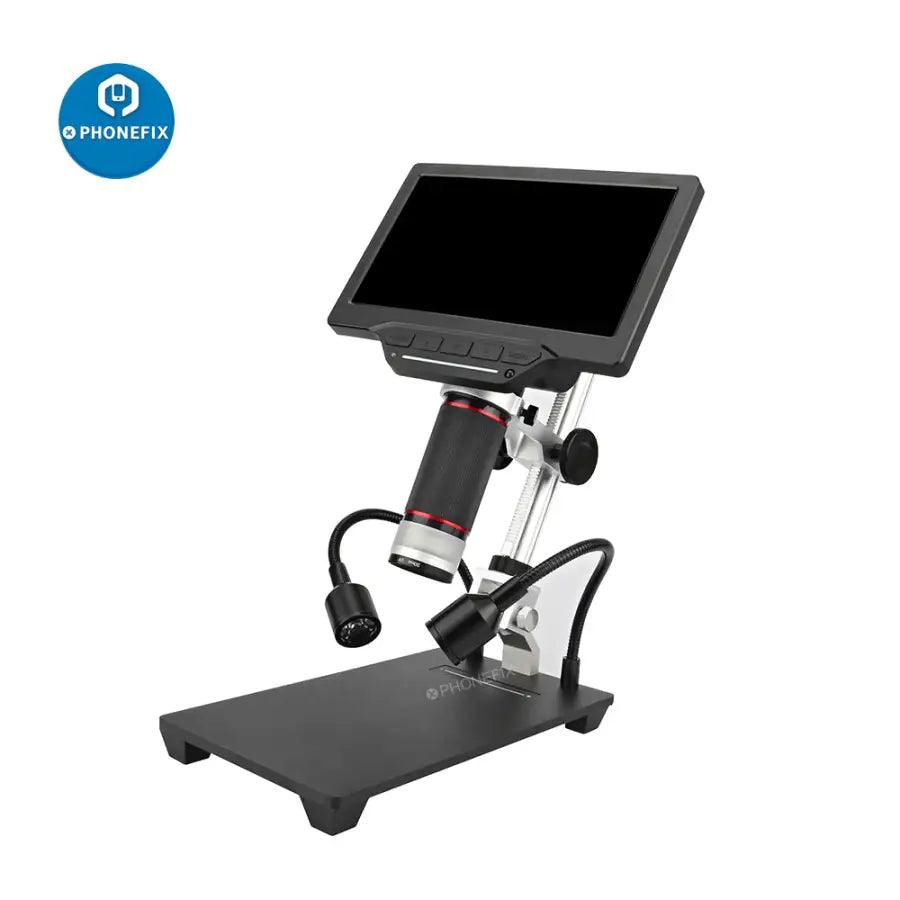

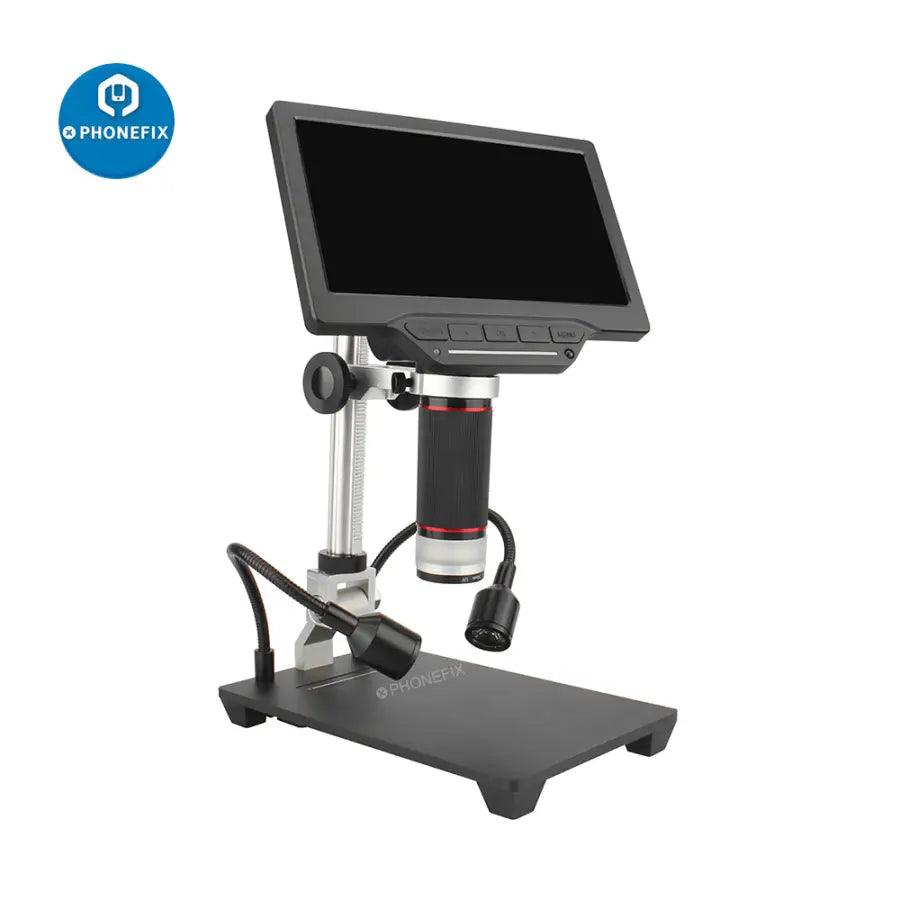

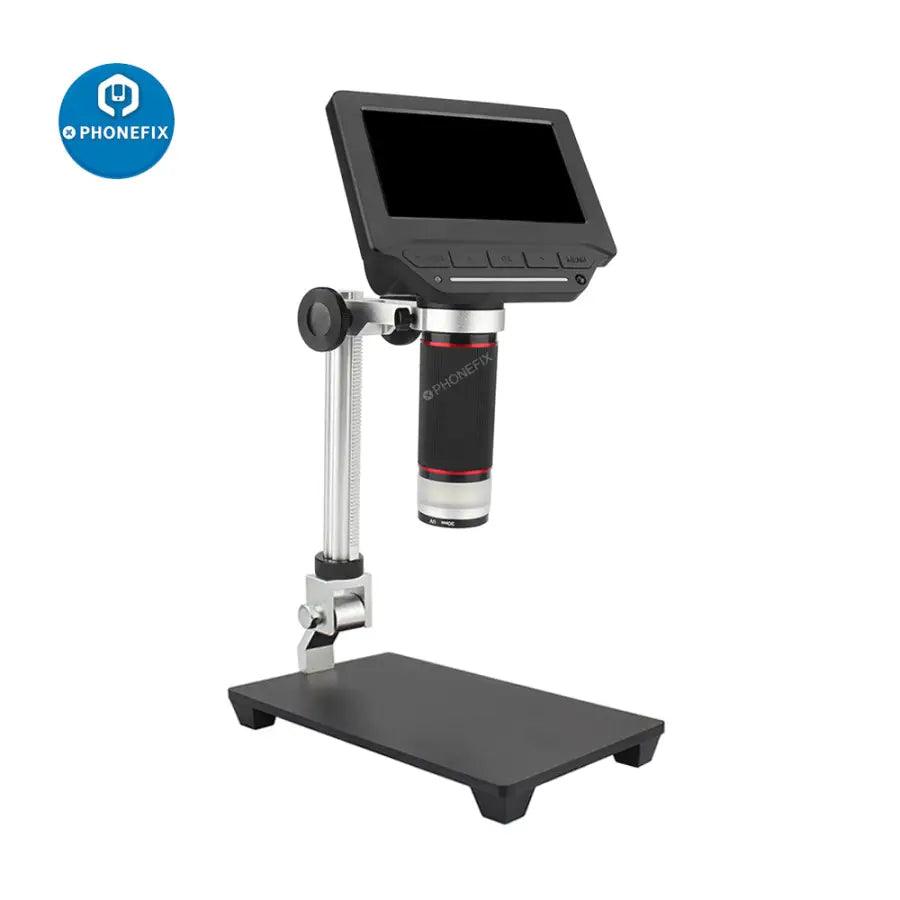

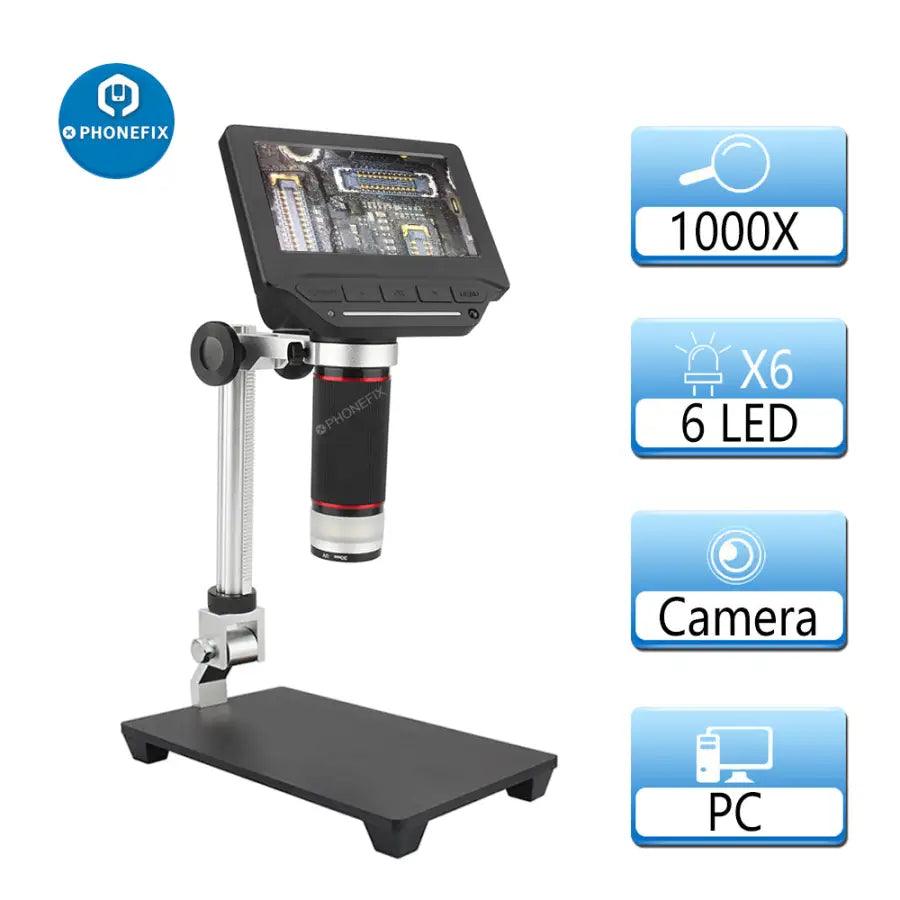

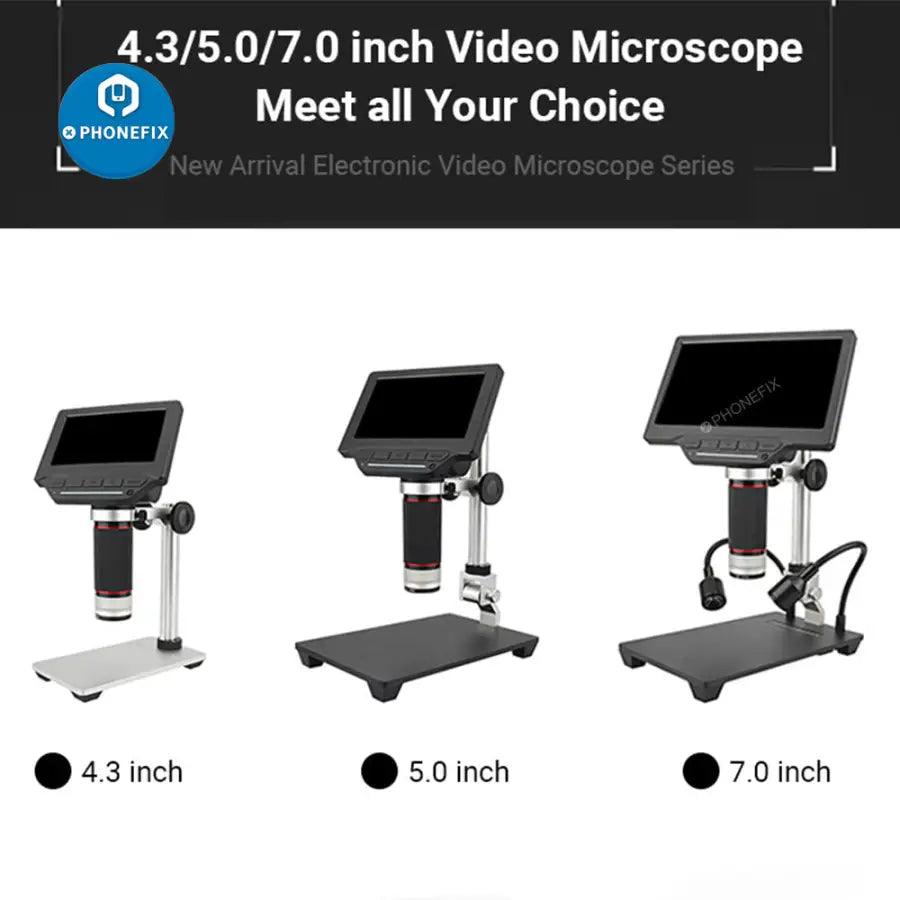

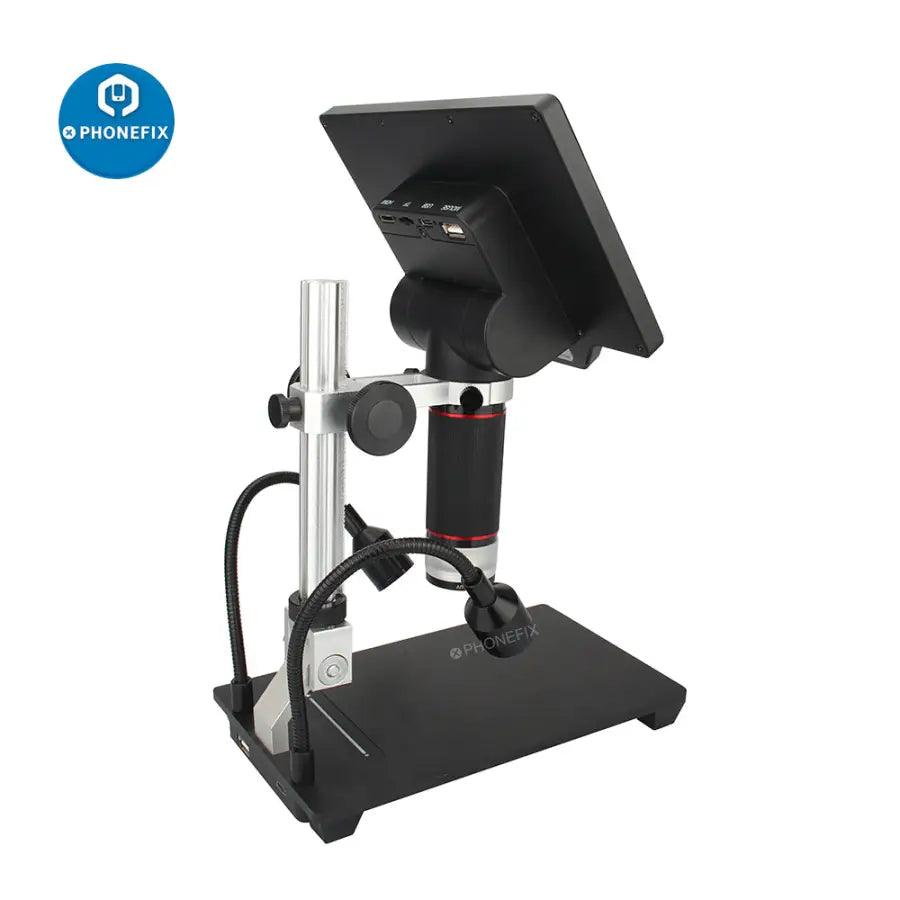

4.3/5.0/7.0 inch inch LCD Digital USB Microscope Endoscope Record 1000X Magnification Zoom Storage Camera Video Recorder for Repair Soldering
Note: Cannot be connected with Wifi !Features：This product is our brand new video microscope with high performance and cost effective.
- Adopt color LCD screen, high definition and high lighting;
- 1080P30 design, no lag, no smear, fluent HD;
- Professional image processing DSP, 3D de-noise, restore colors and details really;
- Built-in HD lens, have microscope and telescope function ( 1cm~5m);

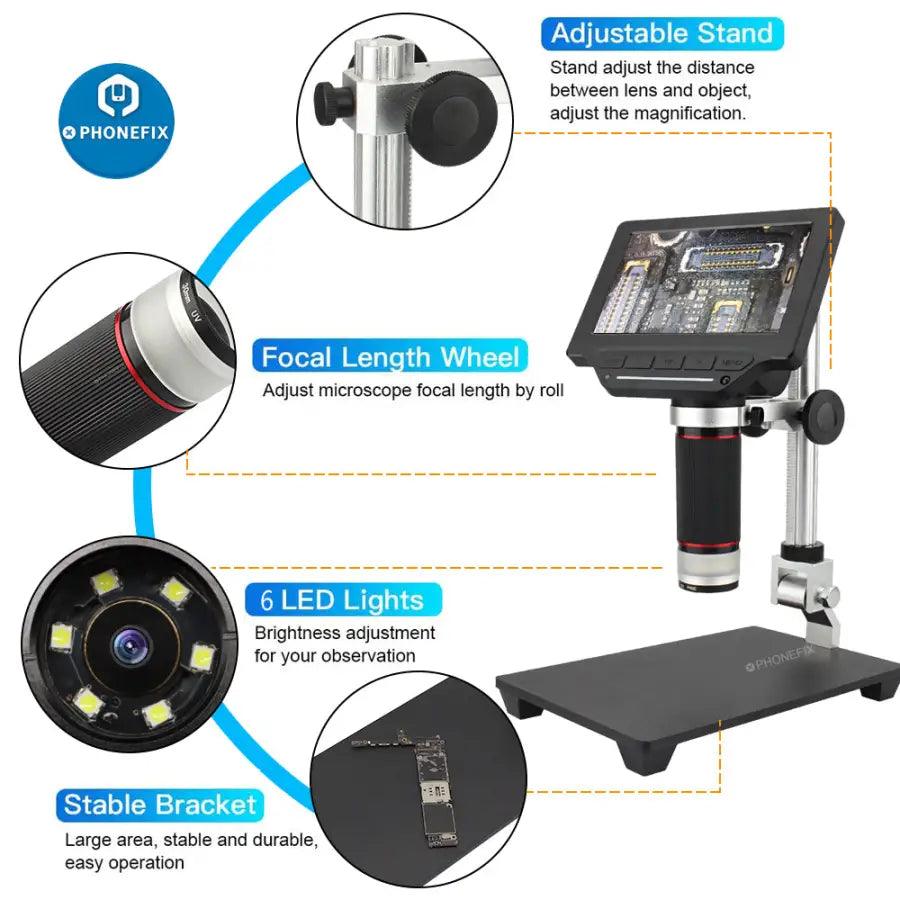

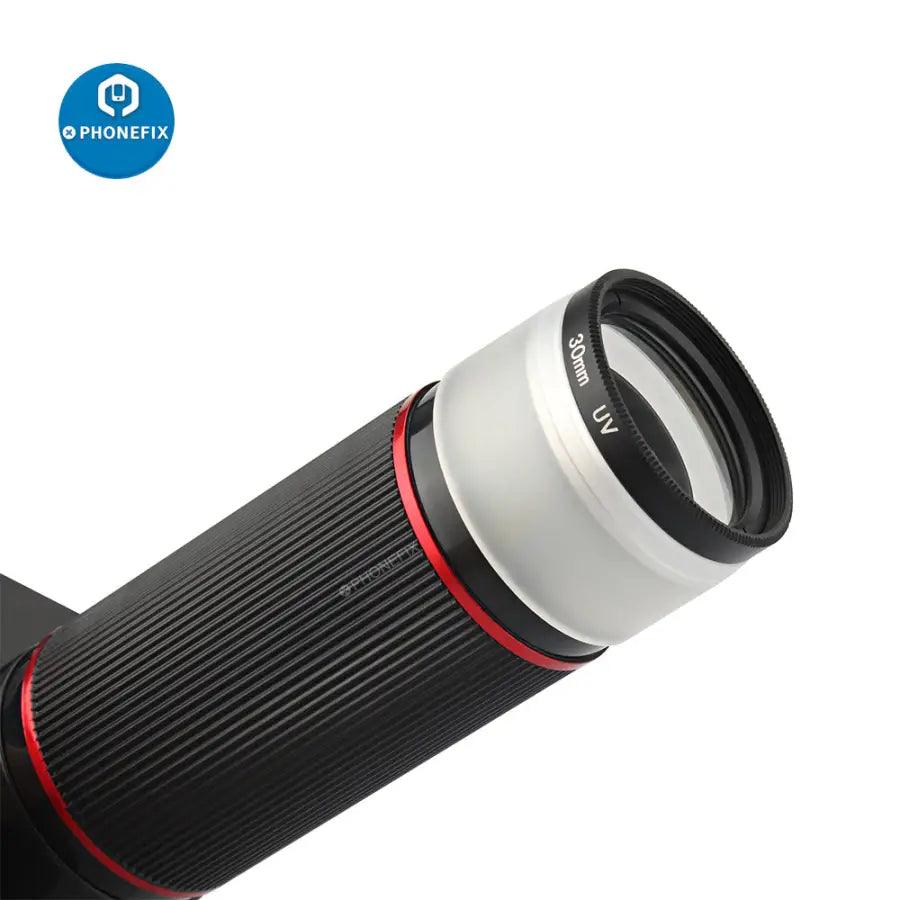

- Rotating lens barrel design, precise focusing and smooth feeling;
- Built-in white LED design, simple operation and intuitive viewing;
- Support picture, video record and playback function;

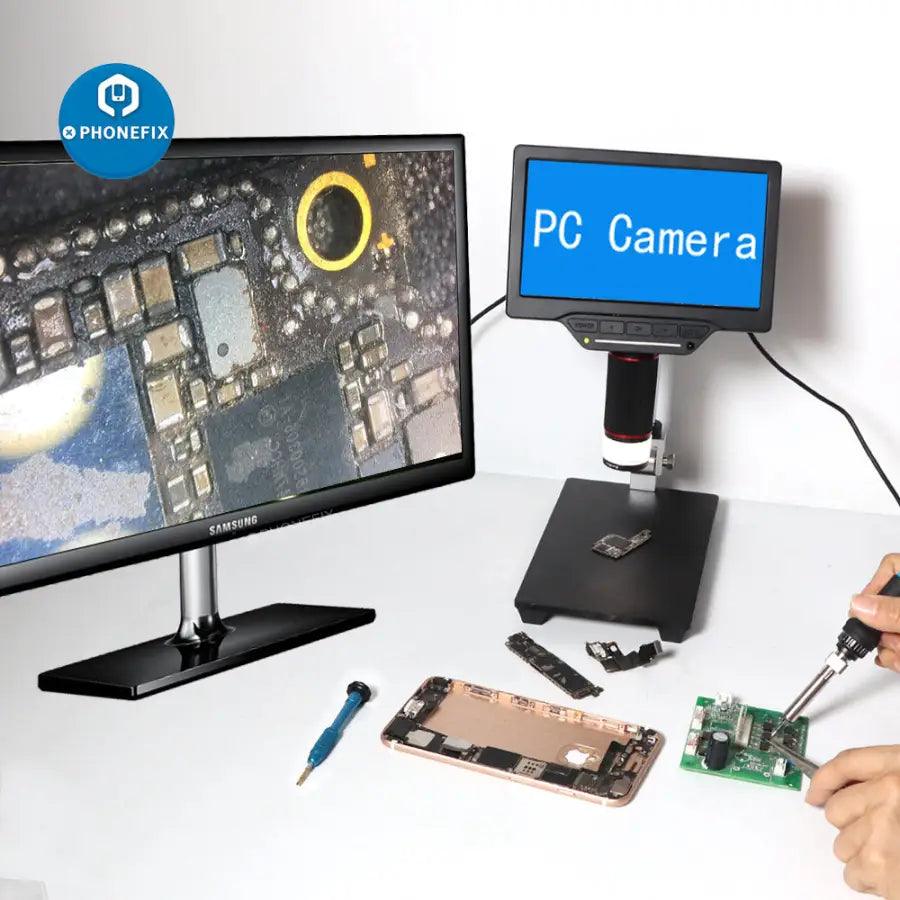

- Support LCD+USB(UVC) output display;
- Support 15X～208X infinite magnification, clear and smooth;
- Support center cursor and grid cursor;
- Support functions such as exposure compensation, sharpness、color、image adjustment etc;
- Support IR remote operation;
- Support 4GB ~64GB TF card;
- Powered by 18650 lithium battery, easy for outdoor use;
- Adopt TYPE-C 5V power supply, both positive and negative inserts are available;
- With brand new algorithm, new design and new configuration, it will bring you new smooth and high-definition experience!
How To Use:1.Install video microscope

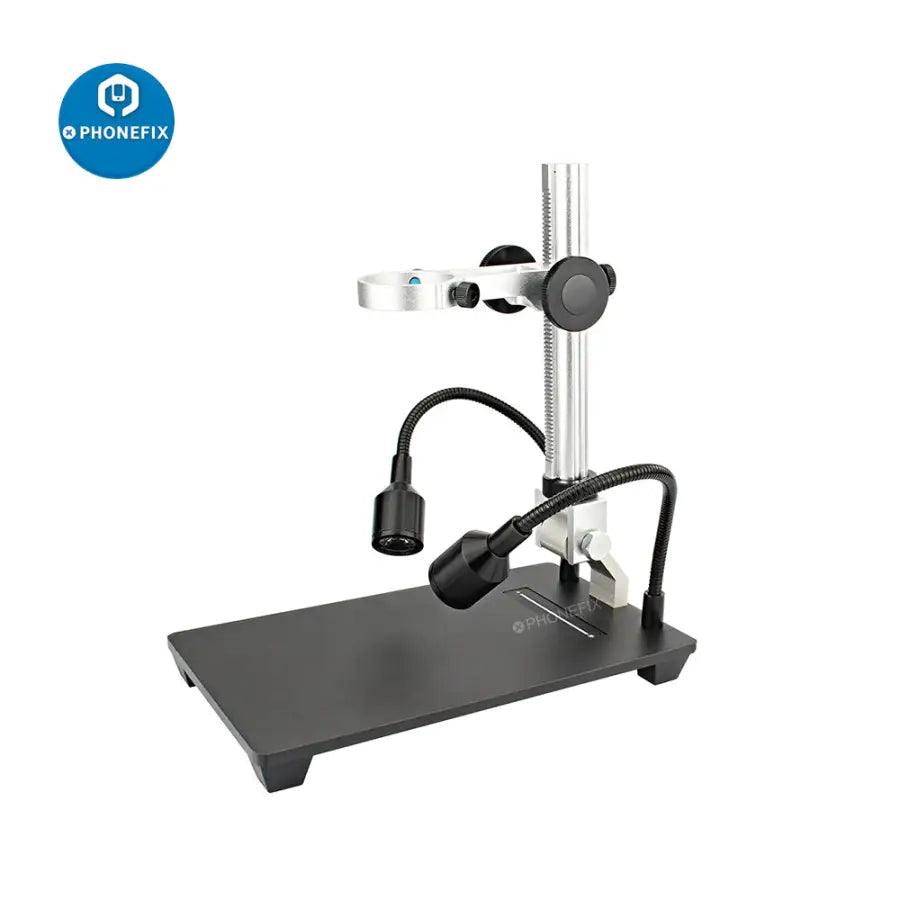

- Assemble the bracket to lock and fix the microscope
- Insert TF card
- Install battery or connect to power.
a.Assemble the base bracket and fix it on the bracket platform;
b.TF card gold finger pointing up, insert TF card slot;
c.Plug the battery into the battery compartment or connect to power by USB;
d.Adjust the video microscope screen to a comfortable viewing angle;
Attention: Use a Phillips screwdriver to remove and assemble the battery cover;
Please use 18650 battery with protective plate or original battery;
Please pay attention to the positive and negative electrodes of the battery, don’t assemble them converse;

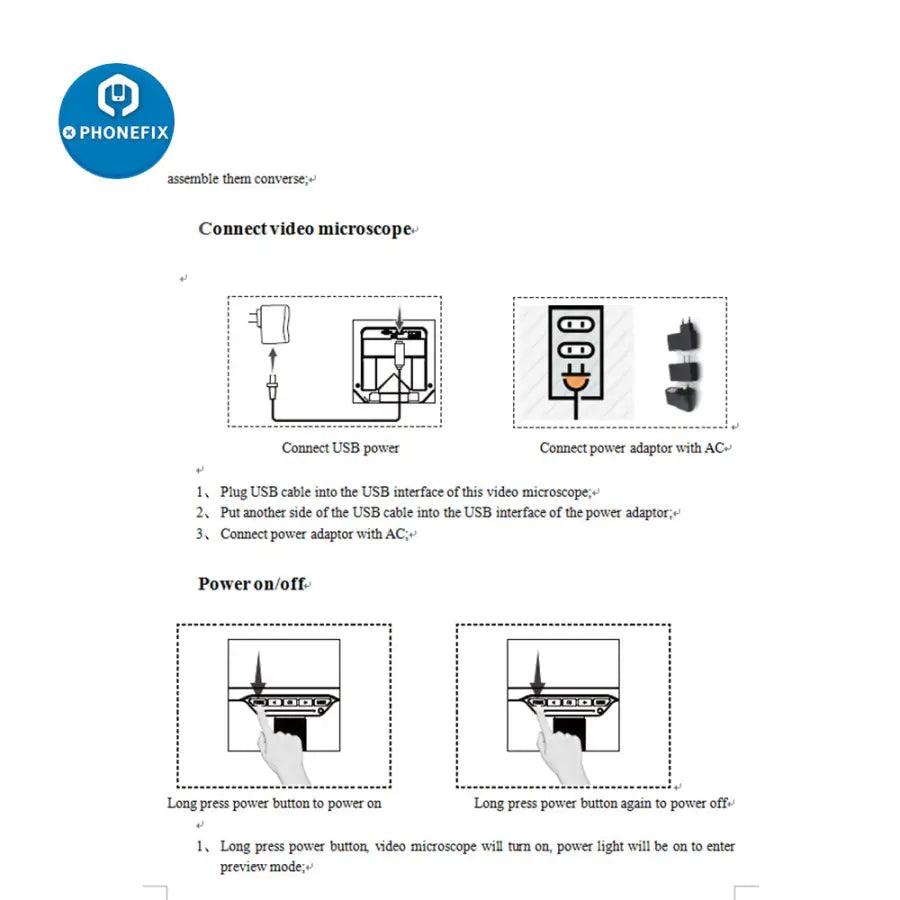

2.Connect video microscope:
- Connect USB power
- Connect power adaptor with AC
- a.Plug USB cable into the USB interface of this video microscope;
- b.Put another side of the USB cable into the USB interface of the power adaptor;
- c.Connect power adaptor with AC;
3.Power on/off
- Long press power button to power on
- Long press power button again to power off
a.Long press power button, video microscope will turn on, power light will be on to enter preview mode;
b.Use center point of monitor to aim the object, adjust bracket height and lens focal length to make image clear;
c.Long press power button again to power off video microscope;
Attention: In order to reach the best effect, please clean protective lens and display screen before using.
4.Use video microscopeZoom in / out function: Press left button to zoom out, press right button to zoom in;
Photo/Video: Press Confirm button can take photo/video;
Menu function: Press Menu button, get into menu for setting of photo、video、playback、system etc parameters setting;
White LED brightness: Short press Power button to display OSD, adjust the white LED brightness by Left button and Right button;
Mode switch:Long press Menu button, can switch photo,video,playback mode;

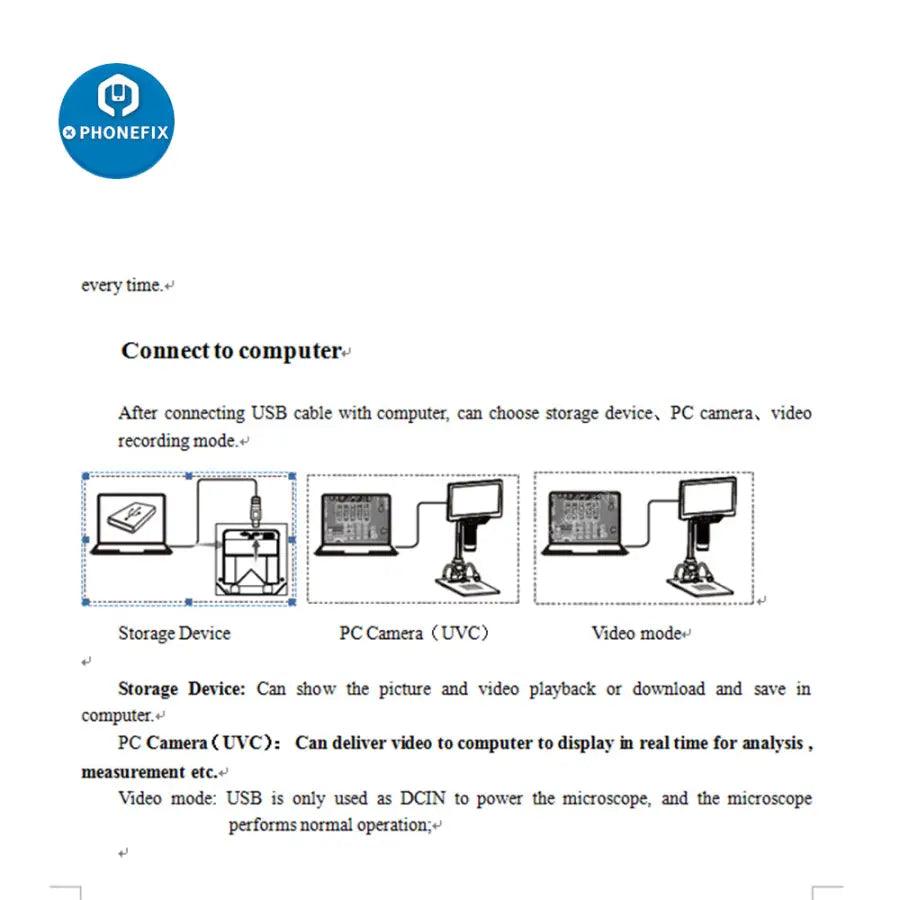

USB mode: Insert USB cable, can choose U disk model、camera mode,working mode.

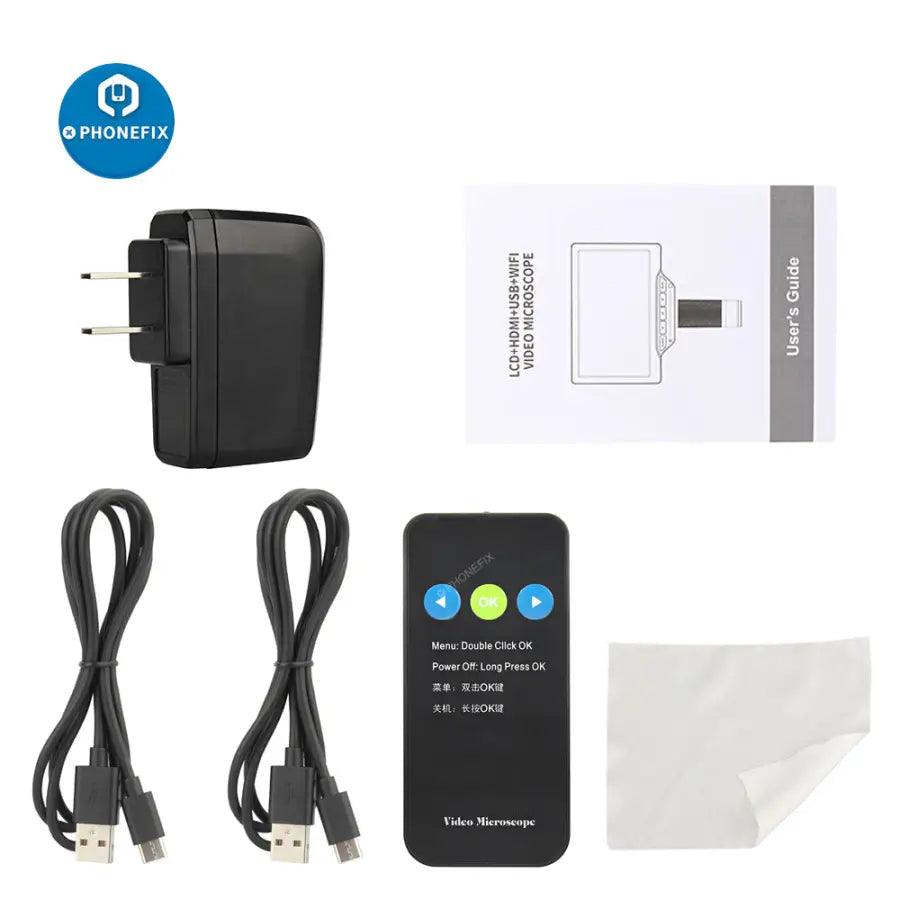

For more details, please check Function and Menu Introduction section.Packaging include:1 X Video Microscope
1 X LithiumBattery(18650)
1 X Power Adaptor
1 X USB Cable
1 X IR Remoter
1 X Base Bracket/set
1 X User Manual
1 X Cleaning Cloth
