KP-2K1080 2K USB High-Definition C-Mount Digital Industry Microscope Camera (US Plug). With its built-in playback function for recording and photography, as well as an automatic searching function for the edge, this device offers superior performance. Additionally, it supports storage by a hard disk and can be connected with a mouse, providing more flexibility and convenience for all of your measuring needs.
Features
-

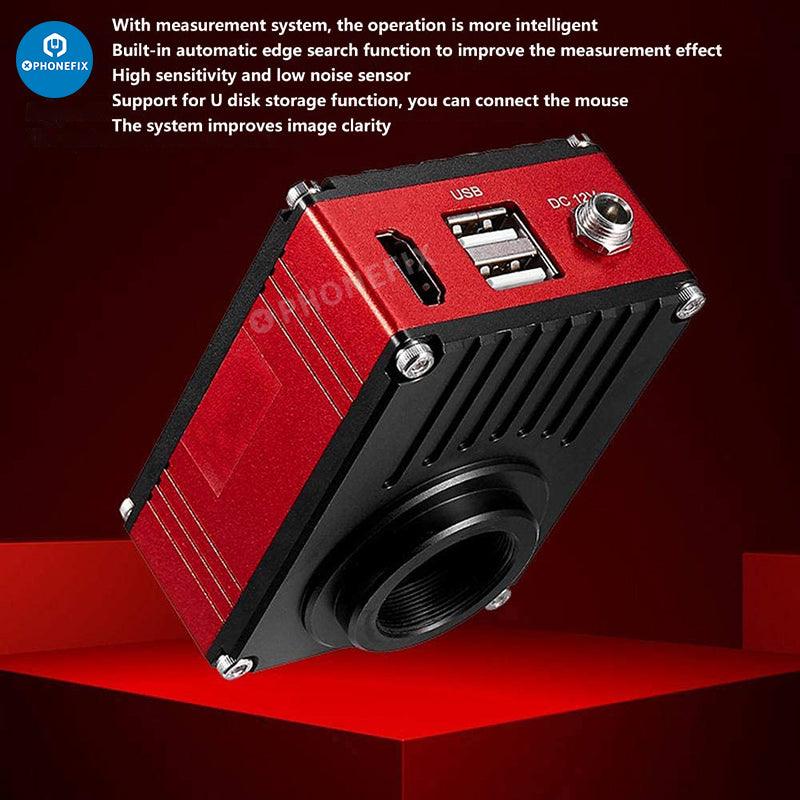

High Efficiency: With a measurement system, the operation is more intelligent, faster and more powerful. Built-in automatic edge search function to improve the measurement effect.
-
Highly Sensitive: The system improves image clarity. High sensitivity and low noise sensor, strong performance and smooth preview. Support for U disk storage function, you can connect mouse.
-
Upgrade: Built-in V3.0 version of the measurement system, adding custom interface editing, custom template editing, for DXF lead-in template, file management, measurement data export and other functions.
-
Offers Stable Performance: Support for ARM Cortex A7 dual-core at maximum 1.3ghz processing tool, running smoothly and stable. The built-in video and picture recording function can be displayed and played back.
-
Widely Applications: Support point spacing, point-line spacing, line spacing, center distance, arc, circle, angle, rectangle, polygon measurement, calibration function and automatic edge search.
Specifications
- Brand: FUCOT
- Model: F-2K
- Interface: HDMI
- Resolution: 1920×1080
- Pixel Size: 3.75μm×3.75μm
- Target Size: 1/2
- Data Bit: 12bit
- Shutter Mode: Rolling Shutter
- Output Frame Rate: 60FPS
- Output Color: Color
- Dimension: 60*80*42mm
Note:

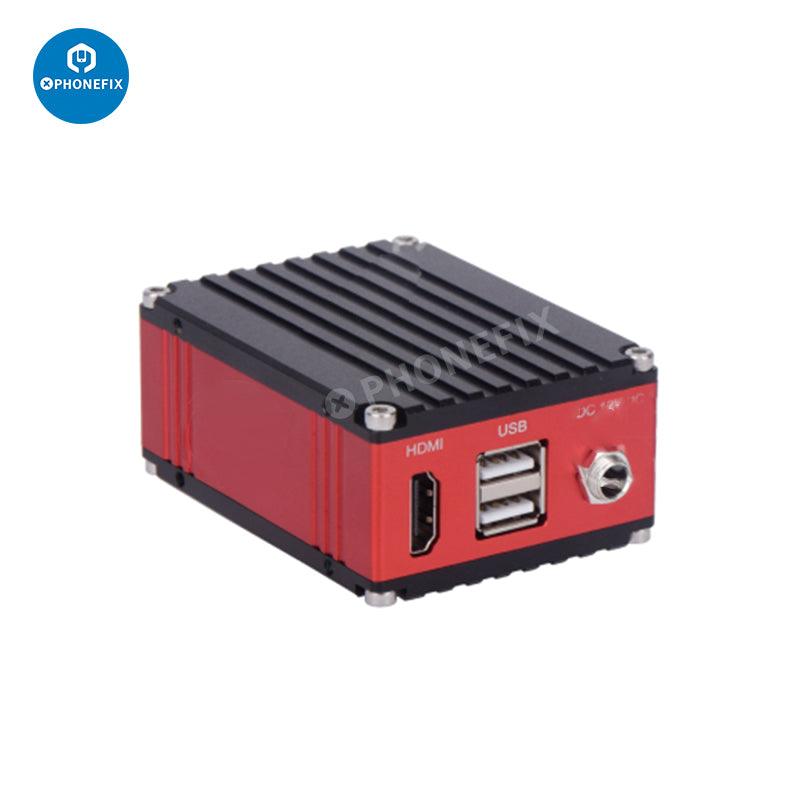

- This product is a high-definition multimedia interface output and can only be connected to the display via the same interface connector.
- The product has two USB outputs, one for connecting a mouse and the other for connecting to a USB flash drive.
- You can use the mouse to measure directly on the display. Save pictures and Excel data.
Package List:
- 1 x 2K Microscope Camera
- 1 x Adapter
