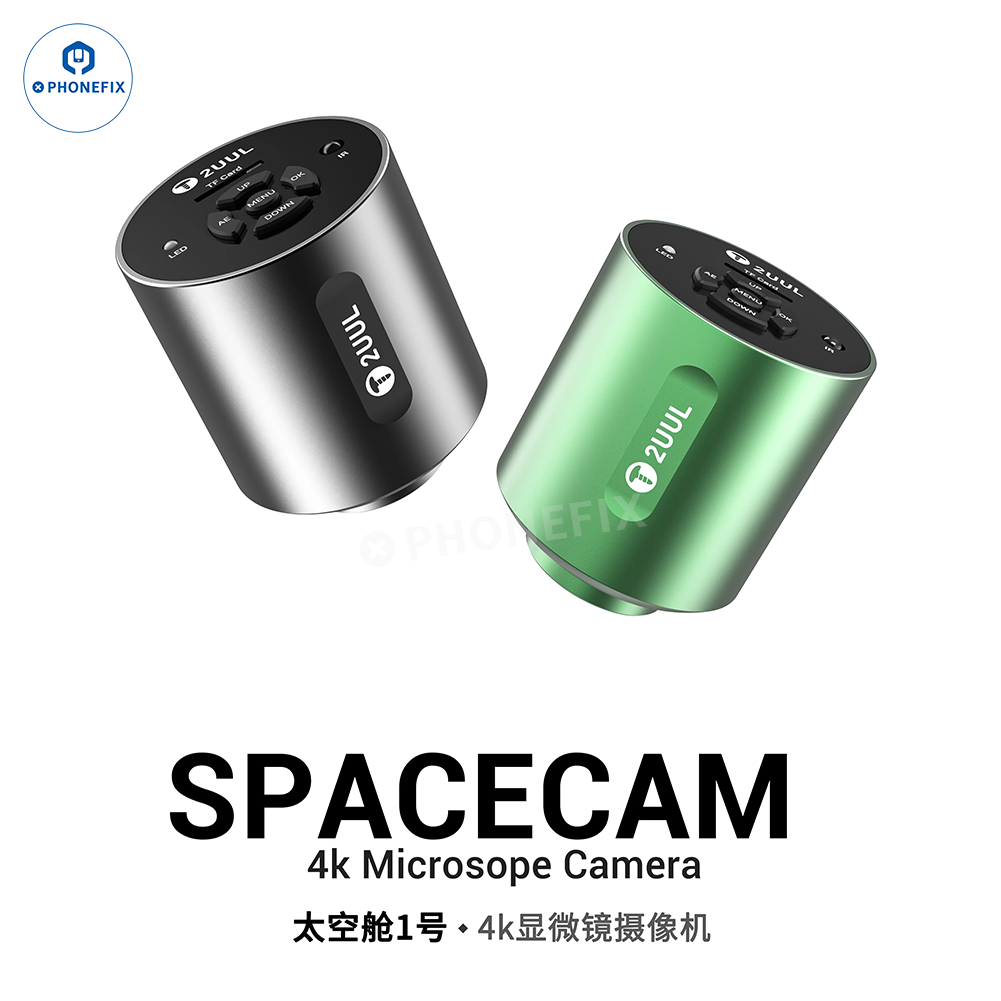

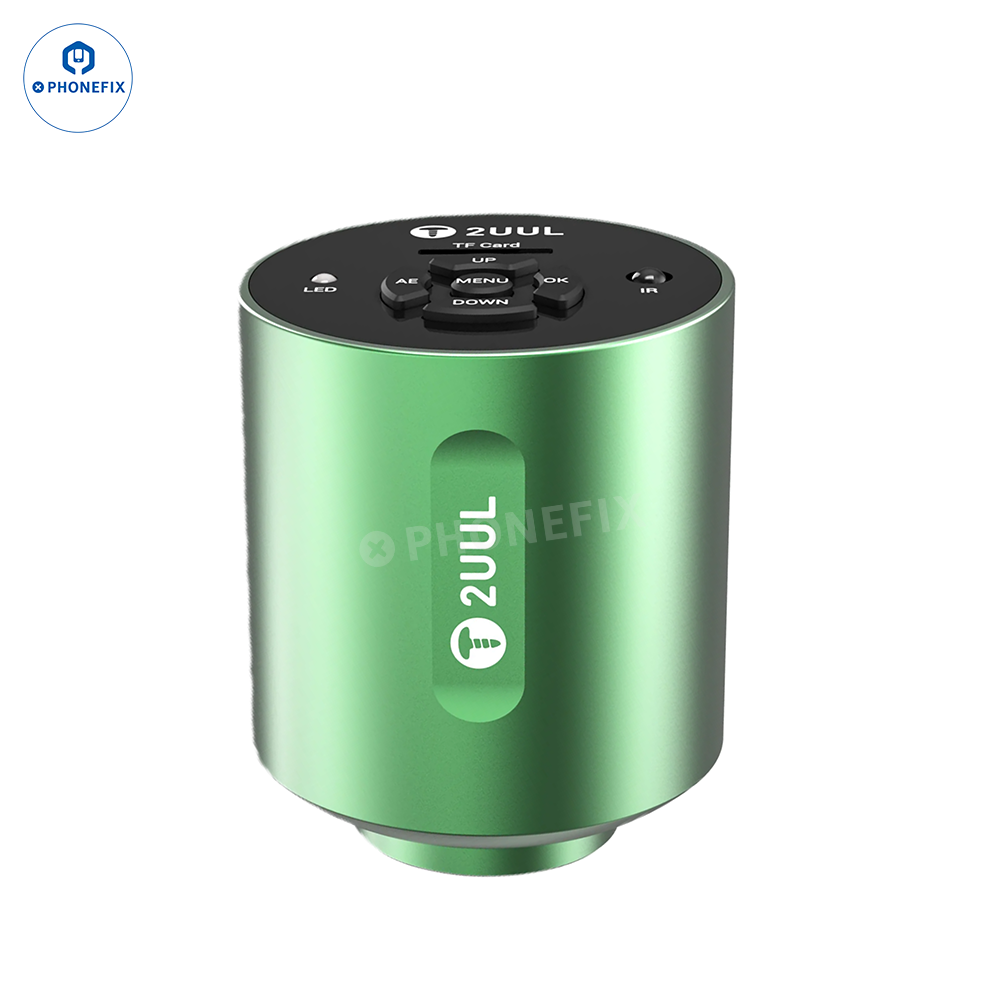

2UUL MS01 SpaceCam 4K Camera compatible with most Microscopes and C-mount Adapters for Mobile Phone Repair and PCB CPU Chip Soldering. 2UUL MS03 SpaceCam Lite 4K HD microscope camera with 8MP CMOS sensor, HDMI/USB dual output, and C/CS dual mount. Real-time preview for phone repair and PCB inspection. 2UUL MS01 SpaceCam 4K Ultra HD Microscope Camera uses an 8.29-megapixel Sony CMOS image sensor and can be connected via HDMI and Type-C ports to provide true 4K HD image and video quality, making it ideal for mobile phone repairs and other electronic motherboard soldering repairs.
2UUL MS01 4K Camera Features:
1. 4K HD Image: Equipped with an 8.29-megapixel SONY CMOS image sensor, it delivers exceptional image quality, capturing even the smallest details.
2. Large Sensor: Equipped with a SONY 1/1.8-inch image sensor, it ensures high-quality optical capture and enhances imaging accuracy.

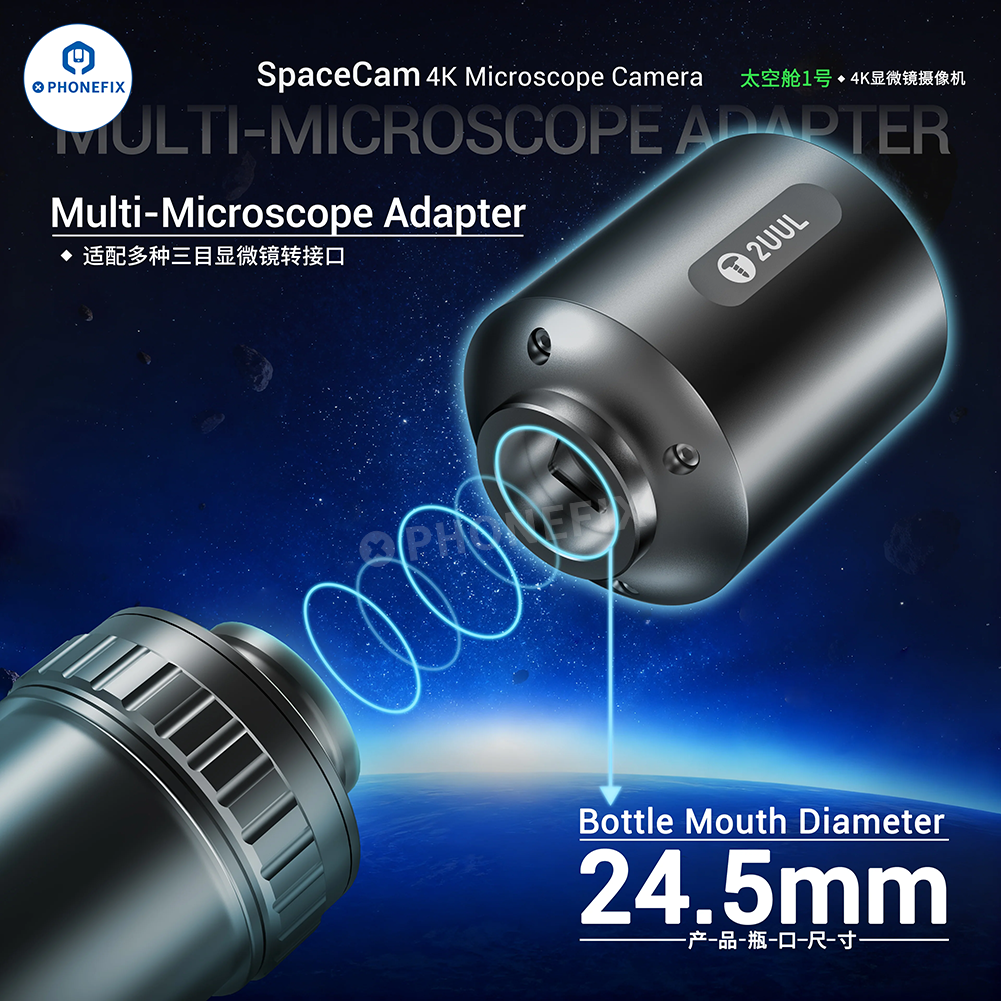

3. Wide Compatibility: Compatible with a variety of trinocular microscope adapters, it facilitates use with a wide range of microscope models.
4. Compact Design: Its compact size (56x56x73.5mm) and light weight (280g) make it easy to install and operate.
5. Multi-Interface Support: Equipped with HDMI and Type-C ports, it supports fast data transfer and connection to display devices.
6. Remote Operation: Includes a remote controller for convenient operation and shooting.

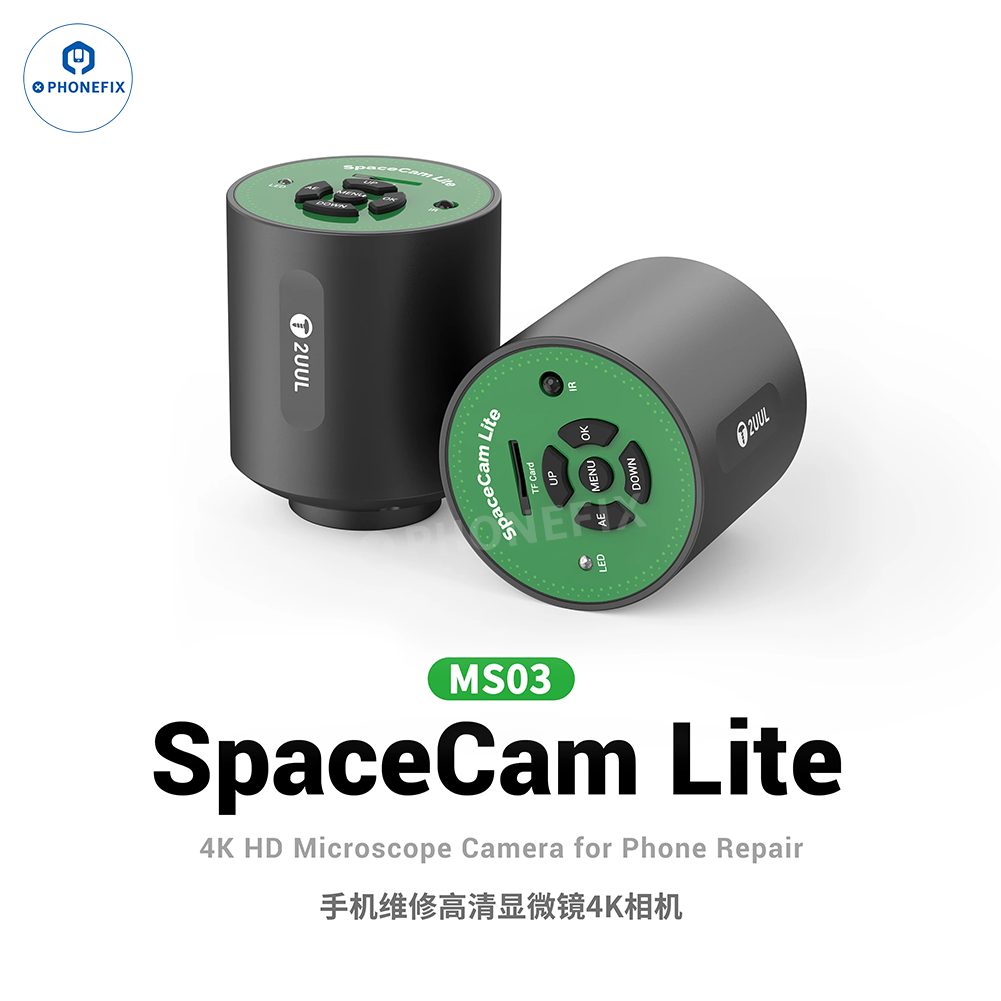

2UUL MS03 SpaceCam Lite 4K Camera Feature:
1. 4K Ultra-High Resolution. 8MP CMOS sensor captures fine details with no blur or noise.

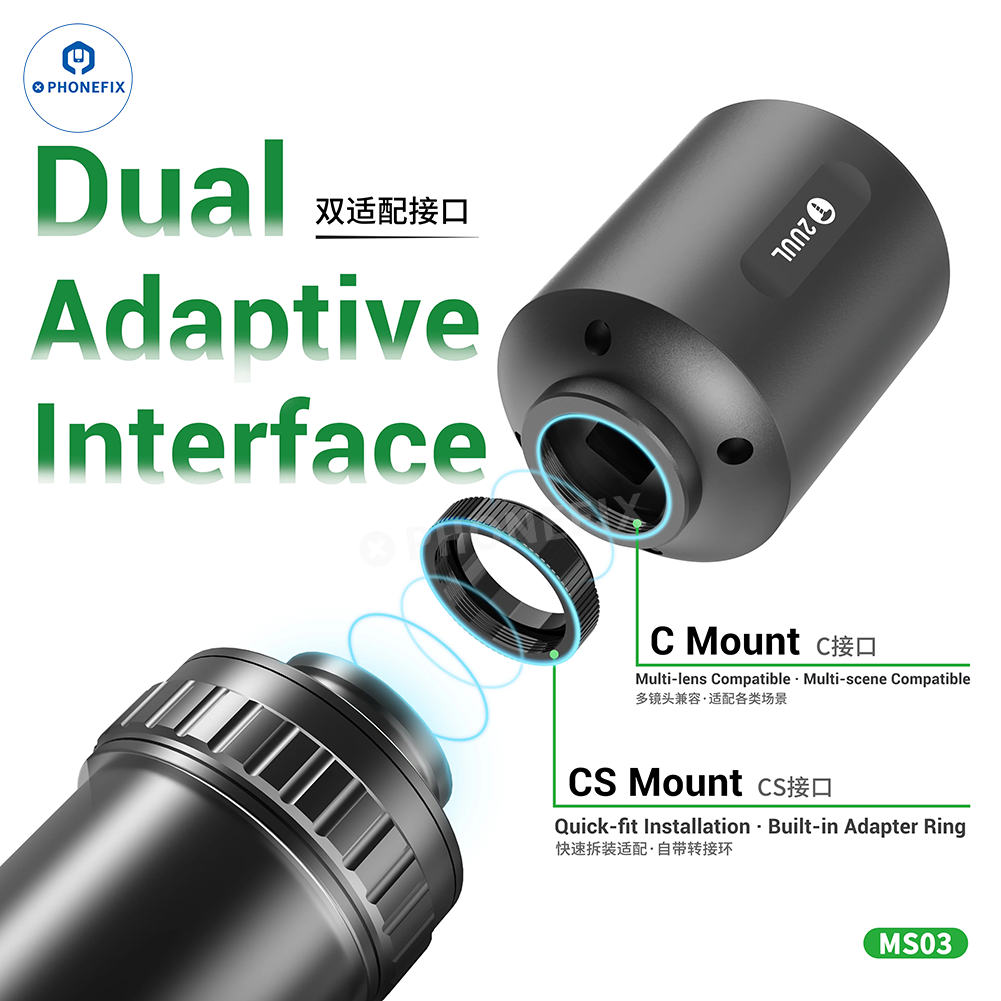

2. Dual Adaptive C/CS Mount. Multi-lens compatible — quick-fit installation with built-in adapter ring.

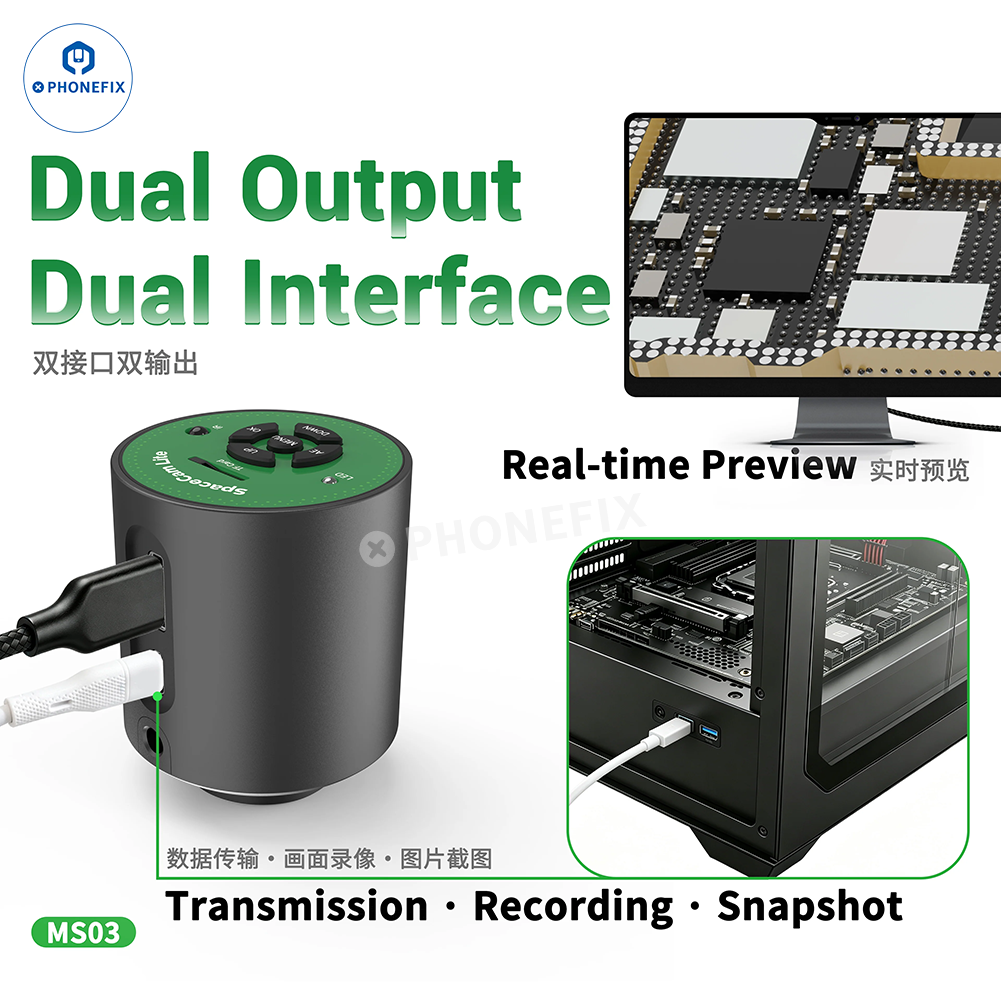

3. Dual HDMI & USB Output. Real-time preview, transmission, recording, and snapshot capability.

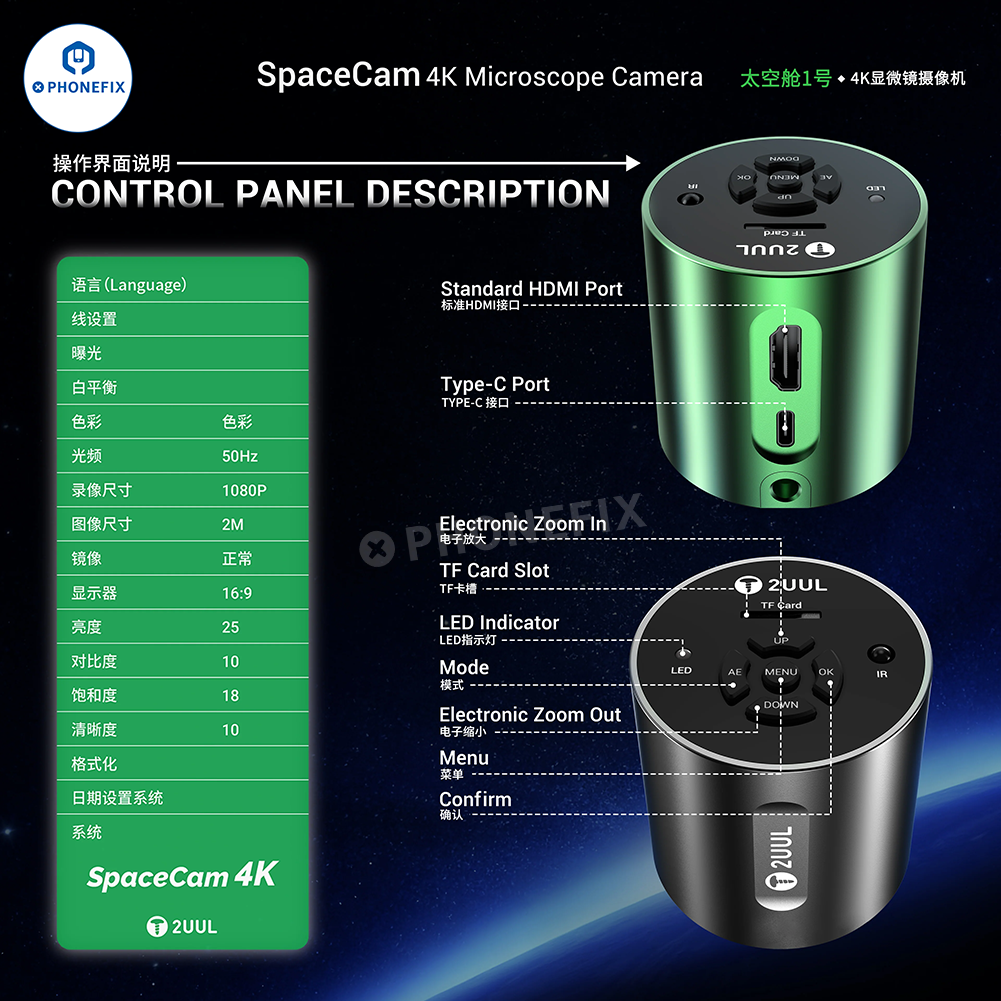

4. Onboard Control Panel. Electronic zoom in/out, menu, mode, AE, and confirm buttons.
5. TF Card Storage. Supports up to 64GB for image and video storage.
6. 16 Line Marking. Adjustable color, thickness, and position; center line support.
7. Remote Control Support. Convenient wireless operation.
8. Multi-Language Menu. English, Simplified Chinese, Traditional Chinese, and more.
Specifications:
Name: 2UUL MS01 SpaceCam 4K Microscope Camera.
Color: Green, black.
Net Weight: 280g
Gross Weight: 361g
Dimensions: 56x56x73.5mm
Packaging Dimensions: 134x110x72mm
Model: 2UUL MS03 SpaceCam Lite 4K HD Microscope Camera
Image Sensor: 1/2.7" 8MP Back-illuminated CMOS
Pixel Dimension: 1.5µm × 1.5µm
HDMI Video Output: 3840×2160 30fps / 1920×1080 60fps
USB Video Output: 3840×2160 / 2560×1440 / 1920×1080 / 1280×720 / 640×480 / 424×240 / 320×240 (MJPG)
Lens Interface: C / CS
Exposure: Auto / Manual
Exposure Compensation: Support
White Balance: Auto/Manual, Adjustable R, G, B Channels
Storage Function: Max Support 64GB TF Card
Input Voltage: DC 5V
Line Marking: 16 Straight Lines; Adjustable Color, Thickness, Position
Center Line: Support
Menu Language: English / Simplified Chinese / Traditional Chinese / Multi-language
Remote Control: Support
Package Size: 133 × 108 × 72mm
Gross Weight: 361g
Included Accessories: Adapter Ring ×1, HDMI Cable ×1, Charging Cable ×1, Remote Control ×1

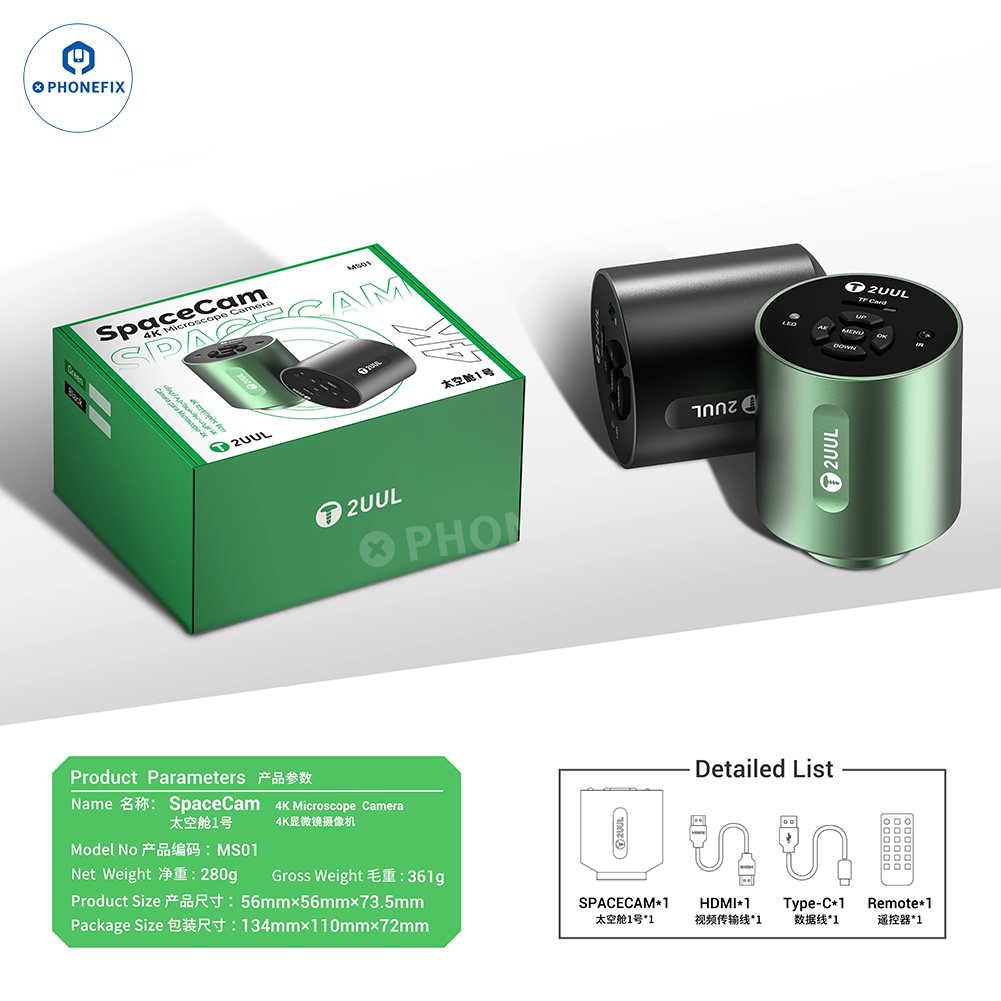

Detailed List
SPACESAM x1
HDMI x1
Type-C x1
Remote x1
