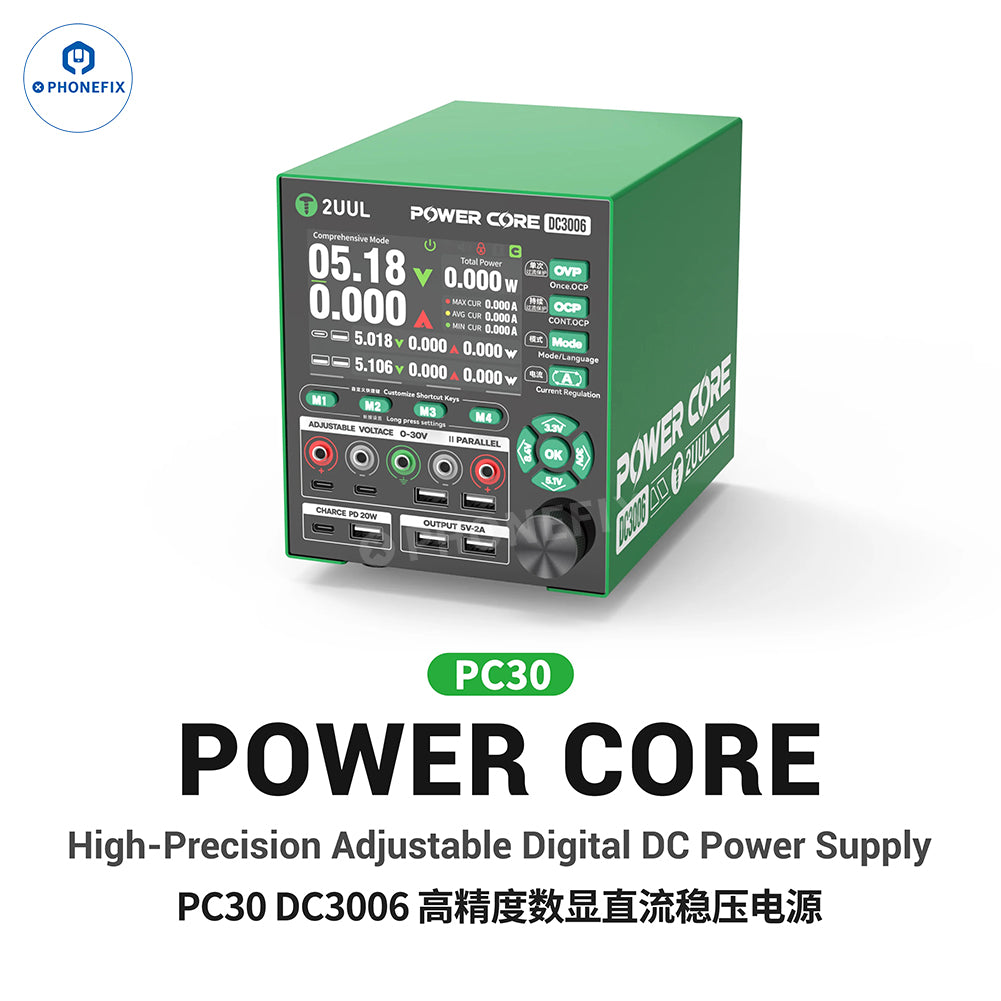

2UUL PC30 DC3006 is a high-precision digital DC power supply designed for professional phone repair, motherboard diagnostics, and electronics testing. With 0-30V, 0-6A output, 180W max power, and 60mV ripple. Dual OCP modes. The 4-inch HD TFT display offers three modes—comprehensive, digital, and waveform—and supports real-time waveform tracing. It is equipped with dual 4mm banana plug output ports and built-in PD 20W and 5V/2A USB charging interfaces, while also supporting synchronized display on a PC.
Features:
1. 0-30V Continuously Adjustable Voltage. Precise voltage control with 0.01V adjustment step for sensitive repairs.
2. 0-6A Continuously Adjustable Current. Supports high-current repair tasks with 0.01A adjustment step.
3. 180W Maximum Power. Delivers ample power for phone, tablet, and motherboard repair.

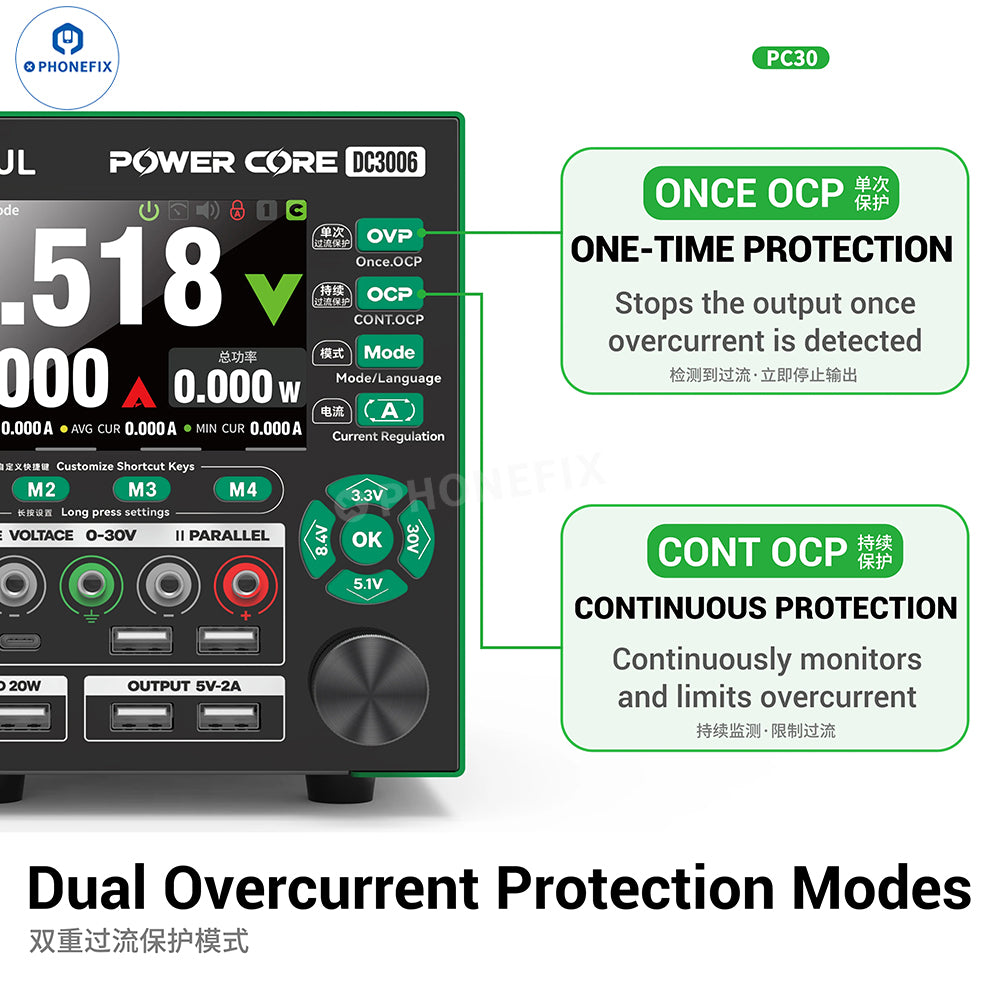

4. Dual Overcurrent Protection (Once OCP / Cont OCP). One-time protection stops output on overcurrent; continuous protection monitors and limits.

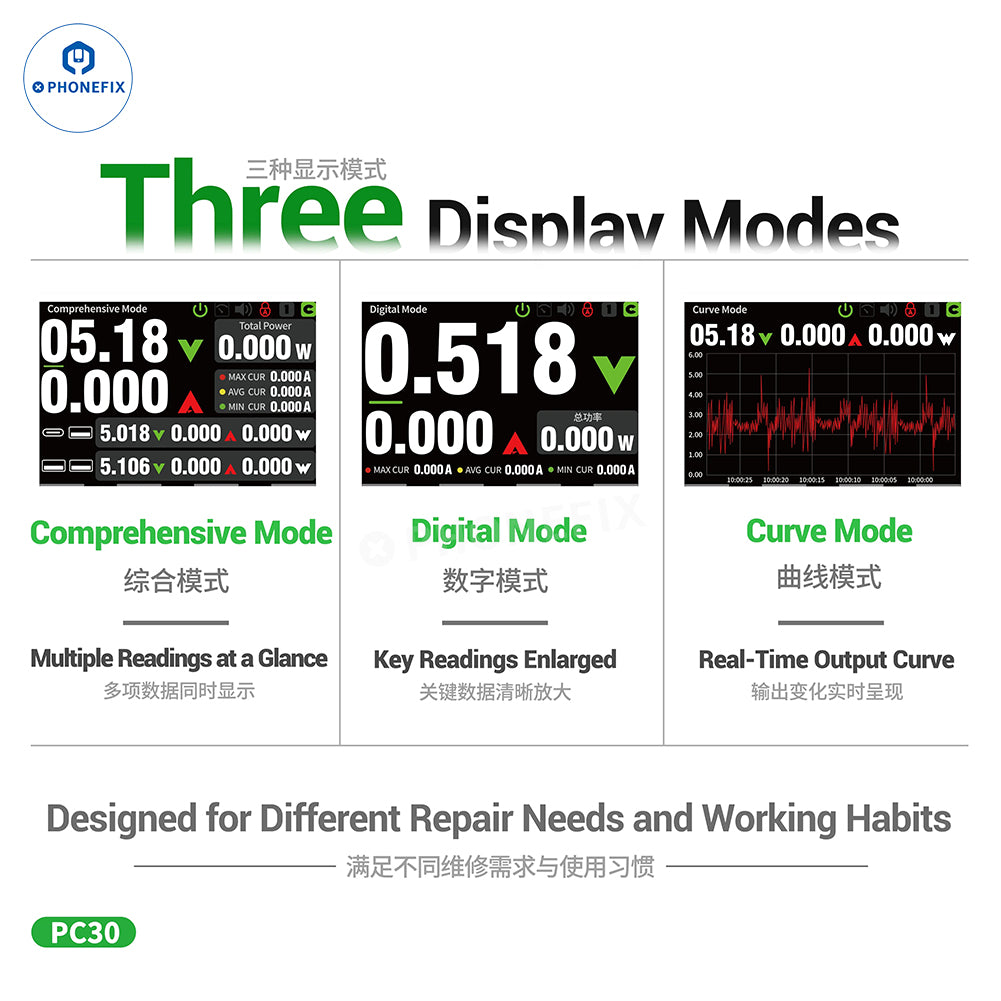

5. 4-inch TFT Color Display. High-definition 320×480 screen with three display modes: Comprehensive, Digital, and Curve.
6. Real-Time Curve Mode. Tracks output voltage and current changes in real time for precise diagnostics.

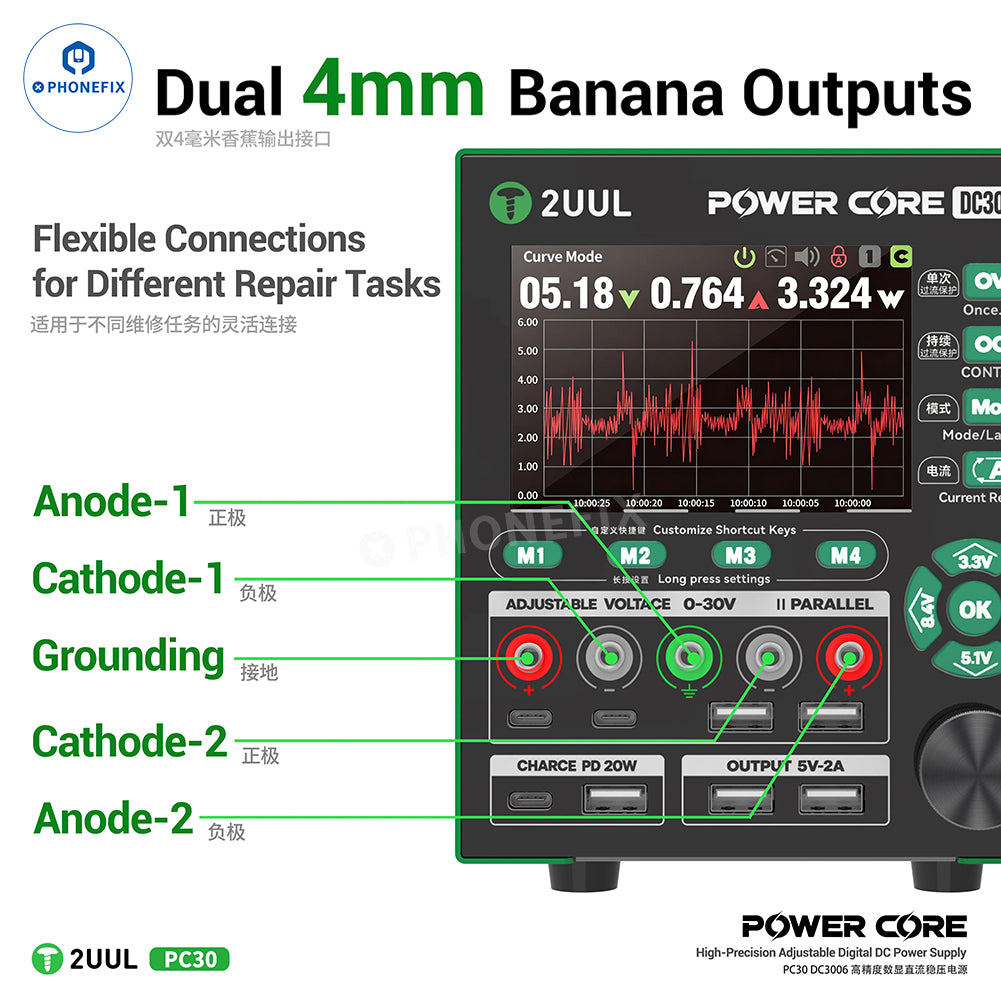

7. Dual 4mm Banana Outputs. Flexible connections for different repair tasks (Anode, Cathode, Grounding).

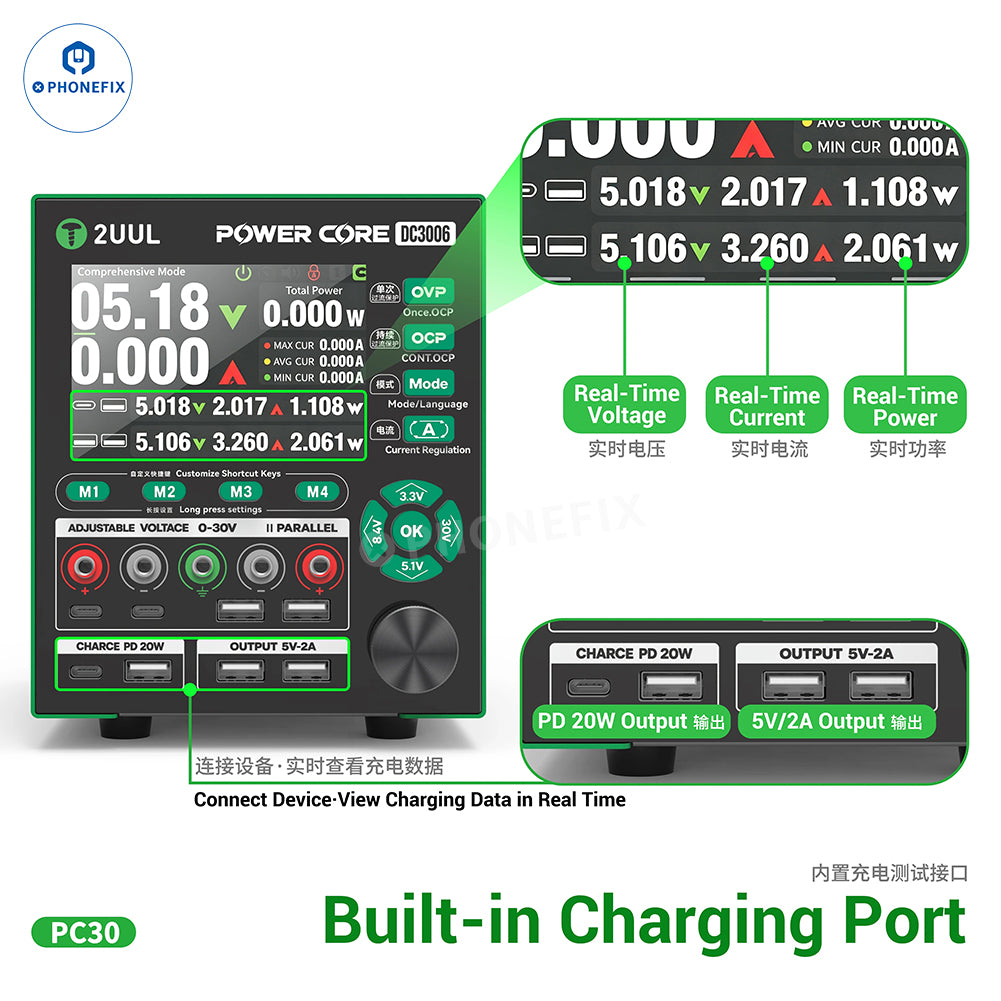

8. Built-in Charging Ports. PD 20W + 5V/2A USB outputs for charging devices while testing.

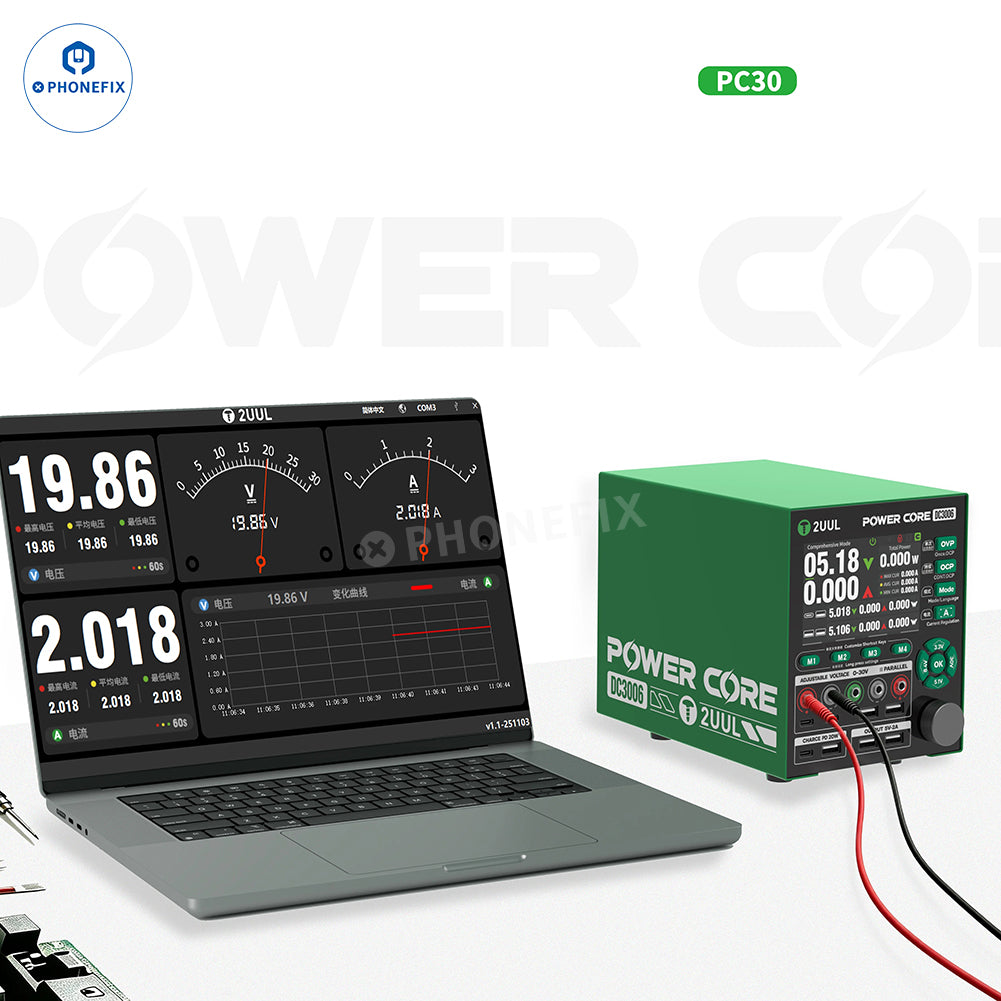

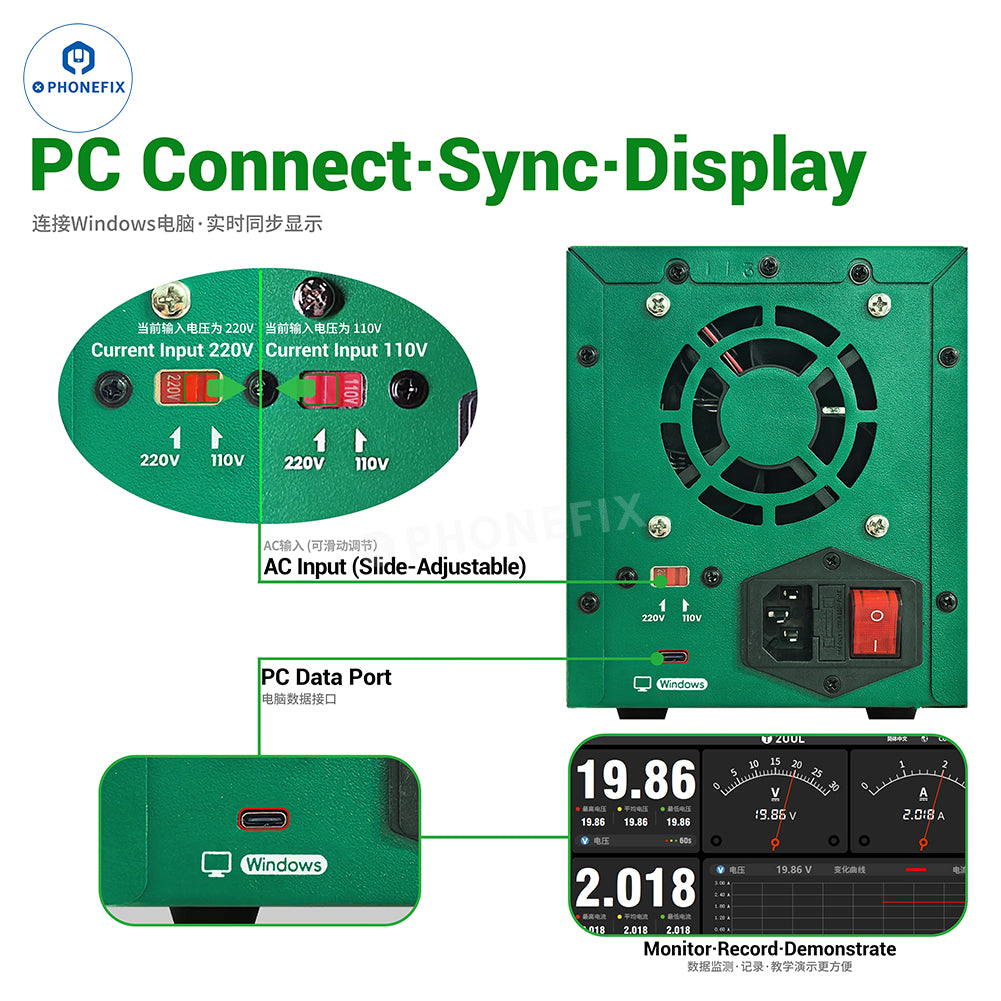

9. PC Connect-Sync-Display. Connects to Windows PC for data monitoring, recording, and teaching demonstrations.
10. Slide-Adjustable AC Input. Selectable 220V/110V input with 50Hz/60Hz compatibility.
11. Low Ripple (≤60mV). Clean, stable output for sensitive electronic components.
12. Customizable Shortcut Keys (M1-M4). Quick recall of frequently used voltage settings.

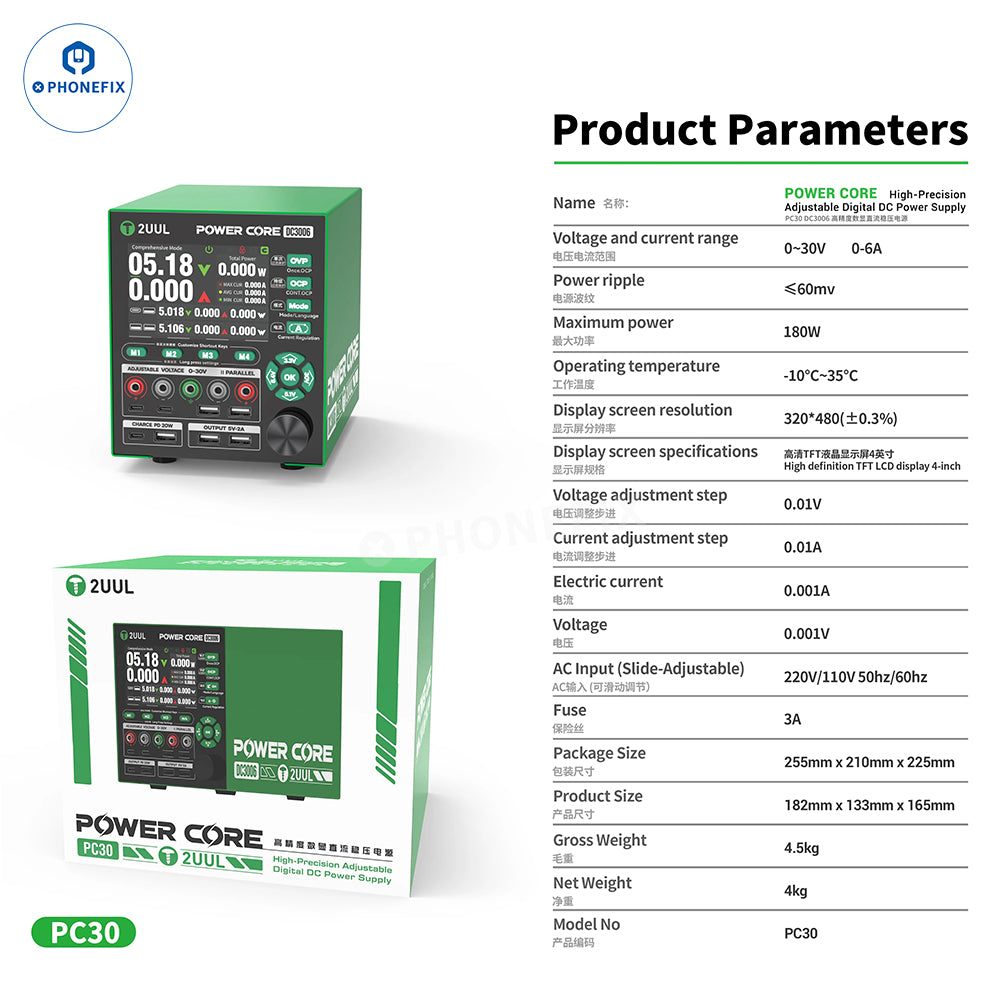

Product Parameters:
Brand: 2UUL
Product Name: High-Precision Adjustable Digital DC Power Supply
Model: PC30
Product Code: DC3006
Voltage and Current Range: 0~30V / 0~6A
Power Ripple: ≤60mv
Maximum Power: 180W
Operating Temperature: -10℃~35℃
Display Screen Resolution: 320×480 (±0.3%)
Display Screen Specifications: 4-inch High-Definition TFT LCD Display
Voltage Adjustment Step: 0.01V
Current Adjustment Step: 0.01A
Electric Current Accuracy: 0.001A
Voltage Accuracy: 0.001V
AC Input (Slide-Adjustable): 220V/110V 50Hz/60Hz
Output Ports: Dual 4mm Banana, PD 20W USB, 5V/2A USB
Fuse: 3A
Product Size: 182mm × 133mm × 165mm
Package Size: 255mm × 210mm × 225mm
Gross Weight: 4.5kg
