2UUL PW33 PortCheck Pro II Charge Port & Charging Function 2 in 1 Tester – Type-C & Lightning Detection. 2UUL PW31 PW32 Charging Port Comprehensive Diagnostic Tester for Mobile Phone/iPhone/Tablet Repair. 2UUL PW31 PortCheck Pro 5V 2A Tail Plug Automatic Detector with Type-C Lightning port can quickly detect charging faults and other problems without disassembling the iPhone/iPad/mobile phones. 2UUL PW32 Type-C Port Comprehensive Diagnostic Tester for Mobile Phone/Tablet USB-C charging port fault location and real-time charging detection.
Option:
1. 2UUL PW32 Type-C Port Diagnostic Tester.
2. 2UUL PW33 PortCheck Pro II tester.
3. 2UUL PW31 Type-C Lightning port detector. It's been discontinued.

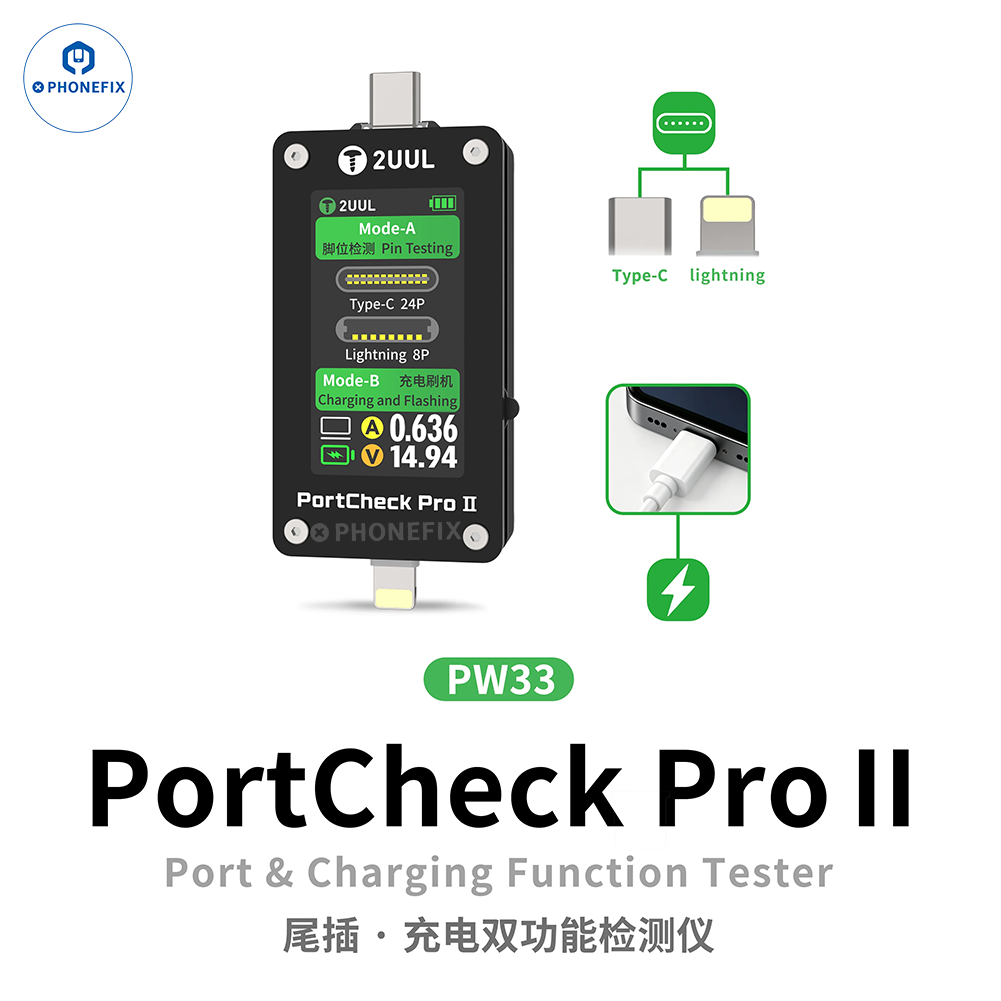

2UUL PW33 PortCheck Pro II Charge Port & Charging Tester Features:
1. Dual Mode Function. Mode-A for pin testing; Mode-B for charging and flashing diagnostics.
2. Type-C & Lightning Support. Compatible with Type-C 24P and Lightning 8P ports.
3. Pin Testing (Mode-A). Visually identifies faulty pins on the charging port.
4. Charging & Flashing (Mode-B). Displays real-time charging voltage and current.
5. Wide Measurement Range. Voltage: 0-30V; Current: 0-5A.
6. Real-Time Data Display. Clear readout of charging status for quick diagnosis.
7. Built-in 500mAh Battery. Portable operation without external power.
8. Windows Compatible. Works with Windows PC for additional functionality.

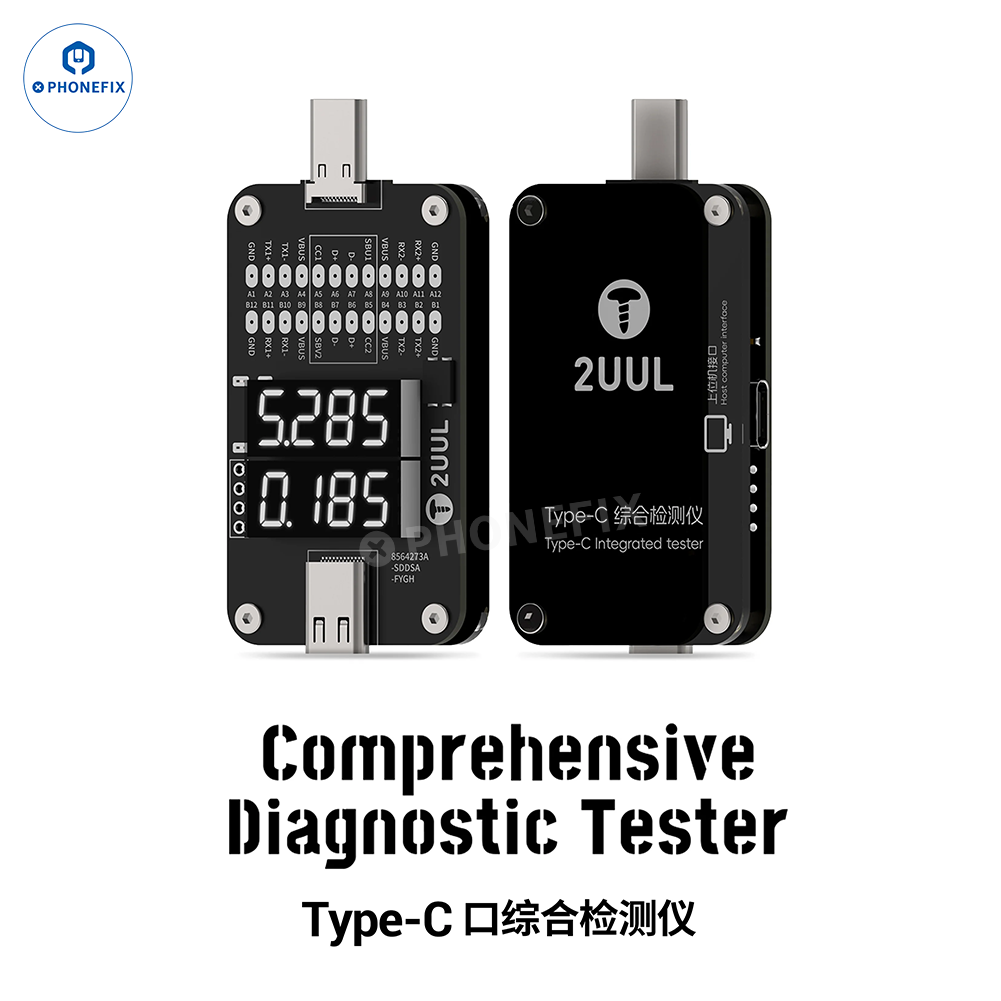

2UUL PW32 Tester Features:

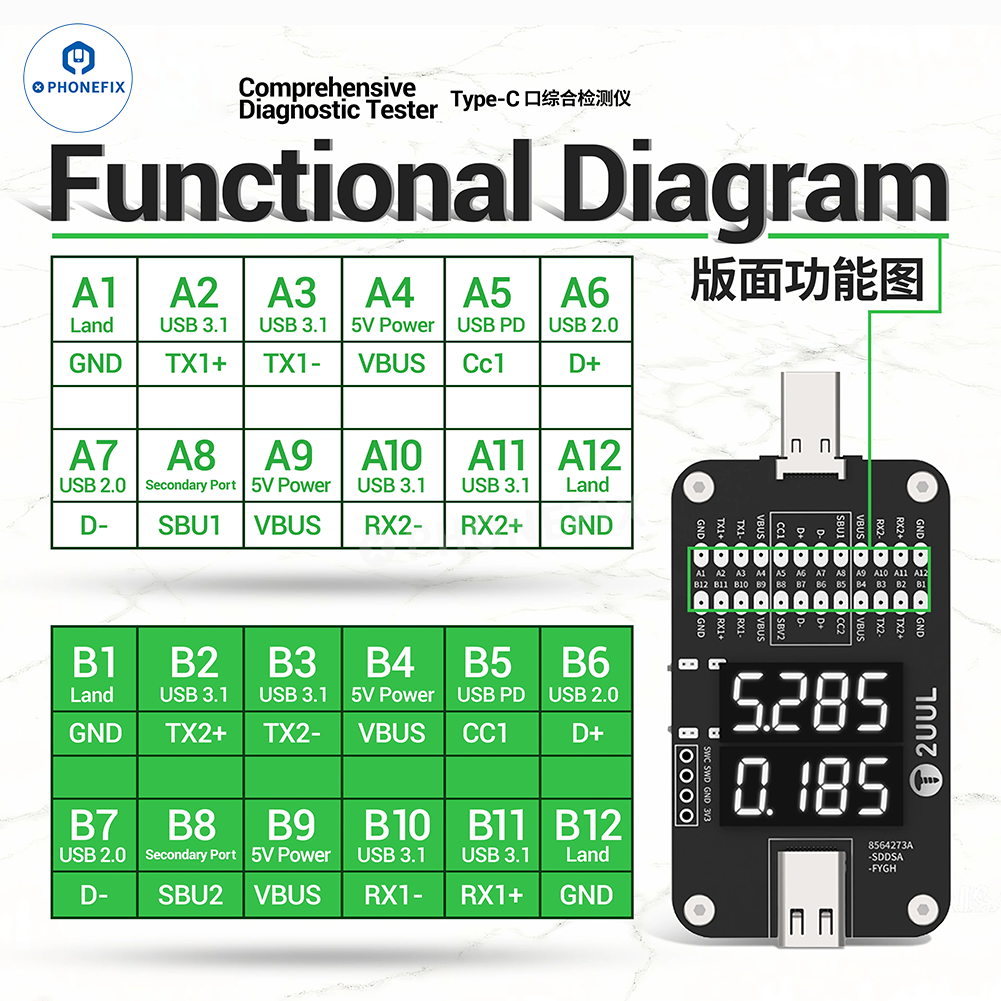

1. 2UUL PW32 Comprehensive Diagnostic Tester suitable for Mobile Phone/iPhone/Tablet type-C port detection.

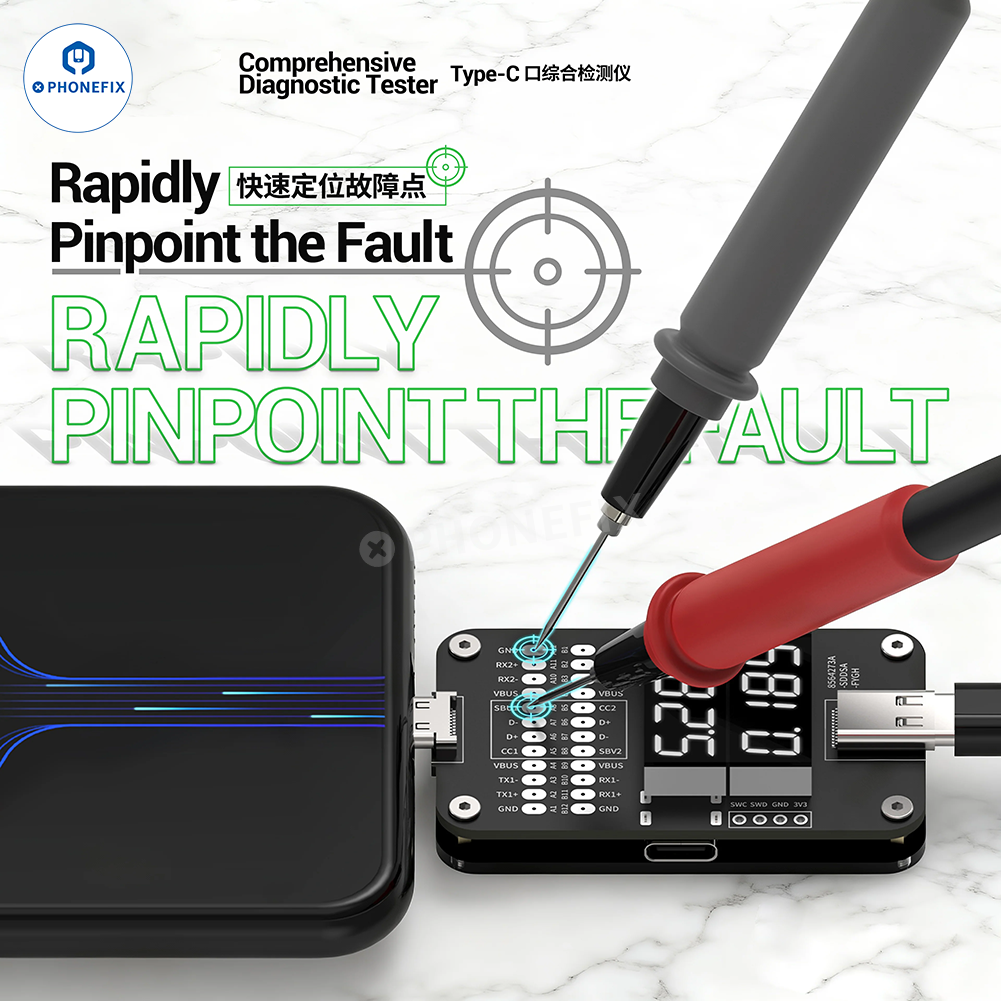

2. Quickly locate the fault point.

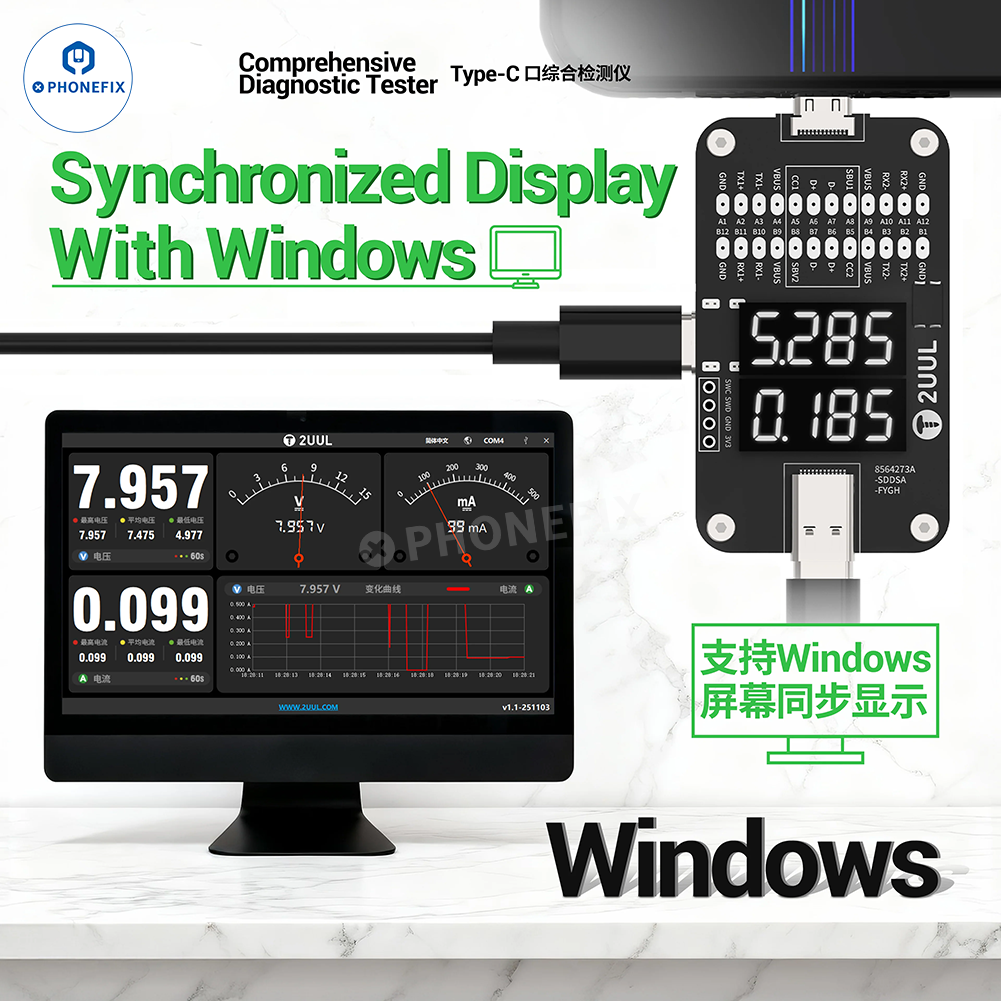

3. Supports synchronized display on the Windows screen.
4. Supports real-time charging detection.
5. Testing and repair of charging ports for mobile phones, iPhones, and iPads with Type-C connectors.
2UUL PW31 Detector Features:
1. Automatic detection: Automatically identifies plug-in problems, making it easier to diagnose problems without extensive manual testing.
2. Intuitive design: Quick and efficient use in a workshop or repair environment.
3. Versatile application: Applicable to a variety of devices, enhancing its practicality in different repair scenarios.
4. Long service life: Built-in battery, extra-long standby.
5. Detection problem display color: Blue for normal values; red for open circuit.
6. Disassembly-free: No need to disassemble the device, it can automatically and quickly lock and find problems such as charging failures, and the measurement data is clearly visible.
7. Built-in battery, the large screen uses colors to distinguish different detection problems.
Parameters:
Name: 2UUL PW31 PortCheck Pro.
Charging voltage: 5v-2a.
Battery capacity: 300mAh.
Packing Size: 90x56x16mm.
Product size: 77x36x13mm.
Net Weight: 25g.
Gross Weight: 34g.
Package includes:
1 x Detector.
