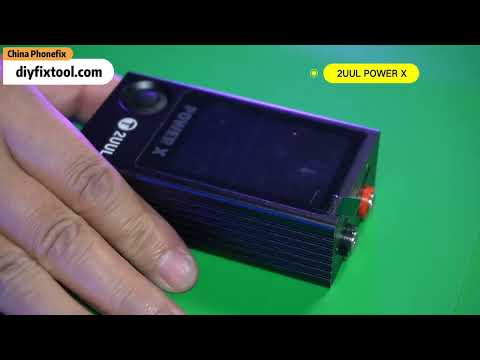

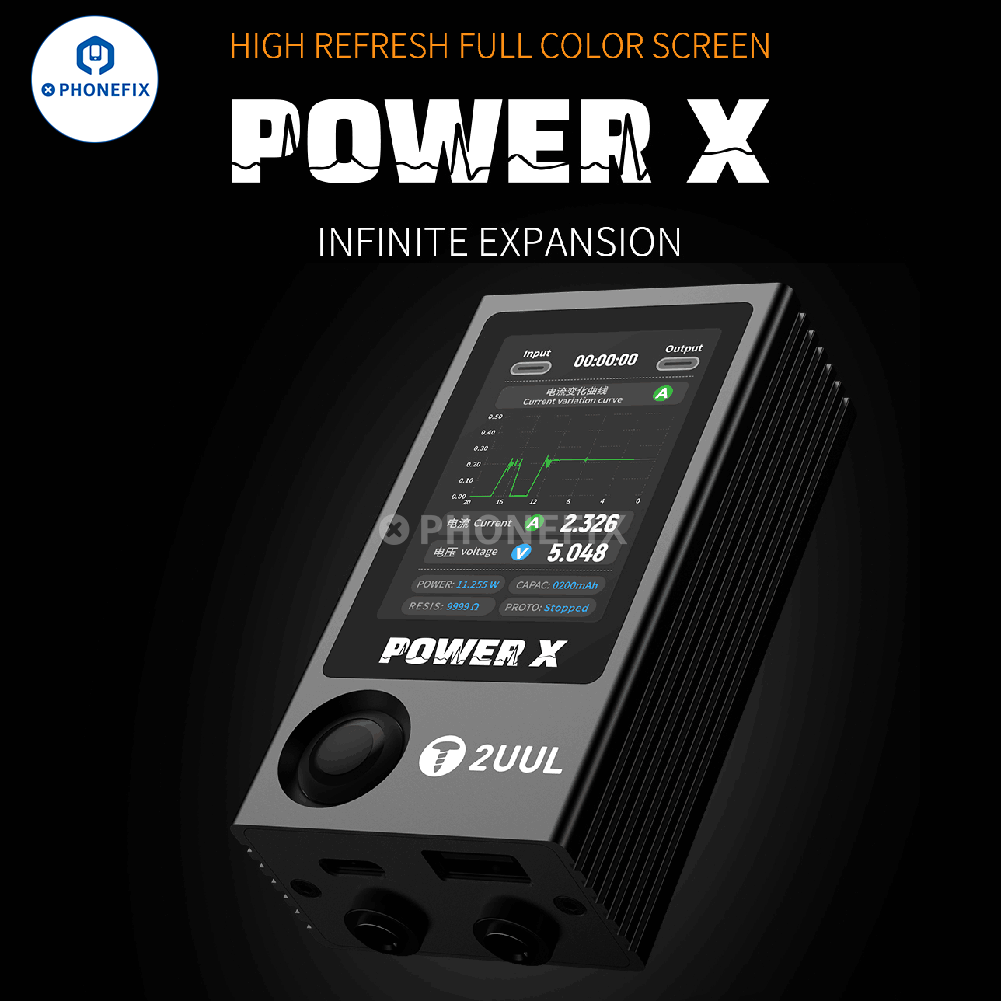

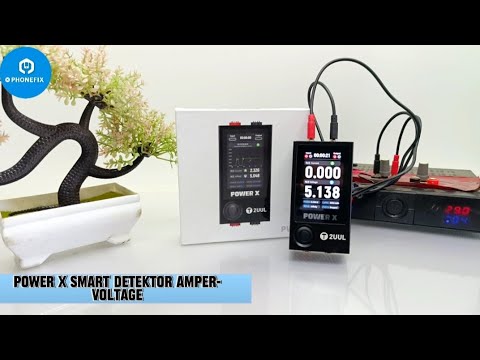

2UUL PW11 Power X High Refresh Screen Ampere-Voltage Meter PCB Voltage Current Tester with HD screen real-time displays current curve, current pointer, load resistance, cumulative capacity and other parameters. 2UUL POWER X mobile phone laptop repair tester has 3 independent channels can be intelligently switched, gear intelligent switching, overcurrent prompt, data cable reverse prompt, ect;
2UUL POWER X PCB Detector Parameters:
1. Rated working voltage range: DC 4-30V.
2. Maximum input voltage: DC 33V.
3. Voltage measurement range: 0-30V.
4. Voltage measurement accuracy：±1mV.
5. Rated current measurement range:0-5A.
6. Maximum current: 8A.
7. Current measurement accuracy：±1mA.
8. Curve measurement time: 20 seconds.
9. Display screen size: 2.4 inches.
10. Display resolution: 480*320.
11. Input reverse protection.
12. Overcuttent alarm.
2UUL POWER X Features:

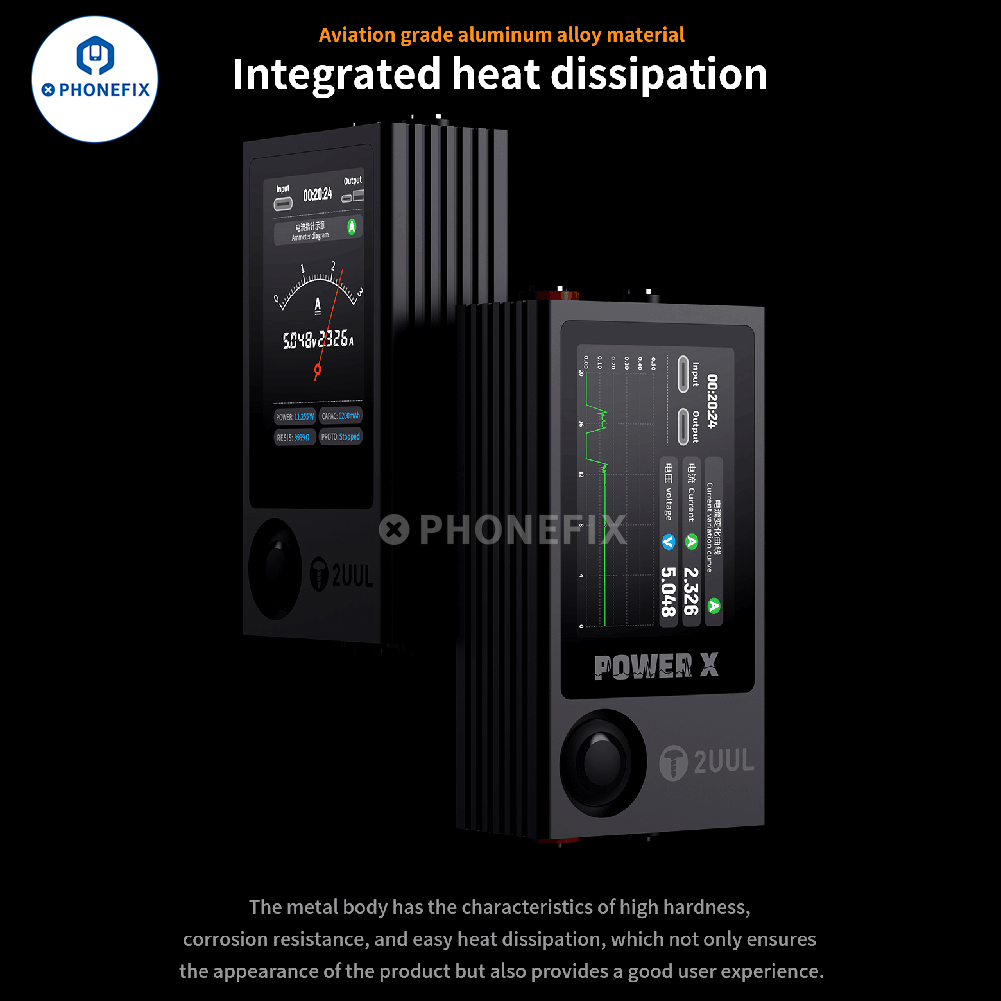

1. 2UUL Power X current and voltage measuring instrument with 2.4-inch HD screen displays current curve, current pointer, load resistance, cumulative capacity and other parameters in real time.
2. 2UUL Power X has functions such as multi-channel intelligent switching, gear intelligent switching, overcurrent prompt, data line reverse connection prompt, etc., which is suitable for mobile phone and laptop repair.
3. Record the current fluctuation during equipment operation.
4. Accurate data measurement, conventional pointer meters, which can meed three modes: digital display, curve, and pointer

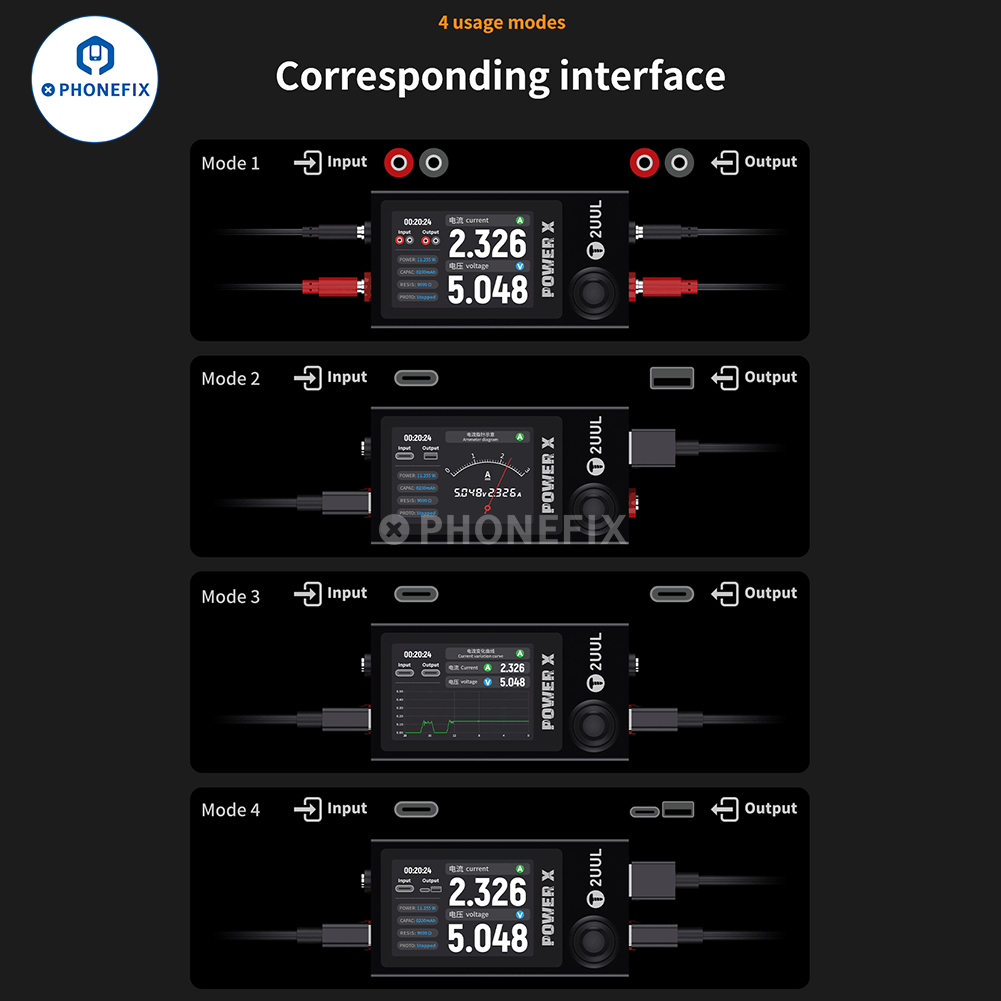

5. 2UUL POWER X tester has 3 independent channels and can be inserted into multiple channels simultaneously, the current display channel can be viewed through the display interface.

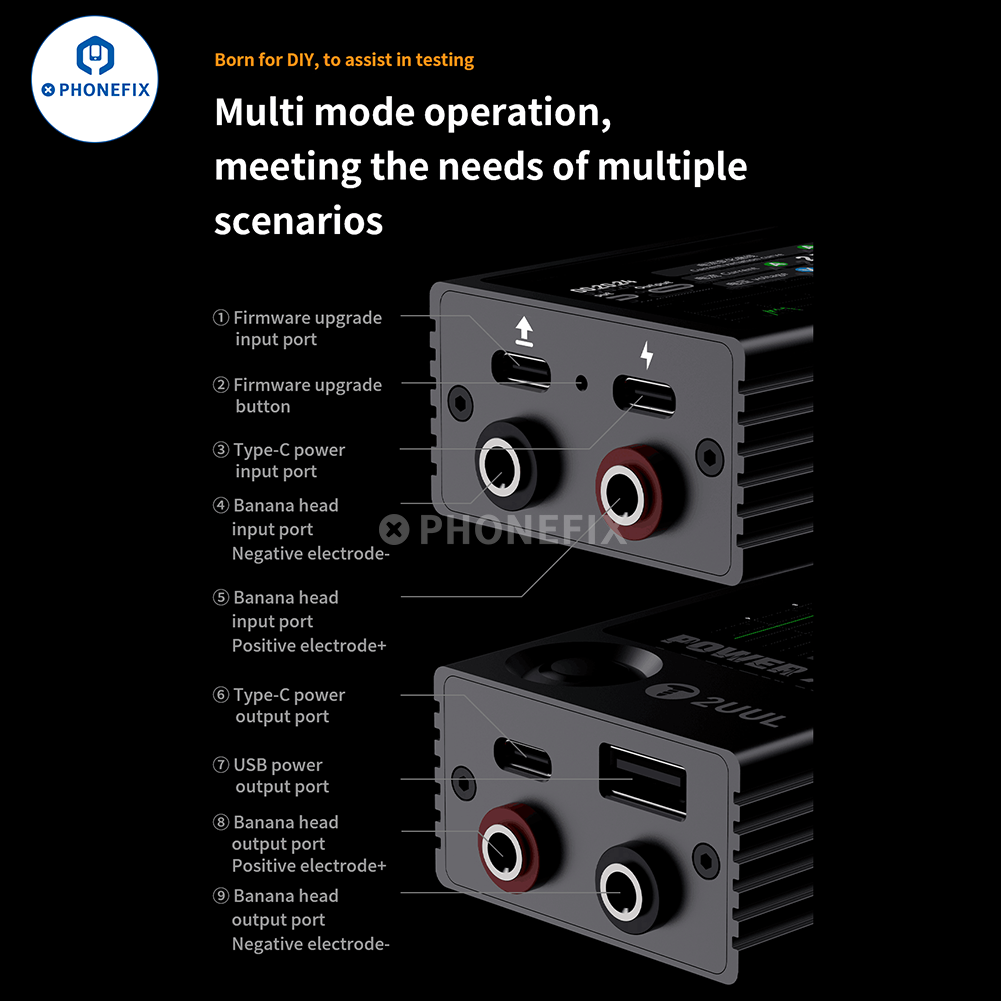

- Banana head interface: the test voltage is less than 3V and requires auxiliary power supply though firmware upgrade input port(the equipment power supply must meet the power supply range of DC 4-30V).
- Type-C interface: some double headed TYPE-C PD charging cables should be connected in reverse, which will affect the fast charging function. The device detects the direction of data cable insertion though intelligent algorithms, and the reverse connection has an alarm prompt. Simply turn the input terminal.
- USB interface: DC 5V output voltage, 500mA Maximum output current.

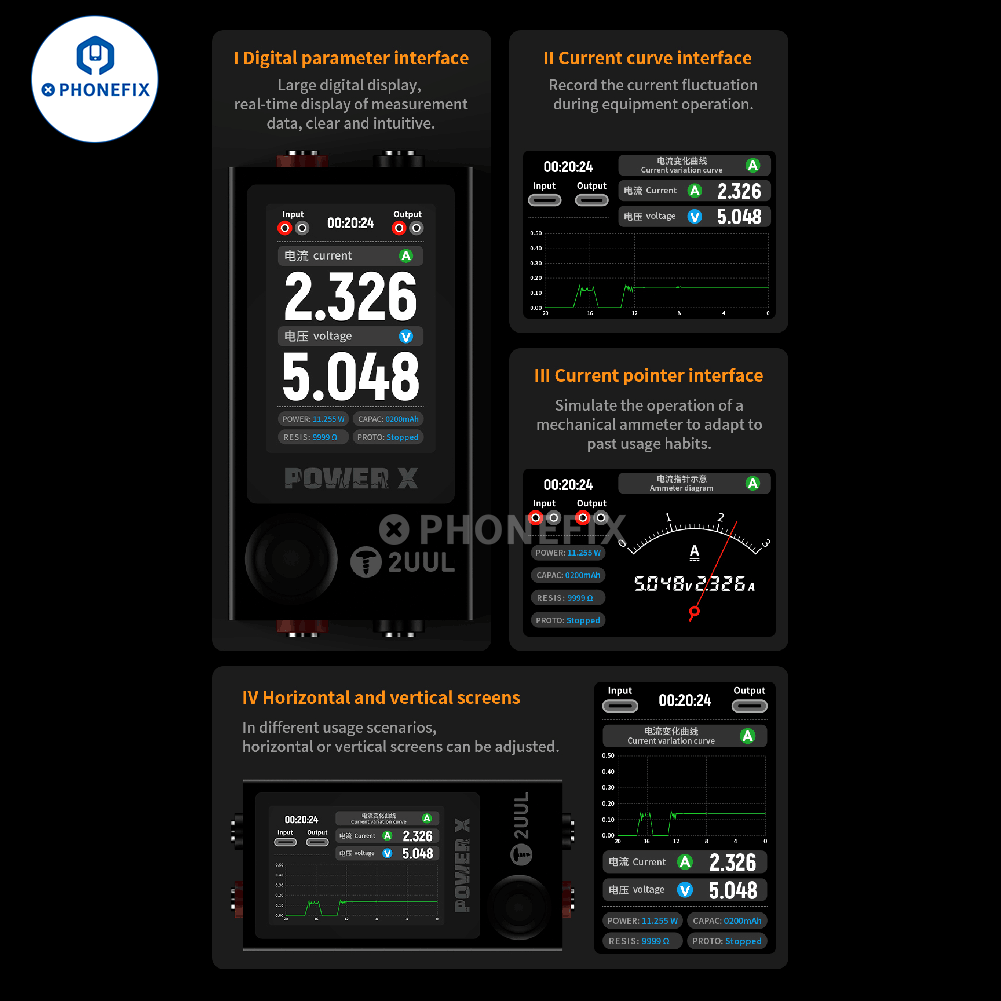

5. Display interface:
- Digital parameter interface: accumulated startup time, input channel indication, output channel indication, real time power, accumulated capacity, real time load resistance, device status, real time current, real time voltage.
- Current curve interface: Auto gear switching, switch the optimal display mode based on the current maximum test current.
- Current pointer interface: A auto gear switching, switches the optimal display mode based on the current maximum test current (real time current/real time voltage).

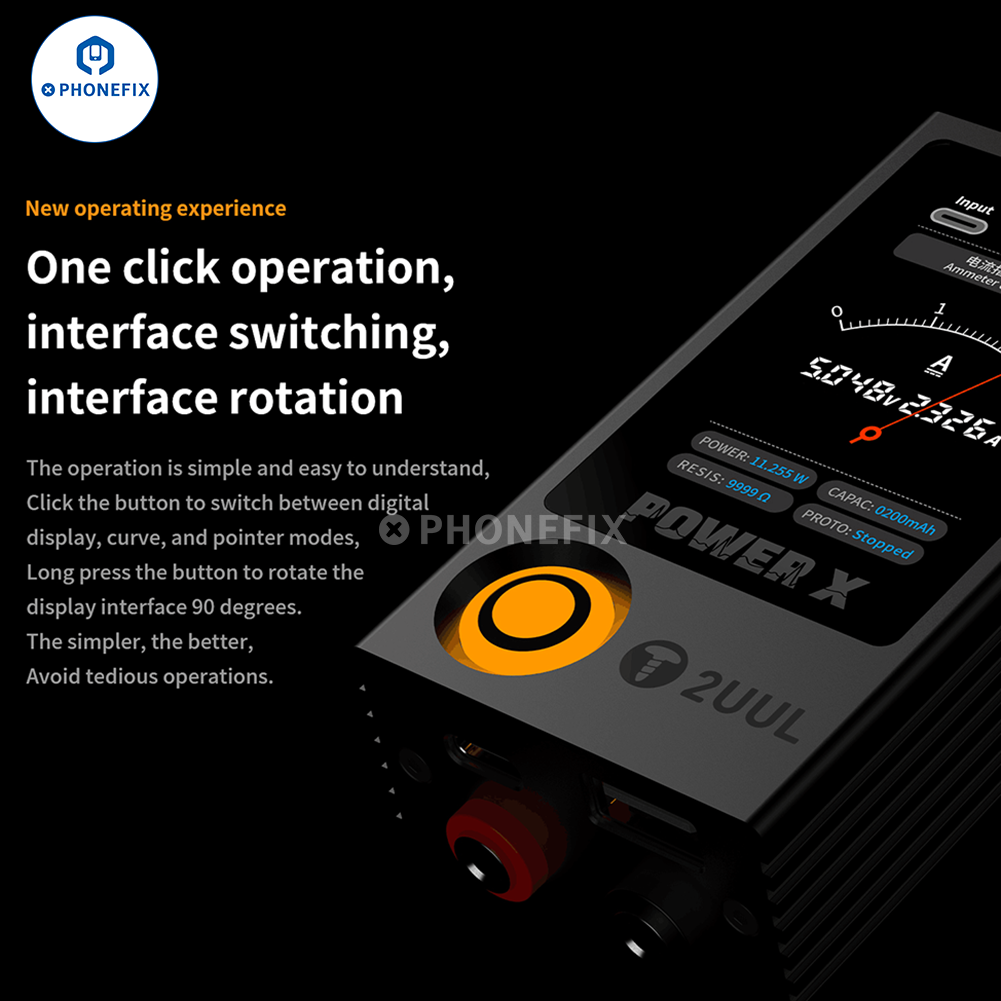

6. Key operation:
- Short press the button to switch the interface.
- Long press the button to rotate the interface.
7. Alarm prompt:
- Overcurrent alarm: current exceeds the range, please disconnect the load.
- Type-C reverse insertion alarm: please transfer the type-C port input.
