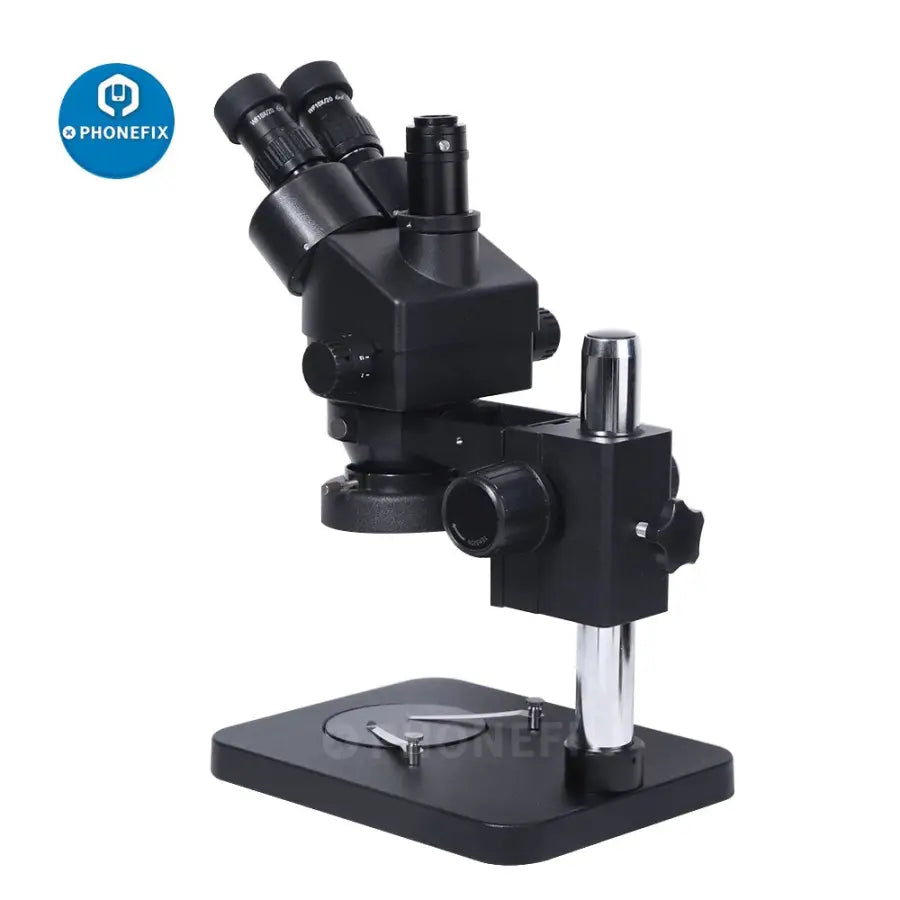

3.5X-180X zoom magnification trinocular stereo microscope with 0.7X-4.5X zoom objectives, optional two Barlow lenses (0.5X & 2.0x), two pairs of super widefield high-eyepoint eyepieces (10X & 20X) and foldable eyeguards.
Feature:
7X-45X zoom magnification power with crisp sharp images
Super widefield high-eyepoint optics
widefield of view
4" (100mm) working distance
Sturdy all-metal pillar stand
Powerful 56-LED ring light with dimmer
An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light
7x-45x super wide zoom magnification power
Bright cool light 56-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Trinocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included
It is synchronous, what you can observe are shown at the same time as the camera display, 7-45X Trinocular Stereo Zoom Microscope, if you need 0.35X-90X, choose: option 2.0X / 0.5X Objective Len (3.5X-90X).
Specifications:
Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8" to 3"(54-76mm)
Field of View: 1-1/4" (33mm)
Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(30mm)
Head Mounting Size: 3" (76mm) diameter
Accessory Mounting Size: 1-7/8" (48mm female thread) diameter
Options:

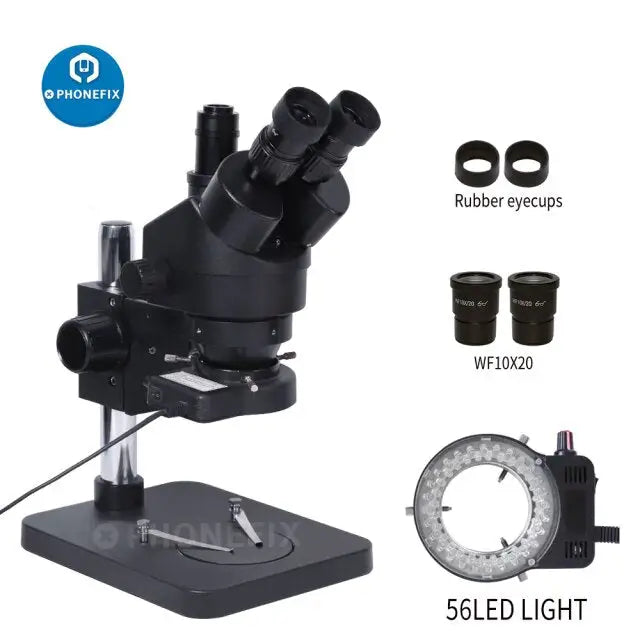

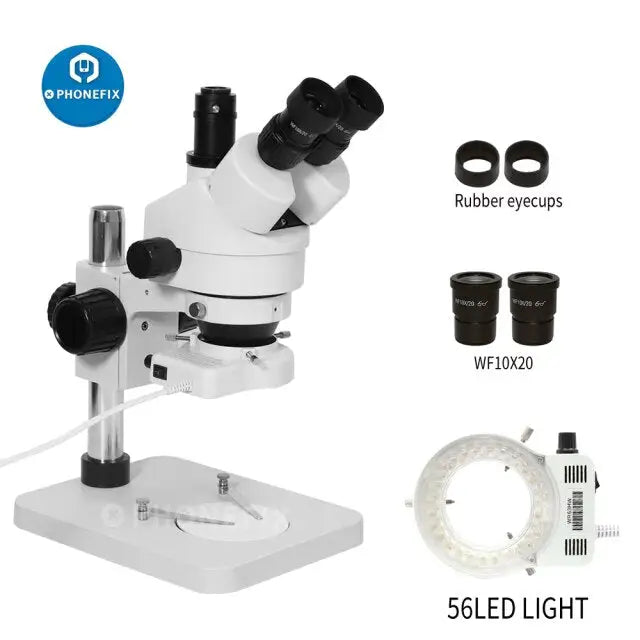

7-45X Package Including :
1X 7-45X Trinocular Stereo Microscope
1 x A pair Rubber eyecups
1 x A pair WF10X20 Microscope Eyepiece
1X 56-LED Ring Light

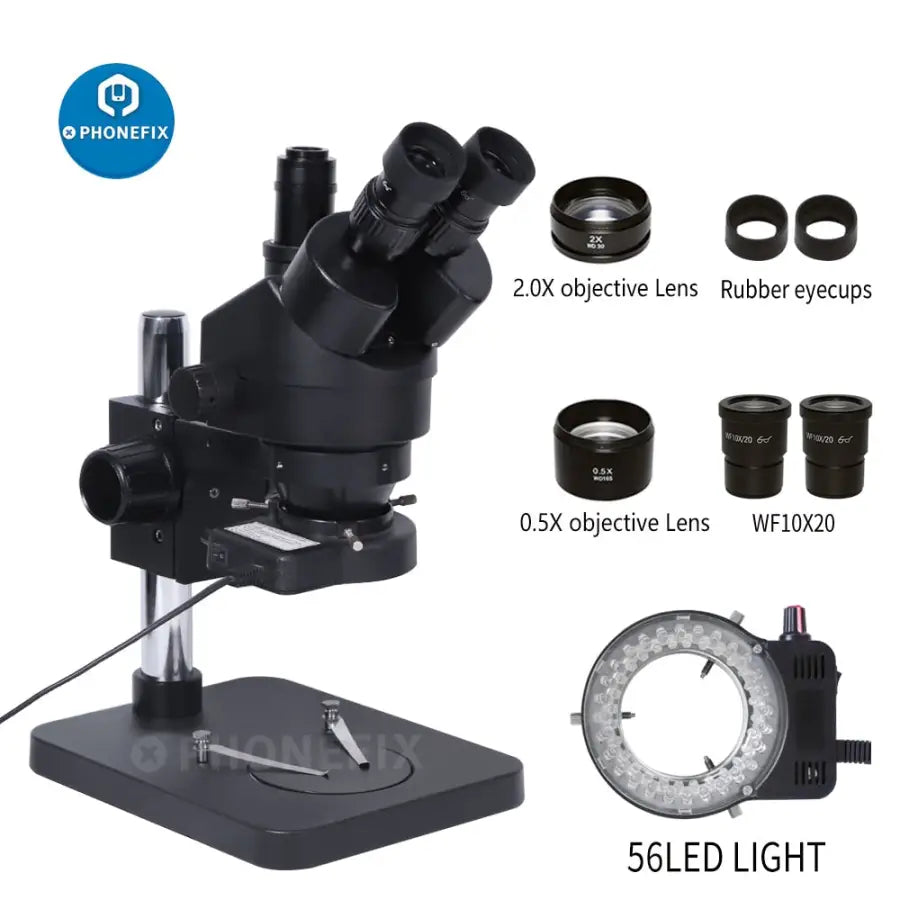

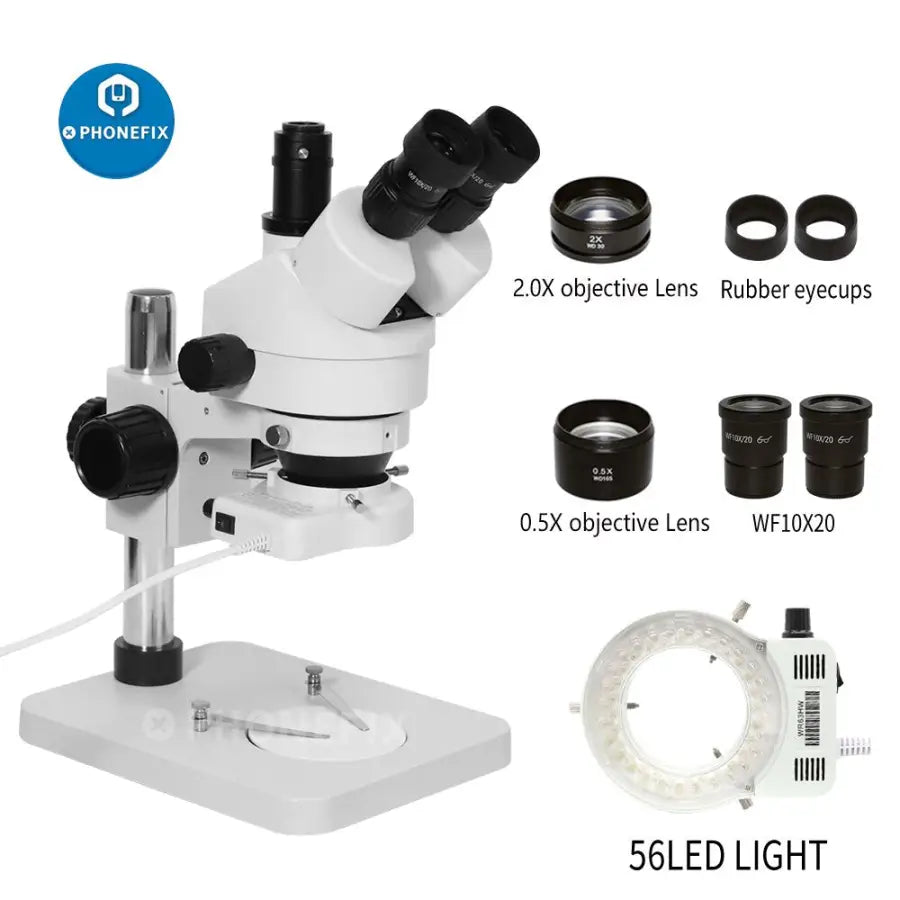

3.5X-90X Package Including :
1X 7X-45X Trinocular Stereo Microscope
1 x A pair WF10X20 Microscope Eyepiece
1 x A pair Rubber eyecups
1X 56-LED Ring Light
1X 2.0X Objective lens
1X 0.5X Objective lens

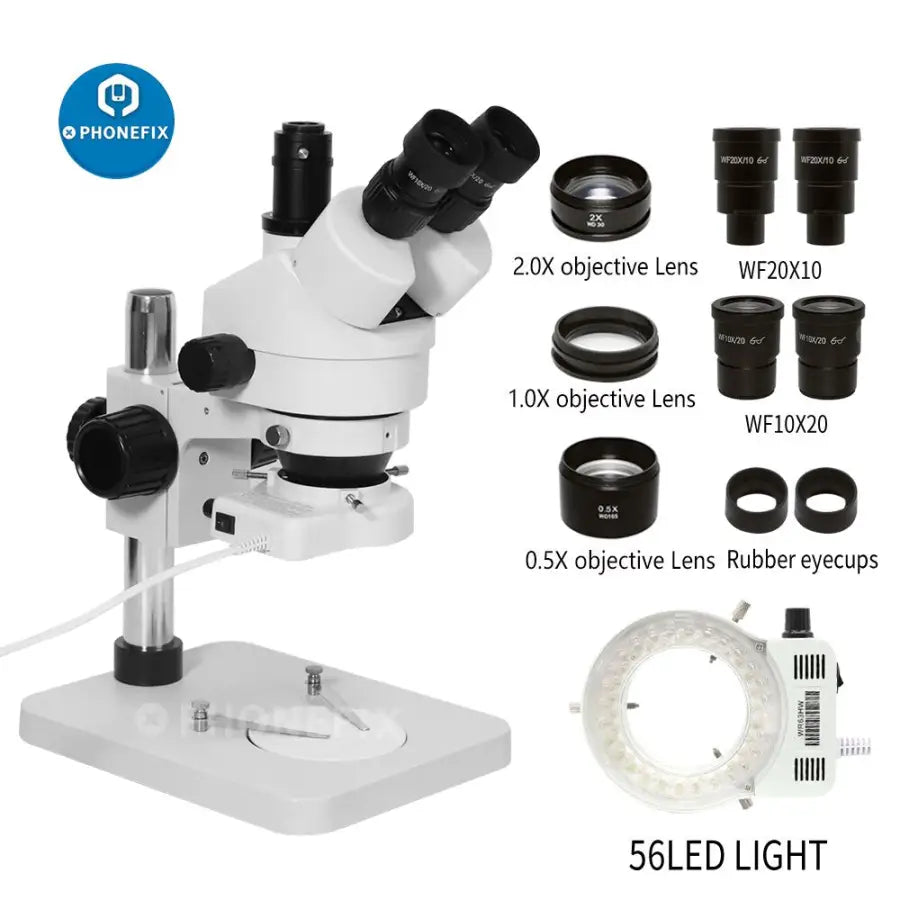

3.5X-180X Package Including :
1X 7X-45X Trinocular Stereo Microscope
1 x A pair WF10X20 Microscope Eyepiece
1 x A pair WF20X10 Microscope Eyepiece
1 x A pair Rubber eyecups
1X 56-LED Ring Light
1X 2.0X Objective lens
1X 0.5X Objective lens
