3005D-IV 30V 5A Digital High Precision Adjustable DC Power Supply

Yihua 3005D-IV 30V 5A Large Screen Digital Display High Precision Adjustable DC

Laboratory Power Supply For smart phone repair power tool.

Features:

1. Powerful enough to load computers, mobile phones, printers, projectors, refrigerators, and other appliances.
2. USB fast charging: fast as lightning, supports a variety of fast charging protocols, multiple protection short circuit alarm, 5V/4A, 9V/2.5A, 12V/2A, automatic recognition matching.
3. High precision regulation, adjustment accuracy: 1 mA 10 mV, display accuracy: 1 mA 10 mV.
4. One key to converting the output voltage range, 30V voltage can be quickly converted to 0-5V gear, mobile phone maintenance more secure.
5. Multiple protection, safe, efficient, and stable, over-voltage, over-current, overload, overheat, short-circuit protection.
6. Full load continuous work durable, not easy to damage.
7. Low-frequency interference and noise reduction design, small voltage fluctuation, strong load carrying capacity, stable output, not easy to interfere.
8. Temperature-controlled fan automatically turns on intelligent heat dissipation, when the internal temperature of the power supply reaches a certain temperature, the fan automatically turns on heat dissipation.
9. Material sufficient, reasonable circuit design, a power sufficient output guaranteed.
10. Suitable for most maintenance test scenarios, such as home appliance maintenance, DIY experiments, factory assembly lines, aging tests, etc.

Specification:

• Model No: 3005D-IV
• Power: 220W
• Display Format: LCD large screen display
• Output Voltage: DC 0~5V/0~30V
• Output power: 150W
• Load Stability: <0.2%+3mV
• Adjustment accuracy: 1 mA, 10 mV
• Display accuracy: 1 mA, 10 mV
• Host size: 200*98*154mm
• Protection function: short circuit protection/over current protection/overload protection/short circuit buzzer alarm/OCP short circuit power off switch
• Display function: four-digit current display / four-digit voltage display/power display / USB function display

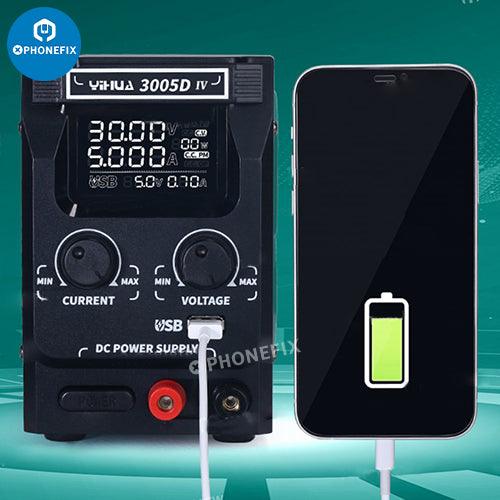

• Other functions: USB fast charging (5V 4A/9V 2.5A/12V 2A) automatic identification matching

Package includes:

• 1 x Power Supply
• 1 x Power Cable
