Upgrade your stereo microscope with these 30mm widefield high-eyepoint eyepieces. Featuring 10X and 20X magnification options with built-in diopter adjustment. Designed for phone repair technicians, PCB inspectors, and electronics hobbyists. With a standard 30mm mounting diameter, these eyepieces are compatible with most stereo microscopes and offer a simple plug-in installation.
Features:

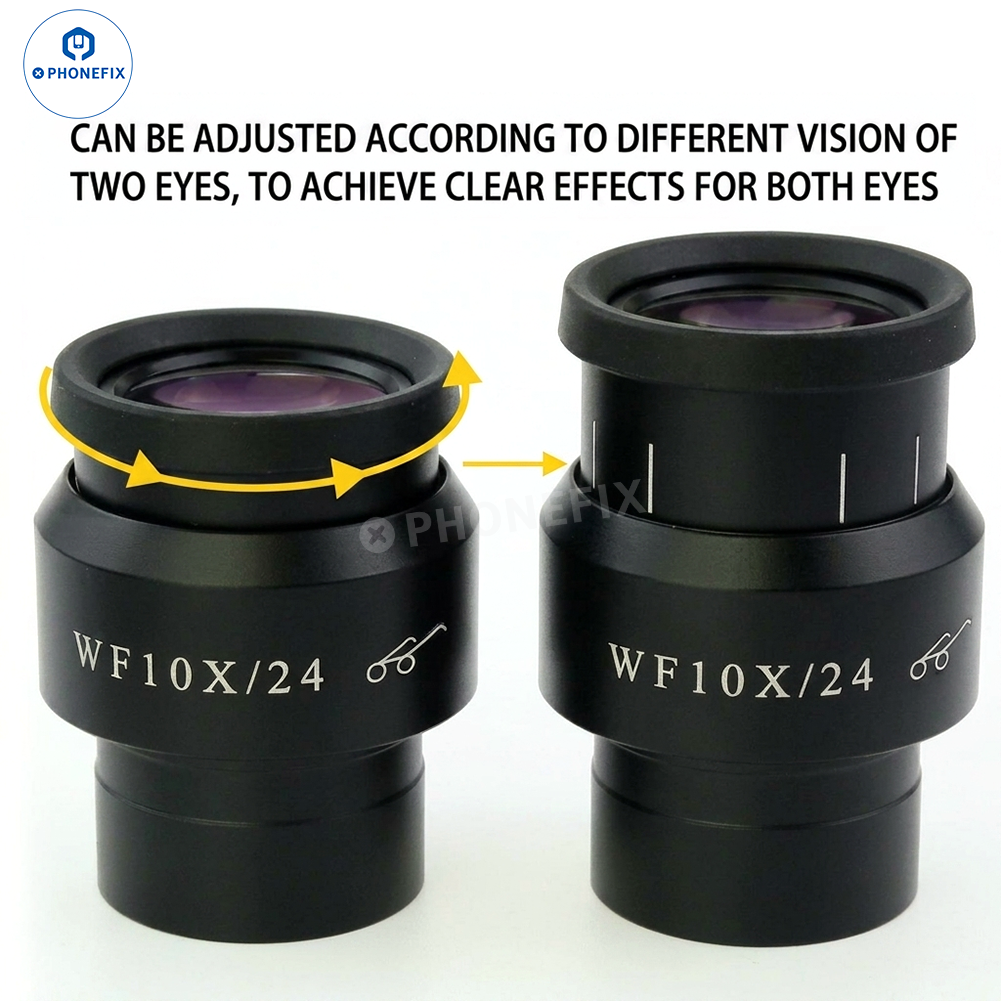

1. Adjustable Diopter Design: Features precise adjustment markings and supports independent focusing and diopter fine-tuning for the left and right eyes. It perfectly resolves issues caused by vision imbalance between the eyes, ensuring comfortable use for both naked-eye observers and those wearing glasses.
2. High-Eyepoint, Wide Field of View: Specifically designed for a high eyepoint and wide field of view, allowing for a panoramic view without the need to press one's eyes against the lens, thereby greatly enhancing comfort during prolonged operation.
3. All-Optical Glass and FMC Green Anti-Reflective Coating: Crafted from premium all-optical glass and featuring FMC fully multi-coated green anti-reflective layers, the eyepiece delivers clear, crisp imaging and eliminates issues associated with dim or low-light conditions.
4. Durable All-Metal Construction: The lens housing is constructed from high-quality metal, ensuring a robust, practical, drop-resistant, and wear-resistant build that guarantees long-term stability in both laboratory and industrial environments.
5. 3.2-Megapixel Digital-Grade Clarity: Perfectly compatible with 3.2-megapixel HD sensors; the resolution is vastly superior to traditional eyepieces, facilitating high-quality, lossless digital imaging output.

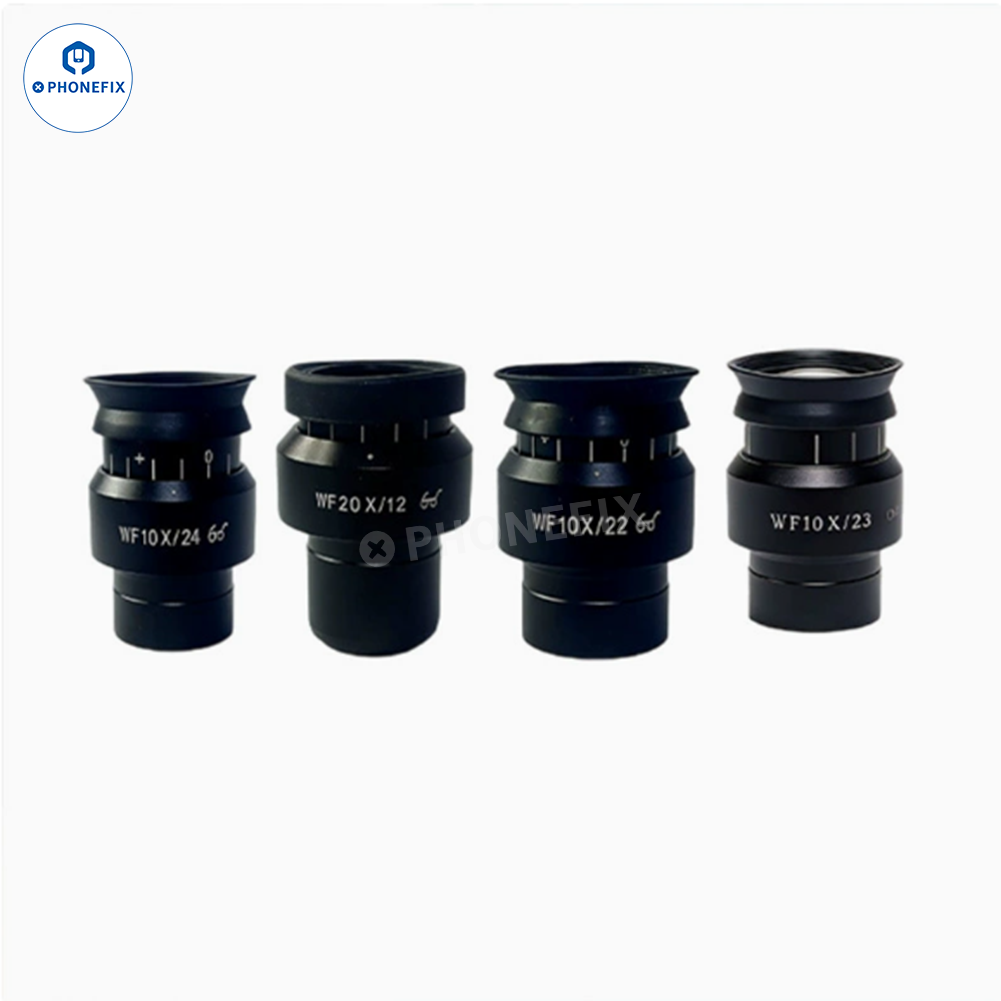

Option
1. WF10X22
2. WF10X23
3. WF10X24
4. WF10X24
Product Specifications

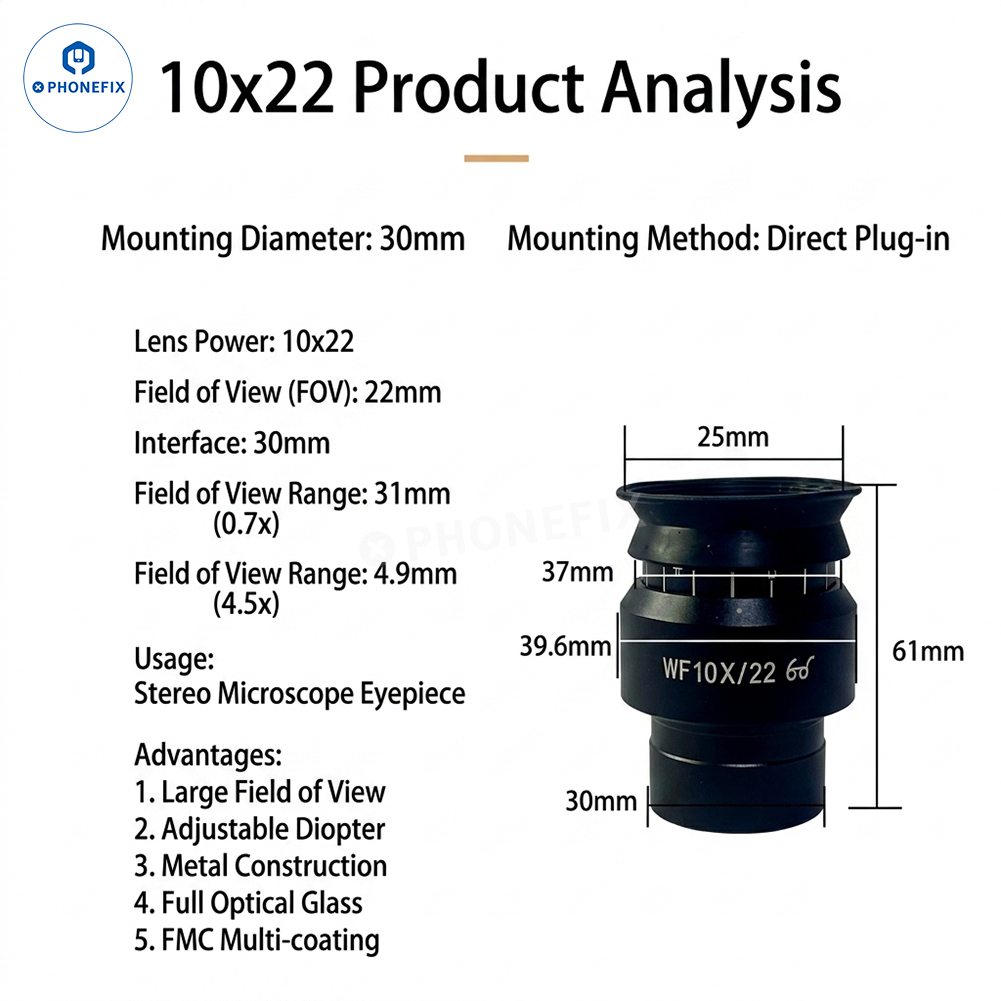

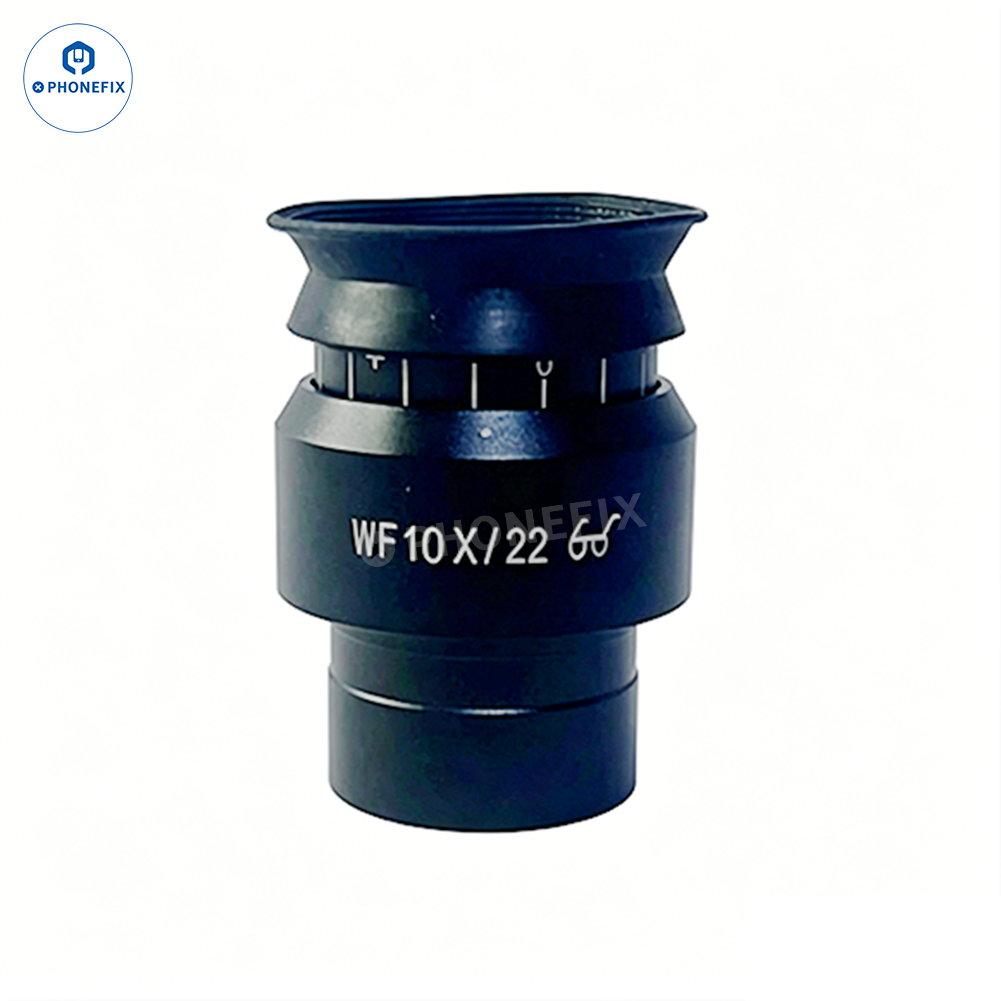

1. 10x22 (Diopter Adjustable)
· Magnification & Field of View: 10x22 (WF10X / 22mm)
· Dimensions: Outer Diameter 42mm | Top Width 37mm | Eyepiece End Width 25mm | Total Height 61mm
· Field of View Range: 31mm (at 0.7x) / 4.9mm (at 4.5x)

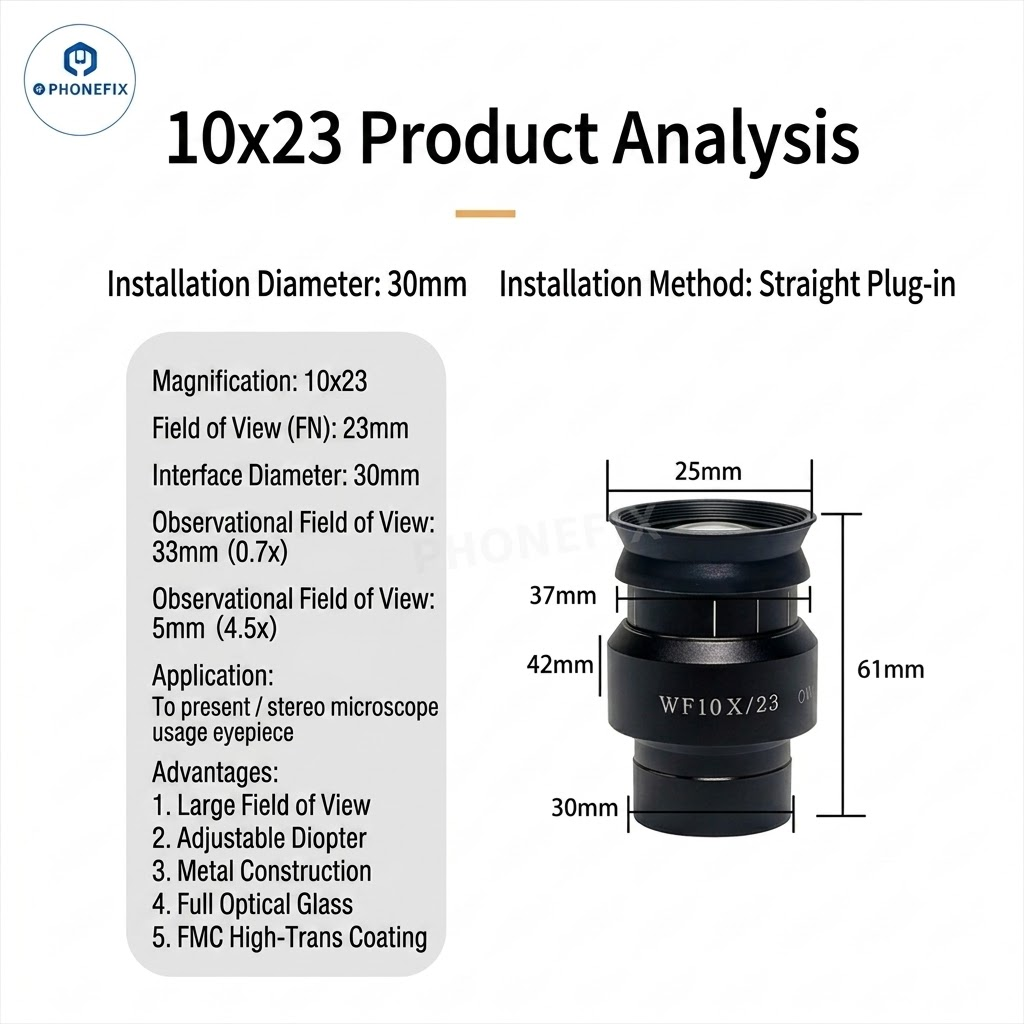

2. 10x23 (Diopter Adjustable)
· Magnification & Field of View: 10x23 (WF10X / 23mm)
· Dimensions: Outer Diameter 42mm | Top Width 37mm | Eyepiece End Width 25mm | Total Height 61mm
· Field of View Range: 33mm (at 0.7x) / 5.0mm (at 4.5x)

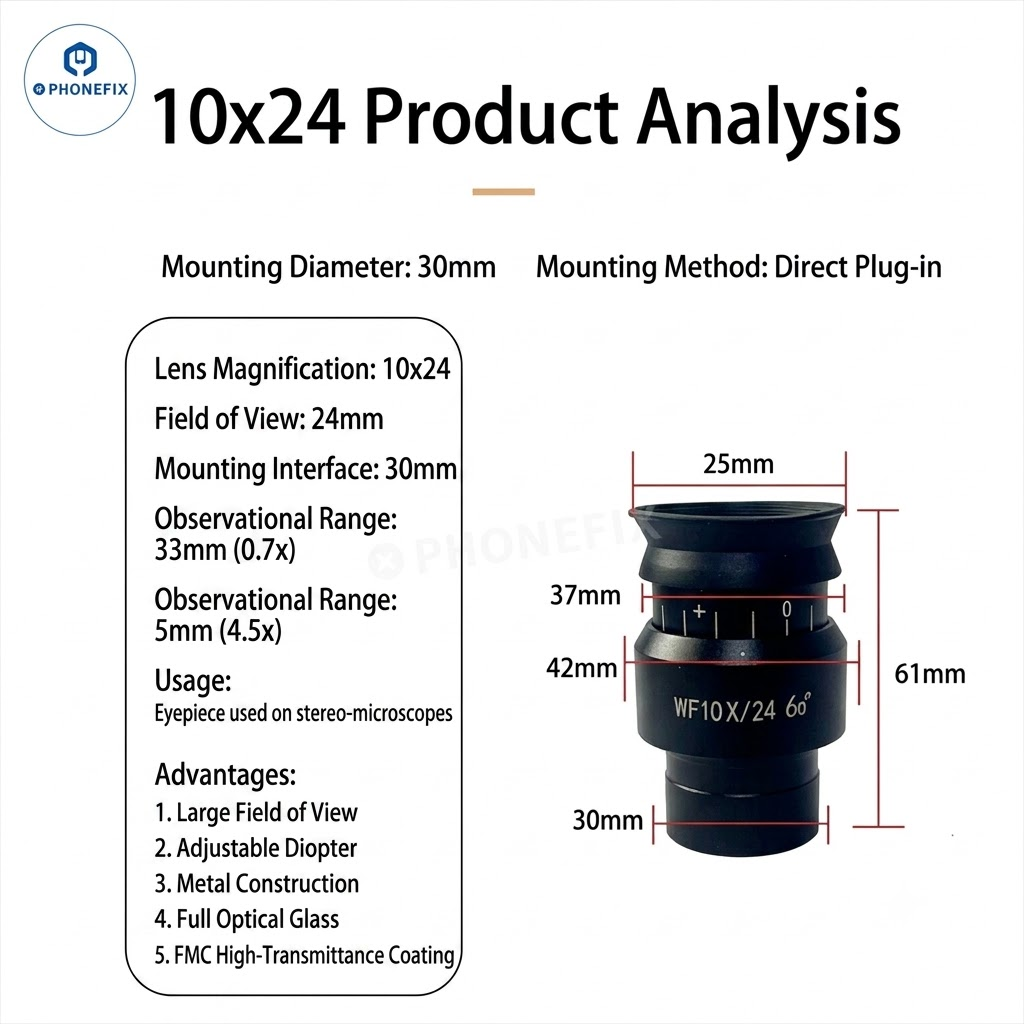

3. 10x24 (Diopter Adjustable)
· Magnification & Field of View: 10x24 (WF10X / 24mm)
· Dimensions: Outer Diameter 42mm | Top Width 37mm | Eyepiece End Width 25mm | Total Height 61mm
· Field of View Range: 33mm (at 0.7x) / 5.0mm (at 4.5x)

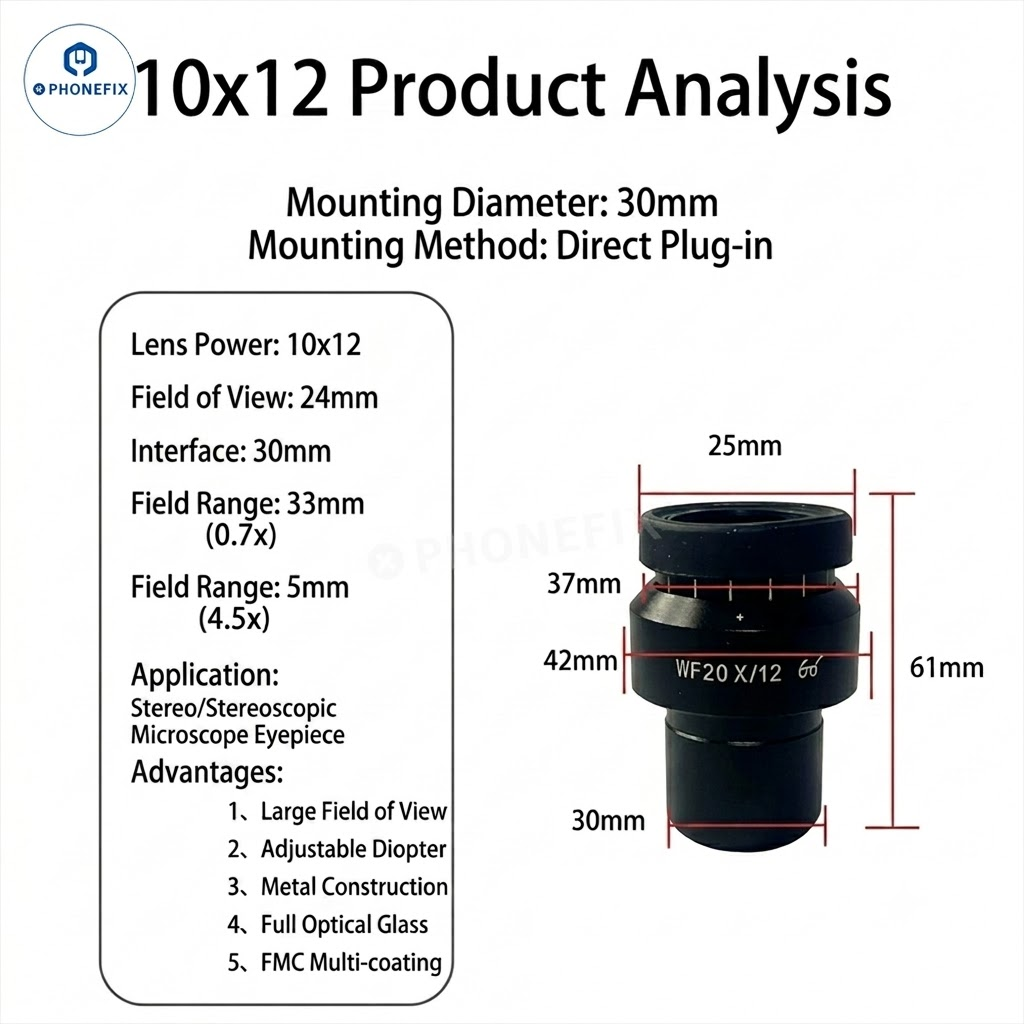

4. 20x12 (Diopter Adjustable)
· Magnification & Field of View: 20x12 (WF20X / 12mm)
· Dimensions: Outer Diameter 42mm | Top Width 37mm | Eyepiece End Width 25mm | Total Height 61mm
· Field of View Range: 33mm (at 0.7x) / 5.0mm (at 4.5x)
