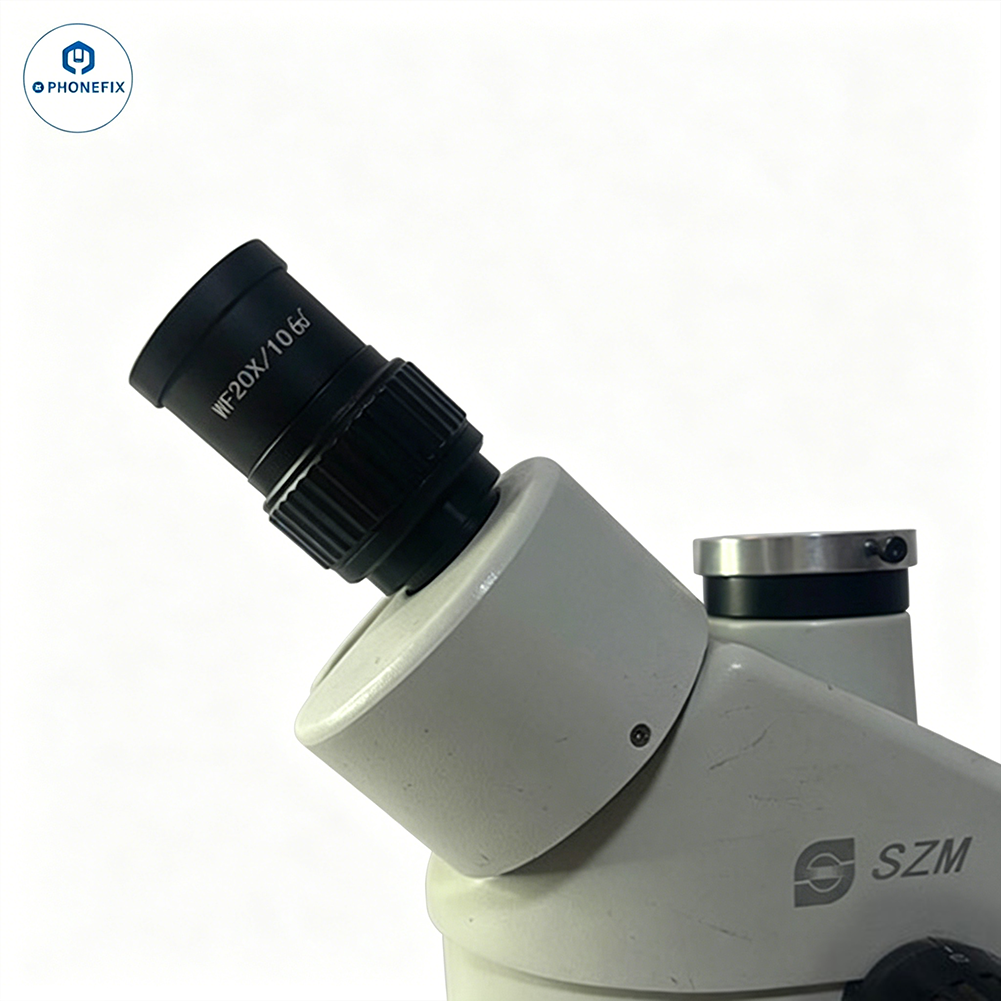

30mm stereo microscope eyepiece features a straight plug-in design without diopter adjustment – perfect for phone repair, PCB inspection, and micro-soldering work. 10X 20X 30mm diameter eyepiece, compatible with most standard microscopes. Clear, distortion-free optics for precision tasks. Essential upgrade or replacement for your repair bench microscope.
Features:
1. Premium Materials & High-Quality Optics: Crafted from select high-grade optical glass lenses and a durable, high-quality housing to ensure long-term stability and superior light transmission.
2. Ultra-Wide Field of View: Advanced optical engineering significantly expands the field of view, effectively reducing eye fatigue during prolonged observation sessions.
3. Clear Imaging in Low Light: Delivers excellent image contrast and color reproduction, allowing for the clear capture of intricate details on sample surfaces even in low-light environments.
4. Standard 30mm Plug-in Interface: Features a universal 30mm mounting diameter and a plug-in design; it fits perfectly onto the vast majority of standard stereo microscopes on the market without the need for installation tools.
5. Fixed-Focus Design (Non-adjustable Diopter): Offers a more stable and reliable structure, making it ideal for shared use or teaching laboratories. It prevents accidental focus shifts caused by unintended adjustments, ensuring consistent magnification.

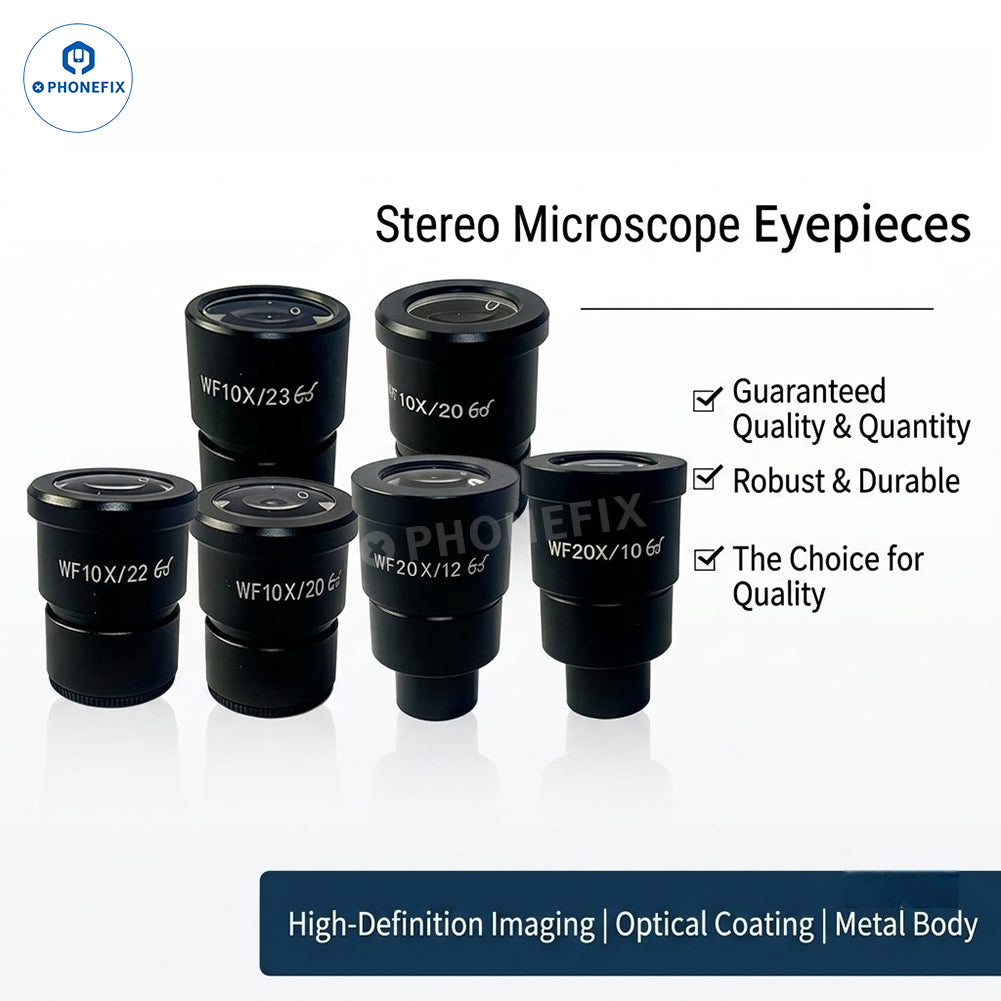

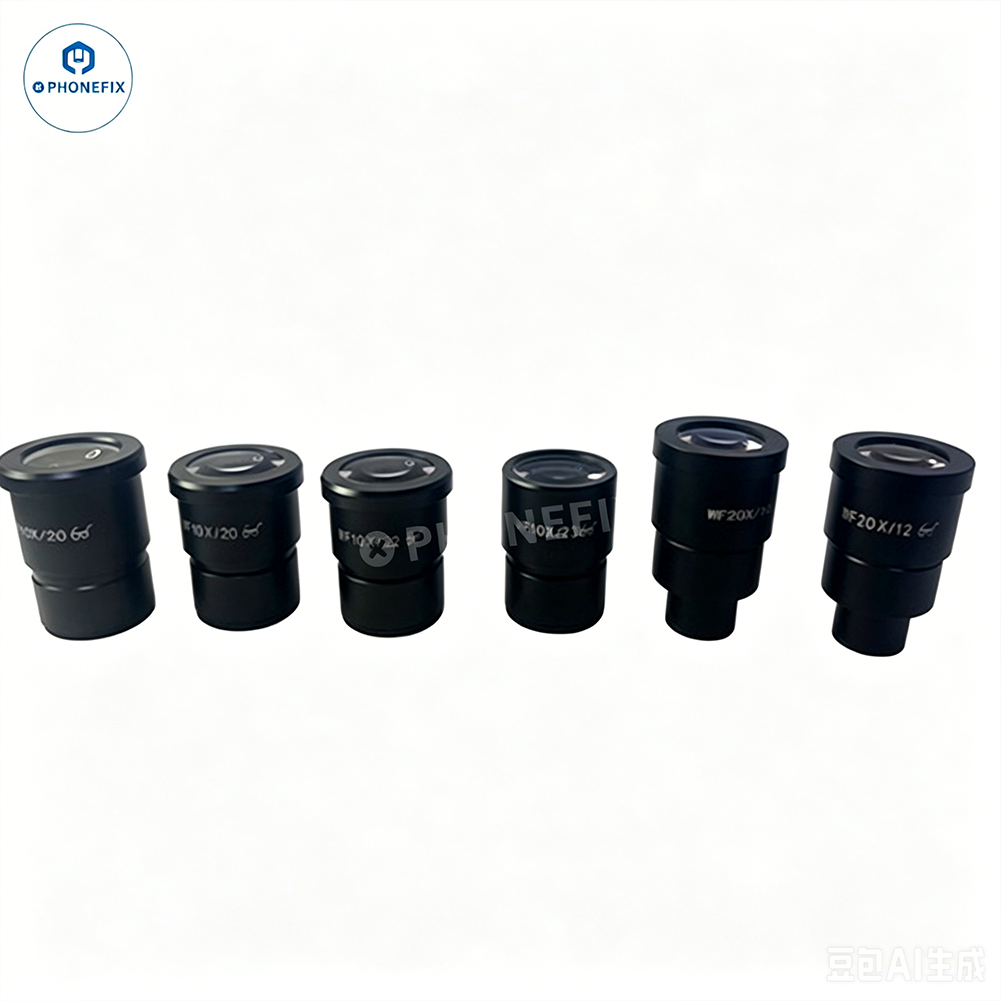

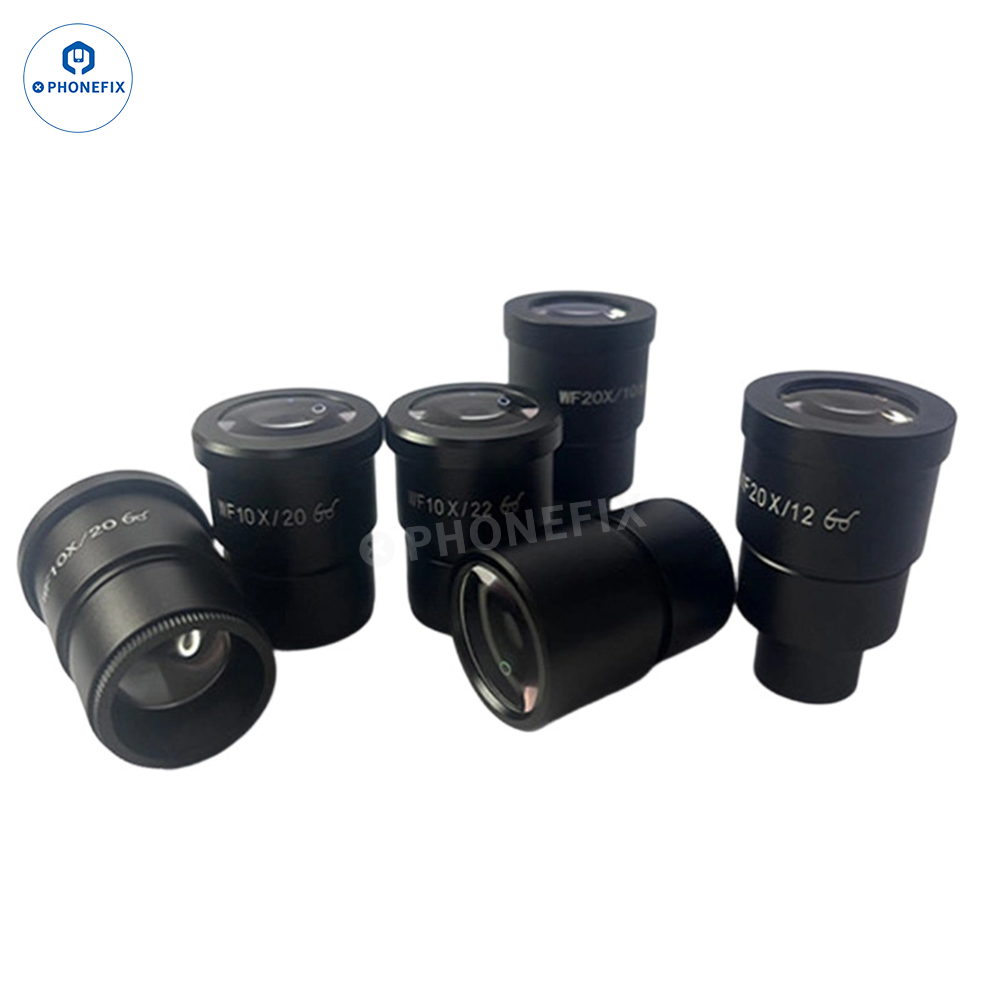

Option
1. WF10X20 (Phoenix Model)
2. WF10X20 (Sunny Model)
3. WF10X22
4. WF10X23
5. WF20X10
6. WF20X12
Product Specifications

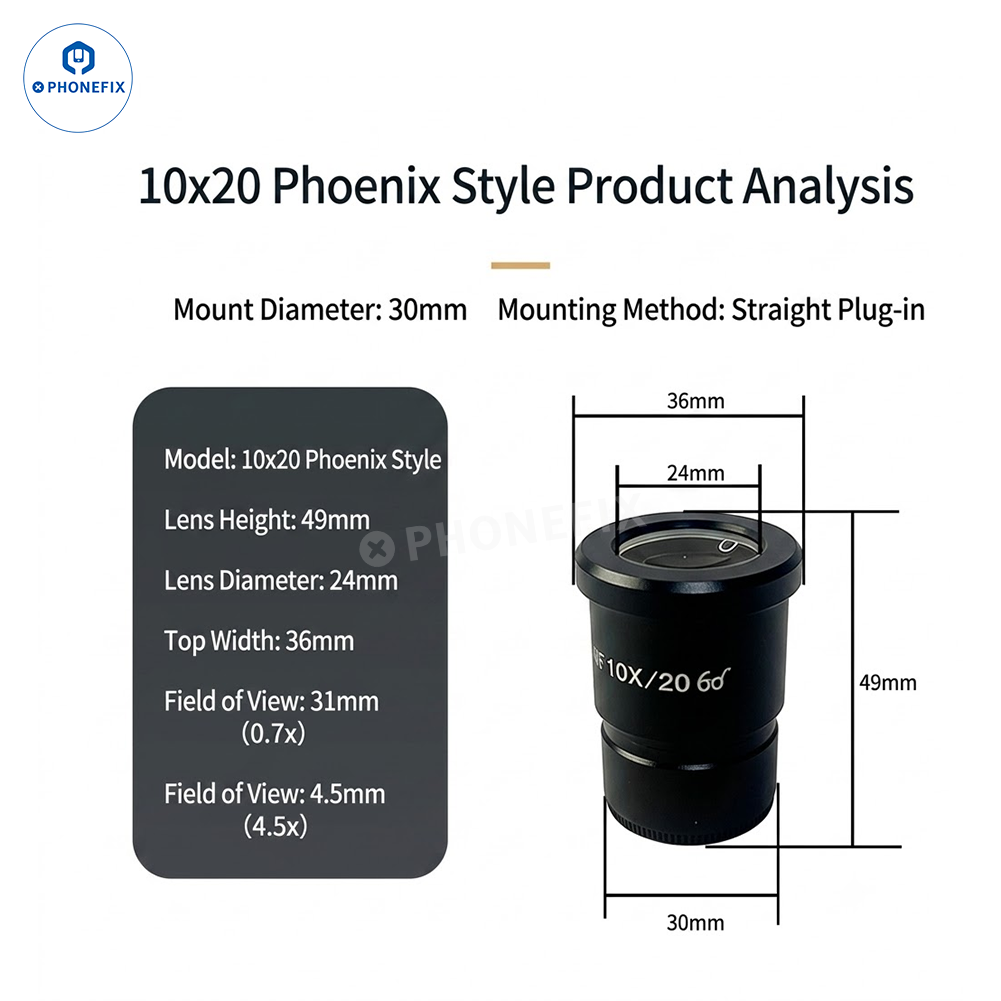

1. 10x20 (Phoenix Model):
· Magnification & Field of View: WF10X / 20mm
· Total Height: 49mm | Top Outer Diameter: 36mm | Effective Lens Aperture: 24mm
· Field of View at 0.7x Zoom: 31mm
· Field of View at 4.5x Zoom: 4.5mm

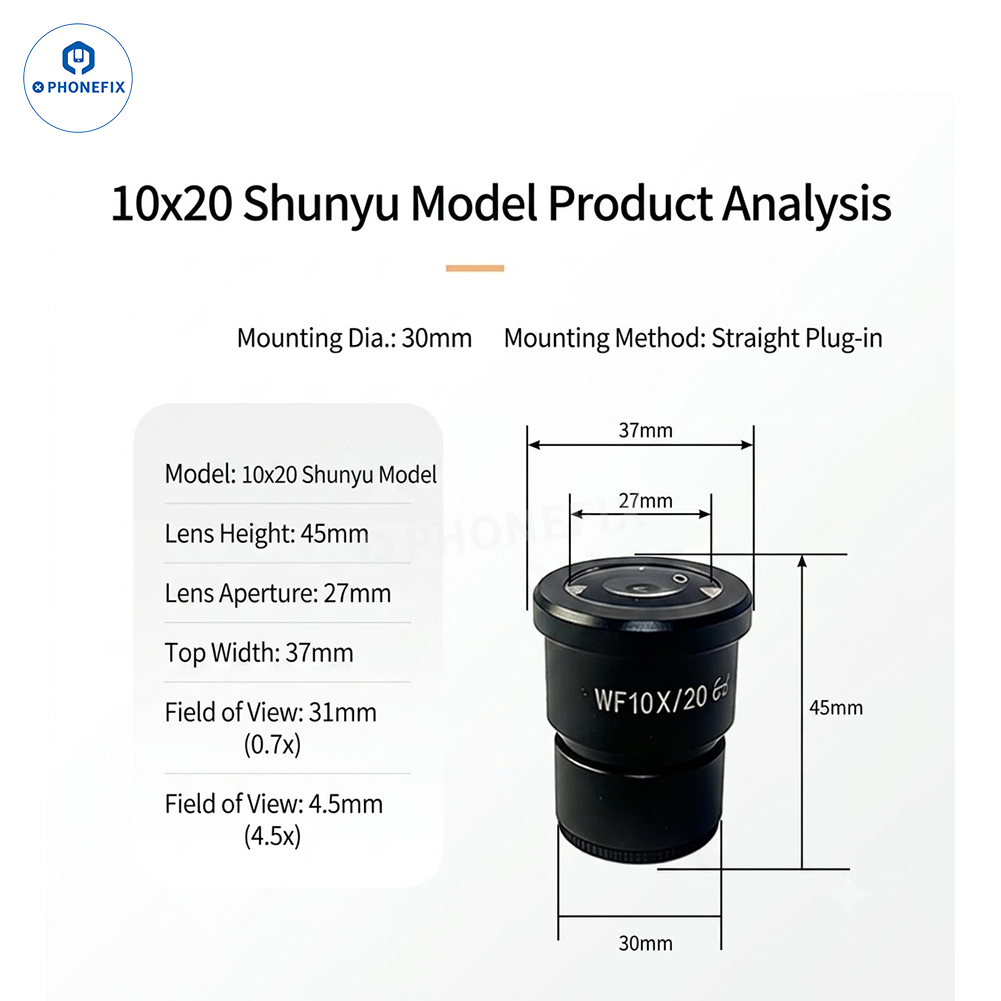

2. 10x20 (Shunyu Model):
· Magnification & Field of View: WF10X / 20mm
· Total Height: 45mm | Top Outer Diameter: 37mm | Effective Lens Aperture: 27mm
· Field of View at 0.7x Zoom: 31mm
· Field of View at 4.5x Zoom: 4.5mm

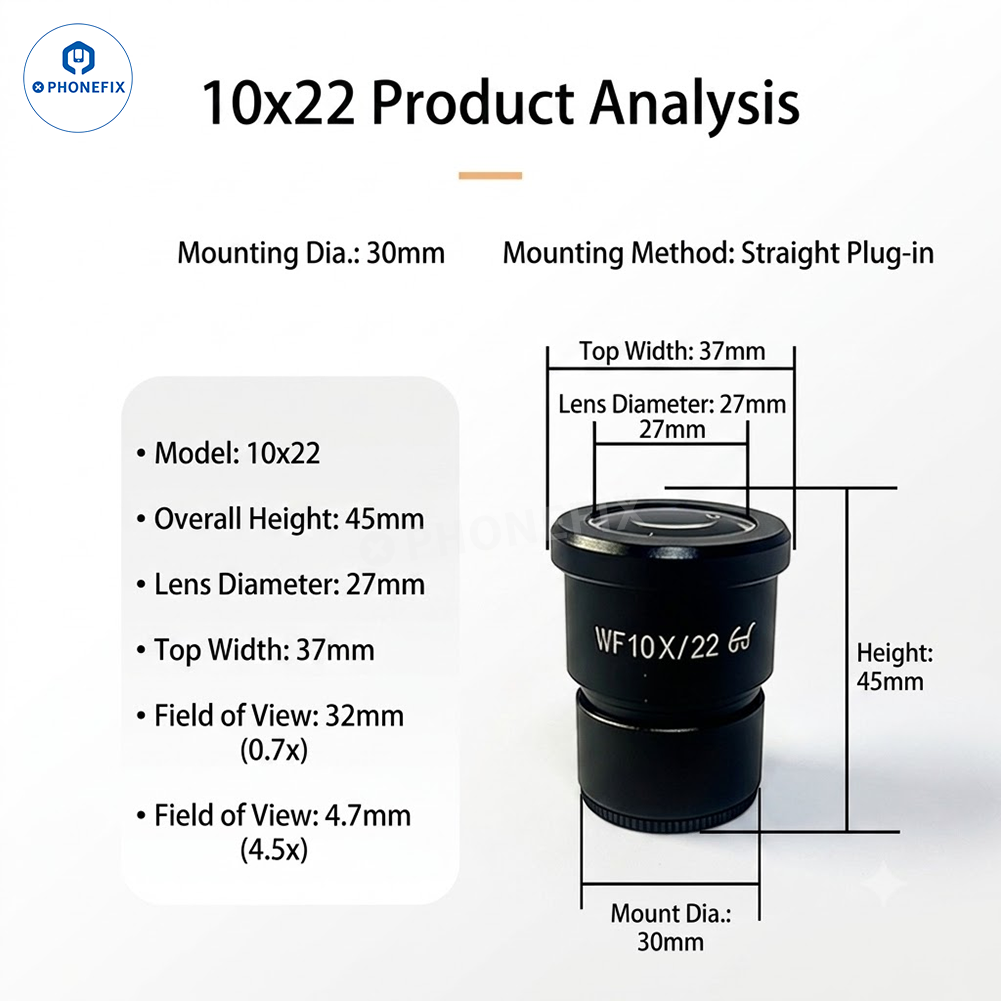

3. WF10X22
· Magnification & Field of View: WF10X / 22mm
· Total Height: 45mm | Top Outer Diameter: 37mm | Effective Lens Aperture: 27mm
· Field of View at 0.7x Zoom: 32mm
· Field of View at 4.5x Zoom: 4.7mm

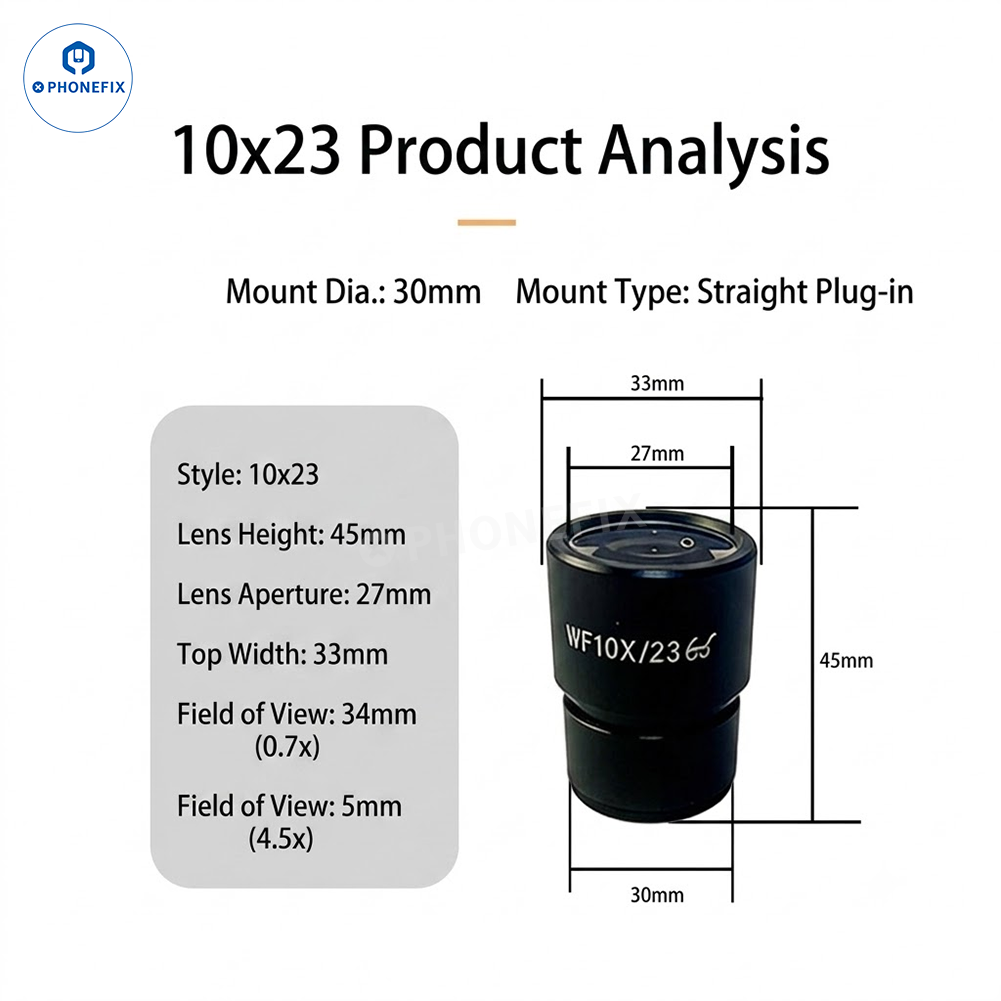

4. WF10X23
· Magnification & Field of View: WF10X / 23mm
· Total Height: 45mm | Top Outer Diameter: 33mm | Effective Lens Aperture: 27mm
· Field of View at 0.7x Zoom: 34mm
· Field of View at 4.5x Zoom: 5.0mm

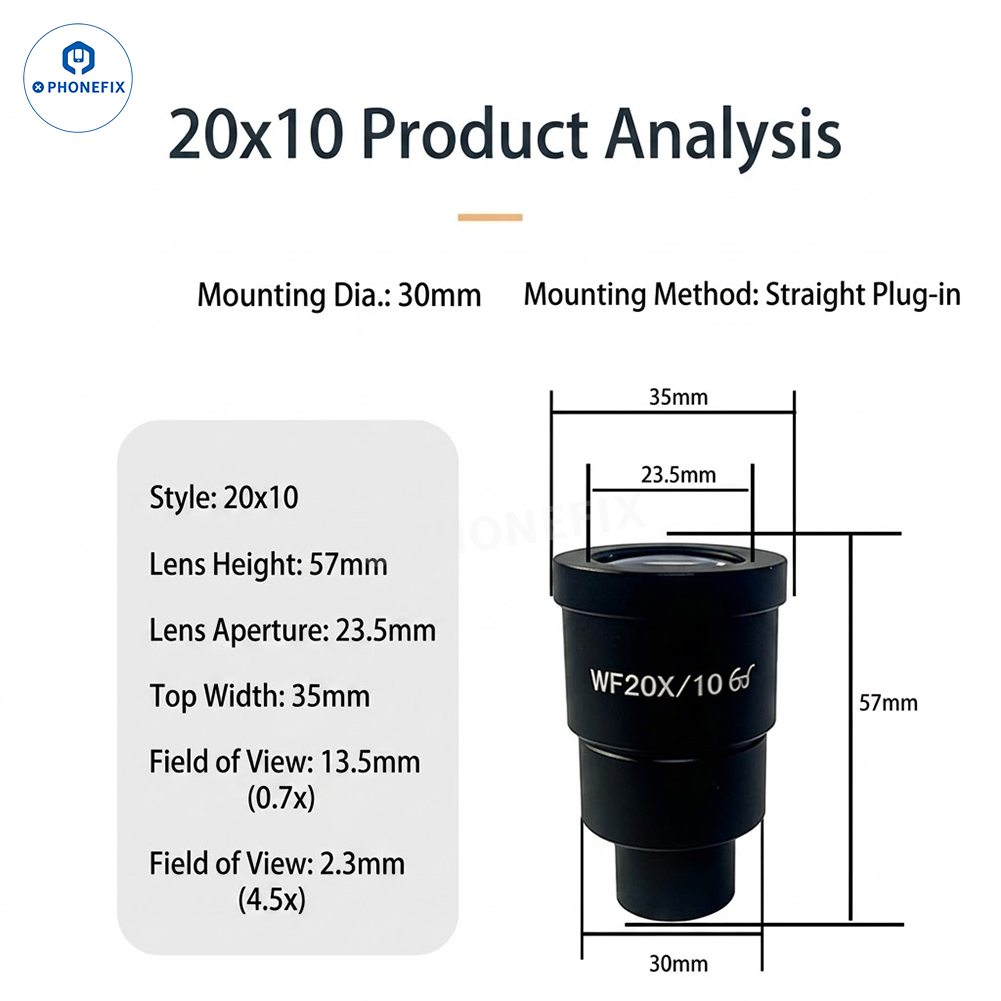

5. WF20X10
· Magnification and Field of View: WF20X / 10mm
· Total Lens Height: 57mm | Top Outer Diameter: 35mm | Effective Lens Aperture: 23.5mm
· Field of View at 0.7x Zoom: 13.5mm
· Field of View at 4.5x Zoom: 2.3mm

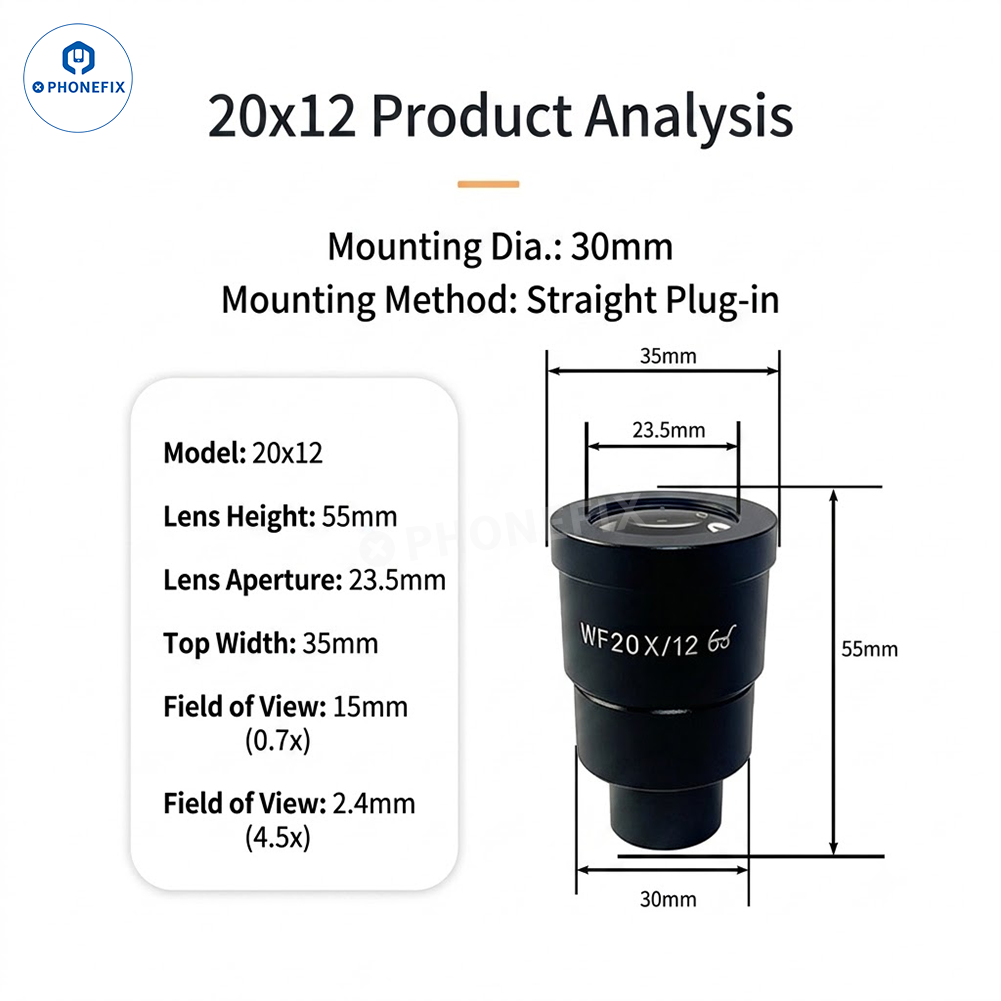

6. WF20X12
· Magnification and Field of View: WF20X / 12mm
· Total Lens Height: 55mm | Top Outer Diameter: 35mm | Effective Lens Aperture: 23.5mm
· Field of View at 0.7x Zoom: 15.0mm
· Field of View at 4.5x Zoom: 2.4mm
