30mm/41mm widefield high eyepoint eyepiece features adjustable diopter and compatible with most standard stereo microscopes. perfect for phone repair, PCB inspection, and micro-soldering. Clear, distortion-free optics for precision tasks.
Features:
1. Independent Left/Right Diopter Adjustment: Built-in precision diopter scales allow for independent fine-tuning of each eye. This perfectly balances vision differences, enabling both naked-eye users and those wearing glasses to achieve sharp focus quickly.
2. 12.5X "Golden Ratio" Intermediate Magnification: Innovatively offers a 12.5X magnification option; it retains a wide field of view while revealing more detail than 10X lenses, making it an excellent tool for industrial quality control and high-precision repairs.
3. High-Eyepoint, Wide-Field Design: Engineered for a broad field of view and comfortable observation. The long eye relief allows users to see the entire field without pressing their eyes against the lens, effectively reducing eye fatigue during prolonged work.
4. FMC Fully Multi-Coated Green Film: Features an all-optical glass lens assembly with upgraded FMC green coating technology for high light transmission. It eliminates interference from dim or weak light, delivering high contrast, true-to-life colors, and rich detail.
5. All-Metal Construction: The lens housing and critical components are crafted from high-quality metal. Durable and resistant to drops and wear, the eyepiece is built to withstand the rigorous demands of laboratory and industrial workshop environments.

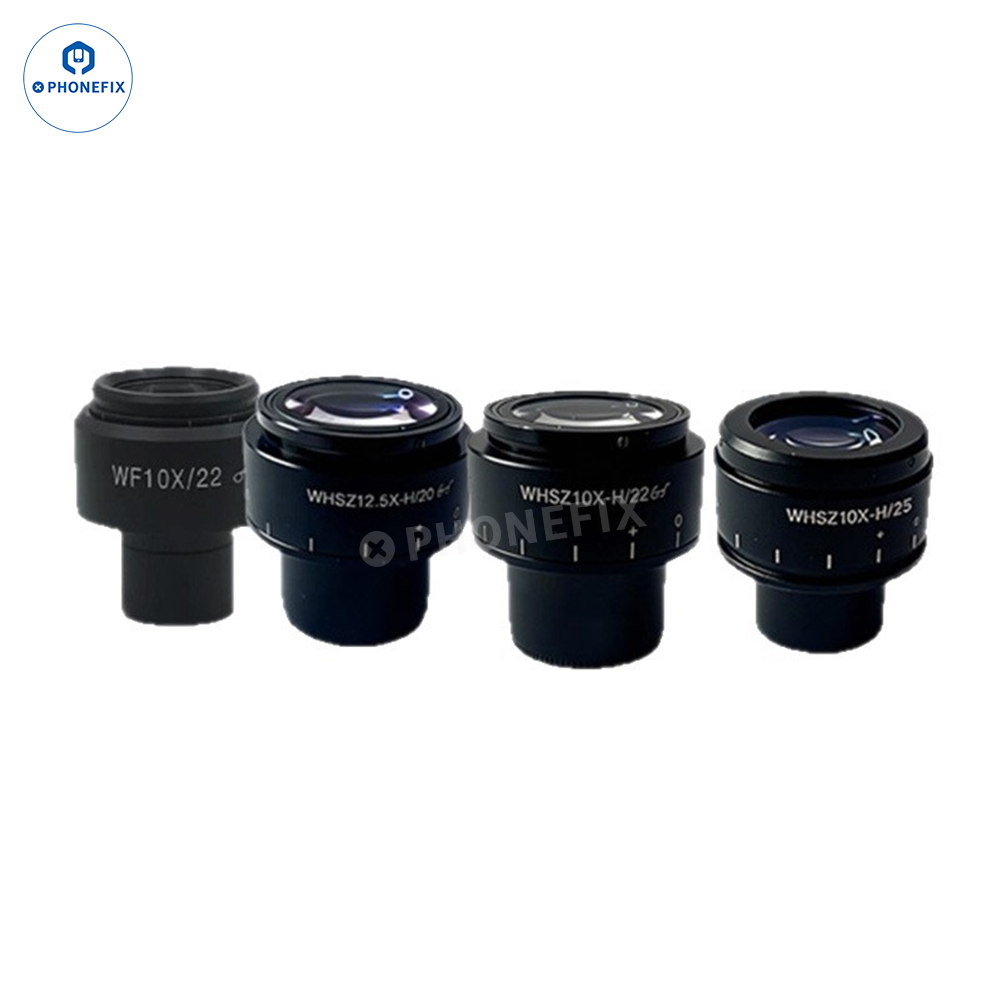

Option:
1. 12.5X20
2. 10X22
3. 10X25
4. 10X22 (Biological)
5. 15X20
Product Specifications

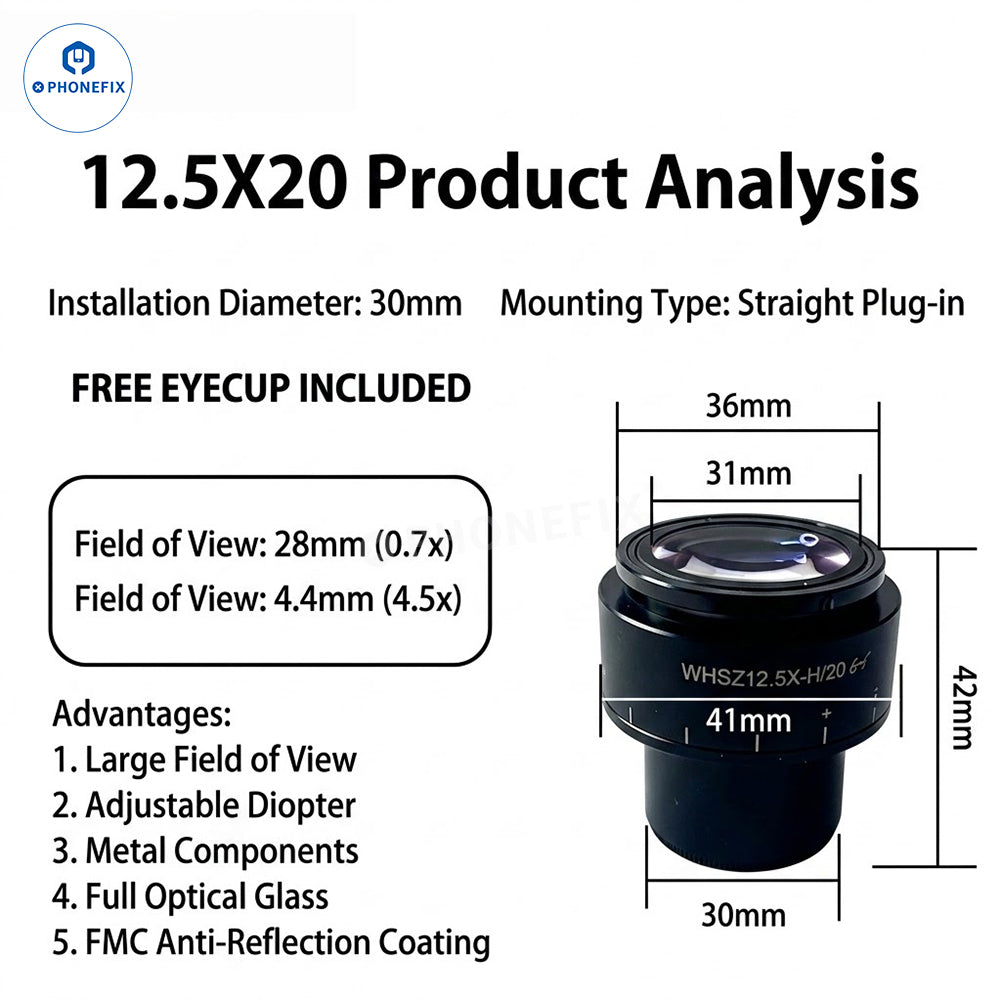

1. WHSZ12.5X-H/20 (12.5X20 Model)
· Mounting specifications: 30mm mounting diameter, direct-insert installation, standard eyecup included.
· Dimensions: Total height 42mm; max. top outer diameter 36mm, lens outer diameter 31mm; barrel outer diameter 41mm; bottom mounting outer diameter 30mm.
· Field of view: 28mm at 0.7x magnification, 4.4mm at 4.5x magnification.
· Key advantages: Wide-field design, supports diopter adjustment, all-metal structural components, all-optical glass lenses, FMC multi-layer anti-reflective coating.

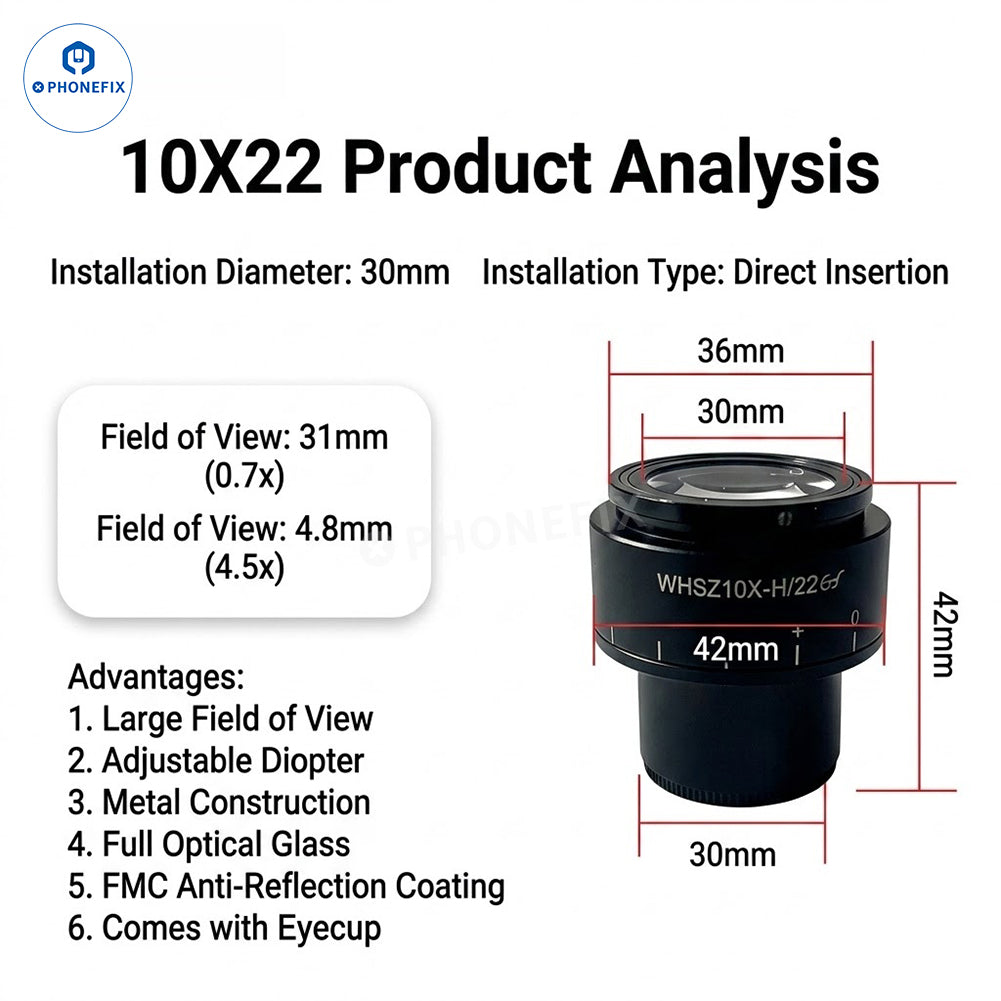

2. WHSZ10X-H/22 (10X22 Model, 30mm interface for stereo microscopes)
· Mounting specifications: 30mm mounting diameter, direct-insert installation, standard eyecup included.
· Dimensions: Total height 42mm; max. top outer diameter 36mm, lens outer diameter 30mm; barrel outer diameter 42mm; bottom mounting outer diameter 30mm.
· Field of view: 31mm at 0.7x magnification, 4.8mm at 4.5x magnification.
· Key advantages: Wide-field design, supports diopter adjustment, all-metal structural components, all-optical glass lenses, FMC multi-layer anti-reflective coating.

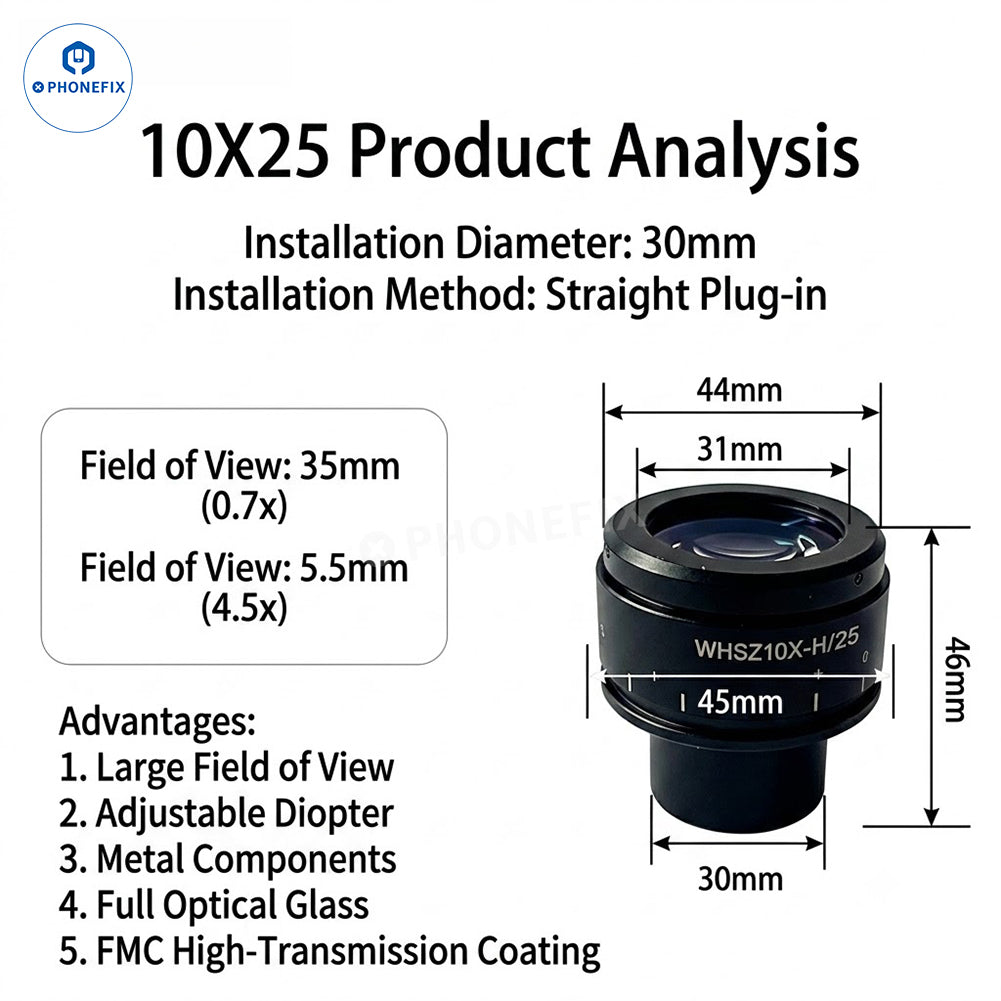

3. WHSZ10X-H/25 (10X25 Model)
· Mounting specifications: 30mm mounting diameter, direct-insert installation, standard eyecup included.
· Dimensions: Total height 46mm; max. top outer diameter 44mm, lens outer diameter. 31mm; barrel outer diameter 45mm; bottom mounting outer diameter: 30mm.
· Field of view: 35mm at 0.7x magnification; 5.5mm at 4.5x magnification.
· Key advantages: Wide-field design, diopter adjustment, all-metal construction, all-optical glass lenses, FMC multi-layer anti-reflective coating.

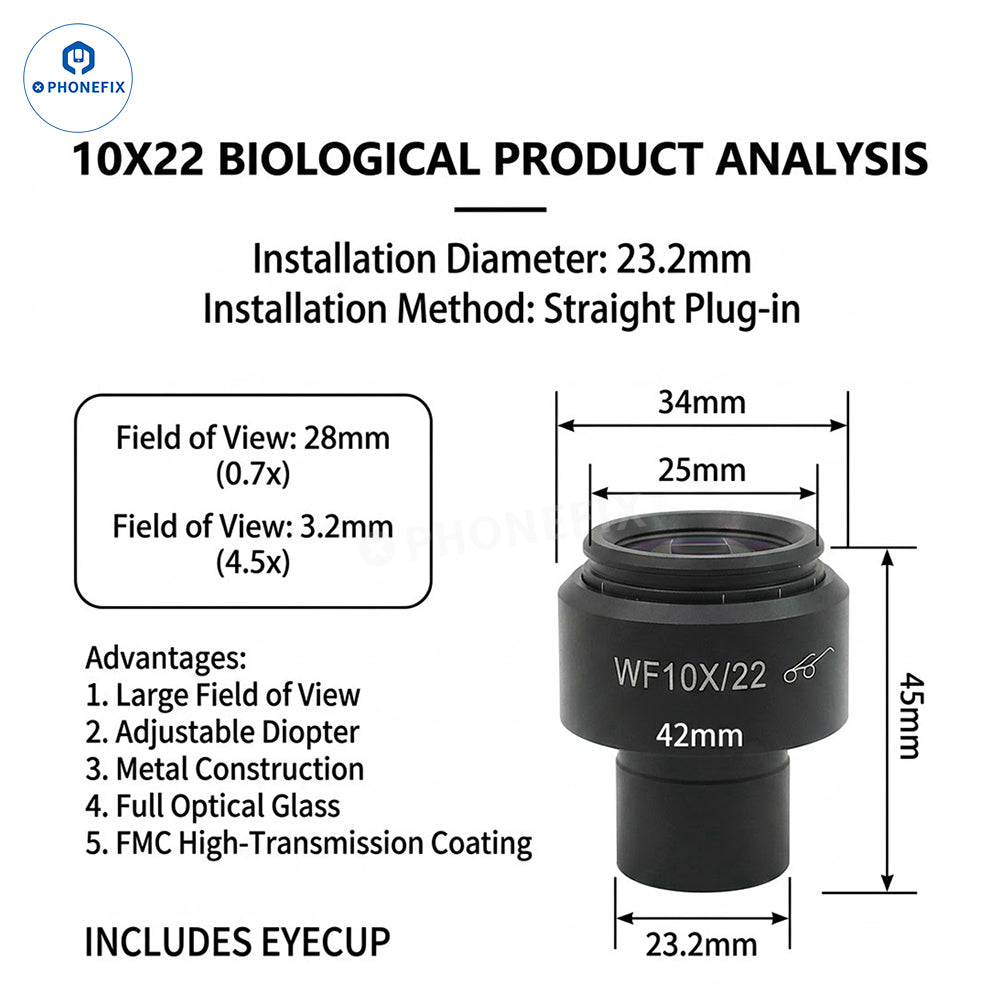

4. WF10X/22 (10X22 biological model; designed for biological microscopes with 23.2mm interface)
· Mounting specifications: 23.2mm mounting diameter, direct-insert mounting, standard eyecup included.
· Dimensions: Total height 45mm; max. top outer diameter 34mm, lens outer diameter. 25mm; barrel outer diameter 42mm; bottom mounting outer diameter 23.2mm.
· Field of view: 28mm at 0.7x magnification; 3.2mm at 4.5x magnification.
· Key advantages: Wide-field design, diopter adjustment, all-metal construction, all-optical glass lenses, FMC multi-layer anti-reflective coating.

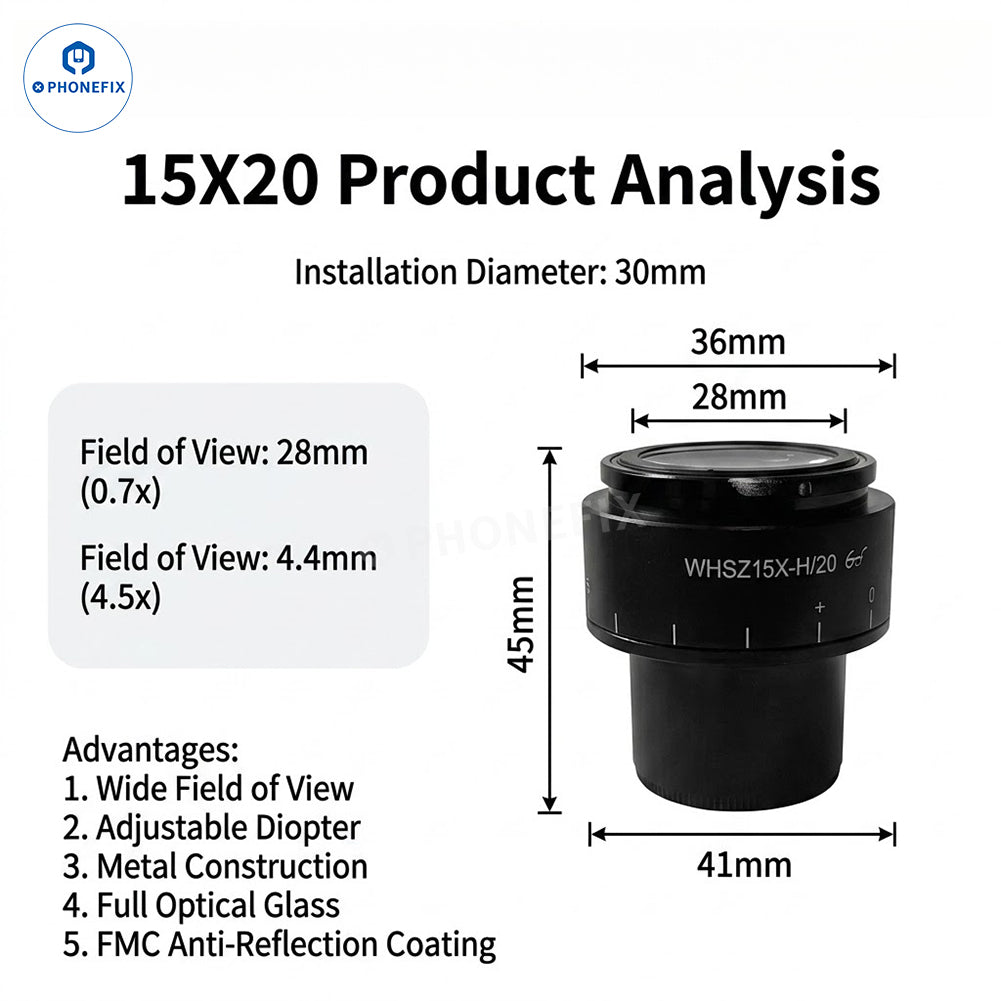

5. WHSZ15X-H/20 (15X20 model)
· Mounting specifications: 30mm mounting diameter, direct-insert mounting.
· Dimensions: Total height 45mm; max. top outer diameter 36mm, lens outer diameter. 28mm; barrel outer diameter 41mm; bottom mounting outer diameter 30mm.
· Field of view: 28mm at 0.7x magnification; 4.4mm at 4.5x magnification.
· Key advantages: Wide-field design, diopter adjustment, all-metal construction, all-optical glass lenses, FMC multi-layer anti-reflective coating.
