A Industrial Digital Microscope Camera Set for Inspection/detection with Universal 360° Rotatable Articulating Magic Arm, Adjustable 1/4" Thread Bracket Super Clamp, 1X~130X Zoom C Mount Lens, 40 LEDs Light and 13MP 1/3" 60F/S HDMI VGA Two Output Industrial Camera.

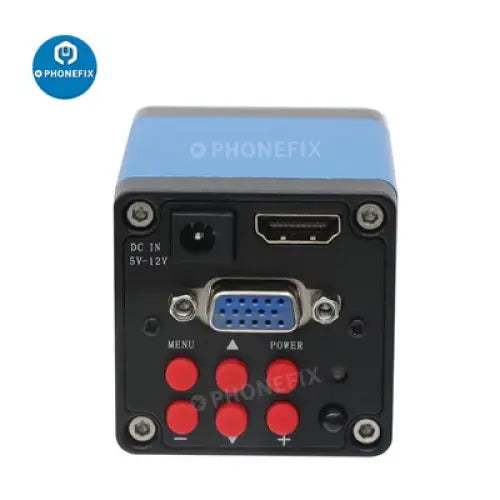

Microscope Camera Specification: Model: Camera with HDMI VGA two output Sensor: 1/3" 13MP CMOS Image format: jpg, Color: Color Image resolution: 1920*1080 60F/S Light freqency: 50Hz/60Hz, Brightness/ Contrast: 0-100 Adjustable Monitor: 16:9/4:3/16:10 White Balance/ Light: Auto Negative/ Freeze: Support Morror: Left/right, Up/Down OSD: English/Chinese Line: different color, 8 horizontal line, 8 vertical line,any positions

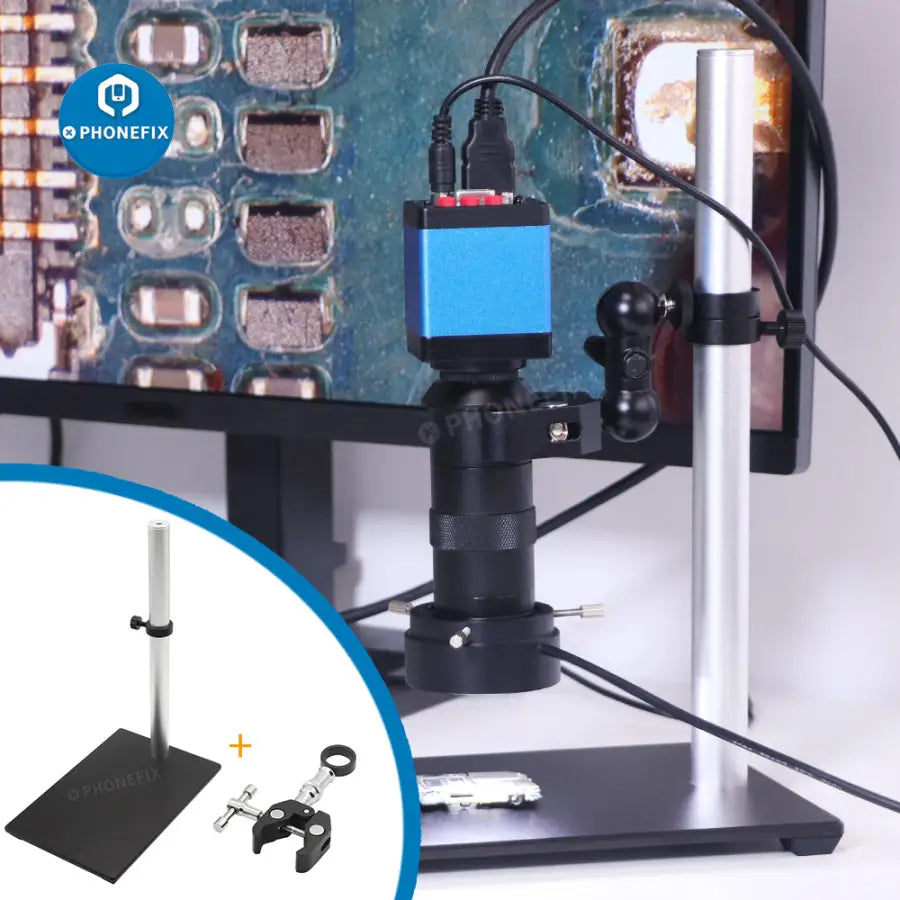

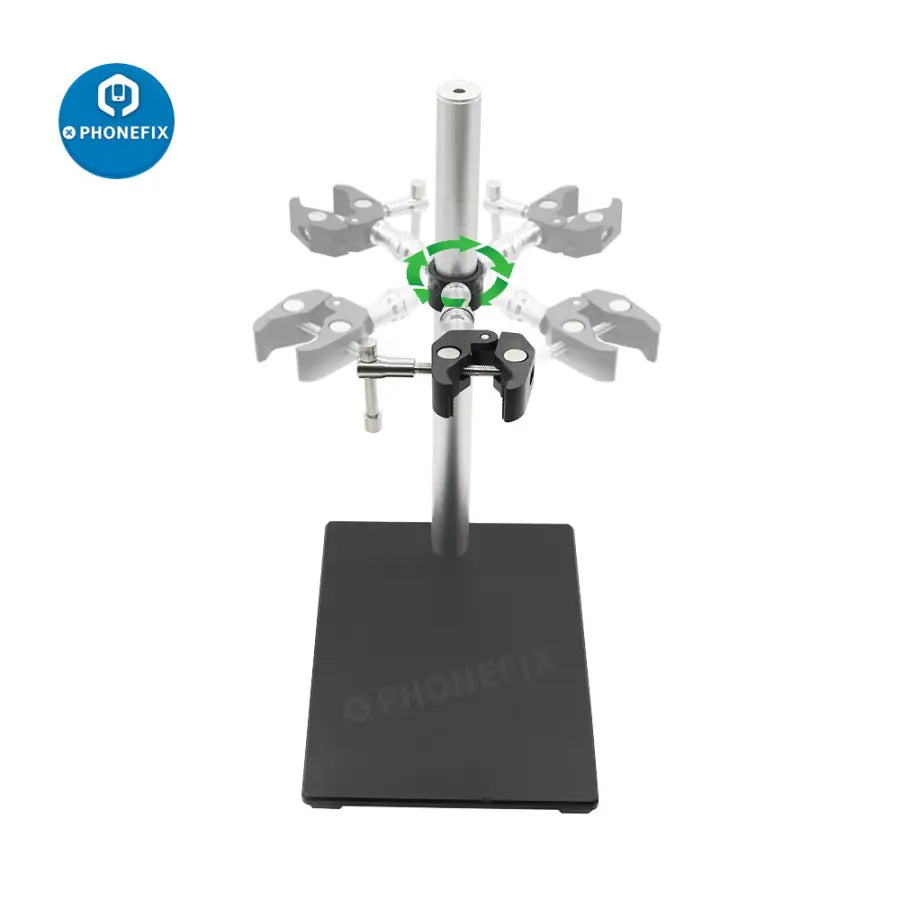

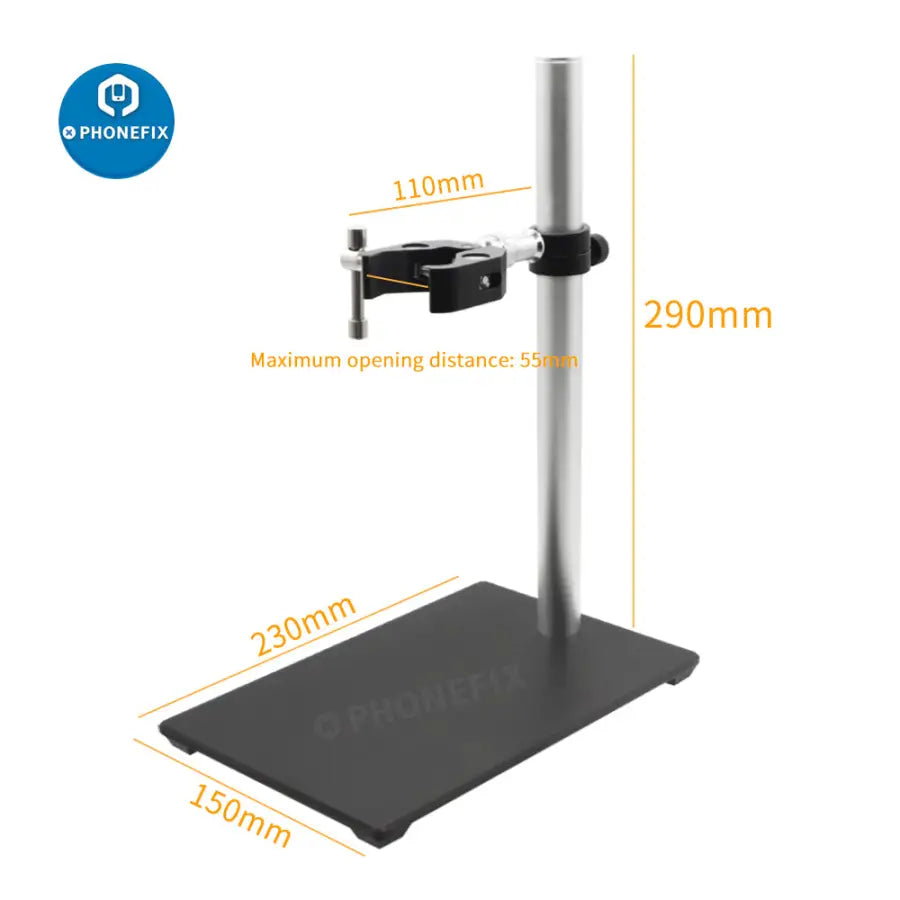

Universal 360° Rotatable Bracket Specification: Universal Adapter, Super Clamp Camera Fixing Rod 1/4" Thread Metal Base:180*280mm Maximum Distance of opening: 55cm (The width can be adjusted arbitrarily to suit different sizes of the lens barrel)

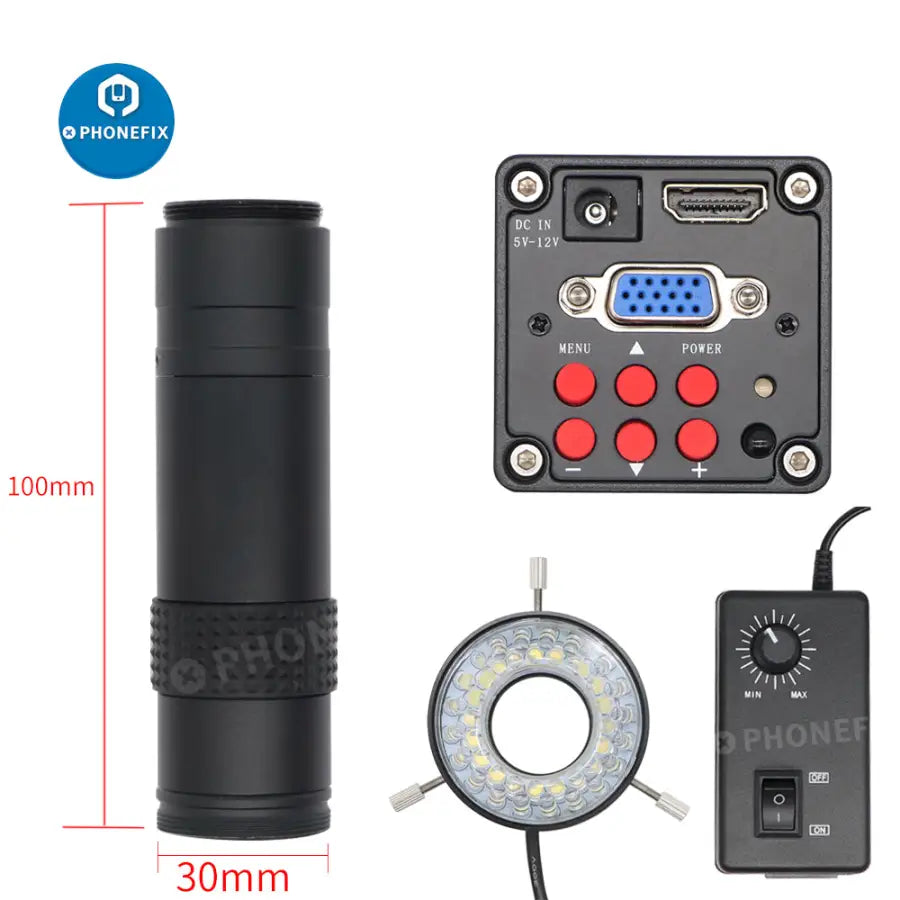

1-130x C-MOUNT Lens Specification: Working distance: 50mm-1000mm zoom ratios: 1 : 15 Magnification Power by 0.13- 2X (about 1 - 130X on the display) view field of Max multiple : 4.2mm*2.4mm view field of Min multiple : 130mm*70mm Size: 30mm(diameter) * 99mm(length)
40 LEDs Ring Light Specification: Outer diameter size: 50mm (1.97") Inner diameter size: 30mm (1.18") input Voltage: AC 110V To 240V, Power: 3.5W to 5W; Brightness Adjustment: 0 to 100% Color of light : White, Color of shell: black Quantity Of LED : 40 pcs

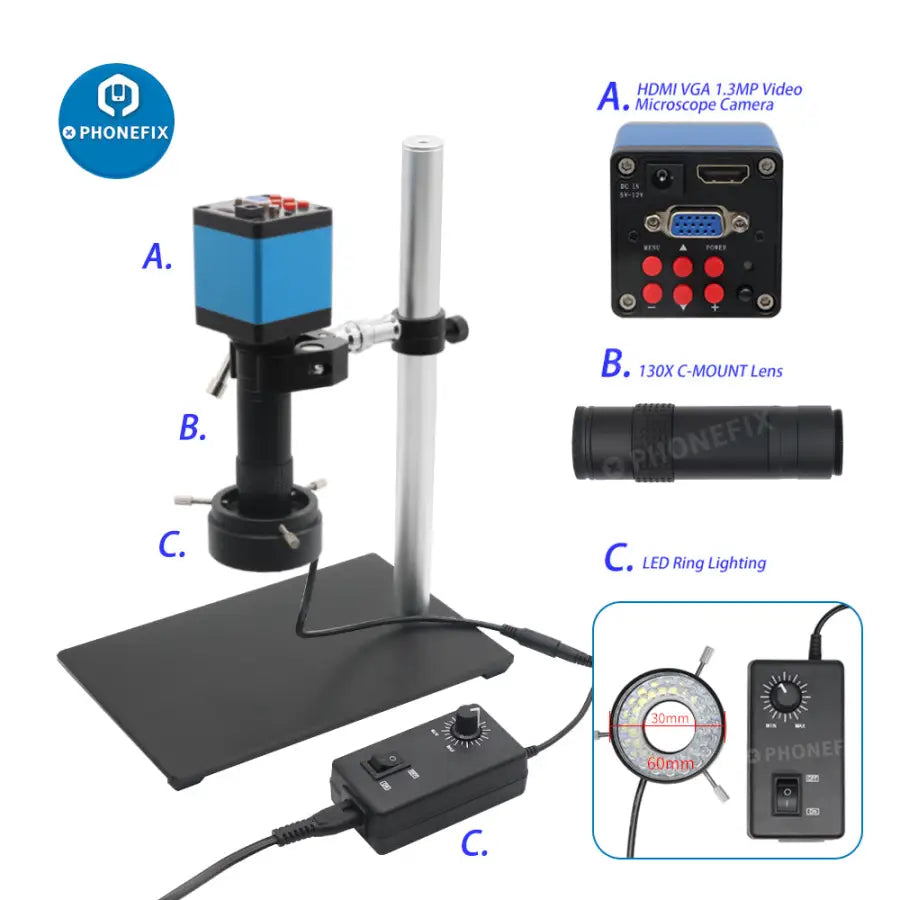

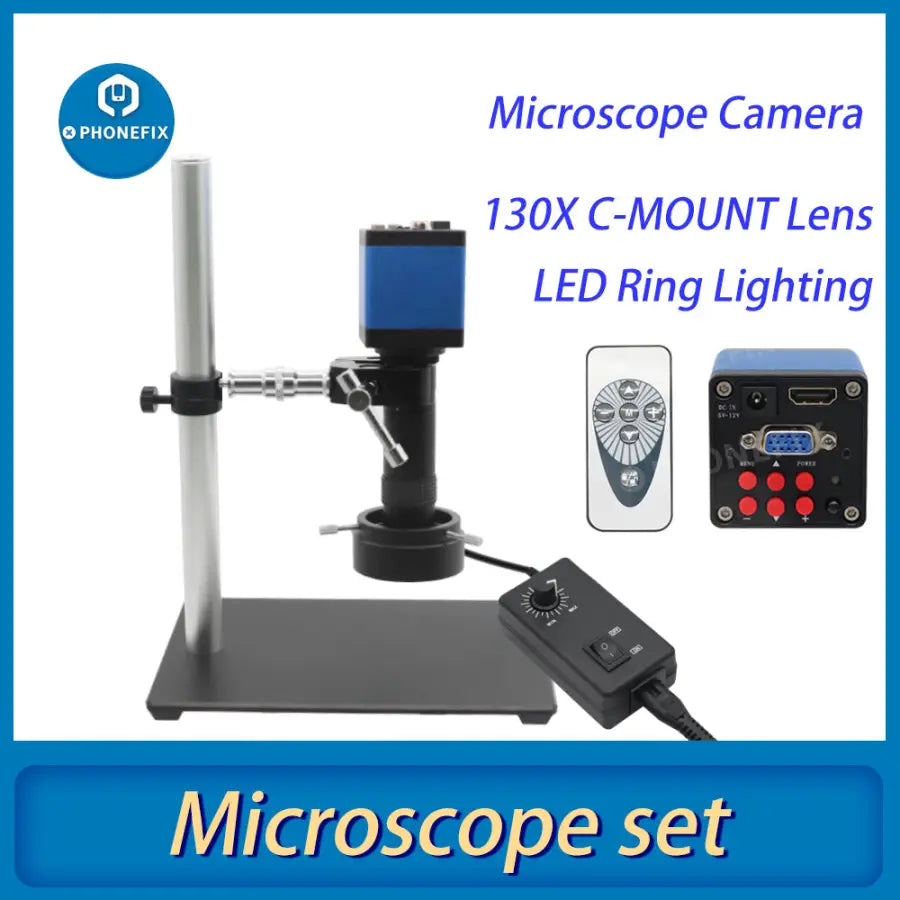

Full Set Package including : 1 x Microscope Camera (VGA 13MP ) 1 x power supply (EU/US/AK/UK) 1 x C-mount Lens 1 x 360° Rotatable Bracket Camera Stand Base 1 x 40LED Ring Light

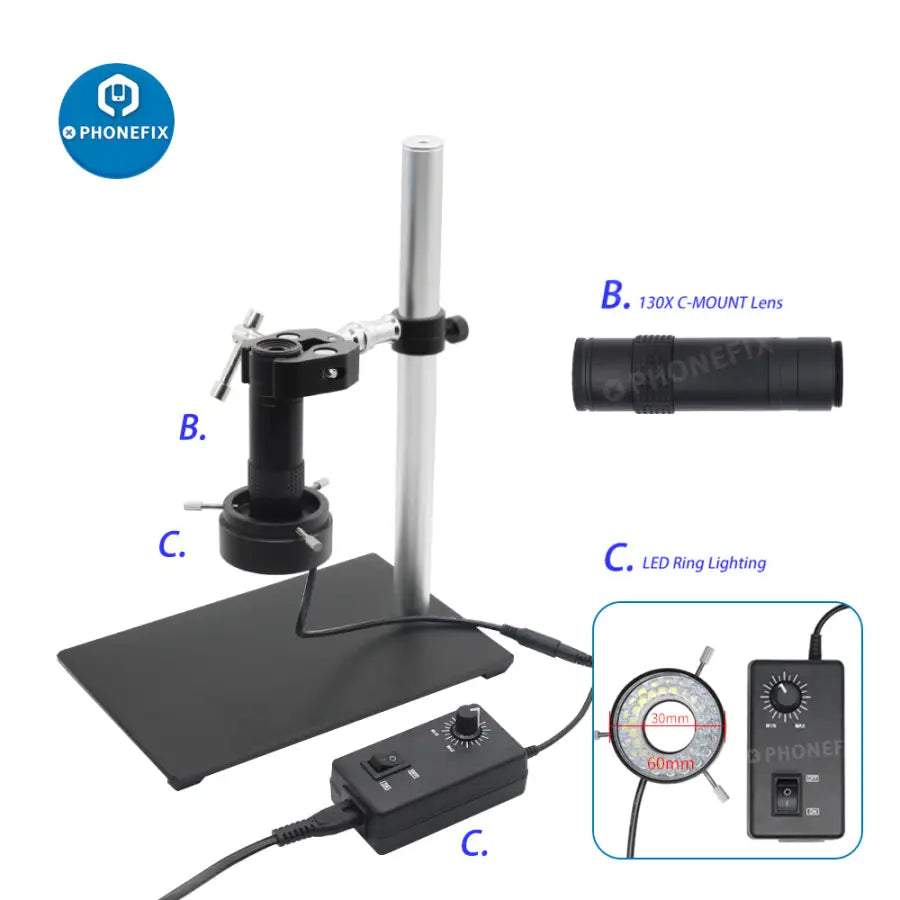

Stand Holder Package including : 1 x C-mount Lens 1 x 360° Rotatable Bracket Camera Stand Base 1 x 40LED Ring Light 1 x power supply (EU/US/AK/UK)
