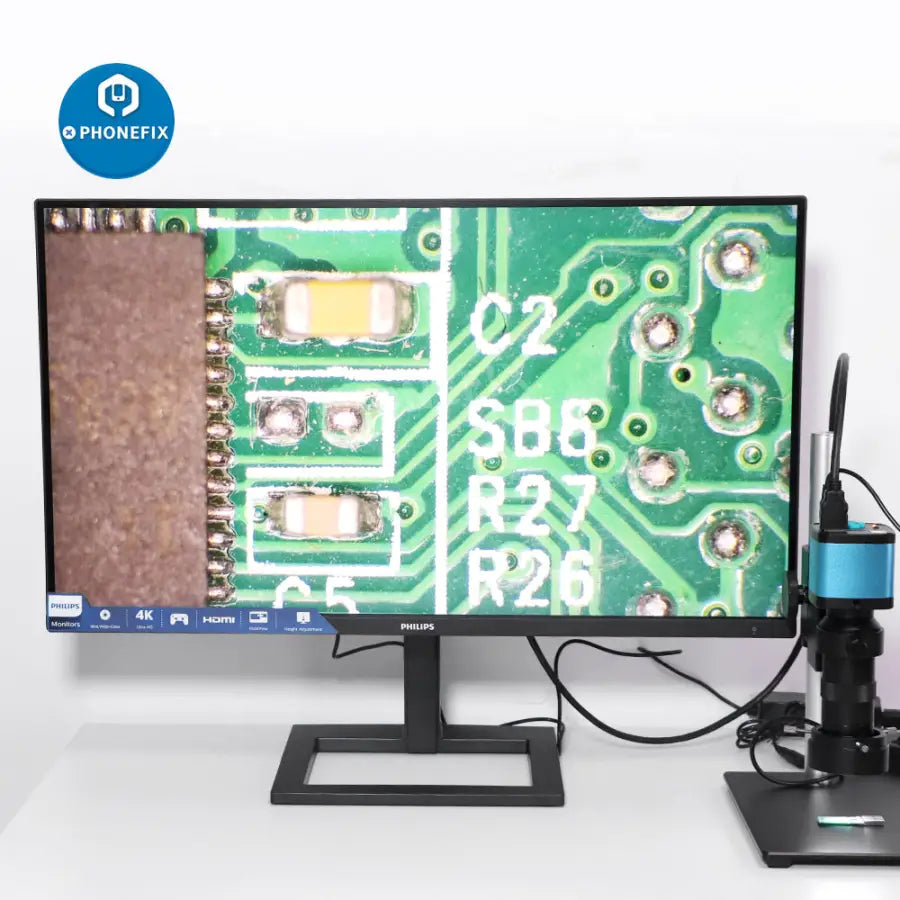

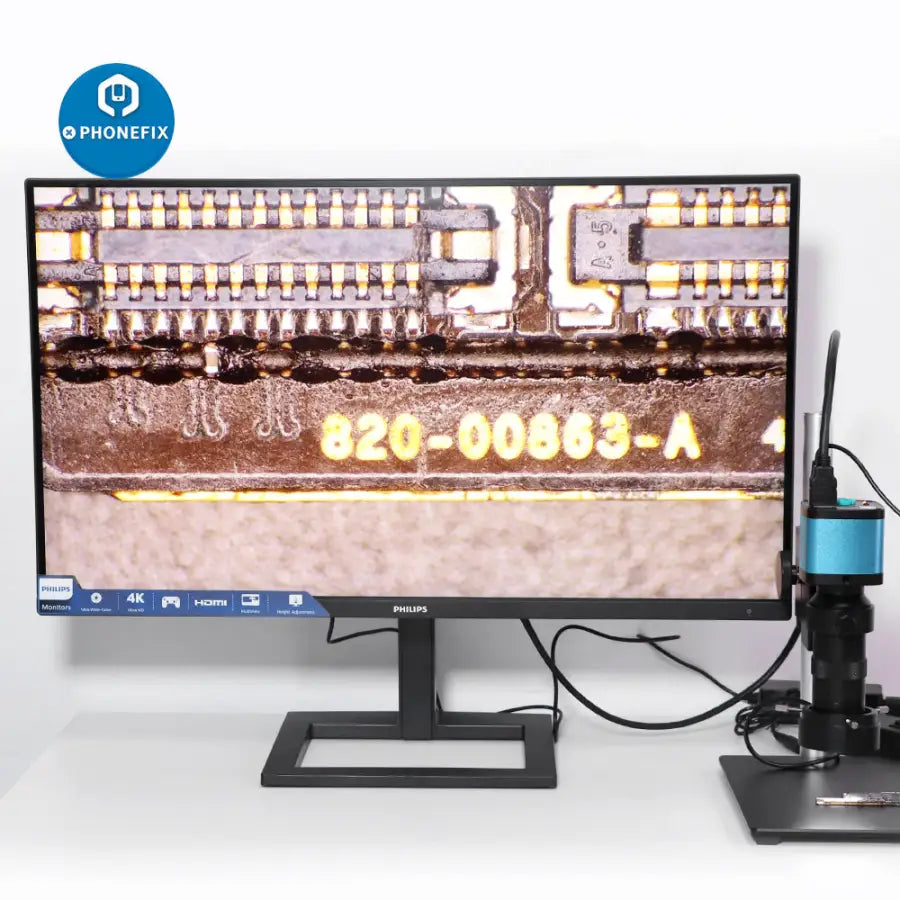

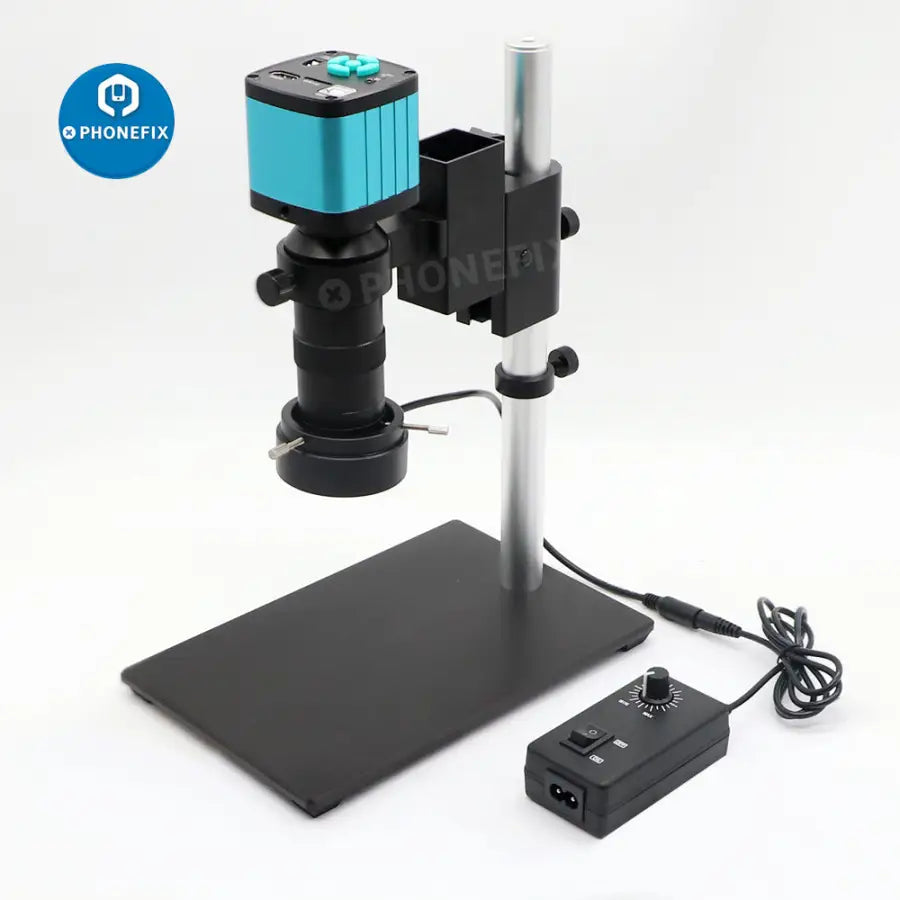

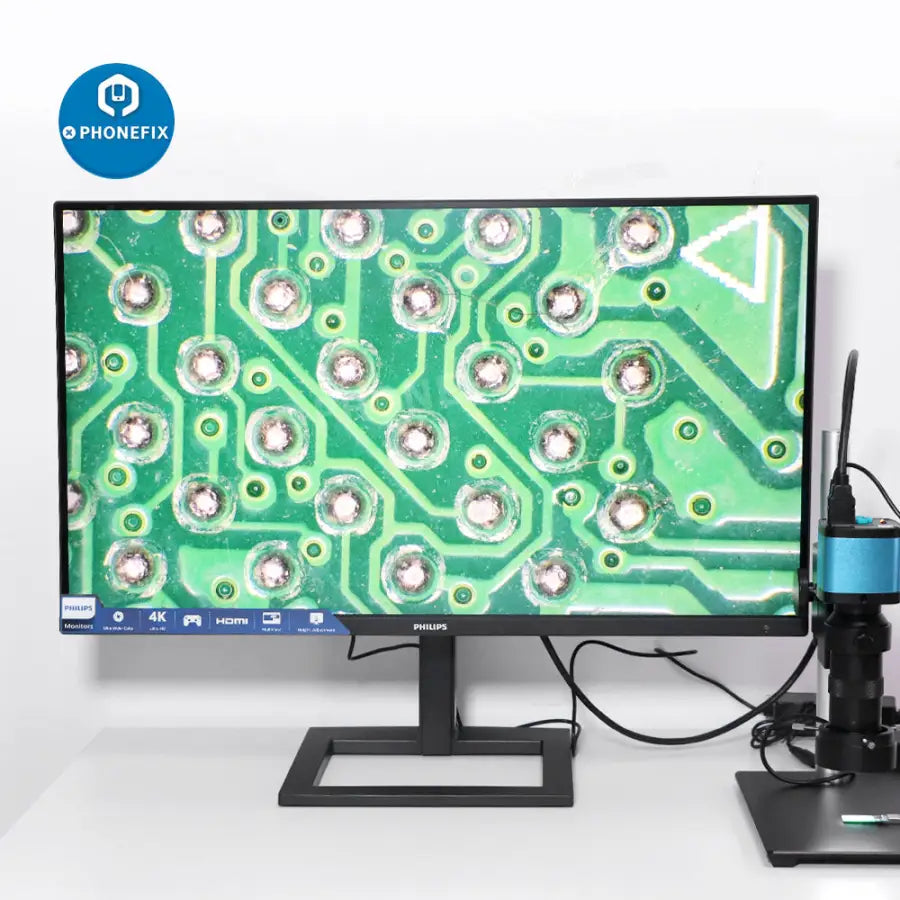

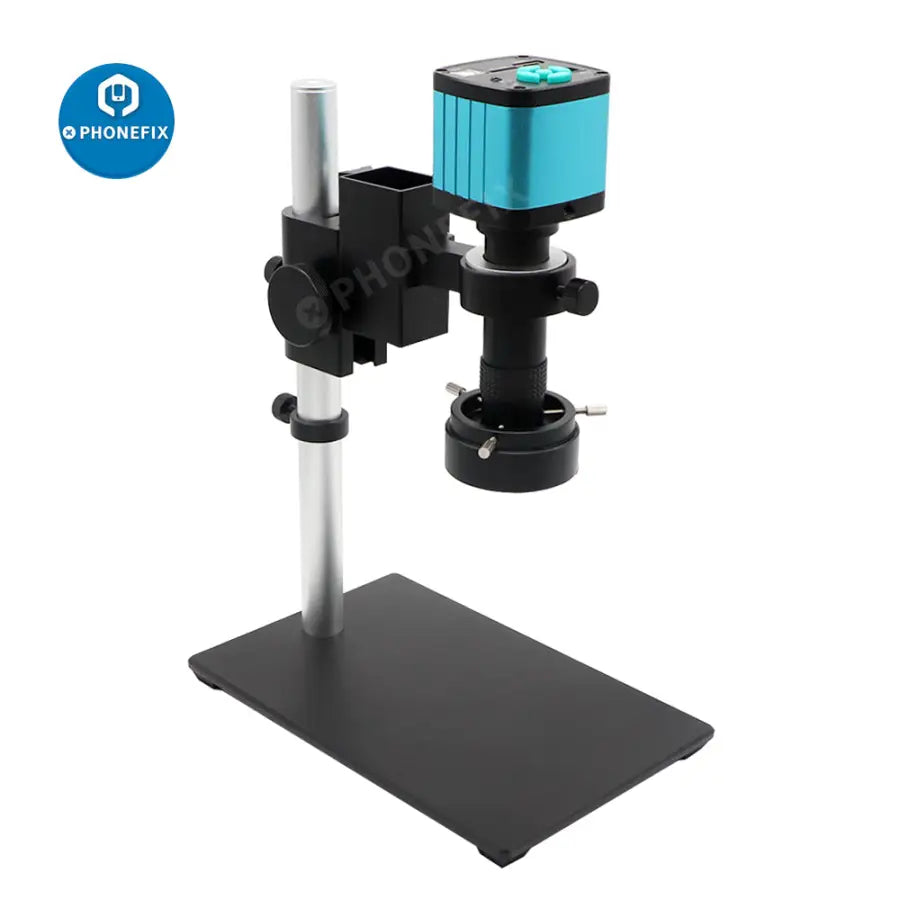

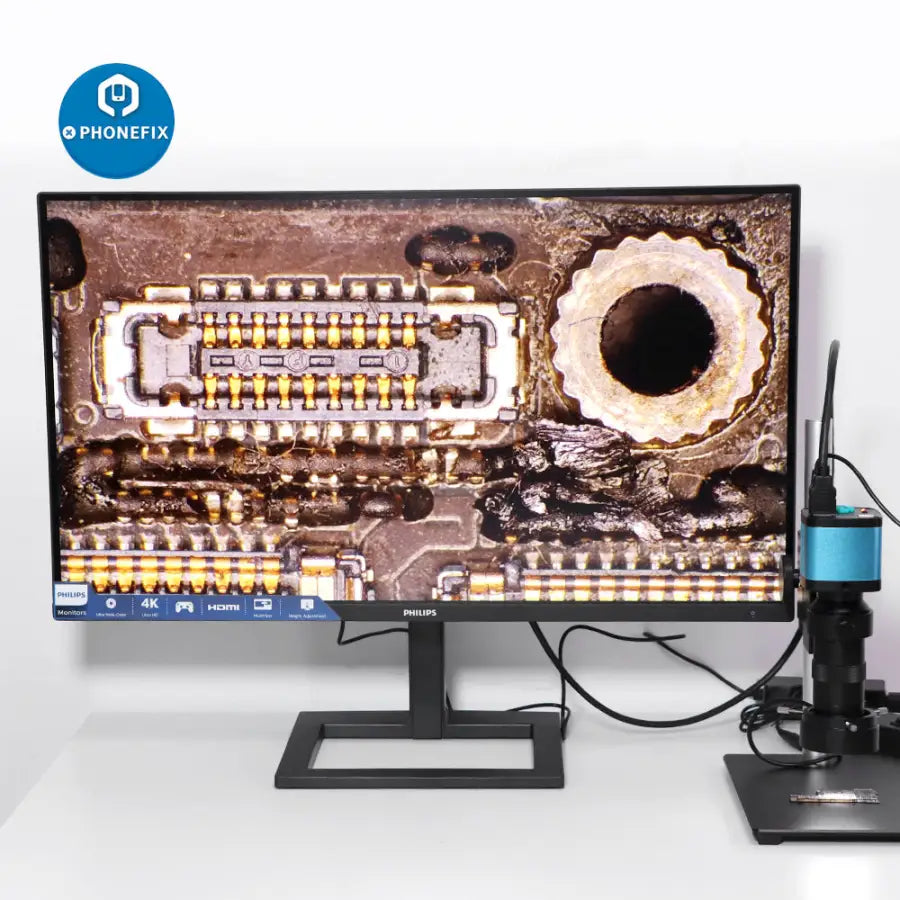

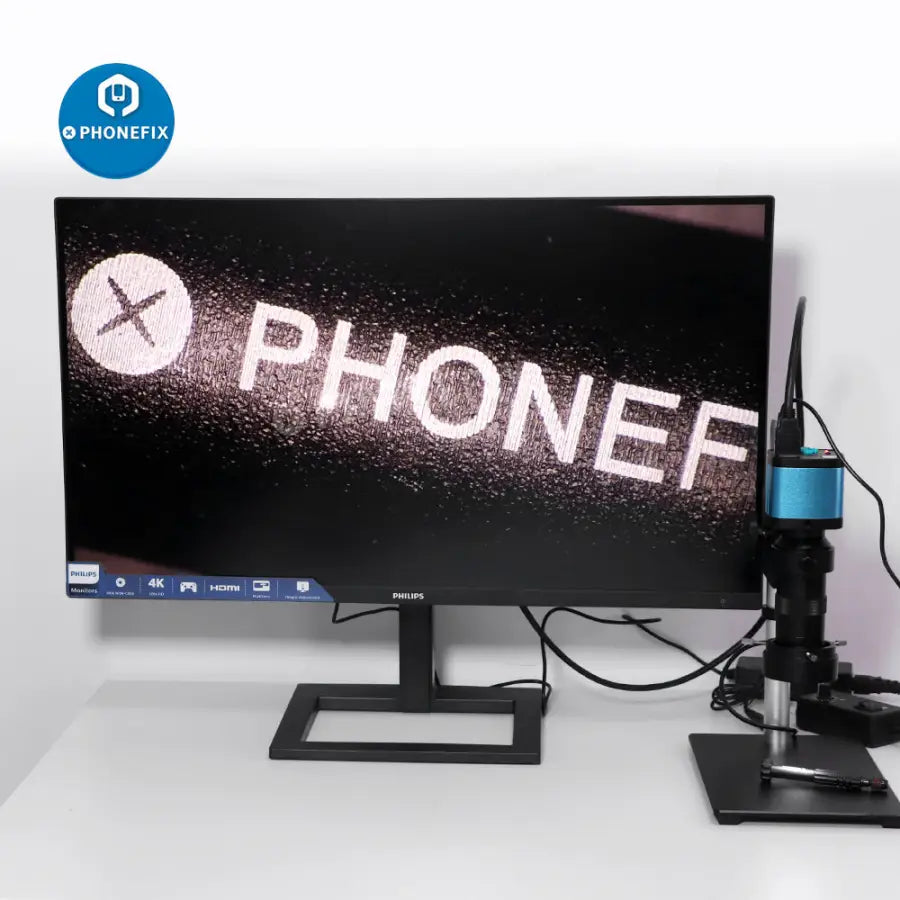

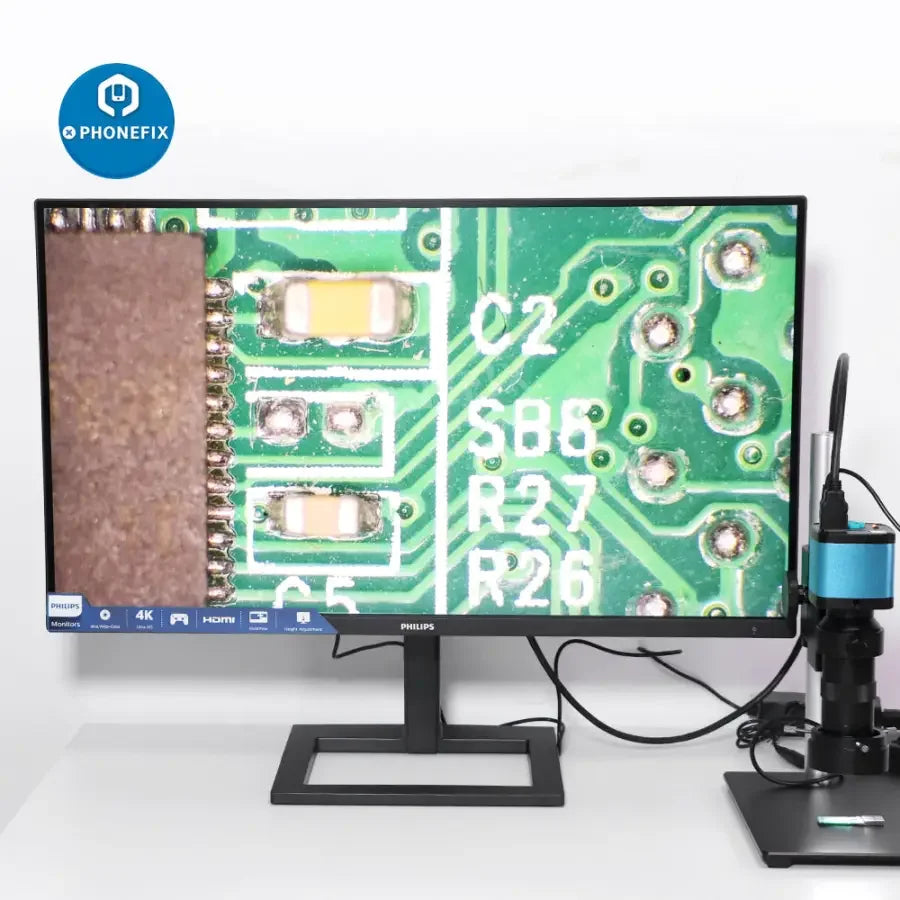

48MP 1080P 4K HDMI USB Industrial Digital Video Monocular Microscope Camera + Zoom 180X130X C-Mount Lens For PCB Soldering Mobile Phone Repair Tools.

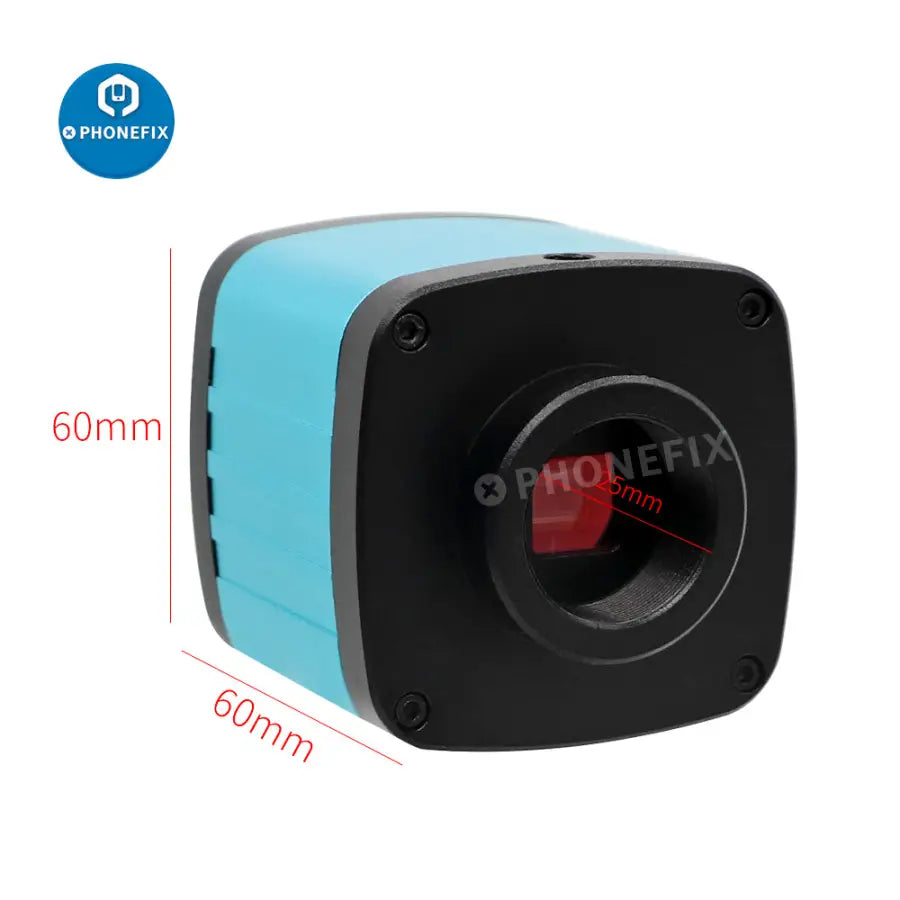

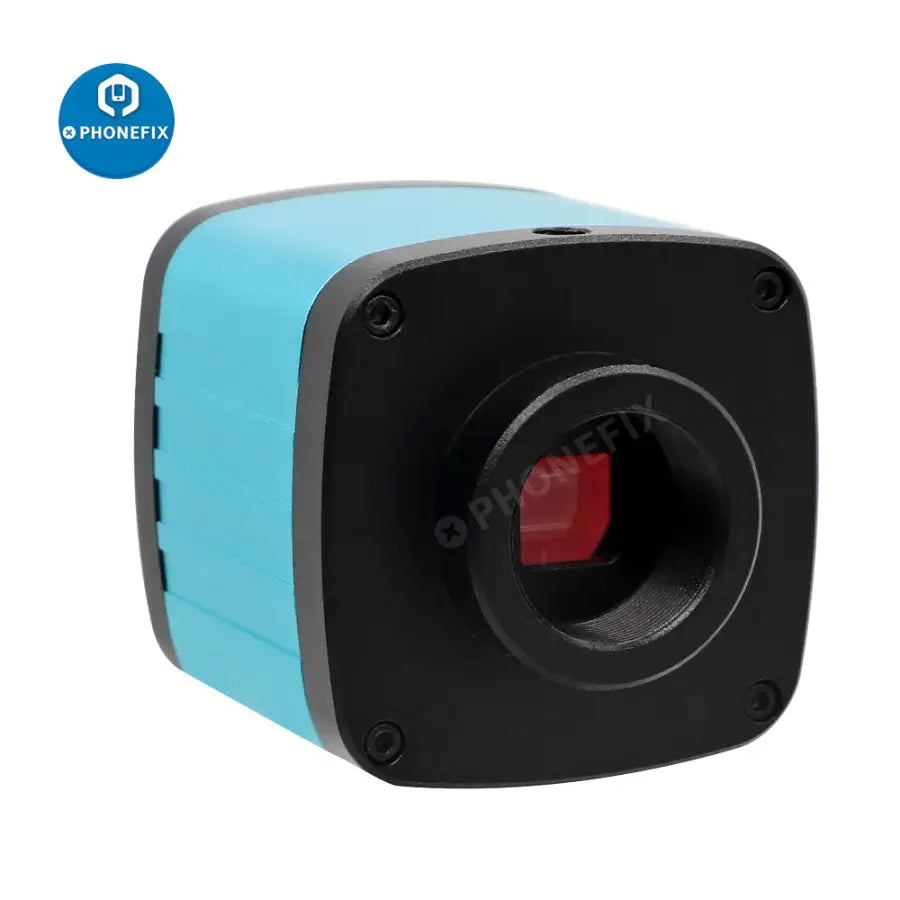

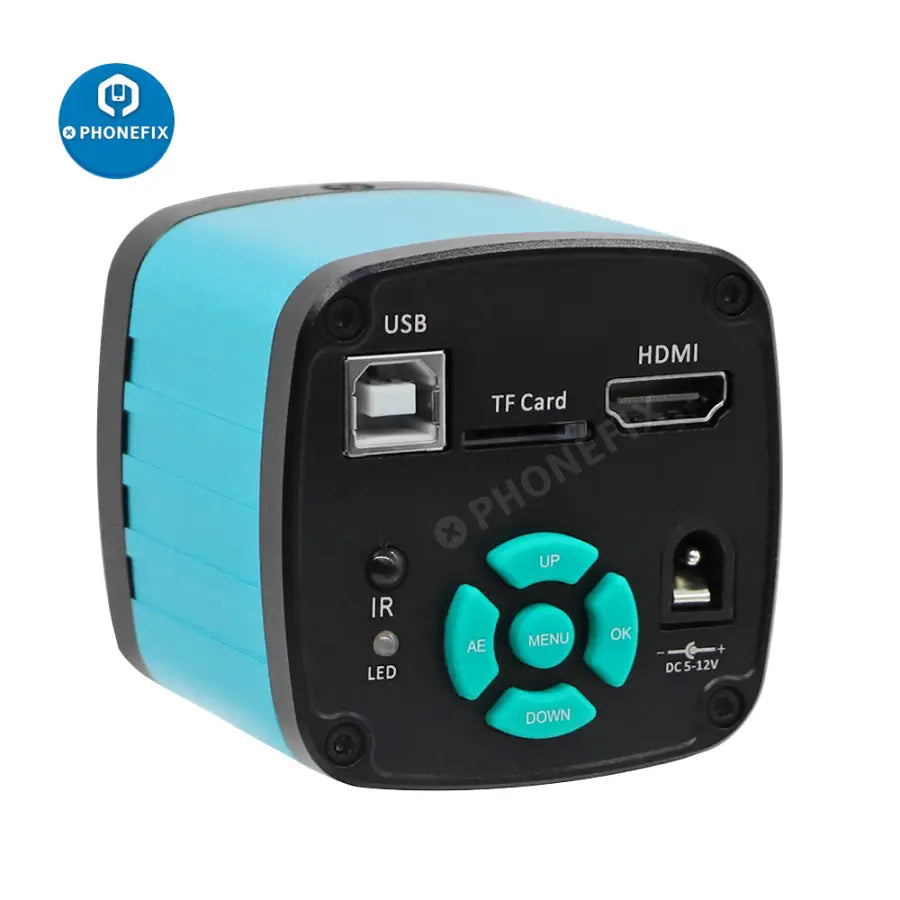

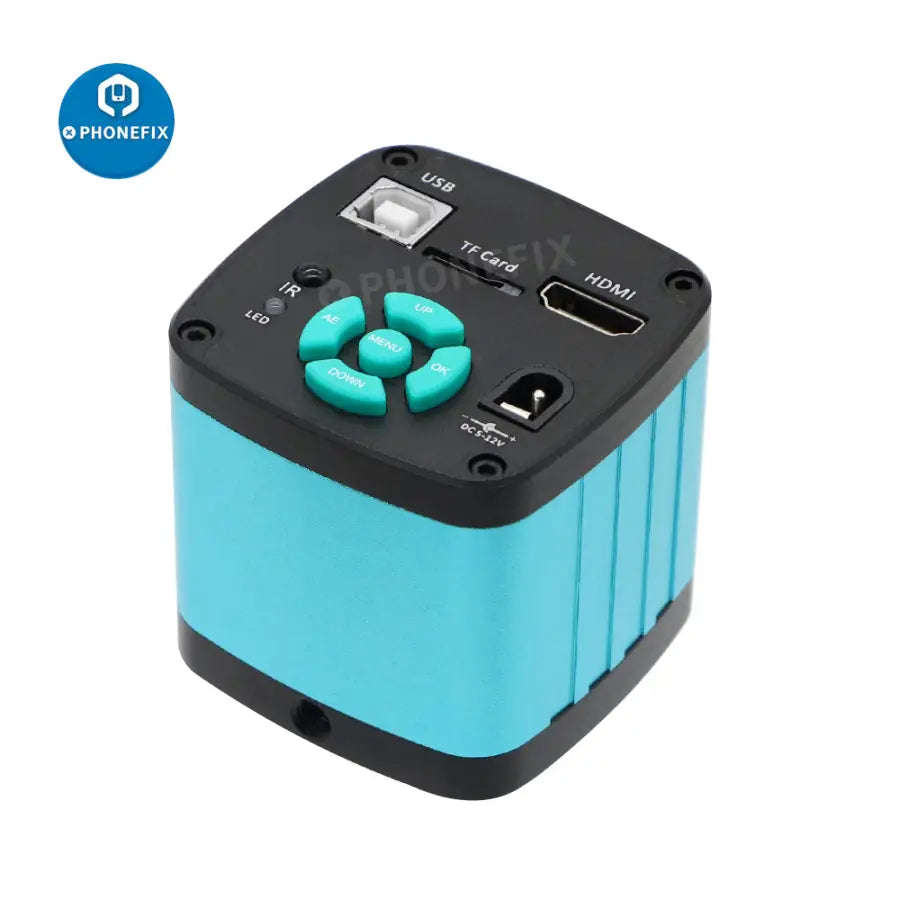

48MP Camera Specification: Model: Camera with HDMI USB2.0 two output Image sensor: 48 megapixel Panasonic sensor Frame rate: 1920*1080 60F/S @ HDMI output Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.) Housing: All metal Support:C-Mount lens Digital magnification: 5 times digital zoom White balance: Auto/manual Cross cursor: Support multi-color, size adjustable TF card interface: Max 32G video format:MOV HDMI interface: HDMI/USB output Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456 Language:Chinese/English Mirroring: Support Frequency:50Hz/60Hz Monitor:16:9/16:10/4:3 Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size Power supply:5-12V 1A
1-130x Feature: 1X-130X C-MOUNT Lens: Working distance: 50mm-1000mm zoom ratios: 1 : 15 Magnification Power by 0.13- 2X (about 1 - 130X on the display) view field of Max multiple : 4.2mm*2.4mm view field of Min multiple : 130mm*70mm Size: 30mm(diameter) * 99mm(length) Weight: 195g

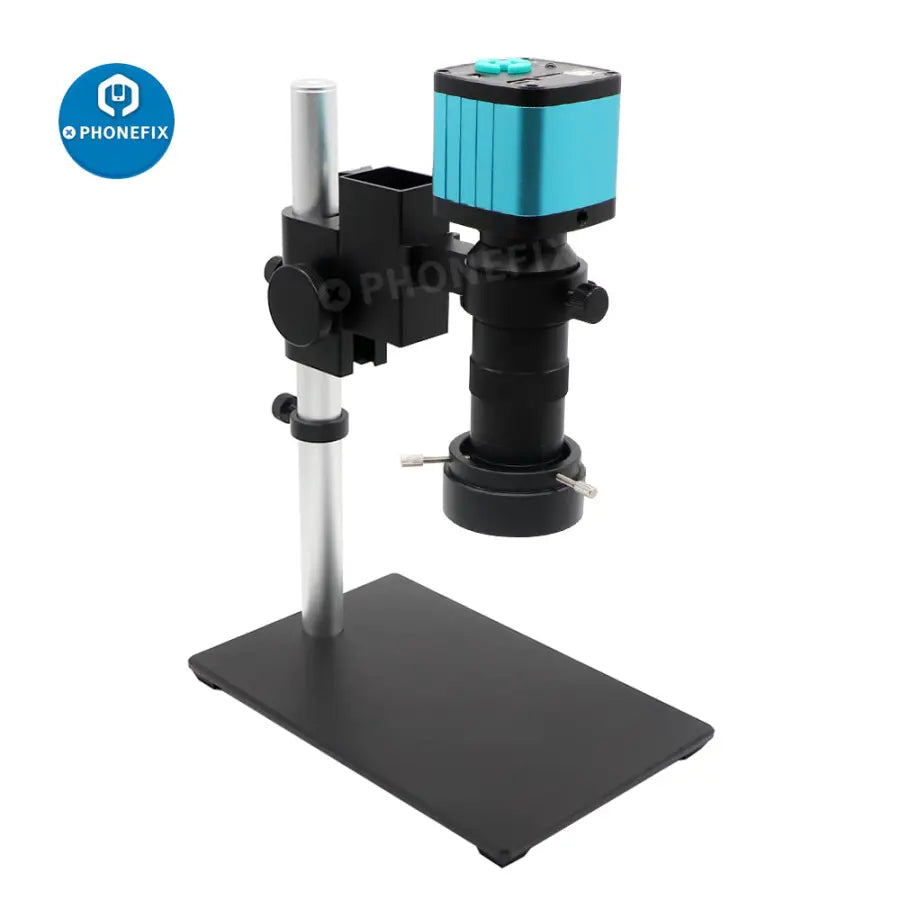

8X-130X Features: 8X-130X C-MOUNT Lens: Working distance: 60mm-300mm zoom ratios: 1 : 11 Magnification Power by 0.1 - 1.3X (about 8 - 130X on the display) view field of Max multiple : 8mm*4.5mm view field of Min multiple : 40mm*33mm Size: 30mm(diameter) * 84mm(length) Weight: 180g
