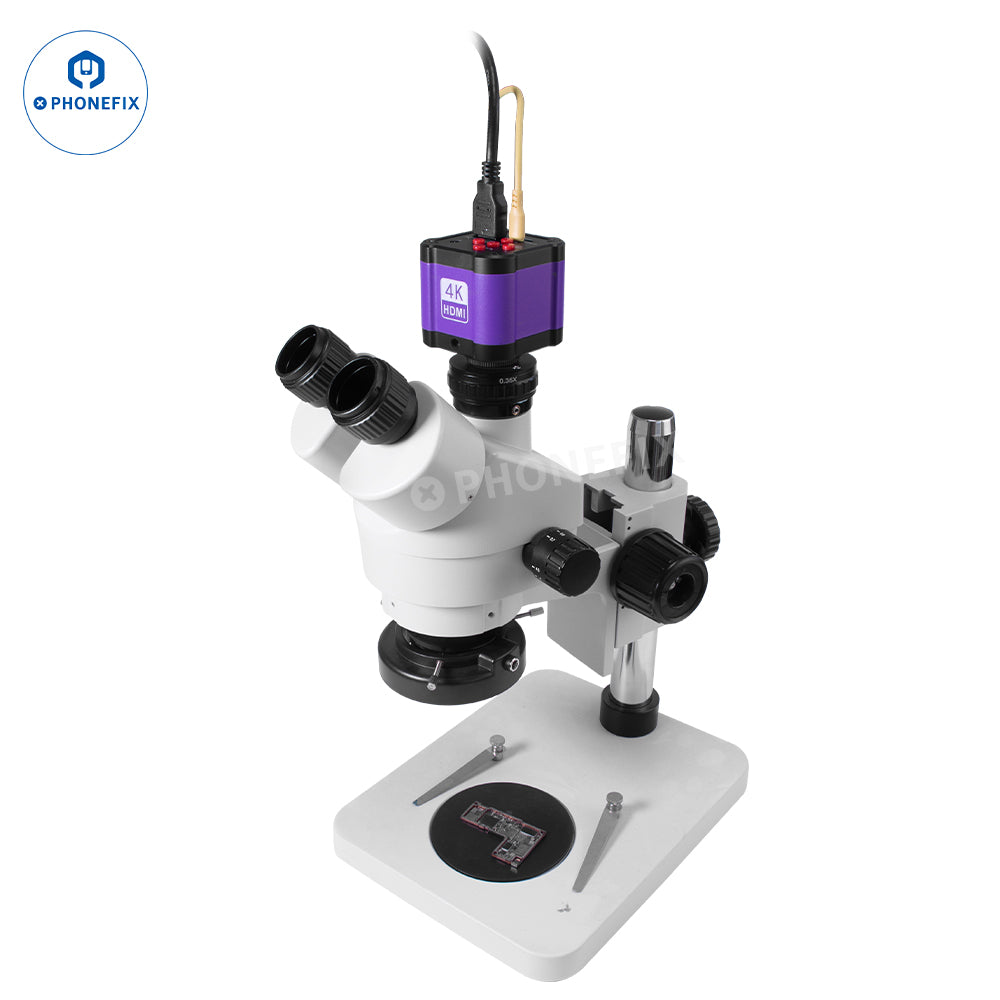

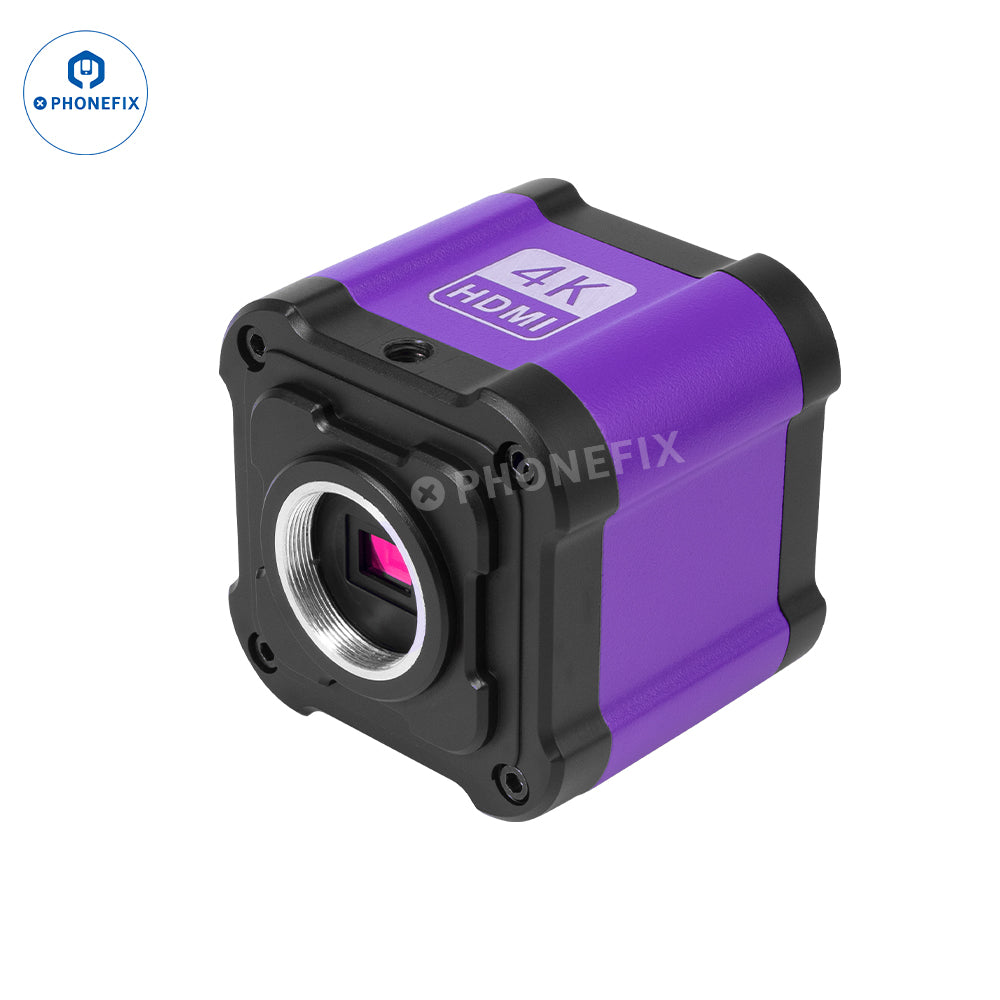

MS4K01 4K 14MP HDMI USB dual output industrial camera works with a trinocular stereo microscope or C-mount lens for mobile phone motherboard BGA SMD soldering repair. High-resolution digital camera MS4K01 with HDMI interface and large array CMOS image sensor 1/2.33 can simultaneously capture images and provide real-time image interface control.
MS4K01 high-resolution digital camera composed of a high-speed HDMI interface and a large-array CMOS image sensor 1/2.33. 14 million pixel high resolution, zoom in and out, image lock, two reversal modes, and storage for photo and video recording. provides real-time image interface control and is used in computer image acquisition, portrait and human biometric acquisition, pattern recognition, industrial inspection, medical microscopic imaging, and machine vision.

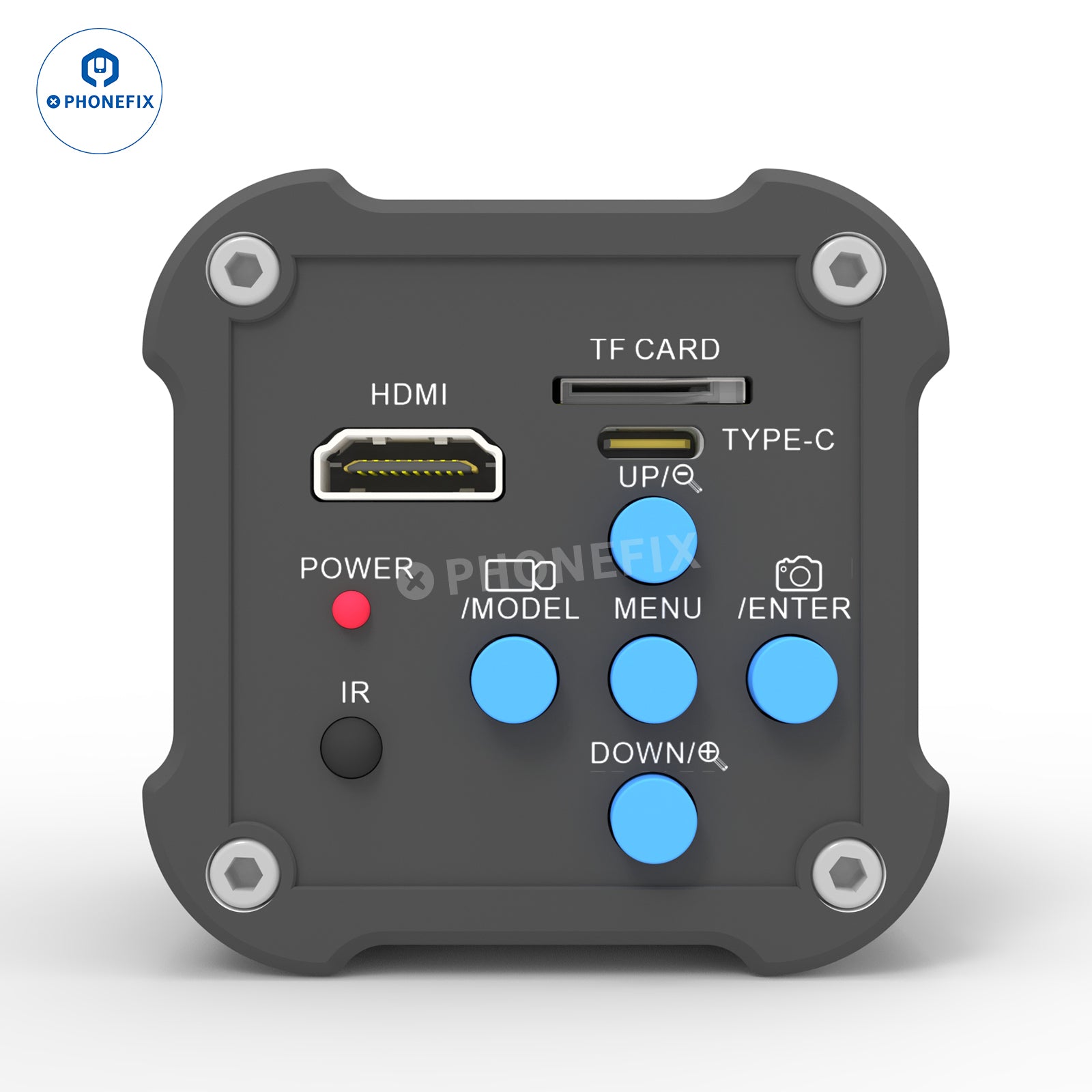

Features:

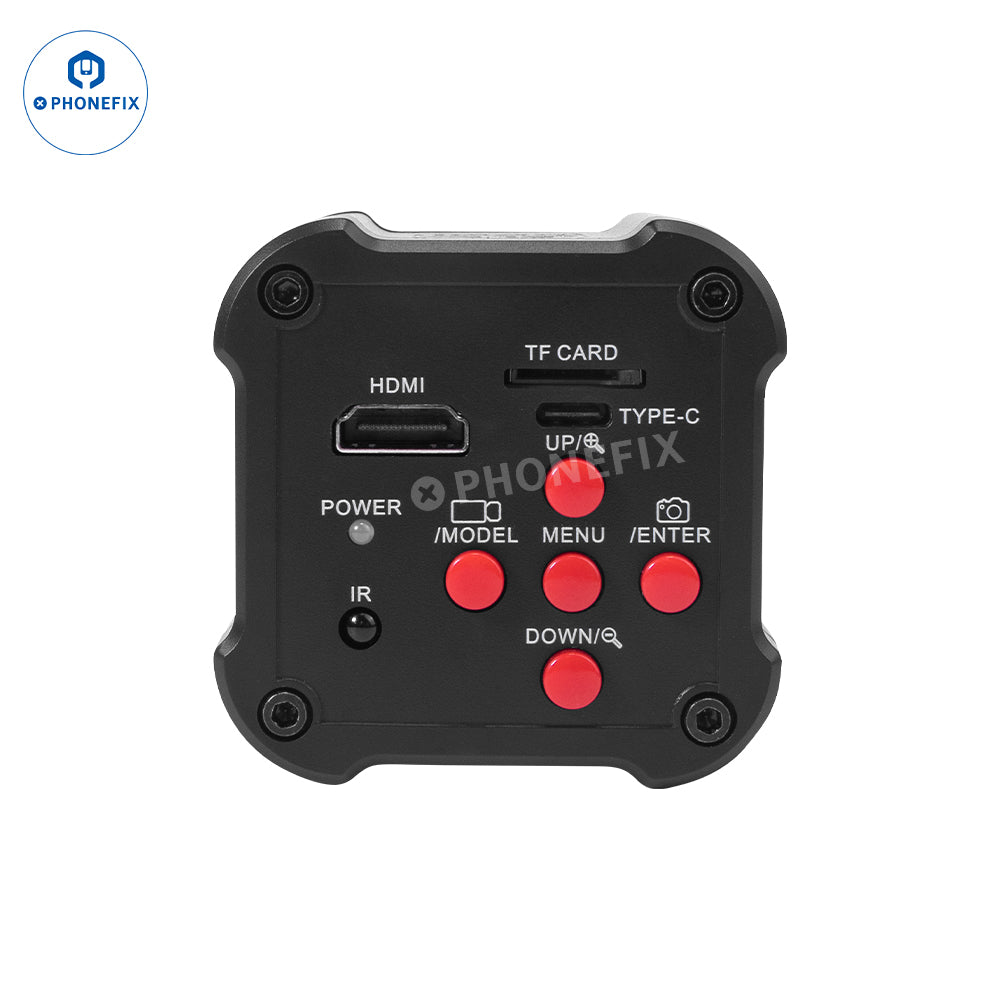

1. HDMI: Supports HDMI1.3A version, using standard A-type interface.
2. TYPE-C interface: Uses TYPE-C USB2.0, which can be used as a PC CAMERA device when connected to the PC. Whether it is a TYPE-C USB device or an HDMI display, the TYPE-C interface is used to power the device, and the voltage and current are not lower than the standard USB2.0 standard (5V/0.5A).
3. TF card interface: Supports 4 class and above low-speed and high-speed TF cards, with a maximum capacity of 8-128GB.
4. Power button, the device automatically turns on when the power is turned on, the red indicator flashes for 0.5 seconds, and the green light is always on; the device shuts down when the power is off, and the POWER indicator goes out.
Hardware Specifications:

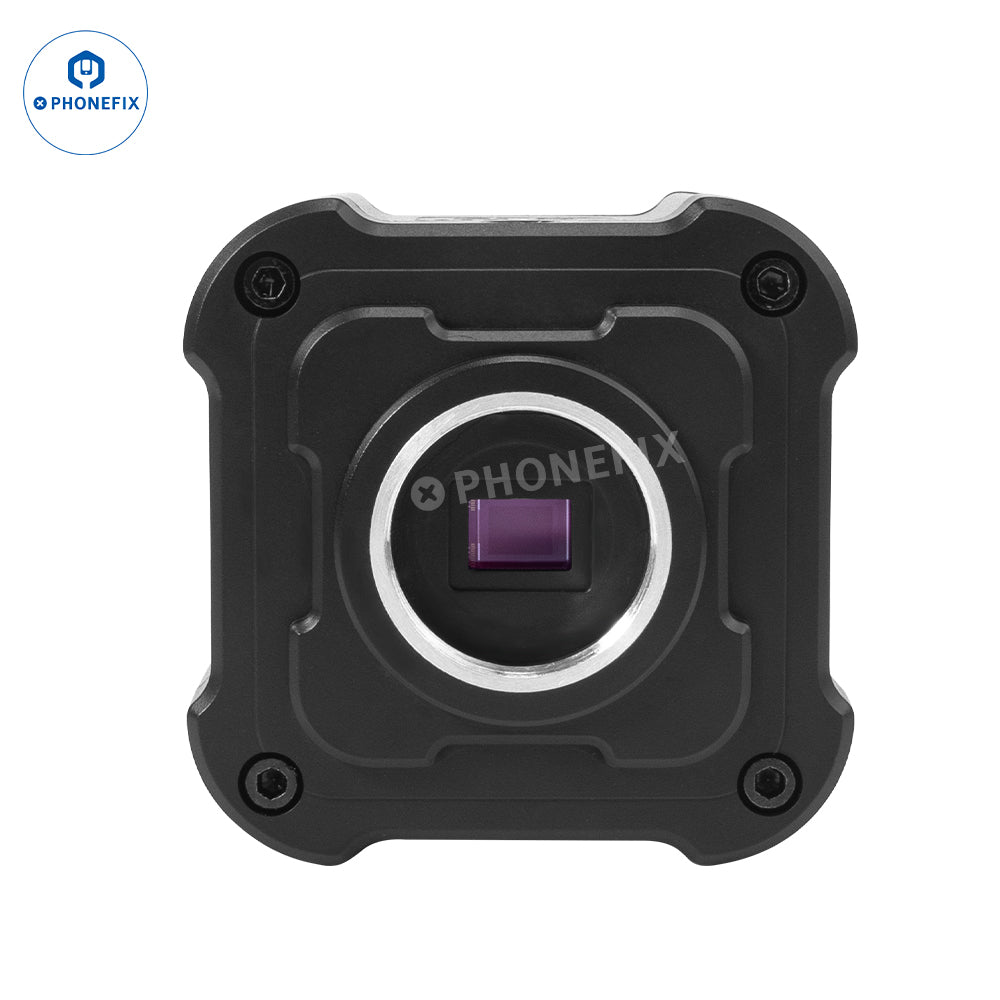

Image sensor: 14M, 1/2.33INCH.
Effective pixels: 4348×3276.
Video size: FHD 1080P (30fps), HD 720P (60FPS), WVGA 800*480 (60FPS), video only supports 1080P at most.
Image size (16:9): 7680*4320/6560*3692/5376*3024/4608*2592.
Image size (4:3): 6930*4620/5664*4248/4262*3464/4000*3000.
Definition: More than 1400 lines (horizontal).

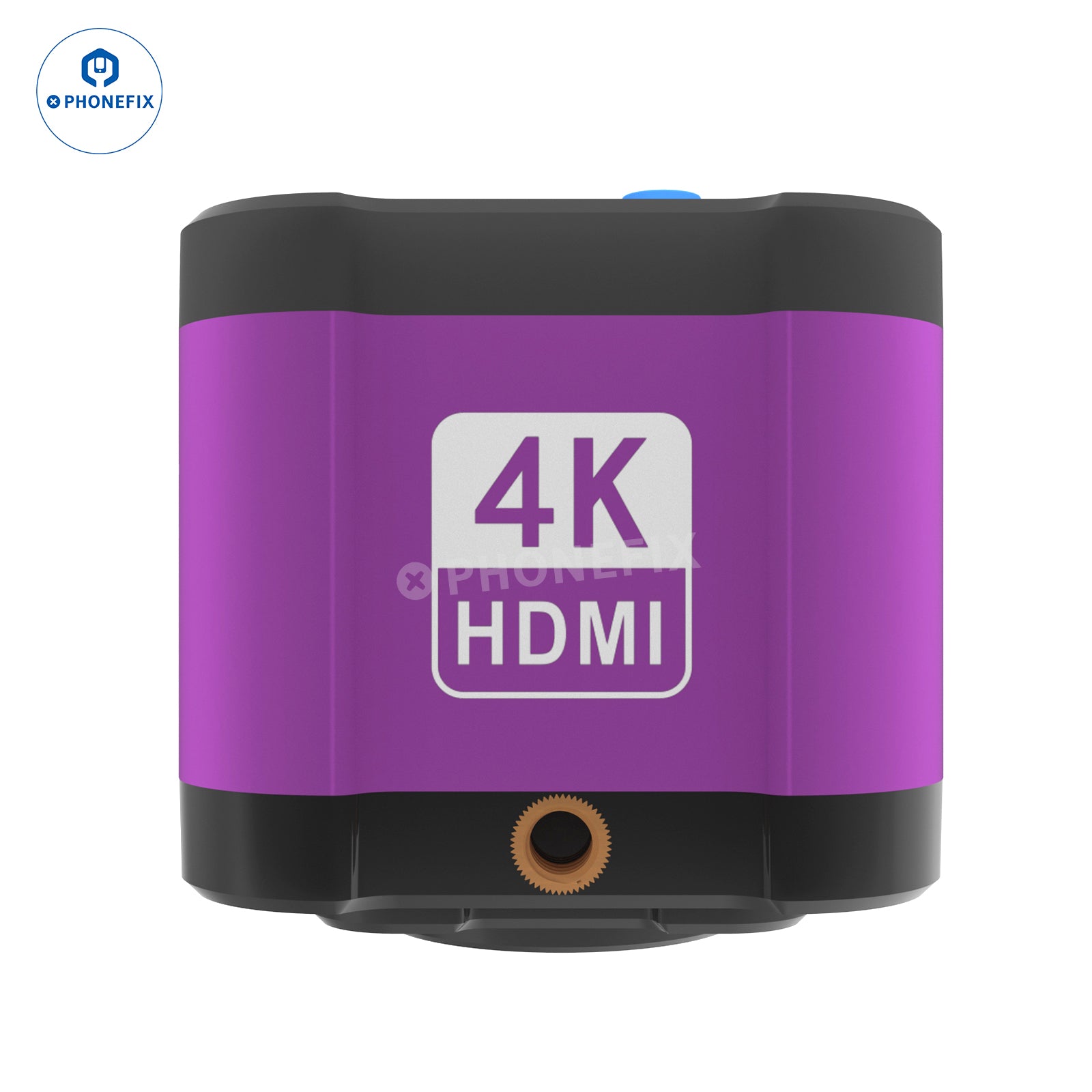

Casing: Standard aluminum alloy casing or customized.
Function:
White balance: Automatic / manual white balance / one-key white balance.
Brightness control: Automatic / manual exposure.
Color: Colorful / Grayscale / Brown.

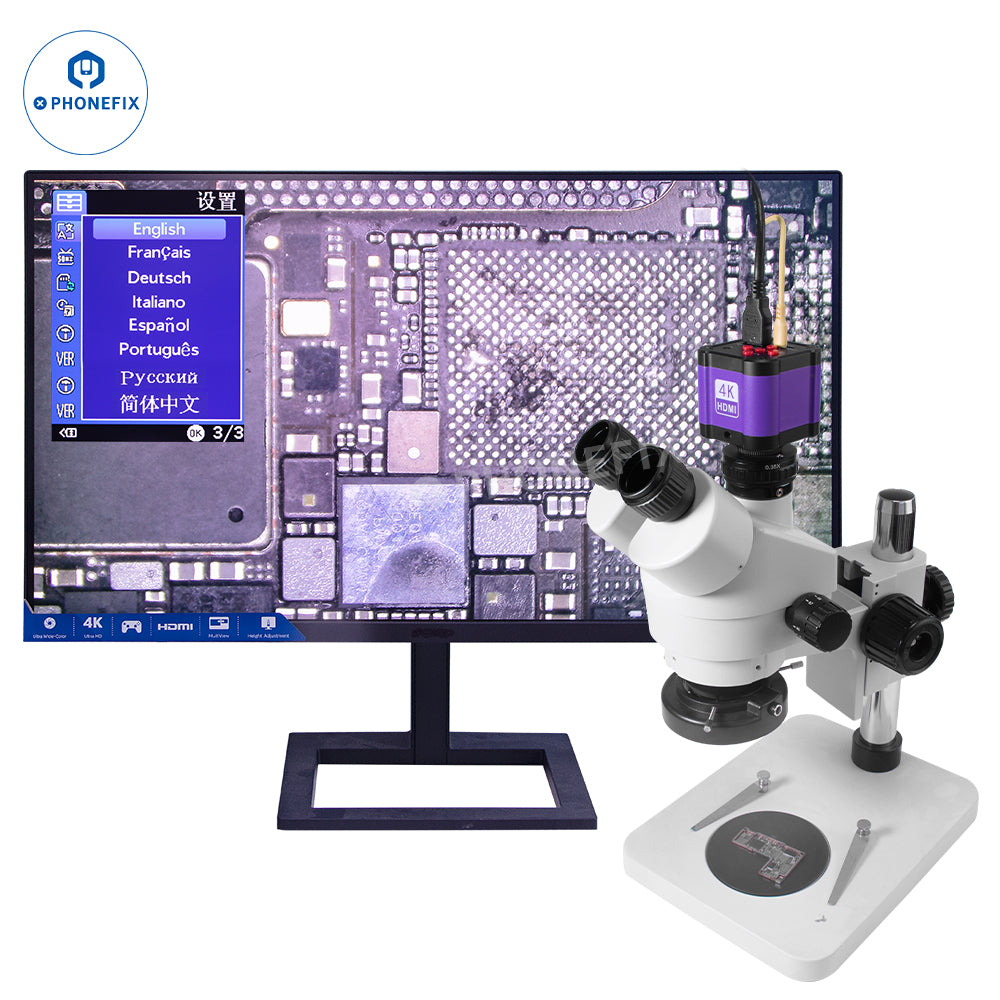

OSD: English / Chinese.

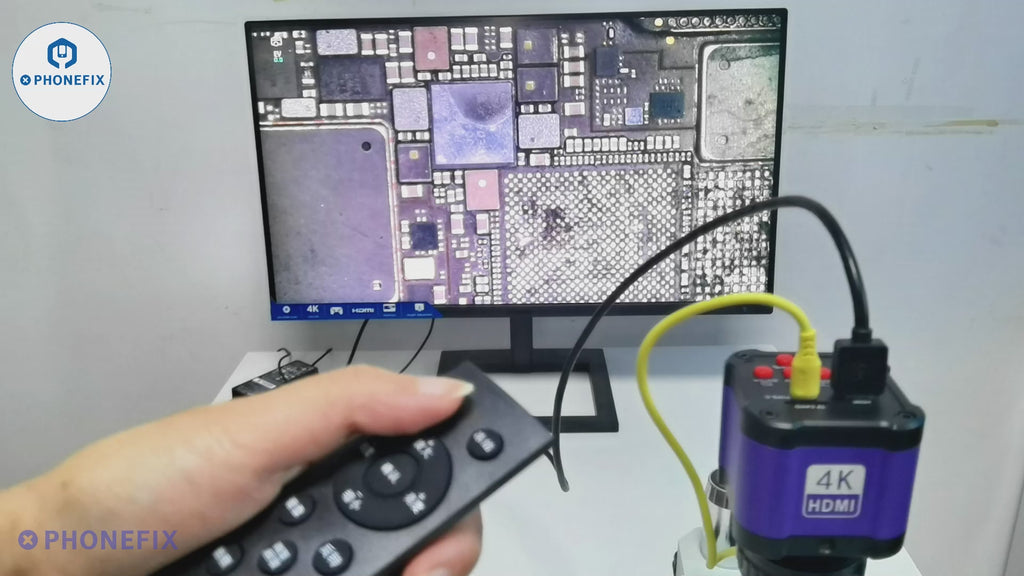

Support mirroring, flipping, freezing, image saving (supports up to 256GB high-speed card expansion), edge enhancement, digital noise reduction, remote control IR (about 10 meters).
Interface:
HDMI: HDMI-A standard interface version V1.3a.
TYPE-C USB: USB2.0 (1922*1080, 800*600) Driver-free.
TF storage: 8-128G 4class or above.

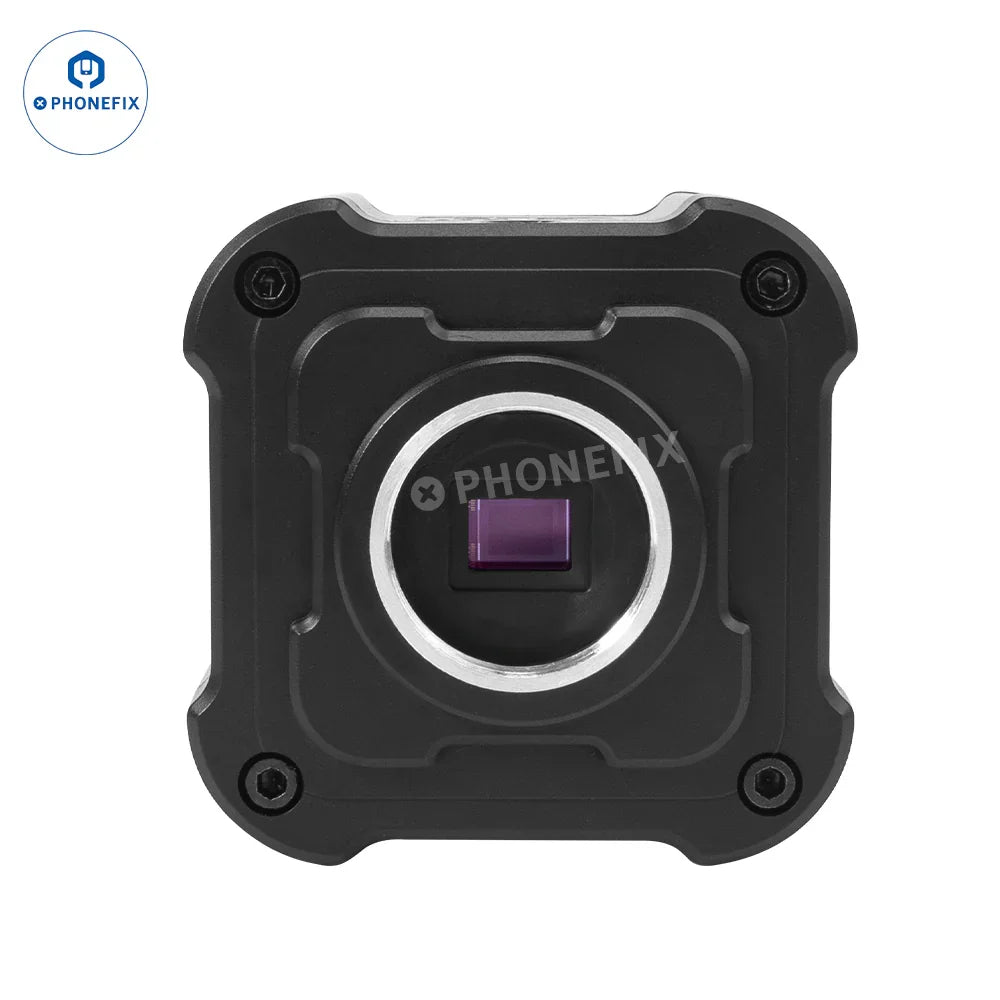

Lens: C-mount/M12/customized lens.
Note:

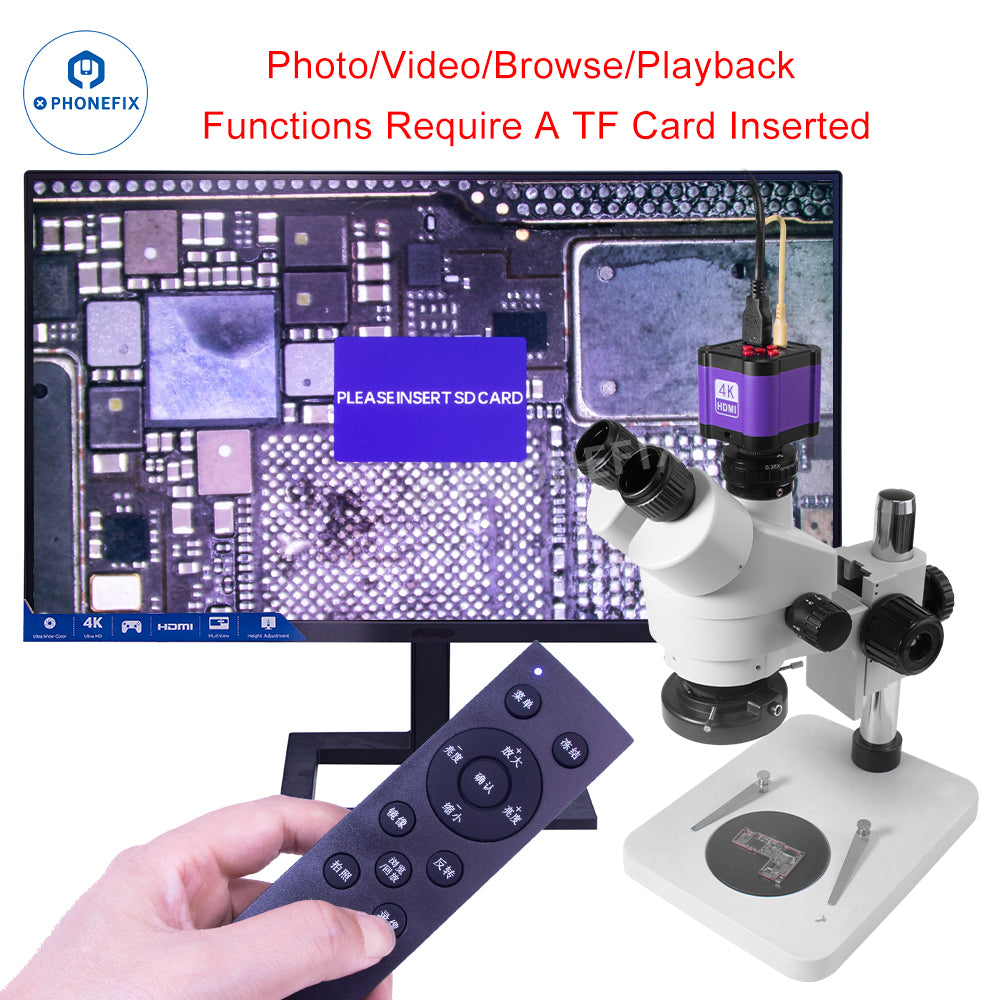

1. The camera cannot take photos, record videos, or view stored files (playback) without a TF card. If you press the corresponding function button, a card error will be prompted.
2. The TF card does not support hot plugging. Removing or inserting the card while the camera is turned on will cause the camera to shut down.
MS4K01 4K Camera user manual:
https://drive.google.com/file/d/1y4KidJDoZNn0aNkiRegD1OxNUSezf1PF/view?usp=drive_link

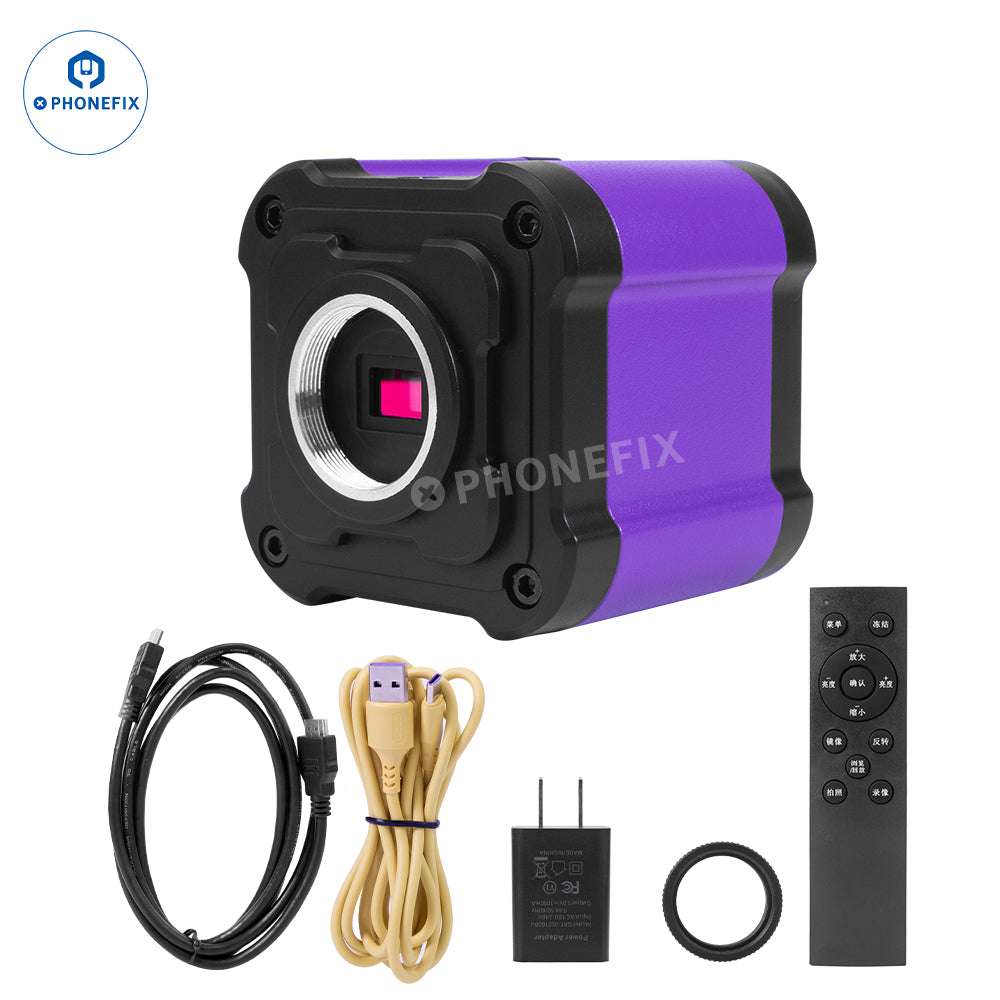

Packing List:
HDMI camera *1.
Outer packaging *1.
Power adapter *1.
USB cable *1.
Dual-head HDMI-A male plug cable *1.
