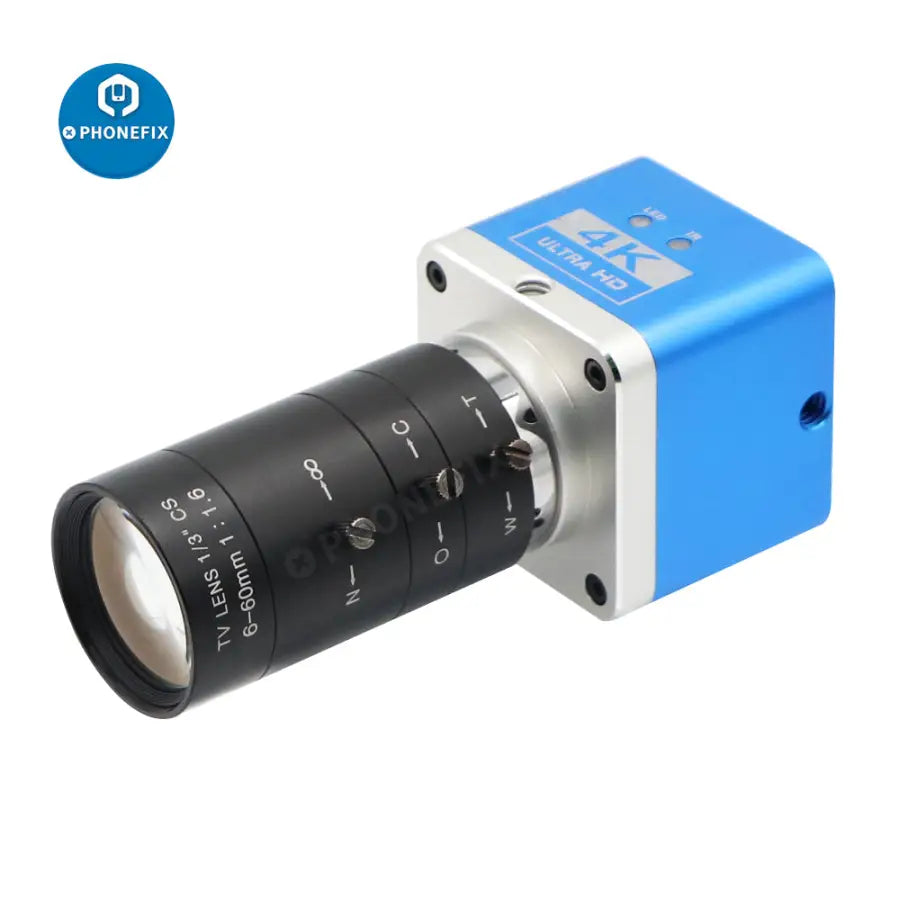

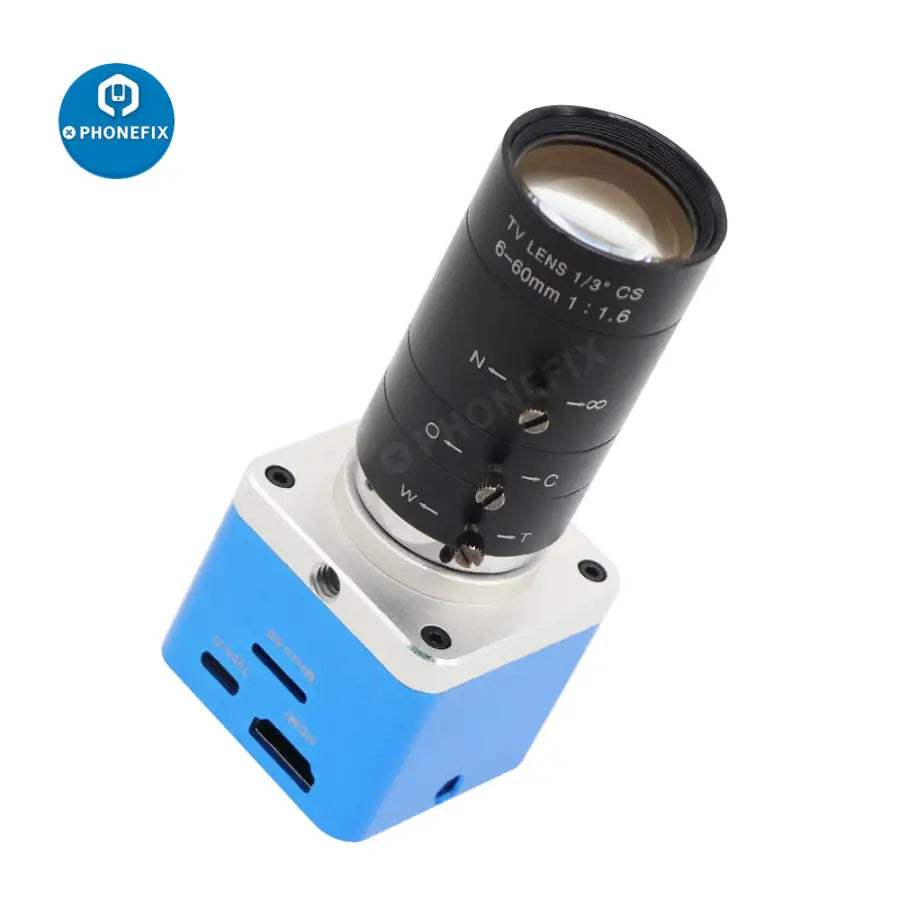

4K Ultra HD CMOS Camera 6-60mm F1.6 Lens Industry Live Digital Camera

4K Ultra HD USB CMOS HDMI Output industrial Live Digital Camera, with CCD digital detector, Sony IMX377 Sensor, Equipped with 6-60mm 1/3" CS Mount CCTV Lens IR F1.6 Manual Zoom Manual Iris Camera Lens.

4K Industrial Camera Specifications:
Model: 4K Industrial Camera
Classification: HDMI industrial camera
Sensor: IMX377
Effective pixel: 12 million
Resolution: 3840* 2160@30FPS 1920* 1080@60FPS

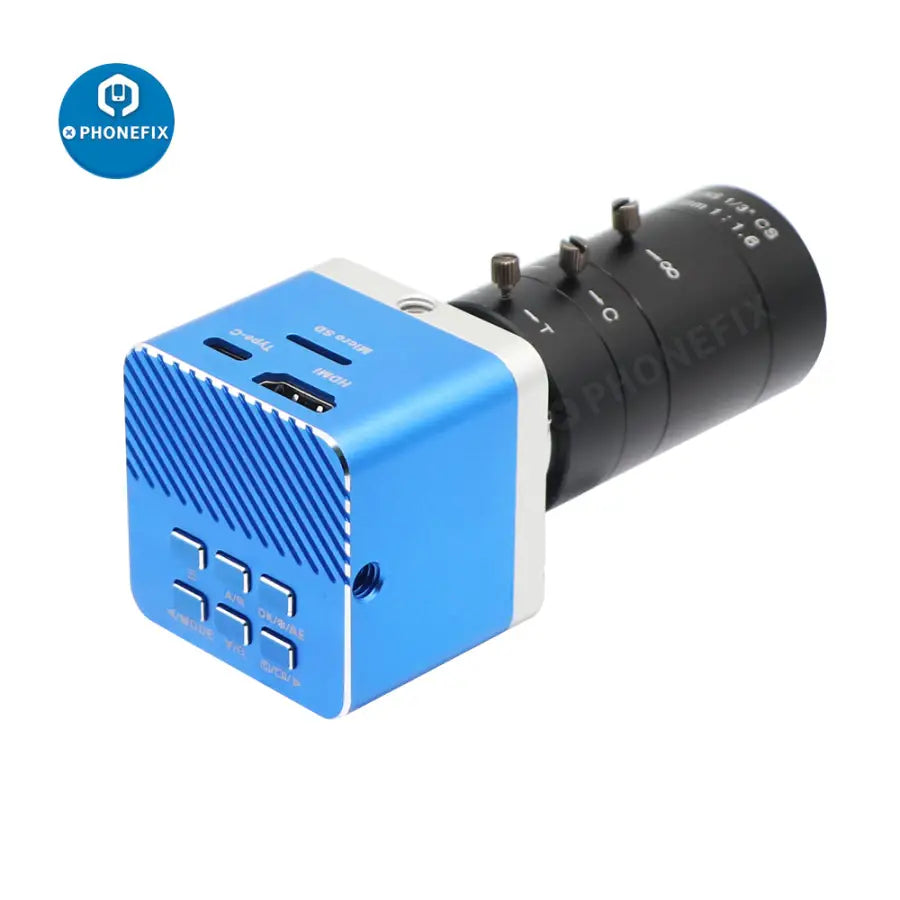

Output interface: HDMI
Pixel size: 1.55UM*1.55UM
Power Supply : DC-12V/1A
Function: HDMI 4K output with simple measuring crosshair
Image quality: adjustment Exposure, color
Camera function: Horizontal / vertical mirror image, freezing image, photographing and video recording
Gridlines The color and thickness of the horizontal line, vertical line and center mark can be defined by yourself
Resolving power: 3840*2160 1920*1080

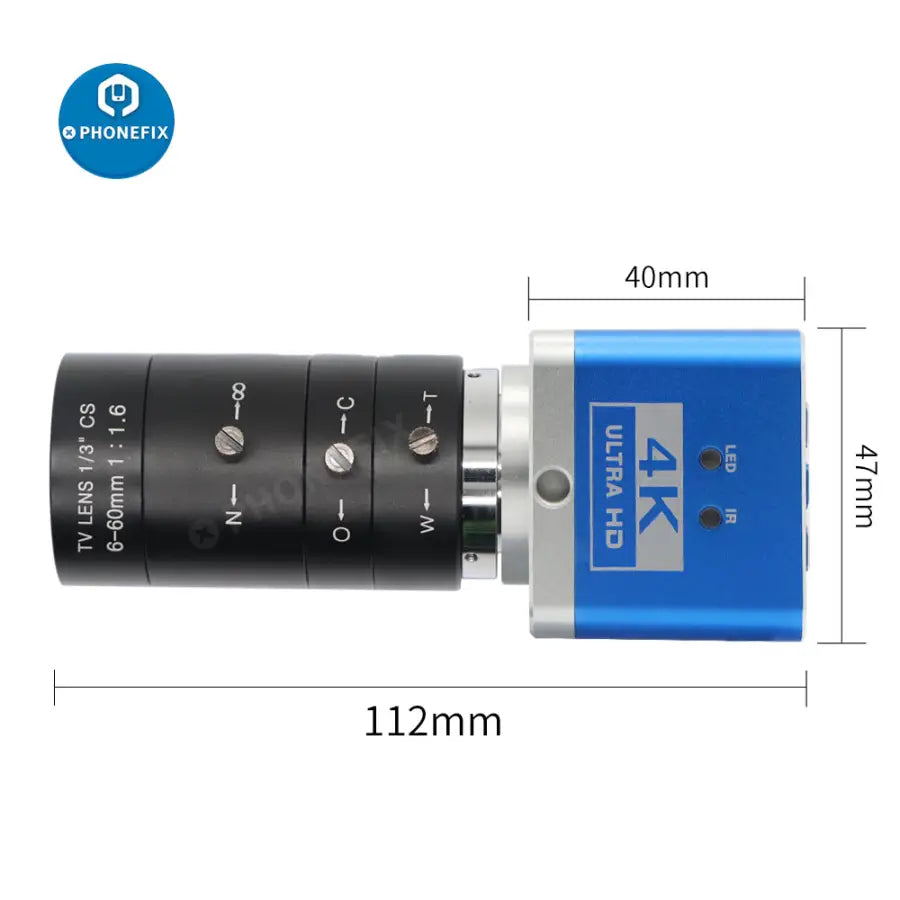

Packing Appearance size: 45.5*42*42mm
Standard accessories: DC-12V/ 1A power supply

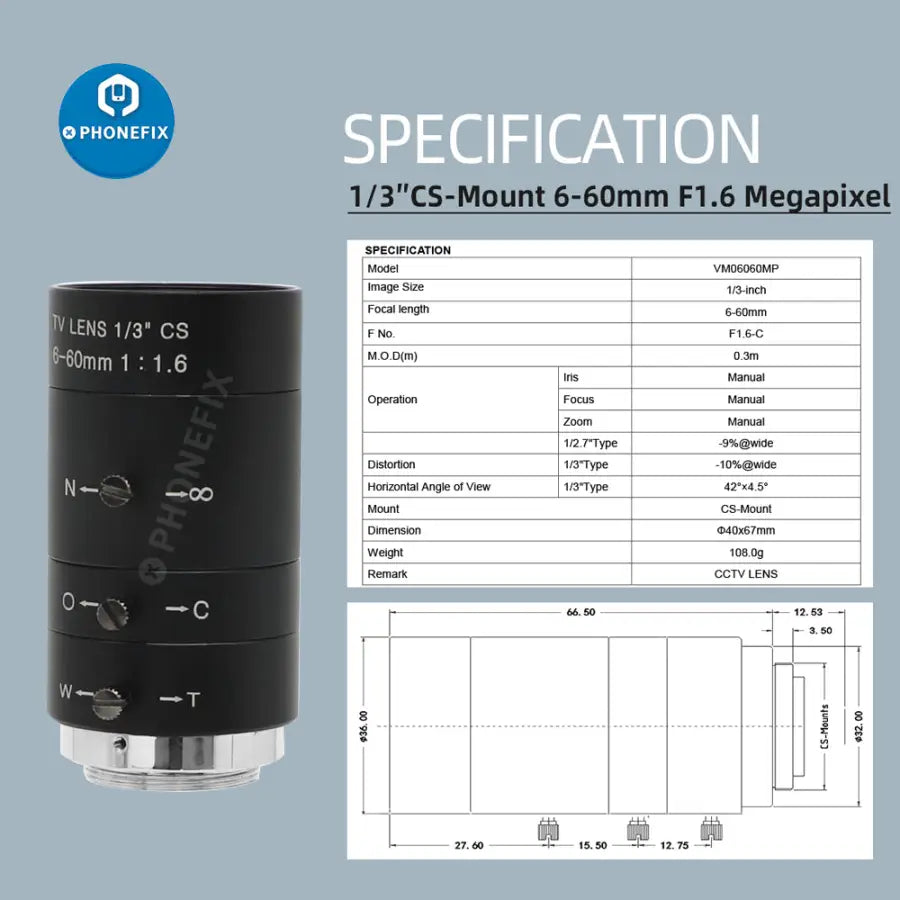

6mm-60mm F1.6 Lens Specification:
Focal-Length: 6-60mm
Image format: 1/3" CCD
Angle of View: 51.5°-6°
Aperture: F1.6
M.O.D: 0.3m
Mount thread: CS
Back Focal-Length: 12.526
Lens Construction: metal
Operating Temerature: -20°～+60°
Material: alloy, optical glass
Color: black
Size: Φ39*70mm

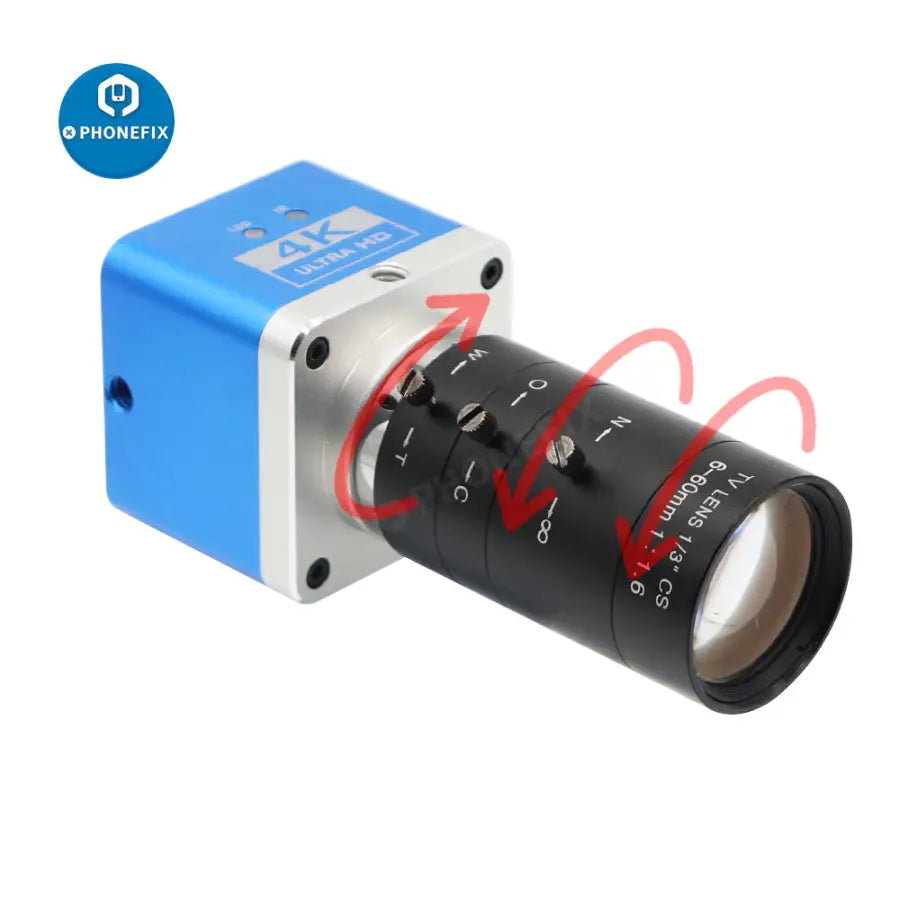

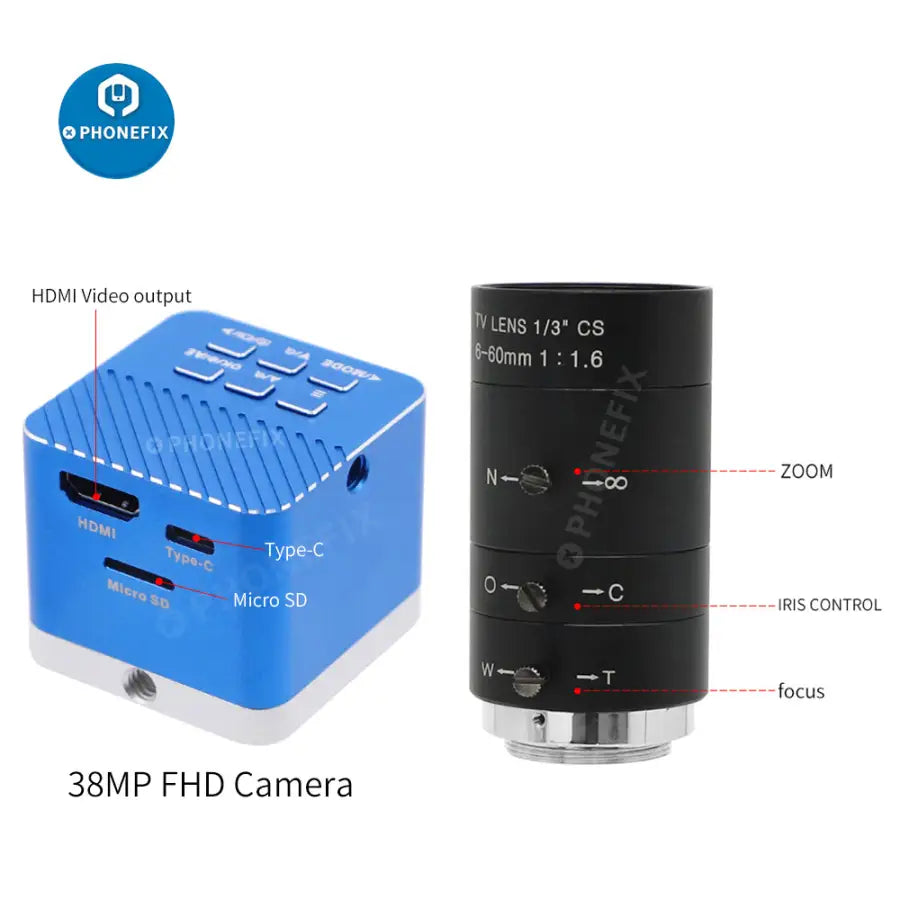

Operation:
Focus: Manual
Zoom: Manual
Iris: Manual

Lens Features:
1. 6mm-60mm F1.6 Lens
2. Varifocal length cctv lens, optical lens, CCTV camera lens, CS Mount Lens
3. focal length Function Manual Iris Lens, security lens
4. Low distortion Lens for box camera, Security Camera Lens, Surveillance Lens
5. This high resolution CCTV lens can capture the all resolution of mega pixel camera, IP camera & High resolution camera.

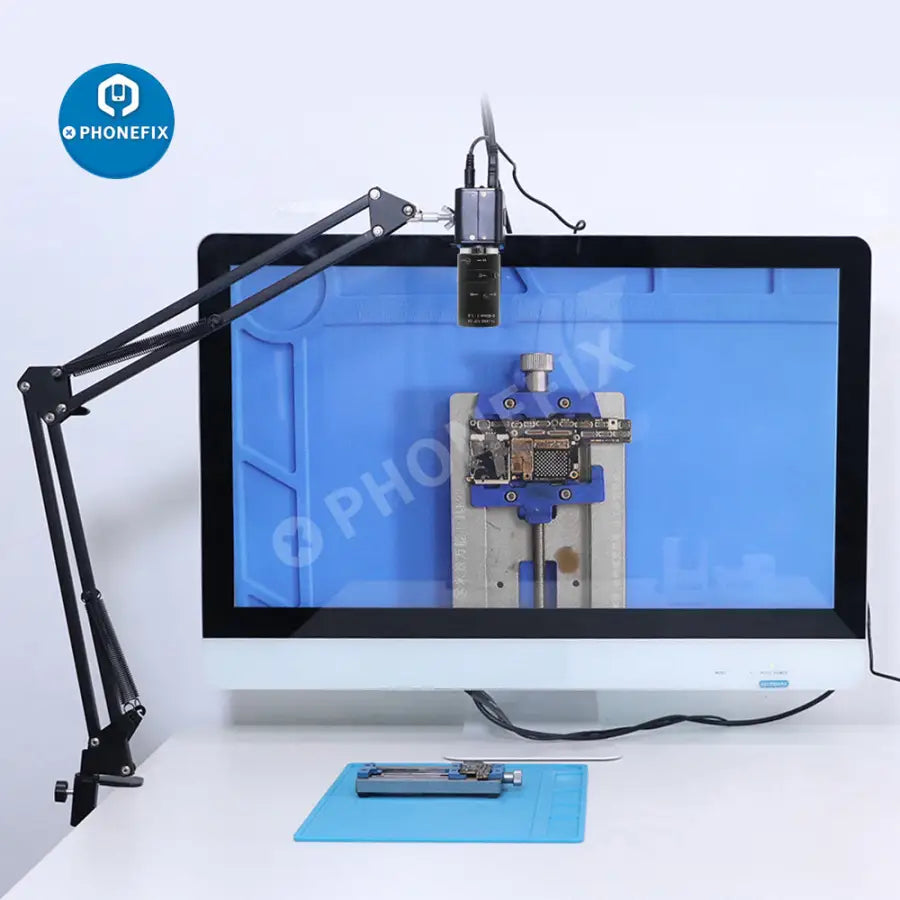

6. Suitable for Live stream cameras, surveillance camera, etc.

Packing list:
1 X 4K Industrial Camera
1 X 6mm-60mm F1.6 Lens
1 X Remote control
1 X DC12V power supply
