Full Hd 1080P USB Webcam CMOS OV2710 30fps 60fps 100fps Industrial UVC USB Camera for PC Computer Laptop with 2.8-12mm, 5-50mm, 8-50mm, 6-60mm Varifocal Zoom lens 2.8mm Prime Lens.
The HD 1080P USB CMOS board camera module is ideal for many applications like: security systems, portable video system, video phones, industrial machine monitoring and toys.
Lens Optional:
2.8-12mm, 2.8mm, 5-50mm, 8-50mm, 6-60mm
Stand Optional:

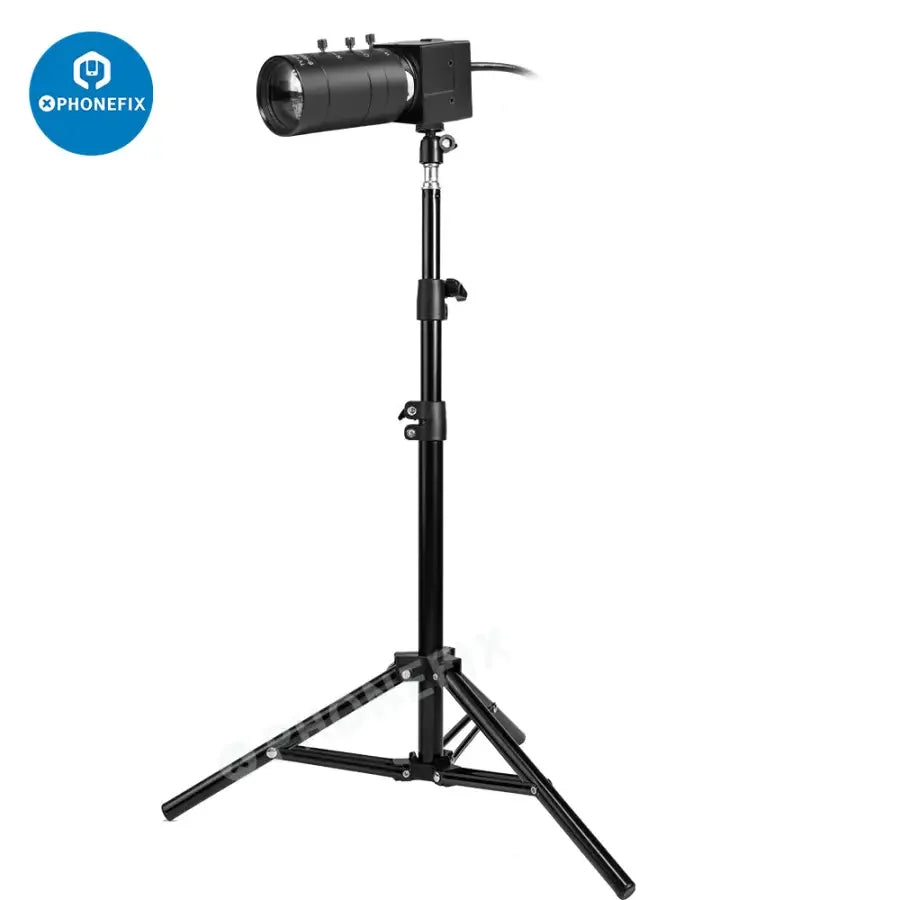

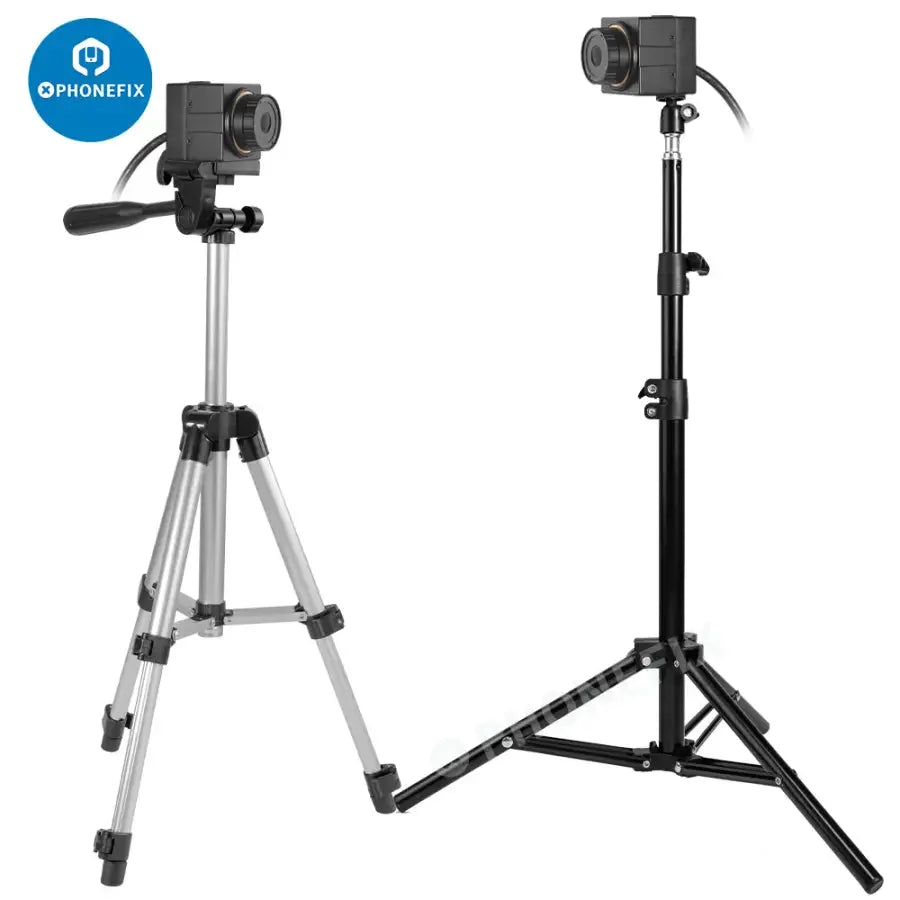

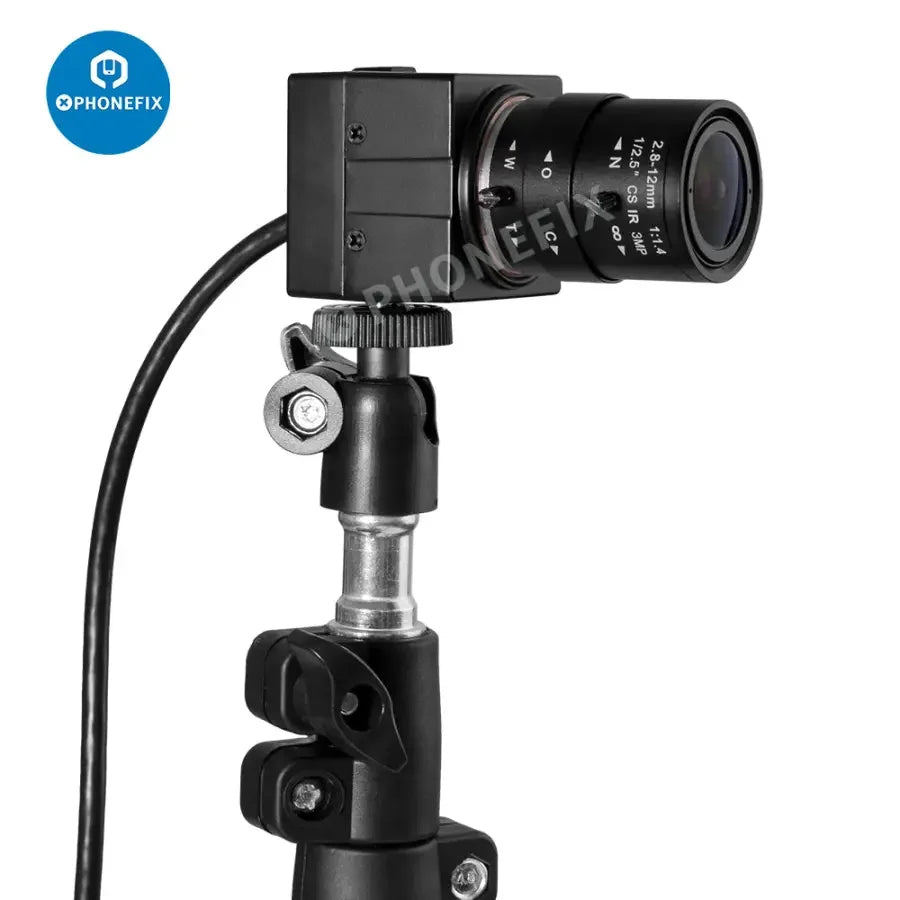

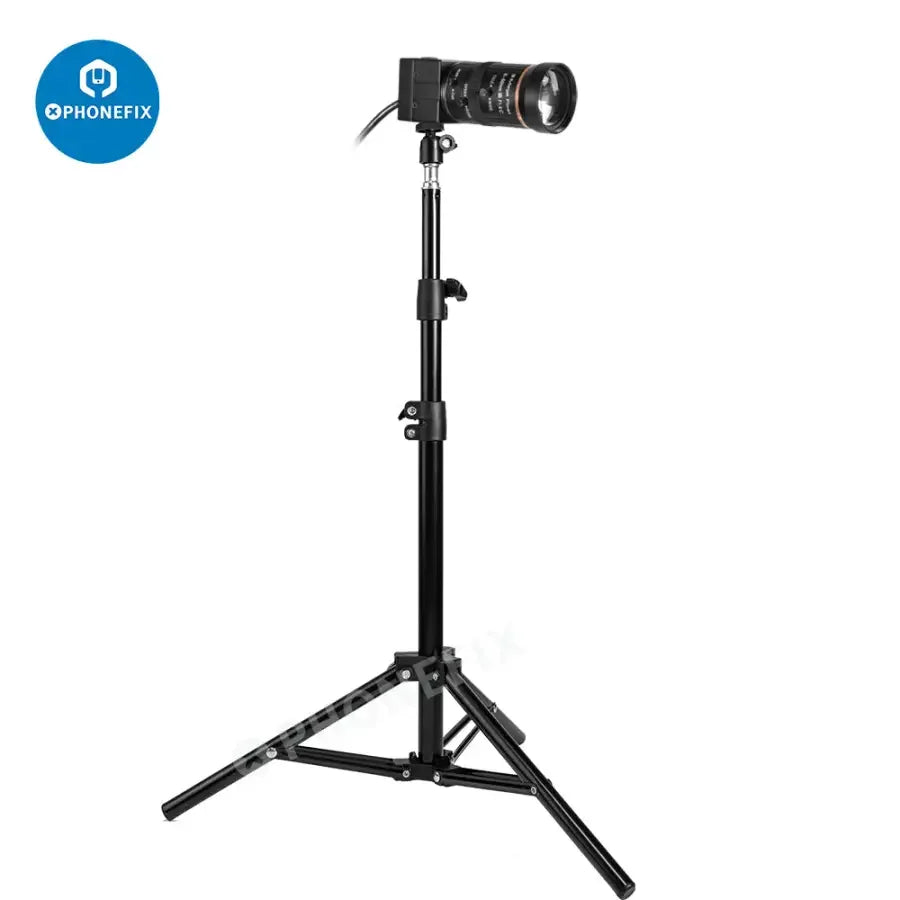

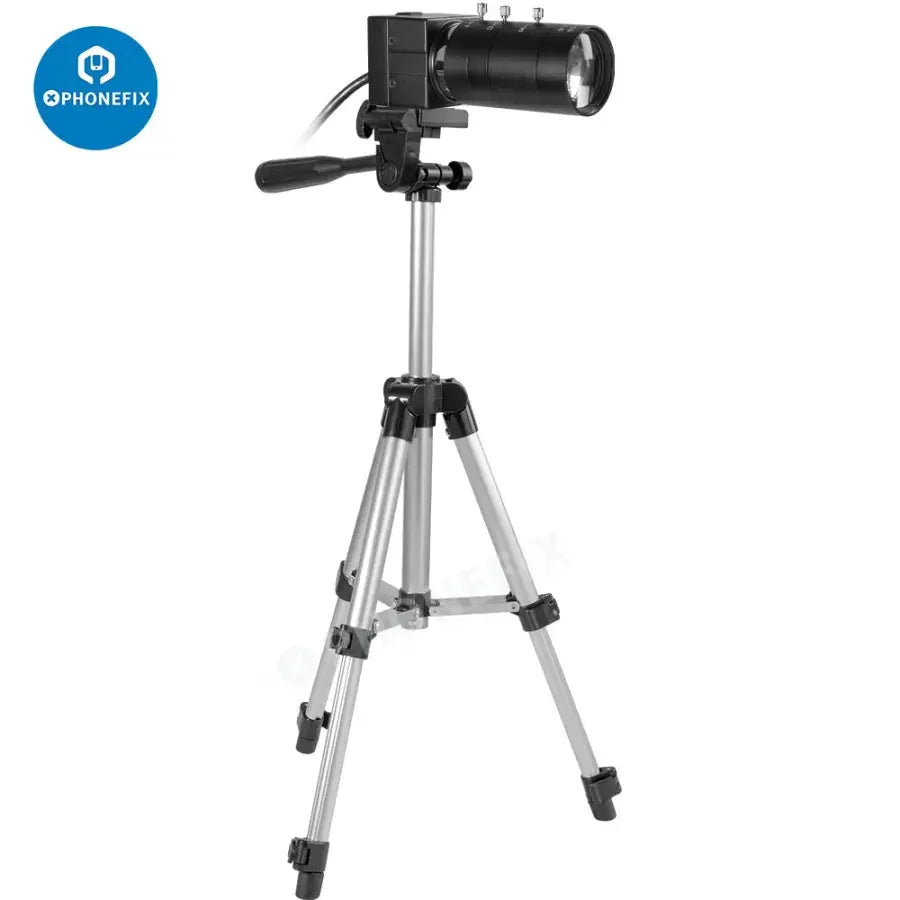

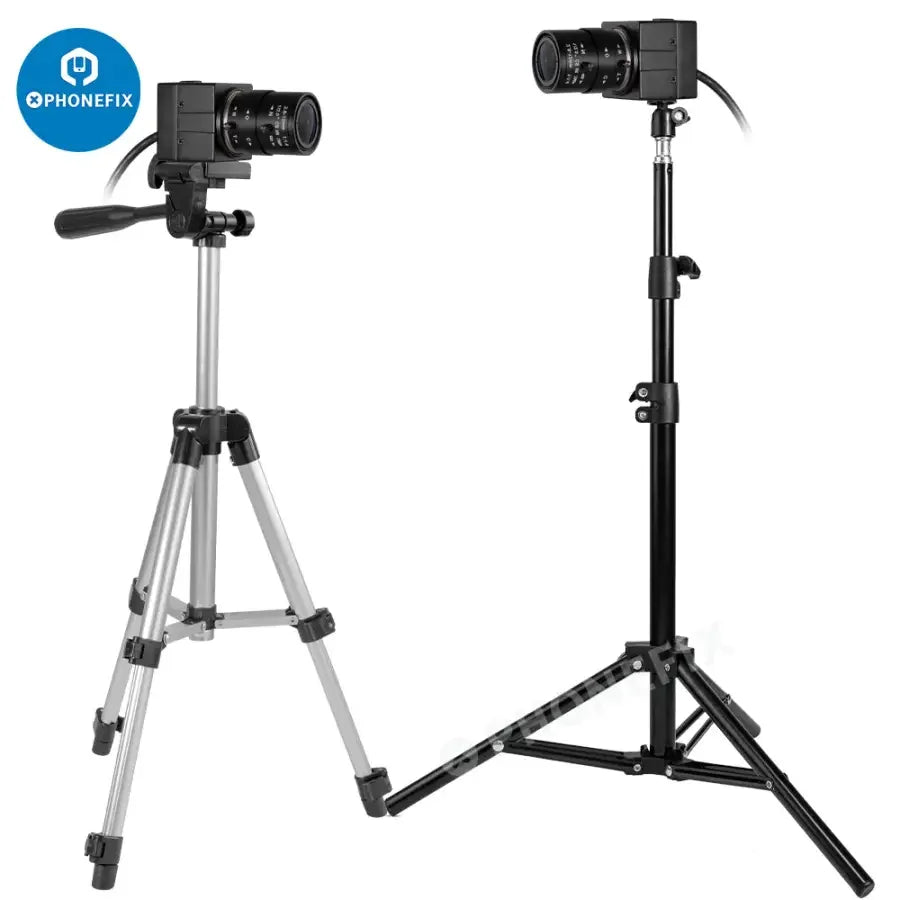

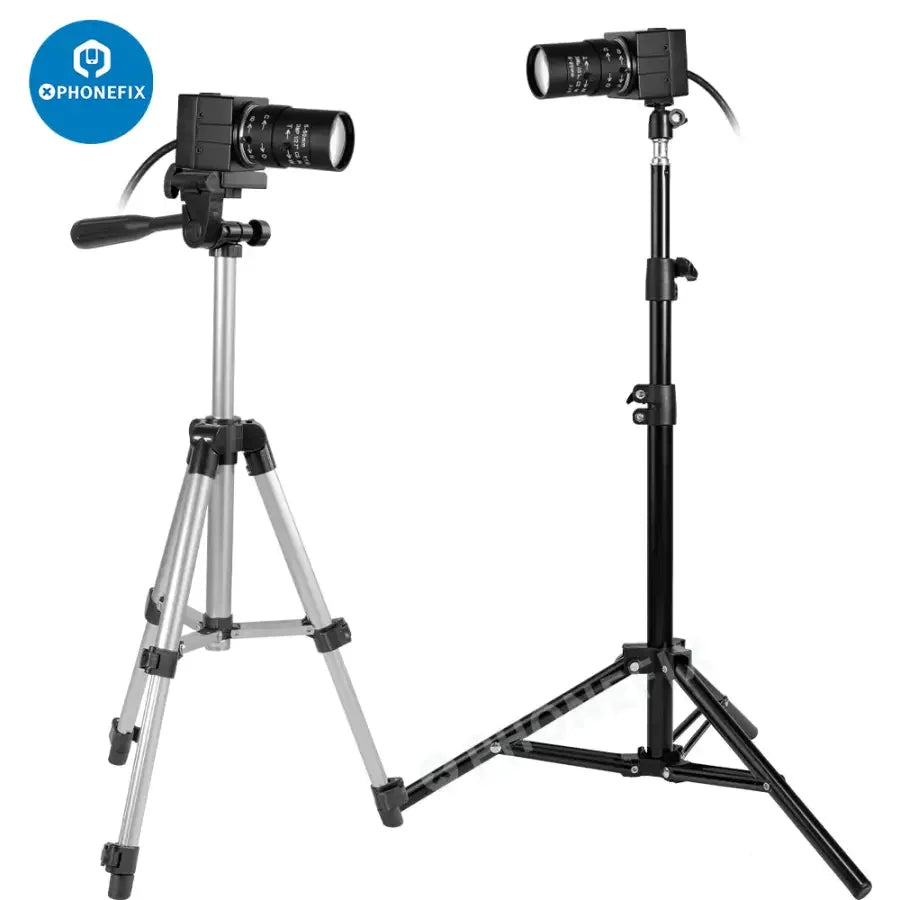

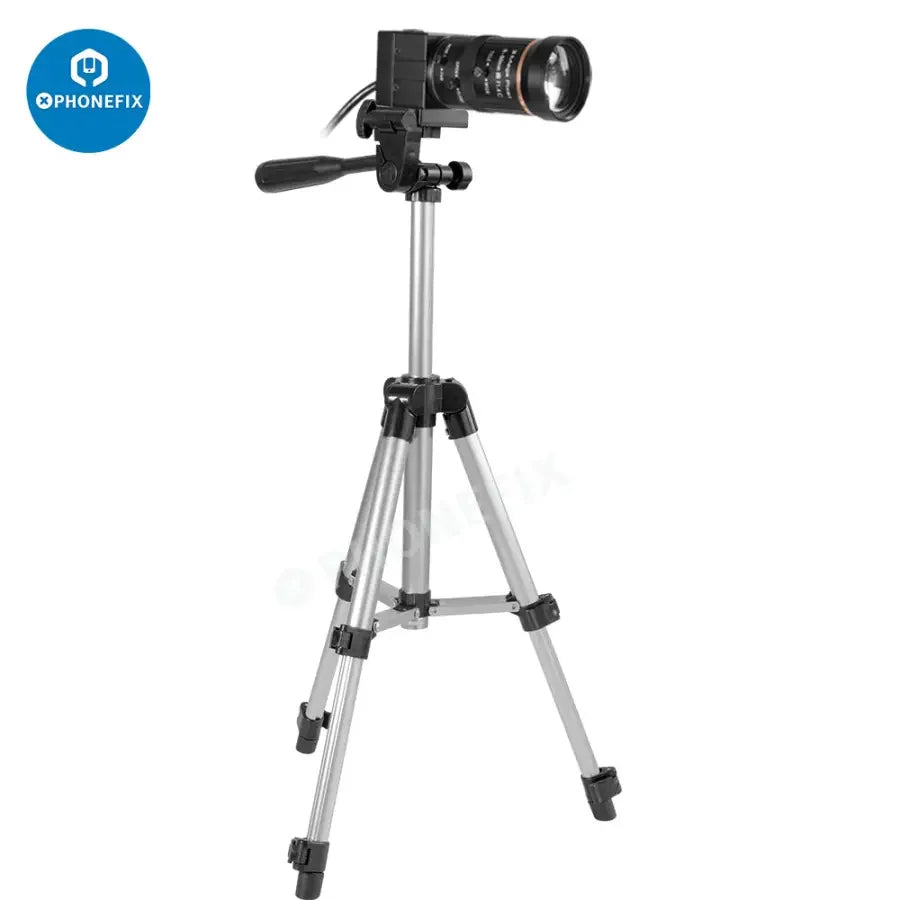

without Stand, with White Tripod, with Black Telescopic Stand
5MP Webcam Features:CMOS 1080Psensor for high quality image and low power consumption.
High speed USB 2.0 interface for high resolution PC camera interface.
High pixel technology for sharp image and accurate color reproduction.
Super small outline and thin profile for embedded applications.
High frame 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
Low power consumption ideal for portable equipment.

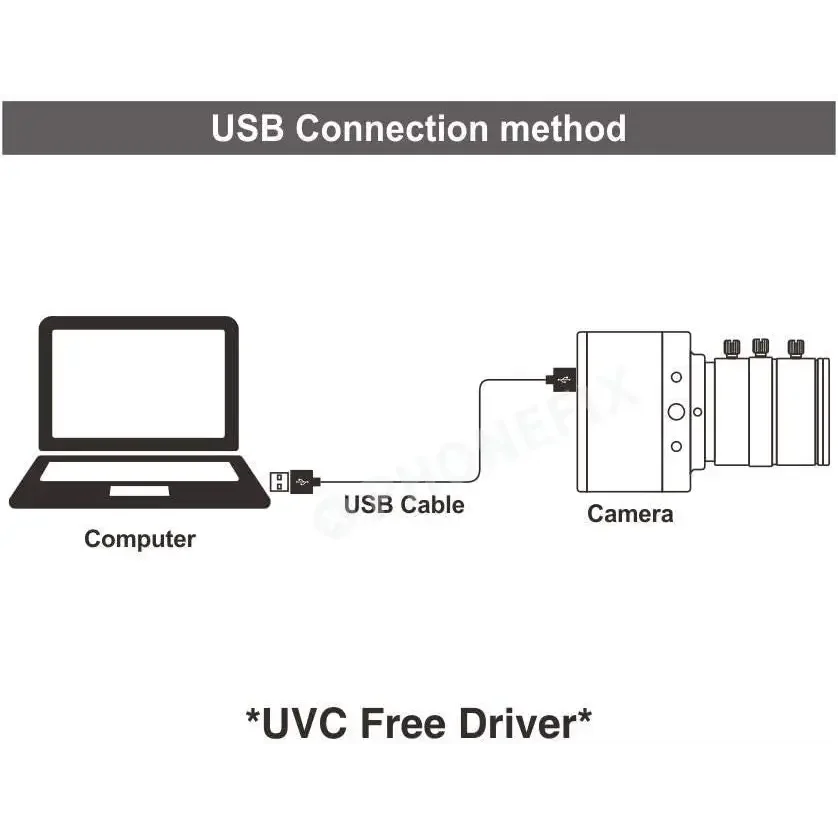

UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or Android 4.0 above.
Camera with UVC.
5MP CMOS Webcam Specification:
Optional models
|
ELP-USBFHD01M-SFV
|
Sensor
|
1/2.7" CMOS OV2710
|
Lens size
|
200W, 5.0megapixel, 1920(H)x1080(V)pixels
|
Max. Resolution
|
1920X1080
|
Picture format
|
MJPEG
|
USB Protocal
|
USB 2.0 HS/FS, USB1.1 FS
|
Support free driver
|
USB Video Class (UVC)1.1
|
Auto exposure AEC
|
Support
|
Auto white blance AEB
|
Support
|
Frame rate
|
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps 640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps 352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fps
|
Adjustable parameters
|
Brightness/Contrast/Color saturation /Definition/Gamma/WB
|
Night vision
|
optional, can choose IR board
|
view angle
|
20-100 degree optional
|
voltage
|
DC 5V
|
current
|
150mA
|
work temperature
|
DEGREES(-20~70)
|
Size
|
32x32mm/38*38
|
Support OS
|
WinXP/Vista/WIN7/WIN8 /Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above
|

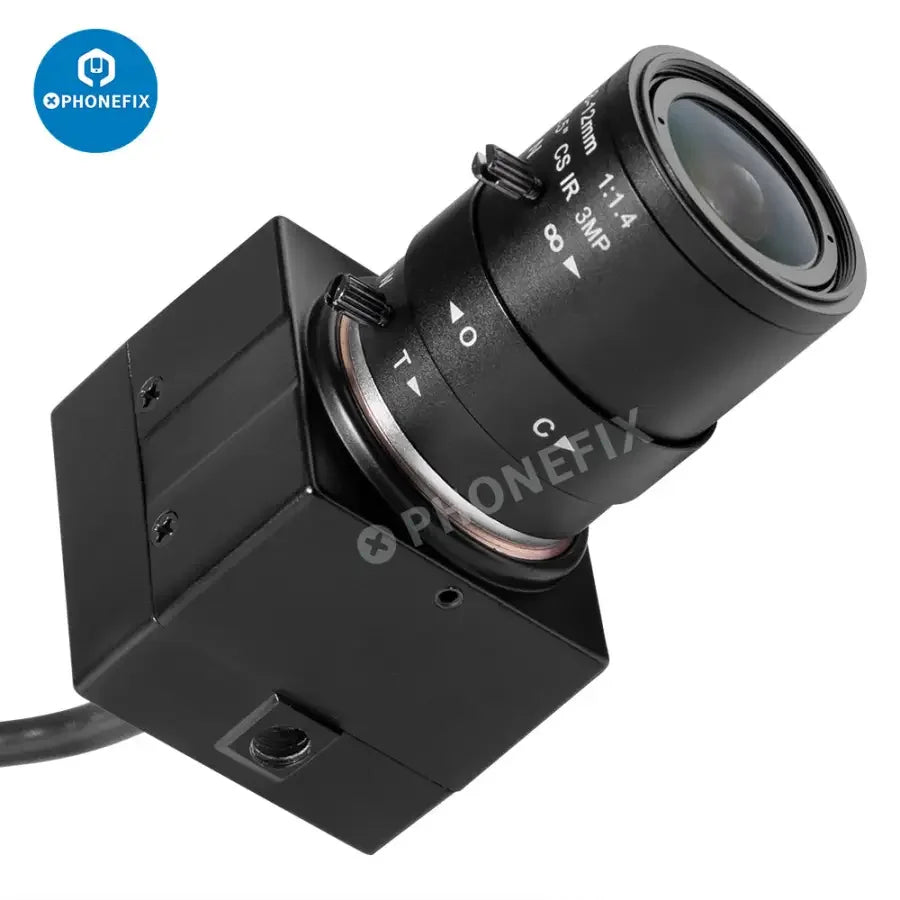

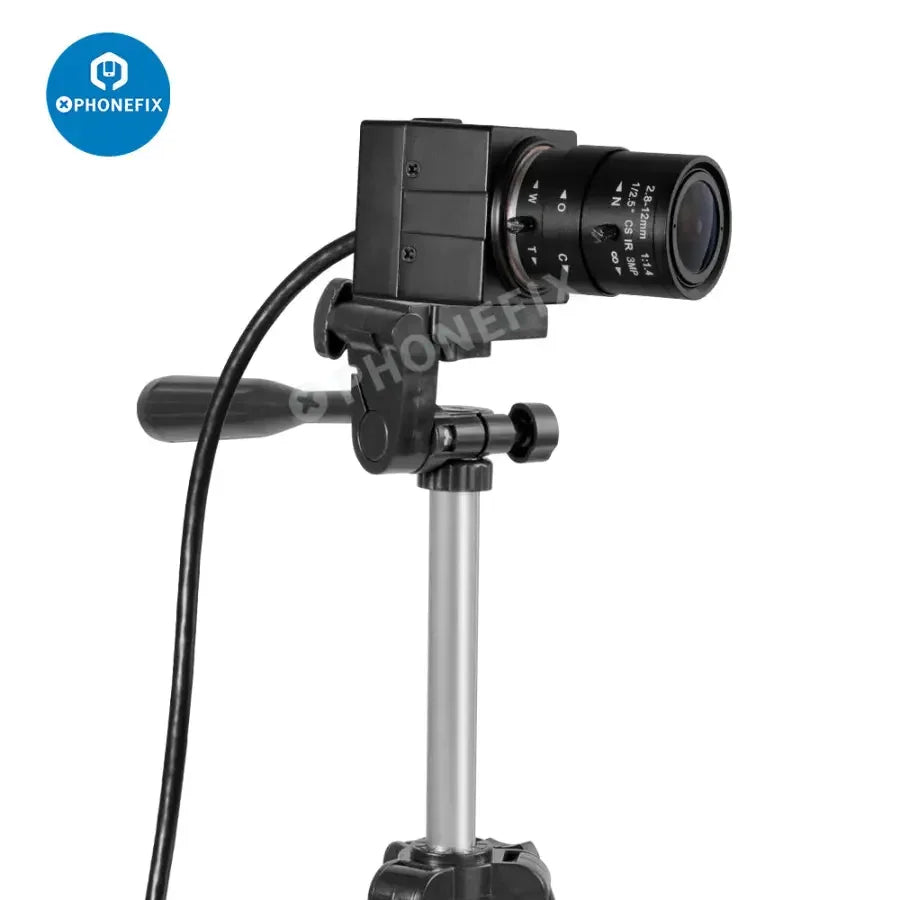

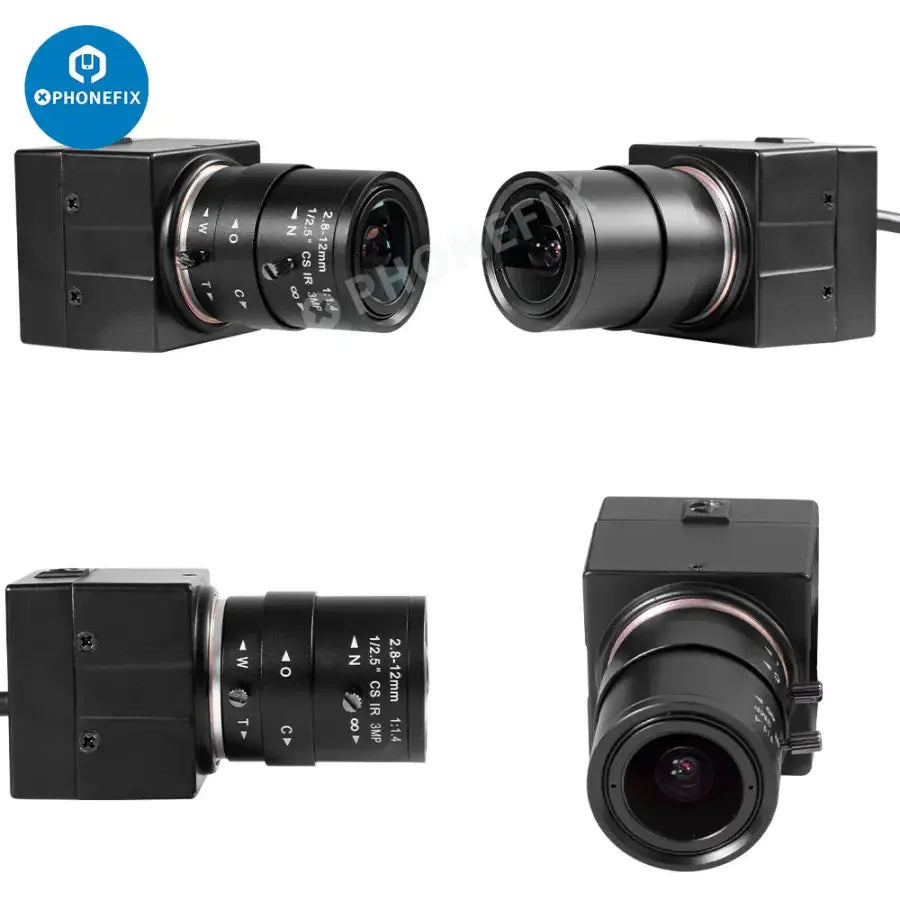

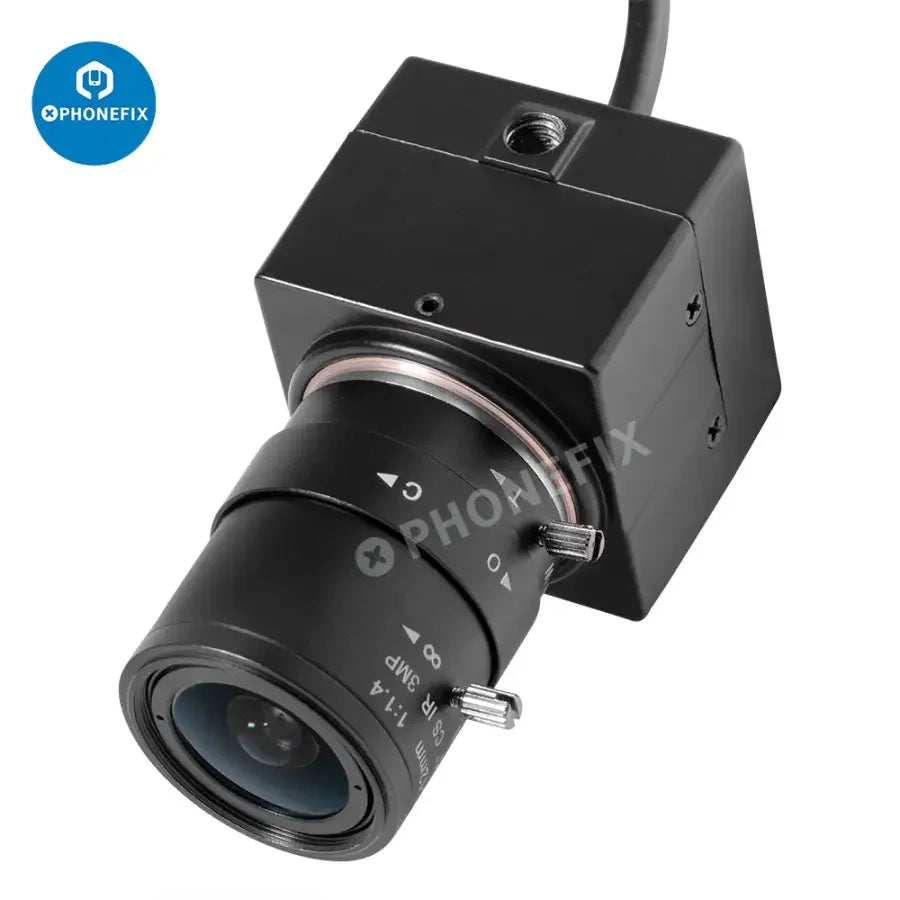

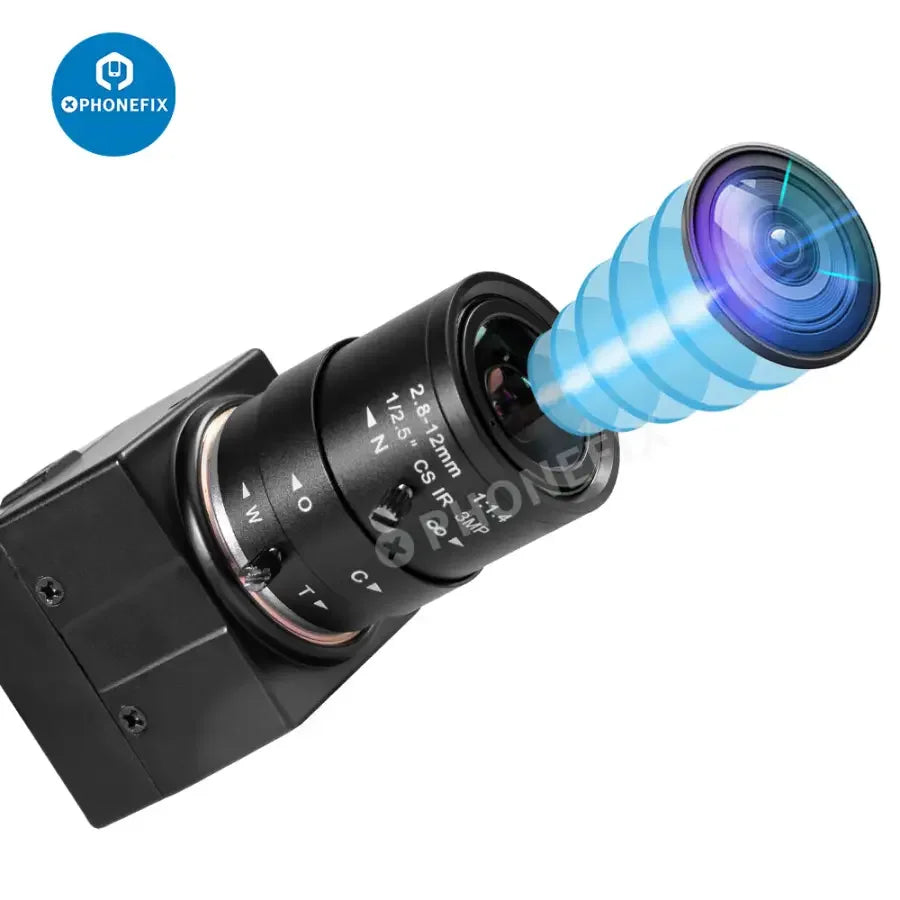

Lens Specification:2.8-12mm Lens Specification:2.8-12mm CCTV Lens 1/2.5" F1.4 3MP Varifocal CS Mount Lens
Product Name: Manual Iris Lens
Fit for CCTV/ Security IP Camera
Focal Length: 2.8-12mm
Horizonal Field: 99-28 Degree
Aperture(F): 1.4

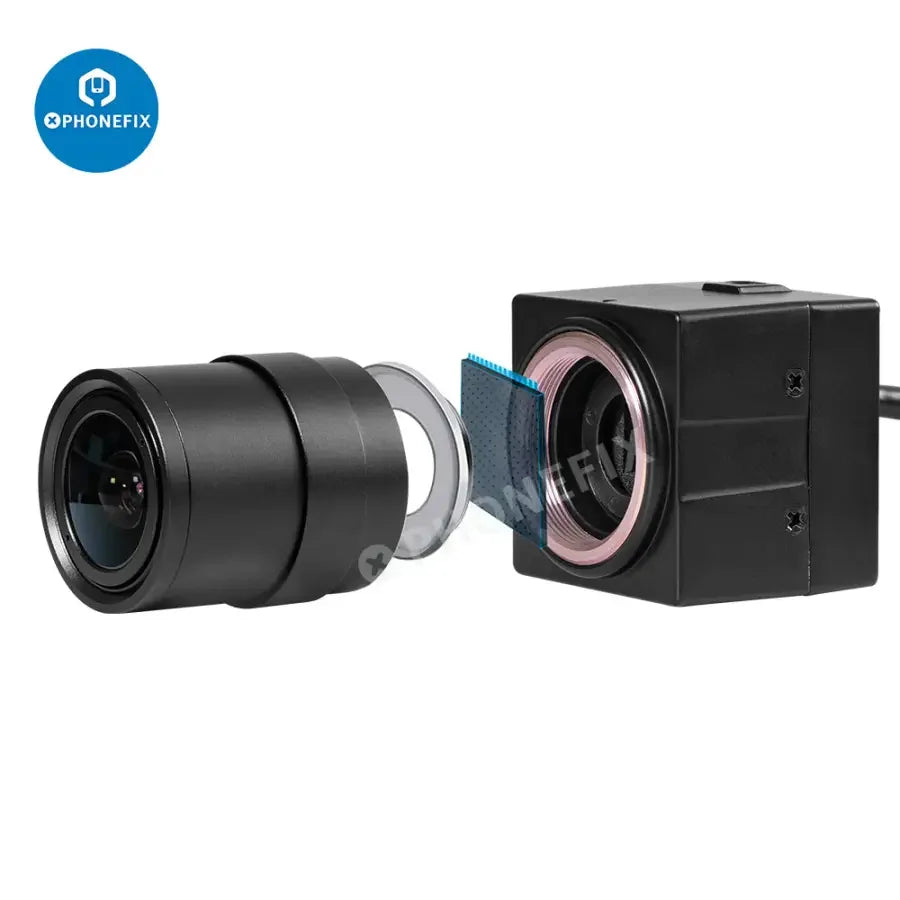

Mount:CS
Format :1/2.5-inch
Iris, Focus, Zoom: Manual

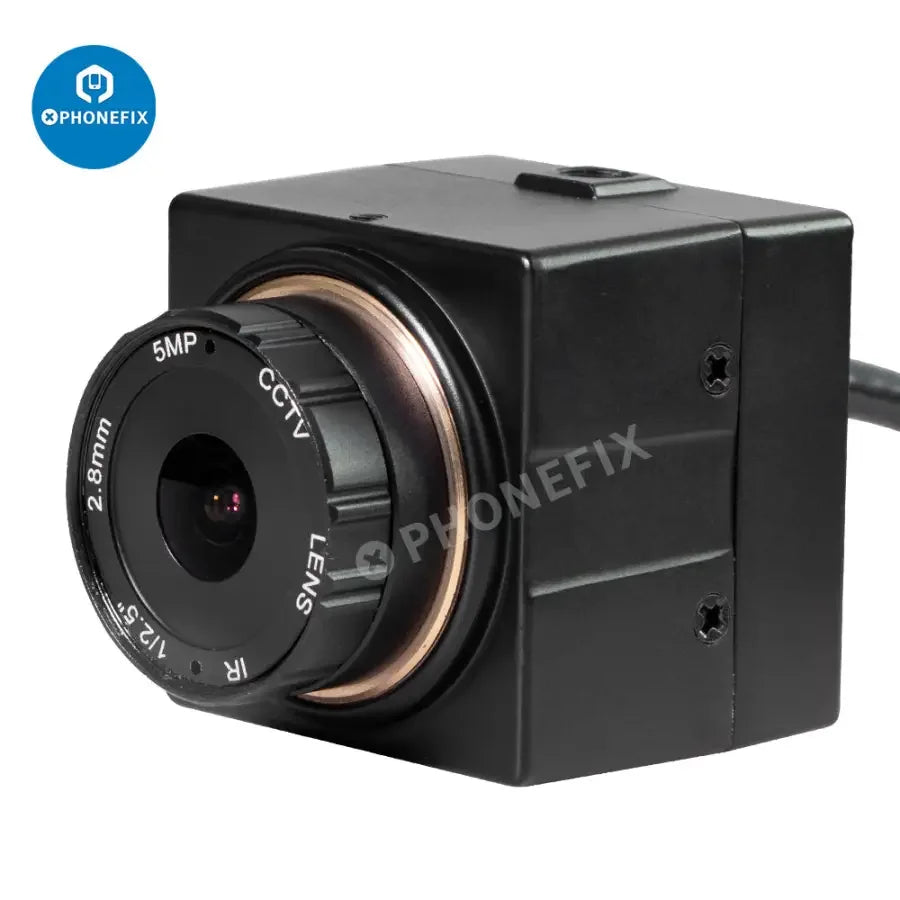

2.8mm Lens Specification:2.8mm 5MP F1.4 1/2.5" IR CS Mount Lens for CCTV IP Camera
Aperture D/f ": F1.4
Focal-Length(mm):2.8mm
Mount:CS
Horizontal Field:115 Deg
Dimension(mm): Φ28x15
Weight(g): 32.5
M.O.D(m): 0.2
Operation:Zoom: Fix
Focus: Manual:Iris: Fix
Operation Temperature: -10~+60
Bake Focal-Length(mm): 7.69
Lens Construction: All Glass, Metal

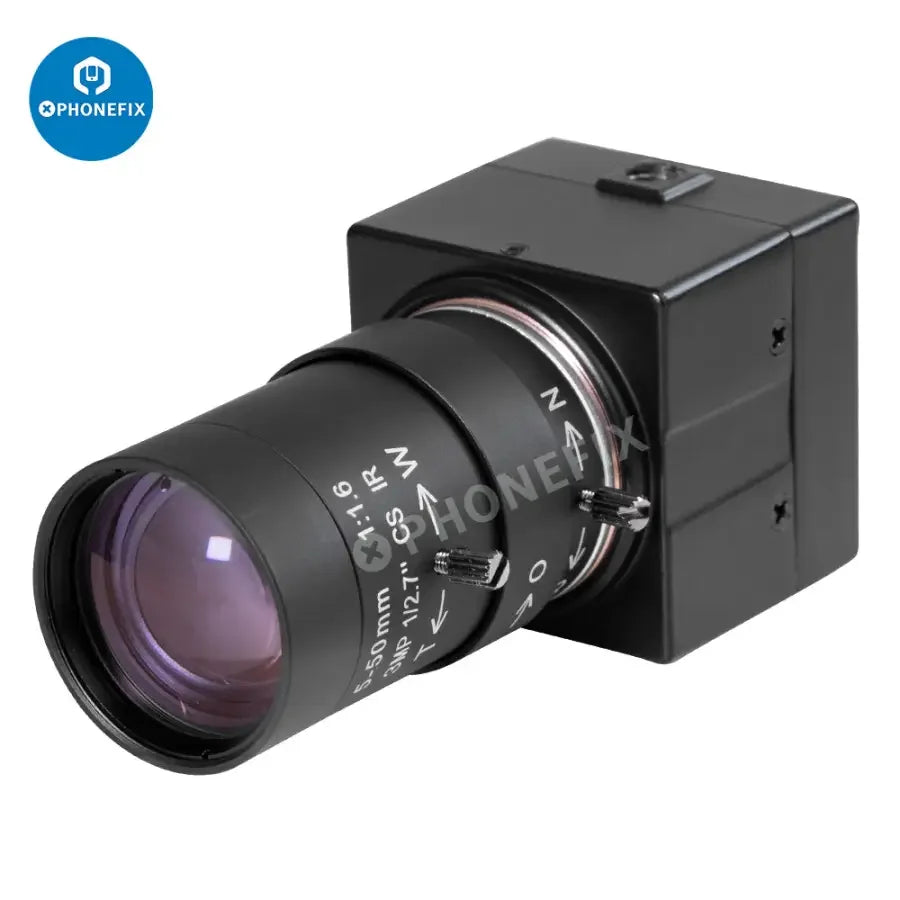

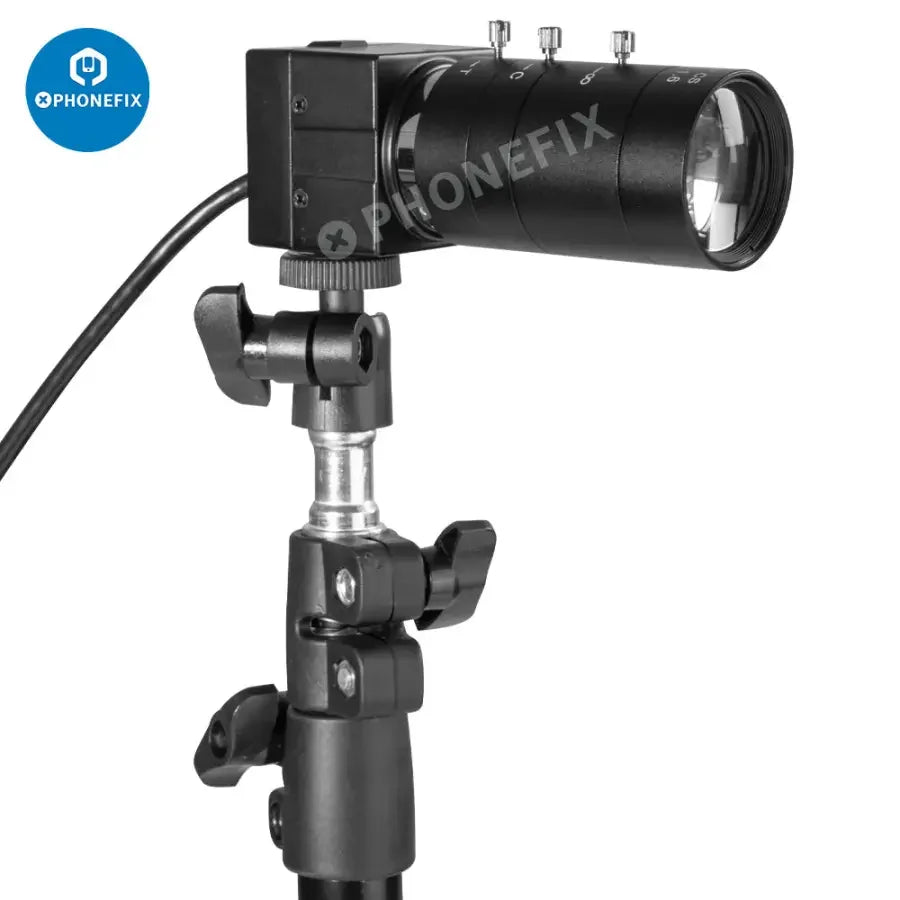

5-50mm Lens Specification:
5-50MM Varifocal F1.6 1/3" CS C-Mount Industrial Camera Lenses
Vari-focal: 5-50mm
Aperture:( F ) 1.6
Format:1/3"
Horizontal Angle of View:60 ~ 9.2 Degree
Min Object Distance:30 cm
Manual :IRIS, Zoom, Focus
Diameter 50mm x 30mm
Color;Black
Material:Metal+Glass
Suitable for cameras with either a 1/3" or 1/4" sensor.

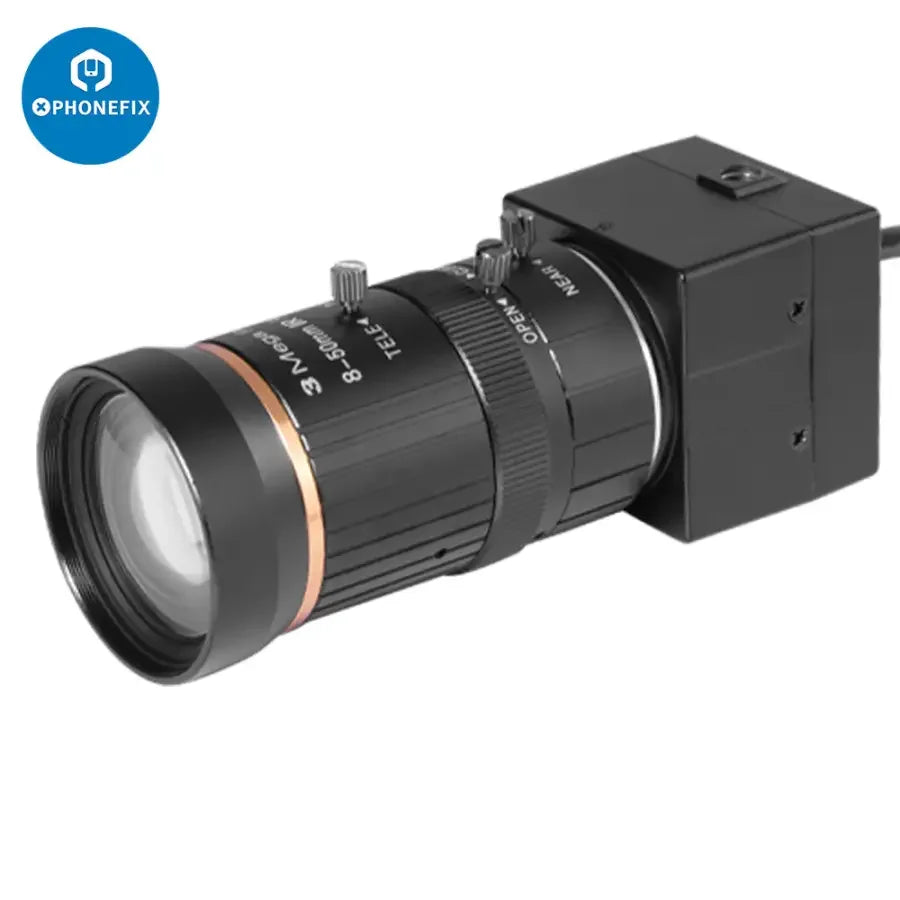

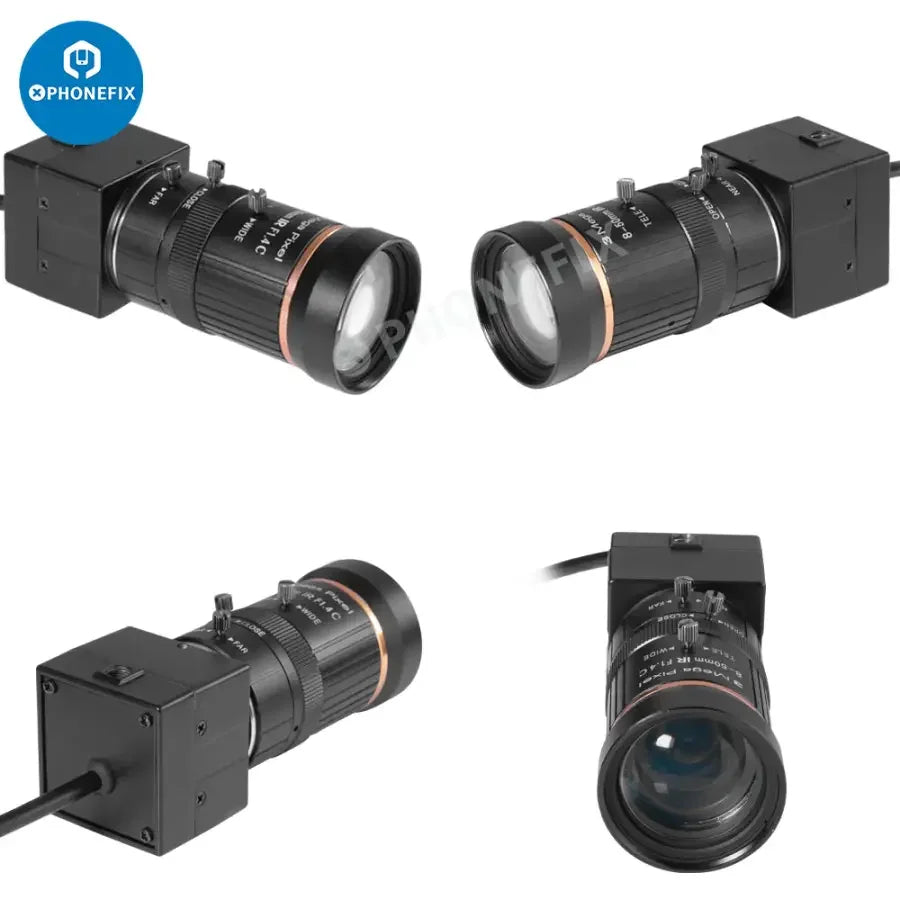

8-50mm Lens Specification:8-50mm 3MP 1/2.5″ F1.4 C Mount Lens for CCTV Industrial Camera
Focal Length: 8-50mm
Resolution: 3MP
Mount: C mount
F/No: F1.4
Format: 1/2.5”
Iris: Manual
Zoom: Manual
F.O.V(H/V): W 41.8°x30.8°/ T 6.42°x4.8°
Back Focal Length: 17.53m
MOD: 0.5m
Structure: 12G
Filter size: M37.5×0.5P
Dimension : Φ40×68.3mm

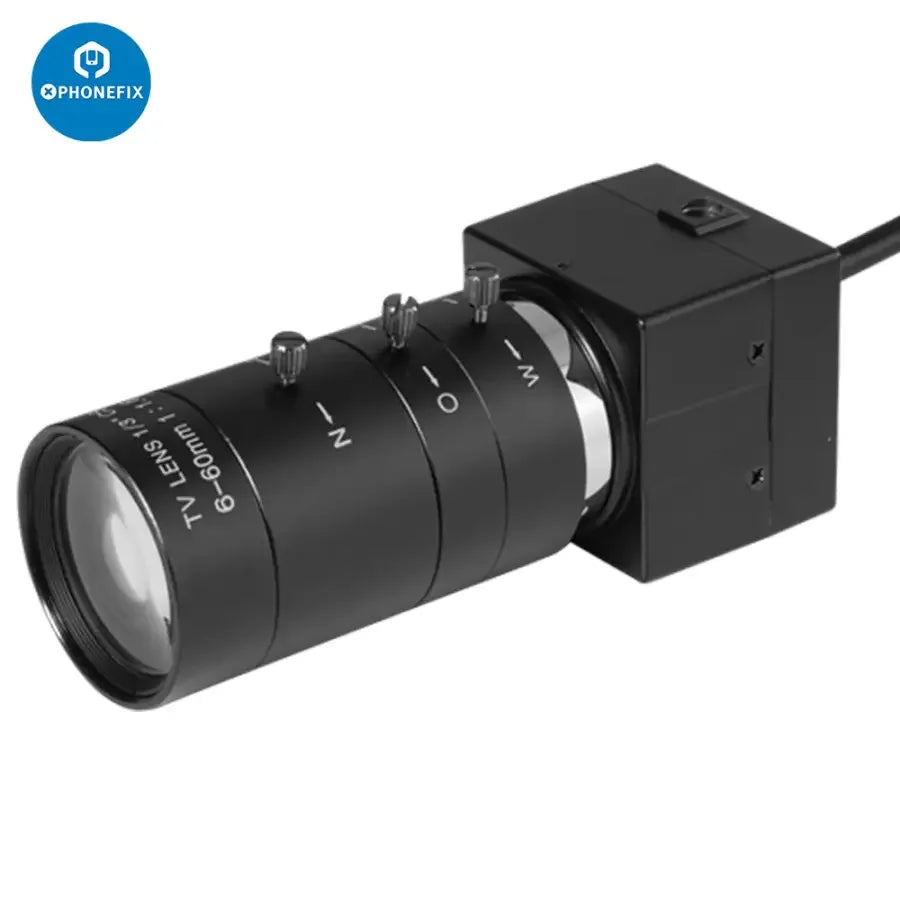

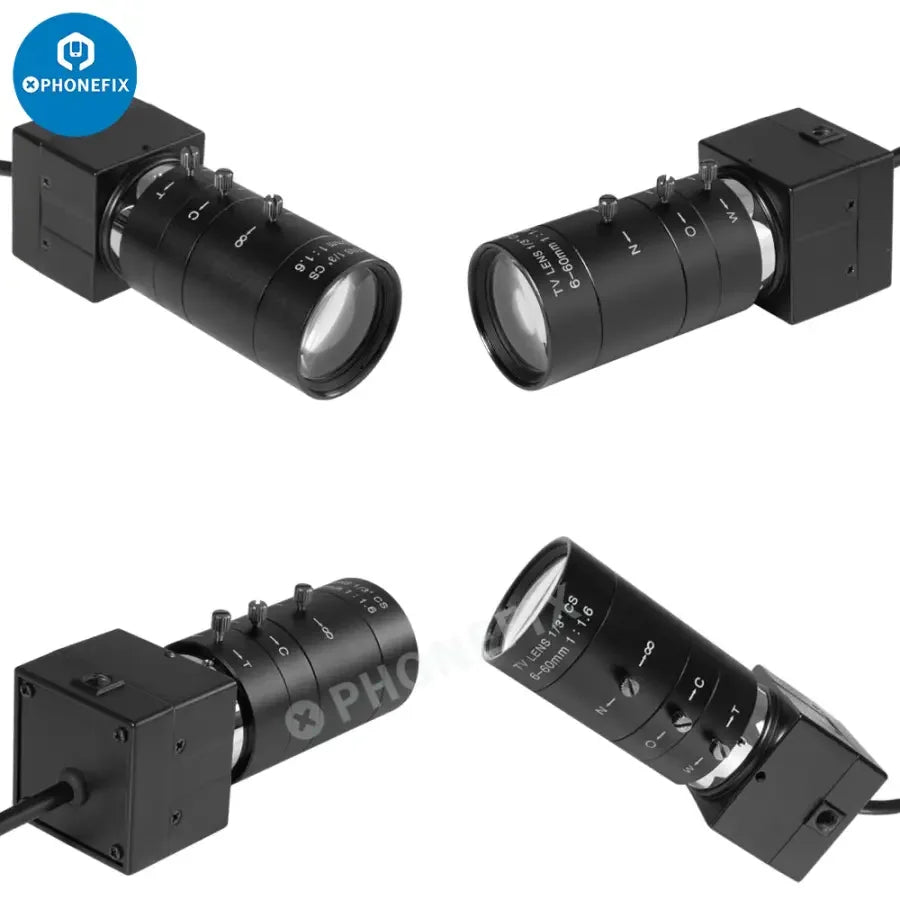

6-60mm Lens Specification:6-60mm 1/3" CCD F1.6 CS Mount Lens for CCTV Surveillance Camera
Focal-Length: 6-60mm
Image format: 1/3" CCD
Angle of View: 51.5°-6°
Aperture: F1.6
M.O.D: 0.3m
Mount thread: CS
Back Focal-Length: 12.526
Lens Construction: metal
Operating Temerature: -20°~+60°
Material: alloy, optical glass
Color: black
Size: Φ39*70mm
Iris, Focus, Zoom: Manual

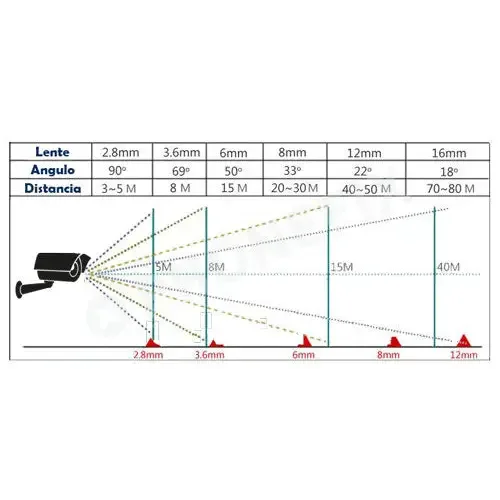

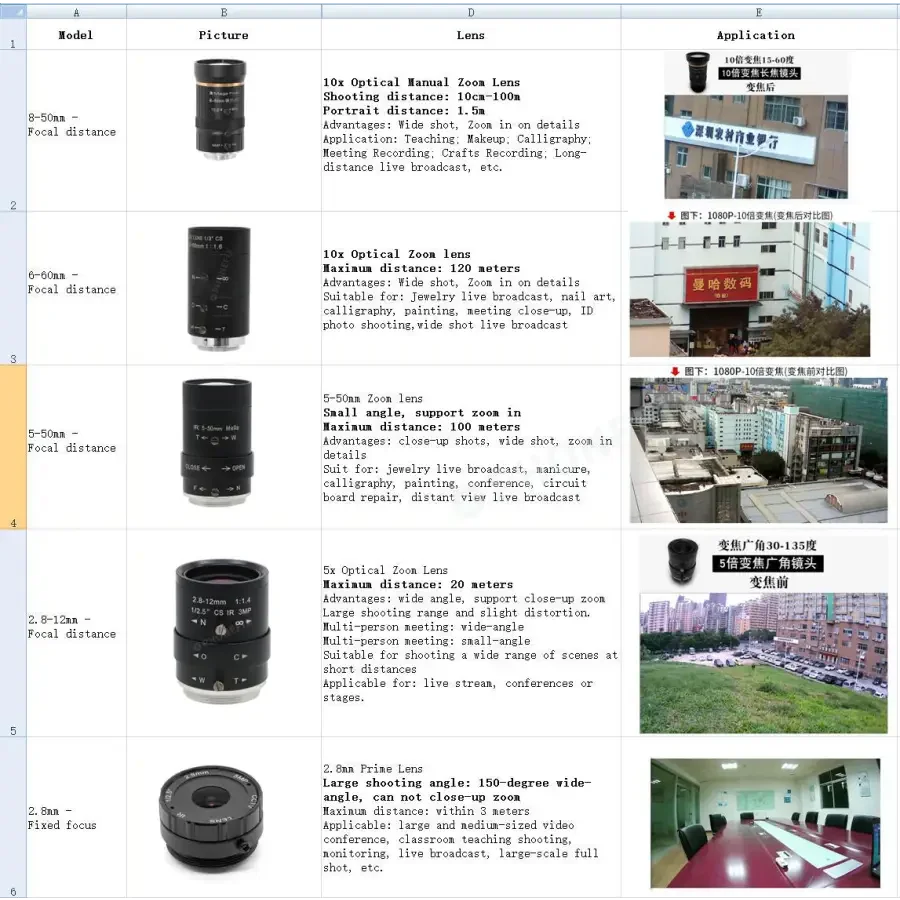

Tips:1. The longer the focal length, the farther the view; the longer the focal length, the smaller the view field.

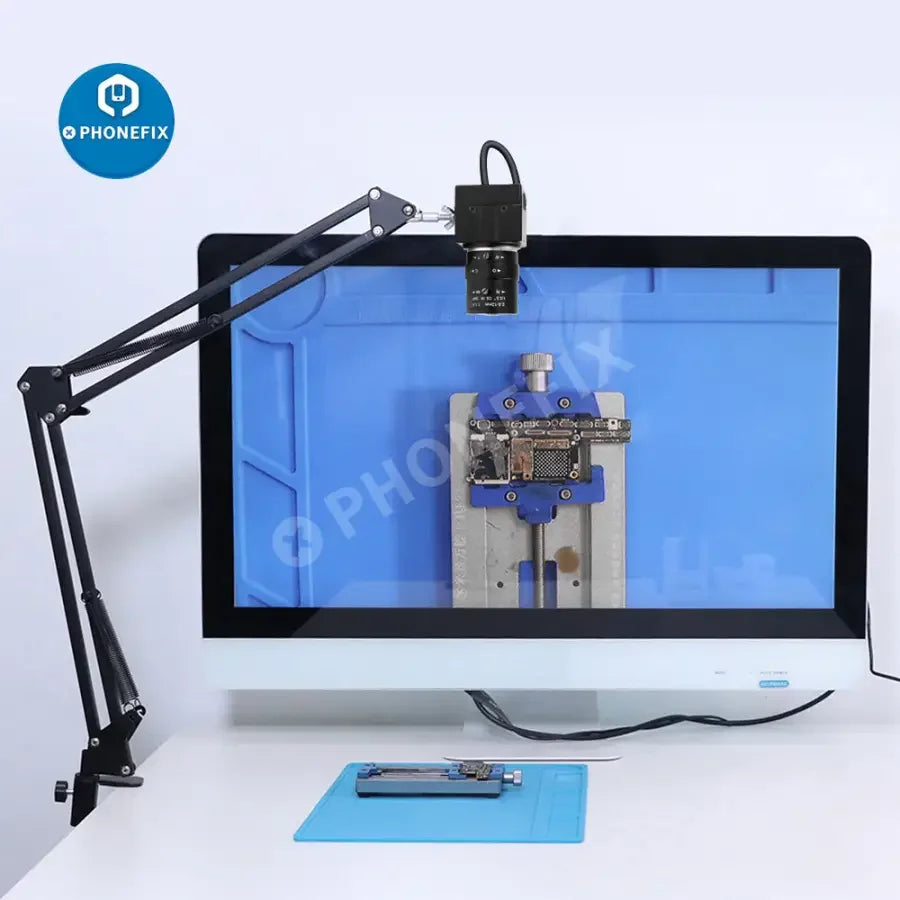

2. Len Applicable for Phone Repair: 6-60mm/5-50mm
Package Includes:1 x Webcam
1 x Lens (Optional)
1 x Stand (Optional)
