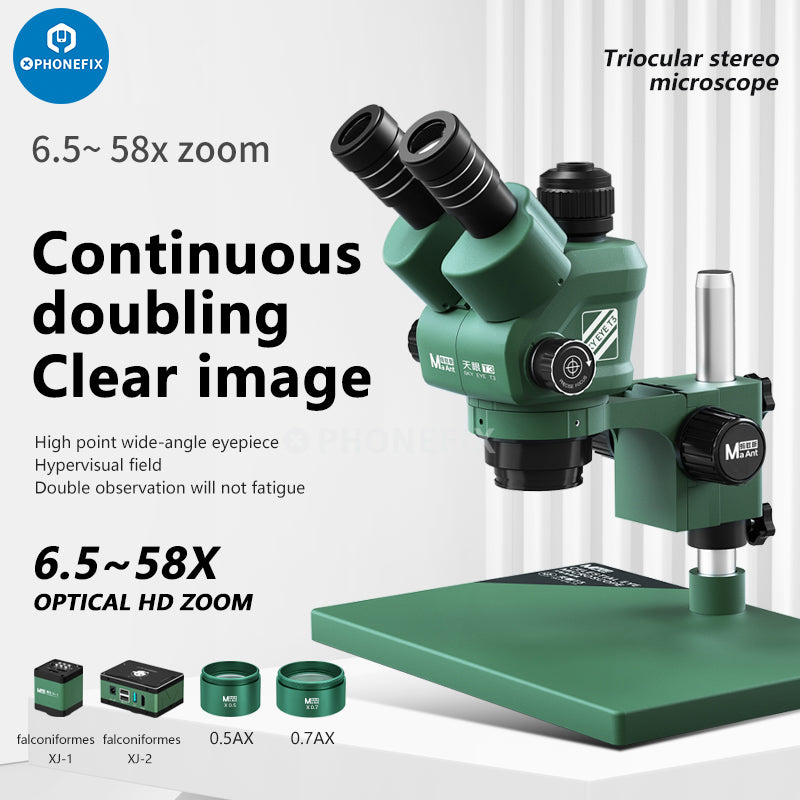

MaAnt SKY EYE T3 Trinocular Stereo Microscope 6.5-58X Optical HD Zoom with WF 10X/23 wide-angle eyepiece, CTV lens, smoke proof anti-dust 26 LED light, and HDMI 4K camera. Professional micro soldering tool electric microscope for mobile phone motherboard PCB SMD BGA chip soldering desoldering repair, object observation research, etc.

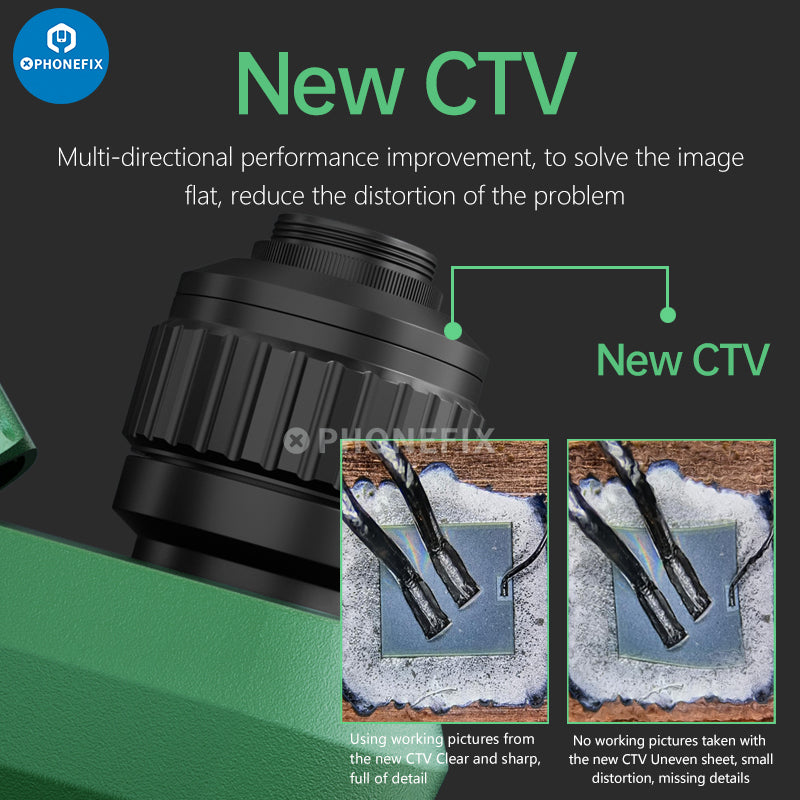

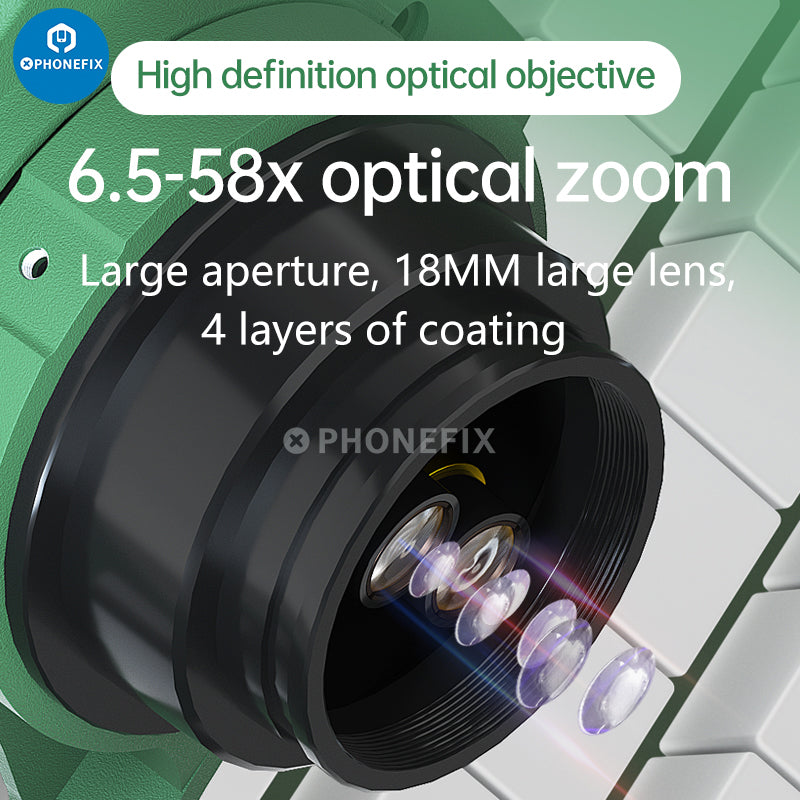

Features: 1. Focus adjustment knob, adjust up and down through the knob, height, free lift, precise focus length adjustment, make the image clearer. 2. High definition 6.5X-58X optical zoom, large aperture, 18MM large lens, 4 layers of coating. 3. Dustproof mirror light souse, with smoke proof, anti-dust 26 LED light, adjustable brightness, knob adjustment, easy to operate. 4. New CTV Lens adapter, reduces the distortion of the problem. 5. 45 degree tilt design. 6. 4K HD industrial camera eagle CJ-1 and eagle CJ-2. 7. Synchronous HD display, 4K precision measurement of the microscopic world. Eye observation and screen display synchronous observation, the picture is clear and sharp, you can see all the details.

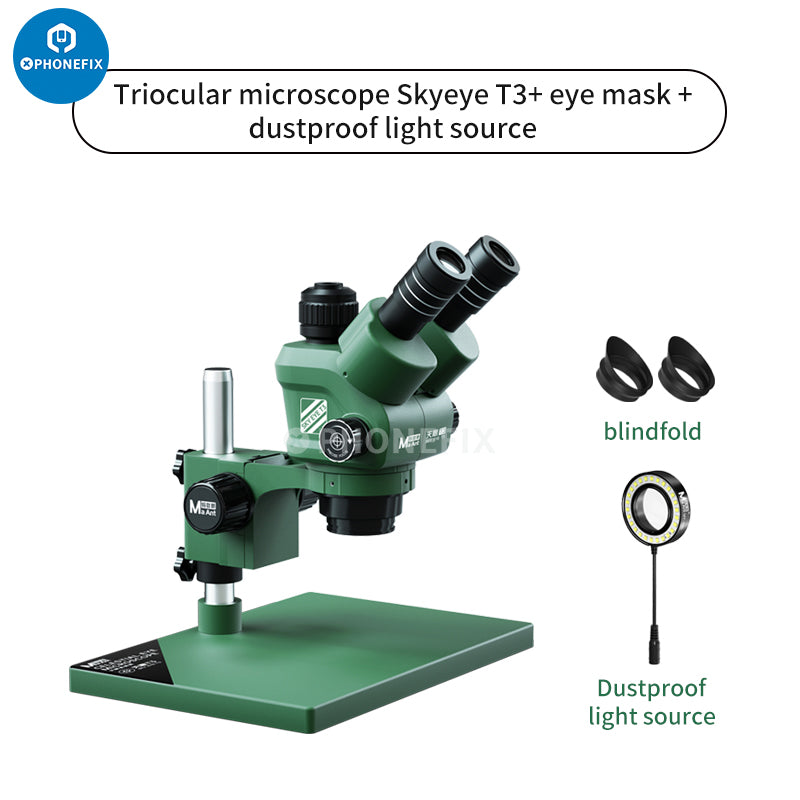

MaAnt T3 Standard set: 1x 6.5-58X Trinocular Stereo Microscope with CTV Lens, 10X/23 eyepiece, 26 LED lamp, 378mm*260mm*22mm holder base.

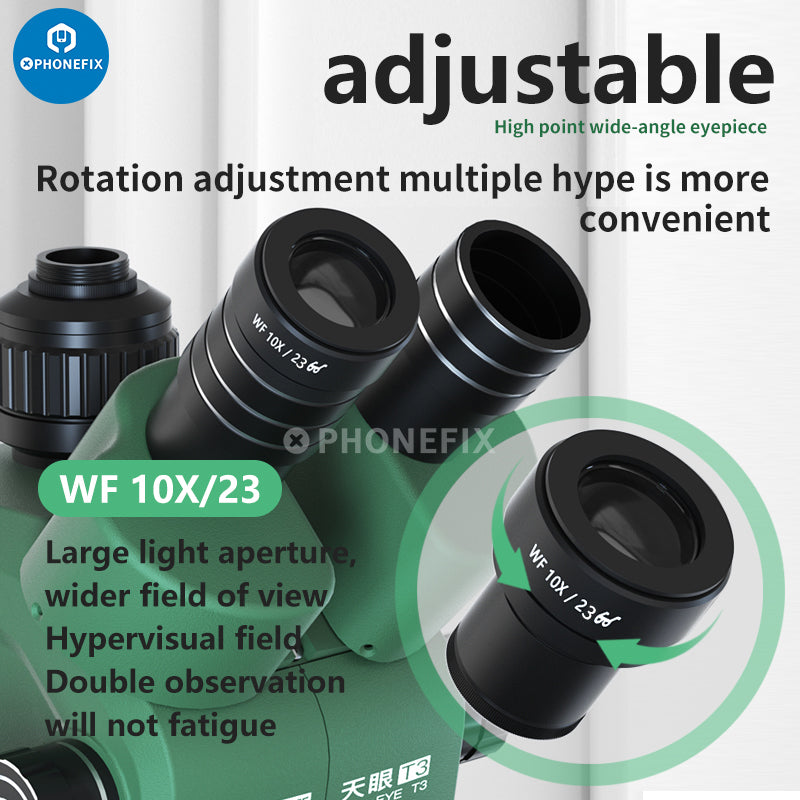

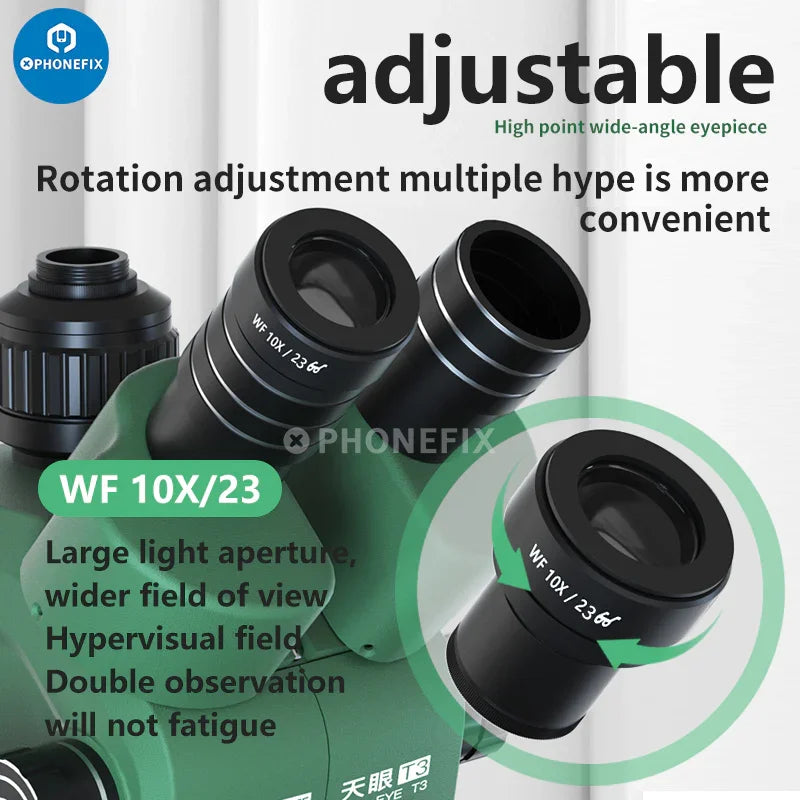

MaAnt Tianyan T3 microscope parameters: Magnification: 6.5X-58X. Eyepiece: WF10X/23mm. Object mirror: 0.65 to 5.8X continuously multiplied. Focusing system: Coarse fine-tuning focal knob. Dioptric regulation: ±5DP. Light source: 26 LED ring light. Package size: 43x34x26cm

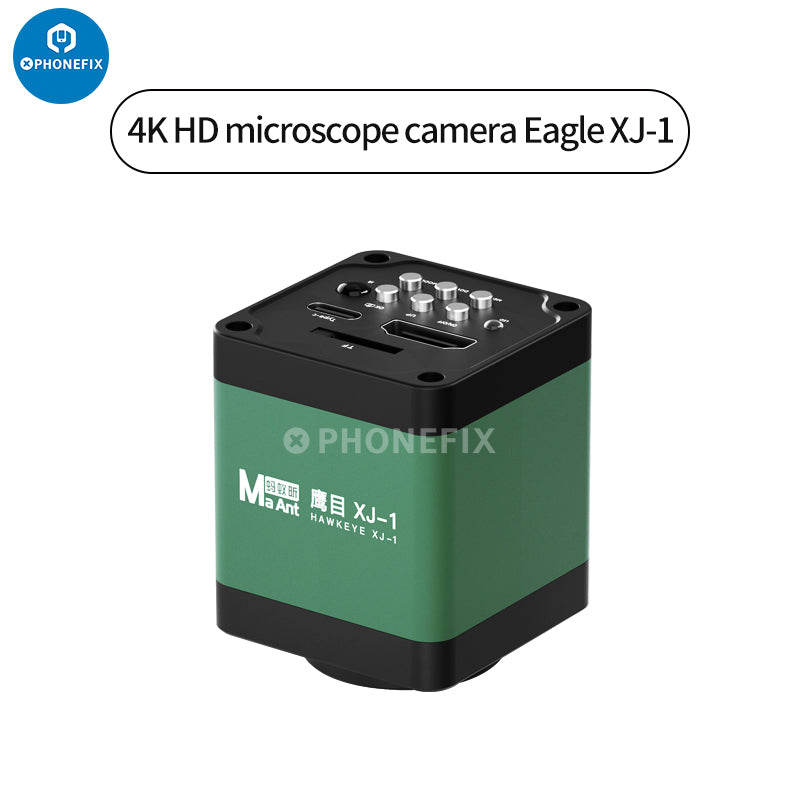

4K HD Camera Parameters: Model: Eagle XJ-1 4K Camera. Sensor: 1/2.9 inch SONY 8.29 megapixel CMOS sensor. HDMI output: 3840*2160 60frame, 1920*1080 60frame. C-mount lens: C/CS. USB output: 3840*2160/2560*1440/1920*1080/1280*720, 640*480/424*240/320*240. Pixel size: 1.45*1.45um. Exposure: Automatic/manual. Exposure compensation: support. Center line: support. White balance: manual/automatic, support R, G, B adjustable. Input voltage: DC 5V. Lineation: supports 16 straight lines with adjustable color, thickness and position. Remote control unit: support.

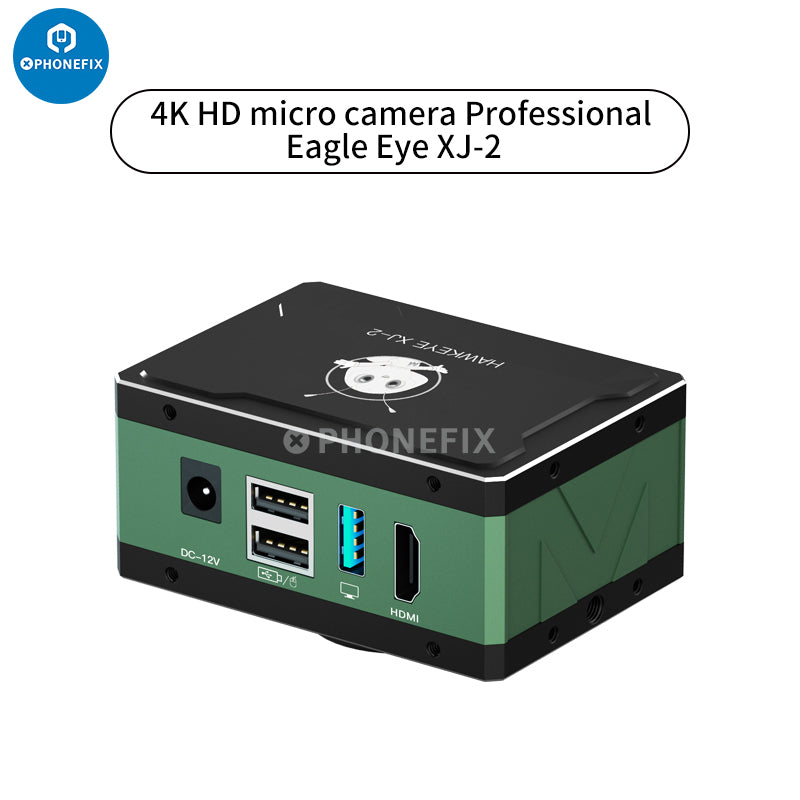

Model: Eagle XJ-2 4K HD industrial camera. Sensor: SONY-IMX678, 4K. Resolution: 3840*2160@60fps. Output interface: HDMI+UVC synchronous output. Pixel size: 2.0*2.0um. Power source: DC-12V/1A. Basic function: take pictures, video and measure. Gridlines: 8 horizontal and vertical, the color thickness can be adjusted and moved. Picture quality adjustment: color, color temperature, white balance, exposure. Camera function: mirrow, freeze, flip, wide dynamic, zoom in, zoom out, 4K video recording, 4K photography, ect.
